LeCroy WavePro 7 Zi series Parts list manual

Getting Started
Manual
WavePro 7 Zi/Zi-A
Oscilloscopes

WavePro 7 Zi/Zi-A Oscilloscopes
Getting Started Manual
February, 2013

© 2013 Teledyne LeCroy, Inc. All rights reserved.
Unauthorized duplication of Teledyne LeCroy documentation materials other than for
internal sales and distribution purposes is strictly prohibited. However, clients are
encouraged to distribute and duplicate Teledyne LeCroy documentation for their own
internal educational purposes.
WavePro and Teledyne LeCroy are registered trademarks of Teledyne LeCroy, Inc. Windows
is a registered trademark of Microsoft Corporation. Other product or brand names are
trademarks or requested trademarks of their respective holders. Information in this
publication supersedes all earlier versions. Specifications subject to change without notice.
Warranty
NOTE: THE WARRANTY BELOW REPLACES ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS,
OR ADEQUACY FOR ANY PARTICULAR PURPOSE OR USE. TELEDYNE LECROY SHALL NOT BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN
CONTRACT OR OTHERWISE. THE CUSTOMER IS RESPONSIBLE FOR THE TRANSPORTATION
AND INSURANCE CHARGES FOR THE RETURN OF PRODUCTS TO THE SERVICE FACILITY.
TELEDYNE LECROY WILL RETURN ALL PRODUCTS UNDER WARRANTY WITH TRANSPORT
PREPAID.
The oscilloscope is warranted for normal use and operation, within specifications, for a
period of three years from shipment. Teledyne LeCroy will either repair or, at our option,
replace any product returned to one of our authorized service centers within this period.
However, in order to do this we must first examine the product and find that it is defective
due to workmanship or materials and not due to misuse, neglect, accident, or abnormal
conditions or operation.
Teledyne LeCroy shall not be responsible for any defect, damage, or failure caused by any of
the following: a) attempted repairs or installations by personnel other than Teledyne LeCroy
representatives or b) improper connection to incompatible equipment, or c) for any damage
or malfunction caused by the use of non-Teledyne LeCroy supplies. Furthermore, Teledyne
LeCroy shall not be obligated to service a product that has been modified or integrated
where the modification or integration increases the task duration or difficulty of servicing
the oscilloscope. Spare and replacement parts, and repairs, all have a 90-day warranty.
The oscilloscope's firmware has been thoroughly tested and is presumed to be functional.
Nevertheless, it is supplied without warranty of any kind covering detailed performance.
Products not made by Teledyne LeCroy are covered solely by the warranty of the original
equipment manufacturer.
922137-00 Rev A
February 2013

Getting Started Manual
922137-00 Rev A
i
Table of Contents
Welcome .....................................................................................1
Safety Instructions .......................................................................2
Symbols........................................................................................ 2
Precautions ..................................................................................2
Operating Environment ...............................................................3
Cooling ......................................................................................... 3
Cleaning........................................................................................4
Calibration....................................................................................4
Power ........................................................................................... 4
Hardware ....................................................................................6

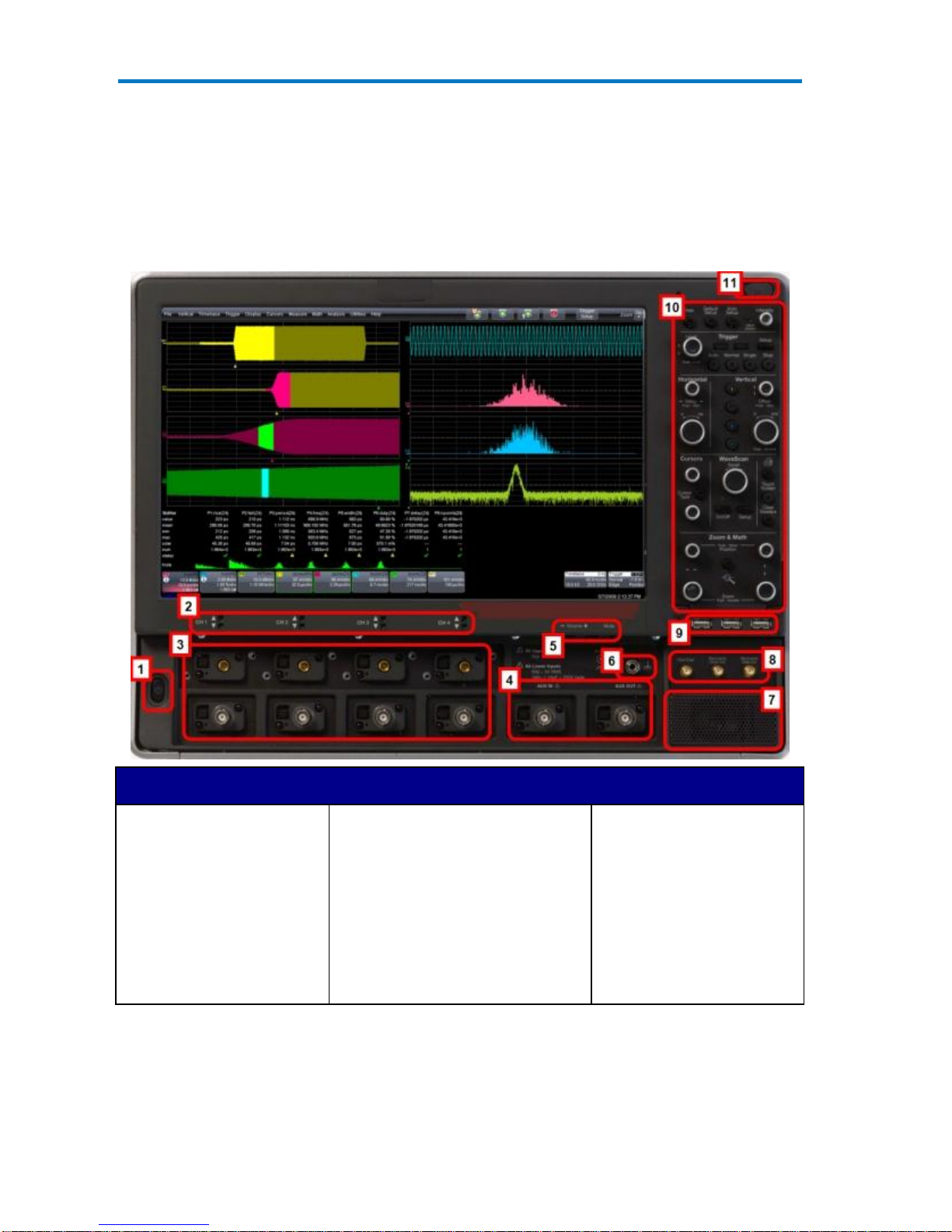

Front of Your Oscilloscope........................................................... 6
Input/Output Panel.....................................................................9

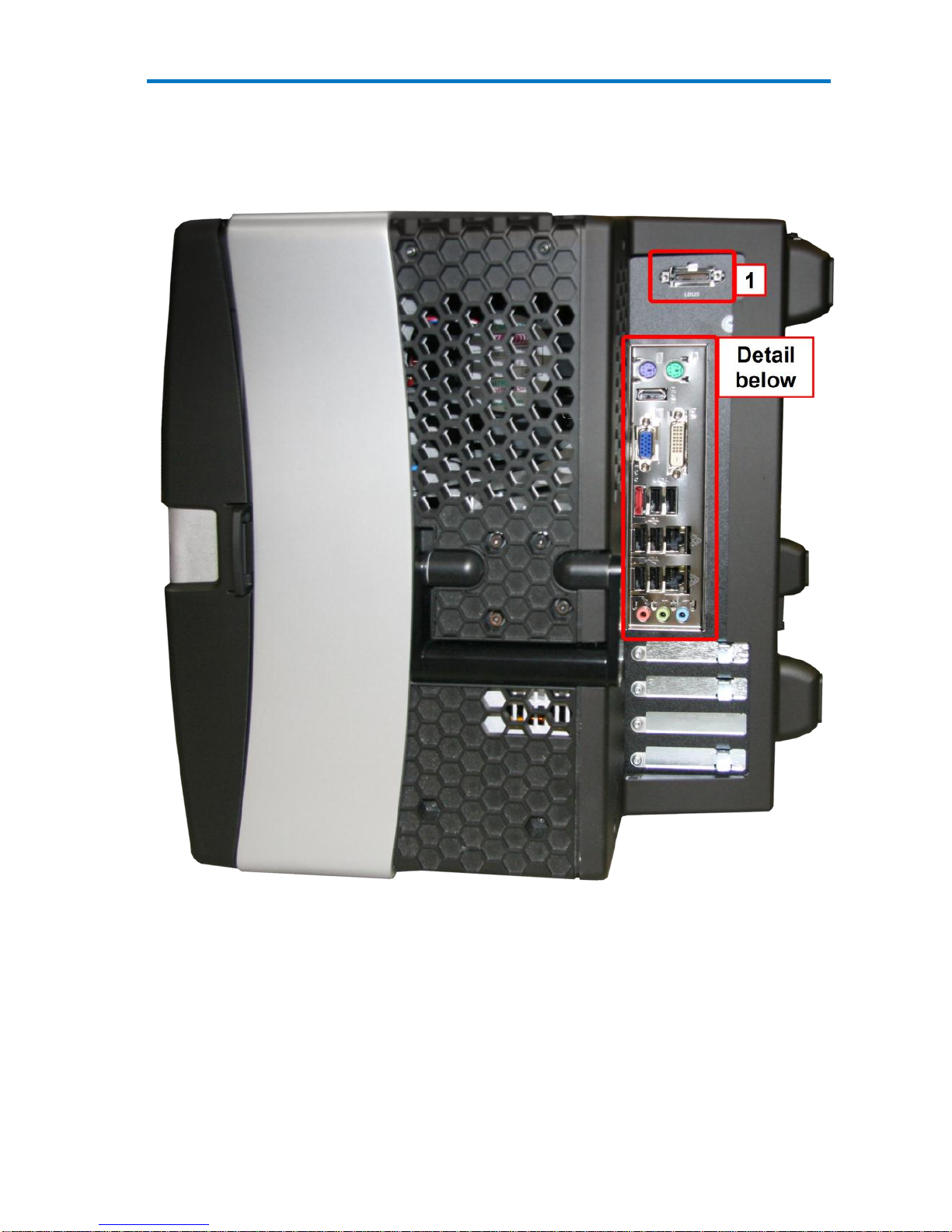

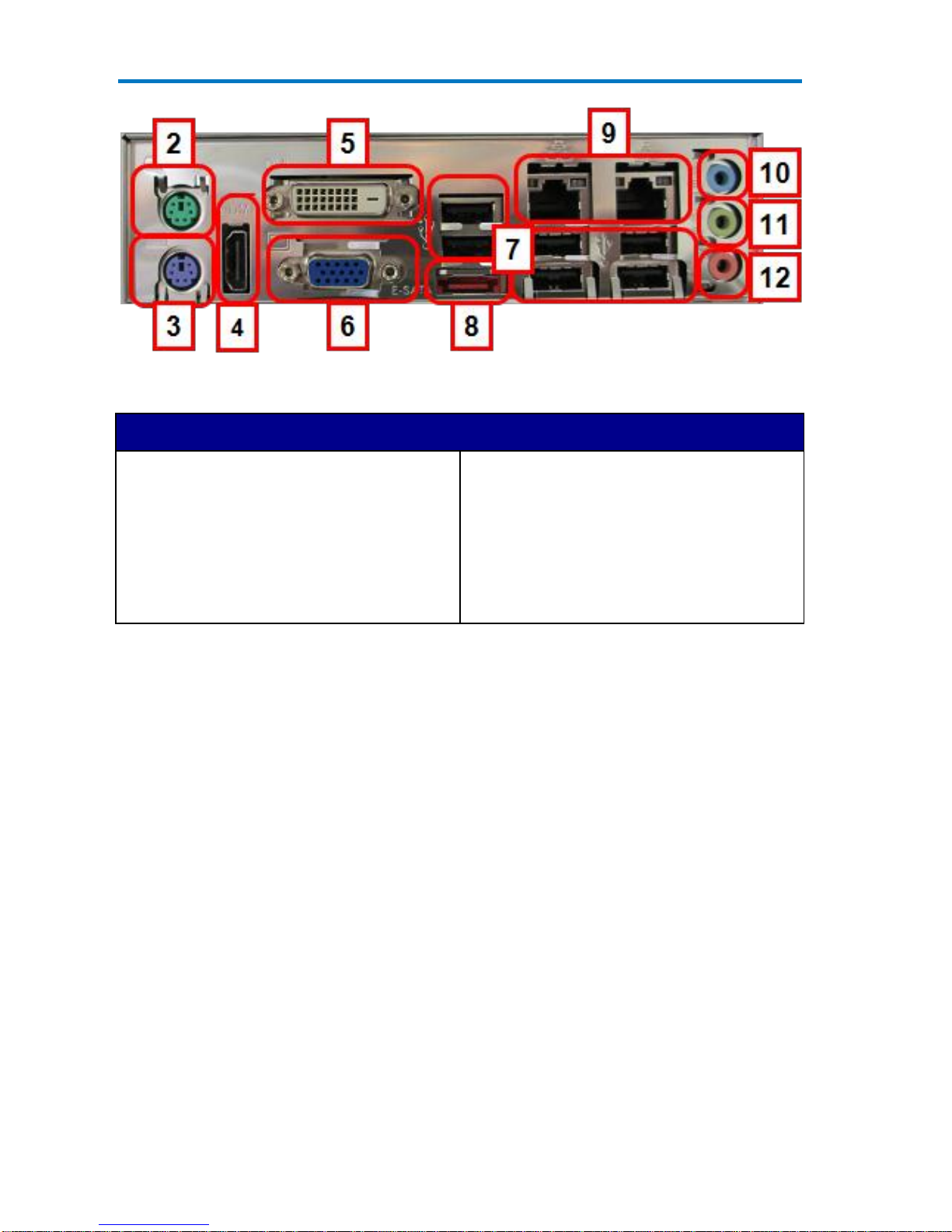

Back of Your Oscilloscope ..........................................................11
Basic Controls ............................................................................12

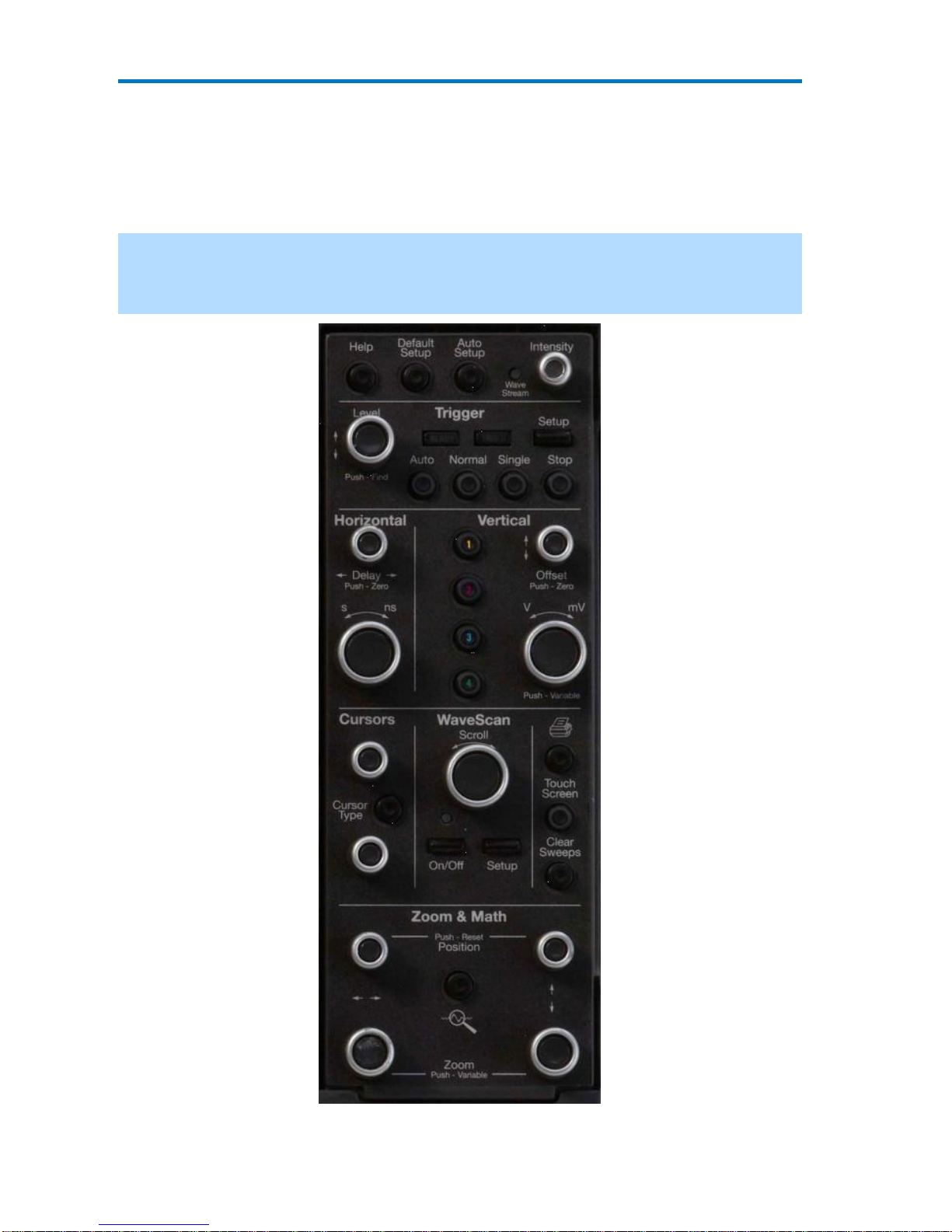

Front Panel Controls ..................................................................12
Probe and Signal Interfaces ........................................................18
Overview ....................................................................................18
Probe Interfaces.........................................................................19
ProLink Interface Adapters ........................................................22
ProLink Probe Adapters .............................................................23
Probes ........................................................................................24
Passive Probe Compensation.....................................................25
Display ......................................................................................26
Screen Layout, Groupings, and Controls....................................26
Menu Bar ...................................................................................26
The Quick Access Toolbar ..........................................................27
The Signal Display Grid...............................................................27
Trace Descriptor Labels..............................................................29
Dialog Area.................................................................................33
Shortcut Toolbar Buttons...........................................................38
Message Bar...............................................................................39
Turning on Channels and Traces .................................................39
Timebase...................................................................................40

WavePro 7 Zi/Zi-A Oscilloscopes
ii
922137-00 Rev A
Overview ....................................................................................40
Timebase Setup and Control......................................................40
Dual Channel Acquisition ...........................................................41
Sampling Modes ........................................................................ 42
Sampling Modes Overview.........................................................42
Selecting a Sampling Mode........................................................42
Single-shot Sampling Mode........................................................42
Sequence Sampling Mode –Working with Segments ...............43
RIS Sampling Mode for Higher Sampling Rates..........................50
Roll Mode ...................................................................................51
Vertical...................................................................................... 51
Overview ....................................................................................51
Channel Controls........................................................................52
Shortcut Toolbar Buttons...........................................................54
Pre-Processing Controls .............................................................55
Trigger....................................................................................... 58
Overview ....................................................................................58
Trigger Types..............................................................................59
Trigger Settings ..........................................................................64
Trigger Setup ..............................................................................65
TriggerScan.................................................................................70
Viewing Waveforms................................................................... 74
Display........................................................................................74
Persistence .................................................................................79
WaveStream Display Mode........................................................80
Adjusting Trace Intensity............................................................81
Zooming Waveforms.................................................................. 82
Overview ....................................................................................82
Previewing Zoomed Waveforms ................................................82
Zooming a Single Channel ..........................................................83
Touch-and-Drag Zooming...........................................................85
Quickly Zooming Waveforms and Multiple Waveforms ............85
Turning Off Zoom .......................................................................85
Measuring with Cursors ............................................................. 86

Getting Started Manual
922137-00 Rev A
iii
Overview ....................................................................................86
Cursor Types ..............................................................................86
Cursors Setup.............................................................................86
Measurement Parameters..........................................................89
Overview ....................................................................................89
Parameter Setup ........................................................................90
Measure Modes .........................................................................92
Help Markers..............................................................................92
Measurement Parameter Analysis..............................................95
Overview ....................................................................................95
Creating and Viewing a Histogram.............................................96
Creating and Viewing a Trend..................................................102
Creating a Track View ..............................................................103
Pass-Fail Parameter Testing.....................................................104
Math .......................................................................................111
Overview ..................................................................................111
Math Setup ..............................................................................112
Mask Testing ........................................................................... 114
Creating a Mask .......................................................................114
Quick Access to Pass/Fail Setup Dialogs ..................................115
Removing a Mask from the Display .........................................116
Right-Hand Dialogs...................................................................116
WaveScan Overview ................................................................117
Signal Views .............................................................................118
Search Modes ..........................................................................119
Parameter Measurements.......................................................119
Sampling Mode ........................................................................119
Customization Overview ..........................................................120
Documenting Your Work Using LabNotebook ...........................121
Overview ..................................................................................121
LabNotebook Dialog.................................................................122
Notebook Entries.....................................................................123

WavePro 7 Zi/Zi-A Oscilloscopes
iv
922137-00 Rev A
Save/Recall.............................................................................. 126
Overview ..................................................................................126
Saving and Recalling Setups .....................................................127
Saving and Recalling Waveforms .............................................128
Utilities ................................................................................... 133
Overview ..................................................................................133
Utilities Setup...........................................................................133
Disk Utilities..............................................................................144
Preferences Setup ....................................................................145
System Recovery ..................................................................... 153
Restoring Software with Acronis True Image...........................153
Reference................................................................................ 157
Returning a Product .................................................................157
Contact Teledyne LeCroy .........................................................158
Specifications ...........................................................................159
Certifications ............................................................................159
Windows License Agreement...................................................162
X-Stream Software End-User License Agreement....................163
Index....................................................................................... 172

Getting Started Manual
922137-00 Rev A
1
Welcome
Thank you for purchasing a Teledyne LeCroy product. We're certain you'll
be pleased with the detailed features so unique to our instruments.
This WavePro 7 Zi/Zi-A Getting Started Manual is designed to cover
important safety and installation information for your oscilloscope, along
with standard procedures so you're quickly working on waveforms. The
Teledyne LeCroy website at teledynelecroy.com maintains the most current
specification information and the online help file on your instrument may
be accessed for more comprehensive documentation. Sections of the
online help residing on your oscilloscope may be printed and transferring
the help file itself to a USB memory device is a fairly common procedure.
Details on how to access your online help file can be found in a .pdf file on
the desktop of your oscilloscope.
This manual is arranged in the following manner:
Physical features such as hardware, basic controls, display
Core oscilloscope functions such as timebase and vertical setup
Special features such as customization, LabNotebook, Save/Recall
(File) functions, and Utilities
Reference, including certifications and contact information
When your product is delivered, verify that you’ve received all items on the
packing list or invoice copy. Contact your nearest Teledyne LeCroy
customer service center or national distributor if anything is missing or
damaged. We can only be responsible for replacement if you contact us
immediately.
We truly hope you enjoy using Teledyne LeCroy's fine products.
Sincerely,
David C. Graef
Teledyne LeCroy Corporation
Vice President and Chief Technology Officer

WavePro 7 Zi/Zi-A Oscilloscopes
2
922137-00 Rev A
Safety Instructions
This section contains instructions that must be observed to keep the
instrument operating in a correct and safe condition. You are required to
follow generally accepted safety procedures in addition to the precautions
specified in this section. The overall safety of any system incorporating
this instrument is the responsibility of the assembler of the system.
Symbols
These symbols appear on the instrument's front or rear panels and in its
documentation to alert you to important safety considerations.
CAUTION of damage to instrument, or WARNING of hazard to
health. Attend to the accompanying information to protect
against personal injury or damage. Do not proceed until
conditions are fully understood and met.
WARNING. Risk of electro-shock.
Measurement ground connection.
Safety (protective) ground connection.
Alternating Current.
Standby Power (front of instrument).
Precautions
Use proper power cord. Use only the power cord shipped with this
instrument and certified for the country of use.
Maintain ground. This product is grounded through the power cord
grounding conductor. To avoid electric shock, connect only to a grounded
mating outlet.
Connect and disconnect properly. Do not connect/disconnect probes or
test leads while they are connected to a voltage source.

Getting Started Manual
922137-00 Rev A
3
Observe all terminal ratings. Do not apply a voltage to any input (C1, C2,
C3, C4 or EXT) that exceeds the maximum rating of that input. Refer to the
front of the oscilloscope for maximum input ratings.
Use only within operational environment listed. Do not use in wet or
explosive atmospheres.
Use indoors only.
Keep product surfaces clean and dry.
Do not block the cooling vents. Leave a minimum six-inch (15 cm) gap
between the instrument and the nearest object. Keep the underside clear
of papers and other objects.
Do not remove the covers or inside parts. Refer all maintenance to
qualified service personnel.
Do not operate with suspected failures. Do not use the product if any part
is damaged. Obviously incorrect measurement behaviors (such as failure to
calibrate) might indicate impairment due to hazardous live electrical
quantities. Cease operation immediately and sequester the instrument
from inadvertent use.
Operating Environment
Temperature: 5 to 40 °C.
Humidity: Maximum relative humidity 80 % for temperatures up to 31 °C
decreasing linearly to 50 % relative humidity at 40 °C (or at the upper
operational temperature limit).
Altitude: Up to 10,000 ft (3,048 m) at or below 25 °C.
Cooling
The instrument relies on forced air cooling with internal fans and vents.
Take care to avoid restricting the airflow to any part of the oscilloscope.
Around the sides and rear, leave a minimum of 15 cm (6 inches) between
the instrument and the nearest object. At the bottom, the oscilloscope feet
(up or down) provide adequate clearance.
CAUTION. Do not block oscilloscope vents. Always keep the area
beneath the oscilloscope clear of paper and other items.

WavePro 7 Zi/Zi-A Oscilloscopes
4
922137-00 Rev A
The instrument also has internal fan control circuitry that regulates the fan
speed based on the ambient temperature. This is performed automatically
after start-up.
Cleaning
Clean only the exterior of the oscilloscope using a damp, soft cloth. Do not
use harsh chemicals or abrasive elements. Under no circumstances
submerge the instrument or allow moisture to penetrate it. Avoid electric
shock by unplugging the power cord from the AC outlet before cleaning.
CAUTION. Do not attempt to clean internal parts. Refer to qualified
service personnel.
Calibration
The oscilloscope is calibrated at the factory prior to being shipped. The
recommended calibration interval is one year. Calibration should be
performed by qualified personnel only.
The oscilloscope software includes automatic and manual calibration
functions.
CAUTION. It is required that all inputs be removed from the
oscilloscope prior to performing a manual calibration.
Schedule an annual factory calibration as part of your regular maintenance.
Extended warranty, calibration, and upgrade plans are available for
purchase. Contact your Teledyne LeCroy sales representative or
[e-mail] to purchase a service plan.
Power
AC Power Source
100-240 VAC (+/-10%) at 50/60 Hz (+/-5%); 100-120 VAC (+/-10%) at
50/60/400 Hz (+/-5%); Installation Category: 300V CAT II
Manual voltage selection is not required because the instrument
automatically adapts to line voltage.

Getting Started Manual
922137-00 Rev A
5
Power Consumption
≤800 watts (800 VA) for all 7 Zi and Zi-A series models (depending on
accessories installed - probes, PC port plug-ins, etc.).
Power consumption in Standby Mode: 15 Watts.
Power and Ground Connections
The instrument is provided with a 10A/250V 18AWG rated grounded cord
set containing a molded three-terminal polarized plug and a standard IEC-
60320 (Type C13) connector for making line voltage and safety ground
connections.
The AC inlet ground is connected directly to the frame of the instrument.
For adequate protection again electric shock, connect to a mating outlet
with a safety ground contact.
WARNING. Interrupting the protective conductor inside or outside
the oscilloscope, or disconnecting the safety ground terminal,
creates a hazardous situation. Intentional interruption is prohibited.
Standby Power
The Standby (Power) button controls the operational state of the
oscilloscope. Press the button to switch the instrument On or into Standby
mode (Off).
Always use the Power button or the File > Shutdown menu option to
execute a proper shut down process and preserve settings before powering
down.
Powering off does not disconnect the oscilloscope from the AC power
supply. The only way to fully power down the instrument is to shut down
then unplug the AC power cord from the outlet.
We recommend unplugging the instrument if it will be unused for a long
period of time.

WavePro 7 Zi/Zi-A Oscilloscopes
6
922137-00 Rev A
Hardware
Front of Your Oscilloscope
Numbered labels on this image correspond with descriptions on the
following table.
Number and Description
1. Power Button
2. Channel Row
LED Indicator
3. Channel Inputs
4. Auxiliary Input
and Output
5. Volume Control and
Mute Button
6. Ground Connector
7. Speaker
8. Fast Edge, Recovered
Clock, and Data
Outputs
9. USB Ports
10. Detachable
Front Panel
Control
11. Front Panel
Control Release
Switch

Getting Started Manual
922137-00 Rev A
7
Detaching and Attaching the Front Panel Control
Detach the Front Panel Control from the oscilloscope by sliding the
detachment lever to the left and pulling at the right.
Attach the front panel by inserting the lower part first, sliding the
detachment lever to the left, and then pushing the top in place.

WavePro 7 Zi/Zi-A Oscilloscopes
8
922137-00 Rev A
Front Panel as a Remote Control
While detached, your front panel (standard or 4 channel version) can be
used as a remote control. Just connect it to the oscilloscope using the USB -
A to USB - Mini B cable provided; it will be automatically recognized.
Note: While a standard front panel comes with your Zi oscilloscope,
Teledyne LeCroy offers additional standard front panels or a 4 channel
version (as follows) to better suit the way you work. Learn more and
Contact Teledyne LeCroy for Support.

Getting Started Manual
922137-00 Rev A
9
Input/Output Panel
Input/output connectors are located on the right side (facing the front of
the instrument) of the instrument:

WavePro 7 Zi/Zi-A Oscilloscopes
10
922137-00 Rev A
WavePro Zi / Zi-A oscilloscopes I/O panel.
Number and Description
1. LBUS (Teledyne LeCroy Bus)
2. Mouse Port
3. Keyboard Port
4. HDMI Port
5. DVI Port
6. External VGA Monitor Port
7. USB Ports
8. E-SATA Port
9. Ethernet Ports
10. Line In
11. Speakers
12. Microphone

Getting Started Manual
922137-00 Rev A
11
Back of Your Oscilloscope
Numbered labels on this image correspond with descriptions on the
following table.
Back of the WavePro 7 Zi.
Number and Description
1. 10 MHz Reference
Clock Input
(Grounded EMI
Shield required
when port is not in
use)
2. 10 MHz Reference
Clock Output
3. Removable Hard
Drive
4. DVD-CD + R Drive
5. Power Switch
6. AC Power Plug

WavePro 7 Zi/Zi-A Oscilloscopes
12
922137-00 Rev A
Basic Controls
Front Panel Controls
The front panel is divided into sections based on various functions.
Note: Many Front Panel Controls duplicate Display controls. For example,
depending on how it is configured, the front panel Print button duplicates
the File > Print menu option.
