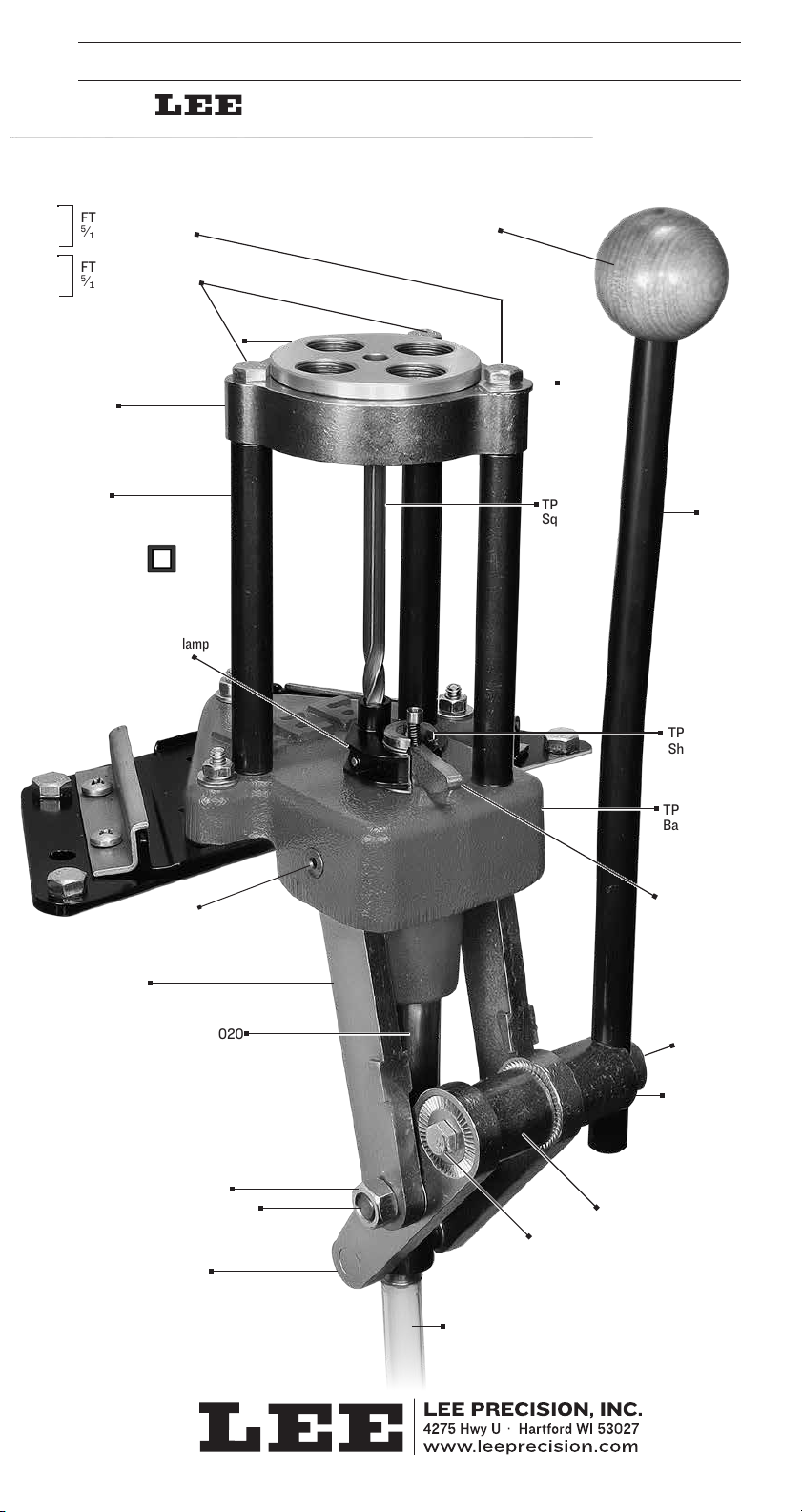

Lee Precision Classic Turret Press User manual

ClassicTurret Press
© 2018 Lee Precision Inc. TP1245PRINTED IN USA
COMPLETE INSTRUCTIONS FOR THE
TR 2447
Wood knob
BP3090
Lever
90269
4 Hole Turret
TR 2460
Column
FM 377⁄16 – 20 Nut
FT 2997
5⁄6 – 8x  Bolt
FT 2886
5⁄6 – 8x  Bolt
TF 3565
Turret Ring
TF 3566
Auto Index Clamp
TP 2067
Primer
Feed
Washer
TP 2673
Square
Index Rod
TP 3087
Base Casting
TP 388
Shell Holder Insert
LPS Primer Arm
BP 2889A Small
BP 2889B Large
BP2780
Lever Sleeve
BP1427
Spacer
BP3000
Link Pin
BP 2774
Toggle Link
BP 3020
Ram
BP 2888
Connecting Link
Pivot Pin
BP 333 Blind
BP2777
Lever Clamp
FT 3128
5⁄6 – 8x3 Hex Screw
TF3567
Square Ratchet
installed
PICTURED ON Accessory
Bench Plate System
# 9025sold separately
BP3064 Primer collection tube
(not pictured) Cap for tube # BP327
QTY

QTY
2
(not pictured)
Pivot Pin Thru BP2885

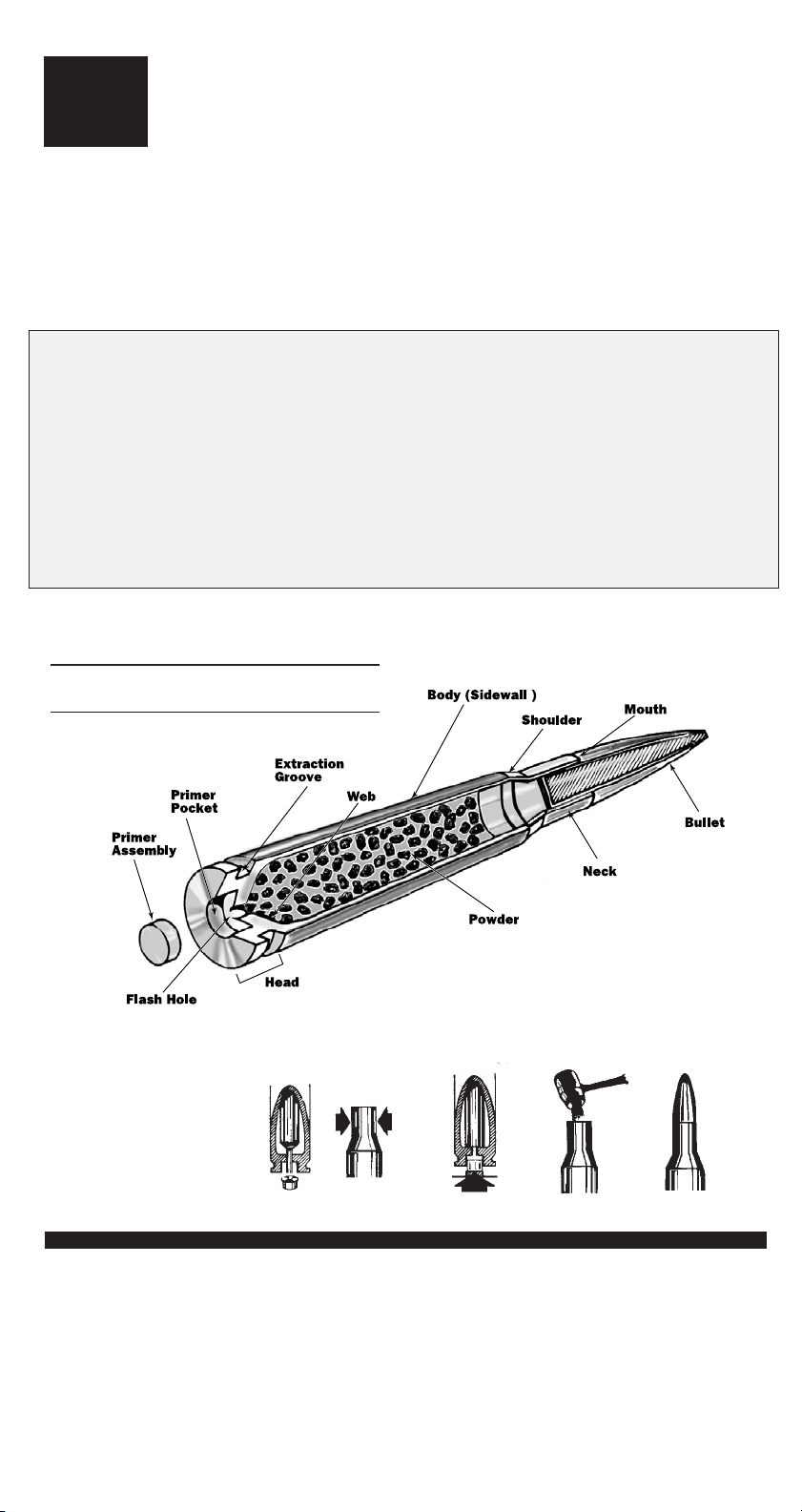

CROSS SECTION OF
A TYPICAL CARTRIDGE
RELOADING IS QUITE A SIMPLE PROCESS
Remove spent primer and size case Install new primer Add powder Seat a new bullet
RELOADING SAFETY
Keep powder away from heat and open flames — Don’t smoke
Store powder and primers in their original containers in a cool, dry place
Read and follow instructions exactly
Be sure you have the correct powder, measure and bullet of the correct weight
Any mixup can be dangerous
Exercise care and common sense at all times
WEAR SAFETY GLASSES WHEN RELOADING OR SHOOTING
IT IS YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF YOUR LOADS
The following are factors that will increase pressures. Some will be dangerous.
• DO NOT USE more powder than recommended
• DO NOT USE a heavier bullet than recommended
• DO NOT SEAT the bullet deeper than normal
• DO NOT USE magnum primers unless using a slow burning ball powder
• Greatly oversize bullets, excessively hard bullets or cases
that are too long will cause higher pressures.
• High temperatures, or cartridges that were stored in a hot car or
car trunk will produce higher pressures
LEAD WARNING Primers contain lead: a substance known to cause birth defects,
reproductive harm, and other serious physical injury. Wash hands after exposure.
Case is sized to original
dimensions and the spent
primer is removed
Install a new primer
Add a charge of powder
Seat a new bullet
and crimp if desired
1
2
3
4
Ammunition reloading can be dangerous if done improperly and should not
be attempted by persons not willing and able to read and follow instructions
exactly. Children should not be permitted to reload ammunition without strict
parental supervision. Always wear safety glasses when reloading and shooting.
Ammunition loaded with these tools and data should only be used in modern guns in good
condition. We do not accept responsibility for ammunition loaded with these tools or data as
we have no control over the manufacture and storage of components or the loading procedure
and techniques. Primers and gun powders, like gasoline and matches, can be dangerous if
improperly handled or misused.
CAUTION

DIE INSTALLATION
A Snap the shell holder into the
shell holder insert. Be sure the primer
arm falls between the bumps on the base. The
end of the ram can be rotated to properly align
the arm to the base. This alignment is critical
to proper priming and turret indexing. Install
and adjust dies following the manufacturers’
instructions.

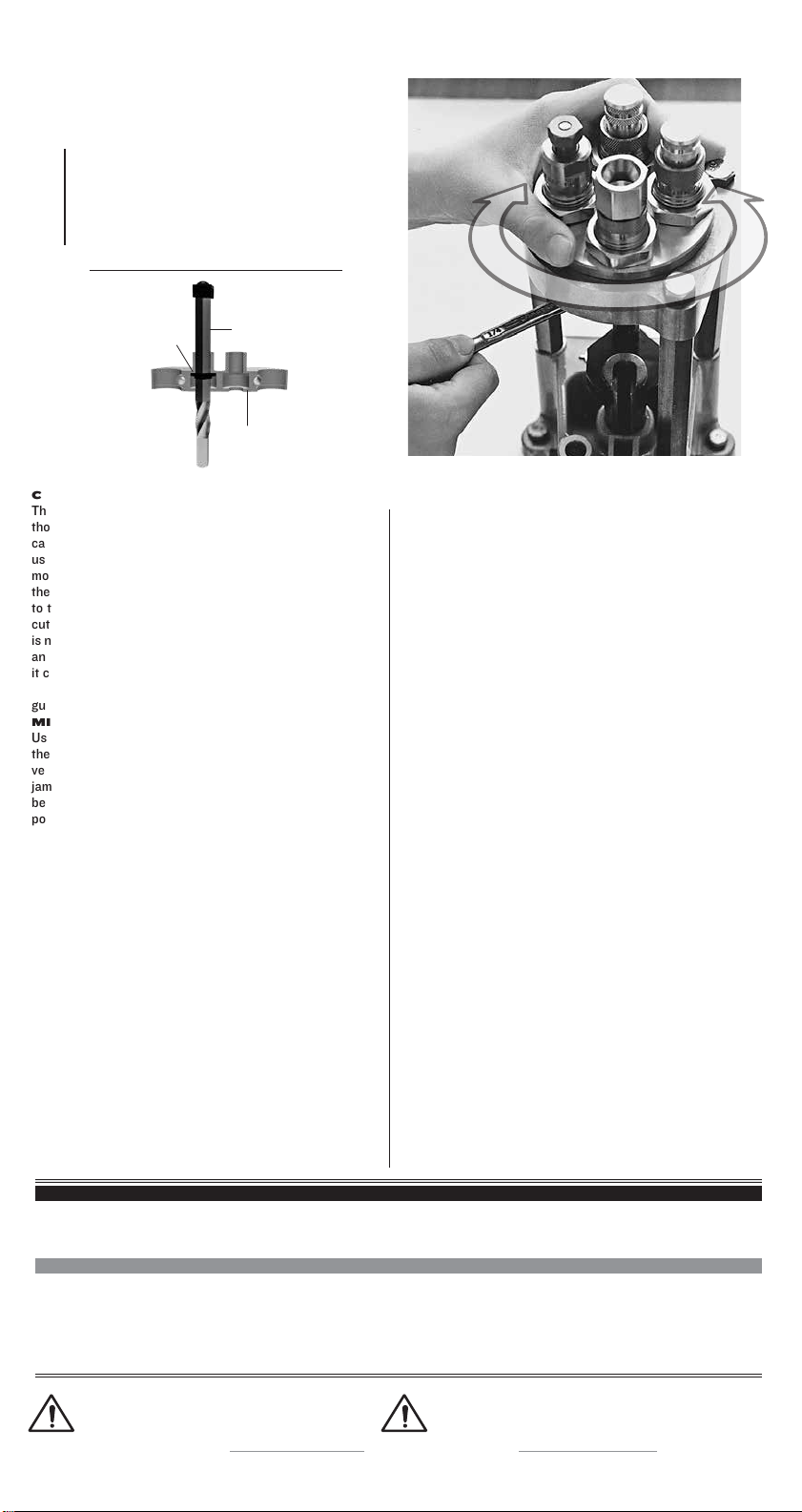

BCycle the press up and down. If the turret does not stop in the
correct position—follow these instructions.
With the ram in the down position, place a /4” wrench on
the index rod and hold in position; now rotate the turret to the
correct position.
NOTE To remove the turret, lift while rotating
The Auto Index is usable on cases with overall length of 3⁄’’ or less. To deactivate auto index, simply remove index rod.

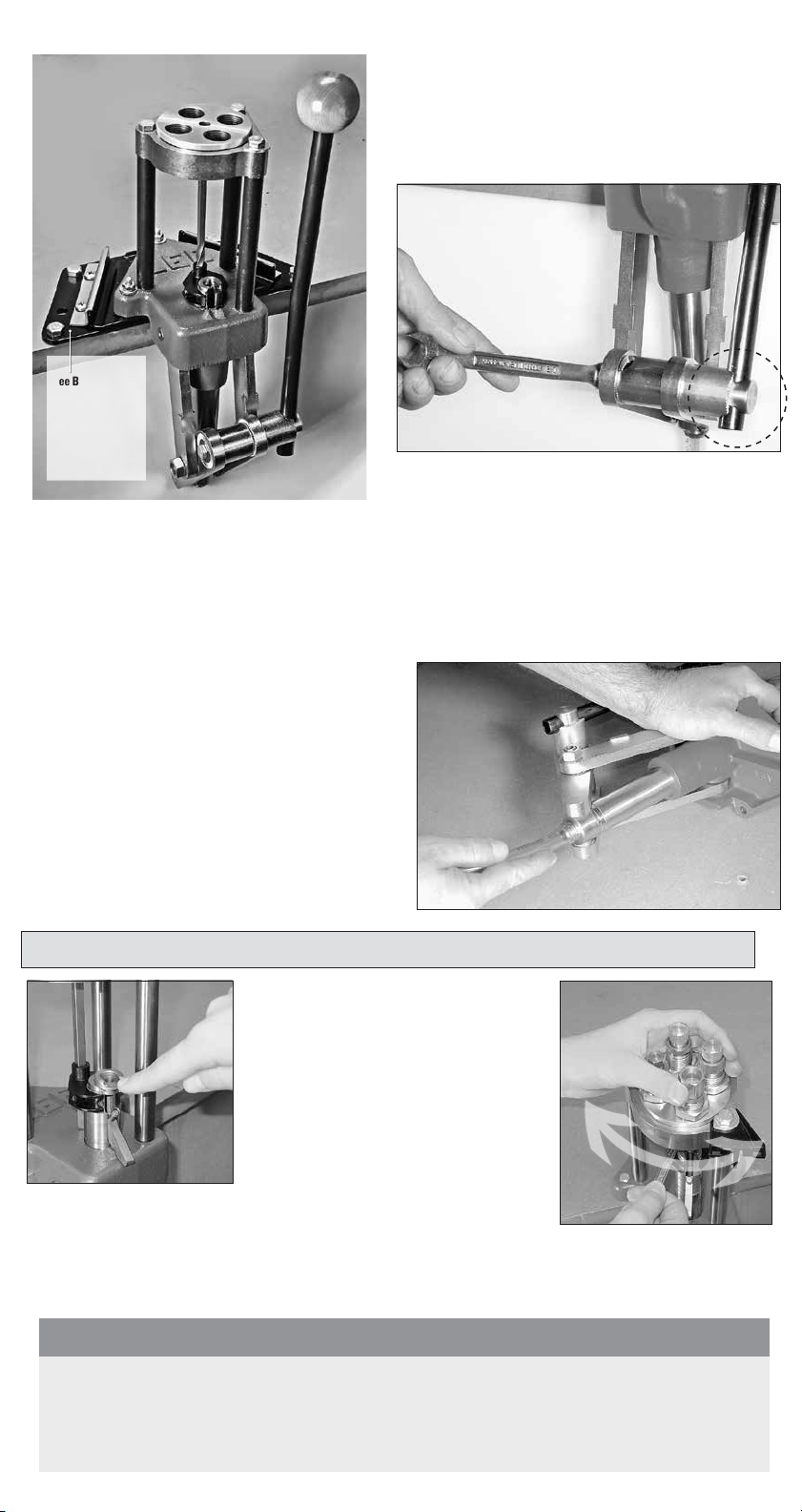

BEFORE YOU START
RELOADING
SETTING UP YOUR
LEE CLASSIC TURRET PRESS
Slide the clear plastic PVC tube onto the end of the
ram. Spent primers pass through the drilled ram and
are collected in the clear tube. This feature collects
every primer and keeps the ram-bearing surface free of
dirt and grit. A cap is provided for convenient disposal
or the tube can be routed directly to a trashcan.
Lubricate the ram andall pivot pointswith a lightweight
oil—gun, sewing machine or any weight motor oil will
work. Avoid water-displacing oils such as WD-40.
Coat bare metal parts with oil for storage like you
would any fine firearm. FIGURE 3
FIGURE 1
FIGURE 2
Attach the Classic Turret Press to the front edge
of a sturdy bench using three or 5/16 inch bolts,
or mount to Lee Bench Plate System, #90251.
( Sold separately ).
Slide the press frame back onto the bench to where
it stops against the vertical surfaces adjacent to the
ram. Slide the lever through the lever clamp. Be
sure the lever passes completely through
the lever sleeve. The lever has a curve in the
length to allow clearance for the primer feed. Adjust
the curve to the most comfortable position and
secure clamp bolt.
Lee Bench Plate
#90251
Powder coated, thick
steel mounts quickly,
adding rigidity to the
lightest bench top.
( Sold separately ).
LEE RELOADING PRODUCTS are guaranteed not to wear out or break from normal use for two full
years, or they will be repaired or replaced at no charge if returned to the factory. Any Lee product
of current manufacture, regardless of age or condition, will be reconditioned to new, including a
new guarantee, if returned to the factory with payment equal to half the current retail price.
THE LEE GUARANTEE
⊳
⊲

YOU CAN NOW BEGIN RELOADING
For a lifetime of service, oil the turret, ram and all pivot pins before each use
2SIZE THE CASE
Place a
shell in the shell holder. Rotate the
turret to position the full length sizer
over the case. Firmly raise the ram to
the top and stop.
3SELECTCORRECT LEVER PRIME ASSEMBLY
(large or small). With clean fingers, place the correct
size and type of primer in the primer guide. (This
operation is greatly speeded by using the lee safety
prime primer feeder. Never touch the primer from
box to shell.) Seat the primer by lowering the ram—
lifting up on the press lever. Lift firmly enough to seat
the primer flush to slightly below flush of the case
head.
THIS STEP IS OMITTED WITH MOST RIFLE DIES
4FLARE CASE MOUTH
for ease of bullet installation. Raise the ram to
expand the case neck. To increase the flare, screw the die in deeper. Always adjust
to provide the minimum flare needed to start the bullet. After proper adjustment,
tighten the lock ring .
Carbide dies need no lubrication
RIFLE DIES ONLY Be sure to lube the inside
of the case neck with a cotton swab.
5SEAT BULLET
on the
case mouth and guide it into the
die. If you are using a three die
set, you must carefully adjust
the bullet seating die body so
that a crimp is applied as the
bullet is seated. Follow the
instructions included with your
die set. With a four hole turret
press, most users find it easier
to seat and crimp in separate
operations. The Lee Factory Crimp die is best, as it gives factory-like feed
and dependability to your reloads.
The following sequence demonstrates steps necessary to load a single
round. While it may look complicated, it is really only two or three
strokes of the lever.
1PREPARE YOUR CASES Inspect your cases while
lubricating them. Discard all cases with split necks, indications of head
separation or other defects. Wipe on a thin film of Lee Case Lubricant
with your fingers. Fingers are the best way of lubing a case as any grit
that could damage the die is wiped away. The case may be immediately
sized or you can let the lube dry.
CAUTION
If for any reason you do not use lee resizing lubricant,
be very careful not to contaminate the powder or primers.
All other brands are oil based and they have serious, detrimental
eects on powder and primers. Because of the stickiness, they also
attract grit that can damage the die. Lee Resizing Lubricant costs
less and is so superior that it is worth the eort to insist upon it or
order direct from the factory.
AUTO-DRUM POWDER MEASURE pictured
with riser installed. Case actuates the measure to
automatically drop exact charge while expanding the
case mouth. If you plan on utilizing the Safety Prime
on your press, install Auto Disk Riser #90041 (sold
separately).
CHARGING THE CASE Regardless of how you
charge the case, be absolutely certain you have the
correct amount and type of powder for the bullet you
have selected. NEVER try to seat the primer
deeper after the powder has been added.
6IF LOADING
maximum
loads, it’s good practice to
remove all traces of case
lubricant with detergent and
water. This reduces pressure
against the bolt.
To determine small vs.
large lever assembly, note
dierence, SMALL (left)
LARGE (RIGHT)

PRIMERS WILL EXPLODE IF SHOCKED OR CRUSHED
WEAR EYE & EAR PROTECTION AT ALL TIMES WHEN HANDLING PRIMERS
WARNING
Primer dust accumulation can detonate. Regularly clean tray and tool to prevent accumulation. The dust contains lead; a substance
known to cause birth defects, reproduction harn and other serious physical injury. Wash hands after exposure.
SAFETY PRIMER FEED INSTRUCTIONS
ALL BRANDS OF PRIMERS ACCEPTED
2VERIFY appropriate
primer arm and trigger
assembly are installed.
1INSTALL primer feed bracket. Orientate bracket with
feeder installed to primer arm. Tighten bolt with ” wrench.
3MAKEsure troughfingersarebetweenand
completelyengagedwithtraylatchlugs(highlighted)
4OPEN tray and deposit box of 00 primers.
6SLIDE primer feed into
 primer feed bracket.
LARGESMALL
back side of tray
5SHAKE tray side to side to upright all the primers. Fold and close
cover and slide to ON position. Shake assembly to fill the trough.
LEE PRECISION, INC. 4275 HWY. U
HARTFORD, WISCONSIN 53027
www.leeprecision.com
7Firmly push trigger on the primer feed
to dispense primer.
8 LOWER ram to seat primer. The primer should be
 flush, to slightly below flush, when properly seated.
Patent # 7,694,68. Expires October 30, 2027
Shake
side-to-side
to upright
primers.
Shake
side-to-side
to fill trough.

CASES
The easiest and best way of getting cases is to simply save
those from your factory loaded rounds. New and used cases
can also be purchased. Cases must be clean and safe. Do not
use cases that have cracks or splits. If they have been used
more than twice, they should be checked to see that none of
them have become too long for safe use. The easiest way is
to trim them is with a Lee Case Trimmer. This automatically
cuts them to the correct length and no gauging or measuring
is needed. Afer trimming, be sure to chamfer both the inside
and outside of the case. A Lee Chamfer Tool works best, but
it can be done with a pocket knife.
Straight sided cases, such as those used by most hand-
guns, are loaded with a 3–die set.
MILITARY CASES
Used military cases are readily available at low cost. Usually,
these have primers that are crimped in place. This is to pre-
vent the primer from coming loose in automatic weapons and
jamming the action at an inopportune time. The crimp must
be removed before repriming. This can be done with a primer
pocket reamer or swaging tool. Even a Lee Chamfer Tool can
be used to ream the crimp.
POWDER
Powder is usually classified as smokeless and black powder.
There is also Pyrodex, which is a substitue for black powder.
We will be using only smokeless powder for reloading.
Each set of Lee Dies is supplied with powder mea-
sure and charge table with a generous selection of loads.
Additional load data is available from all the powder manu-
facturers and bullet makers. This is excellent information
and should be followed exactly.
Dierent powders are available to do dierent jobs.
Bullets having a high sectional density ( long length in rela-
tion to their diameter) require a slow burning powder. This
permits sustained peak pressure to gain maximum accelera-
tion within working pressure limits.
Short, light bullets use quicker burning powder for
complete combustion within the barrel. A wide selection of
powder is readily available. Powders should always be stored
in their original containers. While smokeless powder is not
an explosive and not as dangerous to handle as gasoline,
it would be foolish to handle it carelessly and store excessive
amounts. Follow the powder manufacturers’ recommendations
for storage and use.
PRIMERS
Rifle and pistol cartridges require dierent primers. Rifle
primers have a thick and stronger cup to withstand the
higher pressure. Pistol primers have a thinner cup for
easy detonation with a lighter hammer blow. Both rifle
and pistol primers are available in regular and magnum.
Use regular for all loads except if the load data specifies mag-
num primers.
Primers must always be stored in their original containers.
It is always a wise idea to wear safety or shooting glasses when
shooting or reloading.
BULLETS
Commercial rifle bullets usually have a sof lead core with a
copper jacket. Point shapes come in a variety of styles, but
usually have some sof lead exposed to properly mushroom
on impact.
The jackets serve a dual purpose: to control the bullet
expansion and act as a bearing surface for its high speed travel
down the bore. Some bullets have a crimping groove called a
cannelure. This groove must be seated almost entirely in the
case when crimping the case. The very end of the case mouth
is turned into this groove by the bullet seating die used in a
tubular magazine gun and most revolver ammunition.
Cast bullets are very popular with the handloader. These
are very economical to use and for all guns where the velocity
is less than 2,000 feet per second and can be as accurate as
jacketed bullets. They do not normally expand as well as sof
lead jacketed bullets on game. Therefore, it is poor economy to
use them for hunting.
CRIMPING
Ammunition loaded for hunting should always have the bul-
lets crimped in place, as should ammunition used in tubular
magazine and auto-loading rifles. It could ruin your hunt if a
bullet wedged in the chamber or pushed back into the case.
Best accuracy is usually obtained with crimped ammo as the
crimp has an eect on ignition, velocity, pressure and bal-
listic consistency. No die does a better job crimping than the
Lee Factory Crimp Die.
Cycle the press up and down.
If the turret does not stop in the correct
position—follow these instructions.
With the ram in the down position, place a
-inch wrench on the index rod and hold in
position. Now rotate the turret into the correct
position. Never use a pliers as index rod damage
will occur.
ADJUSTING THE INDEX
TF 3567
Square Ratchet TP 2673 Square index rod
TF 3566 Auto Index clamp
FT 3570
8-32
x 11⁄2Phillips panhead
PARTS LIST FOR THE FOUR HOLE AUTO INDEX
WARNING Handling live primers and spent primers may
expose you to lead or other chemicals, which are known
to the State of California to cause reproductive harm and
cancer. For more information, www.P65Warnings.ca.gov.
WARNING Steel parts in this product may be alloyed with trace
amounts of lead and other elements which are known to the State
of California to cause reproductive harm and cancer. For more in-
formation, go to www.P65Warnings.ca.gov. To prevent exposure,
do not alter the product by welding, grinding, etc.
DANGER
Ammunition reloading can be dangerous if done improperly and can result in serious injury or death.
Selecting and charging powder is the most important thing you can do for both the safety and accuracy for your reloads.
Be absolutely certain you have the correct type and amount of powder before you attempt to reload any cartridge.
CAUTION
2Ammunition reloading can be dangerous if done improperly and should not be attempted by persons not willing and able to read and
follow instructions exactly. 2Children should not be permitted to reload ammunition without strict parental supervision. 2Always
wear safety glasses and hearing protection when reloading and shooting. 2Ammunition loaded with these tools and data should only
be used in modern guns in good condition. 2We do not accept responsibility for ammunition loaded with these tools or data as we have
no control over the manufacture and storage of components or the loading procedure and techniques. 2Primers and gun powders, like
gasoline and matches, can be dangerous if improperly handled or misused.
