LEGRAND QMotion Installation manual

www.qmoonshades.com Pensacola FL, 32514 1 -877-849-6070 1
PN 9000217
Qadvanced Roller Shade
Gen. 3
Programming Instructions
12345
CH

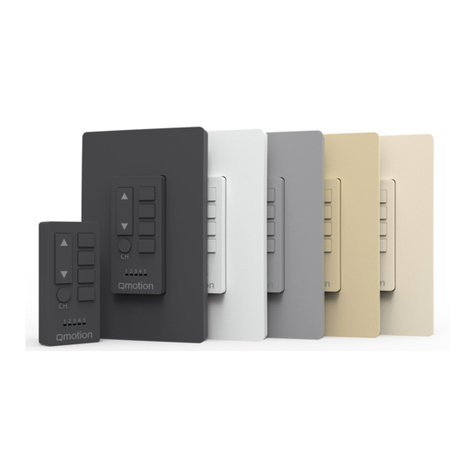

Multi-Channel QdR Remote
Remote Back
UP
DOWN
CHANNEL
20%
40%
60%
80%
PROGRAM
Pin Hole
Read and understand each section before performing required steps
During FIRST TIME SETUP after Step 3. TUG, a remote must be paired to the shade within 90 seconds. Otherwise, the shade
will time-out and require a Special Learn Command (Pg. 1) to pair a new remote. JOG is a short up and down movement.
Channel number is indicated on the remote by a single green LED. The “ALL” channel (all 5 green LEDs illuminated) follows
Channel 5 in the selection sequence. Shade will only respond to learned channel, or “ALL” channel.
IMPORTANT
FIRST TIME SETUP
1. INSTALL SHADE following appropriate instructions
2. PRESS and RELEASE the CHANNEL button to select a channel (1-5)
__ (Skip channel selection for Single-Channel Remotes)
3. TUG the HEMBAR 6-10 inches (Shade will JOG in response)
4. Use a paperclip to PRESS the PROGRAM button on the back of the remote
(The Channel LEDs will scroll back and forth when in program mode)
5. PRESS and RELEASE the UP button
__ (Shade will JOG, move to Upper Limit Position, then JOG again)
SETTING LOWER LIMIT
1. PRESS and RELEASE the DOWN button
__ (Shade will move to current Lower Limit Position)
2. PRESS and HOLD the DOWN button until shade JOGS
3. TUG the HEMBAR 6-10 inches (Shade will JOG in response)
4. ADJUST shade to desired Lower Limit
__ (The DOWN button is disabled while setting the Lower Limit, adjust by pressing the
___UP button or manually roll shade by hand)
5. PRESS and HOLD the DOWN button until shade JOGS
SPECIAL LEARN COMMAND
(Shade at Upper Limit Position - manually roll shade up by hand if necessary)
1. Use a paperclip to PRESS the PROGRAM button on the back of the remote
(The channel LEDs will scroll back and forth when in program mode)
2. PRESS and HOLD the CHANNEL button until the shade moves
3. TUG the HEMBAR 6-10 inches
__ (The shade will JOG in response)
4. Use a paperclip to PRESS the PROGRAM button on the back of the remote
(The channel LEDs will scroll back and forth when in program mode)
5. PRESS and RELEASE the UP button
(Shade will JOG, move to Upper Limit Position, then JOG again)
Use Special Learn Command when:
- The shade times-out without being paired to a remote.
- A paired remote is not being used or available
- Adding a second remote to the shade Single-Channel QdR Remote
(Channel Numbers Not Labeled)
UP
DOWN
20%
40%
60%
80%

www.qmoonshades.com Pensacola FL, 32514 1 -877-849-6070 2
PN 9000217
IMPORTANT
When unrolling the shade to expose battery cover, the shade will try to roll upward. Hold the FABRIC ROLL TUBE firmly in
place to resist the initial upward movement, then continue to unroll the FABRIC ROLL TUBE to expose battery cover.
BATTERY REPLACEMENT
1. PRESS and RELEASE the DOWN button (Shade will move to Lower Limit Position)
2. UNROLL the FABRIC ROLL TUBE to expose the battery cover (See IMPORTANT information above)
3. REMOVE battery cover and REPLACE with new NEW D-CELL Alkaline batteries
4. REPLACE battery cover (Shade will now respond to remote commands)
5. PRESS and RELEASE the UP button to roll fabric back onto the tube
FACTORY (MASTER) RESET (Will remove ALL paired remotes)
(Shade at Upper Limit Position)
1. Use a paperclip to PRESS the PROGRAM button on back of the remote
(The channel LEDs will scroll back and forth when in program mode)
2. PRESS and HOLD the DOWN button UNTIL the shade moves downward and JOGs
3. TUG the shade 6-10 inches (Shade will JOG in response)
SETTING UPPER AND LOWER LIMITS / LEARNING A NEW POSITION
1. PRESS and RELEASE the (UP, DOWN, or PRESET) button that will be programmed
__(Shade will move to selected position)
2. PRESS and HOLD the same (UP, DOWN, or PRESET) button UNTIL the shade JOGS
3. TUG shade 6-10 inches (Shade will JOG in response)
4. ADJUST shade to desired position (Manually roll shade by hand if necessary)
5. PRESS and HOLD the same (UP, DOWN, or PRESET) button (Shade will JOG when learned)
DELETE / UNLEARN A REMOTE (or Channel)
(Shade at Upper Limit)
1. PRESS and RELEASE the CHANNEL button to select the channel currently paired to the shade
__ (Skip channel selection for Single-Channel Remotes)
2. Use a paperclip to PRESS the PROGRAM button on back of the remote
(The channel LEDs will scroll back and forth when in program mode)
3. PRESS and HOLD the UP button until Shade moves downward
4. TUG the shade 6-10 inches (Shade will JOG in response)
5. Use a paperclip to PRESS the PROGRAM button on back of the remote
(The channel LEDs will scroll back and forth when in program mode)
6. PRESS the DOWN button
(Shade will JOG, move to Upper Limit Position, then JOG again)
IMPORTANT
Lower Limit Position must be set prior to using the PRESET positions (20%, 40%, 60%, 80%). These positions are based on
the Lower Limit Position of the shade. When learning new positions, the button currently being programmed (after Step 3.
TUG) will not send commands to the shade. After Step 5 all buttons resume full functionality.
Example 1: When learning a new Upper Limit Position, the UP button is semi-disable. Only by pressing the UP button 3 times
will the shade move to the up position (or manually roll the shade up by hand).
Example 2: When learning a new Lower Limit Position, the DOWN button is disabled. The shade can still be adjusted using
the UP button (or manually roll the shade by hand).
