LEGRAND AlphaRex3 DY21 GPS/DCF User manual

4 127 06 4 127 07
0 6 12 16 24
max. 250 V AC L
N
max 16 A
L
N
max. 50 m
230 V
+-
N 290996/00
General information
!
It should be noted that this device may only used with the antenna type ref-
erence 4 127 06 or 4 127 07 otherwise there will be danger of electric shock.
After applying the supply voltage, the time switch starts automatically with the
last selected function. The relay position is set by the current program.
• The device should not be used on isolated low voltage.
• Battery backup
- Backlighting not active
- Data key READ/WRITE only via the menu
Day, Time, Date
Switch status
Function
Receptacle
for data key
Overview of programmed
switching times for the week.
Resolution 0.5h
Technical data
Supply voltage: 230 V 50/60 Hz Time signal DCF77 Antenna 4 127 06
Power consumption: approx. 1,3 W 50 m
Relay outputs: 1 make contact 16 A 250 V~µ cos ϕ= 1 Receipt of GPS signal Antenna 4 127 07
Accuracy: ~ 0,1 s/day 50 m
single-strand multi-strand Local coordinates: Resolution 1°/ 1' in EXPERT-Mode
Wire cross-sections: 1,5...4 mm21,5...2,5 mm2Battery reserve: 5 years
Programs 3 program types x 28 programs Storage temperature: - 20 °C to +60 °C
Shortest switching step 1 minute Operating temperature: -20 °C to +55 °C
Select menu, back to main menu,
Hold down > 1s = operating display
Confirm selection or load
parameters
Select menu options or set
parameters
Operating principle: Type 1.B. S. T.
IEC/EN 60730-1, IEC/EN 60730-2-7
Operation in a normal environment
Montage: in distribution panel, Degree of contamination: 2
Switch output, potential-free
Rated impulse voltage: 4 kV
Antenna
Supply voltage
Antenna DCF77, reference 4 127 06
or antenna GPS, reference 4 127 07
must be
ordered separately



c
+++LED
4000 W 2000 W 600 W
max. 70 µF 2000 W 1000 W 2000 W 2000 W 2000 W 1000 W
!
Dangerous electrical voltage in the
antennas (230 V to ground pontential).
Before opening the housing the device
must absolutely be disconnected from
mains.
Check polarity
!
Safety notes
This product should be installed in line with installation rules, preferably by a qualified electrician. Incorrect installation and use can lead to risk
of electric shock or fire. Before carrying out the installation read the instructions and take account of the product’s specific mounting location. Do not open
up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired
exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement
and guarantees. Use only Legrand brand accessories.
The device contains a LiMnO2primary cell. When the product reaches the end of its life, this cell must be correctly removed and disposed of in accordance with
national legislation and the requirements of environmental protection.
GB
Annual time switch
AlphaRex3 DY21 GPS/DCF
4 127 04
®

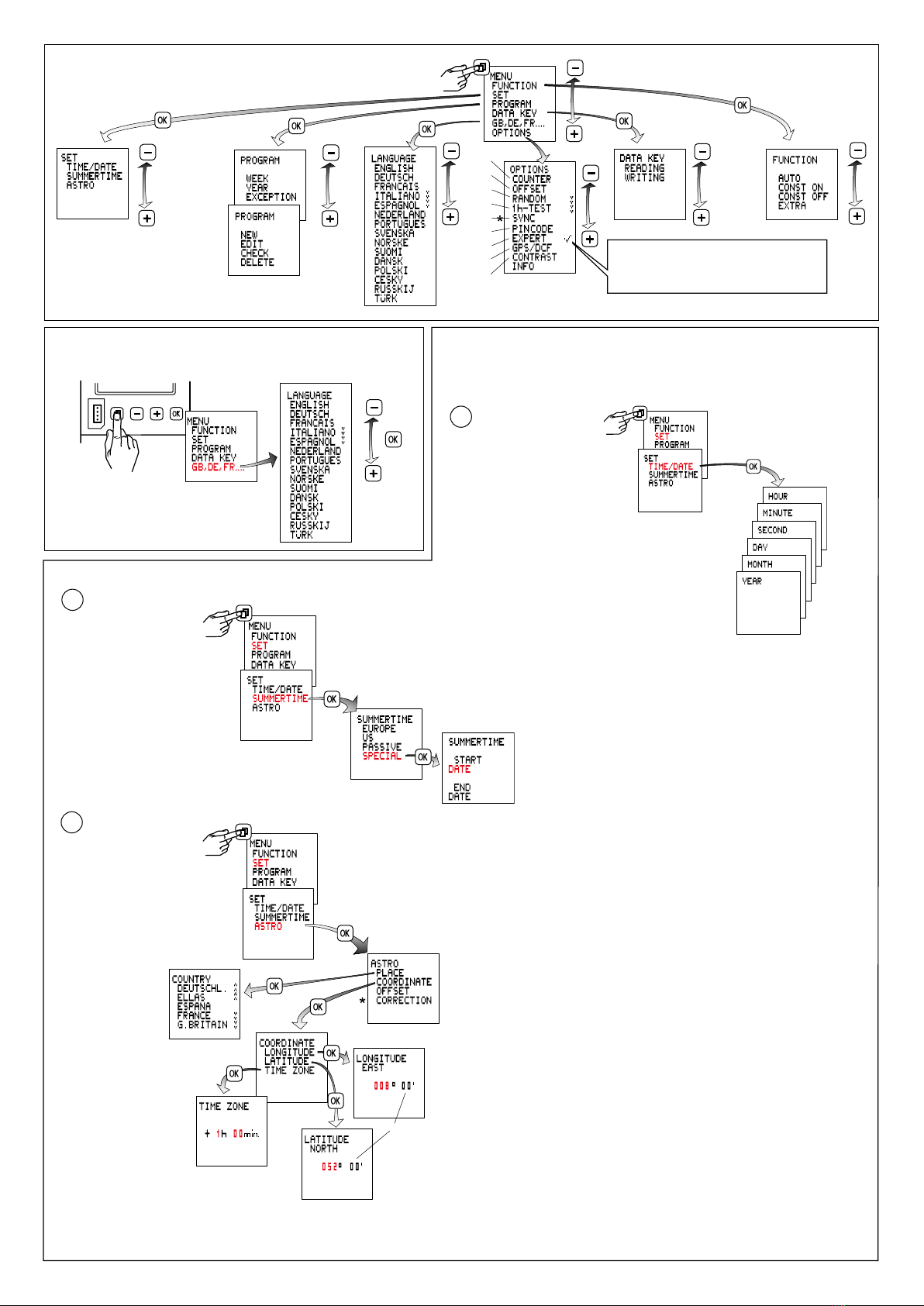

Overview
* Only available in EXPERT mode
This symbol indicates that the
selection is active.
Set language
A
Factory setting: 8°E 52°N
The MINUS key is used to adjust the westward longitude value in the range
from 000° EAST/WEST to 180° WEST.
The PLUS key is used to adjust the eastward longitude value in the range
from 000° EAST/WEST to 180° EAST.
The PLUS key is used to adjust the northward latitude value in the range from
00° NORTH/SOUTH to 90° NORTH.
The MINUS key is used to adjust the southward latitude value in the range from
00° NORTH/SOUTH to 90° SOUTH.
Astro
C
Use the enclosed time-zone map to set
the correct time zone.
From this map, determine the difference
between local time and UTC (Universal Time
Coordinated) and set this value.
Select country.
Select the city
closest to the
planned location
for use.
You can adjust the coordinates
more precisely with
LONGITUDE and
LATITUDE.
Summertime
BSummertime: ± 1 hour
Europe: Factory set
SPECIAL: The switchover to/from summertime can be freely
programmed by entering a start date and end date and is
then executed each year on the same day of the week,
e.g. Sunday
Set
2
Set time/date
A
* Only available in EXPERT mode


2









2
*

Offset
D

2
* This function is available in Expert mode.

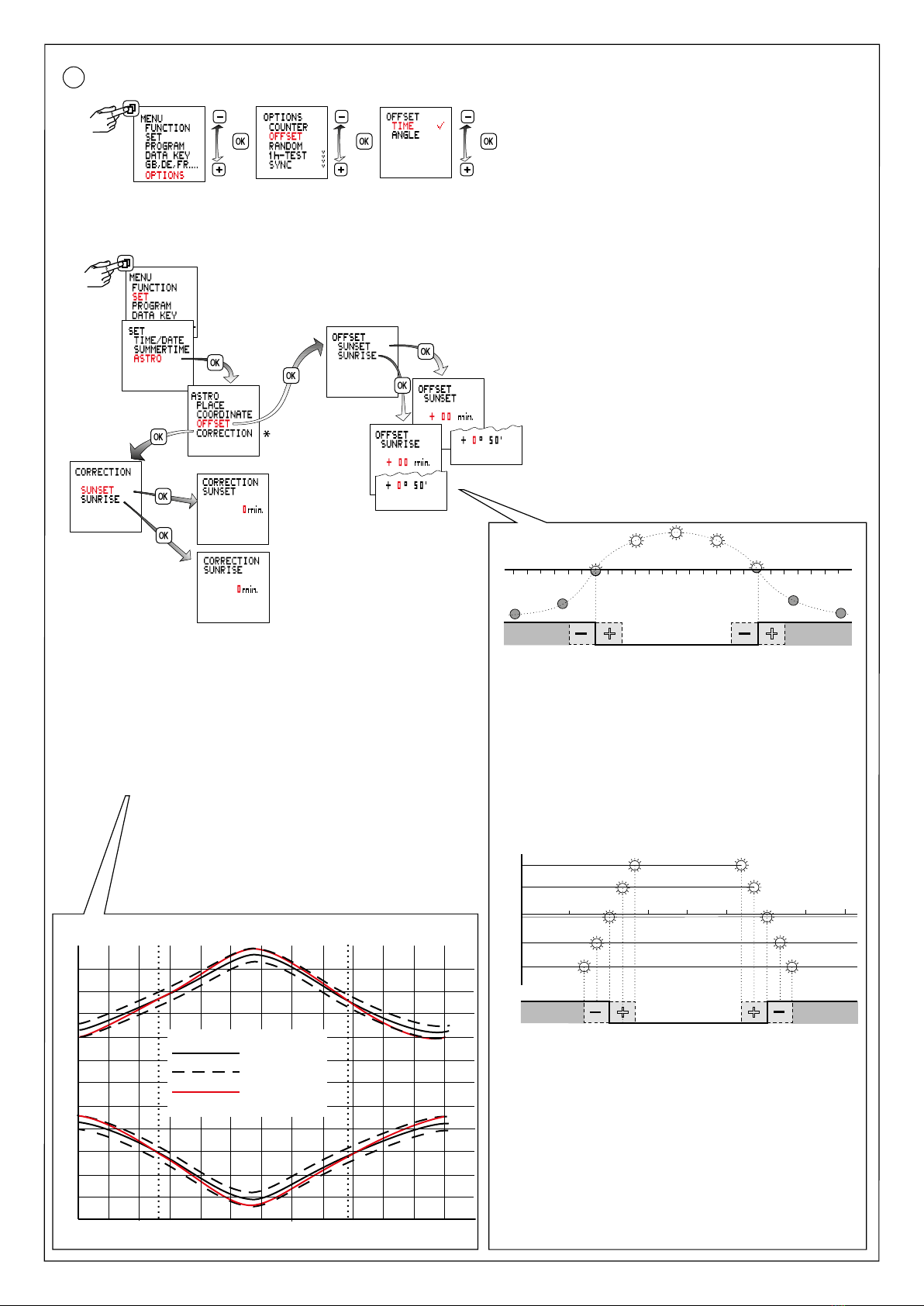

Setting the correction value (1...30 min.) extends the daily
ON period in the middle of the winter season by up to 60
minutes (OFF up to 30 min. later in the morning, ON up to
30 min. earlier in the evening).
In the middle of the summer season, the correction setting
reduces the daily ON period by up to 60 minutes (OFF up
to 30 min. earlier in the morning, ON up to 30 min. later in
the evening).
0 30 60 90 120 150 180 210 240 270 300 330 360
24
22
20
18
16
14
12
10
8
6
4
2
0
21.03. 23.09
h
d
Switching-point
Offset
Correction
The time switch switches on at the calculated sunset time and off
at the calculated sunrise time.
By setting an offset, you can shift the switching times by up to
±120 minutes with respect to the calculated sunrise and sunset
times.
Example: If you set the offset to +30 minutes, the time switch will
switch 30 minutes after sunrise and 30 minutes after
sunset. If you set the offset to -30 minutes, the time
switch will switch 30 minutes before sunrise and 30
minutes before sunset.
0h 3 6 9 12 15 18 21 24 h
1
0++
+12˚
+6˚
-50’
-6˚
-12˚
If the offset setting is in degrees the time switch switches on and
off at times of equal brightness, despite the differences in twilight
time lengths over the course of the year.
Sunrise and sunset correspond to -50' for the centre of the sun
(the edge of the sun is visible on the horizon).
0h 3 6 9 12 15 18 21 24 h
t
1
0
++
max. 120 min
max. 120 min

3B
PROGRAM / YEAR
This menu item permits the input of (additional) annual programs which are to be executed only during a specified period. These programs and
the weekly programs of the same channel are ORed together as described above.
The period during which a program is to be executed is defined by entering a start date and an end date.
• The option EVERY YEAR should be selected if the additional program is to be executed during the same period of each year
(e.g. Christmas, national holidays, birthdays, etc.).
• The option ONCE should be selected if the additional program is to be executed only during a single period (e.g. vacation period), but the
start and end dates of this period are different in each year.
• The option MOVABLE should be selected if additional switching times are to be performed on movable public holidays/special days.
(e.g. Easter, Whitsun, etc.). Entry is always for the current year. In the years that follow, the switch always takes place on the selected movable
public holidays/special days. Default is Easter Sunday of the current year. →3D

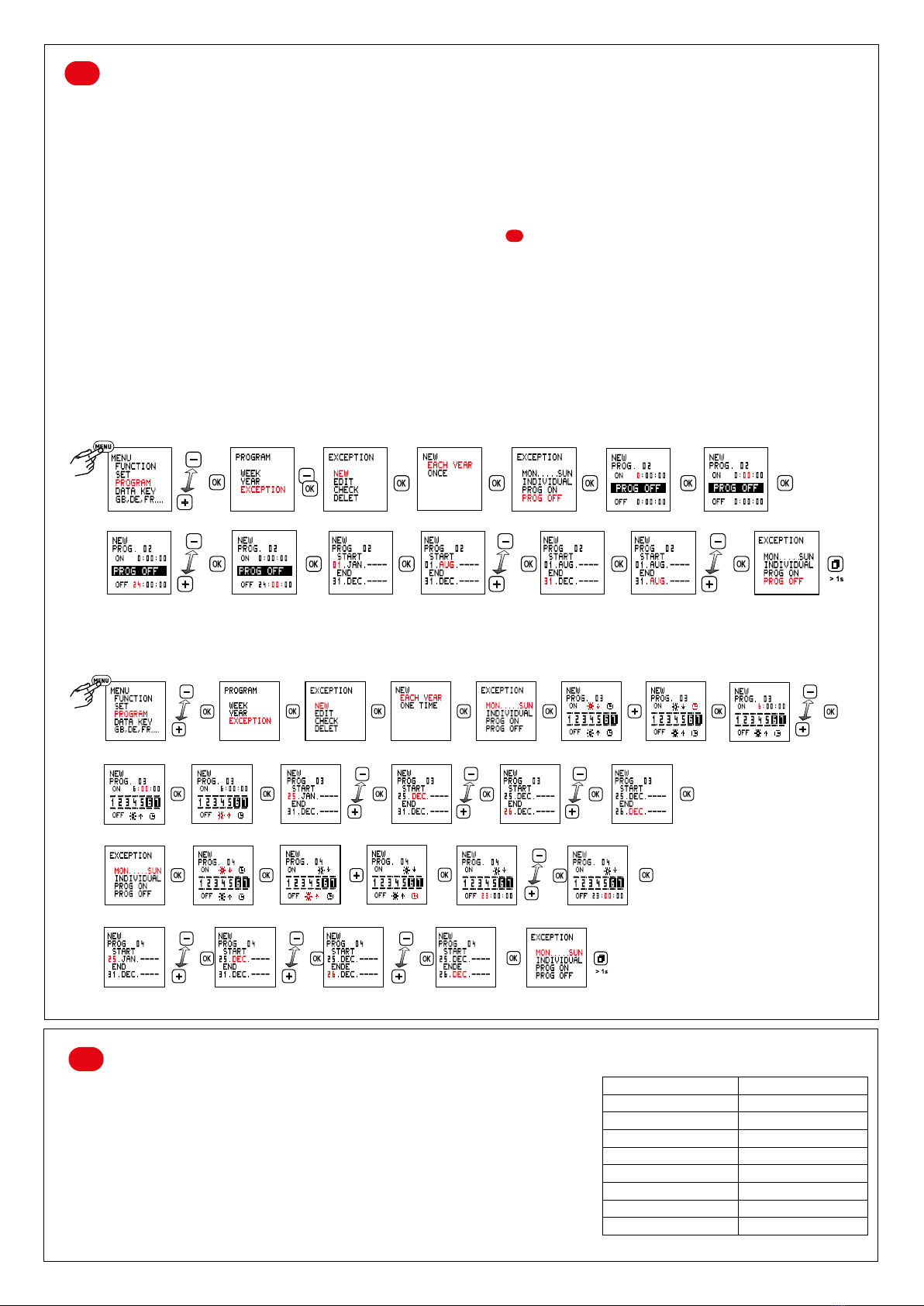

Sample YEAR program
Activate each year on at 09:00 hours on 01.11. and deactivate at 23:00 hours.
PROGRAM / WEEK
This menu item is provided for the simple input of programs which are to be repeated weekly (such as switching of lights and boilers).
A weekly program consists of an ON time, an OFF time and the associated ON and OFF days.
• MON TO SUN: the days of the week are already assigned and you only need to set the ON and OFF times.
This is used where the same program is to be executed on every day of the week.
• INDIVIDUAL: you can assign the ON and OFF times to any desired days. This is used where the same program is to be executed only on
certain days of the week or different programs are to be executed on the various days.
OR function
The programs defined for each channel are combined with an "OR". In other words, the output will be active if this is defined in any of the pro-
grams.

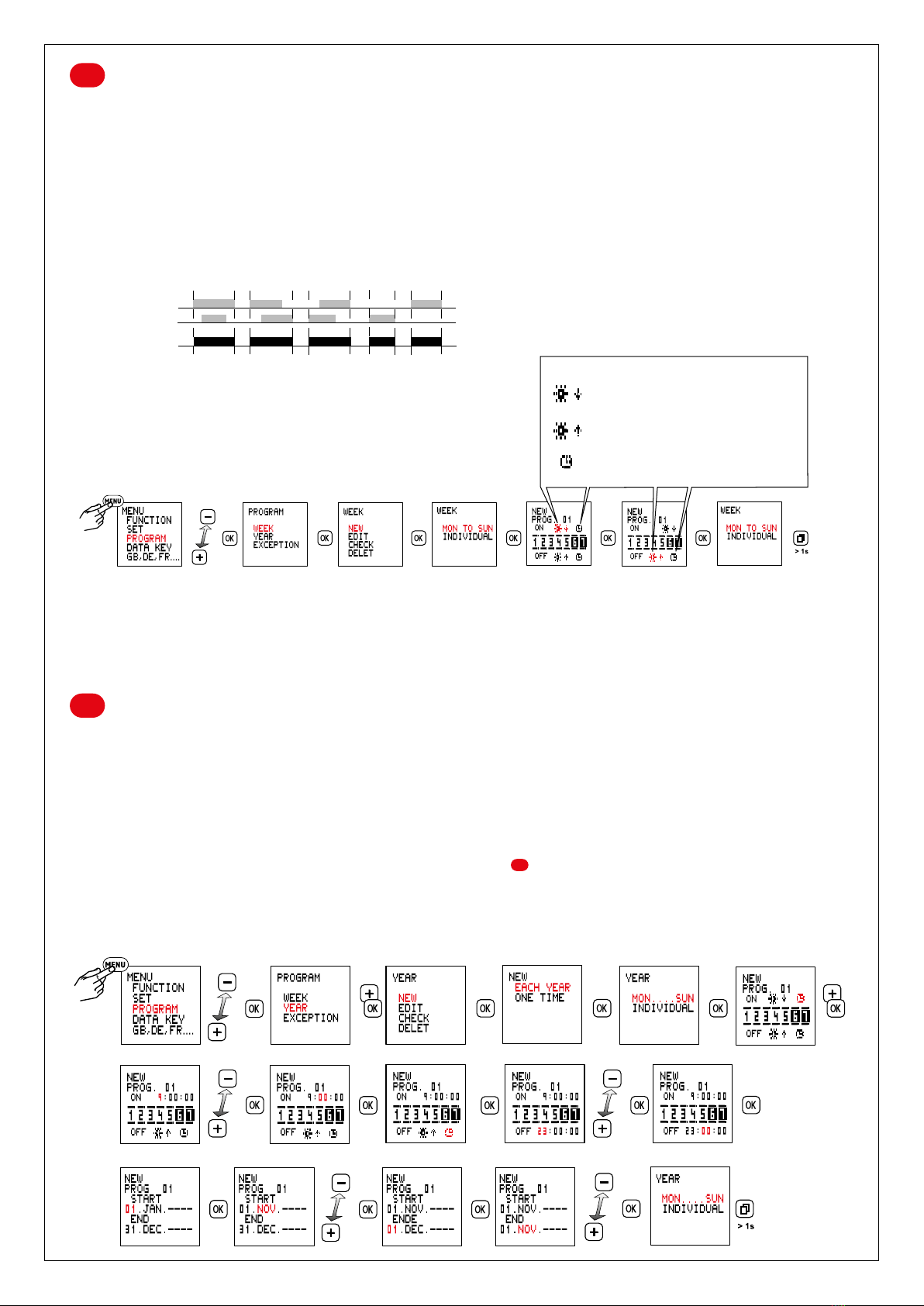

Sample WEEK program
The timer is to switch on at sunset on each day of the week and switch off at
sunrise.
ON at sunset
OFF at sunrise
ON / OFF at programmed time
Prog. 1
Prog. 2
Relay
3A

3C
PROGRAM / EXCEPTION
The weekly and annual programs defined are not executed as long as an extra program is active.
However, other exception programs will be executed while an exception program is active.
The various exception programs are ORed together as described above. (see OR function 3a)
• The option EVERY YEAR should be selected if the exception program is to be activated for the same period in each year
(e.g. Christmas, national holidays, birthdays, etc.).
• The option ONCE should be selected if the exception program is to be activated only during a single period (e.g. vacation period), but the start
and end dates of this period are different in each year.
The option MOVABLE should be selected if additional switching times are to be performed on movable public holidays/special days.
(e.g. Easter, Whitsun, etc.). Entry is always for the current year. In the years that follow, the switch always takes place on the selected movable
public holidays/special days. Default is Easter Sunday of the current year. →
3D
• Option MON TO SUN: the exception program is active from 00:00 hours on the start date to 24:00 hours on the end date.
During this period, the time switch switches only as defined in the exception program.
• Option INDIVIDUAL: the exception program is active from 00:00 hours on the start date to 24:00 hours on the end date.
During this period, the switching is only as only as defined in the exception program.
• Option PROG ON: the exception program is active from the ON time on the start date to OFF time on the end date. During this period, the output
is permanently on.
• Option PROG OFF: the exception program is active from the ON time on the start date to OFF time on the end date. During this period, the
output is permanently off.
The output is to be switched off each year for the entire period 01.08. to 31.08.
a
Each year from 25.12. to 26.12., the output is to be switched on at 6:00 hours, switched off at sunrise, switched on at sunset and switched
off at 23:00 hours. For this, two programs are needed:
Program 1: ON at 6:00 and OFF at sunrise
Program 2: ON at sunset and OFF at 23:00
b
Sample EXCEPTION programs
The clock calculates movable public holidays which are dependent on the liturgical* Easter
date according to the rule of Gauß and therefore takes into account the annual shift of the
Easter date. The movable public holidays align with the shift; they are always realised with
a certain number of differential days to Easter.
* Note: In some years, there is a difference between the liturgical and orthodox Easter date.
Name of public holiday Time to Easter Sunday
Maundy Thursday - 3 days
Good Friday - 2 days
Easter Sunday 0
Easter Monday +1 day
Ascension Day + 39 days
Whit Sunday + 49 days
Whit Monday + 50 days
Corpus Christi + 60 days
Movable public holidays/special days
3D

Modes
•Auto - Automatic operation
•Constant ON
•Constant OFF
•Extra
The switch status imposed by the program is inverted (manual override).
With the next effective switch command, the time switch resumes control of ON/OFF
switching.


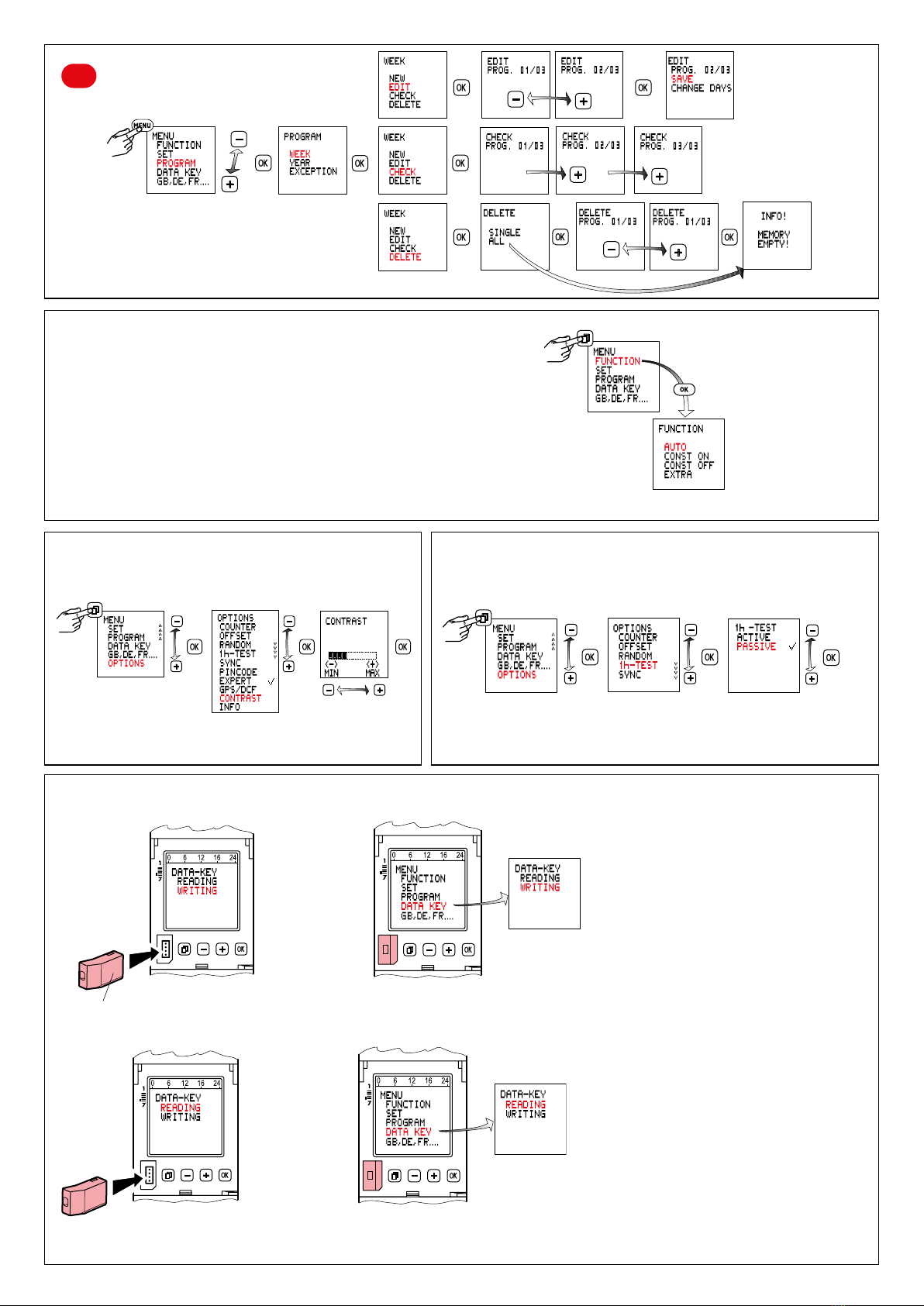

Edit/Check/Delete
3E
Contrast adjustment
5
Data key (only with existing main supply)
Load the programs of the time switch on to a data key (WRITE KEY)
Warning! all programs stored on the data key will be overwritten.

4 128 72/73
Load the programs from the data key to the time switch (READ KEY)
Warning! all programs stored in the time switch will be overwritten.
or
or
1 h-Test
When this function is activated, the output is switched ON for one hour.

After one hour, the time switch returns automatically to the programmed
mode.

Random function
Function to simulate presence.
Function active: the programmed switching
cycles are shifted at random within the range of
± 15 minutes.

Expert mode

Some additional functions are available in Expert mode:
• Power grid synchronisation to improve the accuracy
• Summer / winter seasonal correction
• Local coordinates exact to the minute
Note: Upon switching from ACTIVE to PASSIVE the additional menu items are hidden again and all the Expert mode settings are cancelled.
After re-activating, Expert mode will operate again with the basic settings.
Activating and deactivating grid synchronisation
Only available in EXPERT mode. The synchronisation can only be activated when no antenna (DCF77 or GPS) is connected.
The default setting is PASSIVE. In order to improve the long-term accuracy, it is advisable to activate synchronisation if the time switch is
supplied from a on 50/60 Hz grid with frequency adjustment.

Pincode
PIN CODE active: The menus of the time switch will not be accessible unless the PIN CODE has been entered. When the pin code is active,
access to the button and key functions is disabled 1 minute after the last button press.
PIN free access can be re-enabled by selecting PASSIVE or by resetting the device.

Example
1
2
+
!
Elektrical shock - Disconnect all power from the device
before dismantling the module and replacing the battery.
Only re-energize the device after installing the module.
Always use a Li cell type battery (LiMnO2) CR2477,
3V high temperature type min +85 °C
Hour counter
Displays the total relay ON time (0 to 65535 h) and the date of the last reset.


DCF77 / GPS
The sychronisation starts when either
• an antenna is connected,
• the power supply is switched on,
• the time or date has been changed manually,
• Reset is activated
• or the GPS/DCF RESTART menu option is selected.
During normal operation, the DCF77 signal is actively decoded every 6 hour for 30 minutes.
An external antenna will receive the time signal DCF 77 (DCF antenna, ref. 4 127 06) or the time and the local coordinates
(GPS antenna, ref. 4 127 07). Only one antenna is allowed to connect.
Status of synchronisation
Actual time is synchronous to DCF77
the last sychronisation was not possible
the last two sychronisations were not possible
Sychronisation is not possible, the next automatic update takes place in 6 hours
DCF77
GPS
During normal operation the GPS-signal is actively decoded every 6 hours for 30 minutes. The time zone is not synchronised. A manual
adjustment is necessary. By activating the expert mode the resolution of the coordinates can be increaded from degree to minute
Status of synchronisation
The time and local coordinates are synchronous to GPS
the last sychronisation was not possible
the last two sychronisations were not possible
Sychronisation is not possible
A
B
The sychronisation starts when either
• an antenna is connected,
• the power supply is switched on,
• the time or date has been changed manually,
• Reset is activated
• or the GPS/DCF RESTART menu option is selected.
0 6 12 16 24
L
N
max. 250 V AC L
N
max 16 A
0 6 12 16 24
L
N
max. 250 V AC L
N
max 16 A
Synchronising on DCF77 signal
Receiving the DCF77 signal
It’s the actual time.
Synchronising on GPS signal
Receiving the GPS signal
It’s the actual time.
Check polarity
Check polarity

Program
type
Execution Charac-
teristics
ON/OFF
times
Weekday
assignments
Active
period
START
date
Active
period
END date
Application, objectives, examples
WEEK Repeated
weekly
MON TO
SUN P p p p
The same switching cycle is to be executed on every day of each
week.
Example: switch lights on at sunset and off at 22:30:00 hours
each day.
INDI-
VIDUAL P P p p
A switching cycle is to be executed only on specific days of each
week.
Example: switch lights on at sunset and off at 22:30:00 hours on
Monday to Friday of each week.
YEAR
EVERY
YEAR
MON TO
SUN P p Day, month, - - - -
Day, month,
- - - -
• A switching cycle is to be executed on each day within a
specified period of each year.
Example: switch on the outside lights of a church from 17:00:00
to 24:00:00 in the period 1 December to 31 December.
• An existing weekly program is to be supplemented with
additional switching times on each day during a specific period
of each year.
INDI-
VIDUAL P P Day, month, - - - -
Day, month,
- - - -
• A switching cycle is to be executed on certain days of the week
within a specified period of each year.
Example: switch on the outside lights of a church from 17:00:00
to 24:00:00 on each Sunday in the period 1 December to
31 December.
• An existing weekly program is to be supplemented with
additional switching times on certain days of the week during
a specific period of each year.
ONCE
MON TO
SUN P p Day, month, year
Day, month,
year
• A switching cycle is to be executed on each day of a specified
period in a specified year.
Example: in the year 2012, the heating in a holiday chalet is to
be switched on from 07:30:00 to 23:00:00 on each day during
the Easter holidays (25 March to 28 March 2012).
• An existing weekly program is to be supplemented with
additional switching times on each day during a specific period
of a specific year.
INDI-
VIDUAL P P Day, month, year
Day, month,
year
• A switching cycle is to be executed on certain days of a
specified period in a specified year.
Example: in the current year, the lights in a sports hall are to
be switched on from 19:00:00 to 22:00:00 on each Tuesday
and Friday during the period from 10 .January to 23 March.
• An existing weekly program is to be supplemented with
additional switching times on certain days of the week during
a specific period of a specific each year.
MOVABLE
MON TO
SUN P p Day, month, year
Day, month,
year
An annual program is to perform a switching cycle every year
at Easter.
e.g. In 2014 and in subsequent years, the heating in a holiday
home is to be switched on every day from 07:30:00 to 23:00:00
during the week before and after Easter.
NDI-
VIDUAL P P Day, month, year
Day, month,
year
An annual program is to perform a switching cycle every year
on Ascension Day.
e.g. Every year on Ascension Day, the outside lighting at a
bakery is to be switched on from 07:00:00 to 11:00:00.
Required inputs, depending on the program type and menu options.

Program-
type
Execution Charac-
teris-
tics
ON/OFF
times
Weekday
assignments
Active
period
START
date
Active
period
END date
Application, objectives, examples
EX-
CEP-
TION
EVERY
YEAR
MON TO
SUN P p
Day, month,
- - - -
from
0:00:00
hours
Day, month,
- - - -
to 24:00:00
hours
An exception program is to completely replace any existing weekly or
annual program on each day during a specific period of each year.
Example: the irrigation pump of an orchard is to be switched on from
17:00:00 to 18:00:00 on each day in the period from 20 March ---- to 10
April ----.
INDI-
VIDUAL P P
Day, month,
- - - -
from
0:00:00
hours
Day, month,
- - - -
to 24:00:00
hours
An exception program is to completely replace any existing weekly or
annual program on certain days during a specific period of each year.
Example: the irrigation pump of an orchard is to be switched on from
17:00:00 to 18:00:00 on each Monday and Friday in the period from 11
April ---- to 15 May ----.
PROG
ON P p
Day, month,
- - - -
from ON
time
Day, month,
- - - -
to OFF time
A channel is to be switched on continuously from the ON time on the
START date to the OFF time on the END date every year. This exception
program is to completely replace any existing weekly or annual program
for this channel.
Example: instead of the normal times for illumination of a public building,
the illumination is to be switched on from 17:00:00 on the national holiday
---- until 07:00:00 the next morning
4 October ----.
PROG
OFF P p
Day, month,
- - - -
from ON
time
Day, month,
- - - -
to OFF time
An output is to be switched off continuously from the ON time on the
START date to the OFF time on the END date every year. This exception
program is to completely replace any existing weekly or annual program
for this channel.
Example: in order to save power, certain equipment in a factory is to be
switched off during the Christmas holiday period of each year. i.e. from
18:00:00 on 23 December ---- to 6:00:00 on
27 December ----.
ONCE
MON TO
SUN P p
Day, month,
year
from
0:00:00
hours
Day, month,
year
to 24:00:00
hours
On each day during a specific period of a specified year, an exception
program is to completely replace any existing weekly or annual program.
Example: during the Christmas holidays of the year 2012, the heating
in an apartment is to be switched each day from 7:00:00 to 23:00:00,
instead of in the normal cycle. This exception period is to begin on 24
December 2012 and end on 06 January 2013.
INDI-
VIDUAL P P
Day, month,
year
from
0:00:00
hours
Day, month,
year
to 24:00:00
hours
On certain weekdays during a specific period of a specific year, an
exception program is to completely replace any existing weekly or annual
program.
Example: in December 2012, the heating system of a department store is
to be switched on from 8:00:00 to 18:00:00 each Sunday, because the
store opens on Sundays in the period 4 December 2012
to 18 December 2012.
PROG
ON P p
Day, month,
year
from ON
time
Day, month,
year
to OFF time
A channel is to be switched on continuously from the ON time on the
START date to the OFF time on the END date of a specific year. This
exception program is to completely replace any existing weekly or annual
program for this channel.
Example: the alarm system of an office building is to be switched on con-
tinuously during the vacation period 19:00:00 on 15 July 2012 to 06:00:00
on 7 August 2012.
PROG
OFF P p
Day, month,
year
from ON
time
Day, month,
year
to OFF time
A channel is to be switched off continuously from the ON time on the
START date to the OFF time on the END date of a specific year. This
exception program is to completely replace any existing weekly or annual
program for this channel.
Example: in 2012, the normal recess gong in a school is to be switched
off during the summer holidays 00:00:00 on 28 July 2012 to 24:00:00 on
10 September 2012.

Select the option PROGRAM / WEEK for a program which is to be executed a on specific days of the week and is to be repeated weekly.
Select the option PROGRAM / YEAR for a program which is to be executed each year or only in a specific year. The execution period within the
year can be defined by entering start and end dates.
Select the option PROGRAM / EXCEPTION for a program which is to completely replace existing weekly or annual programs during a specified
period.
Priorities of the various program types within the same channel:
WEEK program YEAR program EXCEPTION program
WEEK program The various weekly programs are
ORed together
The various weekly and annual
programs are combined with a
logical or
The exception program is overri-
ding within its
defined period of activity.
YEAR program
The various weekly and annual
programs are
ORed together
The various weekly and annual
programs are combined with a
logical or
The exception program is overri-
ding within its
defined period of activity.
EXCEPTION program
The exception program is overri-
ding within its
defined period of activity.
The exception program is overri-
ding within its
defined period of activity.
The various exception programs
are ORed
together
Program-
type
Execution Charac-
teris-
tics
ON/OFF
times
Weekday
assignments
Active
period
START
date
Active
period
END date
Application, objectives, examples
EX-
CEP-
TION
MOVABLE
MON TO
SUN P p
Day, month,
- - - -
from
0:00:00
hours
Day, month,
- - - -
to 24:00:00
hours
An exception program is to replace an existing annual program
every year on a movable public holiday.
e.g. The lights in a church are to be switched from the daily
switch program on the liturgical public holidays.
INDI-
VIDUAL P P
Day, month,
- - - -
from
0:00:00
hours
Day, month,
- - - -
to 24:00:00
hours
An exception program is to perform a switching cycle every year
on the Tuesday after Whitsun.
e.g. Every year on the Tuesday after Whitsun, gate access to
the factory site is not to be opened.
PROG
ON P p
Day, month,
- - - -
from ON
time
Day, month,
- - - -
to OFF time
To be switched on permanently at Easter every year.
This exception program is to fully replace other possible existing
weekly or annual programs.
e.g. In contrast to the normal daily lighting times of a church, to
be switched on every year at Easter from 17:00:00 to 24:00:00.
PROG
OFF P p
Day, month,
- - - -
from ON
time
Day, month,
- - - -
to OFF time
To be switched off permanently every year from the start date of
the switch-on time to the end date of the switch-off time.
This exception program is to fully replace other possible existing
weekly or annual programs within the date interval.
e.g. In contrast to the normal sequence in a business, the energy
supply of certain systems is to be switched off at 6:00:00 on the
Easter public holidays every year due to rest days.

Reset
Warning!
The memory will be cleared, and all set data will be lost.

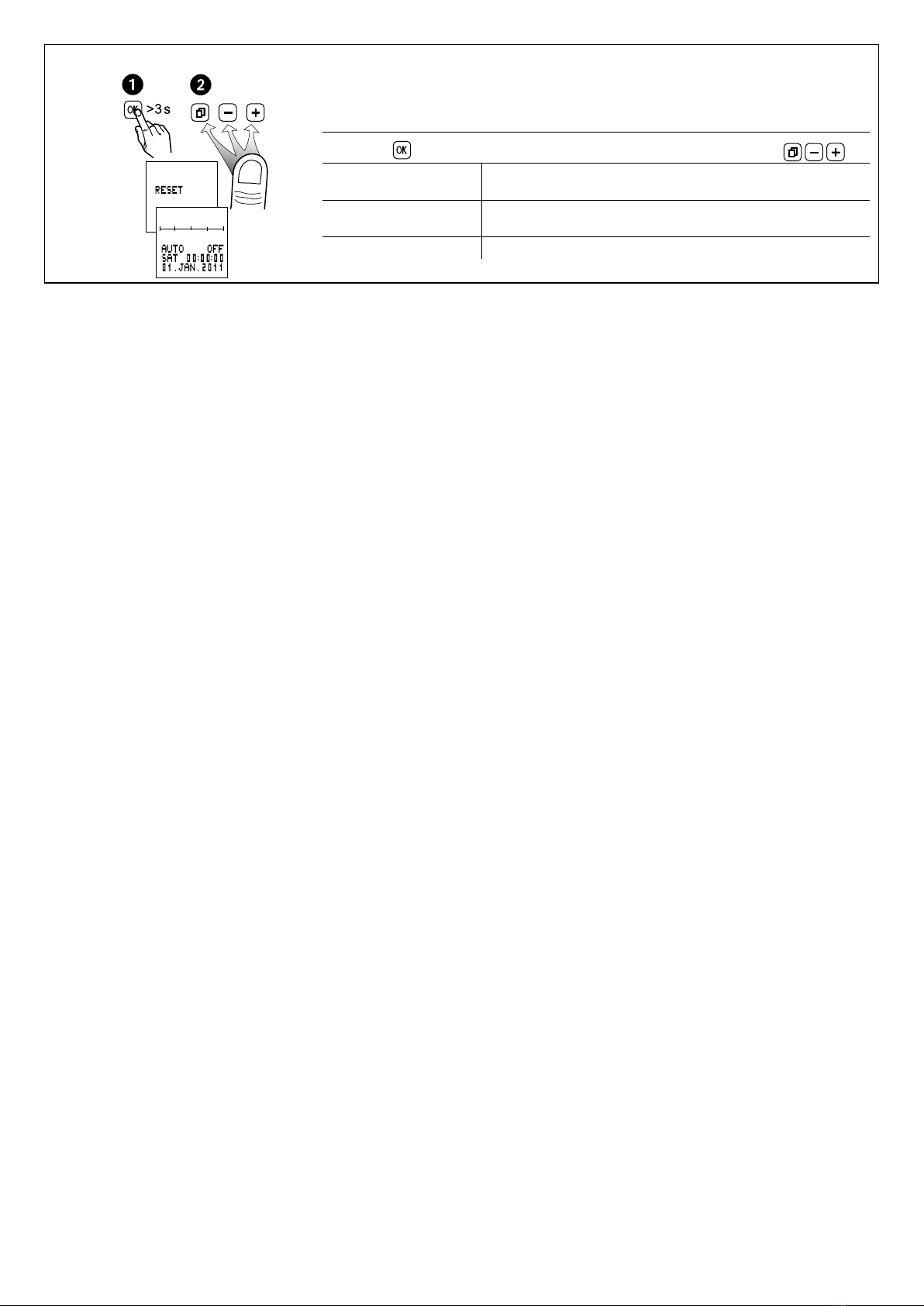

Hold down for more than 3 seconds and at the same time press and release .
without Antenna The language, time, date, summertime/wintertime, local coordinates
and switching times will have to be reentered.
with DCF77 Antenna The language, local coordinates and switching times will have to be
reentered.
with GPS Antenna The language and switching times will have to be reentered.

Calgary
Cairns
Wien
Lanzhou
Praha
Warszawa
114 W, 51 N
93 W, 45 N
153 E, 27 S
104 W, 39 N
58 E, 24 N
121 E, 25 N
54 E, 24 N
25 E, 60 N
18 E, 59 N
39 E, 21 N
56 E, 58 N
14 E , 50 N
21 E , 52 N
175 170 165 160 155 150 145 140 135 130 125 120 115110 105 100 95 90 85 80 75 70 65 60 55 50 45 40 35 30 25 20 15 10 505101520253035404550556065707580859095 100 110115 120 125 130 135 140 145 150 155 160 165 175 180170105 175 170 165 160 155 150 145 140 135 130 125 120 115110 105 100 95 90 85 80 75 70 65 60 55 50 45 40 35 30 25 20 15 10 505101520253035404550556065707580859095 100 110115 120 125 130 135 140 145 150 155 160 165 175 180170105
180
180
90 85 80 75 70 65 60 55 50 45 40 35 30 25 20 15 10
5 0 5
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
90 85 80 75 70 65 60 55 50 45 40 35 30 25 20 15 10
5 0 5
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
-11:00 -10:00 -9:00 -8:00 -7:00 -6:00 -5:00 -4:00 -2:00-3:00 -1:00 UTC +1:00 +2:00 +3:00 +4:00 +5:00 +6:00 +7:00 +8:00 +9:00 +10:00 +11:00 +12:00-12:00 -11:00 -10:00 -9:00 -8:00 -7:00 -6:00 -5:00 -4:00 -2:00-3:00 -1:00 UTC +1:00 +2:00 +3:00 +4:00 +5:00 +6:00 +7:00 +8:00 +9:00 +10:00 +11:00 +12:00-12:00
France Bordeaux 1 W 45 N Brest 5 W 48 N Calais 2 E 51 N Dijon 5 E 47 N La Rochelle 1 W 46 N Le Havre 0 WE 49 N Le Mans 0 WE 48 N Lille 3 E 51 N Limoges 1 E 46 N Lyon 5 E 46 N Marseille 5 E 43 N Mulhouse 7 E 48 N Nancy 6 E 49 N Nantes 2 W 47 N Paris 2 E 49 N Perpignan 3 E 43 N Strasbourg 8 E 49 N Toulouse 1 E 44 N Finland Rovaniemi 26 E 66 N Oulu 25 E 65 N Kajaani 28 E 64 N Tampere 24 E 61 N Turku 22 E 60 N Helsinki 25 E 60 N
Great Britain Aberdeen 2 W 57 N Belfast 6 W 55 N Glasgow 4 W 56 N Newcastle 6 W 54 N Liverpool 3 W 53 N Manchester 2 W 53 N Sheffield 1 W 53 N Birmingham 2 W 52 N London 0 WE 51 N Plymouth 4 W 50 N
Hungary Budapest 19 E 47 N Gyor 18 E 48 N Szombathely 17 E 47 N Pecs 18 E 46 N Szeged 20 E 46 N Debrecen 22 E 48 N Miskolc 21 E 48 N Salgotarjan 20 E 48 N Italy Cagliari 9 E 39 N Milano 9 E 45 N Venézia 12 E 45 N Génova 9 E 44 N Roma 12 E 42 N Nápoli 14 E 41 N Bari 17 E 41 N Palermo 13 E 38 N
Ellas (Greece) Saloniki 23 E 41 N Athinai 24 E 38 N
Ireland Dublin 6 W 53 N Cork 8 W 52 N Galway 9 W 53 N Norway Narvik 17 E 68 N Trondheim 10 E 63 N Bergen 5 E 60 N Oslo 11 E 60 N Mo i Rana 14 E 66 N
Poland Gdansk 19 E 54 N Katowice 19 E 50 N Kraków 20 E 50 N Poznan 17 E 52 N Szczecin 15 E 53 N Warszawa 21 E 52 N Portugal Lisboa 9 W 39 N Faro 8 W 37 N Porto 9 W 41 N Turkey Adana 35 E 37 N Adapazari 30 E 41 N Ankara 33 E 40 N Antalya 31 E 37 N Canakkale 26 E 40 N Gaziantep 37 E 37 N Istanbul 29 E 41 N Mugla 28 E 37 N Samsun 36 E 41 N Izmir 27 E 38 N
Espana Barcelona 2 E 41 N Madrid 4 W 40 N Palma 3 E 40 N Selvilla 6 W 37 N Valencia 0 WE 39 N Sweden Goteborg 12 E 58 N Halmstad 13 E 57 N Linkoping 16 E 58 N Orebro 15 E 59 N Stockholm 18 E 59 N Gavle 17 E 61 N Umea 20 E 64 N Lulea 22 E 66 N
Switzerland Bern 7 E 47 N Basel 8 E 47 N Sankt Gallen 9 E 47 N Lugano 9 E 46 N Zürich 9 E 47 N
Los Angeles
Miami
New York
75 W, 40 N
San Francisco
122 W, 38 N
116 E, 40 N
Chongqing
107 E, 30 N
Harbin
127 E, 46 N
Hong Kong
114 E , 22 N
Shenyang
123 E, 42 N
104 E, 36 N
Xi'an
109 E, 34 N
Manila
73 E, 34 N
Kabul
+5:00
+3:30
+8:00
+ 6:00
+ 3:00
51 E, 36 N
44 E, 33 N
Windhoek
11 E, 60 N
Oslo
Québec
Cordoba
Brasilia
+8:00 +10:00
77 E, 43 N
+9:00
+9:00
+7:00 +9:00
+2:00
+3:00
UTC
+1:00
+3:00
+2:00
-3:00
-6:00
-9:00
+3:00
-10:00
+1:00
+2:00
93 E, 56 N
+12:00
3 E , 37 N
8W, 34N
58 W, 35 S
64 W, 31 S
71 W, 33 S
149 E , 35 S
145 E , 38 S
151 E , 34 S
116 E, 32 S
Adelaide
139 E , 35 S
146 E , 17 S
175 E, 41 S
43 W , 23 S
47 W, 24 S
79 W, 44 N 74W, 45 N
71W, 47 N
73 W, 37 S
13 E, 52 N
Berlin
Athinai
24 E, 38 N
4 W, 40 N
Madrid
Paris
2 E, 49 N
London
0 WE, 51 N
Dublin
6 W, 53 N
Delhi
77 E , 29 N
Chennai
80 E, 13 N
73 E, 19 N
Mumbai
67 E, 24 N
Karachi
Kolkata
88 E, 23 N
Kanpur
80 E, 26 N
Ahmadabad
73 E, 23 N
Roma
12 E, 42 N
Tokyo
140 E, 36 N
Osaka
135 E, 35 N
Casablanca
El Djazair
Tarabulus
13 E , 33 N
Guadalajara
103 W, 21 N 99 W, 19 N
Monterry
100 W, 26 N
Al-Qahira
31 E, 30 N
175 E, 37 S
Auckland
Wellington
Brisbane
Sydney
Canberra
Melbourne
Perth
16 E, 48 N
Lisboa
9 W, 39 N
Porto
9 W, 41 N
Perm
30 E , 60 N
38 E, 56 N
Moskva Krasnojarsk
Novosibirsk
83 E, 55 N
Omsk
73 E, 55 N
Irkutsk
104 E, 52 N
Jiddah
47 E, 25 N
Ar-Riyad
9 E, 47 N
Zürich
18 E, 34 S
Capetown
Johannesburg
Durban
31 E, 30 S
28 E, 26 S
Seoul
127 E, 38 N
Tunis 10 E, 37 N
Istanbul
29 E, 41 N
Adana
35 E, 37 N
Ismir
27 E, 38 N
Abu Dhabi
84 W, 34 N
Atlanta
88 W, 42 N
97 W, 33 N
Dallas
83 W, 42 N
Detroit
118 W, 34 N
80W, 26 N
74 W, 41 N
Philadelphia
Houston
95 W, 30 N
123 W, 49 N
Vancouver
122 W, 48 N
Seattle
Beijing
Taipei
Bangkok
101 E, 14 N 121 E, 15 N
Hanoi
106 E, 21 N
Kathmandu
85 E , 28 N
Islamabad
69 E, 35 N
+8:00
+5:00
+4:30
Alma Ata
Ulaanbaatar
107 E, 48 N
Kiev 31 E , 50 N 46 E, 52 N
Saratov
Sankt Peterburg
Tehran
Baghdad
Muscat
48 E , 19 S
Antananarivo
17E, 22 S
Helsinki
Stockholm
Reykjavik
21 W, 64 N
-3:30
Montreal
Toronto
Chicago
Denver
Minneapolis
Havana
82 W, 23 N
Santo Domingo 70 W, 19 N
Mexico City
La Paz
68 W, 16 S
Santiago
Concepcion Buenos Aires
Sao Paulo
Rio de Janeiro
48 W, 16 S
Austria Klagenfurt 14 E 47 N Salzburg 13 E 48 N Linz 14 E 48 N Wien 16 E 48 N Graz 15 E 47 N Benelux Amsterdam 5 E 52 N Bruxelles 4 E 51 N Luxembourg 6 E 50 N Danmark Københaven 13 E 56 N Ålborg 10 E 57 N Århus 10 E 56 N Esbjerg 8 E 55 N Germany Aachen 6 E 51 N Berlin 13 E 52 N Düsseldorf 7 E 51 N Dresden 14 E 51 N Emden 7 E 53 N Flensburg 9 E 55 N Frankfurt 9 E 50 N Freiburg 8 E 48 N Hamburg 10 E 54 N Hannover 10 E 52 N Kassel 9 E 51 N Köln 7 E 51 N Leipzig 12 E 51 N München 12 E 48 N Münster 8 E 52 N Nürnberg 11 E 49 N Passau 13 E 49 N Regensburg 12 E 49 N Rostock 12 E 54 N Soest 8 E 52 N Stuttgart 9 E 49 N
Shanghai
121 E, 31 N
N
S
WE
+5:00
+7:00
+6:00
+12:00
+10:00 +11:00
-5:00
-4:00
-7:00
-8:00
-4:00
-5:00
-3:00
+1:00
+9:30
+5:30
+6:30
+ 3:00
-3:00
+5:00
+4:00
+4:00
•Carte des fuseaux horaires •Time-of-day map •Zeittzonenkarte
