8-Port GigE Switch w/4-Port PoE
Injector (P/N DA1458)
Owner’s Manual
1308145 REV. C

Page ii
301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.legrand.us
FCC Certifications
This equipment generates and uses radio frequency energy and if not installed and used properly, that is,
in strict accordance with the instructions provided with the equipment, may cause interference to radio
and TV communication. The equipment has been tested and found to comply with the limits for a Class A
digital device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are
designed to provide reasonable protection against such interference in a residential installation. However,
there is no guarantee that interference will not occur in a particular installation. If you suspect this
equipment is causing interference, turn your DA1458 on and off while your radio or TV is showing
interference, if the interference disappears when you turn your DA1458 off and reappears when you turn
it back on, there is interference being caused by the DA1458.
You can try to correct the interference by one or more of the following measures:
Reorient the receiving radio or TV antenna where this may be done safely.
To the extent possible, relocate the radio, TV or other receiver away from the DA1458.
Plug the DA1458 into a different power outlet so that the DA1458 and any POE receiver are on
different branch circuits.
If necessary, you should consult the place of purchase or an experienced radio/television technician for
additional suggestions.
CE Mark Warning
This is a class A device, In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
All trademarks and brand names are the property of their respective proprietors.
Specifications are subject to change without prior notification.

Page iii
301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.legrand.us
TABLE OF CONTENTS
1.0 Introduction ................................................................................................................1
1.1 Detailed Physical Description .............................................................................2
1.2 Installation ............................................................................................................3

Page 1
301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.legrand.us
1.0 Introduction
The Legrand DA1458 8-Port GigE Switch w/4-Port PoE Injector (see Figure 1) provides eight ports of
10/100/1000Mbps switching capability, and at the same time on four of its ports, full 48VDC power for any
remote IEEE 802.3af powered device, such as a third party Wireless Access Point, IP Phone, or IP
Camera over Cat 5/6 wiring. The DA1458 has four RJ45 jacks labeled “Data” and four labeled “Data +
Power”. The unit’s power is supplied by a P/N PW1248 48VDC 60W AC adapter (sold separately), and
supports up to 15.4 Watts of PoE power on each of the four PoE ports.
The DA1458 is designed as a standard two-bay module, so that it may be easily mounted to the included
bracket in an On-Q style enclosure.
The DA1458 complies with IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit
Ethernet), IEEE 802.3x (Flow Control) and IEEE 802.3af (Power over Ethernet) standards.
Figure 1

Page 2
301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.legrand.us
1.1 Detailed Physical Description
DA1458 Connection Area
Figure 2 shows the DA1458 connection area including:
Eight RJ-45 jacks for 10/100/1000Mbps Ethernet switching support
48VDC Power Input jack
Four of the Gigabit Ethernet ports are also Power Over Ethernet ports for PoE powered devices
Power LED –indicates DA1458 has input 48VDC power
Eight Port LNK/ACT LEDs –indicates that port is actively supporting Ethernet data
Four PoE LEDs –indicate 48VDC power is being provided on those ports
NOTE: 48VDC Power is provided on pins 4 and 5 of the connected Cat 5/6 cable, and
ground is provided on pins 7 and 8 of the connected Cat 5/6 cable.
Figure 2
48VDC Input
Data Jacks
Data + PoE Jacks

Page 3
301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.legrand.us
1.2 Installation
The DA1458 8-Port GigE Switch + 4 Port PoE Injector is best installed during new construction in two
steps; at “rough-in” after the Electricians are done, but prior to drywall being installed, and at “trim-out”
after the drywall is installed and painted. These steps are detailed below:
A. “Rough-in” steps:
1. A single dedicated Cat 5/6 should be run in the walls from the structured wiring enclosure
location in the home where the DA1458 will be installed to each location in the home where an
Ethernet networking interface is needed and/or an IEEE 802.3af device will be installed (leave
extra cable at both ends).
NOTE: Run the Cat 5/6 cable at least 12” from electrical cabling (preferably in a separate stud
cavity) and cross electrical cables at a 90° angle. Use loose Velcro-style cable ties for
bundling. If stapling is required, use specialty staples to avoid compressing the cable.
2. At the selected locations, refer to the installation instructions provided with the Ethernet interface
device or IEEE 802.3af device for recommended use of electrical gang boxes or low voltage
brackets, with the extra Cat 5/6 cable in the box, or attached in such a way that it may be fished
out after the drywall is installed.
B. “Trim-out” steps:
1. The Cat 5/6 cable that was secured at each of the locations should be pulled out and terminated
with an RJ45 plug (or insert as required) following standard TIA 568A recommendations and if
PoE is required, attached with a Cat 5/6 jumper to the IEEE 802.3af device which is then
installed.
2. In the structured wiring enclosure the Cat 5/6 cables from the remote locations are terminated
with RJ45 plugs for direct connection to the DA1458 “Data or Data +Power” RJ45 jacks once
the DA1458 is installed.
3. The DA1458 is attached to the tw0-bay bracket with push pins in each corner, and then the
bracket is installed in the structured wiring enclosure by slipping the tabs into the square holes,
and using the push pins in round holes to secure the DA1458 assembly.
4. If a router is installed in the enclosure, use a Cat 5/6 patch cable (available separately) to
connect from a router port to one of the “Data or Data + Power”ports on the DA1458 (see
Figure 3).
5. The DA1458 is powered with an AC to DC adapter which also needs to be plugged in to an AC
source.

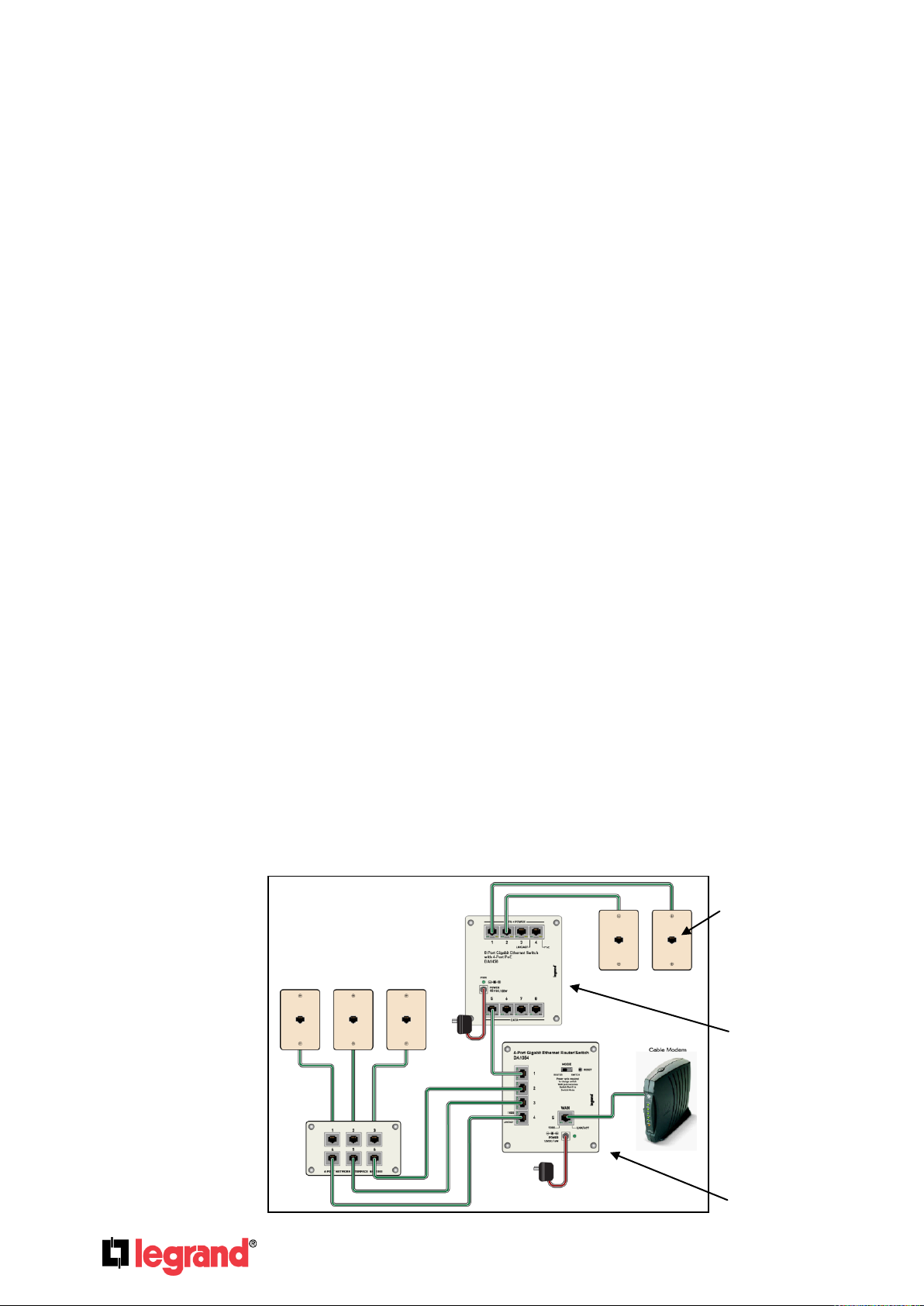

Figure 3
DA1458 used for
Router/Switch port
expansion and PoE
distribution
Router/Switch
Ethernet networking
device (PC) or IEEE
802.af PoE device (IP
Camera, VoIP Phone,
PoE WAP)
