LENCO DVP-854 User manual

1
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
POWER SUPPLY:

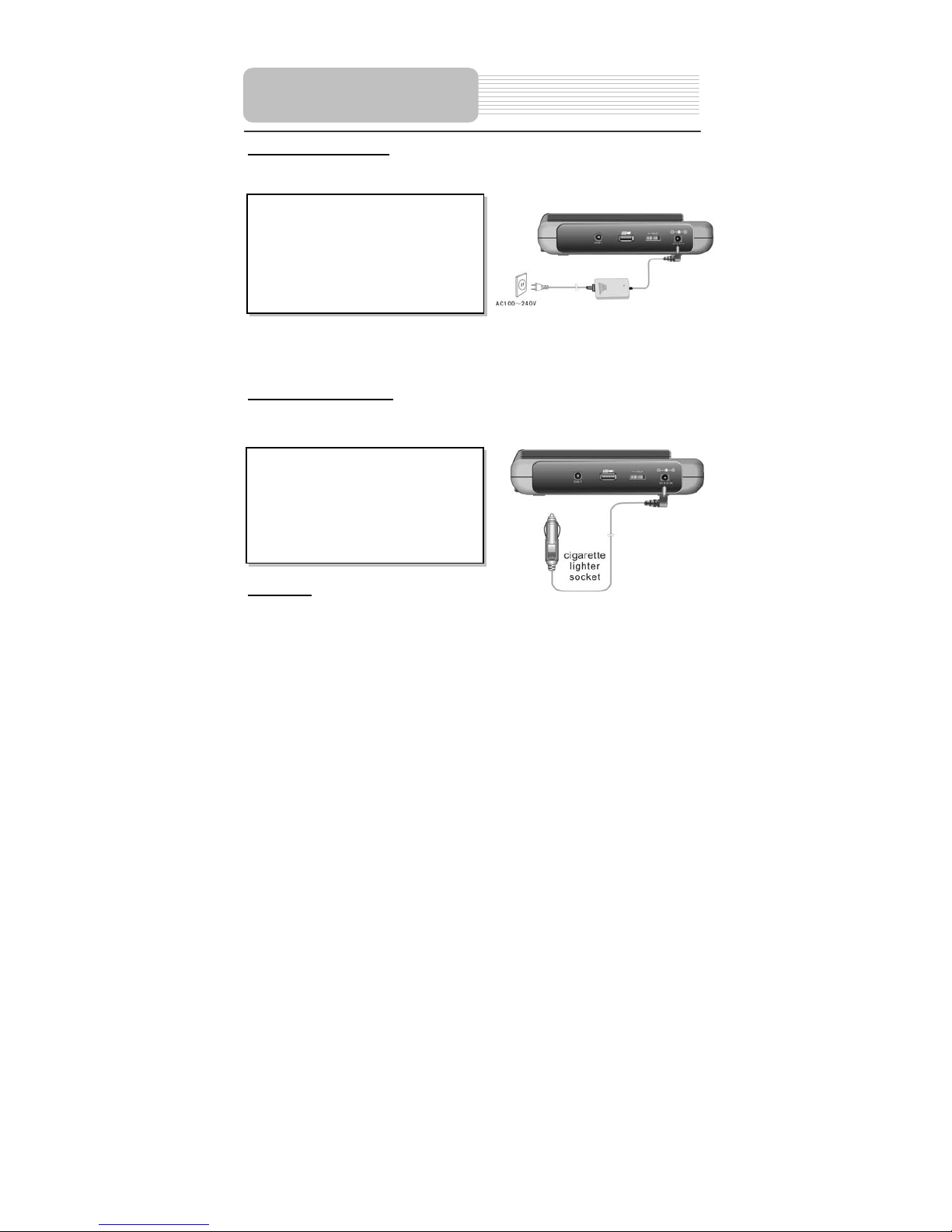

Connect the supplied adapter to the side of the DVD player in the slot marked “Power In”.
Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty
inserting the plug, turn it over and reinsert it, if the unit will not the used for a long time,
disconnect the plug from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.
Important Safety
Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NO
T
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric to
p
ersons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accom
p
an
y
in
g
the a
pp
liance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
CAUTION: Laser radiation when open. Do not stare into beam.

2
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Maintain well ventilated conditions around the
product, Do not put product on bed, sofa or anything that blocks ventilation. Install
in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Note: Do not touch the color TFT LCD screen by hand directly.
Important Safety
Instructions

3
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Region code information
DVD players and discs are coded by region. If the region number described on the DVD
disc does not correspond to the region number of this product, this product cannot play
the disc. The region code of this unit is 2.
IMPORTANT FOR LASER PRODUCT
S
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are no
user serviceable parts inside the unit. Leave all
servicin
g
to
q
ualified service
p
ersonnel.
Important Safety
Instructions

4
This product is designed portability and handily, with a stylish appearance. It
incorporates DVD player and DVB-T function in one system. It is conveniently for using
and taking.
High-quality audio and video
Advanced Playing Functions
Other Special Functions
AV In: External Audio, Video input can be
connected to most external AV sources.
AV Out: Analog Audio output and video
out
p
ut.
High Resolution: MPEG-2 decoding
format achieves more than 500 lines o
f
horizontal resolution.
Rating Features: Supports to lock out
certain scenes of the disc, or lock out the
whole disc depending on the contents o
f
the disc.
Power Adapter Switch: Automaticall
y
adapts to voltage requirements in U.S and
other countries.
On-screen Display: You can choose from
English, Spanish, French etc for On-screen
Display language.
Compatibility: Compatible with DVD,
CD, MP3 ，PICTURE CD and DIV
X
disks.
Particular Performance: Multi-speed,
fast forward, fast backward and slo
w
playback.
Search by Time: Search for a certain
track of a disk by selected time.
Last Memory Playback: Memorize the
stopped playback track and continue playing
disk from this spot on power on status o
r
without opening the disc tray cover.
Special Functions: Supports screen aspec
t
ratio changing, zooming in or out pictures,
multi-language caption, multi-angle.
Features
Excellent sound: Dolby Digital delivers
great sound.

5
Accessories List
ITEM NAME QTY
Remote Control Unit 1
Cell for Remote Control 1
Owner’s Manual 1
Power-supply Cord with AC adapter 1
Audio/Video Cable 1
DC Adapter (Car Adapter) 1
Rechargeable Battery 1
DVB Antenna 1
NOTE
Accessories and their parts numbers are subject to modification without prior notice due
to improvements.
Accessories

6
DVD Playback
CDPlayback
MP3Playback
Picture CD Playback
DIVX Playback
Contents
Important Safety Instructions
Features
View of Main Unit Bottom
Using of USB and SD Card
Remote Control
A
ccessories
View of Main Unit
…………………………………………..1
…………………………………………...4
…………………………………………...5
…………………………………………...7
………………………………….………..9
………………………………………….10
…………………………………………..11
…………………………………………..13
…………………………………………..14
…………………………………………..17
…………………………………………..18
…………………………………………..20
…………………………………………..21
…………………………………………..28
…………………………………………..29
…………………………………………..30
…………………………………………..34
…………………………………………..36
…..………………………………………38
…………………………………………..41
……………………………………….….44
…………………………………………..50
…………………………………………..51
…………………………………………..53
Troubleshooting
Specifications
Definitions
System Setup
Power Supply Preparation
Rechargeable Battery
Notes on Discs
Playback Operation
Preparation and Using of RC.
System Connections
DVB Setup
Sketch Map of Bracket

7
Front,left and right View
1. POWER button
Press to turn unit on or off.
2. MENU button
In DVD-mode: Press to display the disc title menu if the titles are coded in the disc.
In DVB-T mode: Press to display the channel guide.
3. PLAY/PAUSE button
Press to start playback or pause the playback.
4. /button
:When in a menu, press to select different items or to increase the level of
brightness, contrast and color.
: In DVD mode: Press to fast forward. Press repeatedly for 2x/4x/8x/20x normal
playback speed
5. /Button
:When in a menu, press to select different items to decrease the level of
brightness, contrast and color. .
: In DVD mode: Press to fast rewind. Press repeatedly for 2x/4x/8x/20x reverse
playback speed
6. //CH+ Button
: Press to select different items in menu’s.
: Press to go to next list/track/chapter in DVD mode.
CH+: Press to search the channel forward in DVB mode.
View of Main Unit

8
.
7. //CH- Button
:Press to select different items in menu’s.
: Press to return to the previous list/track/chapter in DVD mode.
CH-: Press to search the channel backward in DVB mode.
8. OK button
Press to confirm your selection.
9. Remote sensor
Receive the signal from the remote control for operation.
10. MODE button
Press to change the brightness, contrast and color level. Press and hold to change
the screen setting to 16:9,4:3,16:9 overturn and 4:3 overturn. Release the button
when the desired screen setting is being displayed.
11. Setup button
Press to enter the system setup in the mode of the DVD or DVB mode.
12. DVB / DVD / USB/SD switching button
Press to realize the function switching among DVB, DVD,USB,SD.
13. Speakers
Two speakers output high quality sound.
14. DC 9.5V IN Jack
For connecting to power supply, including Car Adapter.
15. HOLD button
Push the HOLD switch to lock the function of all the buttons on the front panel.
16. USB slot.
It can be connected to the USB.
17. DVB-T ANT jacks.
It can be connected to DVB-T antenna.
18. SD/MS/MMC card slot.
19. AV IN/OUT Switch
Switch to AV IN to input the external AV source; switch to AV OUT to play the disc.
20. VIDEO input/output Jack
Slide the AV IN/OUT button on the right panel to “input”, now it’s a VIDEO input Jack,
when switched to “output”, it’s a VIDEO output Jack.
21. AUDIO input/output and optical digital output Jack
Slide the AV IN/OUT button on the right panel to “input”, now it’s an AUDIO input
Jack, when switched to “output”, it’s an AUDIO output Jack.
22. Headphone Jack
When headphones are plugged into the unit, the speakers will automatically turn off.
23. VOLUME Control
For regulating the sound level of Speakers or Headphones.
24. PRESS button
V
iew of Main Unit

9
Press to open disc tray.

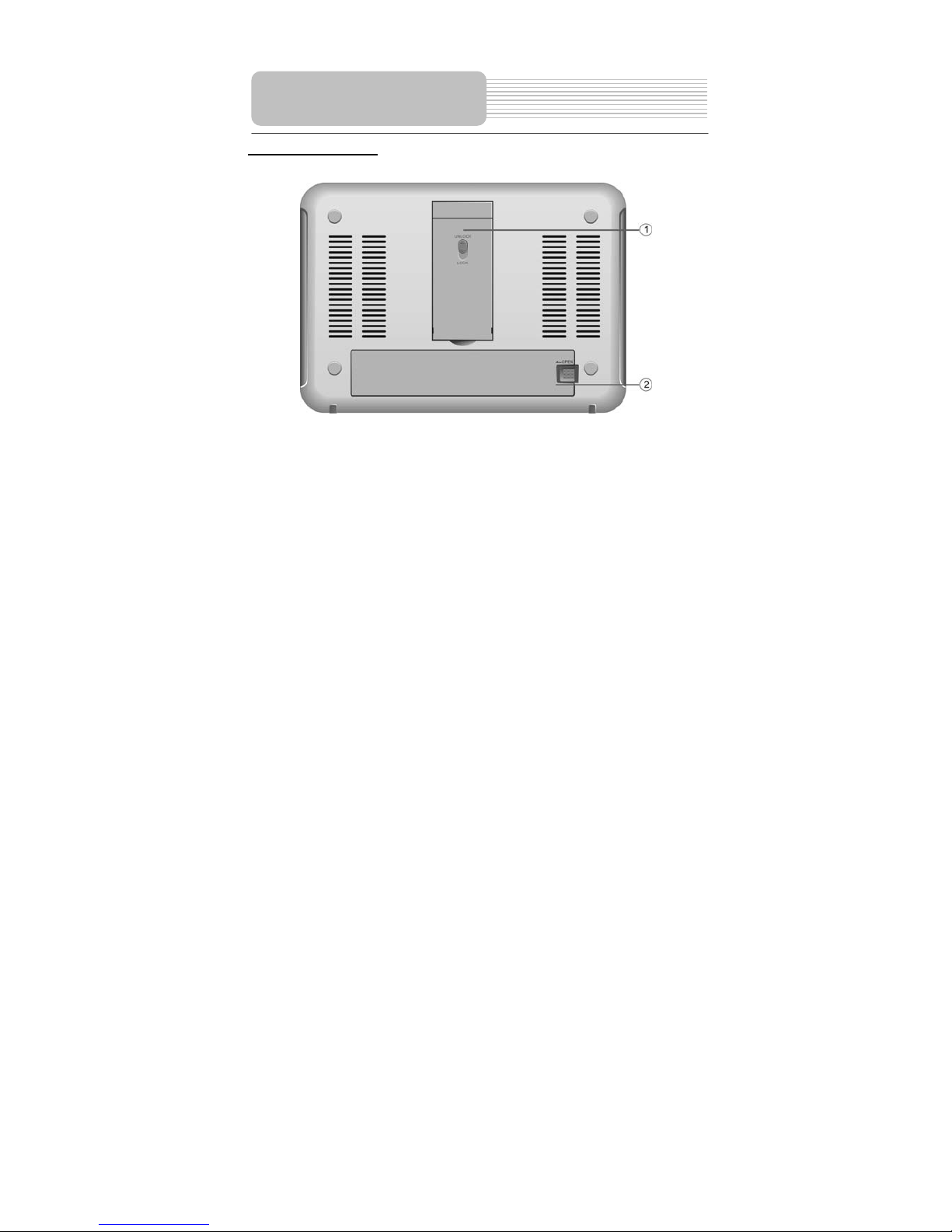

View of the bottom
1. Bracket
2. Rechargeable Battery Pack.
View of Main Unit Bottom

10
 Make sure that files of MP3, JPEG or DIVX format are stored in the USB and the
SD card before the connection.
 Press the DVB/DVD/USB/SD button to switch among disc playback, USB playback
and the SD playback.
 Press the /direction buttons to switch MP3, JPEG or DIVX playback statement,
press ENTER/OK button to enter.
 Press the ,button to select the folder, and press ENTER/OK button to enter.
 Press andbuttons to select the desired track. Then press to start playback.
 Press STOP button to stop playback: if the STOP button is pressed, the playback
will start from the beginning of the current track. Press the button to return to the
folder menu.
Pull out the USB or SD card directly after the MP3, JPEG or DIVX format files are played.
Then the unit will be in the state of disc playback again.
NOTE: the USB slot can not be used for camera with USB function or connected with
other devices.
Using of USB and
SD Card
1. Connect the unit with the power supply.
2. Press the “POWER” button to turn on the power.
3. Push DVB / DVD / USB/SD button to enter USB or SD playback statement.
4. Insert the USB device into the unit’s USB slot on the left side of the unit, or inser
t
the SD card into the SD card slot (located on top of the unit). Please see the belo
w
figure:

11
1. PWR button
Press to turn unit on or off.
2. INFO button
Press for detailed information in the DVD or DVB mode.
3. TITLE button
Press to display title menu if the titles are coded in the disc.
4. Direction button/CH+/-button
Press to select menu items or search the channel forward or backward in the DVB
mode.
5. ENTER button
Press to confirm your selection.
6．SETUP button
Press to access the DVD or DVB system setup menu in the DVD or DVB mode.
7．0-9 number buttons
Remote Control

12
Select numbers by pressing these buttons.
8. button
Press to go to the next track or chapter in the DVD mode.
9. button/FAV-PR button
Press to go to the beginning of current track or chapter. Press twice to go to the
previous track or chapter in DVD mode. Press to enter the favorite programme in
DVB mode.
10. SUBT button
Press to realize the subtitle switching function.
11. ANGLE button/TELETEXT button
Press to access various camera angles, if the DVD disc contains multiple camera
angles in the DVD mode. Or press to display the teletext information in DVB mode.
12. DVD/USB/SD/DVB switching button
Press to realize the function switching among DVD,USB,SD,DVB.
13. ZOOM button
Press to realize various zoom functions.
14. A-B button/LANGUAGE button
Press to play a section of the disc from point A to point B. Press once to select the
starting point (A), press again to select the end point (B). In A-B repeat playback,
press this button to stop the repeat. Press a third time to stop the A-B Repeat. Or to
realize Language switching in the DVB mode.
15. MENU button
Display the actual DVD Disc Menu on screen in playback mode.
16 REP /PR-LIST button
Press to repeat a chapter, track, title, or the entire disc in the DVD mode or enter
the programme list in the DVB mode.
17. STOP button/RETURN button
Press once to stop playback. Press the PLAY button to resume normal playback.
Press the button twice to stop playback completely in DVD mode.Press to return to
the channel last viewed in DVB mode.
18. PLAY/PAUSE button
Press to start playback or pause the playback.
19. +10 button
Select number greater than 9 by pressing the (+10) button first, and then additional
number button as needed.
20. GOTO button/SEARCH button
Press to select the desired disc starting time, track or title in the DVD mode or press
to enter the auto scanning in the DVB mode.
21. button/GUIDE button
Press to fast search backward during playback in the DVD mode or enter the
channel previewing in the DVB mode.
22. button/EPG button
Press to fast search forward during playback in DVD mode or enter the EPG menu in DVB
mode.
23. SLOW button/TV/RADIO button
In DVD mode, press to activate slow playback or in the DVB-T mode, press to realize the
switching between TV mode and radio mode.
24. AUDIO button
Remote Control

13
Press to access various audio languages, when the DVD disc contains multiple
audio languages.Or press to realize the switching among MONO L,MONO R,
STEREO in the DVB mode.
.
Battery Installation Step
With the remote control unit placed on a flat surface and follow the steps below to install
the battery.
Step1: Pull the battery holder out from the remote
control in the direction of the arrow.
Step 2: Load a new battery properly with
Its (+) sided up.
Step3: Insert the battery holder back into
remote control
Battery Property
Battery Type: CR2025 3V
Battery service Life: Approximately 1 year under normal use (at room temperature).
Using of Remote Control
1. For best results, aim the remote control directly at the player’s receiving window
within the range of 15 feet and angles of 60 degree, and without obstacles between
remote control and remote sensor.
2. Improper use of the battery may cause overheating, and explosion or ignition,
resulting in an injury or a fire. Battery leakage may damage the product.
3. Do not expose the remote control unit to direct sunlight.
4. Do not recharge, disassemble, deform or heat the battery.
5. Do not put the battery in fire or water.
Preparation and Using
of Remote Control

14
6. Immediately replace used up battery.
 Always ensure that the DVD player, TV and any other electrical equipment that
connecting with DVD player is switched off and unplugged from the power supply.
 Ensure that you observe the color coding when connecting audio and video cables.
Connecting to TV
Audio/Video connections
Please follow the drawings below to connect the DVD player to TV's Audio/Video inputs
with Audio/Video cables.
Connecting to Amplifier
Please refer to your Audio equipment's manual before connection.
Please follow the drawings below to connect the DVD player to AV amplifier.
System Connections

15
Connecting to External AV Source
The unit supports AV signal input function. Please use the audio/video cable to connect
the unit to the external AV signal source such as a DVD, VCR etc. after connecting,
switch the AV IN/OUT to AV IN.
Note: noise may occur in speakers when input an external audio signal while
playing a DVD disc. Unplug the audio cord to clear the noise.
Connecting to Headphone
Connect the headphone to the headphone jack on the right side of the unit.
Quick Tips:
Excessively loud volume could damage your hearing. Turn down the volume before you
System Connections

16
connect the headphones, and then raise the volume to a comfortable level. Sound from
the DVD Player’s external speaker will stop when headphones are connected.
Connecting to DVB-T Antenna
The unit is designed with an antenna input jack. Plug the DVB-T antenna into the jack on
the left panel of the unit to receive TV signal. As shown below:
System Connections

17
Using of AC Adapter
The player is supplied with an adapter. Take the following steps to use the adapter.
Note: Please turn player's power off before unplugging.
Note: In the case of using the adapter, the LCD screen will be lighter than with the
rechargeable battery.
Using of Car Adapter
You can use Car Adapter while in a vehicle, take the following steps to using the car
adapter.
Attention
 Do not operate the unit or view video software while driving a vehicle.
 Place the unit in a proper position for viewing.
 Please detach battery pack when using car adapter as power source.
 We advise you to disconnect the player from the Cigarette Lighter at the instant of
car start-up.
Your portable DVD player comes with a rechargeable lithium ion battery pack as optional
1. Connect AC adapter to the right side
Of the DVD player in the slot marked
DC 9.5V IN (as the right figure).
2. Plug the two-prong end of the powe
r
cord to a grounded electrical socket,
then the power indicator lights red.
Connect the Car Adapter Power Plug to
the unit's Power Jack and the other end
to the Vehicle Cigarette Lighter Socket as
the figure.
Power Supply
Preparation

18
accessory. Please see details in battery pack operation part of user's manual.
About Rechargeable Battery Pack
Your portable DVD player comes with a lithium ion rechargeable battery that attaches to
the rear of the DVD player. Charge the battery fully before initial use. Charging time is
normally about 5 hours. A fully charged battery delivers about 3 hours of use, but playing
time varies from disc to disc. If the battery will not be used for a long period of time, fully
charge the battery prior to storage.
Working conditions and precautions of the battery
 New batteries should be fully charged before initial use.
 Battery should only be used and charged when temperatures are between 32 -
100F.
 Never put the battery in fire or water.
 Do not expose the battery to high temperatures or store in hot, sunny places.
 Maintain well-ventilated conditions around the product to avoid overheating. Don’t
put the product on bed, sofa or anything that may block ventilation to the product.
 Do not short the battery terminals.
 Do not open the battery.
 Detach the battery after charging is complete. When charging the battery pack, the
charge light will turn red, when the charging is complete, the light will turn green.
 Detach the battery when not in use.
 When the battery is weak, “ ” will appear on the LCD screen and about
several minutes later, the player will power OFF automatically.
Warning:
Do not touch any metal objects to the battery connectors, as it will put the battery in
standby mode. To exit the standby mode, connect the battery and DVD player to AC or
DC power
Rechargeable Battery

19
Dettaching the Battery Pack
Dettach the Battery Pack as the picture below:
Charging the Battery Pack
1. Attach the battery pack to the DVD player
2. Plug the supplied AC Power Adapter into the player’s power jack marked
with ”DC 9.5V IN”, which is located on right side of the DVD Player.
3. Plug the other end of the AC Power Adapter Cord into a household AC Outlet as
shown below.
Rechargeable Battery

20
Sketch Map of Bracket
You can adjust the angle of viewing through opening the bracket.
1. Push the button to unlocking position as arrow 1.
2. Opening the bracket as arrow 2.
Sketch Map of Bracket
