Lenovo VIBE X II X2-AP User manual

ENGLISH
Quick Start Guide
Lenovo X2-AP
Ⅱ

Getting support
For support on network service and billing, contact your
wireless network operator. For instructions on how to use your
VIBE, go to: http://support.lenovo.com.
Read first-Regulatory information
Be sure to read the Regulatory Notice for your country or region
before using the wireless devices contained in your VIBE. To
obtain a PDF version of the Regulatory Notice, refer to the
“Downloading publications” section below.
Downloading publications
To download the publications for your VIBE, go to:
http://support.lenovo.com and follow the instructions on the
screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the
United States, other countries, or both.
Other company, product, or service names may be trademarks
or service marks of others.
ENGLISH

Contents
First glance .................................................................................... 1
Installing the SIM card....................................................................2
Charging the battery...................................................................... 3
Technical specifications................................................................. 4
Important safety and handling information ..................................... 5
Service and Support information.................................................. 13
Warranty information.................................................................... 14
Environmental, recycling, and disposal information ...................... 16
Restriction of Hazardous Substances Directive (RoHS) ................ 17
Specific Absorption Rate information ........................................... 18
Precautionary Guidelines for mobile users.................................... 19

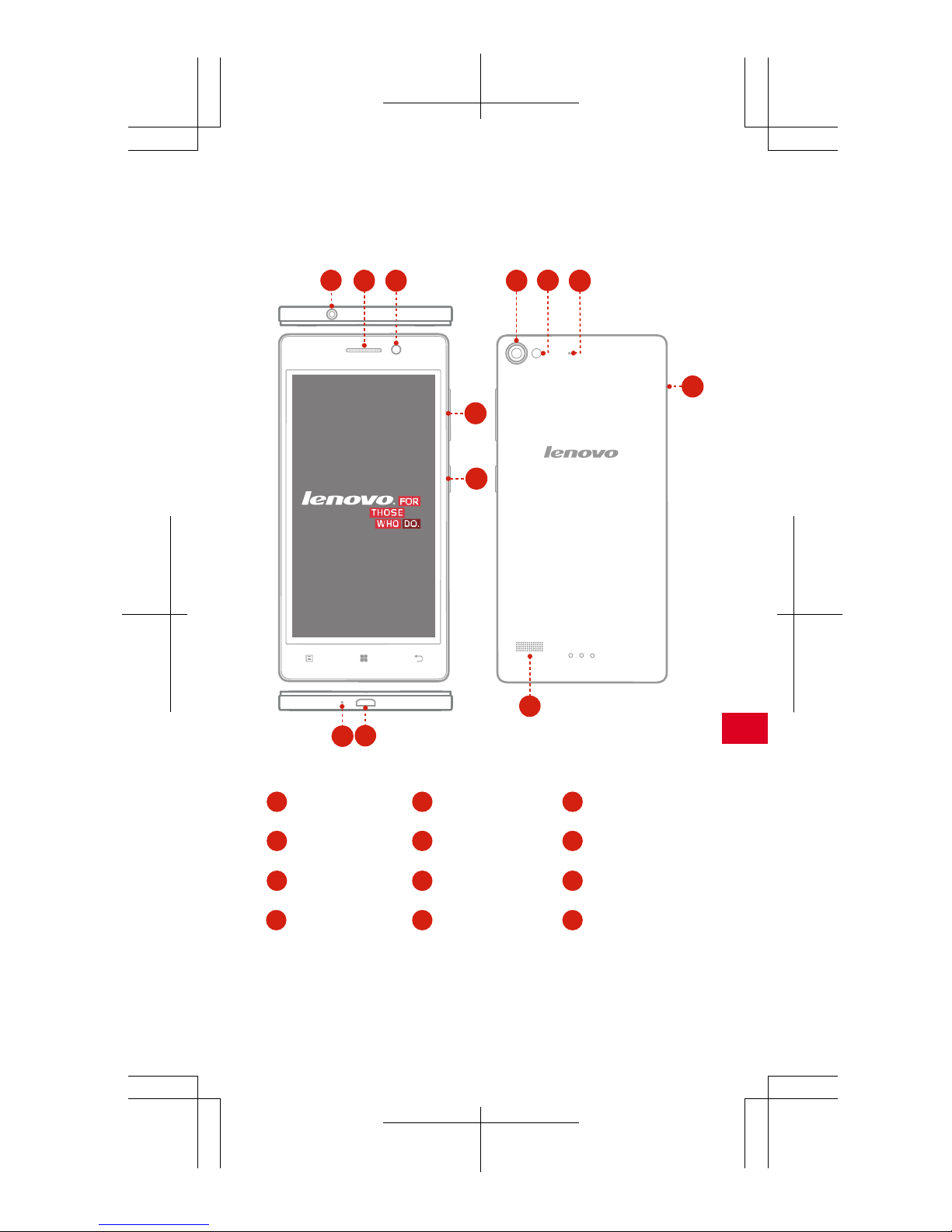

Microphone Flashlight
Micro USB connector
Speaker
Front-facing camera
On/Off buttonVolume buttons
Rear-facing camera
SIM-card tray
Headset connector
1
4
7
10
2
5
8
11
3
6
9
12
Anti-noise mic
Receiver
4
5
12
8
9
132
76
11
10
First glance
1

A SIM card provided by your carrier is required in order to use
cellular services. Install the SIM cards as shown.
Step 1.
Step 2.
Step 3.
Insert the SIM eject tool that comes with your VIBE
into the hole in the SIM-card tray.
Pull out the SIM-card tray and position the SIM card
into the tray in correct orientation.
Carefully insert the tray with the installed SIM card
back into the slot.
Always turn off your VIBE first before you insert or remove a SIM card.
Insert or remove a SIM card with your VIBE on may damage your
SIM card or VIBE permanently.
Slot1
Slot2
If you want to change the network type of the SIM card , go to:
Settings > System > SIM management > SUPER NETWORK
REGISTER.
SIM size Network type (By default)
Slot 1 Micro SIM *4G LTE/3G WCDMA/2G GSM
Slot 2 Nano SIM 2G GSM
Installing the SIM card
2

Your VIBE has a built-in rechargeable battery. For more information
about battery safety, see the “Built-in rechargeable battery notice”.
The battery of your VIBE isn’t user replaceable; it can be replaced
only by an authorized service provider.
2
1
Low battery
power Charging
Fully charged
Charge the battery as shown.
Turn on
Press and hold the On/Off button for a few seconds.
Press and hold the On/Off button for a few seconds, then
tap Power off.
Press and hold the On/Off button for a few seconds, then
tap Reboot.
Method 1.
Method 2.
Connect your VIBE to a power outlet using the cable
and USB power adapter that come with your VIBE.
Connect your VIBE to a computer using the cable
that comes with your VIBE.
Turn off
Restart
Charging the battery
3

Name and model
Name: Lenovo VIBE X2 Model: Lenovo X2-AP
Depending on the measuring method, the dimensions and
weight might vary slightly.
In some countries, LTE is not supported.
Display
Size: 5 inches Screen: multi-touch
Resolution: 1920 × 1080 pixels LCD type: IPS
Battery
Battery: 2300 mAh
Processor
Processor: MTK6595M, 2.0/1.5 GHz
Dimensions and weight
Camera
Type: CMOS
Pixels: 13 megapixels (back) + 5 megapixels (front)
Wireless communication
Bluetooth 4.1 wireless technology
WLAN
TDD_LTE, FDD_LTE, WCDMA, GSM
GPS
Technical specifications
4
Width: 68.6 mm (2.7 inches)
Weight: 120 g (4.23 ounces)
Height: 140.2 mm (5.5 inches)
Depth: 7.27 mm (0.29 inch)

5
Important safety and handling information
Important safety information
CAUTION
To avoid personal injury, property damage, or accidental damage to the
product, read all of the information in this section before using the product.
Handling
zHandle Lenovo Phone with care
Do not drop, bend, or puncture Lenovo Phone; do not insert
foreign objects into or place heavy objects on Lenovo Phone.
Sensitive components inside might become damaged.
zPrevent Lenovo Phone and adapter from getting wet
Do not immerse Lenovo Phone in water or leave Lenovo Phone in a
location where it can get saturated with water or other liquids.
Repairing
Do not disassemble or modify Lenovo Phone. Lenovo Phone is a
sealed unit. There are no end-user serviceable parts inside. All internal
repairs must be done by a Lenovo-authorized repair facility or a
Lenovo-authorized technician. Attempting to open or modify Lenovo
Phone will void the warranty.
Lenovo Phone screen is made of glass. The glass might break if Lenovo
Phone is dropped on a hard surface, is the subject of a high impact, or
is crushed by a heavy object. If the glass chips or cracks, do not touch
the broken glass or attempt to remove it from Lenovo Phone. Stop
using Lenovo Phone immediately and contact Lenovo technical
support for repair, replacement, or disposal information.
Battery
Batteries supplied by Lenovo for use with your product have been
tested for compatibility and should only be replaced with approved
parts.
Dispose of used batteries according to the instructions.
IPIG bound volume_EN_20140620.pd1 1 8/19/2014 20:12:10

6
Rechargeable battery notice
CAUTION
Risk of explosion if the battery is replaced with an incorrect type.
When replacing the lithium battery, use only the same or an equivalent
type that is recommended by the manufacturer. The battery contains
lithium and can explode if not properly used, handled, or disposed of.
Dispose of used batteries according to the instructions
Do not:
zThrow or immerse into water
zHeat to more than 100°C (212°F)
zRepair or disassemble
Built-in rechargeable battery notice
CAUTION
Do not attempt to replace the internal rechargeable lithium ion battery.
Contact Lenovo Support for factory replacement.
Charging
Charge Lenovo Phone in the temperature range of 0°C (32 °F)—45°C
(113°F). You can use any of the following charging methods to safely
recharge the internal battery of Lenovo Phone:
Charging method Display on Display off
ac adapter Supported, but the battery
will charge slowly.
Supported
USB connection
between the dc-in
connector on Lenovo
Phone and a USB
connector on a personal
computer or other
devices that comply
with the USB 2.0
standards.
Supported, but will
compensate power
consumption and the
battery will charge more
slowly than usual.
Supported, but
the battery will
charge slowly.
IPIG bound volume_EN_20140620.pd2 2 8/19/2014 20:12:10

7
NOTES
Display on: Lenovo Phone on
Display off: Lenovo Phone off or in screen lock mode
Charging devices might become warm during normal use. Ensure that
you have adequate ventilation around the charging device. Unplug the
charging device if any of the following occurs:
zThe charging device has been exposed to rain, liquid, or excessive
moisture.
zThe charging device shows signs of physical damage.
zYou want to clean the charging device.
Lenovo is not responsible for the performance or safety of products not
manufactured or approved by Lenovo. Use only approved Lenovo ac
adapters and batteries.
NOTE
Adapter shall be installed near the equipment and shall be easily accessible.
Users have to use the connection to USB interfaces with USB 2.0 version or
higher.
Distraction
Take care when using Lenovo Phone in a motor vehicle or on a bicycle.
Always prioritize your safety and the safety of others. Follow the law.
Local laws and regulations might govern how you can use mobile
electronic devices, such as Lenovo Phone, while you drive a motor
vehicle or ride a bicycle.
Choking hazard
Keep Lenovo Phone and accessories away from small children. Lenovo
Phone contains small parts that can be a choking hazard to small
children. Additionally, the glass screen can break or crack if dropped
on or thrown against a hard surface.
IPIG bound volume_EN_20140620.pd3 3 8/19/2014 20:12:10

8
Plastic bag notice
DANGER
Plastic bags can be dangerous. Keep plastic bags away from babies and
children to avoid danger of suffocation.
Prevent hearing damage
Lenovo Phone has a headphone connector. Always use the headphone
connector for headphones (also called a headset) or earphones.
CAUTION
Excessive sound pressure from earphones and headphones can cause
hearing loss. Adjustment of the equalizer to maximum increases the
earphone and headphone output voltage and the sound pressure level.
Therefore, to protect your hearing, adjust the equalizer to an appropriate
level.
Excessive use of headphones or earphones for a long period of time at
high volume can be dangerous if the output of the headphone or
earphone connectors do not comply with specifications of EN 50332-2.
The headphone output connector of Lenovo Phone complies with EN
50332-2 Sub clause 7. This specification limits Lenovo Phone's
maximum wide band true RMS output voltage to 150 mV. To help
protect against hearing loss, ensure that the headphones or earphones
you use also comply with EN 50332-2 (Clause 7 limits) for a wide band
characteristic voltage of 75 mV. Using headphones that do not comply
with EN 50332-2 can be dangerous due to excessive sound pressure
levels.
If Lenovo Phone came with headphones or earphones in the package,
as a set, the combination of the headphones or earphones and Lenovo
Phone already complies with the specifications of EN 50332-1. If
different headphones or earphones are used, ensure that they comply
with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that
do not comply with EN 50332-1 can be dangerous due to excessive
sound pressure levels.
IPIG bound volume_EN_20140620.pd4 4 8/19/2014 20:12:10

9
Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1:
2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio
tests for EN50332.
This device has been tested to comply with the Sound Pressure Level
requirement in the applicable EN 50332-1 and/or EN 50332-2
standards. Permanent hearing loss may occur if earphones or
headphones are used at high volume for prolonged periods of time.
Warning statement:
To prevent possible hearing damage, do not listen at high volume levels
for long periods.
Explosive atmospheres
Do not charge or use Lenovo Phone in any area with a potentially
explosive atmosphere, such as at a fueling area, or in areas where the
air contains chemicals or particles (such as grain, dust, or metal
powders). Obey all signs and instructions.
Radio frequency interference
Observe signs and notices that prohibit or restrict the use of mobile
phones (for example, in healthcare facilities or blasting areas). Although
Lenovo Phone is designed, tested, and manufactured to comply with
regulations governing radio frequency emissions, such emissions from
Lenovo Phone can negatively affect the operation of other electronic
equipment, causing them to malfunction. Turn off Lenovo Phone or use
Airplane Mode to turn off Lenovo Phone wireless transmitters when use
is prohibited, such as while traveling in aircraft, or when asked to do so
by authorities.
IPIG bound volume_EN_20140620.pd5 5 8/19/2014 20:12:10

10
The device is going on be operated in 5150~5250 frequency range.
It is restricted in indoor environment only.
Medical devices
Lenovo Phone contains radios that emit electromagnetic fields. These
electromagnetic fields may interfere with pacemakers or other medical
devices. If you wear a pacemaker, maintain at least 15 cm (6 inches) of
separation between your pacemaker and Lenovo Phone. If you suspect
Lenovo Phone is interfering with your pacemaker or any other medical
device, stop using Lenovo Phone and consult your physician for
information specific to your medical device.
Important handling information
Cleaning
Clean Lenovo Phone immediately if it comes in contact with anything
that may cause stains, such as dirt, ink, makeup, or lotions. To clean:
zDisconnect all cables and turn off Lenovo Phone (press and hold
the Sleep/Wake button, then slide the on-screen slider).
zUse a soft, lint-free cloth.
zAvoid getting moisture in openings.
zDo not use cleaning products or compressed air.
Operating temperature
Be aware of heat generated by Lenovo Phone. When using Lenovo
Phone, keep it away from hot or high-voltage environments, such as
electric appliances, electric heating equipment, or electric cooking
equipment. Use Lenovo Phone only in the temperature range of
-10°C (14 °F)—45°C (113 °F) to avoid damage.
When Lenovo Phone is turned on or the battery is charging, some parts
might become hot. The temperature that they reach depends on the
amount of system activity and the battery charge level. Extended
contact with your body, even through clothing, could cause discomfort
or even a skin burn. Avoid keeping your hands, your lap, or any other
part of your body in contact with a hot section of Lenovo Phone for any
extended time.
10.pdf 1 9/19/2014 14:54:29

11
Protecting your data and software
Do not delete unknown files or change the name of files or directories
that were not created by you; otherwise, Lenovo Phone software might
fail to work.
Be aware that accessing network resources can leave Lenovo Phone
vulnerable to computer viruses, hackers, spyware, and other malicious
activities that might damage Lenovo Phone, software, or data. It is your
responsibility to ensure that you have adequate protection in the form
of firewalls, antivirus software, and anti-spyware software and keep
such software up to date.
Keep electrical appliances away from Lenovo Phone, such as an
electric fan, a radio, high-powered speakers, an air conditioner, and a
microwave oven. The strong magnetic fields generated by electrical
appliances can damage the screen and the data on Lenovo Phone.
Polyvinyl Chloride (PVC) cable and cord notice
WARNING
Handling the cord on this product or cords associated with accessories sold
with this product will expose you to lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm.
Wash hands after handling.
Disposing according to local laws and regulations
When Lenovo Phone reaches the end of its useful life, do not crush,
incinerate, immerse in water, or dispose of Lenovo Phone in any
manner contrary to local laws and regulations. Some internal parts
contain substances that can explode, leak, or have an adverse
environmental effect if disposed of incorrectly.
See “Environmental, recycling, and disposal information” for
additional information.
IPIG bound volume_EN_20140620.pd7 7 8/19/2014 20:12:10

12
Eurasian compliance mark
IPIG bound volume_EN_20140620.pd8 8 8/19/2014 20:12:10

13
Service and Support information
The following information describes the technical support that is
available for your product, during the warranty period or throughout the
life of your product. Refer to the Lenovo Limited Warranty for a full
explanation of Lenovo warranty terms. See “Lenovo Limited Warranty
notice” later in this document for details on accessing the full warranty.
Online technical support
Online technical support is available during the lifetime of a product at
http://www.lenovo.com/support.
Telephone technical support
Where applicable, you can get help and information from the Customer
Support Center by telephone. Before contacting a Lenovo technical
support representative, please have the following information available:
model and serial number, the exact wording of any error message, and
a description of the problem.
Your technical support representative might want to walk you through
the problem while you are at your phone during the call.
Worldwide Lenovo Support telephone list
IMPORTANT
Telephone numbers are subject to change without notice. The most
up-to-date telephone list for the Customer Support Center is always
available at http://support.lenovo.com/serviceproviders.
If the telephone number for your country or region is not listed, contact
your Lenovo reseller or Lenovo marketing representative.
IPIG bound volume_EN_20140620.pd9 9 8/19/2014 20:12:10

14
Warranty information
Lenovo Limited Warranty notice
Read the full Lenovo Limited Warranty (LLW) at
http://support.lenovo.com/smartphone-llw.You can view the LLW in a
number of languages from this Web site. If you cannot view the LLW
either from the Web site or from your phone, contact your local Lenovo
office or reseller to obtain a printed version of the full LLW.
IMPORTANT
Lenovo Smartphone Products do not have International Warranty Services.
Warranty period and type of Warranty service
Country or Region of
Purchase
Warranty Period Type of Warranty
Service
India Product / Charger - 1
year
Battery pack - 6
months
Earphone - 3 months
4
Indonesia 4
Philippines 4
Vietnam 4
Malaysia 4
Thailand 4
Taiwan Product - 1 year
Charger/Battery
pack/Earphone - 6
months
4
Singapore Product - 1 year
Charger/Battery pack-
6 months
Earphone - 3 months
4
Hong Kong 4
IPIG bound volume_EN_20140827.pd1 1 9/3/2014 15:49:08

15
Types of Warranty Service
1 Customer Replaceable Unit (“CRU”) Service
2 On-site Service
3 Courier or Depot Service
4 Customer Carry-In Service
5 Mail-in Service
6 Customer Two-Way Mail-in Service
7 Product Exchange Service
For a full explanation of the types of warranty service, refer to the full
warranty. See “Lenovo Limited Warranty notice” for details on
accessing the full warranty.
IPIG bound volume_EN_20140827.pd1 1 8/29/2014 4:32:48 PM

16
Environmental, recycling, and disposal
information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to
responsibly recycle their equipment when it is no longer needed.
Lenovo offers a variety of programs and services to assist equipment
owners in recycling their IT products. For information on recycling
Lenovo products, go to: http://www.lenovo.com/recycling.
Important WEEE information
Electrical and electronic equipment marked with
the symbol of a crossed-out wheeled bin may not
be disposed as unsorted municipal waste. Waste of
electrical and electronic equipment (WEEE) shall be
treated separately using the collection framework
available to customers for the return, recycling, and
treatment of WEEE.
Country-specific information is available at:
http://www.lenovo.com/recycling
Recycling information for China
Recycling information for India
Recycling and disposal information for India is available at:
http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html.
IPIG bound volume_EN_20140620.pd12 12 8/19/2014 20:12:10
