Lenovo ThinkCentre M58p 3063 Parts list manual

ThinkCentre
Hardware Installation and Replacement Guide
Machine Types: 6138, 6209, 6239, 6302, 7188, 7244, 7347, 7355, 7358,
7373, 7484, 7628, 7635, 7639, 9960, and 9965.

ThinkCentre
Hardware Installation and Replacement
Guide

Note
Before using this information and the product it supports, be sure to read and understand the ThinkCentre Safety and
Warranty Guide for this product and “Notices,” on page 53.
First Edition (November 2008)
©Copyright Lenovo 2008. All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant aGeneral Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.

Contents
Figures ...............v
Chapter 1. Important safety information 1
Chapter 2. Overview .........3
Additional information resources .......3
Handling static-sensitive devices........4
Locations ...............5
Locating controls and connectors on the front of
your computer.............5
Locating connectors on the rear of your computer 6
Locating components ..........8
Identifying parts on the system board .....9
Chapter 3. Installing options and
replacing hardware .........11
Installing external options .........11
Removing the cover ...........11
Removing and replacing the front bezel .....13
Installing internal options .........14
Installing amemory module........14
Installing an adapter card ........16
Installing internal drives .........18
Replacing the battery ...........22
Replacing the power supply .........23
Replacing the heat sink and fan assembly ....25
Replacing the primary hard disk drive .....26
Replacing the secondary hard disk drive ....30
Replacing an optical drive .........32
Replacing the diskette drive .........34
Replacing amemory module ........35
Replacing an adapter card .........37
Replacing the front fan assembly .......39
Replacing the rear fan assembly .......40
Replacing the internal speaker ........43
Replacing the keyboard ..........45
Replacing the mouse ...........45
Chapter 4. Completing the parts
replacement ............47
Obtaining device drivers ..........48
Chapter 5. Security features .....49
Integrated cable lock ...........49
Padlock................50
Password protection ...........50
Erasing alost or forgotten password (clearing
CMOS) ................50
Appendix. Notices ..........53
Television output notice ..........54
Trademarks ..............54
Index ...............55
©Copyright Lenovo 2008 iii

iv Hardware Installation and Replacement Guide

Figures
1. Controls and connectors.........5
2. Rear connector locations ........6
3. Component locations..........8
4. System board parts locations .......9
5. Removing the computer cover ......12
6. Removing the front bezel ........13
7. Opening the retaining clips .......14
8. Installing the memory module ......15
9. Opening the adapter latch .......16
10. Closing the adapter latch ........17
11. Drive bay locations ..........19
12. Locating the spare retainer bracket .....20
13. Installing aretainer bracket .......21
14. Installing anew drive .........21
15. Installing aserial ATA drive .......22
16. Removing the old battery ........22
17. Installing anew battery ........23
18. Removing the power-supply-retaining screws 24
19. Removing the heat sink and fan assembly 25
20. Replacing the heat sink and fan assembly 26
21. Removing the primary hard disk drive 27
22. Installing the primary hard disk drive into
bracket ..............28
23. Installing the primary hard disk drive and
bracket ..............29
24. Removing secondary hard disk drive ....31
25. Installing the secondary hard disk drive into
bracket ..............31
26. Installing the secondary hard disk drive and
drive cage .............32
27. Removing the optical drive .......33
28. Retainer bracket for optical drive .....33
29. Removing the diskette drive .......34
30. Retainer bracket for diskette drive .....34
31. Removing the memory module ......35
32. Installing the memory module ......36
33. Removing the adapter card .......37
34. Install anew adapter card .......38
35. Removing the front fan assembly .....39
36. Installing the front fan assembly .....40
37. Removing the rear fan assembly .....41
38. Replacing the rear fan assembly......42
39. Removing the internal speaker ......43
40. Replacing the internal speaker ......44
41. Keyboard connectors .........45
42. Mouse connectors ..........46
43. Replacing the computer cover ......47
44. Integrated cable lock .........49
45. Installing apadlock ..........50
©Copyright Lenovo 2008 v

vi Hardware Installation and Replacement Guide

Chapter 1. Important safety information
CAUTION:
Before using this manual, it is important that you read and understand all the
related safety information for this product. Refer to the ThinkCentre Safety and
Warranty Guide that you received with this product for the latest safety
information. Reading and understanding this safety information reduces the risk
of personal injury and or damage to your product.
If you no longer have acopy of the ThinkCentre Safety and Warranty Guide,you can
obtain one online from the Lenovo®Support Web site at:
http://www.lenovo.com/support
©Copyright Lenovo 2008 1

2Hardware Installation and Replacement Guide

Chapter 2. Overview
This guide provides information about installing or replacing Customer
Replaceable Units (CRUs). However, this guide does not include procedures for all
parts. It is expected that cables, switches, and certain mechanical parts be replaced
by trained service personnel without the need for step-by-step procedures.
Note: Use only parts provided by Lenovo.
This guide contains instructions for installing or replacing the following parts:
vBattery
vPower supply
vHeat sink and fan assembly
vPrimary hard disk drive
vSecondary hard disk drive
vOptical drive
vDiskette drive
vMemory module
vAdapter card
vFront fan assembly
vRear fan assembly
vInternal speaker
vKeyboard
vMouse
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available at:
http://www.lenovo.com/support
You can find:
vCRU removal and installation information
vCRU removal and installation videos
vPublications
vTroubleshooting information
vParts information
vDownloads and drivers
vLinks to other useful sources of information
vSupport phone list
©Copyright Lenovo 2008 3

Handling static-sensitive devices
Do not open the static-protective package containing the new part until the
defective part has been removed from the computer and you are ready to install
the new part. Static electricity, although harmless to you, can seriously damage
computer components and parts.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways handle parts and other computer components carefully. Handle adapter
cards, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
vPrevent others from touching the parts and other computer components.
vBefore you replace anew part, touch the static-protective package containing the
part to ametal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
vWhen possible, remove the new part from the static-protective packaging, and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
vDo not place the part on the computer cover or other metal surface.
4Hardware Installation and Replacement Guide

Locations
This section provides illustrations to help locate the various connectors, controls,
and components of the computer.
Locating controls and connectors on the front of your
computer
Figure 1shows the location of the controls and connectors on the front of your
computer.
Note: Not all computer models have the following controls and connectors.
1 USB connector 3 Microphone connector
2 Headphone connector 4 USB connector
Figure 1. Controls and connectors
Chapter 2. Overview 5

Locating connectors on the rear of your computer
Figure 2shows the location of connectors on the rear of your computer. Some
connectors on the rear of your computer are color-coded to help you determine
where to connect the cables on your computer.
1 Voltage-selection switch
(some models)
10 USB connectors (2)
2 Power cord connector 11 Microphone connector
3 Standard mouse connector 12 Audio line-out connector
4 Standard keyboard connector 13 Audio line-in connector
5 VGA monitor connector 14 PCI Express x16 graphics adapter card slot
6 Serial port 15 PCI Express x1 adapter card slot
7 DisplayPort connector 16 Adapter card slots (2)
8 USB connectors (4) 17 Second serial port (some models)
9 Ethernet connector
Figure 2. Rear connector locations
6Hardware Installation and Replacement Guide

Connector Description
Standard mouse connector Used to attach amouse, atrackball, or other pointing
devices that use astandard mouse connector.
Standard keyboard connector Used to attach akeyboard that uses astandard keyboard
connector.
Serial port Used to attach an external modem, aserial printer, or other
devices that use a9-pin serial port.
DisplayPort connector Used to attach ahigh-performance monitor, adirect-drive
monitor, or other devices that use aDisplayPort connector.
USB connector Used to attach adevice that requires aUniversal Serial Bus
(USB) connector, such as aUSB keyboard, aUSB mouse, a
USB scanner, or aUSB printer. If you have more than eight
USB devices, you can purchase aUSB hub, which you can
use to connect additional USB devices.
Ethernet connector Used to attach an Ethernet cable for alocal area network
(LAN).
Note: To operate the computer within FCC Class Blimits,
use aCategory 5Ethernet cable.
Audio line-out connector Used to send audio signals from the computer to external
devices, such as powered stereo speakers (speakers with
built-in amplifiers), headphones, multimedia keyboards, or
the audio line-in connector on astereo system or other
external recording devices.
Audio line-in connector Used to receive audio signals from an external audio
device, such as astereo system. When you attach an
external audio device, acable is connected between the
audio line-out connector of the device and the audio line-in
connector of the computer.
Chapter 2. Overview 7

Locating components
To remove the computer cover, see “Removing the cover” on page 11.
Figure 3shows the location of the various components in your computer.
1 Microprocessor, heat sink, and
heat sink fan assembly
6 PCI Express x16 graphics adapter card
slot
2 Memory slots (4) 7 Cover presence (Intrusion) switch
3 PCI Express x1 adapter card
slot
8 Rear system fan
4 Adapter card 9 Power supply
5 Adapter card slot
Figure 3. Component locations
8Hardware Installation and Replacement Guide

Identifying parts on the system board
Figure 4shows the location of parts on the system board.
1 Microprocessor 15 Front USB connector 1
2 Microprocessor fan connector 16 Front USB connector 2
3 Memory slot 117 Clear CMOS/Recovery jumper
4 Memory slot 218 Serial (COM2) connector
5 Memory slot 319 Front audio connector
6 Memory slot 420 Internal speaker connector
7 24-pin power connector 21 Adapter card slots (2)
8 Thermal sensor connector 22 Cover presence (Intrusion) switch
connector
9 Diskette drive connector 23 PCI Express x1 adapter card slot
10 SATA connectors (3) 24 PCI Express x16 graphics adapter
card slot
11 Parallel (LPT) connector 25 Battery
12 Power fan connector 26 System fan connector
13 eSATA connector 27 4-pin power connector
14 Front panel connector
Figure 4. System board parts locations
Chapter 2. Overview 9

10 Hardware Installation and Replacement Guide

Chapter 3. Installing options and replacing hardware
This chapter provides an introduction to the features and options that are available
for your computer. You can expand the capabilities of your computer by adding
memory modules, adapter cards, or drives. When installing an option, use these
instructions along with the instructions that come with the option.
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the ThinkCentre Safety and Warranty Guide that came with your computer.
To obtain acopy of the ThinkCentre Safety and Warranty Guide,go to:
http://www.lenovo.com/support
Note: Use only parts provided by Lenovo.
Installing external options
External speakers, aprinter, or ascanner can be connected to your computer. For
some external options, you must install additional software in addition to making
the physical connection. When adding an external option, see “Locating connectors
on the rear of your computer” on page 6and “Locating controls and connectors on
the front of your computer” on page 5to identify the required connector, and then
use the instructions that are included with the option to help you make the
connection and install any software or device drivers that are required for the
option.
Removing the cover
CAUTION
Turn off the computer and wait three to five minutes to let the computer
cool before removing the computer cover.
This section provides instructions on how to remove the computer cover.
1. Remove any media from the drives, shut down your operating system, and
turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect the cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. See “Locating controls and connectors on the front of your
computer” on page 5and “Locating connectors on the rear of your computer”
on page 6.
4. Remove any locking devices, such as acable lock that secures the computer
cover.
5. If there are thumbscrews securing the cover, remove them.
©Copyright Lenovo 2008 11

6. Press the cover-release button on the side of the cover and slide the computer
cover to the rear to remove.

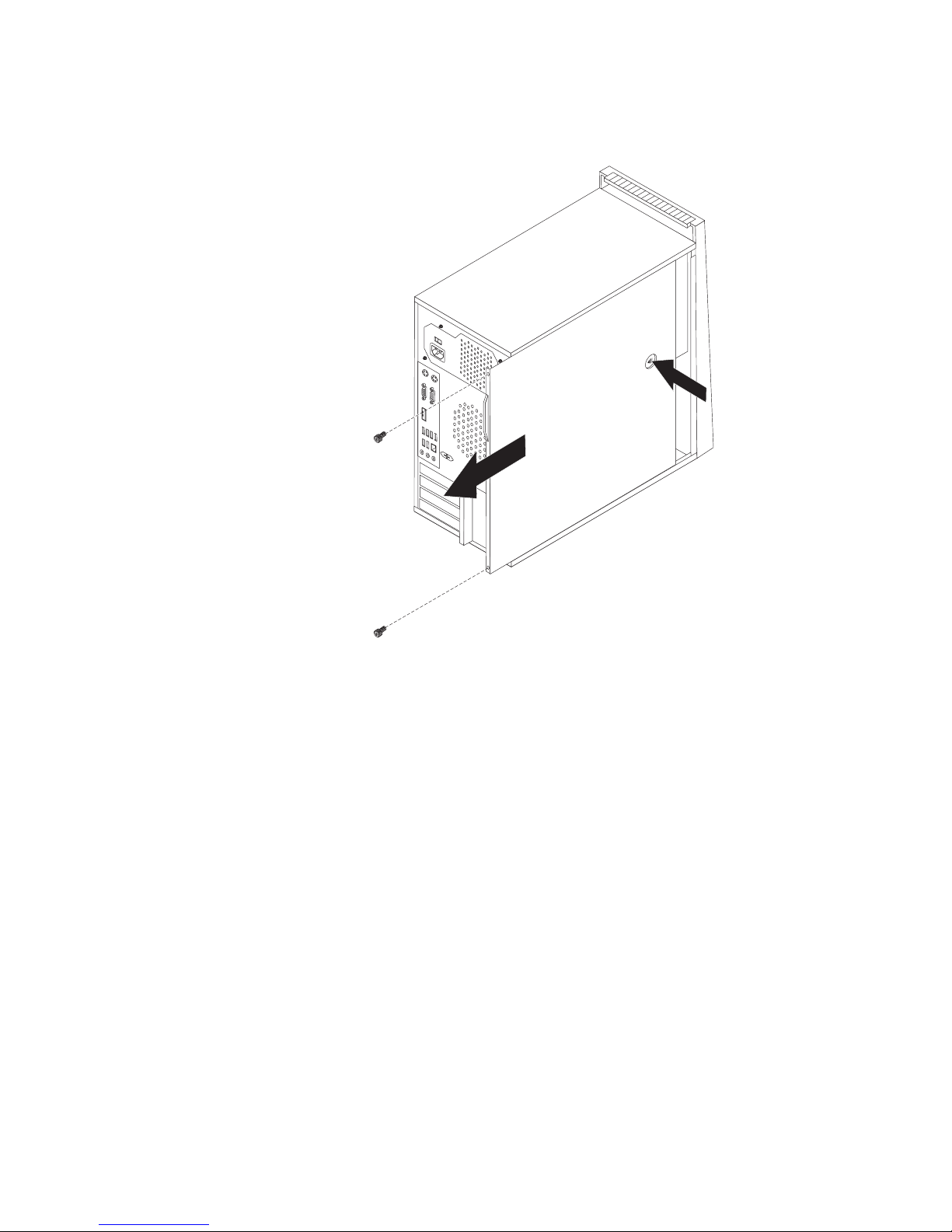

Figure 5. Removing the computer cover
12 Hardware Installation and Replacement Guide
