Chapter 1. Getting to know your computer
Top view---------------------------------------------------------------------------------------------------------------------------
Attention:
•Do not open the display panel beyond 130 degrees. When closing the display panel, be careful not to leave
pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel
may be damaged.
Note: The dashed areas indicate parts that are not visible externally.
2 2
3
6
1
5
7
6
8
9
10
4

2
Chapter 1. Getting to know your computer
aIntegrated camera Use the camera for video communication or taking photos.
bBuilt-in microphone (with
noise reduction)
Captures sound which can be used for video conferencing, voice
narration, or audio recording.
cComputer display Provides brilliant visual output.
dWireless LAN antennas Connect to a wireless LAN adapter to send and receive wireless radio
signals.
eVentilation slots Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
fJBL speakers Provide the audio output.
gPower button Press this button to turn on the computer.
hNovo button When the computer is off or in hibernation mode, press this button to
start the Lenovo OneKey Recovery System or the BIOS setup utility, or to
enter the boot menu.
Note: For details, see “Lenovo OneKey Recovery System” on page 19.
iTouchpad The touchpad functions as a conventional mouse.
One piece multi-touch ClickPad: To move the pointer on the screen,
slide your fingertip over the pad in the direction in which you want the
pointer to move.
Left-click area: Clicking in this area corresponds to the functions of
clicking the left button on a conventional mouse.
Right-click area: Clicking in this area corresponds to the functions of
clicking the right button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing Fn + F6.
jNumeric keypad For details, see “Using the keyboard” on page 3.

Chapter 1. Getting to know your computer
3
Using the keyboard
Your computer has a numeric keypad and function keys incorporated in its standard keyboard.
Numeric keypad
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press
the Num Lock key.
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
a
b
2
1

4
Chapter 1. Getting to know your computer
The following describes the features of each function key.
Fn + F1: Enters sleep mode.
Fn + F2: Turns on/off the backlight of the LCD screen.
Fn + F3: Opens the interface for selecting display options.
Fn + F5: Enables/disables Airplane mode.
Fn + F6: Enables/disables the touchpad.
Fn + F9: Opens the Settings charm.
Fn + F10: Opens the Search charm.
Fn + F11: Displays current apps.
Fn + PrtSc: Activates the system request.
Fn + Insert: Enables/disables the scroll lock.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + / : Increases/decreases the display brightness.
Fn + / : Increases/decreases the volume.
Fn + Space (on select
models): Adjusts the keyboard backlight (off dim bright off).

Chapter 1. Getting to know your computer
5
Left-side view--------------------------------------------------------------------------------------------------------------
aAC power adapter jack Connect the AC power adapter here.
bRJ-45 port Connects the computer to an Ethernet network.
cHDMI port Connects to devices with HDMI input such as a TV or an external
display.
dUSB port Connects to USB devices.
Notes:
•The red port is a USB 3.0 port.
•For details, see “Connecting USB device” on page 7.
1 32 4

6
Chapter 1. Getting to know your computer
Connecting network cables
To insert a network cable, do the following:
1Hold one connector of the network cable to press the RJ-45 cover down gently .
2Insert the connector into the RJ-45 port .
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.
a
b
1
2

Chapter 1. Getting to know your computer
7
Connecting USB device
Your computer comes with three USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting. Check
the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.

8
Chapter 1. Getting to know your computer
Right-side view-----------------------------------------------------------------------------------------------------------
aS/PDIF jack Connects to S/PDIF compliant devices for digital audio output.
bCombo audio jack Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones by default.
•The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
cMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 9.
dUSB port Connects to USB devices.
Notes:
•The red port is a USB 3.0 port.
•For details, see “Connecting USB device” on page 7.
eKensington lock slot Attach a security lock (not supplied) here to help protect your computer
from theft and unauthorized use. You can attach a security lock to your
computer to help prevent it from being removed without your
permission. For details on installing the security lock, please refer to the
instructions shipped with the security lock that you have purchased.
Notes:
•Before purchasing any security product, verify that it is compatible with this type of security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or
performance of locking devices and security features.
1 2 3 54

Chapter 1. Getting to know your computer
9
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• Secure Digital eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
Inserting a memory card
Slide the memory card in until it clicks into place.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth and so on.).
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject
media utility to avoid data corruption.

10
Chapter 1. Getting to know your computer

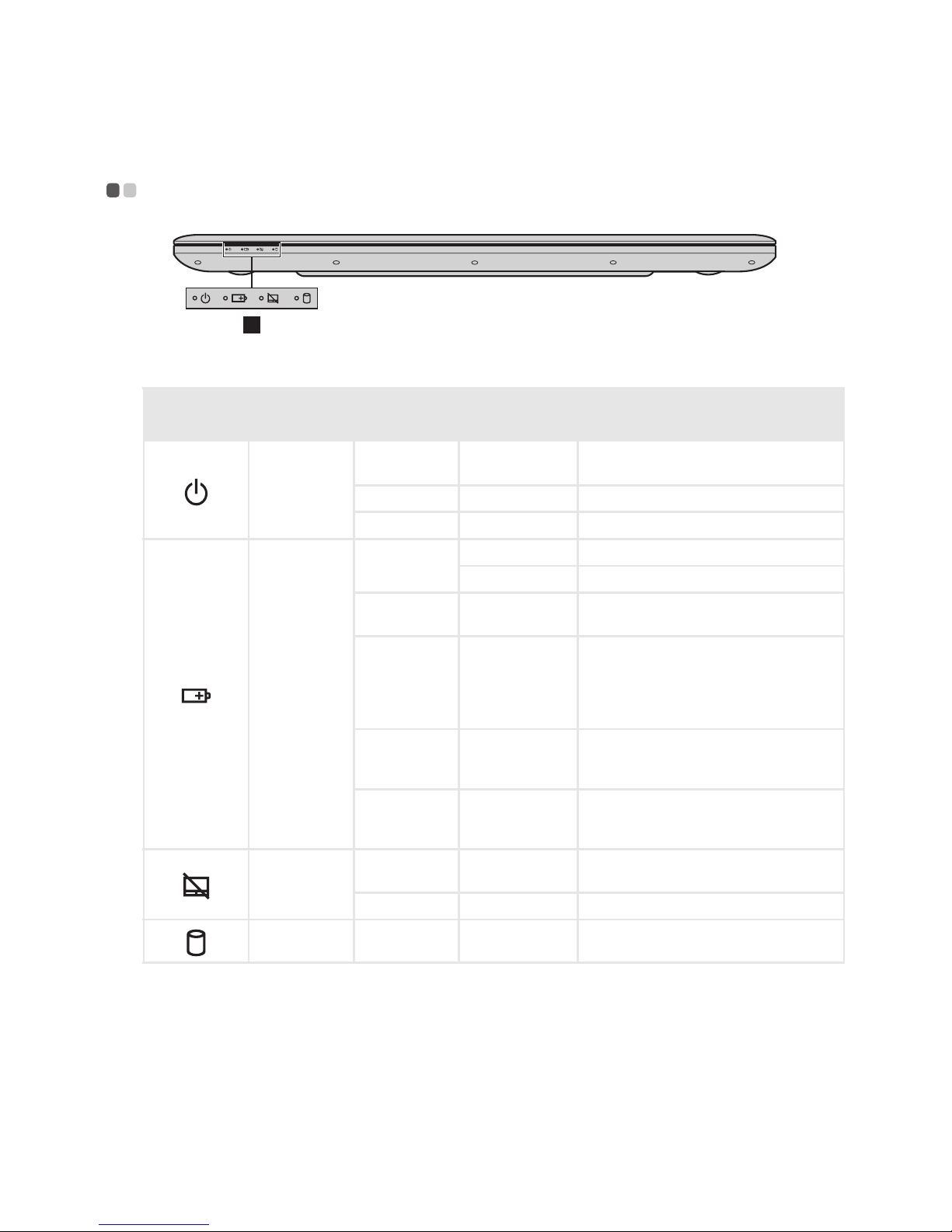

Front view-----------------------------------------------------------------------------------------------------------------------
aSystem status indicators
Symbol Indicator Indicator
status
Charge
status Meaning
Power
On (solid
white) --- The computer is powered on.
Blinking --- The computer is in sleep mode.
Off --- The computer is powered off.
Battery
On (solid
white)
Charging The battery has more than 80% charge.
Discharging The battery has more than 20% charge.
On (solid
amber) Discharging The battery has between 5% and 20% charge.
Blinking
slowly
(white)
Charging
The battery has between 20% and 80%
charge. When the battery reaches 80%
charge, the light will stop blinking.
However, charging will continue until
the battery is fully charged.
Blinking
slowly
(amber)
Charging
The battery has less than 20% charge.
When the battery charge reaches 20%,
the blinking color will change to white.
Blinking
quickly
(amber)
Charging/
Discharging The battery has less than 5% charge.
Touchpad
On (solid
white) --- The touchpad is disabled.
Off --- The touchpad is enabled.
Hard disk
drive Blinking --- The hard disk drive is reading or writing data.
1

Chapter 1. Getting to know your computer
11
Bottom view------------------------------------------------------------------------------------------------------------------
aSpeaker Provides subwoofer audio output.
bLouvers Allow air to enter the computer for cooling.
21

12
Chapter 2. Starting to use Windows 8.1
Configuring the operating system for the first time------------------
You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces--------------------------------------------------------------------------
Windows 8.1 comes with two main user interfaces: the Start screen and the Windows desktop.
To switch from the Start screen to the Windows desktop, do one of the following:
• Select the Windows desktop tile on the Start screen.
• Press the Windows key + D.
To switch from the desktop to the Start screen, do one of the following:
• Select Start from the charms bar.
• Press the Windows key .
• Move the cursor to the lower-left corner, and then select the Start button.
Start screen Desktop

Chapter 2. Starting to use Windows 8.1
13
The charms--------------------------------------------------------------------------------------------------------------------
Charms are navigation buttons that let you control your Windows®8.1 experience. Charms
include: Search, Share, Start, Devices, and Settings. The Charms Bar is the menu that contains
the charms.
The five charms provide new and faster ways to perform many basic tasks, and are always
available regardless of whichever app you are currently in. To display the charms, do one of the
following:
• Move the cursor to the upper-right or lower-right corner until the charms bar is displayed.
• Press the Windows key + C.
Search charm
The Search charm is a powerful new way to find what you are looking for, including settings,
files, Web images, Web videos, etc.

14
Chapter 2. Starting to use Windows 8.1
Share charm
The Share charm lets you send links, photos, and more to your friends and social networks
without leaving the app you are in.
Start charm
The Start charm is a fast way to go to the Start screen.
Devices charm
The Devices charm allows you to connect or send files to any external devices, including the
devices to play, print, and project.
Settings charm
The Settings charm lets you perform basic tasks, such as setting the volume or shutting down
the computer. Also, you can get to the Control Panel through the Settings charm when on the
Desktop screen.

Chapter 2. Starting to use Windows 8.1
15
Putting the computer to sleep or shutting it down---------------------
When you have finished working with your computer, you can put it to sleep or shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the Power button.
• Open the charms, and then select Settings Power Sleep.
To wake the computer, do one of the following:
• Press any key on the keyboard.
• Press the Power button.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)
before you move your computer. Moving your computer while the hard disk is spinning can damage
the hard disk, causing loss of data.

16
Chapter 2. Starting to use Windows 8.1
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down the computer, do one of the following:
• Open the charms, and then select Settings Power Shut down.
• Press and hold or right-click the Start button in the lower-left corner of the desktop screen and
select Shut down or sign out Shut down.
• Select Shut down in the upper-right corner of the Start screen.
Note: The operation depends on the BIOS setup. Please refer to the actual product.
