Lesro Mystic Guest Series User manual

Tools required: 9/16” ratchet, Allen wrenches (included in hardware pack)
Note: These instructions are intended for various models and congurations, with and without arms.
Your products may not look exactly as those shown in the diagrams.
Important:The assembly process requires that some hardware be kept loose until later in the
sequence. Follow these instructions closely to ensure correct assembly.
Recommendation: Retighten all bolts on a seasonal basis to ensure your product remains strong and
stable for many years of use.
Weight Capacity: All chairs in these series have a weight capacity of 275 lbs. per seat, unless
otherwise stated.
Thank you for purchasing a Lesro product.
Need assistance with assembly? Call Lesro customer service 1-800-275-7545.
Visit us on-line at www.lesro.com
Leaders in Reception Seating
Lesro Industries, Inc.
1 Grifn Road South
Bloomeld, CT
06002
Phone
860.243.3226
Fax
860.243.5392
www.lesro.com
Single Chairs
1. Unpack and identify all parts.
2. Connect lower cross tube between leg frames using 2”
Allen bolts as shown in gure 1. Keep these bolts loose
for now. (Leave about ¼” of exposed threads)
3. Connect back cross tube between leg frames using ½”
Allen bolts as shown in gures 1 and 2. Align holes and
insert bolts from front of chair. Tighten these 2 bolts
securely.
4. Tighten lower cross tube bolts from step 2 tightly. Before
doing so, make sure all four feet are sitting on a at
surface and make sure overall frame assembly is not
leaning to one side or the other.
5. Attach seat cushion to back cushion using 3” hex bolts
and washers as shown in gure 3. Keep these bolts
loose for now.
6. Set cushion assembly into chair frame as shown in
gure 4. Align holes in frame with holes in seat cushion
and connect using 3” Allen bolts as shown in gure 5.
Tighten these bolts securely while making sure seat
cushion is centered between front legs tubes.
7. Tighten 3” hex bolts from step 5 securely at this time
while making sure back cushion is centered between
back leg tubes.
8. Your product is now assembled and ready to use.
© 2014 Lesro Industries, Inc. May 2014
Figure 1
Figure 3
Figure 4
Figure 5
Back Cross
Tube
Right Leg
Frame Lower
Cross Tube
Left Leg
Frame
Assembly Instructions
For Mystic Guest / Reception
Parts List
Leg Frames, left & right
Lower Cross Tube (1” dia)
Back Cross Tube (½” dia)
Seat Cushion
Back Cushion
Hardware Pack
2” Allen Bolts , 2 pcs.
½” Allen Bolts, 2 pcs.
3” Hex Bolts, 2 pcs.
Washers, 2 pcs.
3” Allen Bolts, 4 pcs.
Allen Wrenches, 2 pcs.
Figure 2

Tools required: 9/16” ratchet, Allen wrenches (included in hardware pack)
Note: These instructions are intended for various models and congurations, with and without arms.
Your products may not look exactly as those shown in the diagrams.
Important:The assembly process requires that some hardware be kept loose until later in the
sequence. Follow these instructions closely to ensure correct assembly.
Recommendation: Retighten all bolts on a seasonal basis to ensure your product remains strong and
stable for many years of use.
Weight Capacity: All chairs in these series have a weight capacity of 275 lbs. per seat, unless
otherwise stated.
Thank you for purchasing a Lesro product.
Need assistance with assembly? Call Lesro customer service 1-800-275-7545.
Visit us on-line at www.lesro.com
Leaders in Reception Seating
Lesro Industries, Inc.
1 Grifn Road South
Bloomeld, CT
06002
Phone
860.243.3226
Fax
860.243.5392
www.lesro.com

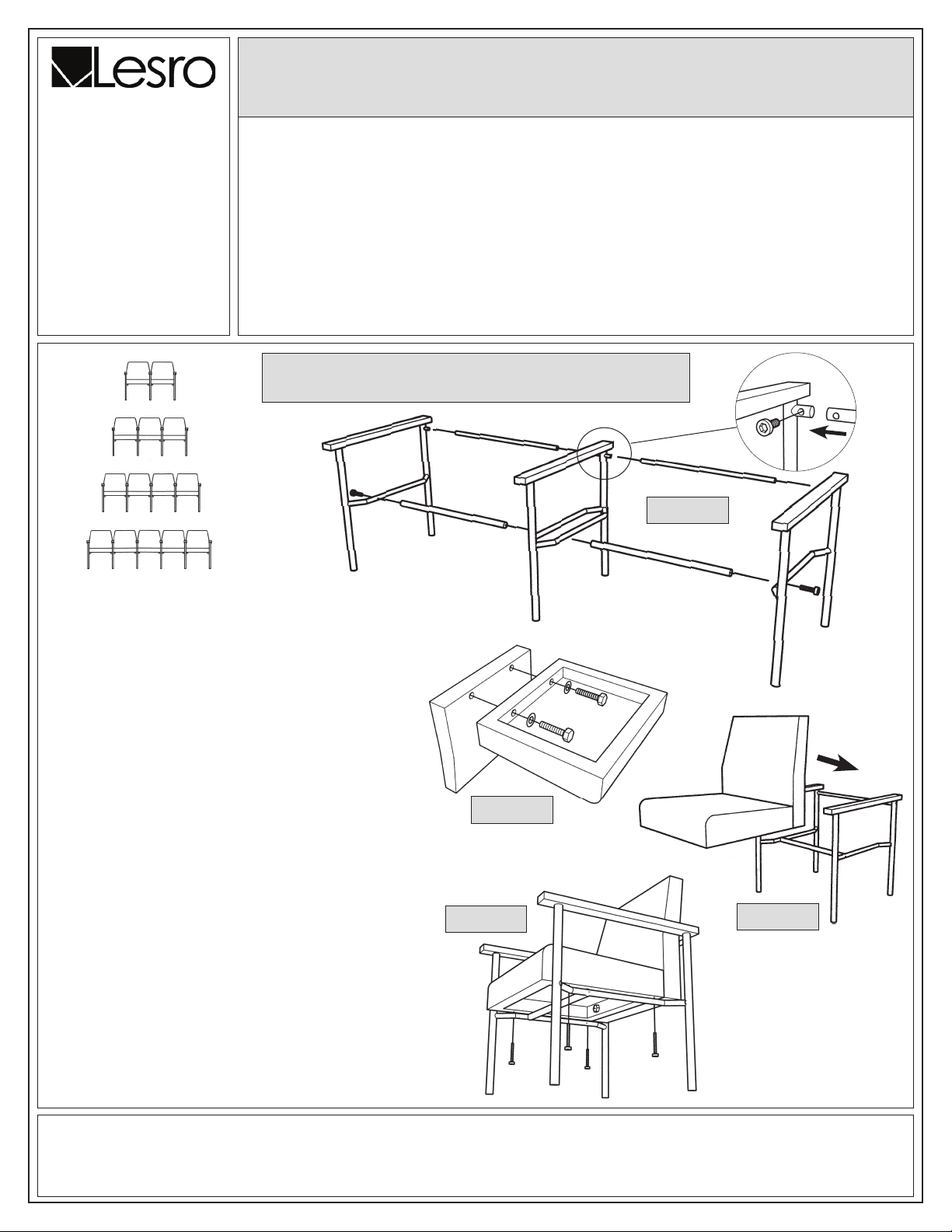

Connecting Chairs & Sofas
© 2014 Lesro Industries, Inc. May 2014
Figure 6
Figure 7
Figure 8
Figure 9
Back Cross
Tube
Right Leg
Frame
Lower
Cross Tube
Left Leg
Frame
Assembly Instructions
For Mystic Guest / Reception
1. Unpack and identify all parts. Separate left, right,
and center leg frames.
2. Build complete frame assembly by connecting
back and lower cross tubes between legs as
shown in gure 6. Use 2” Allen bolts for lower
cross tubes and keep these bolts loose for now.
(Leave about ¼” of exposed threads) Use ½”
Allen bolts for back cross tubes. Tighten these
bolts very securely at this time.
3. Frame can be set aside for the time being.
4. Attach seat cushions to back cushions using
3” hex bolts and washers as shown in gure 7.
Keep these bolts loose for now. Repeat until all
cushion sets are assembled.
5. Set each cushion assembly into each chair frame
as shown in gure 8. Align holes in frame with
holes in cushions and connect using 3” Allen
bolts as shown in gure 9.
6. Tighten all bolts securely at this time, including
all lower cross tube bolts from step 2 and all seat
cushion hex bolts from step 4.
7. Your product is now assembled and ready to use.
Center
Leg Frame
