Introduction
The List of Models
This hardware manual contains the following models:
FCS-1160
Zoom Network Camera, 5-Megapixel, PoE 802.3af, Day & Night,
12x, WDR
FCS-1150
Zoom Network Camera, 3-Megapixel, PoE 802.3af, Day & Night,
12x, WDR
From the installation perspective, these models are very similar; therefore one manual is used for
all of them.
Package Contents
Camera
Terminal Block
(for Power)
Terminal Block
(for Audio and DI/DO)
Terminal Block
(for Serial Port)
Quick Installation Guide

Hardware Manual
8
Physical Description
1) Memory Card Slot
Insert a memory card into this slot for local recording purposes. See How to Install /
Remove the Memory Card on page 23 for more information.
NOTE: Supports microSDHC and microSDXC cards.
2) Digital Input / Output (DI/DO) and Audio Input / Output
This connector connects to digital input or output devices, such as an alarm trigger, panic
button, etc., as well as audio input and output devices, such as microphones and speakers.
Digital Input (DI) and Digital Output (DO) devices are used in applications like motion
detection, event triggering, alarm notifications, etc. See Connecting the DI/DO and Audio
Devices (Optional) on page 12 for more information.
3) DC 12V Power Input
In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this
connector to connect an external adaptor (not included) to the camera. See Connecting a
Power Adapter (Optional) on page 10 for more information.
4) Reset Button
The purpose of reset button is to restore the factory default settings of the camera, including
administrator’s password.
The reset button can be used for following purposes:
1. The administrator’s password has been forgotten and therefore the camera cannot be
accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to
modify these settings.

Hardware Manual
9
3. In case of connectivity issues or abnormal video quality.
How to do the reset?
Using a pointed object, such as a paper clip, press and hold the reset button for at least 5
seconds or until the Power LED goes off.
5) Power LED
The Power LED turns on when the camera is powered on and the system is running.
6) Ethernet Port
Connects to a network using a standard Ethernet cable.
7) Serial Port
This port connects to serial devices via RS-485 or RS-422 protocols. Use the supplied serial
port terminal block to connect the wires from the camera to the serial device.
See Connecting a Serial Device (Optional) on page 16 for connection details.

Hardware Manual
10
Before Installation
This section describes the procedures in preparing the external devices that you can connect to
the camera. The camera supports DC12V power input, Digital Input and Output (DI/DO), Audio
Input and Output devices, as well as Serial Devices like a Pan-Tilt (PT) Scanner using the
bundled terminal blocks. The use of these devices, however, is optional.
Connecting a PowerAdapter (Optional)
In case of using a non-PoE switch or your PoE switch has limited power supply, you can
purchase a power adapter and directly connect the camera to a power outlet. The power adapter
must be connected to the supplied terminal block before use.
To do this, follow the procedures below:
1. Loosen the screws of the 12V and GND pins of the power terminal block.

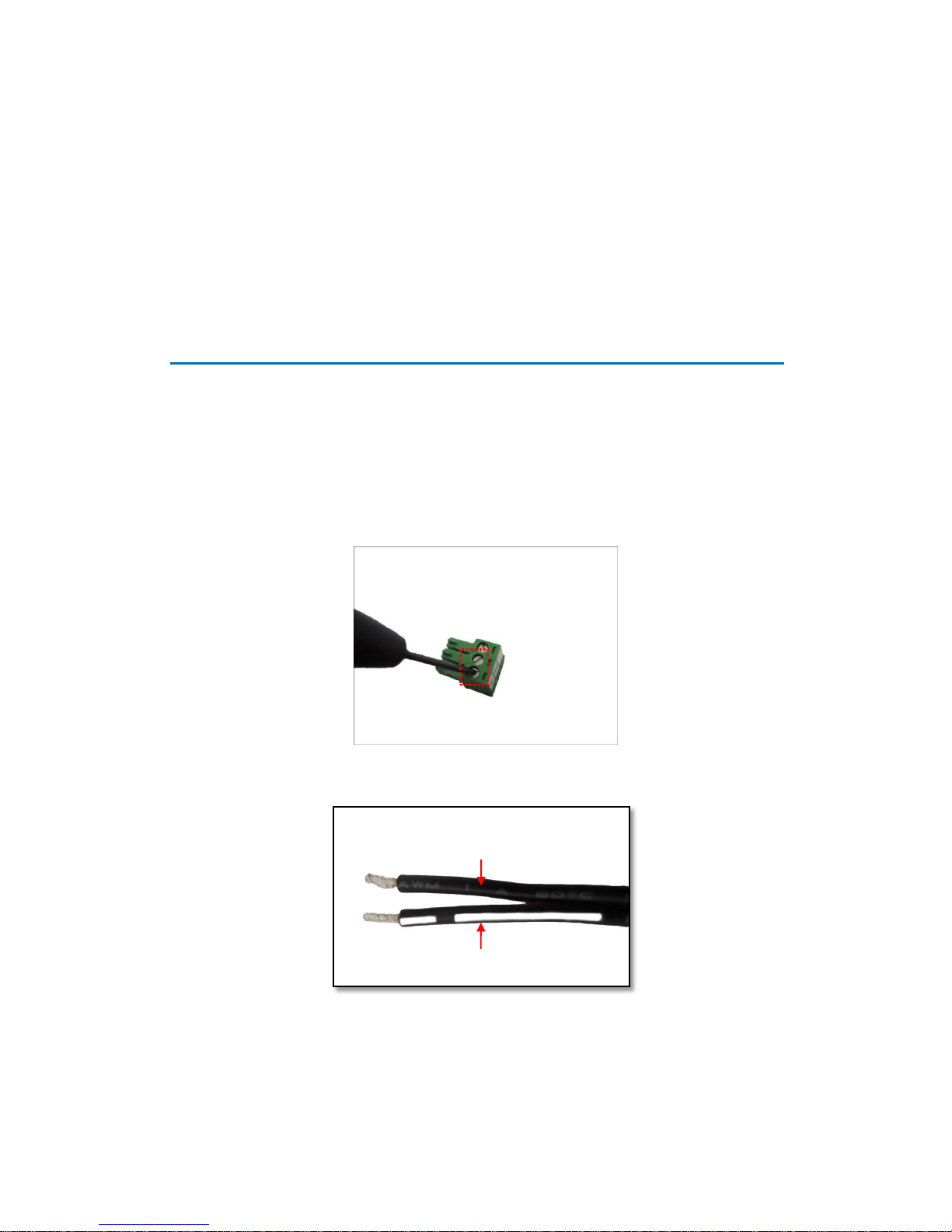

2. Take note that a standard power adapter cable has two (2) different wires:
White stripe: Connects to 12V Pin
Connects to GND Pin

Hardware Manual
11
3. Connect the wire with the white stripe to the 12V pin and the other to the GND pin.
4. Tighten the screws of the 12V pin and the GND pins to secure the wire connection.
5. Set the prepared power adapter for connection later. Below is an example of a power adapter
with an attached terminal block.
NOTE: The power adapter is not bundled in the package.

Hardware Manual
12
Connecting the DI/DO and Audio Devices (Optional)
Depending on your surveillance needs, you may connect digital input / output or audio input /
output devices to your camera. The camera comes with one (1) terminal block for both digital and
audio input/output devices.
How to Connect DI/DO Devices
Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI
can be triggers of events. For example, you can connect a “panic button” to the camera; as such
when the panic button is pressed, the alarm signal will be sent through the camera. Other
common DI device applications are emergency button, smoke detector, passive infrared sensor,
etc.
Digital Output (DO) devices are external devices that are activated by the camera upon an event
inside the camera. For example, you can connect an “alarm horn” to the camera; as such when
an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other
common DO device applications are motion-triggered lights, electric fence, magnetic door locks,
etc.
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange
tab to secure the wire.
To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations
below:
Device
Pin
Mapping Instructions
Digital Output (DO)
DIO PW
Connect the wires of the output device to DIO PW
and DO.
DO
Digital Input (DI)
DIO GND
Connect the wires of the input device to DIO GND
and DI.
DI
For Audio Use
For DI/DO Use

Hardware Manual
13
The table below shows the DI/DO connection specifications:
Device
DI
Connection design
TTL - compatible logic levels
Voltage
To trigger (low)
Logic level 0: 0V ~ 0.4V
Normal (high)
Logic level 1: 3.1V ~ 30V
Current
10mA ~ 100mA
DO
Connection design
Transistor (Open Collector)
Voltage & Current
< 24V DC, < 50mA
Typical Connection
Based on these specifications, if the DI device has a voltage of 0V ~ 30V or the DO device has a
voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there
is no need to connect the DI/DO device to an external power source.
Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to

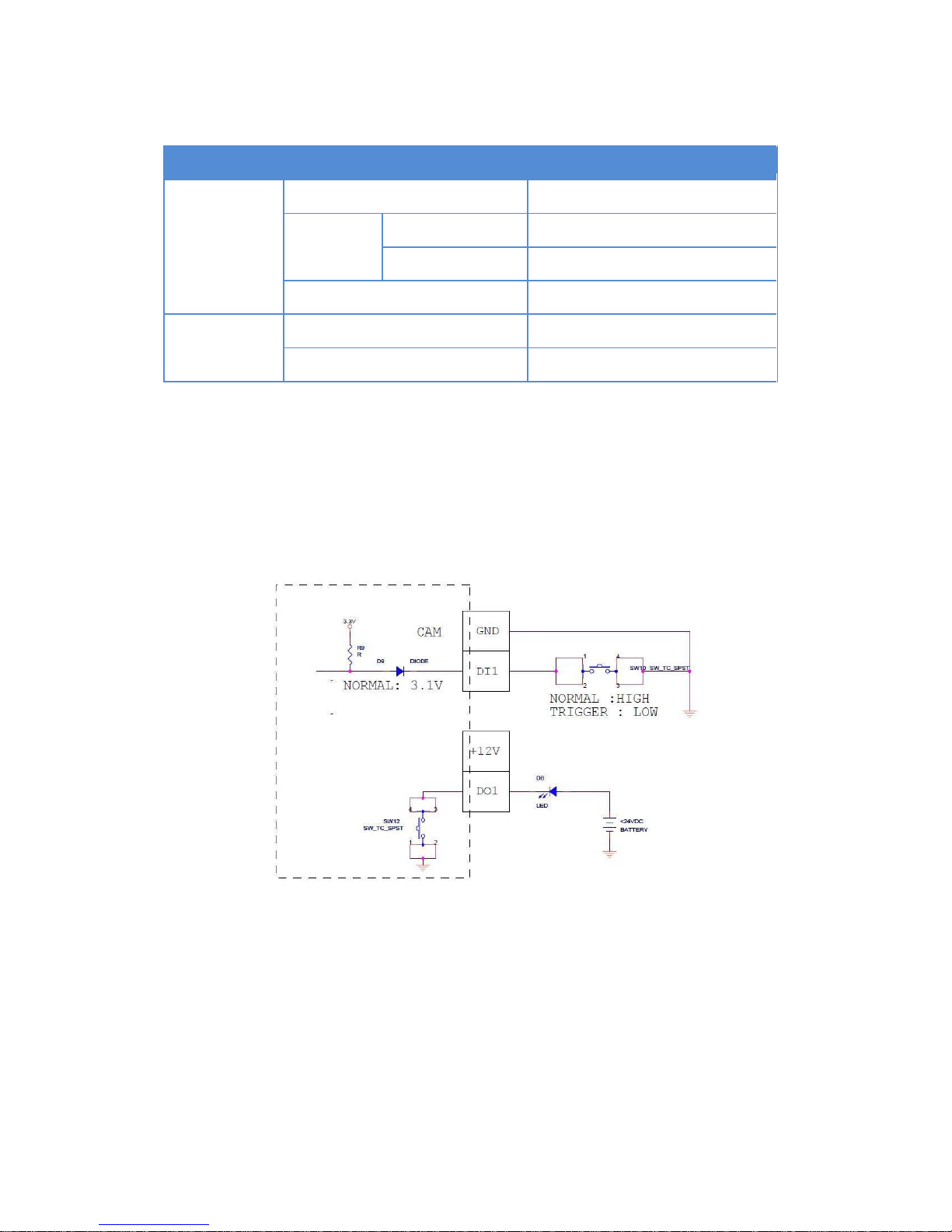

connect a DO device. See wiring scheme below:

Hardware Manual
14
High Voltage DO Device Connection
Even though the camera provides 12V power, this may not be enough for some high voltage DO
devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a
need to connect an external relay. See wiring scheme below:
Note that when choosing an appropriate relay, please refer to its specifications and make sure
they match the above design. The triggering circuit voltage has to be around 12V DC and the
switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V
AC).

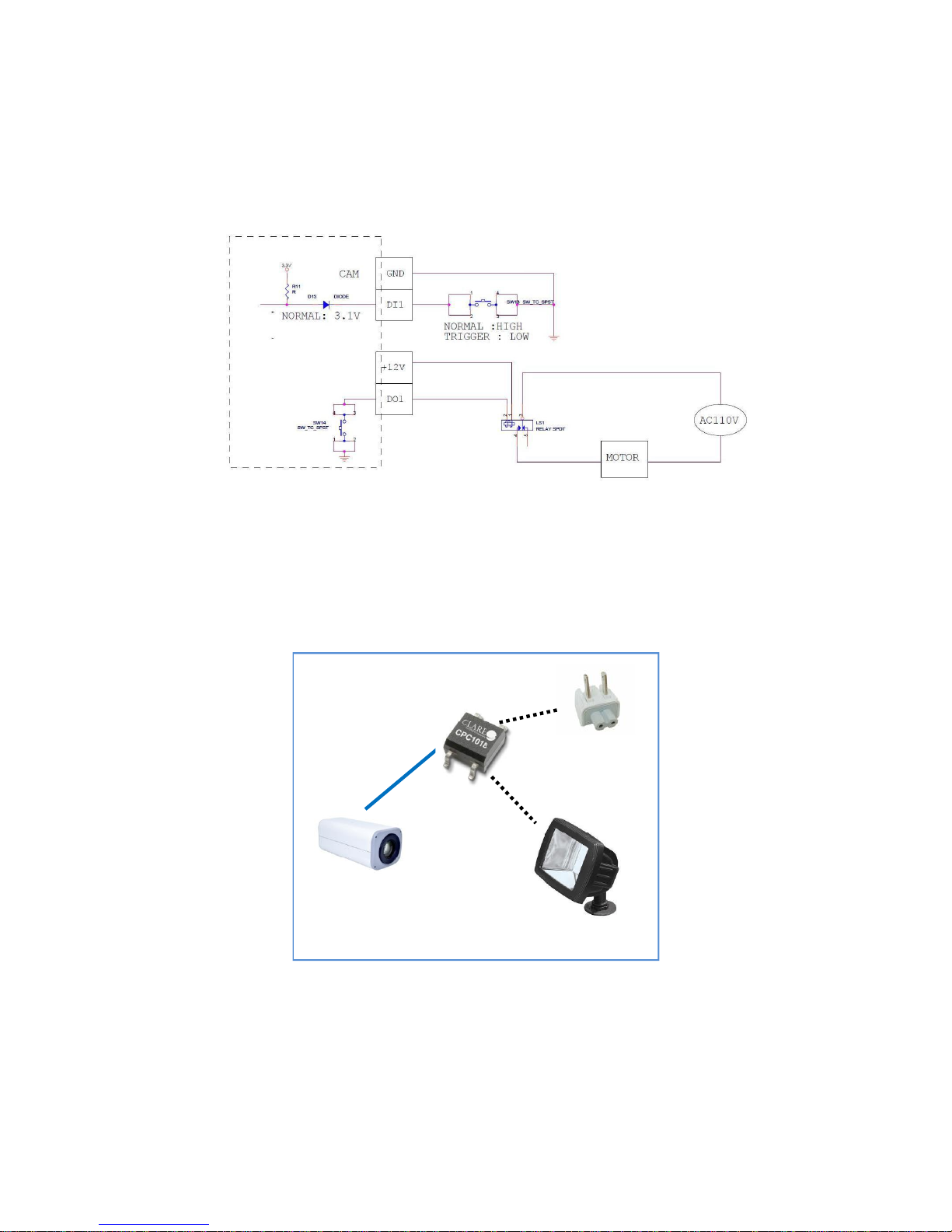

The illustration below is a graphic example of connecting a relay to a high voltage DO device.
Relay
(DO1 Device)
)
Camera
Illuminator
110V-220V AC
External Power
Source
NOTE: For more information on DI/DO connections, please refer to the Knowledge Base
article downloadable from our website.

Hardware Manual
15
How to Connect Audio Devices
Audio input / output devices, such as an active microphone or speaker can be connected to the
camera using the supplied terminal block.
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange
tab to secure the wire.
To connect audio devices, map the pins to one of the pin combinations below:
Device
Pin
Mapping Instructions
Audio Output (AO)
AO_GND
Connect the wires of the audio output device to
AO_GND and A_OUT.
A_OUT
Audio Input (A1)
AI_GND
Connect the wires of the audio input device to
AI_GND and A_IN.
A_IN
NOTE:For more information about AUDIO in connections, please refer to the Knowledge Base
article downloadable from our website.
For DI/DO Use
For Audio Use

Hardware Manual
16
Connecting a Serial Device (Optional)
The camera can be connected to a Pan-Tilt (PT) Scanner (Pan-Tilt Head) using the serial port
connector. This allows the zoom camera to do pan and tilt using the Pelco-D protocol. Most PT
scanners accept Pelco-D and Pelco-P protocol commands via RS-485 or RS-422 connection,
which are both supported by your camera.
Check the connection available on the PT scanner and connect it to your camera following the
procedures below.
1. Map the wires from the PT scanner to your camera using the supplied terminal block
according to one of the tables below.
Via RS-485 Connection
Terminal Block
Wire Mapping
Pin Number / Label
Camera Pin
PT Scanner Pin
1
TX +
TX +
TX +
2
TX -
TX -
TX -
3
GND
GROUND PIN
4
RX+
-
5
Rx-
-
Via RS-422 Connection
Terminal Block
Wire Mapping
Pin Number / Label
Camera Pin
PT Scanner Pin
1
TX +
TX +
RX +
2
TX -
TX -
RX -
3
GND
GROUND PIN
4
RX+
RX +
TX +
5
Rx-
RX -
TX -
NOTE: The pins of the PT Scanner may be labeled differently depending on the location or
country where the scanner is purchased. For example, some devices may have TX –pin
labeled as "A” or “485 -”, etc. Refer to the scanner documentation or contact the
manufacturer to verify the corresponding pin labels and ensure proper wiring connection.

Hardware Manual
17
CAUTION: Incorrect wiring may cause damage to the connected devices.
DISCLAIMER: The manufacturer will not be responsible for any damage caused by
improper wiring.
2. Connect a ground wire to one of the GND terminal pin to complete the connection.
For more information on connecting PT scanners, please refer to the Knowledge Base article
downloadable from our website.

Hardware Manual
18
Indoor Installation Procedures
This section describes the procedures in installing the camera indoors using PMAX-1105 indoor
bracket (purchased separately).
When using brackets from other manufacturers, check the installation guide included in the
bracket to install the camera.
NOTE: Some pictures in this documentation may slightly differ from the actual camera or
accessories.
Step 1: Mount the Indoor Bracket
NOTE: Before installing the bracket, make sure the ceiling or wall can bear more than the weight
of the camera and its accessories.

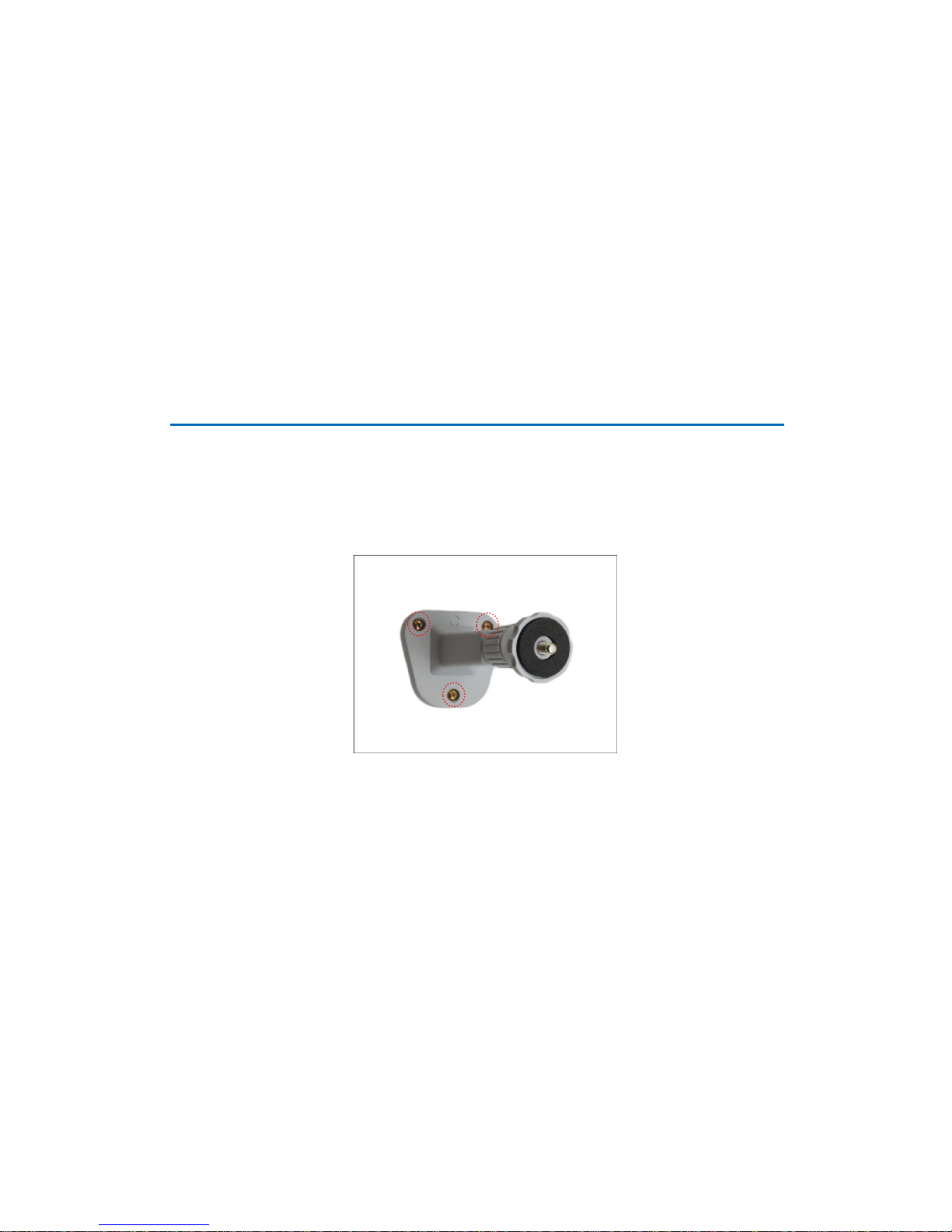

Install the indoor bracket to the ceiling or wall using the three (3) screws included in the bracket
package.

Hardware Manual
19
Step 2: Attach the Camera to the Bracket
NOTE: The following images show the mounting bracket attached on the bottom side of the
camera. Same procedures apply when attaching the mounting bracket on the top side.
1. If necessary, insert a memory card into the memory card slot of the camera with the metal
contacts facing down. Push until the card clicks into place. See How to Install / Remove the
Memory Card on page 23 for more information.
2. Slightly loosen the knurled knob.
3. Screw the camera to the bracket.

Hardware Manual
20

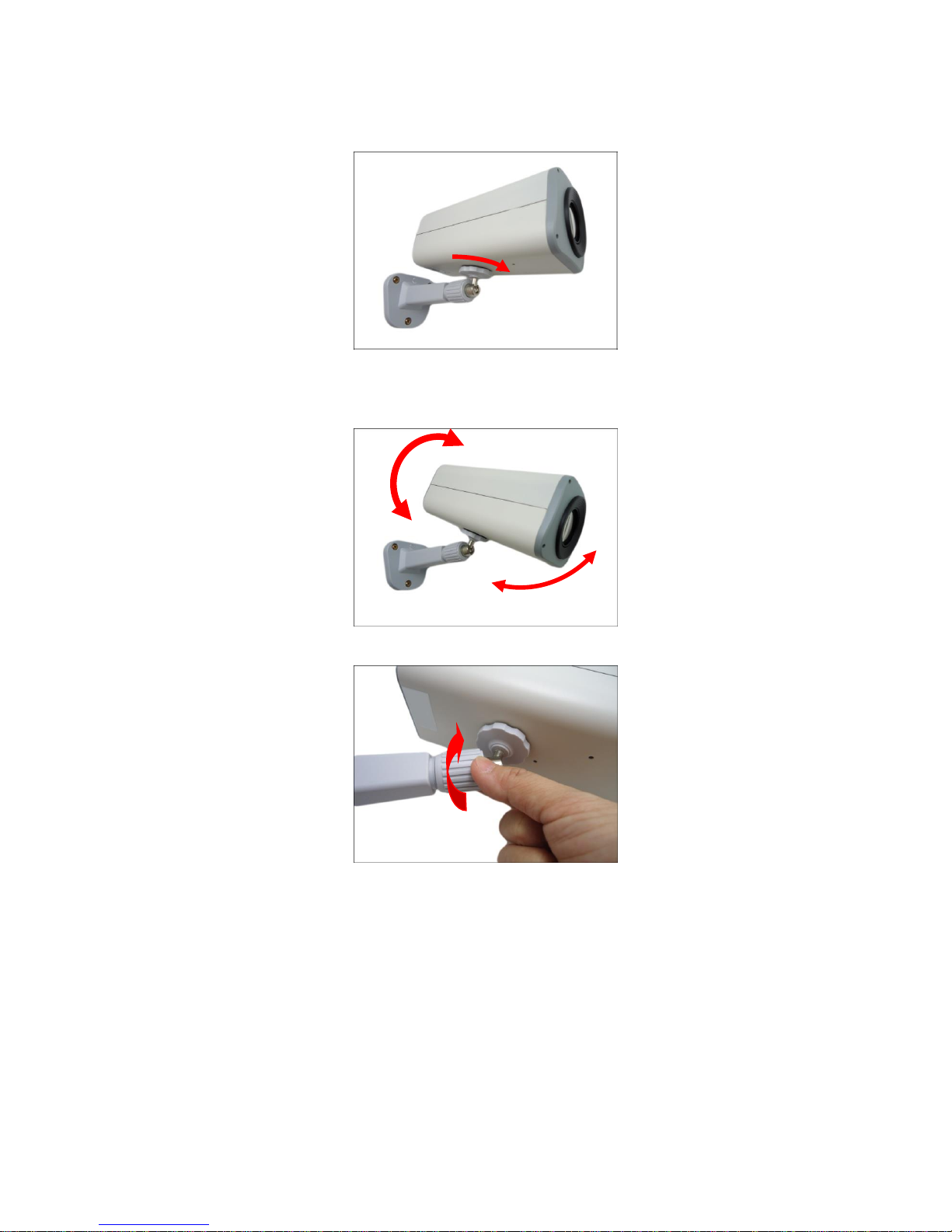

4. Tighten the hand knob until the camera is secured to the bracket.
5. Adjust the camera angle.
6. Tighten the knurled knob to fix the camera position.
