LevelOne FCS-5057 Instructions for use

Fixed Network Camera
Hardware User Manual
FCS-5054, FCS-5057, FCS-5064
Ver. 2014/03/27

Hardware Manual
2
Table of Contents
Precautions 4
Safety Instructions..................................................................................... 6
Introduction 7
List of Models.............................................................................................. 7
Package Contents...................................................................................... 8
Physical Description................................................................................. 9
Installation Procedures Using the Bundled
Bracket 11
Step 1: Install the Bundled Bracket......................................................11
Step 2: Attach the Sunshield ................................................................ 12
Step 3: Install the Camera...................................................................... 13
Step 4: Waterproof and Connect the Cable ...................................... 14
How to Use the Cable Gland........................................................15
How to Use the Conduit Gland.....................................................18
Step 5: Connect the Cable..................................................................... 22
Step 6: Access the Camera Live View................................................ 22
Other Connections 23
How to Connect DI/DO Devices (Optional)........................................ 23
How to Connect Audio Input / Output Devices (Optional) ............ 26
Adjustments and Accessories 27
How to Install / Remove the Memory Card........................................ 27
How to Insert the Memory Card ...................................................27
How to Remove the Memory Card...............................................28
Adjust the Viewing Angle and Focus.................................................. 29
How to Reset the Camera...................................................................... 30
Accessing the Camera 31

Hardware Manual
3
Configure the IP Addresses .................................................................. 31
Using DHCP Server to Assign IP Addresses................................31
Using the Default Camera IPAddress..........................................33
Access the Camera.................................................................................. 35

Hardware Manual
4
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.

Hardware Manual
5
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.

Hardware Manual
6
Safety Instructions
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in
this manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require
extensive work by a qualified technician to restore the video product to its normal
operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual
7
Introduction
List of Models

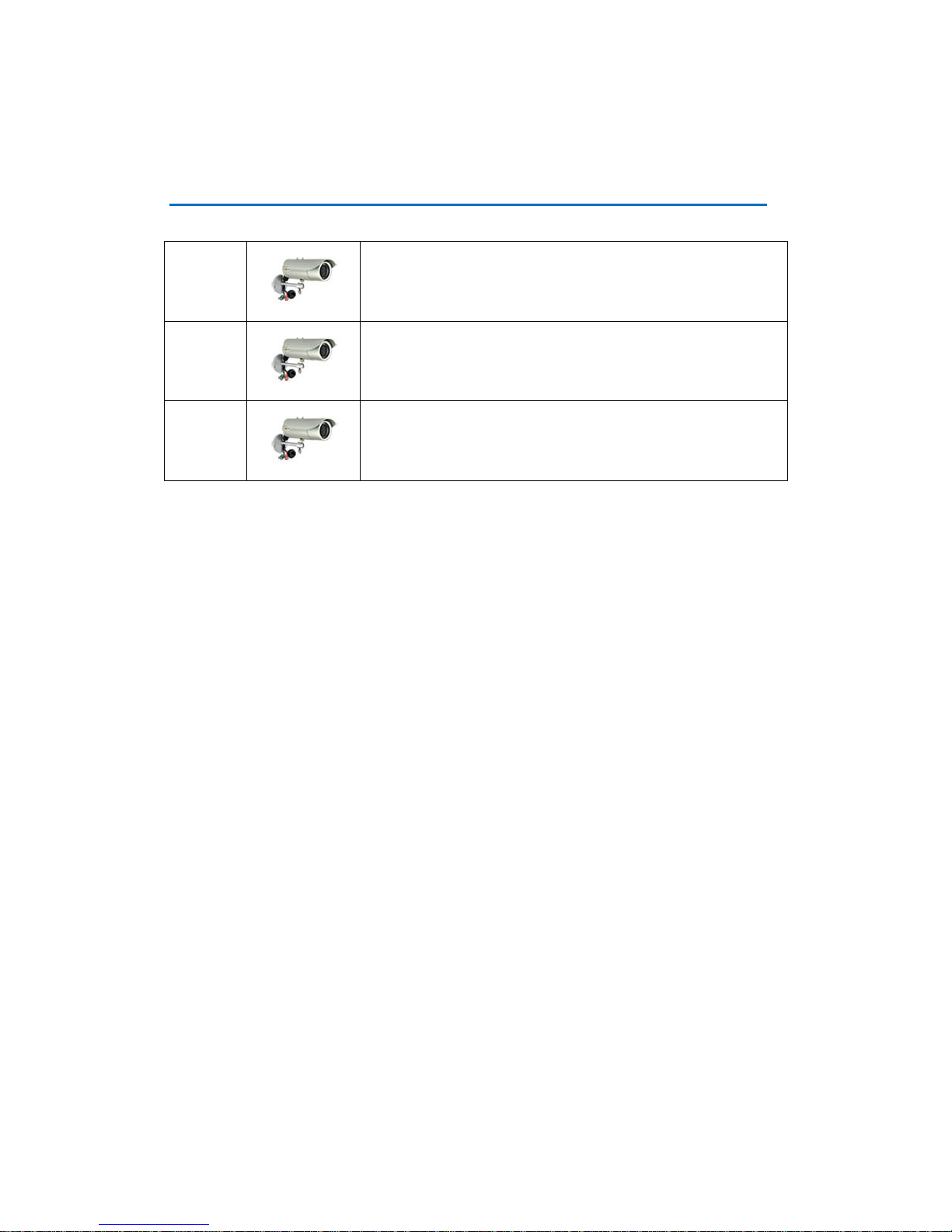

This hardware manual contains the following models:
FCS-5057
Fixed Network Camera, 3-Megapixel, Outdoor, PoE 802.3af,
Day & Night, IR LEDs, WDR
FCS-5064
Fixed Network Camera, 5-Megapixel, Outdoor, PoE 802.3af,
Day & Night, IR LEDs, WDR
FCS-5054
Fixed Network Camera, 3-Megapixel, PoE 802.3af, Outdoor,
Day & Night, IR LEDs, WDR

Hardware Manual
8

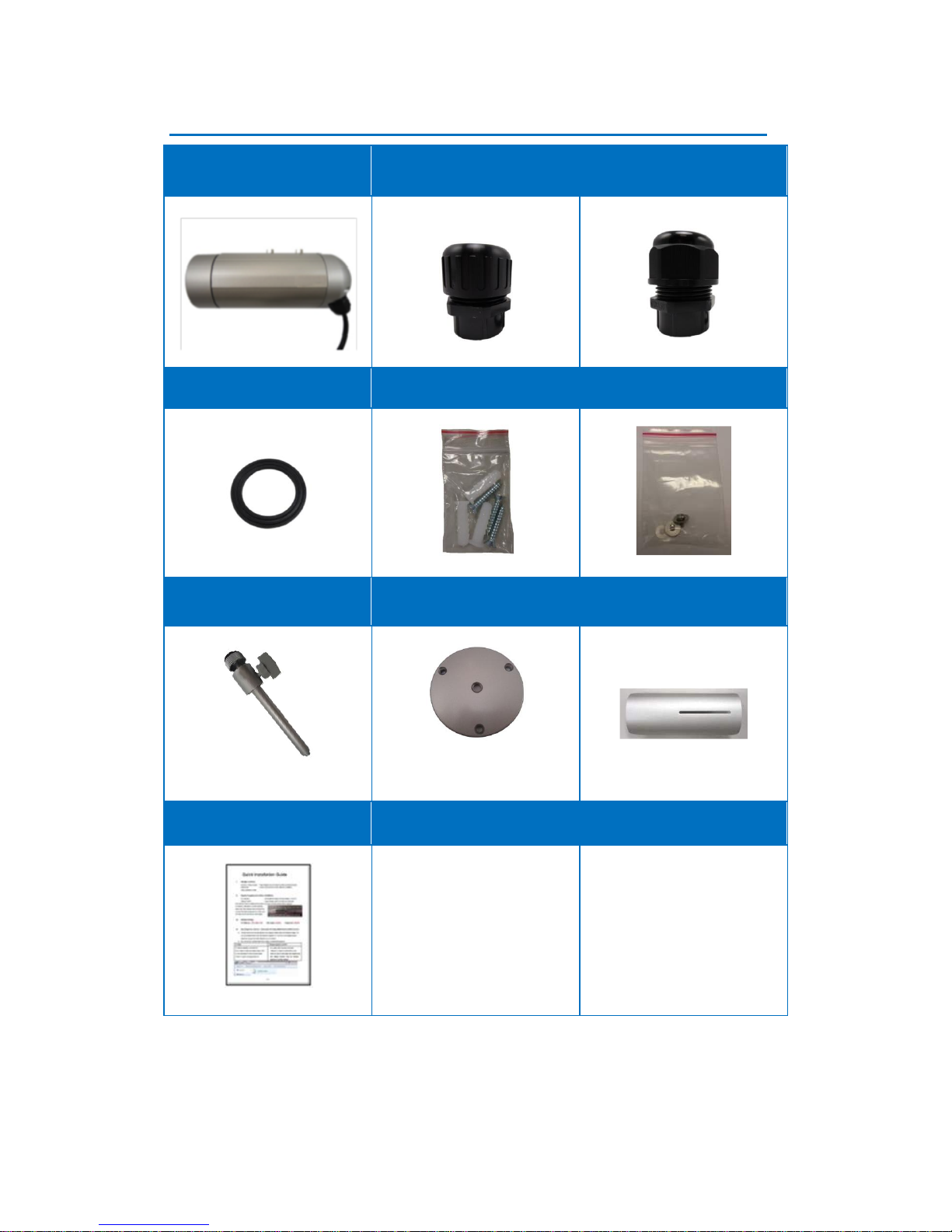

Package Contents
Camera
Conduit Gland
Cable Gland
Washer
Mounting Screw Kit
Sunshield Screw Kit
Bracket
Bracket Plate
Sunshield
Quick Installation Guide

Hardware Manual
9
Physical Description
Item
Description
1
Memory Card Slot
Insert a memory card (not included) into this slot for local
recording purposes. See How to Install / Remove the Memory
Card on page 27 for more information.
NOTE: Supports microSDHC and microSDXC cards.
2
Reset Button
Use the Reset Button to reset the camera to its factory default
settings. To do the reset, press and hold the Reset button for at
least 5 seconds or until the Power LED lights up. When the
Power LED lights up again, reset is complete. See How to Reset
the Camera on page 30.
3
Power LED
The Power LED lights up when the camera is connected to the
power source and goes off once the camera boot-up process is
complete.
NOTE: For typical use, the power LED is hidden inside the
housing and cannot be seen. However, knowing how the power
LED works is essential when troubleshooting or doing a reset.
4
Ethernet Port
Connects to a network using a standard Ethernet cable.
5
Audio Input
Connects to audio input devices, such as a microphone with
built-in amplifier, etc.
NOTE: The microphone must have a built-in amplifier.
Connecting an ordinary microphone will dwarf sounds and will
result in inaudible recording.
6
Audio Output
Connects to audio output devices, such as a speaker, etc.

Hardware Manual
10
Item
Description
7
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See How to Connect
DI/DO Devices (Optional) on page 23 for information on how to
connect DI/DO devices to your camera.

Hardware Manual
11
Installation Procedures Using the
Bundled Bracket

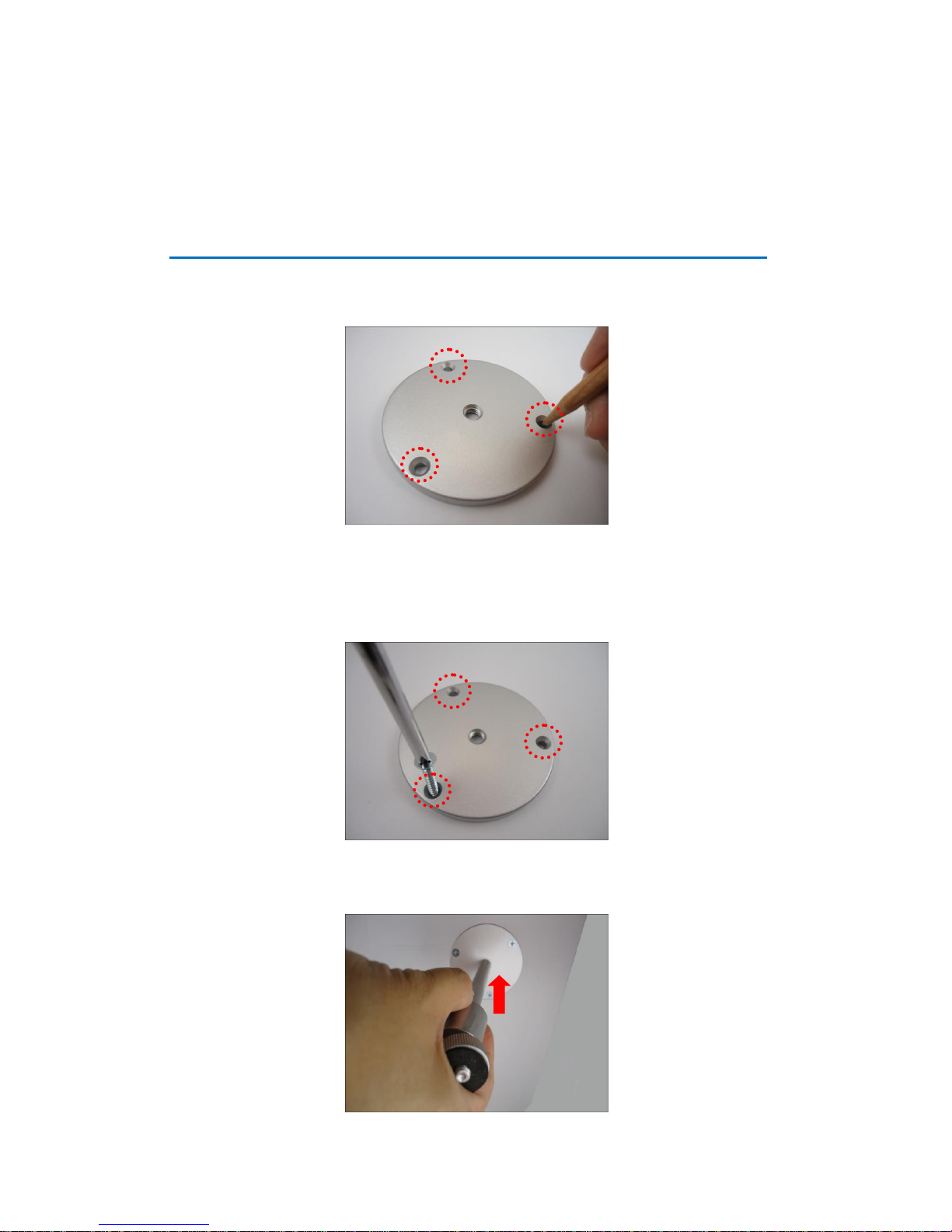

Step 1: Install the Bundled Bracket
1. Mark the location of the three (3) screw holes using the bracket plate included in the
package.
NOTE: Depending on the surface where you will install the camera, it may be necessary to
drill the holes and use the supplied screw trox.
2. Attach the plate to the surface using the three (3) supplied screws.
3. Attach the bracket to the plate.

Hardware Manual
12
Step 2: Attach the Sunshield
The use of sunshield is optional if the camera will be installed indoors. However, if the camera
will be installed outdoors, attach the sunshield to protect the lens from all types of weather a
screw trox. nd lighting conditions.
1. Loosely secure the supplied screws and washers to attach the sunshield.
2. Slide to adjust the sunshield to cover the lens as far as possible but out of the camera’s
live view.
3. Tighten the screws to fix the position of the sunshield.

Hardware Manual
13

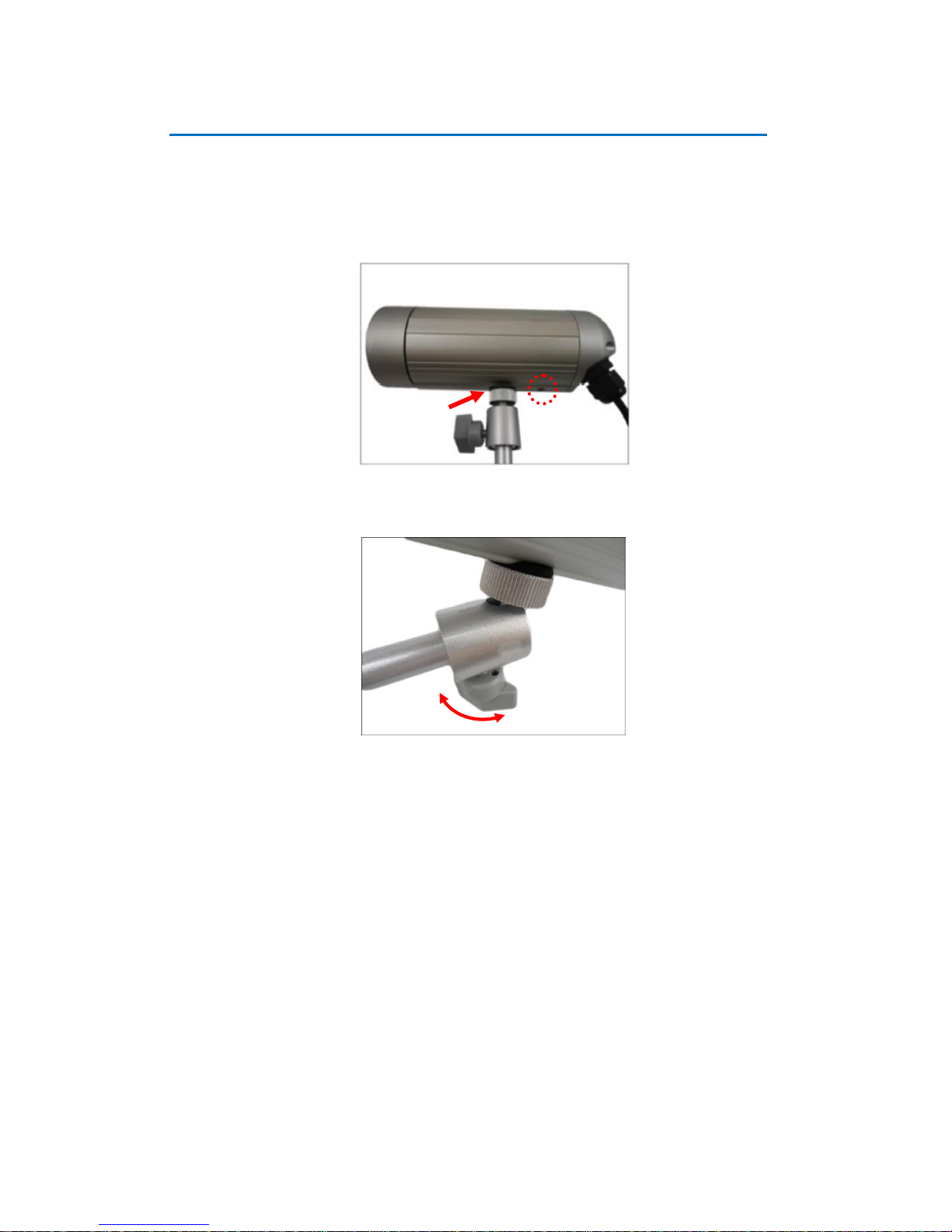

Step 3: Install the Camera
1. If necessary, install a memory card to the camera. See How to Insert the Memory Card
on page 27 for more information.
2. Depending on how you want to install the camera, attach the camera to the bracket
through one of the two (2) holes below:
3. Adjust the camera viewing angle and tighten the knob to fix the camera position.

Hardware Manual
14
Step 4: Waterproof and Connect the Cable
The camera and the pre-installed network cable, “pigtail”, are resistant to salt, water, weak acid,
alcohol, oil, grease and other common solvents. However, users must ensure that the cable
connection and the network side cable itself are also protected from different environmental
factors.

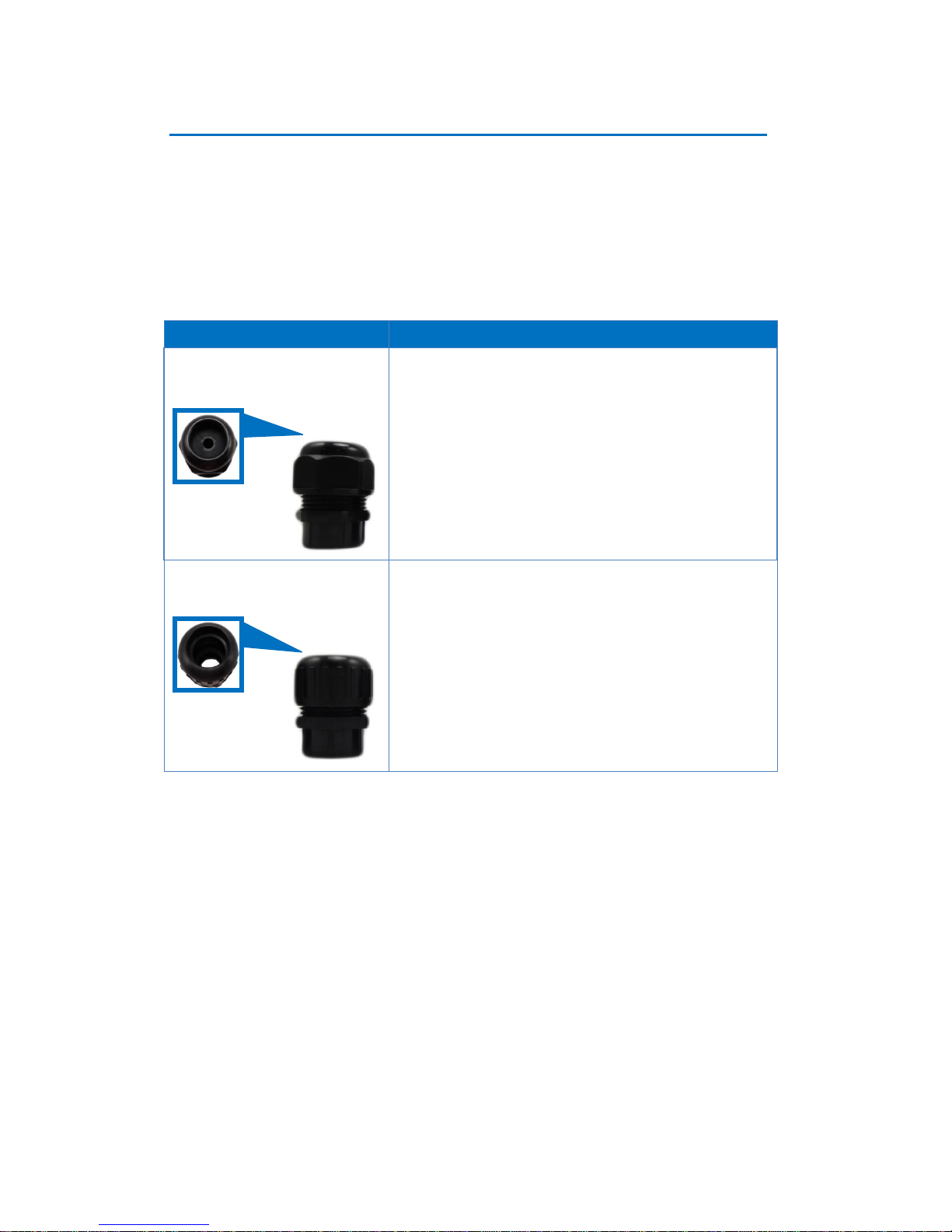

For Ethernet connection, there are two waterproofing methods.
Bundled Accessory
Description
Cable Gland
Use this solution when connecting an Exterior-grade
Ethernet cable between the camera and a
Power-over-Ethernet (PoE) switch or injector. See How to
Use the Cable Gland on page 15.

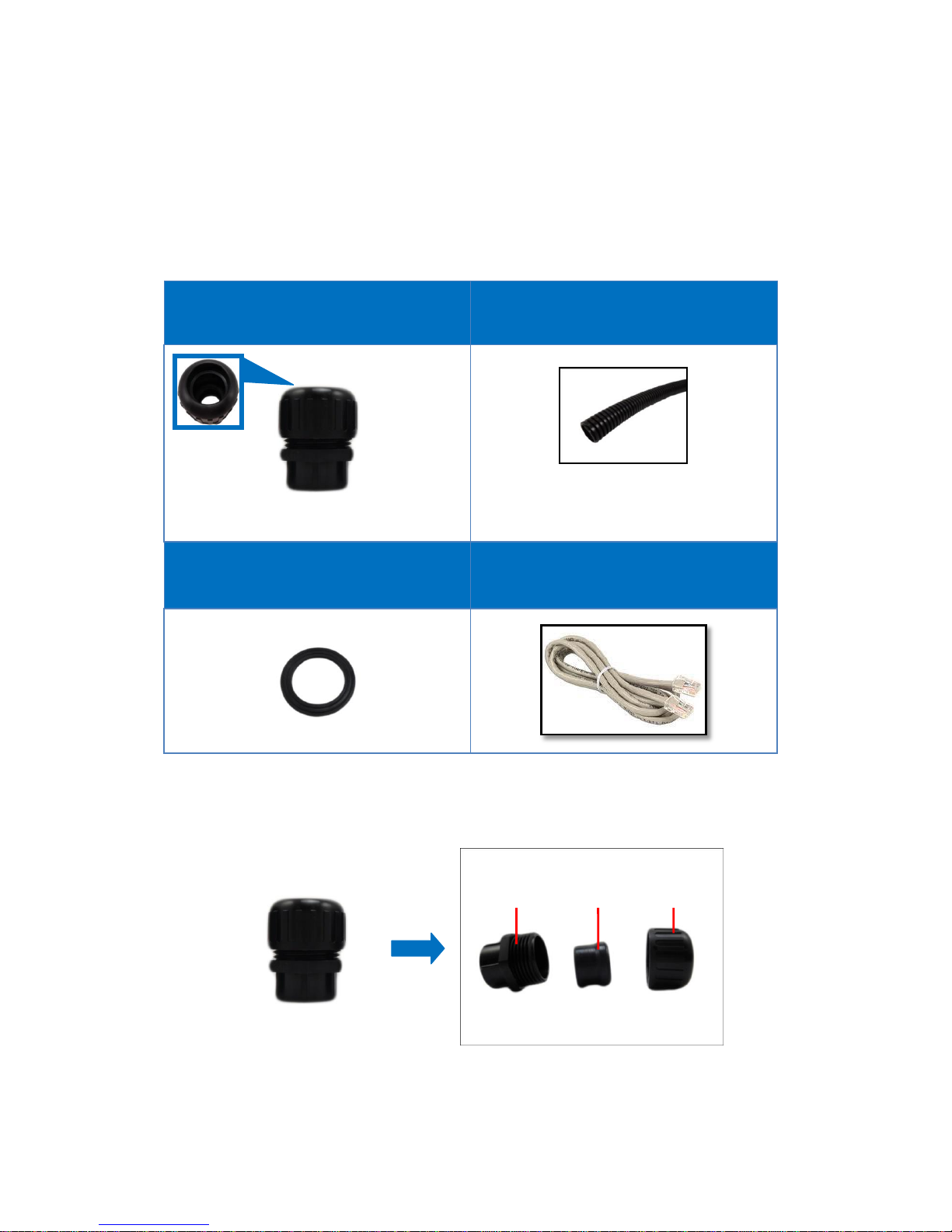

Conduit Gland
Use this solution when connecting a standard indoor
Ethernet cable between the camera and a
Power-over-Ethernet (PoE) switch / injector. A flexible
conduit (trade size 1/2”) is required to house the Ethernet
cable. See How to Use the Conduit Gland on page 18.
NOTE: The flex conduit is not included in the package
and must be purchased separately.
Audio and digital input/output devices can be connected to the camera, for more information,
see Other Connections on page 23.

Hardware Manual
15
How to Use the Cable Gland
This section describes how to waterproof the cable-out or “pigtail” of the camera using the
bundled cable gland. An exterior-grade Ethernet cable is required. The camera may or may not
have to be installed first before doing the cable connections (see related installation
procedures for details).

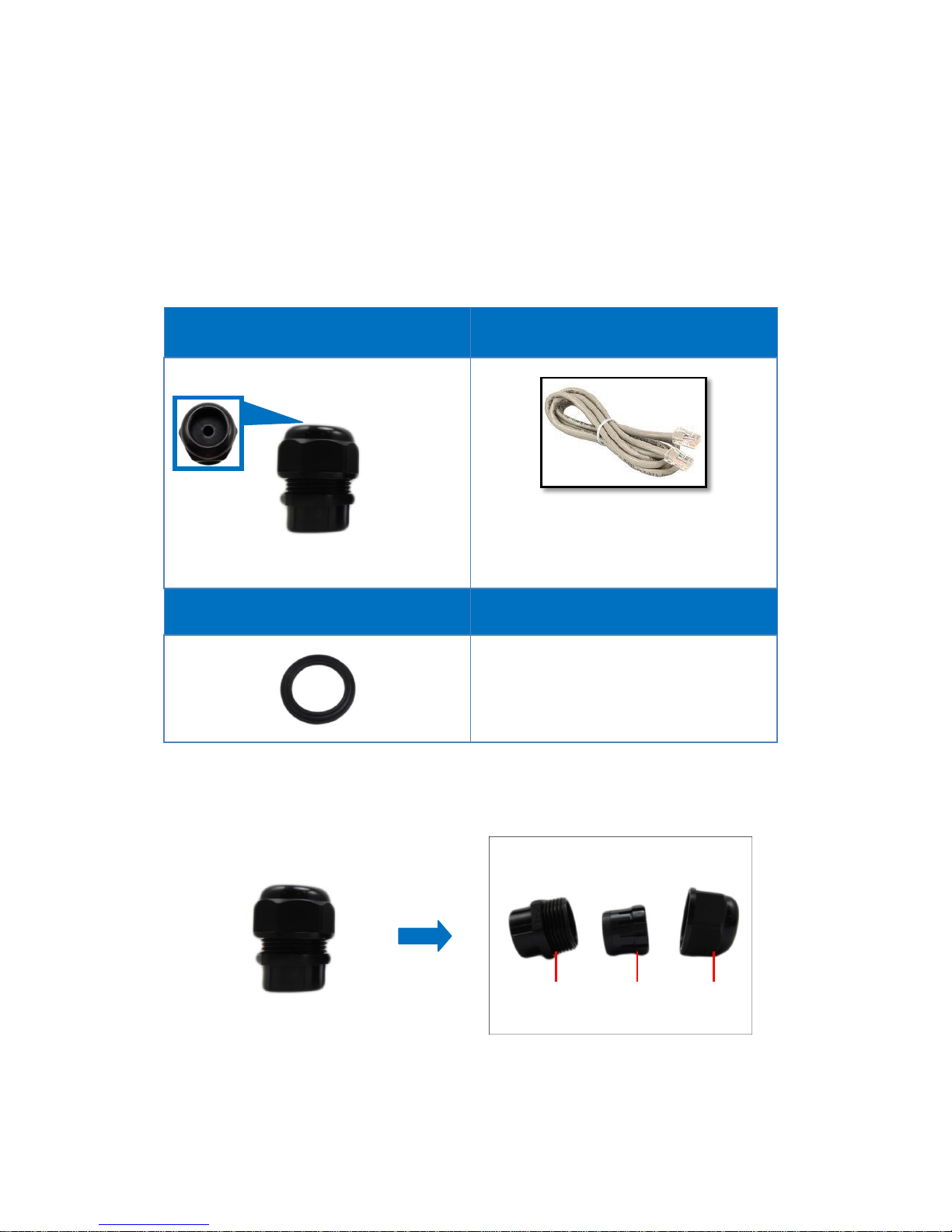

Before connection, prepare the following materials:
Cable Gland
(included in the camera package)
Exterior-Grade Ethernet Cable
(not included in the package)
NOTE: Exterior-grade cables are already
waterproof. Not included in the package.
Washer
(included in the camera package)
Perform the following to waterproof the “pigtail” using the cable gland:
1. Disassemble the cable gland as shown below:
Cable Gland
Sealing
Insert
Clamping
Nut

Hardware Manual
16

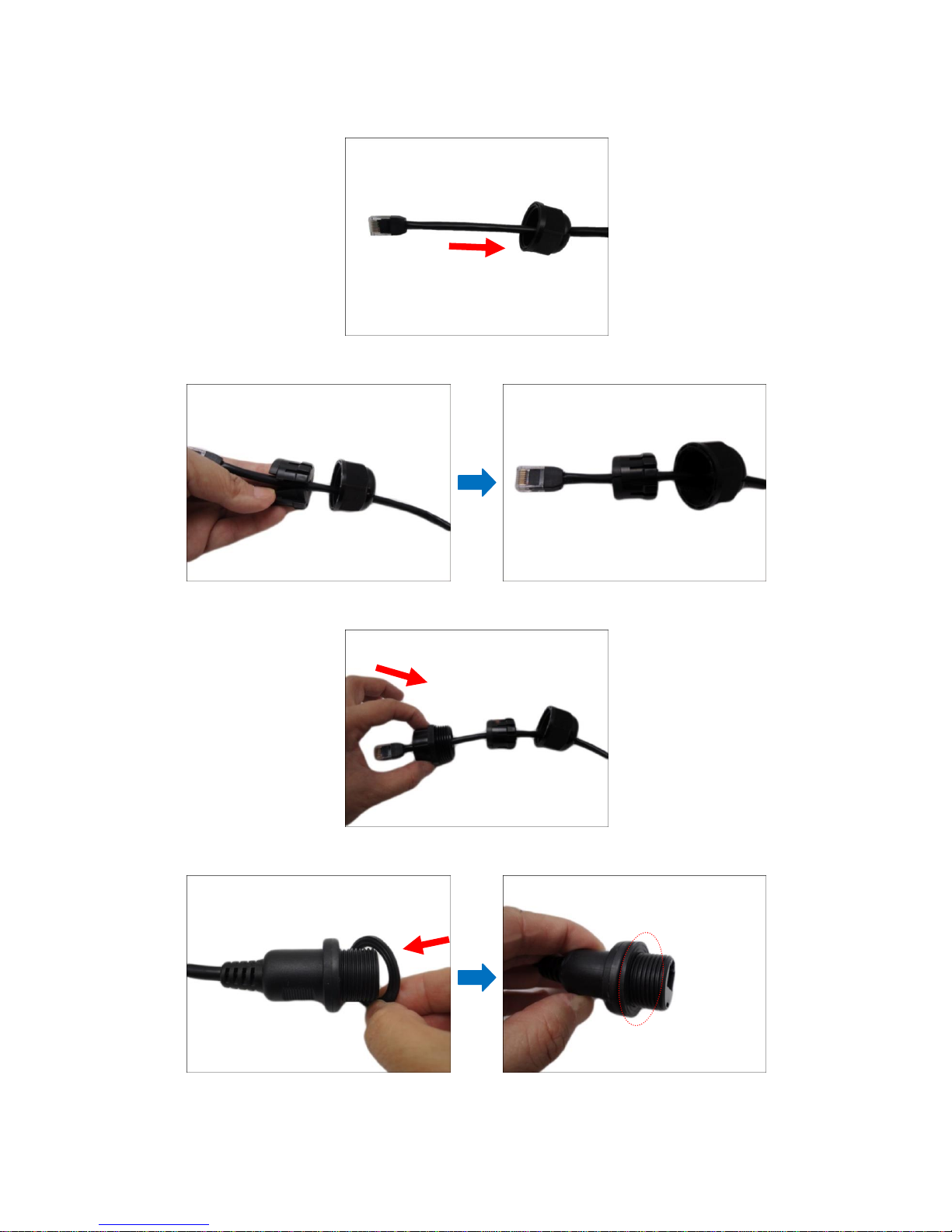

2. Insert the clamping nut into the Ethernet cable.
3. Insert the sealing insert with claw.
4. Insert the gland body into the Ethernet cable.
5. On the “pigtail” side, insert the washer into the “pigtail”.

Hardware Manual
17
6. Connect the Ethernet cable connector to the “pigtail” connector.
7. Attach the gland body to the “pigtail”.
NOTE: Make sure the gland body is tightly attached to the “pigtail” and the washer is
secured between them.
8. Insert the sealing insert into the cable gland body and then attach the clamping nut to
complete the cable solution.
NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the
sealing insert is squeezed tightly.

Hardware Manual
18
How to Use the Conduit Gland
This section describes how to waterproof the cable-out or “pigtail” of the camera using the
bundled conduit gland and flexible conduit. This is the recommended solution if an
exterior-grade Ethernet cable is not available.
Before connection, prepare the following materials:
Conduit Gland
(included in the camera package)
Flexible Conduit
1/2" Trade size
(not included in the package)
NOTE: Not included in the package.
Washer
(included in the camera package)
Ethernet Cable
CAT 5 or CAT 6
(not included in the package)
Perform the following to waterproof the “pigtail” using the conduit gland:
1. Disassemble the conduit gland as shown below:
Cable Gland
Sealing
Nut
Clamping
Nut

Hardware Manual
19
2. Pull the Ethernet cable through the flex conduit. Leave enough length of the cable outside
the flex conduit.
3. Insert the clamping nut through the flex conduit.
4. Insert the sealing nut and fix it at the end of the flex conduit.
5. Insert the gland body into the Ethernet cable.

Hardware Manual
20
6. On the “pigtail” side, insert the washer into the “pigtail”.
7. Connect the Ethernet cable connector to the “pigtail” connector.
8. Attach the gland body to the “pigtail”.
NOTE: Make sure the gland body is tightly attached to the “pigtail” and the washer is
secured between them.
