Leviton 4106 User manual

User’s Guide
Dimensions 4000 Series
Control System
Topics at a Glance
Installation.............See Installation Guide
User Interface ........................................7
Quick Start Configuration .....................10
Initial Setup ..........................................18
Detailed Operation ..............................44
Scene Recording .................................53
Scheduling...........................................62
System Layout Charts .........................68
WEB VERSION

WEB VERSION

Table of Contents
Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 2
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
Table of Contents .............................................................2
Warnings ..........................................................................4
Overview ..........................................................................5
Installation Recommendations .........................................6
Getting around the Interface .............................................7
Quick Start Configuration ................................................10
D4104, D4106, D4206..............................................11
D4006 .......................................................................13
D4200 .......................................................................14
Power Up Initialization ....................................................16
Setup ..............................................................................18
Accessing the Configuration Menus ........................19
Network Settings .......................................................20
The Patch ..................................................................23
Zone to Channel Patch ..............................................24
Dimmer to Circuit Patch .............................................27
Configuring Dimmers .................................................28
Devices with Dimmers Only (D4006) .........................33
Miscellaneous Settings Menu ....................................35
Personalities ..............................................................41
Connecting Entrance Stations ...................................42
Operation .......................................................................44
Overview of Unit Controls ........................................44
Configure the Clock ...................................................52
Recording a Scene .....................................................53
Changing the MAX and OFF Lighting Levels ..............55
Zone Labels: Naming a Scene or Zone .......................55
Preventing Changes - LOCKS ....................................58
Scheduled Events ......................................................62
Viewing Scheduled Events .........................................64
Sequencer ..................................................................64
System Layout Charts ....................................................68
Latitude & Longitude Chart ............................................74
WEB VERSION

Page 3
WEB VERSION

Warnings
Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 4
1: TO AVOID FIRE, SHOCK OR DEATH: TURN OFF
POWER AT MAIN CIRCUIT BREAKER OR FUSE AND
TEST THAT THE POWER IS OFF BEFORE WIRING!
2: To be installed and/or used in accordance with
appropriate electrical codes and regulations.
3: To be installed by an Electrician.
4: DO NOT CONNECT line voltage wires to low
voltage terminals.
5: For longest lamp life, most lamp manufacturers
recommend their fluorescent lamps should be operated
at full brightness for a minimum of 100 hours before
dimming is permitted.
6: For best results, lamp brands and types should not be
intermixed on a circuit.
7: Disconnect power when servicing the dimmer, fixture or
when changing lamps.
8: All devices in the D4000 system are rated for Indoor
use only.
9: Test all circuits for any fault before connecting to this
device. Damage to this device due to any fault at the load
or line side is not covered by this products warranty.
10: Know the connected load type.
11: DO NOT connect load types for which the device
is not rated.
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
WEB VERSION

Overview
This guide is split into several sections:
•Overview - Overview of manual, key topics, and device
navigation.
•Quick Start - Critical steps for getting up and running
quickly.
•Setup - In-depth topics required for proper initial setup.
•Operation - How to operate your device and the features of
the user interface.
•Configuration - Detailed configuration information
Accompanying this guide should be an installation guide covering
all the connections and other requirements of proper installation.
Common Topics
•How to operate the device, see page 44.
•Power Up Initialization, see page 16.
•How to configure a dimmer for a fluorescent (or any other
load type,) see page 28.
•How to set the starting network channel, see page 25.
•How to record a scene, see page 49.
•How to set the date and time, see page 52.
•How to prevent changes to the device, see page 58.
•How to trigger a scene at a specific time of day see page 62.
Page 5
WEB VERSION

Configuration Guide
Installation Recommendations
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 6
For best results using the Dimension 4000 Architectural
Lighting Controllers, follow these recommendations:
1: Plan the system before beginning the installation:
• Device location and primary purpose.
• Determine which controllers are controlling which
dimmers.
• Determine location and function of remote stations.
• Consider power supply, wire size, run length, load
requirements.
• Consider any regularly scheduled events.
2: Follow the installation instructions covering physical
installation, connections and wring of your device.
3: Use the information in this “setup” section of this guide
for initial setup, and the “configuration” section for regular
programming.
4: When configuring a system with multiple devices it’s
helpful to connect them one at a time so that any
problems are isolated as they arise. For example:
• First install & configure master stations.
• Confirm that the master station is working correctly.
• Install first entry station (or device), configure it, and
confirm that it’s working correctly.
• Repeat until all device are installed.
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
WEB VERSION

19 2
10
3
11
4
12
5
13
6
14
7
15
8
16
Previous Field or
Change Scene Blank
Shortcut
Scene
Programming or
llaceR
Select Option and Save
nottuBlecnaCdnauneM
2-Line, 16-Character LCD
Next Field or
Change Scene Bank
Shortcut
Master
Page
Zones
Clear
Change Zone
Clear
IR Receiver
Master
Dim/Bright
Zone
Information
Display
Zone
Dim/Bright
All Zones to
ssenthgirBmumixaM
All Off
Previous/Next
Menu Option
Select
Save
Menu
Cancel
Off Button
Max Button
nottuBenecS
1 3 9 02 4 5 6 7 8
MAX. OFF
Getting around the Interface
A full discussion of how to operate your device is covered in the
section titled “Operation” on page 44. We recommend that you
review this information in its entirety. Contained in this section is
a only a brief overview to the topic.
Figure 15 - D4200 Buttons
Controls
With the cover closed, you can access the first eight SCENE
buttons and the MAX and OFF buttons.
Page 7
WEB VERSION

Figure 14 - Scene, MAX and OFF button Locations
• SCENES 1-8. Selects a new Scene, and causes a pre-
programmed set of lighting levels to fade in while the
previously selected Scene fades out.
• MAX. By default raises all zones to full.
• OFF. By default, raises all zones to zero output.
With the cover open, you can also access the LCD display, the
Master Up and Down buttons, the individual Zone Up
and Down buttons, the Zone identification and status
buttons, the Zone level indicators, and the programming/
navigation buttons.
Navigating Menus
To navigate the menus, use the programming/navigation
buttons:
Configuration Guide
Select
Save
Menu
Cancel Clear
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page
Zones
Page 8
• Left and Right . Moves the cursor back and
forth, or to the previous or next item.
• Up and Down . Scrolls through menus and
submenus; changes selected values.
• Select/Save. Selects a value to be modified; saves the
modified value.
• Menu/Cancel. Enters menu mode; exits submenus;
exits menu mode.
• Clear. Clears or returns a selected value to zero.
• Page Zones. Alternates the Zone numbers between 1-8
and 9-16, 17-24 and 25-32. The LCD will indicate which
Page you are currently in. P1 refers to Zones 1-8, P2
Figure 11 - Programming Buttons
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
WEB VERSION

Scene Name
Breakfast P1
S01 TUE 04:29p LE
Scene # Days of week
Page 9
indicates Zone 9-16, P3 indicates Zone 17-24 and
P4 indicates Zones 25-32 are active.
Page Number - P1 = Zones 1-8
P2 = Zones 9-16
P3 = Zones 17-24
P4 = Zones 25-32
Indicates Schedule is active
Indicates Station is Locked
The Zone number LED’s do not light up on
P3 or P4
WEB VERSION

Configuration Guide
Quick Start Configuration
This section outlines only the steps required to properly
setup and begin use of your product. A complete review of all
information contained in this guide will help you get the most out
of your system.

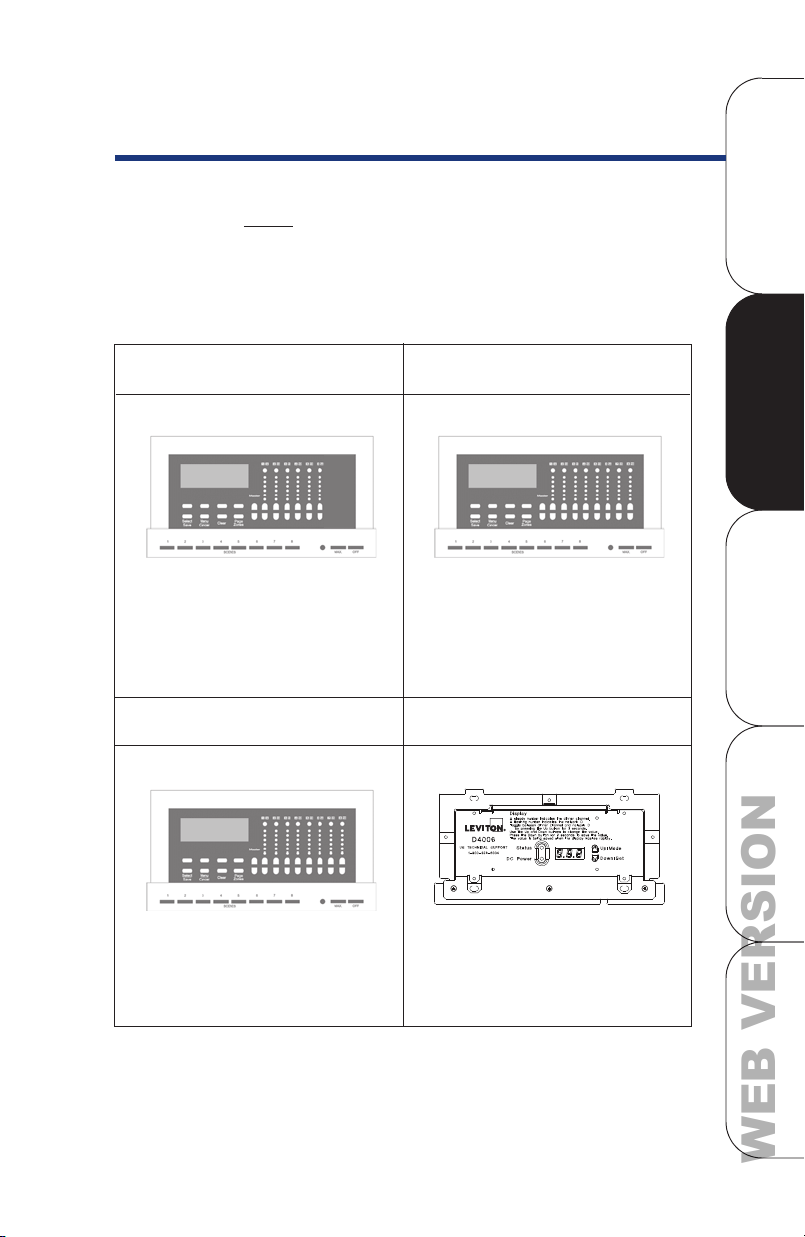

Table 1: Find your Product
4104 or 4106
Quick Start on page 11
Part numbers: D4104-***
D4106-***
Control Channels: 4
Local Dimmers: 4
Can control net device: NO
4206
Quick Start on page 11
Part numbers: D4206-***
Control Channels: 32
Local Dimmers: 6
Can control net device: Yes
4200
Quick Start on page 14
Part number: D4200-***
Control Channels: 32
Local Dimmers: 0
Can control net device:Yes
4006
Quick Start on page 13
Part numbers: D4206-***
Control Channels: 32
Local Dimmers: 6
Can control net device: n/a
Each model has a slightly different feature set so the
application of each step may vary slightly.
Page 10
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
Leviton Dimensions 4000 Series Architectural Lighting Controller
WEB VERSION

Devices with Channel Control & Dimmers
(D4104, D4106, D4206)
Setting up units with control and dimmers require a few basic steps
which when followed will ensure success of your lighting control
system:
Step 1: Confirm all connections have been completed and load
circuits are without fault.
Step 2: Confirm network is terminated correctly, reference
installation guide for additional information.
Step 3: Complete all “System Layout Charts” on page 68 to confirm
a clear understanding of all system and configuration
requirements.
Step 4: Review “Navigating the Menus” on page 49.
Step 5: Power up unit
Step 6: Perform “Power Up Initialization” on page 16 (or review
“Setting the Network ID” on page 20).
Step 7: For load types that are not incandescent, adjust dimmer
load types appropriate. See “Configuring Dimmers” on
page 28.
Step 8: If there is more than one master station on the network,
set the starting channel address for this group of dimmers.
Each controller should address it’s own unique range of
channels. See “To Assign Zones, consecutively, from a
Starting Channel Number:” on page 25.
Step 9: Repeat above steps 4-7 for all other devices on the
network. This is especially critical for other D4006 remote
dimmers which will be controlled by this Master.
Step 10: Push the MAX button
•CONFIRM that all loads of this device and any remote
dimmer go to full. If they DO, CONGRATULATIONS!
You have made it a long ways towards a successful
installation.
Step 11: Slave any remote/entrance stations to this device.
(See “Connecting Entrance Stations” on page 42.)
Page 11
WEB VERSION

Page 12
Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
Step 12: Configure the clock - Set the date & time. See
“Configure the Clock” on page 52.
Step 13: If scheduling events around sunrise or sunset,
setup the astronomical time clock on page 53.
Step 14: Record your scenes, see “Recording a Scene” on
page 53.
Step 15: Setup events which should occur on a regular
schedule, “Scheduled Events” on page 62.
Step 16: Celebrate! You’re all done.
•Depending upon the desired specific behavior
of this device, configuration may be complete
or additional modifications may be necessary.
Regardless, a full perusal of this manual is
required to understand all device configuration
options.
WEB VERSION

Devices with dimmers only (D4006)
Setting up units with only dimmers requires a few basic steps which
when followed will ensure success of your lighting control system:
Step 1: Confirm all connections have been completed and load
circuits are without fault.
Step 2: Confirm network is terminated correctly, reference
installation guide for additional information.
Step 3: Complete all “System Layout Charts” on page 68 to confirm
a clear understanding of all system and configuration
requirements.
Step 4: Set the network ID, see page 33.
Step 5: Set the starting channel number, see page 33.
Step 6: For any load types which are not incandescent, adjust
dimmer load types as appropriate. See “Configuration of
Dimmers at another panel” on page 31.
Step 7: Configure ID’s and channel patches at all other network
devices.
Step 8: From the controlling device, activate the lighting levels in
this dimmer. If controlling from a D4200 or D4206, simply
pushing the MAX button will do.
Step 9: Celebrate!!! You’re all done.
•Depending upon the desired specific behavior of this device,
configuration may be complete or additional modifications
may be necessary. Regardless, a full perusal of this manual is
required to understand all device configuration options.
Page 13
WEB VERSION

Page 14
Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Devices with Channel Control only (D4200)
Setting up units with control and dimmers require a few basic steps
which when followed will ensure success of your lighting control
system:
Step 1: Confirm all connections have been completed.
• Network connections are required
• Connection to adequate power supply is required
• Lock/Occ input is an optional connection
Step 2: Confirm network is terminated correctly, reference
installation guide for additional information.
Step 3: Complete all “System Layout Charts” on page 68
to confirm a clear understanding of all system and
configuration requirements.
Step 4: Review “Navigating the Menus” on page 49.
Step 5: Power up unit.
Step 6: Perform “Power Up Initialization” on page 16 or review
“Setting the Network ID” on page 20.
Step 7: Perform setup of other network devices, dimmers, etc.
Step 8: Confirm this device is patched to the correct channels.
Reference “To Assign Zones, consecutively, from a
Starting Channel Number:” on page 25.
Step 9: Push the MAX button.
•CONFIRM that all loads controlled by this device go to full.
If they DO, CONGRATULATIONS! You have made it a long
ways towards a successful installation.
Step 10: Slave any remote/entrance stations to this device on
page 42.
Step 11: Configure the clock - Set the date & time.
See “Configure the Clock” on page 52.
Step 12: If scheduling events around sunrise or sunset, setup the
astronomical time clock on page 53.
Step 13: Record your scenes, see “Recording a Scene” on
page 53.
Step 14: Setup events which should occur on a regular schedule,
“Scheduled Events” on page 62.
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
WEB VERSION

Step 15: Celebrate!!! You’re all done.
•Depending upon the desired specific behavior of this
device, configuration may be complete or additional
modifications may be necessary. Regardless, a full
perusal of this manual is required to understand all
device configuration options.
Page 15
WEB VERSION

Power Up Initialization
Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 16
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
Upon the initial power up (and anytime the network id is set to
(0) a special power up initialization menu is displayed which
allows you to configure the following:
•Network ID
•Device Name
These settings must be set prior to any further configuration or
use of this device.
Network ID
The network id is the address of this “node” on the network.
The ID for every device on the network must be unique.
Enter a unique ID number for this station in the space provided
this space.
When you’ve finished entering the network ID, press the
down arrow to advance to the next setting.
Device Name
Each device may have a unique name. The default name is a
derivation of the model number, however, it is recommended
that you give it a unique name which makes more sense to
you. Examples of good names are: “South Wing”, “Room
221”, “Main Office”, etc.
Enter a network name. Names can be entered using the
UP/ DOWN/LEFT/RIGHT arrows, or you can use the
Zone Information, Up/Down, and number keys to enter
alphanumeric characters.
EDIT NETWORK
ID=001 MASTER
EDIT NETWORK
NAME=D4206 1
WEB VERSION

What’s next?
This completes the initial power up configuration. However,
before your unit is completely ready to go, please return to Quick
Start Configuration (p.10), or, turn a few more pages (p.18) to
continue the setup of your device.
Page 17
WEB VERSION

Setup
Configuration Guide
Leviton Dimensions 4000 Series Architectural Lighting Controller
Page 18
OVERVIEWQUICK STARTSETUPOPERATIONCONFIGURATION
The setup section covers all requirements to ready this
device for use. Generally, the settings in this section are
only required the first time your device is put into service.
More routine configuration requirements are covered in the
operation and configuration sections of this manual.
To complete setup you must use both of the basic and
advanced menus. The functionality of the basic operation
menus can be found in the section “Operation” on page
44. The advanced menus required for setup are accessed
the same way as the operation mode menus by pressing
the “Menu” key. The procedure for enabling the advanced
mode menus can be found in the section “Accessing the
Configuration Menus” on page 19.
The Basic operation mode menus are used for the following tasks:
•Set Date/Time
•Set Daylight Savings time
•Set record/station locks and their codes
•View, Edit, Activate Schedule
•View, Edit, Activate Sequencer
•Edit Scene Labels
•Edit Excludes
The advanced setup mode menus add the following options:
•Zone Assignment
•Local/Remote dimmer configuration
•Network Settings
•Miscellaneous Settings
•Personalities
WEB VERSION

PLEASE WAIT
REBOOTING
ADVANCED
MENUS
Page 19
Accessing the Configuration Menus
All configuration is done through the menus of the Dimensions
4000 series controller. Menus are accessed by pressing the
“Menu” button and navigating with the Up/Down arrows and the
SELECT key.
Operation & Configuration Menus
There are two levels of configuration menus, Basic & Advanced.
Basic mode is always available. To enter advanced mode, follow
the procedure below:
Step 1: Push the MENU button until the display reads the
current day and time.
Step 2: Push and Hold the MENU button for approximately 10
seconds until the display reads:
Step 3: IMMEDIATELY release the menu button, then press
and hold ZONE 4 DOWN for several seconds until the
display reads as follows:
When the above 3 steps have been successfully completed, the
menu structure will be expanded to included both the operation
and configuration mode menus.
WEB VERSION
