Lexmark C520 Series User manual

Lexmark™C520,C522, C524, C530, C532, C534
5022-xxx
• Table of Contents
• Start Diagnostics
• Safety and Notices
•Trademarks
• Index
Lexmark and Lexmark with diamond design are
trademarks of Lexmark International, Inc., registered
in the United States and/or other countries.

General information 1-1
5022-xxx
1. General information
The Lexmark™ C52xand C53xcolor laser printers deliver superior text and brilliant graphics. The following
models are available.
Maintenance approach
The diagnostic information in this manual leads you to the correct field replaceable unit (FRU) or part. Use the
error code charts, symptom tables, and service checks to determine the symptom and repair the failure. You
may find that the removals in the Repair information chapter will help you identify parts. After you complete the
repair, perform tests as needed to verify the repair. Begin at “Start” on page 2-1.
Options and features
The following options or features are available. Some options are not available in every country. Contact your
point of purchase for options available in your country.
•Memory options of 128MB, 256MB, and 512MB SDRAM
•Flash memory options of 32MB and 64MB
•Hard disk—40GB with adapter (models C524, C524n, and C524dn and models C534n, C534dn, and
C534dtn)
•Media handling operations
–500-sheet optional tray assembly for models C522n, C524, C524n, and C524dn and 550-sheet
optional tray assembly for models C532n, C532dn, C534n, and C534dn.
–Duplex—not an option, available only on models C524dn, C524dtn, C530dn, C532dn, and
C534dn/dtn (factory installed).
•Integrated network options
–Token-Ring
–Ethernet
–External serial adapter
–PRESCRIBE card assembly
–Bar code card assembly
–Parallel interface card
–MarkNet™ Print Servers
–Lexmark PrintCryption™ card
–Lexmark Forms card (single-byte and Simplified Chinese) on models C534n, C534dn, and C534dtn
Model name Configuration Machine type
Lexmark C520n Network 5022-010
Lexmark C522n Network 5022-210
Lexmark C524 Non-network 5022-400
Lexmark C524n Network 5022-410
Lexmark C524dn Network 5022-430
Lexmark C530dn Duplex, network 5022-130
Lexmark C532n Network 5022-310
Lexmark C532dn Duplex, network 5022-330
Lexmark C534n Network 5022-510
Lexmark C534dn/dtn Duplex, network (550-sheet tray) 5022-530

1-2 Service Manual
5022-xxx
–Lexmark Bar Code Card is available on models C534n, C534dn, and C534dtn
–Lexmark ImageQuick™ Card is available for the models C534n, C534dn, and C534dtn
•DBCS font cards
–Simplified Chinese
–Traditional Chinese
–Japanese
–Korean
Specifications
Resolution
•1200 x 1200 dpi
•4800CQ
Data streams
•PostScript 3 emulation
•PCL 5c and 6 (XL) emulation
•PDF 1.5 emulation
•PPDS (if activated)
Memory configuration
Performance factors
Performance speed depends on:
•Interface to the host (USB, serial, parallel, network)
•Host system and application
•Page complexity and content of the page
•Printer options installed or selected
•Available memory in the printer
•Media size and type
•Resolution
Memory type
Models
C520n C522n C524 C524n C524dn C530dn C532n C532dn C534n C534dn/dtn
Standard DRAM (MB) 128 128 64 128 128 128 128 128 128 256
Optional memory (MB)
(100 pin DDR SDRAM
unbuffered DIMMs)
128, 256, and 512 MB available
Maximum (MB) 640 640 576 640 640 640 640 640 640 768
Optional flash memory 32 and 64 MB available

General information 1-3
5022-xxx
Power requirements
Average nominal power requirements for the base printer configuration (110 volt). Power levels are shown in
watts (W). Maximum current is given in Amperes (A).
Electrical specifications
Low voltage model
•110 to 127 V ac at 47 to 63 Hz nominal
•99 to 137 V ac, extreme
High voltage model
•220 to 240 V ac at 47 to 63 Hz nominal (not available in all countries)
•198 to 259 V ac, extreme
100 V model
•100 V ac at 47 to 63 Hz nominal
•90 to 110 V ac, extreme
Notes:
•Using a 220 to 110 power converter with the 110 V printer is not recommended.
•Using an inverter (12 V dc to 120 V ac for example) to power the printer is not recommended.
Printing states Lexmark C524, C524n, C524dn,
C524dtn
LexmarkC520n,
C522n
LexmarkC534n,
C534dn,
C534dtn
Lexmark
C530dn, C532n,
C532dn
Idle—average power
PowerSaveron<18W<16W<18W<17W
Power Saver off 105 W 105 W 120 W 120 W
Printing—average power
Basic printer 350 W 350 W 410 W 410 W
All options 375 W 350 W 410 W 410 W
Printing—maximum average current
100 V 4.5 A 4.5 A 2.5 A 2.5 A
110 V 4.0 A 4.0 A 5.0 A 5.0 A
220 V 2.0 A 2.0 A 5.5 A 5.5 A

1-4 Service Manual
5022-xxx
Environment
Acoustics
All measurements are made in accordance with ISO 7779 and conform with ISO 9296.
Environment Specifications
Operating
Air Temperature—Product Operating 15.6 to 32.2° C (60 to 90.0° F)
Air Temperature—Product Power Off 10.0 to 40.0° C (50 to 104.0° F)
Air Relative Humidity Relative Humidity 8 to 80%
Wet Bulb Temperature—Product Operating 22.8° C (73.0° F) Maximum
Web Bulb Temperature—Product Power Off 26.7° C (80.1° F) Maximum
Altitude 0 to 3048 meters (10,000 feet)
Atmospheric Pressure 74.6 kPa
Ambient Operating Environment†15.6 to 32.2° C (60 to 90°F) and 8% to 80% RH
Shipping / Storage
Cartridges -40° C to +40° C (104° Fahrenheit)
Printer with Cartridges -40° C to +40°C (104° Fahrenheit)
Printer without Cartridges -40° C to +40°C (104° Fahrenheit)
Air Relative Humidity Relative Humidity 8 to 80%
Altitude 10,300 meters (34,000 feet)
Web Bulb Temperature—Product Power Off 26.7° C (80.1° F) Maximum
†In some cases performance specifications (such as paper OCF, EP cartridge usage) are specified to be
measured at an ambient condition.
Printer Operating mode 1-Meter Average Bystander Sound
Pressure @4800 CQ
Declared Sound
Power Level @4800
CQ
C520n, C522n, C524n Printing 51 dBA
Idle 32 dBA
C524dn, C524dtn
Printing 51 dBA
Duplex printing 52 dBA
Idle 32 dBA
C532n, C534n
Mono printing 53 dBA 6.7B
Color printing 51 dBA 6.6B
Idle 31 dBA 4.6B
C530dn, C534dn, C534dtn
Mono printing 53 dBA 6.7B
Color printing 51 dBA 6.6B
Duplex printing 53 dBA 6.7B
Idle 31 dBA 4.6B

General information 1-5
5022-xxx
Dimensions
Description Models Height Width Depth Weight
Basic printer with no
extensions C520, C522n, C524, C524n, C524dn 19 in. (484 mm) 17.3 in. (440 mm) 16.1 in. (408 mm) 57.5 lb (26.1 kg)
C532n, C534n 19 in.
(484 mm) 17.3 in. (440 mm) 16.1 in. (408 mm) 57.0 lb (25.9 kg)
C530dn, C532dn, C534dn 19 in.
(484 mm) 17.3 in. (440 mm) 16.1 in. (408 mm) 58.8 lb (26.7 kg)
Printer with exit tray
extended C520, C522n, C524, C524n 19 in. (484 mm) 17.3 in. (440 mm) 20.2 in. (512 mm) 57.5 lb (26.1 kg)
C532n, C534n 19 in.
(484 mm) 17.3 in. (440 mm) 20.2 in. (512 mm) 57.0 lb (25.9 kg)
C530dn, C524dn, C534dn 19 in.
(484 mm) 17.3 in. (440 mm) 20.2 in. (512 mm) 58.8 lb (26.7 kg)
Printer, duplex unit,
500-sheet assembly C524dtn 24 in. (610mm) 17.3 in. (440 mm) 22 in. (558 mm) 64.8 lb (29.4 kg)
Printer, duplex unit,
550-sheet assembly C534dtn 24 in. (610mm) 17.3 in. (440 mm) 22 in. (558 mm) 64.0 lb (29.0 kg)
Optional 500-sheet
assembly only C52x models 5 in. (127 mm) 16.5 in. (420 mm) 20.4 in. (518 mm) 7.25 lb (3.29 kg)
Optional 550-sheet
assembly only C53x models 5 in. 16.5 in. (420 mm) 20.4 in. 7.0 lb (3.2 kg)
MPF configuration
(printer with
multipurpose feeder
extended and exit tray
extended)
C52x, C53x models 19 in.
(484 mm) 17.3 in. (440 mm) 26.6 in. (676 mm) 57.5 lb
(26.1 kg)
Primary tray
configuration (printer
with paper tray
adjuster extended and
output bin installed)
A4/letter size media 19 in.
(484 mm) 17.3 in. (440 mm) 20.2 in. (512 mm) —
Legal size media 19 in.
(484 mm) 17.3 in. (440 mm) 21.3 in. (540 mm) —
Note: A buffer of 12 in. (304.8 mm) is needed on the back of the printer.

1-6 Service Manual
5022-xxx
Media specifications
Paper and specialty media guidelines
Media guidelines
Media characteristics
The following media characteristics affect print quality and reliability. Consider these characteristics when
evaluating new media stock.
Weight
The printer can automatically feed media weights from 60 to 176 g/m2(16 to 47 lb bond) grain long. Media
lighter than 60 g/m2(16 lb) might not be stiff enough to feed properly, causing jams. For best performance, use
90 g/m2(24 lb bond) grain long media. For media smaller than 182 x 257 mm (7.2 x 10.1 in.), we recommend 90
g/m2or heavier media.
Curl
Curl is the tendency for media to curl at its edges. Excessive curl can cause media feeding problems. Curl can
occur after the media passes through the printer, where it is exposed to high temperatures. Storing media
unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to media curling prior to
printing and can cause feeding problems.
Smoothness
Media smoothness directly affects print quality. If media is too rough, toner cannot fuse to it properly. If media is
too smooth, it cancause media feeding or print quality issues. Always use media between 100 and 300 Sheffield
points; however, smoothness between 150 and 200 Sheffield points produces the best print quality.
Moisture content
The amount of moisture in media affects both print quality and the ability of the printer to feed the media
correctly. Leave media in its originalwrapper untilit is time to use it.This limits the exposure of media tomoisture
changes that can degrade its performance.
Condition media before printing by storing it in its original wrapper in the same environment as the printer for 24
to 48 hours before printing. Extend the time several days if the storage or transportation environment is very
different from the printer environment. Thick media may also require a longer conditioning period.
Grain direction
Grain refers to the alignment of the media fibers in a sheet of media. Grain is either grain long, running the
length of the media, or grain short, running the width of the media. For 60 to 90 g/m2(16 to 24 lb bond) media,
use grain long fibers.
Fiber content
Most high-quality xerographic media is made from 100% chemically treated pulped wood. This content provides
the media with a high degree of stability resulting in fewer media feeding problems and better print quality. Media
containing fibers such as cotton possesses characteristics that can negatively affect media handling.

General information 1-7
5022-xxx
Unacceptable media
The following media types are not recommended for use with the printer:
•Chemically treated media used to make copies without carbon paper, also known as carbonless papers,
carbonless copy paper (CCP), or no carbon required (NCR) paper
•Preprinted media with chemicals that may contaminate the printer
•Preprinted media that can be affected by the temperature in the printer fuser
•Preprinted media that requires a registration (the precise print location on the page) greater than ±2.3 mm
(±0.09 in.), such as optical character recognition (OCR) forms
In some cases, registration can be adjusted with a program to successfully print on these forms.
•Coated media (erasable bond), synthetic media, thermal media
•Rough-edged, rough, or heavily textured surface media, or curled media
•Recycled media containing more than 25% post-consumer waste that does not meet DIN19 309
•Media weighing less than 60 g/m2(16 lb)
•Multiple-part forms or documents
Selecting media
Using appropriate media prevents jams and helps ensure trouble-free printing.
To help avoid jams and poor print quality:
•Always use new, undamaged media.
•Before loading media, know the recommended print side of the media. Thisinformation is usually indicated
on the media package.
•Do not use media that has been cut or trimmed by hand.
•Do not mix media sizes, types, or weights in the same source; mixing results in jams.
•Do not use coated media unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
Use these guidelines when selecting preprinted forms and letterhead:
•Use grain long papers for best results for 60 to 90 g/m2weights.
•Use only forms and letterhead printed using an offset lithographic or engraved printing process.
•Avoid papers with rough or heavily textured surfaces.
Use papers printed with heat-resistant inks designed for use in xerographic copiers. The ink must be able to
withstand temperatures up to 180°C (356°F) without melting or releasing hazardous emissions. Use inks that
are not affected by the resin in toner. Inks that are oxidation-set or oil-based generally meet these requirements;
latex inks might not. When in doubt, contact the paper supplier.
Preprinted papers such as letterhead must be able to withstand temperatures up to 180°C (356°F) without
melting or releasing hazardous emissions.

1-8 Service Manual
5022-xxx
Using media
Using letterhead
Check with the manufacturer or vendor to determine whether the chosen preprinted letterhead is acceptable for
laser printers.
Page orientation is important when printing on letterhead. Use the following table for help when loading
letterhead.
Using transparencies
Print samples on the transparencies being considered for use before buying large quantities.
When printing on transparencies:
•From MarkVision™ Professional, the printer software, or the control panel, set the Paper Type to
Transparency.
•Feed transparencies from the standard tray (Tray 1) or the multipurpose feeder.
•Use transparencies designed specifically for laser printers. Check with the manufacturer or vendor to
ensure transparencies are able to withstand temperatures up to 180°C (356°F) without melting,
discoloring, offsetting, or releasing hazardous emissions.
•Use transparencies that are 0.12–0.14 mm (4.8–5.4 mil) in thickness or 161–179 g/m2in weight.
•Print quality and durability depend on the transparencies used.
•To prevent print quality problems, avoid getting fingerprints on the transparencies.
•Before loading transparencies, fan the stack to prevent sheets from sticking together.
•We recommend Lexmark part number 12A8240 for letter-size and Lexmark part number 12A8241 for
A4-size transparencies.
Using envelopes
•Print samples on the envelopes being considered for use before buying large quantities.
When printing on envelopes:
•From the control panel, set the Paper Source based on the source in use. From the control panel, the
printer software, or MarkVision Professional, set the Paper Type to Envelope, and select the envelope size.
•Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure
the envelopes can withstand temperatures up to 180°C (356°F) without sealing, wrinkling, curling
excessively, or releasing hazardous emissions.
•For the best performance, use envelopes made from 90 g/m2(24 lb bond) paper. Use up to 105 g/m2(28 lb
bond) weight for envelopes as long as the cotton content is 25% or less. All-cotton envelopes must not
exceed 90 g/m2(24 lb bond) weight.
•Use only new envelopes.
Process or paper source Print side Top of page
Tray 1 Letterhead faceup Letterhead goes toward the front of the tray
Tray 2 Letterhead faceup Letterhead goes toward the front of the tray
Duplex (two-sided) printing from
trays 1 and 2 Letterhead facedown Letterhead goes toward the rear of the tray
Multipurpose feeder Letterhead facedown Letterhead top edge enters first
Manual feeder Letterhead facedown Letterhead top edge enters first
Duplex (two-sided) printing from
the multipurpose feeder Letterhead faceup Letterhead top edge enters last

General information 1-9
5022-xxx
•To optimize performance and minimize jams, do not use envelopes that:
–Have excessive curl or twist
–Are stuck together or damaged in any way
–Have windows, holes, perforations, cutouts, or embossing
–Have metal clasps, string ties, or folding bars
–Have an interlocking design
–Have postage stamps attached
–Have any exposed adhesive when the flap is in the sealed or closed position
–Have bent corners
–Have rough, cockle, or laid finishes
•Adjust the width guide to fit the width of the envelopes.
Note: A combination of high humidity (over 60%) and the high printing temperature may wrinkle or seal
envelopes.
Using labels
Print samples on the labels being considered for use before buying large quantities. For detailed information on
label printing, characteristics, and design, see the Card Stock & Label Guide available on the Lexmark Web site
at www.lexmark.com/publications.
Note: Vinyl labels are not supported on this product. Use only paper labels.
When printing on labels:
•From the printer software, MarkVision Professional, or the control panel, set the Paper Type to Labels.
•Use only letter-, A4-, and legal-size label sheets.
•Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that
label adhesives, face sheet (printable stock), and topcoats can withstand temperatures up to 180°C
(356°F) and pressure up to 30 psi without delaminating, oozing around the edges, or releasing hazardous
fumes. Do not use vinyl labels.
•Do not use labels with slick backing material.
•Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial
sheets also contaminate the printer and the cartridge with adhesive, and could void the printer and
cartridge warranties.
•Do not print within 1 mm (0.04 in) of the edge of the label, of the perforations, or between die-cuts of the
label.
•Be sure adhesive backing does not reach to the sheet edge. Zone coating of the adhesive at least 1 mm
(0.04 in) away from edges is recommended. Adhesive material contaminates the printer and could void the
warranty.
•If zone coating of the adhesive is not possible, remove a 3 mm (0.125 in.) strip on the leading and driver
edge, and use a non-oozing adhesive.
•Portrait orientation works best, especially when printing bar codes.
•Do not use labels with exposed adhesive.
Using card stock
Card stock is heavy, single-ply print media. Many of its variable characteristics, such as moisture content,
thickness, and texture, can significantly impact print quality.
Print samples on the card stock being considered for use before buying large quantities.
When printing on card stock:
•From MarkVision Professional, the printer software, or the control panel:
–Set the Paper Type to Card Stock.
–Set the Paper Weight to Card Stock Weight.
–Set the Card Stock Weight to Normal or Heavy.

1-10 Service Manual
5022-xxx
•Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause
jams or other paper handling problems.
•Check with the manufacturer or vendor to ensure the card stock can withstand temperatures up to 180°C
(356°F) without releasing hazardous emissions.
•Do not use preprinted card stock manufactured with chemicals that may contaminate the printer.
Preprinting introduces semi-liquid and volatile components into the printer.
•Use grain long card stock when possible.
Storing media
Use these media storage guidelines to help avoid jams and uneven print quality:
•For best results, store media where the temperature is 21°C (70°F) and the relative humidity is 40%.
•Store media in cartons when possible, on a pallet or shelf, rather than on the floor.
•Store individual packages of media on a flat surface.
•Do not store anything on top of individual media packages.
Supported sizes
The following tables provide information on standard and optional sources for both input and output trays and
bins.
Media Sizes
250 Tray MPF Duplex 500 Tray Manual Feed Slot
A4 210 x 297 mm ✓✓✓ ✓ ✓
A5 148 x 210 mm ✓✓✓ ✓ ✓
JIS B5 182 x 257 mm ✓✓✓ ✓ ✓
Statement15.5 x 8.5 in. ✓✓ ✓
Letter 8.5 x 11 in. ✓✓✓ ✓ ✓
Folio18.5 x 13 in. ✓✓✓ ✓ ✓
Legal 8.5 x 14 in. ✓✓✓ ✓ ✓
Executive 7.25 x 10.5 in. ✓✓✓ ✓ ✓
Universal1(width)
123.8 to 215.9 x 355.6 mm; 3.875 x 4.875 to 8.5 x 14 in. ✓
152.4 to 215.9 x 355.6 mm; 3.875 x 6 to 8.5 x 14 in. ✓✓
139.7 x 210 to 215.9 x 355.6 mm; 5.5 x 8.27 to 8.5 x 14 in. ✓✓ ✓
148 x 210 to 215.9 x 355.6 mm; 5.83 x 8.27 to 8.5 x 14 in. ✓✓✓ ✓ ✓
7 3/4 Envelope 3 7/8 x 7 1/2 in. ✓✓
9 Envelope 3 7/8 x 8 7/8in. ✓✓
10 Envelope 4 1/8 x 9 1/2 in. ✓✓
DL Envelope 110 x 220 mm ✓✓
C5 Envelope 162 x 229 mm ✓✓

General information 1-11
5022-xxx
B5 Envelope 176 x 250 mm ✓✓
Other Envelope
60.5 to 215.9 mm ✓✓
97.4 to 215.9 mm ✓
1Lower feed reliability might be encountered when using non-standard media sizes.
Media weight
Size Type Weight
Primary tray and 500-sheet optional tray
Letter, Legal, A4 Xerographic
and Bonds Long Grain 16 to 47 lb (60 to 177 g/m2)
Short Grain 24 to 58 lb (90 to 218 g/m2)
Recycled Long Grain 20 to 47lb (75 to 177 g/m2)
Short Grain 28 to 58 lb (105 to 218g/m2)
Card Stock
(long and short) Cover 50 lb/65 lb (135 g/m2/ 176 g/m2)
Index 67 lb/90 lb
(120 g/m2/ 163 g/m2)
Tag 74 lb/100 lb
(120 g/m2/ 163 g/m2)
Transparency 0.12 to 0.14
mm
4.8 to 5.4 mil
161 to 179 g/m2
A5, B5, JIS-B5, Exec.,
Statement, Folio Xerographic and Bonds Long Grain 20 to 47 lb (75 to 177 g/m2)
Short Grain 24 to 58 lb (90 to 218 g/m2)
Multipurpose feeder and manual feed slot
Letter, Legal, A4 Xerographic
and Bonds Long Grain 20 to 47 lb (75 to 177 g/m2)
Short Grain 24 to 58 lb (90 to 218 g/m2)
Recycled Long Grain 20 to 47 lb (75 to 177 g/m2)
Short Grain 28 to 58 lb (105 to 218 g/m2)
Card Stock
(long/short) Cover 50 lb/ 65 lb (135 g/m2/ 176 g/m2)
Index 67 lb/ 90 lb
(120 g/m2/ 163 g/m2)
Tag 74 lb/ 100 lb
(120 g/m2/163 g/m2)
Labels (max) Paper 35 lb (131 g/m2)
Vinyl Not Supported
Letter, Legal, A4
(continued) Transparency Thickness: 0.12 to 0.13 mm 161 to 179 g/m2
Media Sizes (continued)
250 Tray MPF Duplex 500 Tray Manual Feed Slot

1-12 Service Manual
5022-xxx
Input and output capacities
The following table outlines the input and output source capacities by media type.
Print area
The printable area is limited to within 4.2 mm (0.167 in.) of all edges of the media. Any information placed
outside this specified printable area does not print.
A5, B5, JIS-B5, Exec.,
Statement, Folio Xerographic and Bonds Long Grain 20 to 47 lb (75 to 177 g/m2)
Short Grain 24 to 58 lb (90 to 218 g/m2)
Envelope Monarch, 7 ¾, #9, #10, DL, B5,
C5, C6-C5, C6, B6 16 to 28 lb (60 to 105 g/m2)
Duplex unit
A5, B5, Executive,
Statement, Folio, Letter,
A4 and Legal
Xerographic
and Bonds Long Grain 20 to 32 lb (75 to 120 g/m2)
Short Grain 24 to 32 lb (90 to 120 g/m2)
Recycled Long Grain 20 to 32 lb (75 to 120 g/m2)
Short Grain 28 to 32 lb (105 to 120 g/m2)
Source Media Maximum
height Approximate reference capacity
Input
Standard 250-sheet tray2Plain paper 154 mm 250 sheets (75 g/m2)
Optional 500-sheet tray (C52x) or
Optional 550-sheet tray (C53x)2Plain paper 157.6 mm 500 sheets (80 g/m2)
550 sheets (75 g/m2)
Multipurpose feeder2Plain paper 10 mm 100 sheets (75 g/m2)
Envelopes 10 envelopes (75 g/m2)
Other Various quantities
Manual feed slot Any media Single sheet 1 sheet
Output
Standard 250-sheet output bin 1, 2 Plain Paper 35 mm 250 sheets (75 g/m2)
Other Various quantities
1 20 lb xerographic paper at ambient environment
2Capacity may vary and is subject to media specifications and printer operating environment.
Note: Paper input is limited to below the input source indicator on the tray.
Media weight
Size Type Weight

General information 1-13
5022-xxx

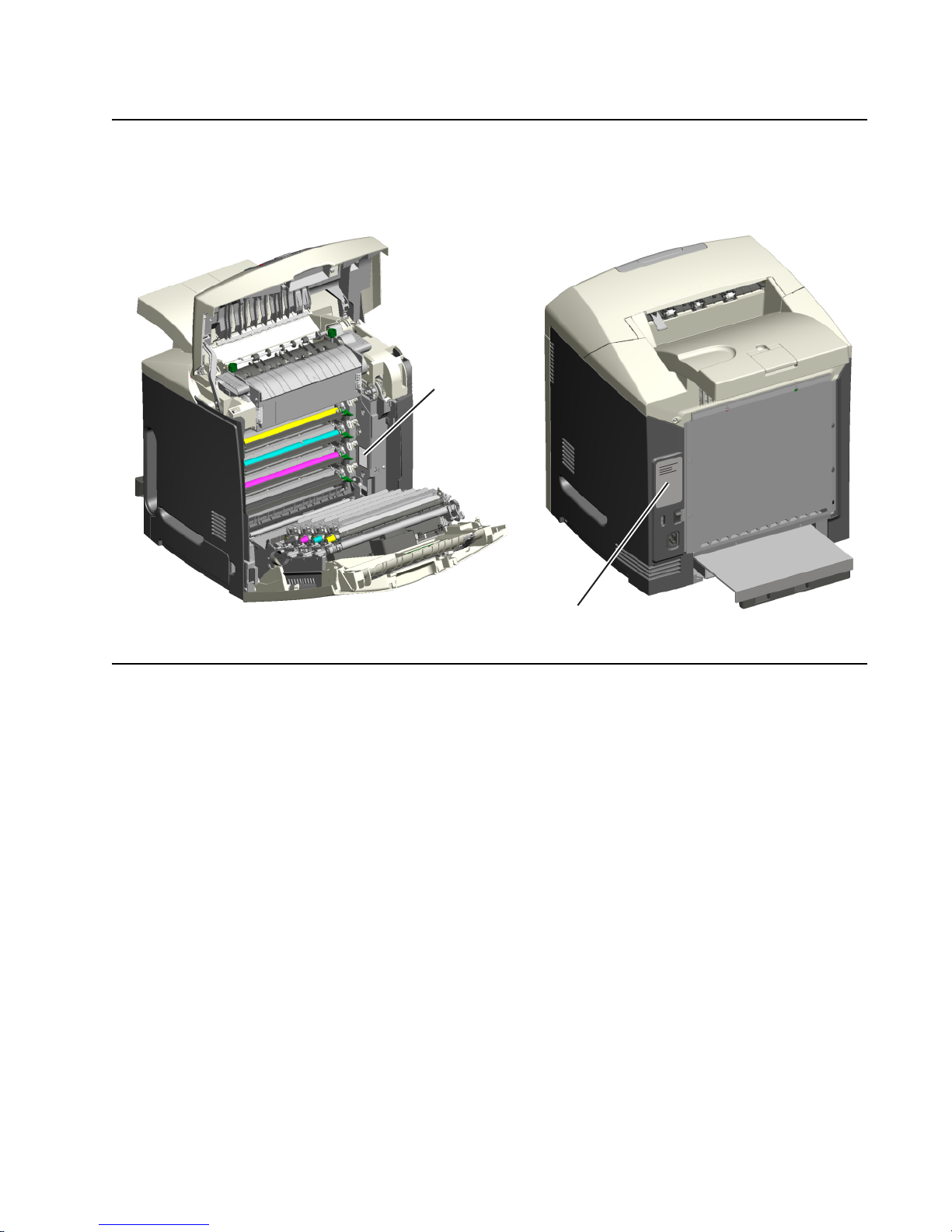

Serial number and machine type
The serial number is located on the label on the rear of the right cover and on the service tag located on the
inside right frame of the printer. The service tag also contains the configuration IDs, machine type, and model
information.
Tools required for service
Flat-blade screwdriver
#1 Phillips screwdriver, magnetic
#2 Phillips screwdriver, magnetic
#2 Phillips screwdriver, magnetic short-blade
Needlenose pliers
Diagonal side cutters
Spring hook
Feeler gauges
Analog or digital multimeter
Parallel wrap plug 1319128
Twinax/serial debug cable 1381963
Coax/serial debug cable 1381964
Config IDs
Machine type
Serial number
Serial number

1-14 Service Manual
5022-xxx
Acronyms
CCyan
CRU Customer Replaceable Unit
DIMM Dual Inline Memory Module
DRAM Dynamic Random Access Memory
EP ElectroPhotographic (process)
EPROM Erasable Programmable Read-Only Memory
ESD Electrostatic Discharge
FRU Field Replaceable Unit
GB Gigabyte
HVPS High Voltage Power Supply
KBlack
LASER Light Amplification by Stimulated Emission of Radiation
LCD Liquid Crystal Display
LED Light-Emitting Diode
LVPS Low Voltage Power Supply
M Magenta
MPF Multipurpose Feeder
MS Microswitch
NVRAM Nonvolatile Random Access Memory
OPT Optical Sensor
PC Photoconductor
pel Picture element
POR Power-On Reset
POST Power-On Self Test
PWM Pulse Width Modulation
RIP Raster Imaging Processor
SDRAM Synchronous Dual Random Access Memory
SIMM Single Inline Memory Module
SRAM Static Random Access Memory
TAR Toner Adder Roller
V ac Volts alternating current
V dc Volts direct current
YYellow

Diagnostic information 2-1
5022-xxx
2. Diagnostic information
Start
Use the service error code, user status message, user error message, symptom table, service checks, and
diagnostic aids in this chapter to determine the corrective action necessary to repair a malfunctioning printer.
They will lead you to solutions or service checks, including use of various tests.
Symptom tables
If your printer completes the “Power-on self test (POST) sequence” on page 2-5 without an error, and you
have a symptom, go to “Symptom tables” on page 2-6. Locate your symptom, and take the appropriate action.
Service errors (1xx.xx/9xx.xx)
If a service error code appears while you are working on the printer, go to “Service error codes and paper jam
messages” on page 2-7, and take the indicated action for that error.
Service error codes are indicated by a three-digit error code followed by a period and additional numbers in the
format XXX.YY. In most cases, five digits are shown.
Paper jam messages (2xx.xx)
User attendance messages that indicate a paper jam these have been included with the service error codes
since repeated instances may indicate an underlying service issue. Go to “2xx paper jam messages” on
page 2-8.
User status and attendance messages
•User status messages provide the user with information on the current status of the printer.
•User attendance messages are indicated by a two-digit code that provides the user with information that
explains a problem with a print cartridge, option, port, and so on. If a user error message displays, see
“User status and attendance messages” on page 2-19 or “2xx paper jam messages” on page 2-8.
Additional information
•“Operator panel and menus” on page 2-2
•“Power-on self test (POST) sequence” on page 2-5
•“Theory of operation” on page 3-30
CAUTION
Remove the power cord from the printer or wall outlet before you connect or disconnect any
cable or electronic card or assembly for personal safety and to prevent damage to the printer.
Use the handholds on the side of the printer. Make sure your fingers are not under the printer
when you lift or set the printer down.

2-2 Service Manual
5022-xxx
Operator panel and menus
Operator panel
The operator panel consists of these items:
Buttons and light description
Button or light Function
1 Display The display shows messages and pictures that communicate the
status of the printer.
2Note: It has a check
mark ()icon.
The button functions as a select button. Press this button to:
• Open a menu and display the firstitem in themenu (called a menu
item).
• Open a menu item and display the default setting.
• Save the displayed menuitem asthe new user default setting. The
printer issues a Saved or Submitted Selection message and
returns to the menu item.
Note: When a new setting is saved as the user default setting, it
remains in effect until new settings are saved or until factory defaults
are restored. Settings chosen from the software application can also
change or override the user default settings selected from the
operator panel.
3 Navigation arrow buttons , —Press these buttons to scroll up or down through menus,
menu items, or settings, called menu item values, or to scroll between
screens and menu values. Each press moves one item in the list or a
different setting for a menu item.
, —Press these buttons to scroll items that wrap off of the
screen. For menu items with numeric values, such as Copies, press
and hold this button to scroll through the values. Release the button
when the needed number appears.

Diagnostic information 2-3
5022-xxx
4 Indicator light The two-toned light emitting diode called the indicator light on the
operator panel gives information about the status of the printer using
the colors red and green.
5 Stop Press to stop or suspend all job activity. The functions as a
stop button.
If printing, pressing causes the Stop screen to appear on the
display.
6 Menu Press to open the administration menus. These menus are only
available when the printer is in the Ready state.
7 Back Press to return to the previous screen.
Note: This button is only active if appears on the top left of the
screen.
8 USB direct port Model C534 only: Insert a USB flash drive to send data to the printer.
9 Numeric keypad Model C534 only: Consists of the numbers 0–9, a backspace button,
and a pound (#) button.
Button or light Function
Indicator light
status Indicates
Off Printer power is off.
Blinking green Printer is warming up, processing data, or
printing a job.
Solid green Printer is on, but idle.
Solid red Operator intervention is required.

2-4 Service Manual
5022-xxx
Menus
Note: Some menu items may not be available based on the printer model or the options installed.
Supplies Menu Paper Menu Reports Settings
Replace Supply Default Source Menu Settings Page Setup Menu
Cyan Cartridge Paper Size/Type Device Statistics Finishing Menu
Magenta Cartridge Configure MP Network Setup Page Quality Menu
Yellow Cartridge Substitute Size Network <x> Setup Page Utilities Menu
Black Cartridge Paper Texture Wireless <x> Setup Page PDF Menu
Cyan PC Unit Paper Weight Profiles List PostScript Menu
Magenta PC Unit Paper Loading NetWare Setup Page PCL Emul Menu
Yellow PC Unit Custom Types Print Fonts HTML Menu
Black PC Unit Universal Setup Print Demo Image Menu
Waste Toner Box
Fuser
Transfer Belt
Security Network/Ports Help
Max Invalid PIN TCP/IP Color Quality
Job Expiration IPv6 Print Quality
Wireless Printing Guide
Standard Network Supplies Guide
Network <x> Media Guide
Standard USB Print Defects
USB <x> Menu Map
NetWare Information Guide
AppleTalk Connection Guide
LexLink Moving Guide
USB Direct

Diagnostic information 2-5
5022-xxx
Power-on self test (POST) sequence
When you turn the printer on, it performs a Power-On Self Test. Check for correct POST functioning of the base
printer by observing the following:
1. The LED turns on.
2. The main fan turns on.
3. The operator panel turns on.
4. A partial row of pixels appears.
5. The operator panel display clears.
6. Another row of pixels appears.
7. The operator panel display clears again.
8. The operator panel displays system information. For example:
9. The fuser lamp turns on. The fuser takes longer to warm up from a cold start than a warm start.
10. The operator panel LED starts blinking.
11. A clock face appears on the display.
The following errors or messages may appear:
•Close Door or Insert Cartridge display if the upper front cover is open or the print cartridge is
missing.
•Any cartridge errors, such as Defective Cartridge or Missing Cartridge.
12. Ready appears on the display.
13. The main drive motor turns on.
14. The EP drive assembly drives the developer shaft located in the toner cartridge.
15. The exit rollers turn.
16. The printer calibrates.
*256MB 500Mhz
