LF allen+roth Roveland 2026VA-36-200 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
ALLEN + ROTH and logo design are trademarks or registered
trademarks of LF, LLC. All rights reserved.
welcoming • sophisticated • inspiring
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
VR20367
ITEM #0719079
Español p. 9
VANITY WITH TOP
MODEL #2026VA-36-200

2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................3
Safety Information............................................................................................................................3
Preparation......................................................................................................................................4
Assembly or Installation Instructions...............................................................................................4
Care and Maintenance....................................................................................................................7
Warranty..........................................................................................................................................7
Replacement Parts List....................................................................................................................8

AA
CAUTION

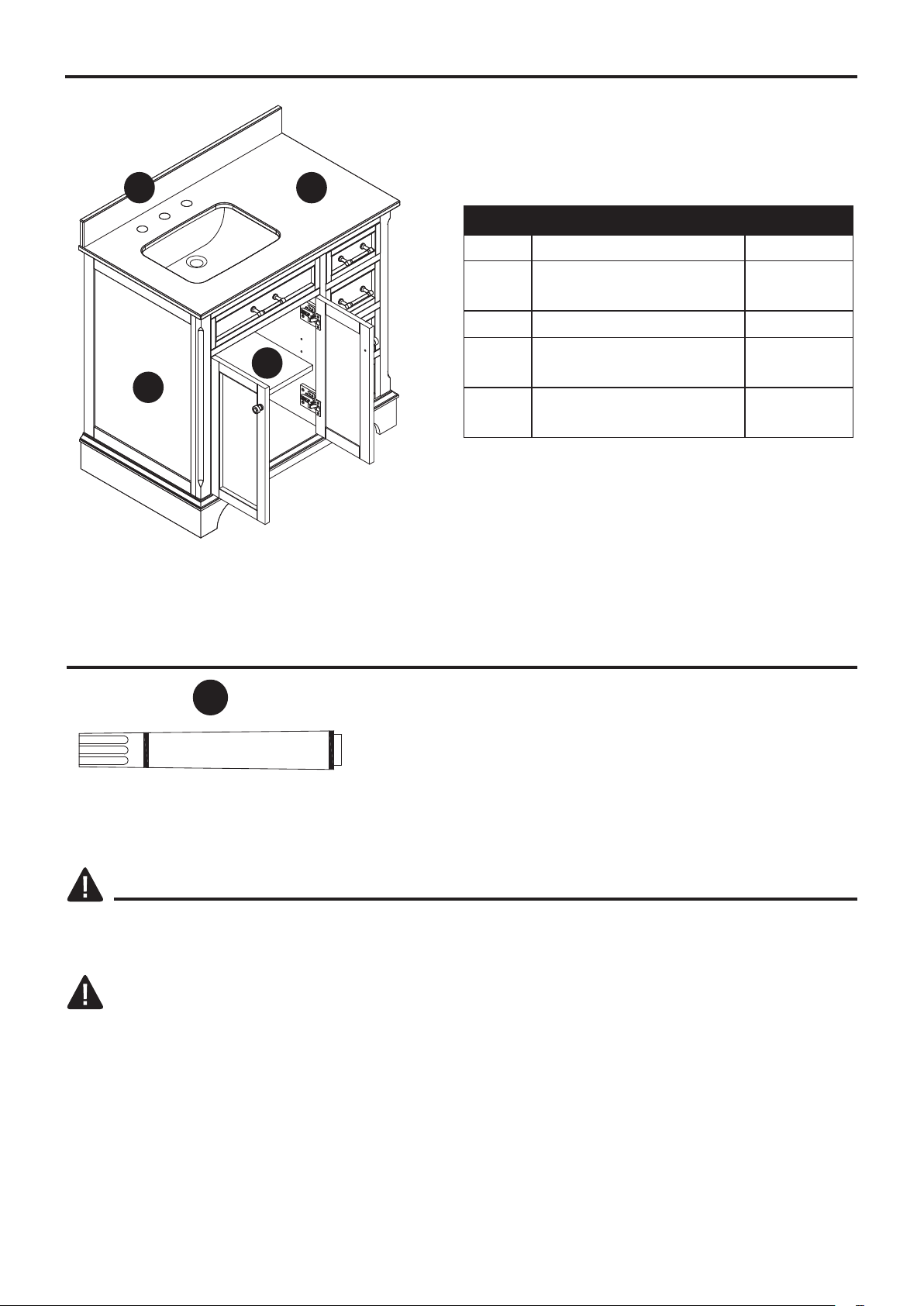

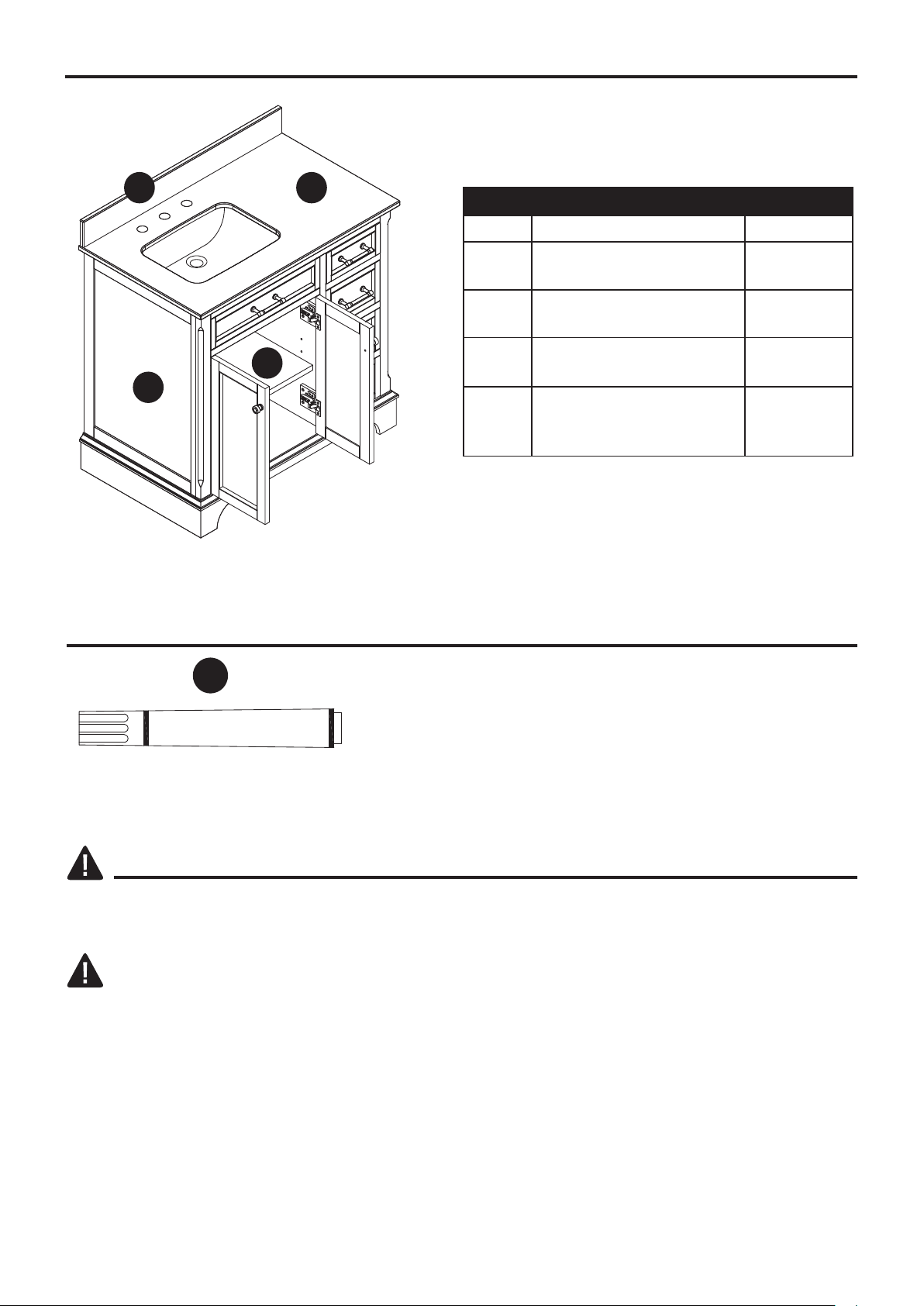

PACKAGE CONTENTS

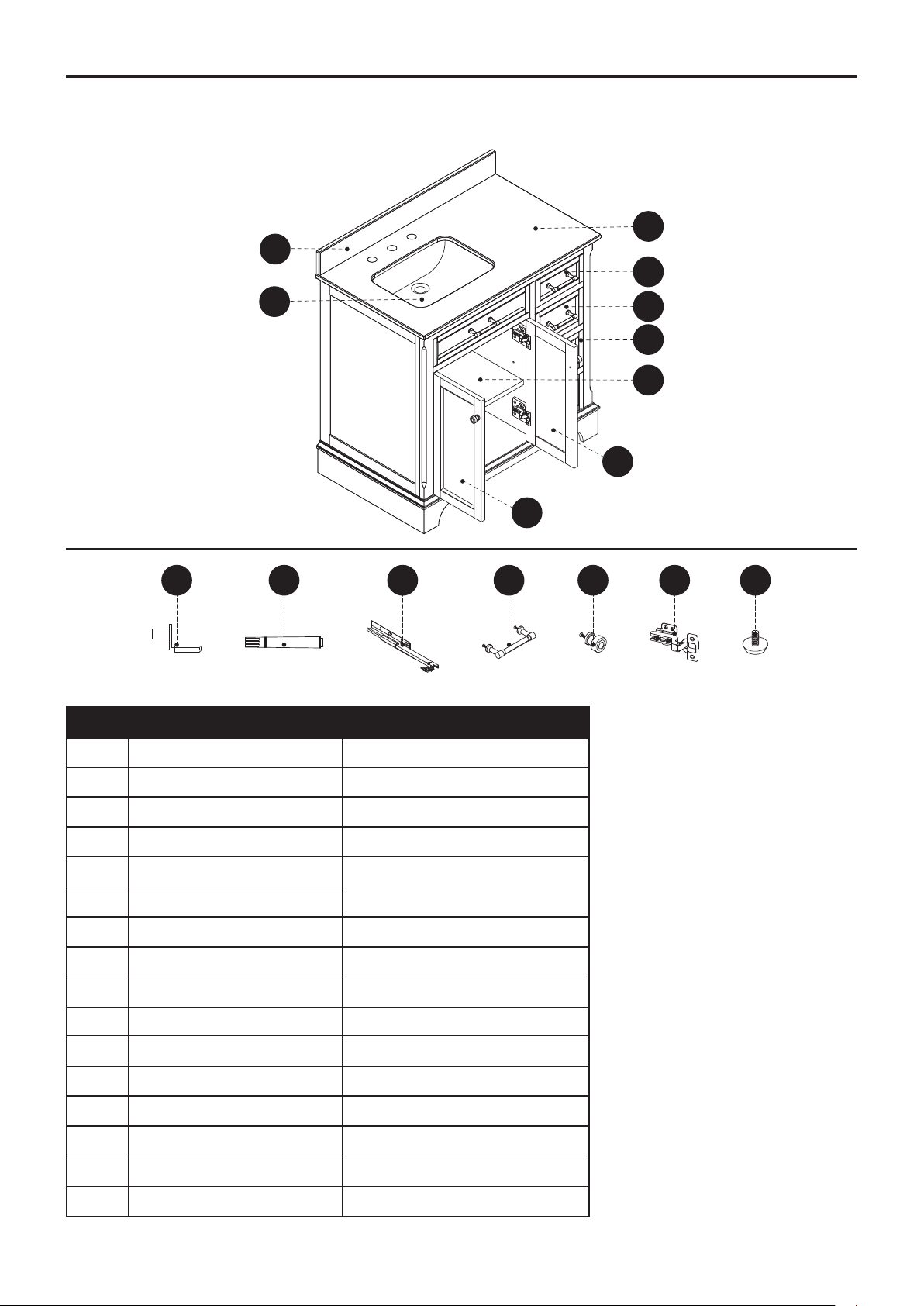

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
SAFETY INFORMATION
WARNING
• There are several assembly steps, including unpacking, that require two adults.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• DO NOT try to pry off top from vanity, as damage to top or vanity may occur.
• Follow these instructions closely, take your time, and use care while assembling this vanity.
• Weight capacity for shelf is 10 lb.
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
Touch-up Pen
Qty. 1
3
PART DESCRIPTION QUANTITY
A Vanity 1
B 1
C Backsplash 1
D 1
E 4
Top (preassembled to
Vanity (A))
Shelf (preassembled to
Vanity (A))
Shelf Pin (preassembled
to Vanity (A))
A
BC
D

INSTALLATION INSTRUCTIONS
PREPARATION
Estimated Installation Time: 20-30 minutes (24 hours for silicone caulk to dry).
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors,
silicone caulk, power drill with drill bit
Helpful Tools (not included): Measuring tape, level
4

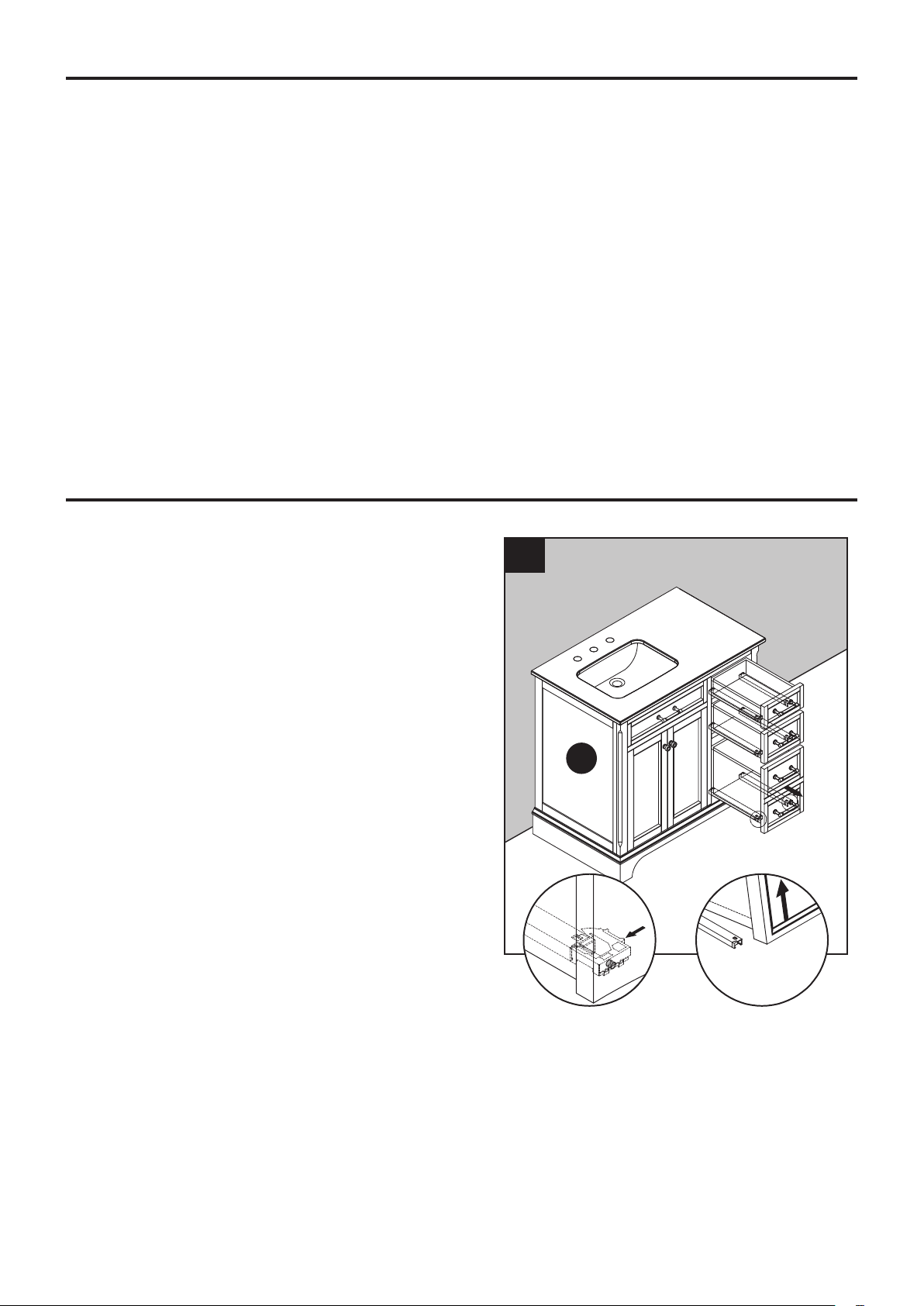

1. To remove drawers preassembled in vanity (A),
fully extend drawers. Locate plastic levers on
metal glide tracks at left and right sides of
drawer box.
To disengage drawer box from glides, push on
plastic levers. Then, gently lift drawer up to
remove it from vanity (A).
A
1
1
2

INSTALLATION INSTRUCTIONS
5
2
12
A
B
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.

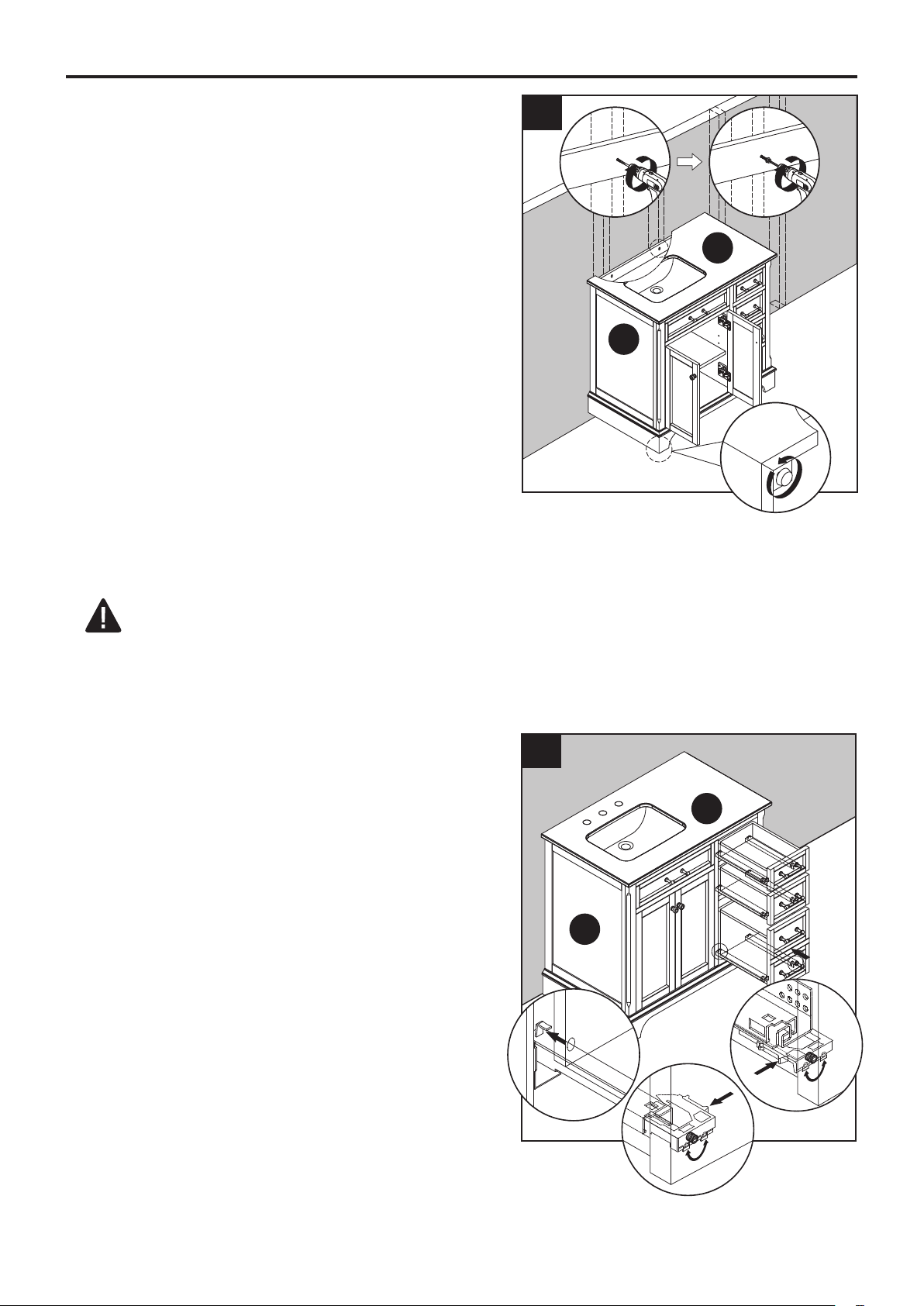

2. With two people, carefully place vanity (A) with
Top (B) against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 2). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
3. To reinstall drawers into vanity (A), fully extend
metal glide tracks. Gently lower and slide
drawer box into rear glide catch. Next lower
drawer box down to completely rest on
extended glides. Then, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height, spin
the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
3
A
B
1
23
