USB port (charging port)
8-pin mini USB cable
The red LED blinks three times
The
red LED blinks once.
The
red LED blinks three times.
If the battery
is discharged, the LED blinks
for 1minute and turns off automatically
•When charging IS completed, the LED is
lit green.
Press and hold down the Power button
The power
is automatically turned off if no
signal
is transmitted for 1minute.
Press the Power button once.
Button Operation LED Indication
If you use a USB cable other the one (8-pin mini USB) supplied with the product, the product may be damaged.
¥> The Auto Off function automatically turns the 3D glasses off if it senses no signal from the 3D signal
emitter on the TV. Achange in the distance or angle from the 3D signal emitter when the user
moves can cause the Auto Off feature to activate.
Auto Off*'
Power
Off
Power On
Battery
(lithium polymer)
discharge
.. *1
oCAUTION
Liquid crystal Shutter
ACCESSORIES
3D Glasses / 8-pin mini USB cable IManual CD IQuick Start Guide ICleaning cloth
02.Charge the glasses until the LED is green.
The glasses
will fully charge in about 2hours.
~ While charging: The LED is red.
~ When charging is complete: The LED is green.
~ When the battery is discharged: The LED blinks for 1 minute and turns off automatically.
USING 3D GLASSES
CHARGING
THE GLASSES
01, Connect the USB port located under the power button on the glasses to the USB port of the TV or PC
using the supplied 8-pin mini USB cable as shown by the figure.
(For detailed information, refer to the CD manual.)
PART NAMES

Manufactured: Accupix Inc.

OWNER’S MANUAL
Please read this manual carefully before operating
and keep it for future reference.
www.lge.com
REV.01
3D GLASSES
AG-S100

CAUTION
Please read these safety instructions carefully
to ensure your personal safety and to prevent
damage.
1If you experience difficulty while viewing 3D
images with the 3D glasses, you may have
some problems with your eyesight.
2You may experience headaches or fatigue
when viewing 3D images through the glasses
for too long.
If you experience headaches, fatigue, or
•
dizziness, stop watching immediately.
3Do not drop objects onto the product or
import force to the product.
This may result in electric shock or fire.
•
4Do not use your product near a humidifier or
kitchen counter.
This may result in electric shock or fire.
•
5
Do not use the product while charging it! Use the
product only after disconnecting the USB cable.
Failing to do so may result in fire or electric shock.
•
6Do not disassemble, repair or modify the
product or its parts.
Failing to do so may result in damage to the
•
product or a malfunction.
7The following people should not use this
product: Pregnant women, infirm persons,
persons with heart issues, as well as persons
that become nauseous easily.
People with these conditions should not
•
use this product.
8When watching 3D video, do not place
anything nearby that can be easily broken.
You may mistake a 3D image for an actual
•
object and move your body, causing you to
break nearby objects and hurt yourself.
9Use this product for watching 3D video only.
Do not use it for any other purpose.
Do not use the 3D Glasses as sunglasses
•
or reading glasses.
0Do not spray cleaner directly onto the surface
of the product.
This may result in discoloration and
•
cracks and may cause the screen display
to peel off.
!Do not let water come into contact with the
product when cleaning it. Ensure that water
does not enter the product.
This may result in electric shock or fire.
•
@
Since the lens of the product is easily
scratched, make sure to clean the product
with a soft cloth.
As the product may be scratched if there
•
is any foreign material on the cloth, make
sure to shake off any dust before using it.
#
As the 3D glasses receive infrared rays
from the Emitter, if there is another infrared
communications device nearby, this may
affect the glasses.
$
Do not scratch the surface of the Liquid
crystal shutters with a sharp tool and do
not clean it using chemicals.
This may degrade the screen quality.
•
%
Do not apply force to the liquid crystal
shutter. Do not drop or bend the product.
^
When watching 3D video, ensure that you
are viewing the video within the specified
receiving range. (For more information,
refer to the specifications in this manual)
If the receiving range is out of the
•
specified range, the screen may not be
viewable as 3D video.
If you press your TV remote control
•
while watching 3D video, the screen may
blink. However this does not affect the
product’s performance.
&
Flickering may be generated by the 3D
glasses (60 Hz) when watching the 3D
screen when a magnetic fluorescent lamp
(50 Hz) is on.
If you encounter this symptom, please turn
•
off the light and continue watching.
2

FEATURES
The AG-S100 3D glasses enable you to view 3D video and images on 3D LG Televisions.
The TV communicates with the glasses using a infrared transmitter that is included with 3D LG TVs.
⶯
ACCESSORIES
PART NAMES
USING 3D GLASSES
Button Operation LED Indication
Power On
Press the Power button once. The red LED blinks once.
Power Off
Press and hold down the Power button The red LED blinks three times.
Auto Off
*1
The power is automatically turned
off if no signal is transmitted for
1 minute.
The red LED blinks three times.
Battery
(Lithium polymer)
discharge
-
If the battery is discharged, the LED
blinks for 1 minute and turns off
automatically.
* When charging is completed, the
LED is lit green.
3
ENGLISH
!
NOTE
The accessories represented in this manual may differ from the actual appearances.
ⶺ
!
*1
The Auto Off function automatically turns the 3D glasses off if it senses no signal from the 3D
ⶺ
signal emitter on the TV. A change in the distance or angle from the 3D signal emitter when the
user moves can cause the Auto Off feature to activate.

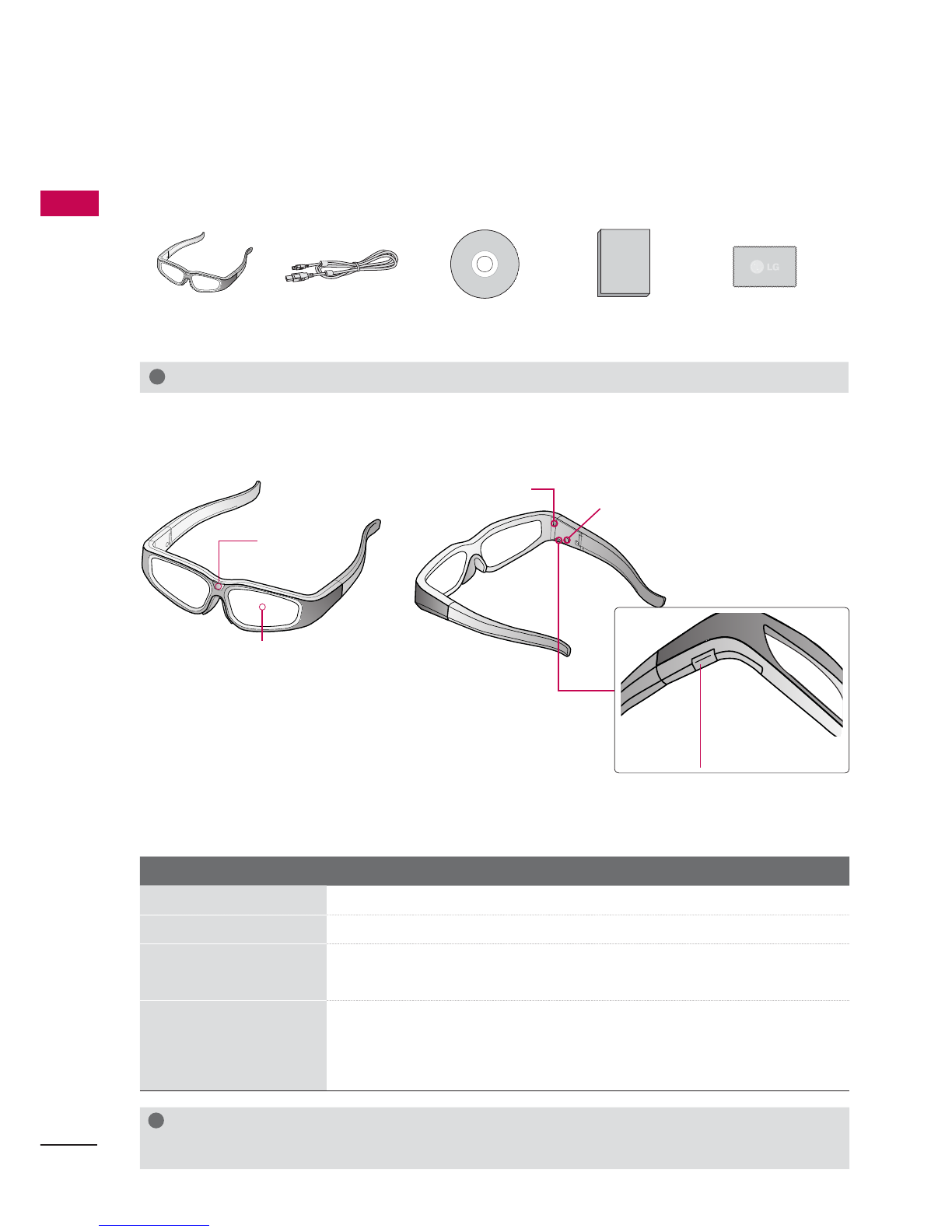

3D Glasses 8-pin mini USB
cable
Manual CD Quick Start Guide Cleaning cloth
Infrared
Receiver
Liquid crystal
Shutter
Power Button
LED indicator
USB port (charging port)
8-pin mini USB cable

4
CHARGING THE GLASSES
1Connect the USB port located under the power button on the glasses to the USB
port of the TV or PC using the supplied 8-pin mini USB cable as shown by the figure.
2Charge the glasses until the LED is green.
The glasses will fully charge in about 2 hours.
TROUBLESHOOTING
Problem Suggestion
Q. The glasses do not work.
A. The battery (Lithium Polymer) may be discharged, charge the
battery with the 8-pin mini USB cable.
A. Check that the distance between the TV and your 3D glasses
is less than 23 ft (7 m) in a straight line.
A. Check the 3D function settings of your TV.
Q. The LED blinks continuously.
A. This occurs when the battery (Lithium Polymer) is discharged.
In this case, charge the battery with the supplied 8-pin mini
USB cable.
Q. I charged the glasses with
the 8-pin mini USB cable,
but it is not charged.
A. Check if the 8-pin mini USB cable is properly connected to
the product.
ENGLISH
NOTE
While charging: The LED is red.
ⶺ
When charging is complete: The LED is green.
ⶺ
When the battery is discharged: The LED blinks for 1 minute and turns off automatically.
ⶺ
!
CAUTION
If you use a USB cable other the one (8-pin mini USB) supplied with the product, the
ⶺ
product may be damaged.
!

5

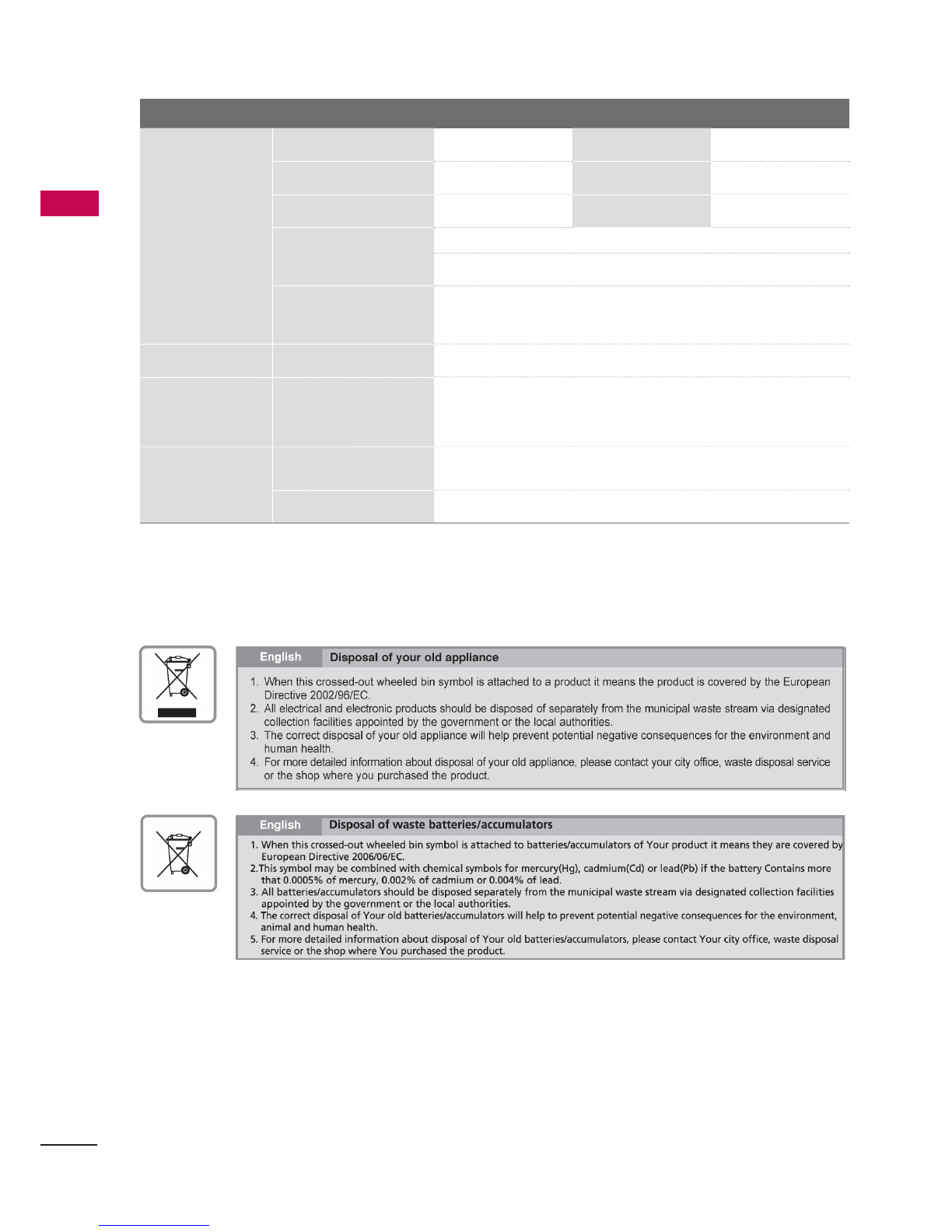

SPECIFICATIONS
AG-S100
Optics
Shutters Liquid crystal Transmittance > 30 %
Contrast Ratio Max. 500:1 Field Rate 120 fields/s
Open Time <3.5 ms Close Time < 1 ms
Emitter
(Viewing Angle)
Horizontal: ± 50 degrees at 16 ft (5 m)
Vertical: ± 50 degrees at 16 ft (5 m)
Max. Signal Receiving
Distance 23 ft (7 m) (on-axis)
Weight Glasses 1.45 oz (approx. 41 g)
Power Supply Glasses
· USB Cable: 8-pin mini USB cable
· Battery: 80 mA/h
· Operating time when On: 40 hours
Operating
Conditions
Operating
Temperature 0 °C ~ 40 °C
Storage Temperature -20 °C ~ 60 °C
ENGLISH
ࠡThe images and specifications presented in this user manual are subject to change without prior notice
for quality improvement purposes.

Warranty period
1 year. If it proves to be defective with regards to the materials or workmanship under normal operating conditions
during the warranty period, please contact the retailer where you purchased it. This warranty is only valid for the
original purchaser of the product and is only effective locally.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under
FCC rules.
Manufactured : Accupix Inc.

OWNER'S MANUAL
3D GLASSES
LG
Life's Good
http://www.lge.com
Rev.Ol
Copyright© 2010 LGE
,
All Rights Reserved.
AG-S100
