OWNER’S MANUAL
AIR
CONDITIONER
www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
FLOOR STANDING
APNQ55GT3E0, APNQ55GT3M0, APNW55GT3E0, APNW55GT3M0
APNQ55LT3E0, APNQ55LT3M0, APNW55LT3E0, APNW55LT3M0
APNQ55GT3A0, APNQ50LT3E0, APNW50GT3E0, APNW50LT3E0
APNQ55GT3E1, APNQ55GT3M1
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
ENGLISH
1,MFL67724535,영어 2017. 11. 14. 오후 6:38 페이지 1

2TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors and windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block
the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 2

IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs by unqualified persons can result in hazards to you and others.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment mal-
function, property damage, personal injury and/or death.
Installation
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service
Center. Do not disassemble or repair the product. There is risk of fire or electric shock.
• Always ground the product. There is risk of fire or electric shock.
• Install the panel and the cover of control box securely. There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker. Improper wiring or installation may cause fire or
electric shock
• Use the correctly rated breaker or fuse. There is risk of fire or electric shock.
• Do not modify or extend the power cable. There is risk of fire or electric shock.
• Do not install, remove, or re-install the unit by yourself (customer). There is risk of fire, electric
shock, explosion, or injury.
• Be cautious when unpacking and installing the product. Sharp edges could cause injury. Be
especially careful of the case edges and the fins on the condenser and evaporator.
• For installation, always contact the dealer or an Authorized Service Center. There is risk of
fire, electric shock, explosion, or injury.
• Do not install the product on a defective installation stand. It may cause injury, accident, or
damage to the product.
• Be sure the installation area does not deteriorate with age. If the base collapses, the air condi-
tioner could fall with it, causing property damage, product failure, and personal injury.
• Do not let the air conditioner run for a long time when the humidity is very high and a door or
a window is left open. Moisture may condense and wet or damage furniture.
!
!
!
3
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 3

4IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Operation
• Take care to ensure that power cable could not be pulled out or damaged during operation.
There is risk of fire or electric shock.
• Do not place anything on the power cable. There is risk of fire or electric shock.
• Do not touch(operate) the product with wet hands. There is risk of fire or electrical shock.
• Do not place a heater or other appliances near the power cable. There is risk of fire and elec-
tric shock.
• Do not allow water to run into electric parts. There is risk of fire, failure of the product, or elec-
tric shock.
• Do not store or use flammable gas or combustibles near the product. There is risk of fire or
failure of product.
• Do not use the product in a tightly closed space for a long time. Oxygen deficiency could
occur.
• When flammable gas leaks, turn off the gas and open a window for ventilation before turning
the product on. Do not use the telephone or turn switches on or off. There is risk of explosion
or fire
• If strange sounds, or smell or smoke comes from product. Turn the breaker off or disconnect
the power supply cable. There is risk of electric shock or fire.
• Stop operation and close the window in storm or hurricane. If possible, remove the product
from the window before the hurricane arrives. There is risk of property damage, failure of
product, or electric shock.
• Do not open the inlet grill of the product during operation.(Do not touch the electrostatic filter,
if the unit is so equipped.) There is risk of physical injury, electric shock, or product failure.
• When the product is soaked (flooded or submerged), contact an Authorized Service Center.
There is risk of fire or electric shock.
• Be cautious that water should not enter the product. There is risk of fire, electric shock, or
product damage.
• Ventilate the product from time to time when operating it together with a stove, etc. There is
risk of fire or electric shock.
• Turn the main power off when cleaning or maintaining the product. There is risk of electric
shock.
• When the product is not to be used for a long time, disconnect the power supply plug or turn
off the breaker. There is risk of product damage or failure, or unintended operation.
• Take care to ensure that nobody should step on or fall onto the outdoor unit. This could result
in personal injury and product damage.
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 4

IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
CAUTION
Installation
• Always check for gas (refrigerant) leakage after installation or repair of product. Low refrigerant lev-
els may cause failure of product.
• Install the drain hose to ensure that water is drained away properly. A bad connection may cause
water leakage.
• Keep level even when installing the product. To avoid vibration or water leakage.
• Do not install the product where the noise or hot air from the outdoor unit could damage the neigh-
borhoods. It may cause a problem for your neighbors.
• Use two or more people to lift and transport the product. Avoid personal injury.
• Do not install the product where it will be exposed to sea wind (salt spray) directly. It may cause cor-
rosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause
product malfunction or inefficient operation.
Operation
• Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.) This could
harm to your health.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a con-
sumer air conditioner, not a precision refrigeration system. There is risk of damage or loss of prop-
erty.
• Do not block the inlet or outlet of air flow. It may cause product failure.
• Use a soft cloth to clean. Do not use harsh detergents, solvents, etc. There is risk of fire, electric
shock, or damage to the plastic parts of the product.
• Do not touch the metal parts of the product when removing the air filter. They are very sharp! There
is risk of personal injury.
• Do not step on or put anyting on the product. (outdoor units) There is risk of personal injury and fail-
ure of product.
• Always insert the filter securely. Clean the filter every two weeks or more often if necessary. A dirty
filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.
• Do not insert hands or other objects through the air inlet or outlet while the product is in operation.
There are sharp and moving parts that could cause personal injury.
• Do not drink the water drained from the product. It is not sanitary and could cause serious health is-
sues.
• Use a firm stool or ladder when cleaning or maintaining the product. Be careful and avoid personal
injury.
• Replace all the batteries in the remote control with new ones of the same type. Do not mix old and
new batteries or different types of batteries. There is risk of fire or explosion
• Do not recharge or disassemble the batteries. Do not dispose of batteries in the fire. They may burn
or explode.
• If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not
use the remote if the batteries have leaked. The chemicals in batteries could cause burns or other
health hazards.
• If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if
the batteries have leaked. The chemicals in batteries could cause burns or other health hazards.
!
5
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 5

6TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
2TIPS FOR SAVING EN-
ERGY
3IMPORTANT SAFETY IN-
STRUCTIONS
7BEFORE USE
7Preparing for operation
7Usage
7Cleaning and maintenance
7Service
8PRODUCT INTRODUC-
TION
8Name of parts
9Indoor unit controls and indicators
11 Wireless remote controller
13 Remote control preparation
14 OPERATING INSTRUC-
TIONS
14 Cooling Mode
14 Heating Mode
14 Airflow Setting
14 Fan Speed Setting
15 Dehumidification Mode
15 Power Cooling/Heating Mode
15 Fan Mode
15 Simple Reservation
16 Defrost Mode
16 Child Lock Operation Function
17 Auto Dry Function
17 Auto Restart Operation
18 MAINTENANCE AND
SERVICE
18 Indoor Unit
19 Operation Tips
20 Troubleshooting Tips! Save time and
money!
20 Call the service immediately in the fol-
lowing situations
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 6

BEFORE USE
ENGLISH
7
Preparing for operation
• Contact an installation specialist for installation.
• Use a dedicated circuit.
Usage
• Being exposed to direct airflow for an extended period of time could be hazardous to your
health. Do not expose occupants, pets, or plants to direct airflow for extended period of time.
• Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves
or other heating devices.
• Do not use this air conditioner for non-specified special purposes (e.g. preserving precision de-
vices, food, pets, plants, and art objects). Such usage could damage the items.
Cleaning and maintenance
• Do not touch the metal parts of the unit when removing the filter. Injuries can occur when han-
dling sharp metal edges.
• Do not use water to clean inside the air conditioner. Exposure to water can destroy the insula-
tion, leading to possible electric shock.
• When cleaning the unit, first make sure that the power and breaker are turned off. The fan ro-
tates at a very high speed during operation. There is a possibility of injury if the unit’s power is
accidentally triggered on while cleaning inner parts of the unit.
Service
For repair and maintenance, contact your authorized service dealer.
BEFORE USE
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 7

8PRODUCT INTRODUCTION
ENGLISH
Name of parts
Indoor unit
1Left/Right Airflow Control Louver
2Up/Down Airflow Control Louver
3Display Panel
4Air filter
5Air Inlet
6Control Box
1
4
2
3
6
5
PRODUCT INTRODUCTION
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 8

PRODUCT INTRODUCTION
ENGLISH
9
MODE
356
78910
2
4
11
1
Indoor unit controls and indicators
Heat Pump
1. Timer
2. Defrosting operation lamp
3. Cooling operation lamp
4. Heating operation lamp
5. Room temp. / Set temp. display
6. Indoor fan speed lamp
7. Start/Stop button
8. Operation mode selection button
9. Room temperature setting button
10. Indoor fan speed button
11. Signal receptor
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 9

10 PRODUCT INTRODUCTION
ENGLISH
Cooling only
MODE
1356
78910
2
4
11
1. Timer
2. Dehumidification operation lamp
3. Cooling operation lamp
4. Fan mode operation lamp
5. Room temp. / Set temp. display
6. Indoor fan speed lamp
7. Start/Stop button
8. Operation mode selection button
9. Room temperature setting button
10. Indoor fan speed button
11. Signal receptor
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 10

PRODUCT INTRODUCTION
ENGLISH
11
Wireless remote controller
Heat Pump
Handling the remote control
- Aim at the signal receptor on the floor standing type air
conditioner when operating.
- Block a strong light over the signal receptor with a curtain
or etc. so as to prevent the abnormal operation. (ex: elec-
tronic quick start, ELBA, inverter type fluorescent lamp)
- Be sure that there are no obstructions between the re-
mote control and the signal receptor.
- Do not drop or throw the remote control.
- Do not place the remote control in a location exposed to
direct sunlight, or next to a heating unit, or other heat
source.
1
5
2
6
9
11
13
4
3
8
10
12
7

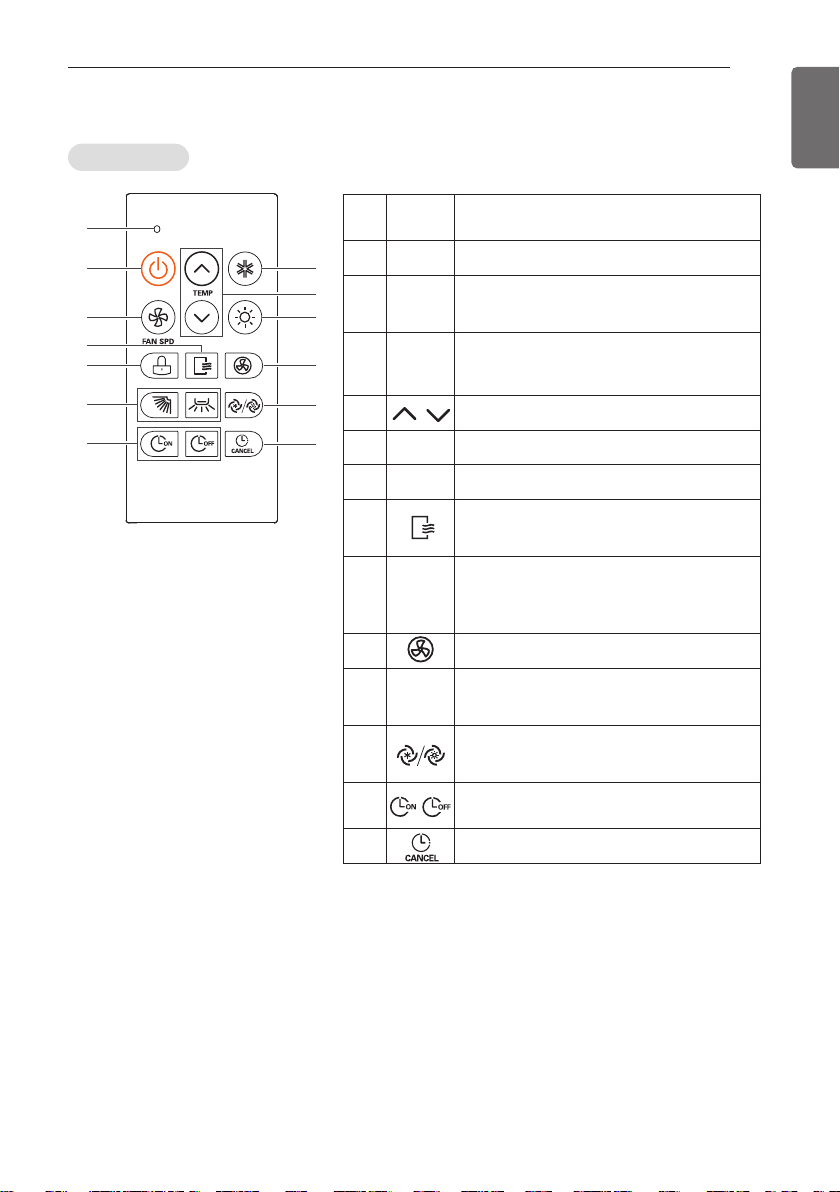

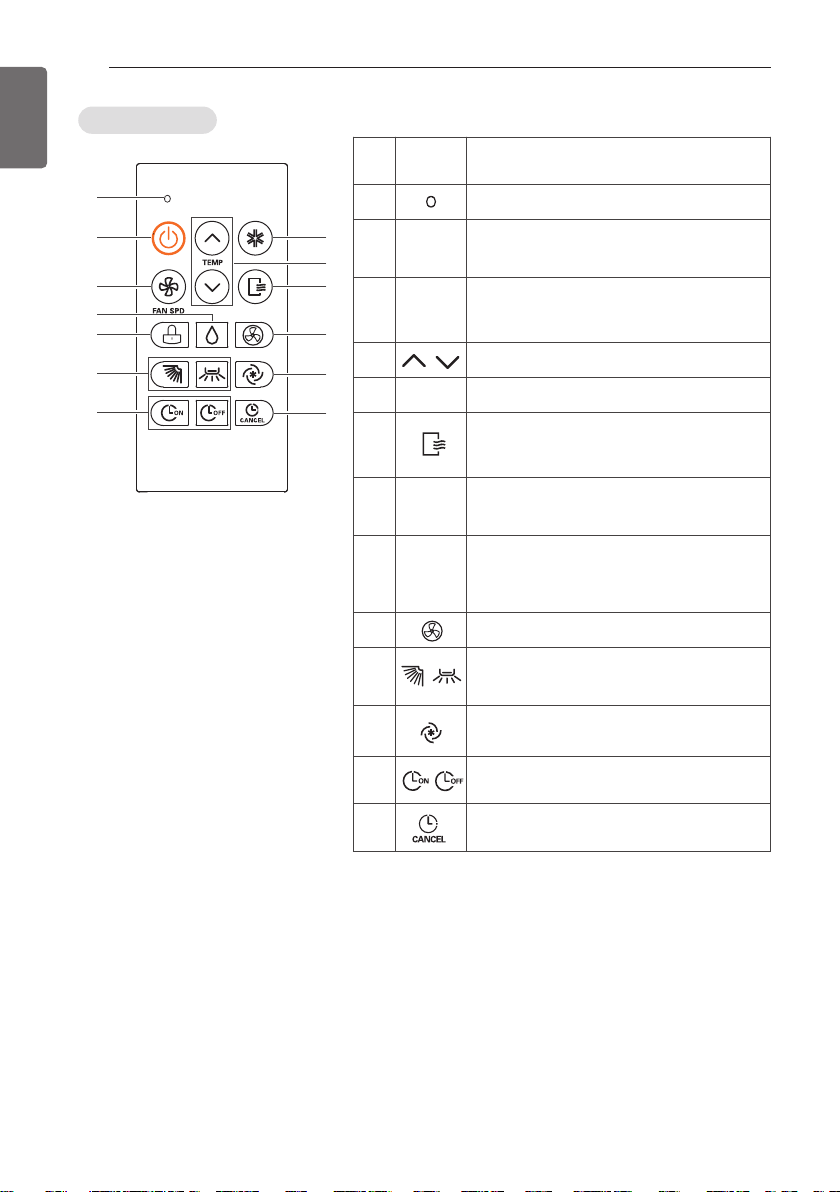

No. Control
panel Description
1rRemote controller operation lamp
2|Power ON/OFF button : Operation will
start when this button is pressed, and
stop when the button is pressed again.
34
FAN SPD
Indoor fan speed button : To select the
desired fan speed.
4Temperature setting button
5ACooling button
6BHeating button
7
Auto dry button : If setting this function,
evaporator will be automatically dried be-
fore turning off the air conditioner.
8X
Child lock button : In operation this func-
tion, display key will be locked and air
conditioner indicates “CL” on its display
panel.
9Fan mode button
10 IJ Air flow direction button(Up/down,
Left/right) : Adjust air flow direction verti-
cally or horizontally.
11
Power cooling/heating mode button :
Powerful cooling/heating are performed
within short time
12 ON/OFF timer setting button : Set the
time of starting or stopping
13 Timer cancel button
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 11

12
ENGLISH
PRODUCT INTRODUCTION
Cooling only
Handling the remote control
- Aim at the signal receptor on the floor standing type air
conditioner when operating.
- Block a strong light over the signal receptor with a cur-
tain or etc. so as to prevent the abnormal operation. (ex:
electronic quick start, ELBA, inverter type fluorescent
lamp)
- Be sure that there are no obstructions between the re-
mote control and the signal receptor.
- Do not drop or throw the remote control.
- Do not place the remote control in a location exposed to
direct sunlight, or next to a heating unit, or other heat
source.
1
5
2
6
9
11
13
4
3
8
10
12
7
No. Control
panel Description
1Remote control operation lamp
2|Power ON/OFF button : Operation will
start when this button is pressed, and
stop when the button is pressed again.
3Indoor fan speed button : To select the
desired fan speed.
4Temperature setting button
5ACooling button
6
Auto dry button : If setting this function,
evaporator will be automatically dried be-
fore turning off the air conditioner.
7DDehumidification button : Can effectively
remove humidity when at the time of
rainy season or high humidity.
8X
Child lock button : In operation this func-
tion, display key will be locked and air
conditioner indicates “CL” on its display
panel.
9Fan mode button
10
Air flow direction button(Up/down,
Left/right) : Adjust air flow direction verti-
cally or horizontally.
11 Power cooling mode button : Powerful
cooling is performed
12 ON/OFF timer setting button : Set the
time of starting or stopping
13 Timer cancel button
4
FAN SPD
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 12

PRODUCT INTRODUCTION
ENGLISH
13
How to mount onto a wall
1Use the screws to secure the holder to the
wall.
2To insert the remote control to the holder.
How to insert batteries
1Remove the cover from the back of the re-
mote controller.
- Slide the cover according to the arrow di-
rection.
2Insert two batteries.
- Be sure that the (+) and (-) directions are
correct.
- Be sure that both batteries are new.
3Re-attach the cover.
- Slide the cover into back position.
- Do not use rechargeable batteries such bat-
teries are different from standard dry cells in
shape, dimensions, and performance.
- Change the batteries with a new one if the
remote control does not work properly after
using for an extended period of time.
CAUTION
• When not using remote controller for a
long time, flowing of dry cell liquid may
cause the failure of product, therefore,
remove all dry cells.
• When replacing dry cell (AAA), replace
two of them all with new ones, and if re-
mote controller is not operated properly
even after replacing the dry cells (AAA),
request the service.
• Do not disassemble or re-charge the
used dry cells, and do not throw away
those at the location with heat of fire or
hot air. There will be the danger of ex-
plosion.
!
Remote control preparation
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 13

14
ENGLISH
OPERATING INSTRUCTIONS
Cooling Mode
1Press |button to turn on the indoor.
2Press abutton to select Cooling opera-
tion mode.
- When canceling operating, press |but-
ton once more.
3Adjust the desired temperature by press-
ing ( ) buttons.
- If desired temperature is higher than
room temperature, cooling cannot be con-
ducted.
- Set the temperature lower than the room
temperature
- Setting Temp Range : 18 °C~30 °C.
Heating Mode
1Press |button to turn on the indoor.
2Press dbutton to select Heating opera-
tion mode.
- When canceling operation, press |but-
ton once more.
3Adjust the desired temperature by press-
ing ( ) buttons.
- If desired temperature is lower than room
temperature, heating cannot be con-
ducted.
- Set up desired temperature higher than
the room temperature
- Setting Temp Range : 16 °C~30 °C.
Airflow Setting
We can simply adjust the desired airflow di-
rection.
Up/Down Airflow Direction Control
1Press |button to turn on the indoor.
2Press Ibutton and the louvers will
swing up and down.
3Press Ibutton again to set the horizontal
louver at the desired airflow direction.
Left/Right Airflow Direction Control
1Press |button to turn on the indoor.
2Press Jbutton and the louvers will
swing left and right.
3Press Jbutton again to set the vertical
louver at the desired airflow direction.
<Airflow Setting Table>
Fan Speed Setting
1Press |button to turn on the indoor.
2Press button to select fan speed.
- You can select the fan speed in four
steps Low, Mid, High, Super High.
Each time the button is pressed, the fan
speed mode is shifted.
- Air flow rate can be selected during the
cooling, heating, dehumidification, blow-
ing, and auto operation mode.
NOTE
!
What is 3 minutes delay function?
The reason that cold wind is not coming out
when operating the unit after turning off the
cooling is because of the function to protect
compressor. Cold wind will be coming out
when compressor is operated after 3 minutes.
NOTE
!
Preheating operation
When conducting heating operation at the
condition of low outdoor temperature, the
case that wind is not coming out for several
minutes under the state of lighting of de-
frost lamp may be occurred. This is the pre-
heating stage to supply warm wind which
will be supplied subsequently in short time.
Symbol Description
IUp·Down : Vane move from up to
down automatically and continu-
ously
JLeft·Right : Vane move from left to
right automatically and continuously
OPERATING INSTRUCTIONS
Heat Pump
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 14

ENGLISH
15
OPERATING INSTRUCTIONS
Dehumidification Mode
In rainy season or high humidity climate, it is
possible to operate simultaneously dehumidi-
fier and cooling mode to remove humidity ef-
fectively.
1Press |button to turn on the indoor.
2Press cbutton to select dehumidification
mode
- Room temperature will be displayed after
desired temperature is indicated at dis-
play section for about 5 seconds.
Power Cooling/Heating Mode
Strong cooling/heating will be conducted in
short time.
1Press |button to turn on the indoor.
2Press button to operate power cool-
ing/heating mode.
- When power (cooling/heating) button is
pressed during cooling/dehumidification
mode, power cooling will be operated.
In power cooling mode, desired tempera-
ture is set to 18 °C and the horizontal lou-
ver is fixed at the highest position.
- When power (cooling/heating) button is
pressed during heating operation, power
heating will be operated.
In power heating mode, desired tempera-
ture is set to 30 °C and the horizontal lou-
ver is fixed at the lowest position.
Fan Mode
1Press |button to turn on the indoor unit.
2Press button to circulate indoor air.
- When canceling operation, press
button once more.
- During fan mode, outdoor fan and com-
pressor will not be operated.
- During fan mode, indoor unit turns on the
fan mode lamp, room temperature lamp,
and fan speed lamp of its display panel.
1Press |button to turn on the indoor unit.
2Press button on remote controller to
circulate indoor air.
- When canceling operation, press
button once more.
- During fan mode, outdoor fan and
compressor will not be operated.
- During fan mode, indoor unit turns on the
fan speed lamp and room temperature
lamp of its display panel.
Simple Reservation
This function is able to turn on unit after a set-
ting time.
1When the unit is turned off, adjust desired
setting time with button.
- Up to the maximum of 24 hours can be
selected.
This function is able to turn off unit after a set-
ting time.
1When the unit is turned on, adjust desired
setting time with button.
- Up to the maximum of 7 hours can be se-
lected.
Turning OFF reservation mode
Turning ON reservation mode
NOTE
!
After performing the setting, if corresponded
setting button is pressed once, remaining set-
ting time will be displayed, and if it is pressed
once again, corresponded setting function will
be cancelled. (same function as ) Remaining
setting time will be displayed with the unit of 1
hour.
Cooling only
Cooling only
Heat Pump
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 15

16
ENGLISH
OPERATING INSTRUCTIONS
Defrost Mode
1During defrost operation, Mwill be indi-
cated at display section of indoor.
2During heating operation, if outside tem-
perature is low and humidity is high, heat-
ing capability will be deteriorated as frost is
generated at outdoor unit, therefore, the
frost will be removed by performing de-
frost operation.
3When indoor and outdoor unit fans are au-
tomatically stopped and defrost operation
is completed, preheating for heating cycle
will automatically be started.
* Heating operation will be started in a lit-
tle time.

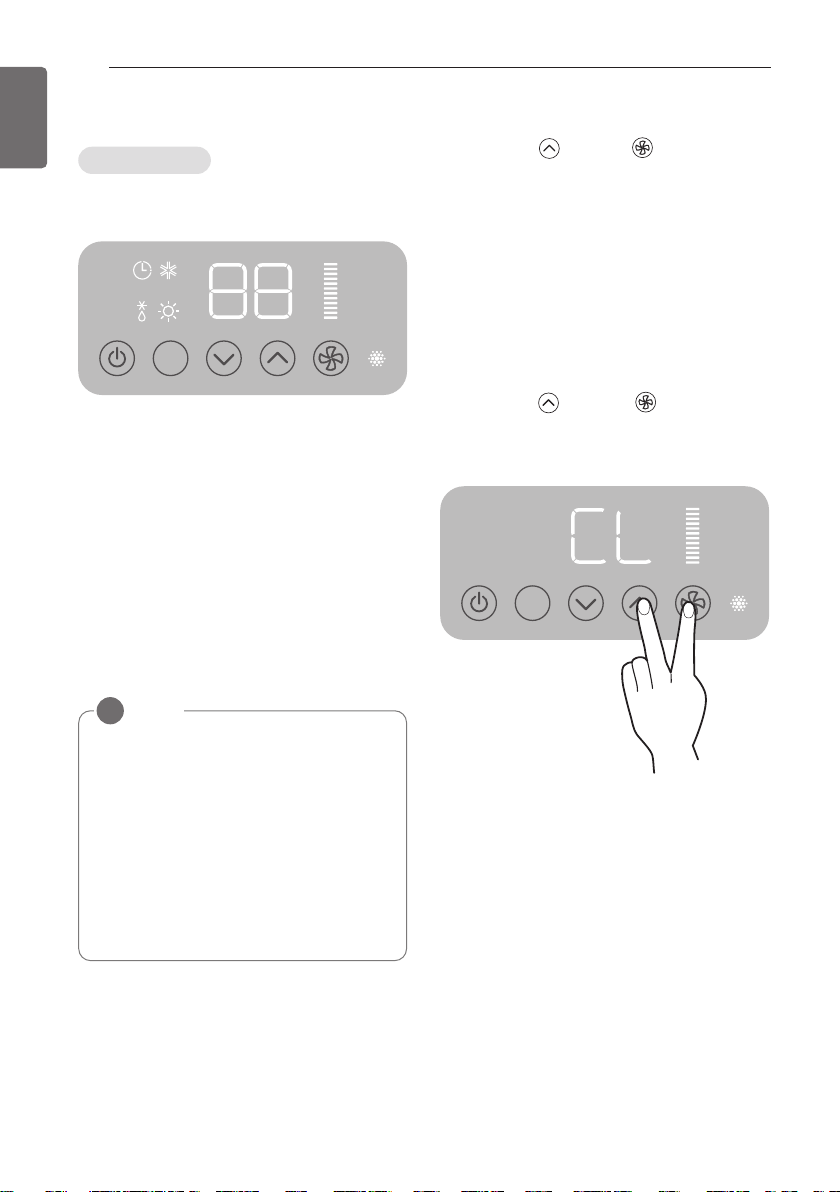

Child Lock Operation Function
1Press the and high simultaneously
for 3 seconds. Or press the Xbutton on
remote control.
2During child lock operation,
- Whenever you press any button on dis-
play panel, it will immediately display
"CL", which means display panel is
locked.
- All the button on the indoor unit display
panel will not work.
- But the button on the remote controller
will be operated.
3Press the and high simultaneously
for 3 seconds again. The unit will respond
with beep. child lock operation will re-
moved
Heat Pump
MODE
NOTE
!
What is preheating function for heating
cycle?
• During the heating, indoor fan will not be op-
erated until indoor tubing temperature be-
comes more than 22 °C, therefore, this is the
function to block the discharge of cold wind.
• During the preheating for heating cycle, heat-
ing cannot be performed.
• During defrost operation, vapor can be gener-
ated at outdoor side, and this is not a failure
because it is the operation to remove frost.
MODE
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 16

ENGLISH
17
OPERATING INSTRUCTIONS
Auto Dry Function
1Auto dry function can be setted/released
by manipulating indoor unit button or re-
mote control.
2When pressing the button after setting
the function, evaporator in indoor unit will
be automatically dried as showing counting
00 to 99 on its display panel .
3After indicating 99 on the display panel,
the unit will be automatically turned off.
* Auto dry function is released at initial
state as standard.
If manipulating indoor unit, press the
button and button simultaneously for 3
seconds.
If manipulating remote control for Cooling
Only model, press button.
The indoor unit will respond with beep once
and indicate “SC” on its display panel. Then
Auto dry function will be set.
If manipulating indoor unit, press the
button and button simultaneously for 3
seconds.
If manipulating remote control, press but-
ton.
The indoor unit will respond with beep twice
and Auto dry function will be removed.
Auto Restart Operation
When power is supplied again after unit oper-
ation has been stopped because of interrup-
tion of power supply due to outage or other
causes, auto re-operation will be performed by
remembering previous setting.
- When power is supplied, outdoor unit opera-
tion will be started within 3 minutes.
1Auto Restart Operation can be estab-
lished/released by manipulating indoor unit
button.
* When initial state, Auto Restart Opera-
tion will be set up as standard.
Press the , , , (4 buttons) simul-
taneously for 3 seconds.
The unit will respond with beep and Restart
Operation will be removed.
After funtion release, Press the , , ,
(4 buttons) simultaneously for 3 seconds.
The unit will respond with beep and restart
operation will be setted.
For Releasing Restart Operation
For Setting Restart Operation
MODE
MODE
For Setting Auto Dry Function
For Releasing Auto Dry Function
MODE
MODE
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 17

18
ENGLISH
MAINTENANCE AND SERVICE
NOTE
!
Supply power must be disconnected be-
fore cleaning the indoor unit.
Indoor Unit
Grille, Case and Remote Control
- Turn the system off before cleanining, To
clean, wipe with a soft, dry cloth. Do not use
bleach or abrasives.
Air Filters
The air filters behind the front grille should be
checked and cleaned once every 2 weeks or
more often if neccessary.
- Never use any of the followings:
Water hotter than 40 °C.
Could cause deformation and/or discol-
oration.
Volatile substances.
Could damage the surfaces of the air condi-
tioner.
Filter Cleaning
Please clean it once in a week.
1Remove the Air filters.
- Take hold of the tab and pull slightly for-
ward to remove the filter.
2Clean dirt from the air filter using a vacuum
cleaner or washing with water.
- If dirt is conspicuous, wash with a neutral
detergent in lukewarm water.
- If hot water (40 °C or more) is used, it
may be deformed.
3After washing with water, dry well in the
shade.
- Do not expose the air filter to direct sun-
light or heat from a fire when drying it.
4Install the air filter.
B
e
n
z
e
n
e
S
C
O
U
R
I
N
G
C
L
B
A
R
G
E
R
S
I
N
N
E
R
CAUTION
When the air filter is to be removed, do
not touch the metal parts of the indoor
unit. It may cause an injury.
!
MAINTENANCE AND SERVICE
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 18

ENGLISH
19
MAINTENANCE AND SERVICE
Operation Tips
Do not overcool/overheat the
room.
This is not good for the health
and wastes electricity.
Keep blinds or curtains closed.
Do not let direct sunshine
enter the room when the air
conditioner is in operation.
Keep the room temperature
uniform.
Adjust the vertical and horizon-
tal airflow direction to ensure a
uniform temperature in the
room.
Make sure that the doors
and windows are shut tight.
Avoid opening doors and win-
dows as much as possible to
keep the cool air in the room.
Clean the air filter regularly.
Blockages in the air filter re-
duces the airflow and lowers
the cooling and dehumidifying
effects. Clean at least once
every two weeks.
Ventilate the room occasion-
ally.
Since windows are kept
closed, it is a good idea to
open them and ventilate the
room now and then.
When air conditioner is not going
to be used for a long time.
1Operate the air conditioner at the following
settings for 2 to 3 hours.
- Type of operation: Fan operation mode.
- This will dry out the internal mechanisms.
Helpful information
The air filters and your electiric bill.
If the air filters become clogged with dust, the
cooling capacity will drop, and 6 % of the elec-
tricity used to operate the air conditioner will
be wasted.
When the air conditioner is to be
used again.
1Clean the air filter and install it in the in-
door unit.
2Check that the air inlet and outlet of the in-
door/outdoor unit are not blocked.
3Check that the ground wire is connected
correctly. It may be connect to the indoor
unit side.
CAUTION
Turn off the breaker when the air condi-
tioner is not going to be used for a long
time.
Dirt may collect and may cause a fire.
!
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 19

20 MAINTENANCE AND SERVICE
ENGLISH
Call the service immediately in the following situations
1Anything abnormal such as burning smell, loud noise etc. happen. Stop the unit and turn the
breaker off. Never try to repair by yourself or restart the system in such cases.
2Main power cord is too hot or damaged.
3Error code is generated by self diagnosis.
4Water leaks from indoor unit even if the humidity is low.
5Any switch, breaker (safety, earth) or fuse fails to work properly
User must carry routine checkup & cleaning to avoid unit’s poor performance.
In case of special situation, the job must be carried out by service person only.
The air conditioner
does not operate.
- Have you made a
mistake in timer oper-
ation?
- Has the fuse blown
or has the circuit
breaker been tripped?
The room has a pecu-
liar odor.
- Check that this is not
a damp smell exuded
by the walls, carpet,
furniture or cloth
items in the room.
It seems that conden-
sation is leaking from
the air conditioner.
- Condensation occurs
when the airflow
from the air condi-
tioner cools the warm
room air.
Air conditioner does
not operate for about 3
minutes when restart.
- This is the protector
of the mechanism.
- Wait about three min-
utes and operation
will begin.
Does not cool or heat
effectively.
- Is the air filter dirty?
See air filter cleaning
instructions.
- The room may have
been very hot when
the room air condi-
tioner was first turned
on. Allow time for it
to cool down.
- Has the temperature
been set incorrectly?
- Are the indoor unit's
air inlet or outlet
vents obstructed?
The air conditioner op-
eration is noisy.
- For a noise that
sounds like water
flowing.
* This is the sound of
freon flowing inside
the air conditioner
unit.
- For a noise that
sounds like the com-
pressed air releasing
into atmosphere.
-This is the sound of
the dehumidifying
water being
processed inside the
air conditioning unit.
Crack sound is heard.
- This sound is gener-
ated by the expan-
sion/ constriction of
the front panel, etc.
due to changes of
temperature.
Remote control display
is faint, or no display at
all.
- Are the batteries de-
pleted?
- Are the batteries in-
serted in the opposite
(+) and (-) directions?
Filter sign lamp (LED)
is ON.
- Cleaning the filter,
press the Timer but-
ton and ◀button of
wired remote con-
troller at the same
time for 3 s
The error code is oc-
curred after lightning
struck
- This product has
been applied to the
over current protec-
tion circuit.
Error can occur, but it
is normal behavior.
After few minutes, It
will operate normally.
Troubleshooting Tips! Save time and money!
Check the following points before requesting repairs or service.... If the malfunction persist,
please contact your dealer.
1,MFL67724511,영어 2017. 7. 6. 오후 5:33 페이지 20
