LG ARNU07GTUA4 User manual

www.lg.com
Ceiling Cassette - 1Way (Art Type)
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
INSTALLATION MANUAL
AIR
CONDITIONER
P/NO : MFL69440007
Original instruction
ENGLISH

2Indoor Unit
Ceiling Cassette - 1Way(Art Type) Type Indoor Unit Installation Manual
TABLE OF CONTENTS
o Installation guide map
oFour type "A" screws & plastic
anchors
oConnecting cable
oPipes: Gas side
Liquid side
oInsulation materials
oAdditional drain pipe
oLevel gauge
oScrew driver
oElectric drill
oHole core drill
oHorizontal meter
oFlaring tool set
oSpecified torque wrenches
oSpanner .......Half union
oHexagonal wrench
oGas-leak detector
oVacuum pump
oGauge manifold
oOwner's manual
oThermometer
Installation Parts ....................3
Safety Precautions.................4
Installation
Selection of the Best Location ...6
Ceiling Dimension and Hang-
ing Bolt Location ....................7
Wiring Connection .................8
Installation of Decoration
Panel (Panel Type) ................9
Installation of Decoration
Panel (Grille Type)...............10
Drain Piping..........................11
DIP Switch Setting...............12
Group Control Setting..........13
Model Designation ..............18
Airborne Noise Emission.....18
Limiting concentration .........18
Installation Requirements Required Parts Required Tools

Installation Manual 3
Installation Parts
ENGLISH
Wired Remote Controller
(Accessory) Wired Remote Controller
(Accessory)
Air
Intake
Air Intake
Air
Intake
Air Outlet
Air Outlet
Installation Parts
Name
Quantity
Shape for gas pipe
for liquid pipe
Clamp metal
2 EA
Insulation for
fitting
1 SET
Drain hose
1 EA
Plastic band
8 EA
Washer for
hanging bracket
4 EA
Name
Quantity
Shape
Paper pattern for installation
1 EA
Installation and Owner's manual
1 EA
Panel type Grille type
• Screws for fixing panels are attached to decoration panel.
Installation Tool

4Indoor Unit
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
nBe sure to read before installing the air conditioner.
nBe sure to observe the cautions specified here as they include important items related to safety.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the
following indications.
nMeanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
WARNING
nInstallation
Do not use a defective or under-
rated circuit breaker. Use this
appliance on a dedicated circuit.
• There is risk of fire or electric shock.
For electrical work, contact the
dealer, seller, a qualified electri-
cian, or an Authorized Service
Center.
• Do not disassemble or repair the
product. There is risk of fire or elec-
tric shock.
Always ground the product.
• There is risk of fire or electric shock.
Install the panel and the cover
of control box securely.
• There is risk of fire or electric shock.
Always install a dedicated cir-
cuit and breaker.
• Improper wiring or installation may
cause fire or electric shock.
Use the correctly rated breaker
or fuse.
• There is risk of fire or electric shock.
Do not modify or extend the
power cable.
• There is risk of fire or electric shock.
Do not let the air conditioner
run for a long time when the
humidity is very high and a door
or a window is left open.
• Moisture may condense and wet or
damage furniture.
Be cautious when unpacking
and installing the product.
• Sharp edges could cause injury. Be
especially careful of the case edges
and the fins on the condenser and
evaporator.

Installation Manual 5
Safety Precautions
ENGLISH
nOperation
For installation, always contact
the dealer or an Authorized
Service Center.
• There is risk of fire, electric shock,
explosion, or injury.
Do not install the product on a
defective installation stand.
• It may cause injury, accident, or
damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air condi-
tioner could fall with it, causing prop-
erty damage, product failure, and
personal injury.
Do not store or use flammable gas or combustibles near the product.
• There is risk of fire or failure of product.
Use a vacuum pump or inert (nitrogen) gas when
doing leakage test or air purge.
Do not compress air or oxygen, and do not use
flammable gases.
Otherwise, it may cause fire or explosion.
• There is the risk of death, injury, fire or explosion.
Do not turn on the breaker or power under condi-
tion that front panel, cabinet, top cover, control
box cover are removed or opened.
• Otherwise, it may cause fire, electric shock, explosion or
death.
Use two or more people to lift and transport the product.
• Avoid personal injury.
Always check for gas (refriger-
ant) leakage after installation or
repair of product.
• Low refrigerant levels may cause
failure of product.
Install the drain hose to ensure
that water is drained away prop-
erly.
• A bad connection may cause water
leakage.
Keep level even when installing
the product.
• To avoid vibration or water leakage.
CAUTION
nInstallation

6Indoor Unit
Installation
• There should not be any heat source or steam near the unit.
• There should not be any obstacles to the air circulation.
• A place where air circulation in the room will be good.
• A place where drainage can be easily obtained.
• A place where noise prevention is taken into consideration.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall, ceiling, or other obstacles.
• The indoor unit must have the maintenance space.
Read completely, then follow step by step.
Unit:mm
Ceiling
Ceiling board
Ceiling board
200 or more
Above 1 800 3 300 or less
1 000 or more
500 or
more
500 or
more
300 or less
10 or more
Floor
20 ± 3
Installation
Selection of the Best Location
In case that the unit is installed near the sea, the installation parts may be corroded
by salt. The installation parts (and the unit) should be taken appropriate anti-corro-
sion measures.
CAUTION
NOTE
• Avoid the following installation location.
1. Such places as restaurants and kitchen where considerable amount of oil steam and flour is generated.
These may cause heat exchange efficiency reduction, or water drops, drain pump mal-function.
In these cases, take the following actions;
• Make sure that ventilation fan is enough to cover all noxious gases from this place.
• Ensure enough distance from the cooking room to install the air conditioner in such a place where it may
not suck oily steam.
2. Avoid installng air conditioner in such
places where cooking oil or iron powder is
generated.
3. Avoid places where inflammable gas is
generated.
4. Avoid place where noxious gas is
generated.
5. Avoid places near high frequency
generators.
Use the ventilation fan
for smoke-collecting
hood with sufficient
capacity.
Cooking table
Air conditioner
Take enough
distance

Installation Manual 7
ENGLISH
Installation
Ceiling Dimension and Hanging Bolt Location
Level gauge
Ceiling
(Unit: mm)
TT Chassis
TU Chassis
1 285(Hanging bolt)
1 385(Ceiling opening)
50
250
600 50
466
(Ceiling opening)
1 180
448
600
250
965(Hanging bolt)
1 065(Ceiling opening)
50 50
860
448
306 400 4040
400 4040 306
354
(Hanging bolt)
466
(Ceiling opening)
354
(Hanging bolt)
Ceiling board
• The dimensions of the paper model for installation are the same as those of the ceiling opening dimensions.
• This air-conditioner uses a drain pump.
• Install the unit horizontally using a level
gauge.
• During the installation, care should be
taken not to damage electric wires.
• Select and mark the position for fixing bolts and piping hole.
• Decide the position for fixing bolts slightly tilted to the drain di-
rection after considering the direction of drain hose.
• Drill the hole for anchor bolt on the wall.
CAUTION
Set screw of
paper model (4 pieces)
Paper model
for installation
Ceiling board
70 mm
Adjust the same height
Ceiling board
Ceiling
Flat washer for M10
(accessory)
Keep the length of the bolt
from the bracket to 40 mm
Open the ceiling board
along the outer edge of the
paper model
Flat washer for M10
(accessory)
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
Nut
(W3/8 or M10)
Spring washer
(M10)
Air conditioner body
• The following parts are local purchasing.
①Hanging bolt - W 3/8 or M10
②Nut - W 3/8 or M10
③Spring washer - M10
④Plate washer - M10
Tighten the nut and bolt to prevent unit
from falling off.
CAUTION
• The following parts are local purchasing.
①Hanging bolt - W 3/8 or M10
②Nut - W 3/8 or M10
③Spring washer - M10
④Plate washer - M10

8Indoor Unit
Installation
Terminal Block Indoor
1(L) 2(N) 3 4
INDOOR
POWER INPUT
A ----BABAB
GND 12V
DRY2DRY1 INTERNET
Terminal Block of outdoor unit
IDUSODU Outdoor
Unit
• Connect the wires to the terminals on the control board individually according to the outdoor unit
connection.
• Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of
indoor unit respectively.
Wiring Connection
Make sure that the screws of the terminal are free from looseness.
WARNING
The Power cord connected to the unit should be selected according to the following
specifications.
CAUTION
After the confirmation of the above conditions, prepare the wiring as follows:
1) Never fail to have separate power specially for the air conditioner. As for the method of
wiring, follow the circuit diagram pasted on the inside of control box cover.
2) Provide a circuit breaker switch between power source and the unit.
3) The screw which fasten the wiring in the casing of electrical fittings are liable to come
loose from vibrations to which the unit is subjected during the course of transportation.
Check them and make sure that they are all tightly fastened. (If they are loose, it could give
rise to burn-out of the wires.)
4) Confirm the Specification of power source
5) Confirm that electrical capacity is sufficient.
6) Be sure that the starting voltage is maintained at more than 90 % of the rated voltage
marked on the name plate.
7) Confirm that the cable thickness is as specified in the power sources specification.
(Particularly note the relation between cable length and thickness.)
8) Do not install the leakage breaker in a place which is wet or moist.
Water or moist may cause short circuit.
9) The following troubles would be caused by voltage drop-down.
• Vibration of a magnetic switch, damage on the contact point there of, fuse breaking, disturbance
to the normal function of a overload protection device.
• Proper starting power is not given to the compressor.
CAUTION

Installation Manual 9
ENGLISH
Installation
1. Open the air outlet vane, and extract side covers.
2. Remove the air inlet panel from the decoration panel.
3. Hook decoration panel to indoor unit, using hooks attached at the backside of both side of decoration panel.
4. Arrange wires not to get caught between decoration panel and indoor unit.
5. Screw 7 fixing screws. (7,9,12 kBtu : 6 screws)
6. Connect the vane motor connector ,display connector and air inlet panel connector.
7. Install the air inlet panel (including the air filter) and side covers.
Air conditioner unit
Decorative panel
Side cover
Decorative panel
fixing screws
(hexagon M6 screws)
(tightening about 20 mm)
Air inlet panel
Air outlet vane
Plasma filter
(applied only to plasma model)
Mesh
Control box cover
The decoration panel has its installation
direction.
Before installing the decoration panel, al-
ways remove the paper template.
Air conditioner
unit
Ceiling
board
Decoration panel Decoration
panel
Fit the insulator (this part) and
be careful for cool air leakage
Good example
Air
Cool air leakage
(no good)
Bad example
Ceiling
board
Air conditioner unit
Installation of Decoration Panel (Panel Type)
Install certainly the
decoration panel.
Cool air leakage
causes sweating.
Waterdrops fall.
CAUTION

10 Indoor Unit
Installation
1. Open the air outlet vane, and extract side covers.
2. Remove the air inlet grille from the decoration panel.
3. Hook decoration panel to indoor unit, using hooks attached at the backside of both side of decoration panel.
4. Arrange wires not to get caught between decoration panel and indoor unit.
5. Screw 7 fixing screws. (7,9,12 kBtu : 6 screws)
6. Connect the vane motor connector and display connector. (Plasma connector for plasma model)
7. Install the air inlet grille (including the air filter) and side covers.
Air conditioner unit
Decorative panel
Plasma filter
(applied only to plasma model)
Mesh
Control box cover
Decorative panel
fixing screws
(hexagon M6 screws)
(tightening about 20 mm)
Side cover
Air inlet grille
Air outlet vane
The decoration panel has its installation
direction.
Before installing the decoration panel, al-
ways remove the paper template.
Air conditioner
unit
Ceiling
board
Decoration panel Decoration
panel
Fit the insulator (this part) and
be careful for cool air leakage
Good example
Air
Cool air leakage
(no good)
Bad example
Ceiling
board
Air conditioner unit
Installation of Decoration Panel (Grille Type)
Install certainly the
decoration panel.
Cool air leakage
causes sweating.
Waterdrops fall.
CAUTION

Installation Manual 11
ENGLISH
Installation

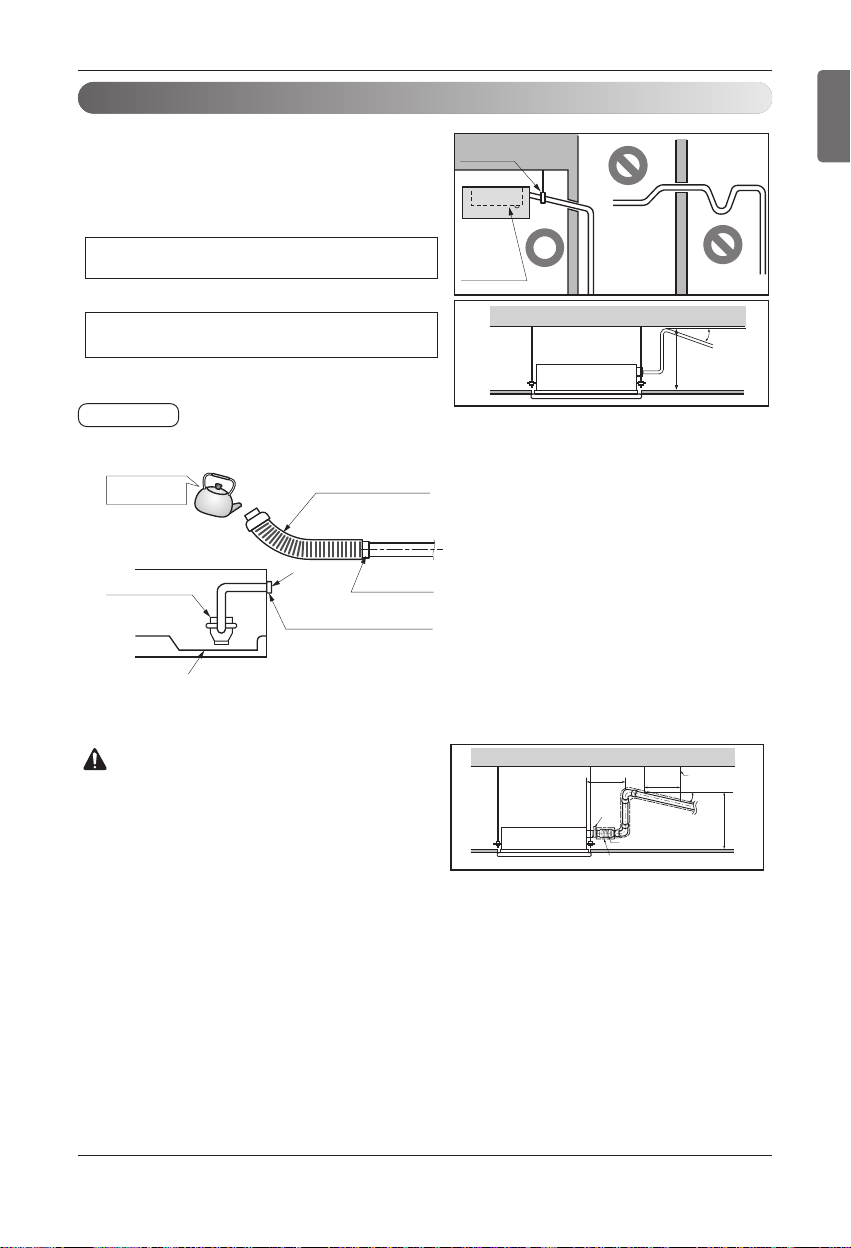

• Drain piping must have down-slope (1/50 to 1/100): be sure not to
provide up-and-down slope to prevent reversal flow.
• During drain piping connection, be careful not to exert extra force on
the drain port on the indoor unit.
• The outside diameter of the drain connection on the indoor unit is 32
mm.
• Be sure to install heat insulation on the drain piping.
Piping material: Polyvinyl chloride pipe VP-25 and pipe
fittings
The air conditioner uses a drain pump to drain water.
Use the following procedure to test the drain pump operation:
• Connect the main drain pipe to the exterior
and leave it provisionally until the test
comes to an end.
• Feed water to the flexible drain hose and
check the piping for leakage.
• Be sure to check the drain pump for normal
operating and noise when electrical wiring
is complete.
• When the test is complete, connect the flex-
ible drain hose to the drain port on the in-
door unit.
Heat insulation material: Polyethylene foam with thick-
ness more than 8 mm.
Drain Test
Maintenance
drain port
Upward
routing
not allowed
Pipe clamp
Indoor unit
1/50~1/100
Max 700 mm
Feed water
Drain pump
Drain pan
Flexible drain hose
(accessory)
Main
drain pipe
Glue the joint
Drain
port
Drain hose connection
Use the clip (accessory)
1/50~1/100 slope
Hanger
distance Hanger bracket
Max 700 mm
Flexible drain hose
Insulation
Metal
clamp
Max 300 mm 1~15 m
Drain Piping
The supplied flexible drain hose should
not be curved, neither screwed.
The curved or screwed hose may cause a
leakage of water.
CAUTION

12 Indoor Unit12 Indoor Unit
Installation
DIP Switch Setting
For Multi V Models, DIP switch 1, 2, 6, 8 must be set OFF.
CAUTION
Function Description Setting Off Setting On Default
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Communication
Cycle
Group Control
Dry Contact Mode
Installation
Heater linkage
Ventilator linkage
Vane selection
(Console)
Region selection
Etc.
N/A (Default)
N/A (Default)
Selection of Master or Slave
Selection of Dry Contact
Mode
Fan continuous operation
N/A
Selection of Ventilator link-
age
Selection of up/down side
Vane
Selection tropical region
Spare
-
-
Master
Wired/Wireless remote
controller
Selection of Manual or Auto
operation Mode
Continuous operation Removall
-
Linkage Removal
Up side + Down side Vane
General model
-
-
-
Slave
Auto
-
-
Working
Up side Vane
Only
Tropical model
-
Off
Off
Off
Off
Off
Off
Off
Off
2. Outdoor Unit
1. Indoor Unit
In case that the products meet specific conditions, “Auto addressing” function can start automatically
with the improved speed by turning the DIP switch #3 of the outdoor unit and resetting the power.
* Specific conditions:
- All names of the indoor units are ARNU****4.
- The serial number of Multi V super IV (outdoor units) is after October 2013.
DIP switch 7 segment
Outdoor Unit PCB Outdoor Unit DIP Switch

Installation Manual 13
ENGLISH
Installation
Group Control Setting
GND
Signal
12 V
Master Slave Slave Slave
Display Error Message Only connect serial signal and
GND lines between indoor units.
or
LGAP Network System
Master

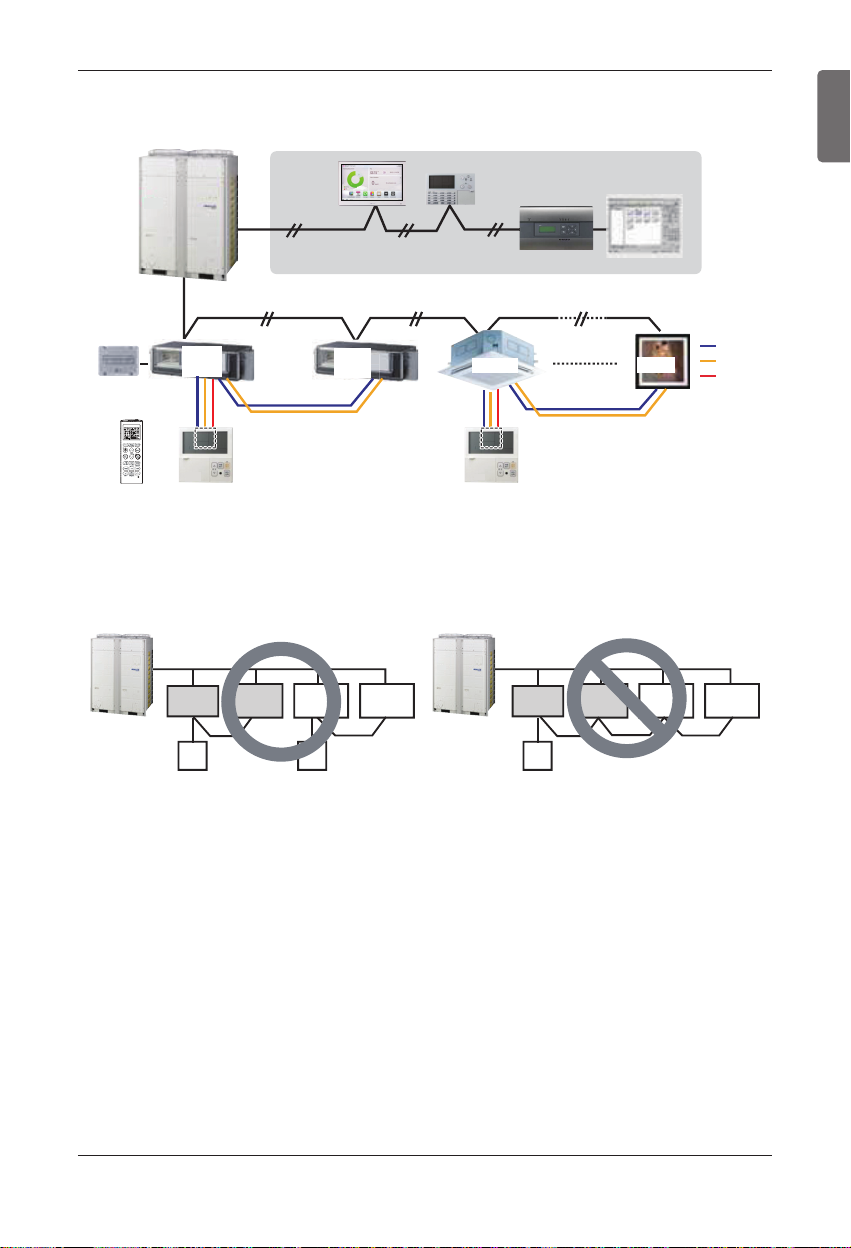

1. Group Control 1
nWired remote controller 1 + Standard Indoor Units
Some products have no DIP switch on PCB. It is possible to set indoor units to Master or Slave by
using the wireless remote controller instead of DIP switch.
For the details of the setting, please refer to the manual of the wireless remote controller.
1. It is possible to 16 indoor units(Max.) by one wired remote controller.
Set only one indoor unit to Master, set the others to Slave.
2. It is possible to connect with every type of indoor units.
3. It is possible to use wireless remote controller at the same time.
4. It is possible to connect with Dry Contact and Central controller at the same time.
- The Master indoor unit is possible to recognize Dry Contact and Central Controller only.
5. In case that any error occurs at indoor unit, the error code is displayed on the wired remote
controller.
It is possible to control the other indoor units except the error units.
nDIP Switch in PCB
¿Master Setting
- No. 3 Off
¡Slave Setting
- No. 3 On
Indoor Unit DIP Switch

14 Indoor Unit14 Indoor Unit
Installation
GND
Signal
12 V
Slave
Slave
Master
or
Donʼt connect serial 12V line
LGAP Network System
Master
MasterMaster
Display Error Message
h It is possible to connect indoor units since Feb. 2009.
h It can be the cause of malfuctions when there is no setting of master and slave.
hIn case of Group Control, it is possible to use following functions.
- Selection of operation, stop or mode
- Temperature setting and room temperature check
- Current time change
- Control of flow rate (High/Middle/Low)
- Reservation settings
It is not possible to use some functions.
hIt is possible to control 16 indoor units(Max.) with the master wired remote control.
hOther than those, it is same with the Group Control 1.
2. Group Control 2
nWired remote controllers + Standard Indoor Units

Installation Manual 15
ENGLISH
Installation
GND
Signal
12 V
LGAP Network System
FAU
Master
FAU
or
Slave
Master
Slave
Master
Master
Display Error Message Display Error Message
NM
FAU Standard Standard FAU FAU Standard Standard FAU
* FAU : Fresh Air Intake Unit
Standard: Standard Indoor Unit
hIn case of connecting with standard indoor unit and Fresh Air Intake Unit, separate Fresh
Air Intake Unit with standard units. (N, M ≤ 16) (Because setting temperature are different.)
hOther than those, it is same with Group Control 1.

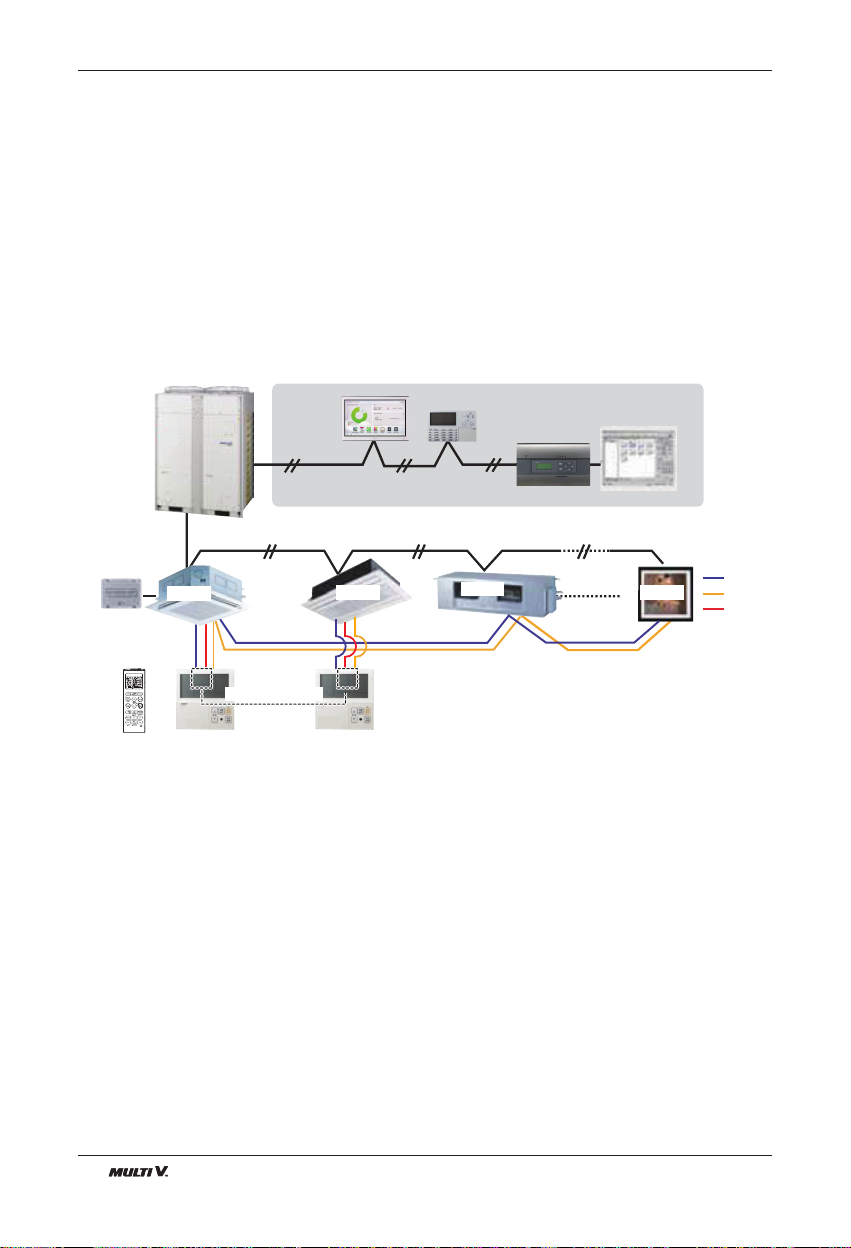

3. Group Control 3
nMixture connection with indoor units and Fresh Air Intake Unit

16 Indoor Unit16 Indoor Unit
Installation
LGAP Network System
Master
Master Slave
GND
Signal
12 V
Slave
Slave
Slave
or
Display Error Message

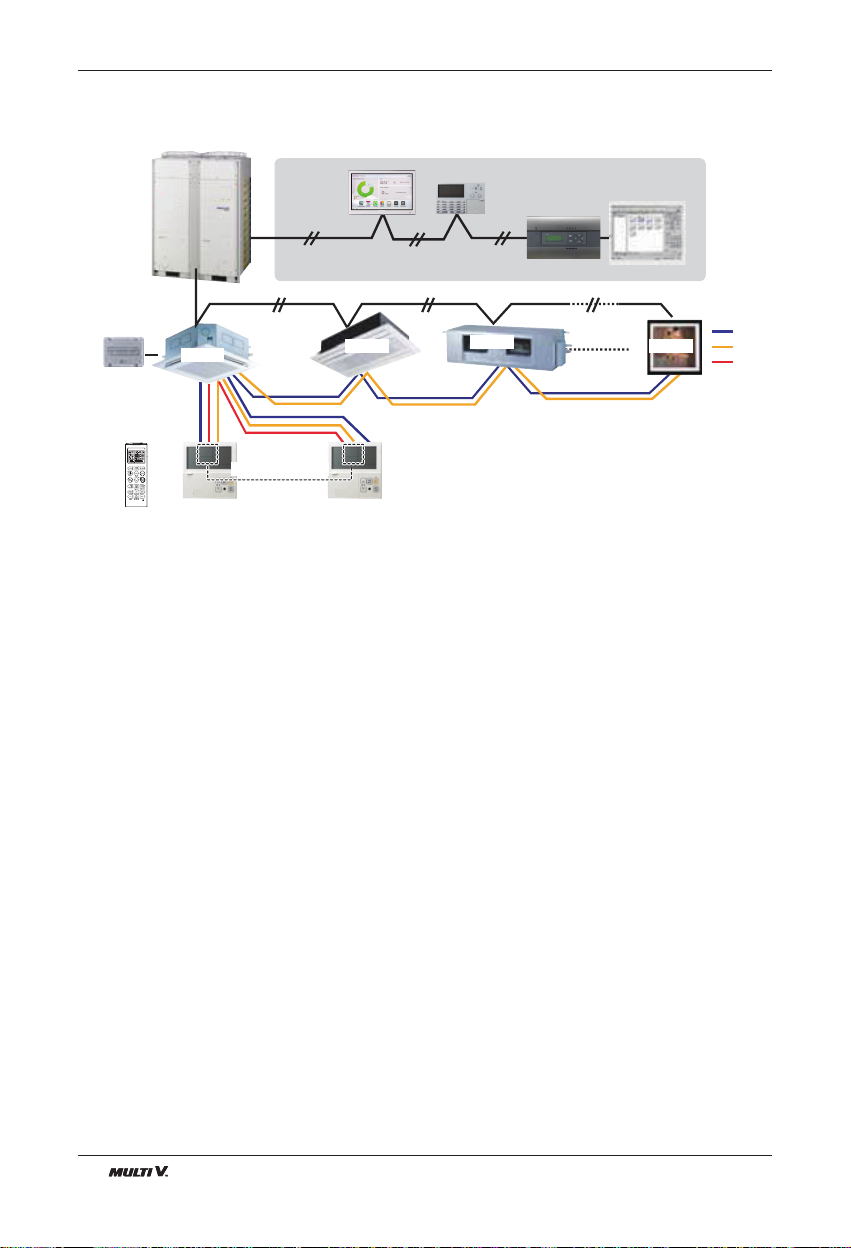

4. 2 Remote Control
nWired remote controller 2 + Indoor unit 1
1. It is possible to connect two wired remote controllers (Max.) with one indoor unit.
Set only one indoor unit to Master, set the others to Slave.
Set only one wired remote controller to Master, set the others to Slave.
2. Every types of indoor unit is possible to connect two remote controller.
3. It is possible to use wireless remote controller at the same time.
4. It is possible to connect with Dry Contact and Central controller at the same time.
5. In case that any error occurs at indoor unit, the error code is displayed on the wired
remote controller.
6. There isnʼt limits of indoor unit function.

Installation Manual 17
ENGLISH
Installation

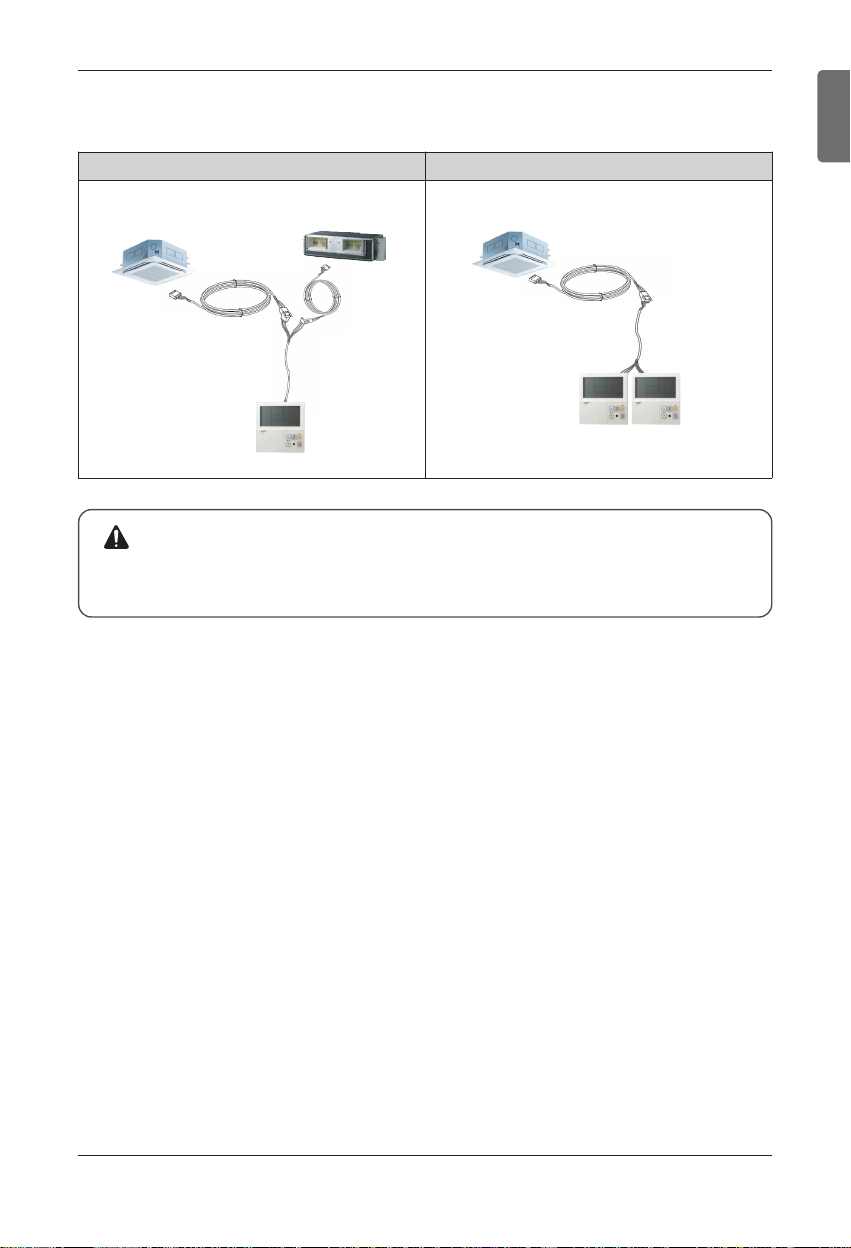

Indoor unit 2 EA +Wired remote controller 1 EA Indoor unit 1 EA +Wired remote controller 2 EA
h PZCWRCG3 cable used for connection h PZCWRC2 cable used for connection
Slave
Master
Master
PZCWRCG3
Master Slave
PZCWRC2
• Apply totally enclosed noncombustible conduit in case of local building code Requiring
plenum cable usage.
CAUTION
5. Accessories for group control setting
It is possible to set group control by using below accessories.

18 Indoor Unit18 Indoor Unit
Installation

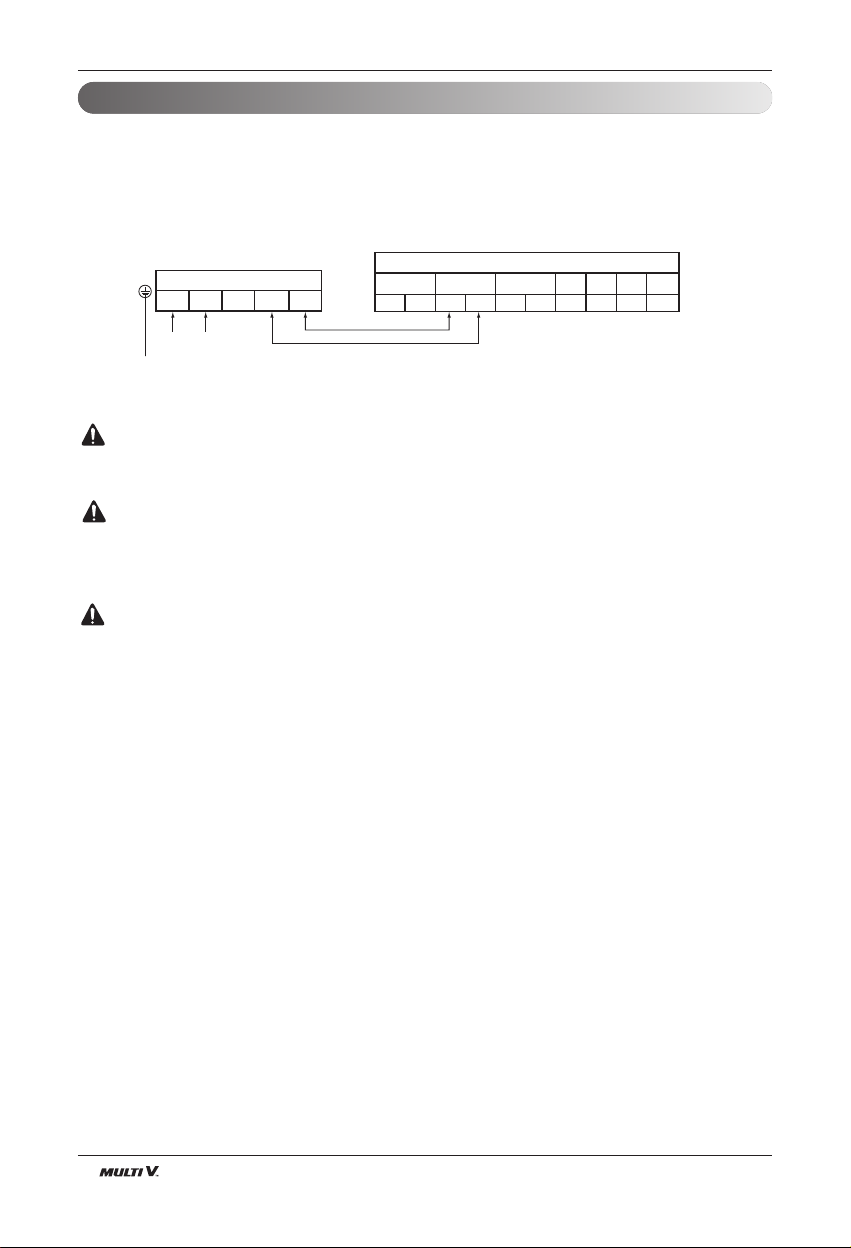

The A-weighted sound pressure emitted by this product is below 70 dB.
** The noise level can vary depending on the site.
The figures quoted are emission level and are not necessarily safe working levels. Whilst there is a cor-
relation between the emission and exposure levels, this cannot be used reliably to determine whether
or not further precautions are required. Factor that influence the actual level of exposure of the work-
force include the characteristics of the work room and the other sources of noise, i.e. the number of
equipment and other adjacent processes and the length of time for which an operator exposed to the
noise. Also, the permissible exposure level can vary from country to country. This information, however,
will enable the user of the equipment to make a better evaluation of the hazard and risk.
Model Designation
Airborne Noise Emission
Limiting concentration is the limit of Freon gas concentration where immediate measures can be
taken without hurting human body when refrigerant leaks in the air. The limiting concentration shall
be described in the unit of kg/m3(Freon gas weight per unit air volume) for facilitating calculation
nCalculate refrigerant concentration
Refrigerant concentration =
Total amount of replenished refrigerant in refrigerant facility (kg)
Capacity of smallest room where indoor unit is installed (m3)
Limiting concentration
ARN U G24 CTT 4
Serial Number
Chassis Name
Electrical Ratings
1:1 Ø, 115 V, 60 Hz
6:1 Ø, 220 - 240 V, 50 Hz
3:1 Ø, 208/230 V, 60 Hz
2:1 Ø, 220 V, 60 Hz
7:1 Ø, 100 V, 50/60 Hz
G:
1 Ø, 220 - 240 V, 50 Hz/1 Ø, 220 V, 60 Hz
Total Cooling Capacity in Btu/h
EX) 5 000 Btu/h ➝'05' 18 000 Btu/h ➝'18'
Combination of Inverter Type and Cooling Only or Heat Pump
N: AC Inverter and H/P V: AC Inverter and C/O
U: DC Inverter and H/P and C/O
System with Indoor Unit using R410A
❈ LGETA:U Ex) URN
Combinations of functions
A:Basic function L: Neo Plasma(Wall Mounted)
C: Plasma(Ceiling Cassette)
G: Low Static K: High Sensible Heat
U: Floor Standing without Case
SE/S8 - R: Mirror V: Silver B:Blue(ART COOL Type Panel Clolr)
SF - E: Red V: Silver G:Gold 1: Kiss (Photo changeable)
Q: Console Z: Fresh Air Intake Unit
Limiting concentration: 0.44 kg/m3(R410A)
