LG ATNH09GRLE2 User manual

Air Conditioner
SVC MANUAL(General)
CAUTION
Before Servicing the unit, read the safety precautions in General SVC manual.
Only for authorized service personnel.
Internal Use Only
http://biz.lgservice.com

- 2 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Air Conditioner Service Manual
TABLE OF CONTENTS
Part 1 General Information ..........................................................................................................3
1. Safety Precautions........................................................................................................4
2. Model Line Up................................................................................................................7
3. Nomenclature ..............................................................................................................11
Part 2 Functions & Controls......................................................................................................15
1. List of Functions & Accessory ..................................................................................16
2. Air Flow .......................................................................................................................27
3. Air Purifying.................................................................................................................29
4. Installation Functions.................................................................................................30
5. Reliability .....................................................................................................................41
6. Convenience Functions & Controls .........................................................................42
7. Special Function & KIT...............................................................................................50
Part 3 Basic Control ..................................................................................................................53
1. Normal operation ........................................................................................................54
2 Compressor control ....................................................................................................54
3. EEV( Electronic Expansion Valve) control ...............................................................54
Part 4 Trouble Shooting Guide ...............................................................................................55
1. Self-diagnosis Function ............................................................................................56
2. Pump Down ................................................................................................................58
3. Evacuation (All amount of refrigerant leaked) ........................................................59
4. Gas Charging (After Evacuation)..............................................................................60
5. Cycle Part....................................................................................................................61
6. Electronic Parts..........................................................................................................62

- 3 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
1. Safety Precautions ............................................................................................................4
2. Model Line Up .....................................................................................................................7
3. Nomenclature....................................................................................................................11
Part 1 General Information

- 4 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information
1. Safety Precautions
1.1 Cautions in Repair
To prevent injury to the user or other people and property damage, the following instructions must be followed.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the follow-
ing indications.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
nMeanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
Dangerous Voltage
Be sure to disconnect the power cable plug from the plug socket before disas-
sembling the equipment for a repair.Internal components and circuit boards are at
main potential when the equipment is connected to the power cables. This volt-
age is extremely dangerous and may cause death or severe injury if come in con-
tact with it.
Do not touch the discharging refrigerant gas during the repair work.
The discharging refrigerant gas.The refrigerant gas can cause frostbite.
Release the refrigerant gas completely at a well-ventilated place first.
Otherwise, when the pipe is disconnected, refrigerant gas or refrigerating
machine oil discharges and it Can cause injury.
When the refrigerant gas leaks during work, execute ventilation. If the refrigerant
gas touches to a fire, poisonous gas generates. A case of leakage of the refriger-
ant and the closed room full with gas is dangerous because a shortage of oxygen
occurs. Be sure to execute ventilation.
When removing the front panel or cabinet, execute short-circuit and discharge
between high voltage capacitor terminals. If discharge is not executed, an electric
shock is caused by high voltage resulted in a death or injury.
Do not turn the air-conditioner ON or OFF by plugging or unplugging the power
plug. There is risk of fire or electrical shock.

- 5 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information
Do not turn on the breaker under condition that front panel and cabinet are
removed.
Be sure to earth the air conditioner with an earthing conductor connected to the
earthing terminal.
Conduct repair works after checking that the refrigerating cycle section has
cooled down sufficiently. Otherwise, working on the unit, the hot refrigerating
cycle section can cause burns.
Do not tilt the unit when removing panels. Otherwise, the water inside the unit
can spill and wet floor.
Do not use the welder in a well-ventilated place. Using the welder in an enclosed
room can cause oxygen deficiency.
Be sure to turn off power switch before connect or disconnect connector, or parts
damage may be occurred.
Do not use a defective or underrated circuit breaker. Use the correctly rated
breaker and fuse. Otherwise there is a risk of fire or electric shock.
Install the panel and the cover of control box securely. Otherwise there is risk of
fire or electric shock due to dust, water etc.
Indoor/outdoor wiring connections must be secured tightly and the cable should
be routed properly so that there is no force pulling the cable from the connection
terminals. Improper or loose connections can cause heat generation or fire.
Do not touch, operate, or repaire the product with wet hands. Hoding the plug by
hand when taking out. Otherwise there is risk of electric shock or fire.
Use a vacuum pump or Inert (nitrogen) gas when doing leakage test or air
purge. Do not compress air or Oxygen and Do not use Flammable gases.
Otherwise, it may cause fire or explosion.
- There is the risk of death, injury, fire or explosion.

- 6 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information
1.2 Inspections after Repair
Check to see if the parts are mounted correctly and wires are connected.
Improper installation and connections can cause an electric shock or an injury.
Check the installation platform or frame has corroded. Corroded installation plat-
form or frame can cause the unit to fall, resulting in injury.
Be sure to check the earth wire is correctly connected.
After the work has finished, be sure to do an insulation tset to check the resis-
tance is 2[Mohm] or more between the charge section and the non-charge metal
section (Earth position). If the resistance value is low, a disaster such as a leak or
electric shock is caused at userʼs side.
Check the drainage of the indoor unit after the repair. If drainage is faulty the
water to enter the room and wet floor.
Check to see if the power cable plug is not dirty or loose. If the plug is dust or
loose it can cause an electrical shock or fire.
Do not use a joined power cable or extension cable, or share the same power
outlet with other electrical appliances. otherwise, it can cause an electrical shock,
excessive heat generation or fire.
Do not insert hands or other objects through the air inlet or outlet while the prod-
uct is operating. There are sharp and moving parts that could cause personal
injury.
Do not block the inlet or outlet of air flow. It may cause product failure

- 7 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
2. Model Line Up
Part 1 General Information
2.1 Indoor units
Category Chassis
Name
Capacity Index [kW (kBtu/h)]
2.5
(9)
3.5
(12)
5.0
(18)
7.1
(24)
8.0
(30)
10.0
(36)
12.5
(42)
14.0
(48)
15.0
(60)
Ceiling
Cassette 4-Way
TR
ATNH09GRLE2
[CT09 NR2
ATNH12GRLE2
[CT12 NR2]
TQ
ATNH18GQLE2
[CT18 NQ2]
TP
ATNH24GPLE2
[CT24 NP2]
ATNH30GPLE2
[UT30 NP2]
TN
ATNH36GNLE2
[UT36 NN2
TM
ATNH42GMLE2
[UT42 NM2]
ATNH48GMLE2
[UT48 NM2]
ATNH60GMLE2
[UT60 NM2
Ceiling
Concealed
Duct
High
Static
Pressure
BH
ABNH18GHLA2
[CB18 NH2]
ABNH24GHLA2
[CB24 NH2]
BG
ABNH30GGLA2
[UB30 NG2]
ABNH36GGLA2
[UB36 NG2]
BR
ABNH42GRLA2
[UB42 NR2]
ABNH48GRLA2
[UB48 NR2]
ABNH60GRLA2
[UB60 NR2]
High
Static
Pressure
M1
ABNW18GM1A0
[CM18 N14]
ABNW24GM1A0
[CM24 N14]
ABNW30GM1A0
[UM30 N14]
M2
ABNW36GM2A0
[UM36 N24]
ABNW42GM2A0
[UM42 N24]
M3
ABNW48GM3A0
[UM48 N34]
ABNW60GM3A0
[UM60 N34]
Low
Static
Pressure
L1
ABNH09GL1A2
[CB09L N12]
L2
ABNH12GL2A2
[CB12L N22]
ABNH18GL2A2
[CB18L N22]
L3
ABNH24GL3A2
[CB24L N32]
Ceiling & Floor VE
AVNH09GELA2
[CV09 NE2]
AVNH12GELA2
[CV12 NE2]
Ceiling Suspended
VJ
UVNH18GJLA2
[CV18 NJ2]
UVNH24GJLA2
[CV24 NJ2]
UVNH30GJLA2
[UV30 NJ2]
VK
UVNH36GKLA2
[UV36 NK2]
VL
UVNH42GLLA2
[UV42 NL2]
UVNH48GLLA2
[UV48 NL2]
UVNH60GLLA2
[UV60 NL2]
Console QA
AQNH09GALA0
[CQ09 NA0]
AQNH12GALA0
[CQ12 NA0]
AQNH18GALA0
[CQ18 NA0]
Floor standing PT2
APNH48GTLA0
[UP48 NT2]
Wall mounted SV
AJNW30GVLA0
[UJ30 NV2]
AJNW36GVLA0
[UJ36 NV2]

- 8 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

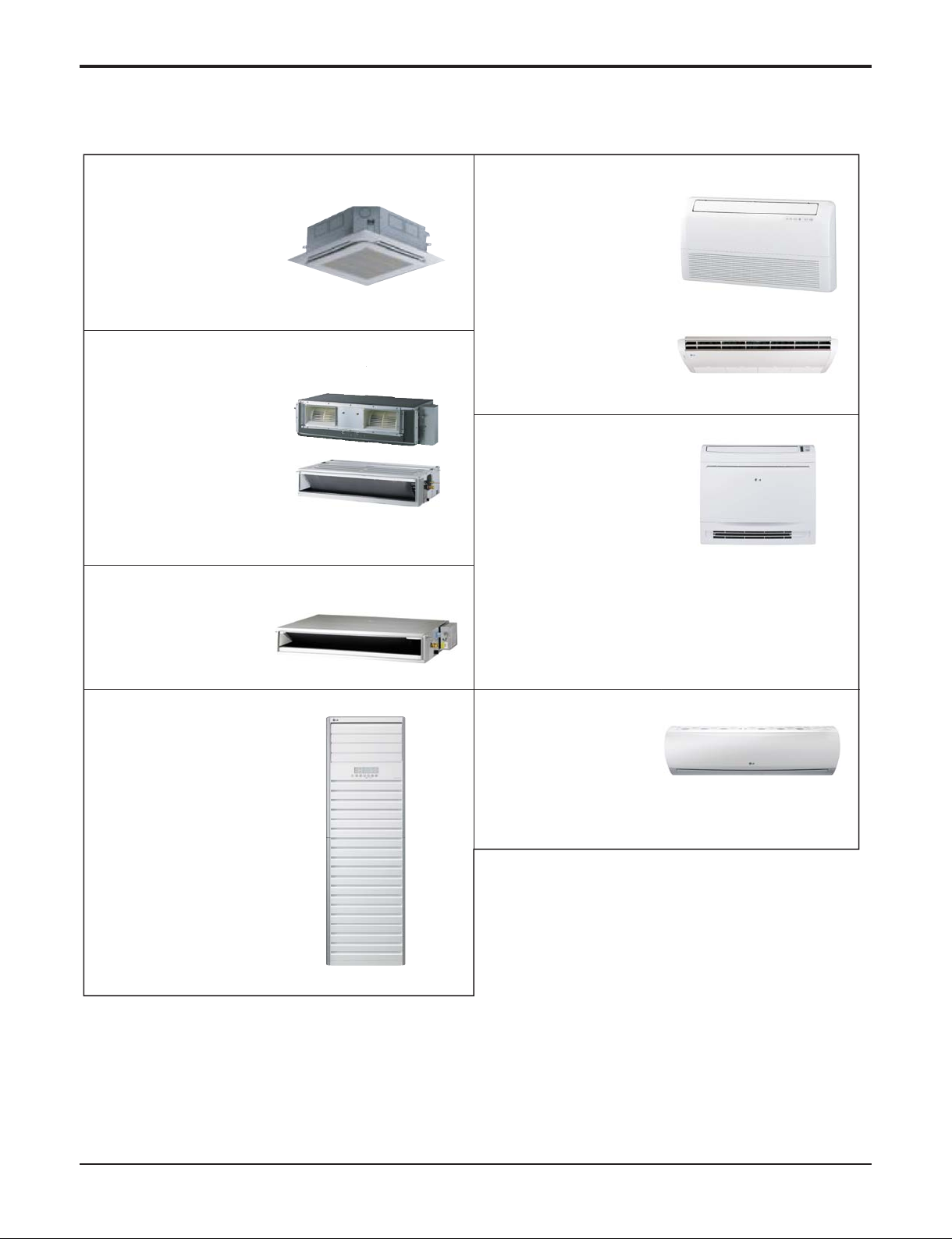

Part 1 General Information
• Ceiling Concealed Duct – High static pressure
ABNH18GHLA2 [CB18 NH2]
ABNH24GHLA2 [CB24 NH2]
ABNH30GGLA2 [UB30 NG2]
ABNH36GGLA2 [UB36 NG2]
ABNH42GRLA2 [UB42 NR2]
ABNH48GRLA2 [UB48 NR2]
ABNH60GRLA2 [UB60 NR2]
ABNW18GM1A0 [CM18 N14]
ABNW24GM1A0 [CM24 N14]
ABNW30GM1A0 [UM30 N14]
ABNW36GM2A0 [UM36 N24]
ABNW42GM2A0 [UM42 N24]
ABNW48GM3A0 [UM48 N34]
ABNW60GM3A0 [UM60 N34]
• Ceiling Concealed Duct – Low static pressure
ABNH09GL1A2 [CB09L N12]
ABNH12GL2A2 [CB12L N22]
ABNH18GL2A2 [CB18L N22]
ABNH24GL3A2 [CB24L N32]
• Ceiling Cassette 4-way
ATNH09GRLE2 [CT09 NR2]
ATNH12GRLE2 [CT12 NR2]
ATNH18GQLE2 [CT18 NQ2]
ATNH24GPLE2 [CT24 NP2]
ATNH30GPLE2 [UT30 NP2]
ATNH36GNLE2 [UT36 NN2]
ATNH42GMLE2 [UT42 NM2]
ATNH48GMLE2 [UT48 NM2]
ATNH60GMLE2 [UT60 NM2]
• Ceiling & Floor
• Ceiling Suspended
AVNH09GELA2 [CV09 NE2]
AVNH12GELA2 [CV12 NE2]
UVNH18GJLA2 [CV18 NJ2]
UVNH24GJLA2 [CV24 NJ2]
UVNH30GJLA2 [UV30 NJ2]
UVNH36GKLA2 [UV36 NK2]
UVNH42GLLA2 [UV42 NL2]
UVNH48GLLA2 [UV48 NL2]
UVNH60GLLA2 [UV60 NL2]
• Console
AQNH09GALA0 [CQ09 NA0]
AQNH12GALA0 [CQ12 NA0]
AQNH18GALA0 [CQ18 NA0]
• Wall mounted
AJNW30GVLA0 [UJ30 NV2]
AJNW36GVLA0 [UJ36 NV2]
• Floor Standing
APNH48GTLA0 [UP48 NT2]

- 9 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information
2.2 Outdoor units
DC Inverter AUUW096D
[UU09W ULD]
AUUW126D
[UU12W ULD]
AUUW186D2
[UU18W UE2]
No. of connectable indoor units 1
Total capacity index of
connectable indoor units(kW) 2.5 3.5 5.0
Power supply 1Ø, 220 - 240V, 50Hz
Chassis
DC Inverter AUUW246D2
[UU24W U42]
AUUW306D2
[UU30W U42]
AUUW366D2
[UU36W UO2]
No. of connectable indoor units 1
Total capacity index of
connectable indoor units(kW) 7.1 8.0 10.0
Power supply 1Ø, 220 - 240V, 50Hz
Chassis
DC Inverter Synchro AUUW426D2
[UU42W U32]
AUUW486D2
[UU48W U32]
AUUW606D2
[UU60W U32]
No. of connectable indoor units 1 ~ 4
Total capacity index of
connectable indoor units(kW) 12.5 14.0 15.0
Power supply 1Ø, 220 - 240V, 50Hz
Chassis

Part 1 General Information
- 10 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
DC Inverter AUUW368D2
[UU37W UO2]
No. of connectable indoor units 1
Total capacity index of
connectable indoor units(kW) 10.0
Power supply 3Ø, 380 - 415V, 50Hz
Chassis
DC Inverter AUUW428D2
[UU43W U32]
AUUW488D2
[UU49W U32]
AUUW608D2
[UU61W U32]
No. of connectable indoor units 1 ~ 4
Total capacity index of
connectable indoor units(kW) 12.5 14.0 15.0
Power supply 3Ø, 380 - 415V, 50Hz
Chassis

- 11 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information

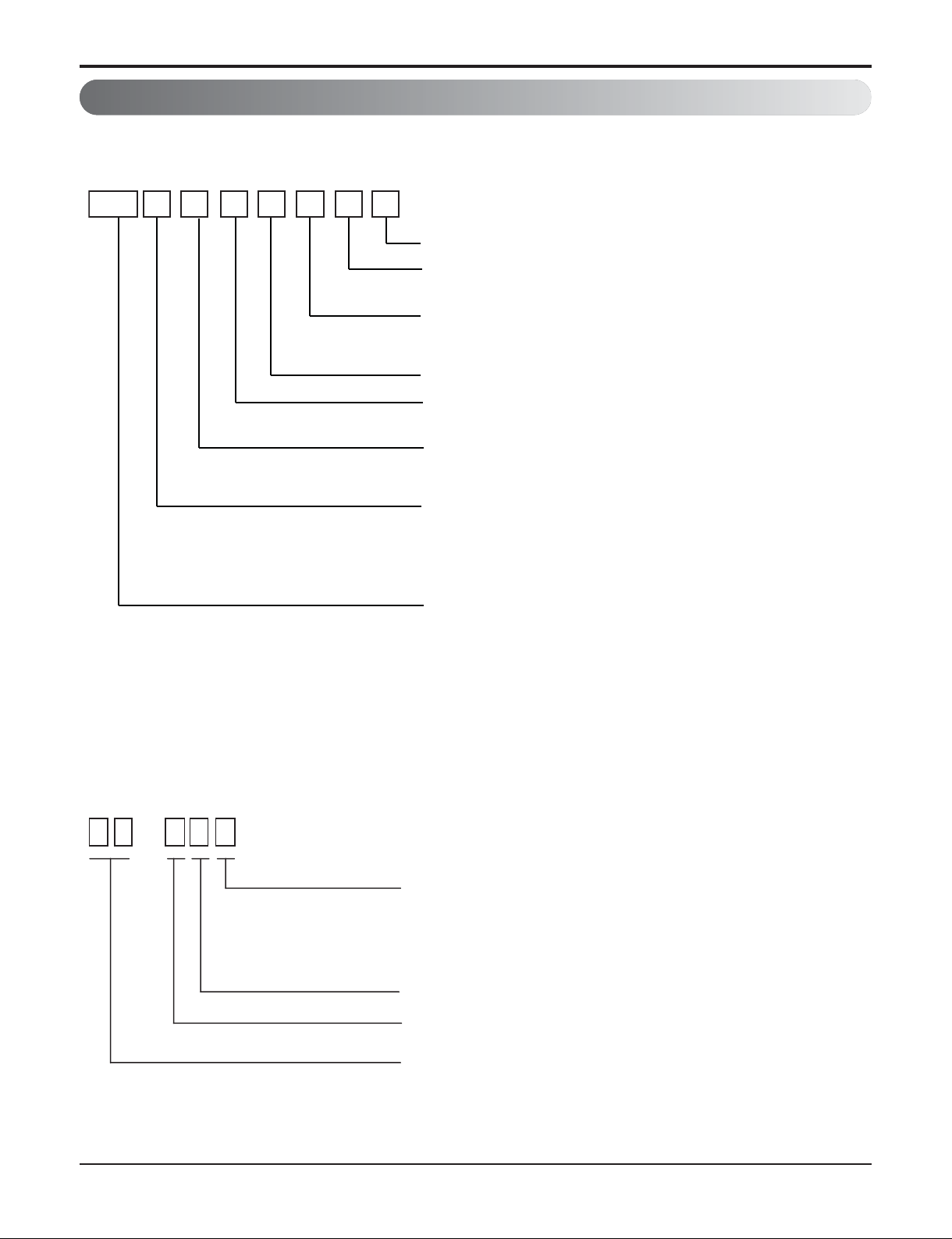

3. Nomenclature
3.1 Indoor Unit(Global)
PT- U M C
Functions
A:BASIC
C:Plasma
E:Elevation Grille
F:Elevation Grille+Plasma
D: Art Panel
Indoor Unit Chassis
Model Type
C : Cooling Only H : Heat Pump U: Single A
Decoration Panel of Ceiling Cassette Type Indoor Unit
Serial number
Function
A : Basic, C/L : Plasma, E : Elevation grille
Look
L : Basic
Chassis name only for Low Static Duct
Chassis name
Electrical rating
G : 220~240/50,60/1
Nominal Capacity
Ex) 9,000 Btu/h Class → '09',
18,000 Btu/h Class → '18'
Model type
C : C/O
H : H/P
Q : DC Inverter C/O
W : DC Inverter H/P
A*N / U*N : Indoor units using R410A
* Indicates Product type
T : Ceiling Cassette Air Conditioner
B : Ceiling Concealed Duct Air Conditioner
V : Ceiling & Floor Air Conditioner
J : Single Split Wall Mounted Air Conditioner
P : Floor Standing Air Conditioner
Q : Console Air Conditioner
ATN H G09 1LA2
3.2 Decoration panel(For ceiling cassette models)

- 12 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
A U U W 2 4 6D2
Model Type
D : Standard Inverter
Serial number
Electric standard (Phase, Volts, Freq)
6 : 220~240/50/1
8 : 380~415/50/3
G : 220~240/50,60/1
L : 380~415/50,60/3
Indicates that this is a
R410A outdoor unit
Model type
C : C/O
H : H/P
Q : DC Inverter C/O
W : DC Inverter H/P
Nominal cooling capacity in kBtu/h
18 :
24 :
30 :
36 :
42 :
48 :
60 :
18kBtu/h
24kBtu/h
30kBtu/h
36kBtu/h
42kBtu/h
48kBtu/h
60kBtu/h
Part 1 General Information
3.3 Outdoor Unit(Global)

- 13 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information
PT- U M C
Functions
A: Basic C:For Indoor Unit with Plasma Air Purifier.
Indoor Unit Chassis
Model Type
C : Cooling Only H : Heat Pump U: Single A
Decoration Panel of Ceiling Cassette Type Indoor Unit
Serial number
Indoor Unit / Outdoor Units
N : Indoor Unit
U : Outdoor Unit
L : Low Static Duct
Nominal Capacity
Ex) 9,000 Btu/h Class →'09',
18,000 Btu/h Class →'18'
Product type
T : Ceiling Cassette Air Conditioner
B : Ceiling Concealed Duct Air Conditioner
V : Ceiling & Floor Air Conditioner
J : Single Split Wall Mounted Air Conditioner
P : Floor Standing Air Conditioner
Q : Console Air Conditioner
Connectable Outdoor unit type
U : Indoor units only for Single A systems
C : Common Indoor Unit for Multi and Single A
Chassis name
BU NL 2 109
3.4 Indoor Unit(Europe)
3.5 Decoration panel(For ceiling cassette models)

- 14 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 1 General Information
3.6 Outdoor Unit(Europe)
U U 2 4 W U4 2
Cooling capacity (kBtu/h)
Type
U : Outdoor units
Model type
U : Universal model
Model type
Serial number
Outdoor unit chassis name
W : Inverter

- 15 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
1. List of Functions & Accessory......................................................................................16
2. Air flow ............................................................................................................................27
2.1 Auto swing (left & right) ...............................................................................................27
2.2 Auto swing (up & down) ..............................................................................................27
2.3 Chaos swing (up/down)...............................................................................................27
2.4 Air flow step.................................................................................................................28
2.5 Chaos wind (auto wind)...............................................................................................28
2.6 Jet Cool Mode Operation ............................................................................................28
2.7 Swirl wind Swing .........................................................................................................28
3. Air purifying ....................................................................................................................29
3.1 PLASMA Air Purifying System ....................................................................................29
4. Installation Functions ....................................................................................................30
4.1 E.S.P. (External Static Pressure) Setting ....................................................................30
4.2 High Ceiling operation.................................................................................................40
5. Reliability ........................................................................................................................41
5.1 Hot start.......................................................................................................................41
5.2 Self-diagnosis Function...............................................................................................41
5.3 Soft dry operation........................................................................................................41
6. Convenience Functions & Controls .............................................................................42
6.1 Cooling & heating Operations .....................................................................................42
6.2 Auto cleaning operation ..............................................................................................43
6.3 Auto changeover operation .........................................................................................43
6.4 Auto restart Opeartion.................................................................................................43
6.5 Child Lock Function.....................................................................................................44
6.6 Forced operation .........................................................................................................44
6.7 Group Control..............................................................................................................45
6.8 Sleep Timer Operation ................................................................................................46
6.9 Timer(On/Off) ..............................................................................................................46
6.10 Weekly Program........................................................................................................47
6.11 Two Thermistor Control .............................................................................................49
7. Special Function & KIT ..................................................................................................50
7.1 Low Ambient control....................................................................................................50
7.2 Space Control .............................................................................................................50
7.3 Auto Elevation Grille....................................................................................................50
Part 2 Functions & Controls

- 16 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
1. List of Functions & Accessory
1. 4-Way Ceiling Cassette Indoor
Category Functions ATNH09GRLE2 [CT09 NR2], ATNH12GRLE2 [CT12 NR2],
ATNH18GQLE2 [CT18 NQ2]
Air flow
Air supply outlet 4
Airflow direction control (left & right) X
Airflow direction control (up & down) Auto
Auto swing (left & right) X
Auto swing (up & down) O
Airflow steps (fan/cool/heat) 4 / 5 / 4
Chaos wind(auto wind) O
Jet cool/heat O / X
Swirl wind O
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier PTPKQ0
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump O
E.S.P. control* X
Electric heater X
High ceiling operation* O
Auto Elevation Grille* X
Reliability
Hot start O
Self diagnosis O
Soft dry operation O
Convenience
Auto changeover** O**
Auto cleaning X
Auto operation(artificial intelligence)** O**
Auto Restart O
Child lock* O
Forced operation O
Group control* O
Sleep mode O
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Individual
control
Wired remote controller O
Deluxe wired remote controller PQRCUDS0 / PQRCUDS0B / PQRCUDS0S
Simple wired remote controller PQRCVCL0Q / PQRCVCL0QW
Simple Wired remote controller(for hotel use) PQRCHCA0Q / PQRCHCA0QW
Wireless remote controller PQWRHQ0FDB
CAC network
function
General central controller (Non LGAP) X
Network Solution(LGAP) O
Dry contact PQDSA(1)/PQDSB(1) / PQDSBC
PI 485(for Indoor Unit) X
Special
function kit
Zone controller X
CTI(Communication transfer interface) X
Electronic thermostat X
Others Remote temperature sensor PQRSTA0
Telecom shelter controller X

- 17 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
Category Functions
ATNH24GPLE2 [CT24 NP2], ATNH30GPLE2 [UT30 NP2],
ATNH36GNLE2 [UT36 NN2], ATNH42GMLE2 [UT42 NM2],
ATNH48GMLE2 [UT48 NM2], ATNH60GMLE2 [UT60 NM2]
Air flow
Air supply outlet 4
Airflow direction control (left & right) X
Airflow direction control (up & down) Auto
Auto swing (left & right) X
Auto swing (up & down) O
Airflow steps (fan/cool/heat) 4 / 5 / 4
Chaos wind(auto wind) O
Jet cool/heat O / X
Swirl wind O
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier PTPKM0
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump O
E.S.P. control* X
Electric heater X
High ceiling operation* O
Auto Elevation Grille* PTEGM0
Reliability
Hot start O
Self diagnosis O
Soft dry operation O
Convenience
Auto changeover** O**
Auto cleaning X
Auto operation(artificial intelligence)** O**
Auto Restart O
Child lock* O
Forced operation O
Group control* O
Sleep mode O
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Individual
control
Wired remote controller O
Deluxe wired remote controller PQRCUDS0 / PQRCUDS0B / PQRCUDS0S
Simple wired remote controller PQRCVCL0Q / PQRCVCL0QW
Simple Wired remote controller(for hotel use) PQRCHCA0Q / PQRCHCA0QW
Wireless remote controller PQWRHQ0FDB
CAC network
function
General central controller (Non LGAP) X
Network Solution(LGAP) O
Dry contact PQDSA(1)/PQDSB(1) / PQDSBC
PI 485(for Indoor Unit) X
Special
function kit
Zone controller X
CTI(Communication transfer interface) X
Electronic thermostat X
Others Remote temperature sensor PQRSTA0
Telecom shelter controller X

- 18 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
2. Ceiling Concealed Duct Indoor
Category Functions
ABNH18GHLA2 [CB18 NH2], ABNH24GHLA2 [CB24 NH2],
ABNH30GGLA2 [UB30 NG2], ABNH36GGLA2 [UB36 NG2],
ABNH42GRLA2 [UB42 NR2], ABNH48GRLA2 [UB48 NR2],
ABNH60GRLA2 [UB60 NR2]
Air flow
Air supply outlet 2
Airflow direction control (left & right) X
Airflow direction control (up & down) X
Auto swing (left & right) X
Auto swing (up & down) X
Airflow steps (fan/cool/heat) 3 / 3 / 3
Chaos wind(auto wind) X
Jet cool/heat O / X
Swirl wind X
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier X
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump ABDPG
E.S.P. control* O
Electric heater X
High ceiling operation* X
Auto Elevation Grille* X
Reliability
Hot start O
Self diagnosis O
Soft dry operation O
Convenience
Auto changeover** O**
Auto cleaning X
Auto operation(artificial intelligence)** O**
Auto Restart O
Child lock* O
Forced operation X
Group control* O
Sleep mode X
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Individual
control
Standard Wired remote controller O
Deluxe wired remote controller X
Simple wired remote controller X
Simple Wired remote controller(for hotel use) X
Wireless remote controller X
CAC network
function
General central controller (Non LGAP) X
Network Solution(LGAP) O
Dry contact PQDSA(1)/PQDSB(1) / PQDSBC
PI 485(for Indoor Unit) X
Special
function kit
Zone controller ABZCA
CTI(Communication transfer interface) X
Electronic thermostat X
Others Remote temperature sensor PQRSTA0
Telecom shelter controller X

- 19 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Category Functions
ABNW18GM1A0 [CM18 N14], ABNW24GM1A0 [CM24 N14]
ABNW30GM1A0 [UM30 N14], ABNW36GM2A0 [UM36 N24]
ABNW42GM2A0 [UM42 N24], ABNW48GM3A0 [UM48 N34]
ABNW60GM3A0 [UM60 N34]
Air flow
Air supply outlet 1
Airflow direction control (left & right) X
Airflow direction control (up & down) X
Auto swing (left & right) X
Auto swing (up & down) X
Airflow steps (fan/cool/heat) 3 / 3 / 3
Chaos wind(auto wind) X
Jet cool/heat X / X
Swirl wind X
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier X
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump ABDPG
E.S.P. control* O
Electric heater X
High ceiling operation* X
Auto Elevation Grille* X
Reliability
Hot start O
Self diagnosis O
Soft dry operation O
Convenience
Auto changeover** O
Auto cleaning X
Auto operation(artificial intelligence)** O
Auto Restart O
Child lock* O
Forced operation X
Group control* O
Sleep mode X
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Individual
control
Standard Wired remote controller O
Deluxe wired remote controller X
Simple wired remote controller X
Simple Wired remote controller(for hotel use) X
Wireless remote controller PQWRHQ0FDB
Network
function
General central controller (Non LGAP) X
Network Solution(LGAP) O
Dry contact PQDSA(1)/PQDSB(1) / PQDSBC
PI 485(for Indoor Unit) X
Special
function kit
Zone controller ABZCA
CTI(Communication transfer interface) X
Electronic thermostat X
Others
Remote temperature sensor PQRSTA0
Group control wrie PZCWRCG3
Telecom shelter controller X
Note
1. * : These functions need to connect the wired remote controller.
2. ** : Auto Changeover function can be operated when connected with Single A.
Auto Operation function can be operated whne connected with Mutli F/FDX.
3. Group control, Dry Contact, Auto Changeover functions are not available for units which are connected with synchro models.
O : Applied X : Not applied
Accessory model name : Installed at field, ordered and purchased separately by the corresponding model name, supplied with separate package.

- 20 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
3. Ceiling & floor
Type Ceiling & floor Ceiling Suspended
Category Functions AVNH09GELA2 [CV09 NE2]
AVNH12GELA2 [CV12 NE2]
UVNH18GJLA2 [CV18 NJ2],
UVNH24GJLA2 [CV24 NJ2],
UVNH30GJLA2 [UV30 NJ2],
UVNH36GKLA2 [UV36 NK2],
UVNH42GLLA2 [UV42 NL2],
UVNH60GLLA2 [UV60 NL2]
Air flow
Air supply outlet 1 1
Airflow direction control (left & right) Manual Manual
Airflow direction control (up & down) Auto Auto
Auto swing (left & right) X X
Auto swing (up & down) O O
Airflow steps (fan/cool/heat) 3 / 4 / 3 3 / 4 / 3
Chaos wind(auto wind) O O
Jet cool/heat O / X O / X
Swirl wind X X
Air purifying
Triple filter (Deodorizing) X X
Plasma air purifier X X
Allergy Safe filter X X
Long-life prefilter (washable / anti-fungus) O O
Installation
Drain pump X X
E.S.P. control* X X
Electric heater X X
High ceiling operation* X O
Auto Elevation Grille* X X
Reliability
Hot start O O
Self diagnosis O O
Soft dry operation O O
Convenience
Auto changeover** O** O**
Auto cleaning X X
Auto operation(artificial intelligence)** O** O**
Auto Restart O O
Child lock* O O
Forced operation O O
Group control* O O
Sleep mode O O
Timer(on/off) O O
Timer(weekly)* O O
Two thermistor control* O O
Individual
control
Wired remote controller PQRCVSL0/PQRCVSL0QW PQRCVSL0/PQRCVSL0QW
Deluxe wired remote controller X X
Simple wired remote controller X X
Simple Wired remote controller(for hotel use) XX
Wireless remote controller O O
Network
function
General central controller (Non LGAP) X X
Network Solution(LGAP) O O
Dry contact
PQDSA(1)/PQDSB(1) / PQDSBC PQDSA(1)/PQDSB(1) / PQDSBC
PI 485(for Indoor Unit) X X
Special
function kit
Zone controller X X
CTI(Communication transfer interface) X X
Electronic thermostat X X
Others Remote temperature sensor PQRSTA0 PQRSTA0
Telecom shelter controller X X
