Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need
it to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use
and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call
for service at all.
PRECAUTION
•Contact the authorized service technician for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance with
the National Electric Code by qualified and authorized
personnel only.
1. Safety Precautions
2. Operating Instructions
3. Care and Maintenance
4. Hardware Installation
5. Common Issues

Precautions
Safety
Precautions
3
ENGLISH

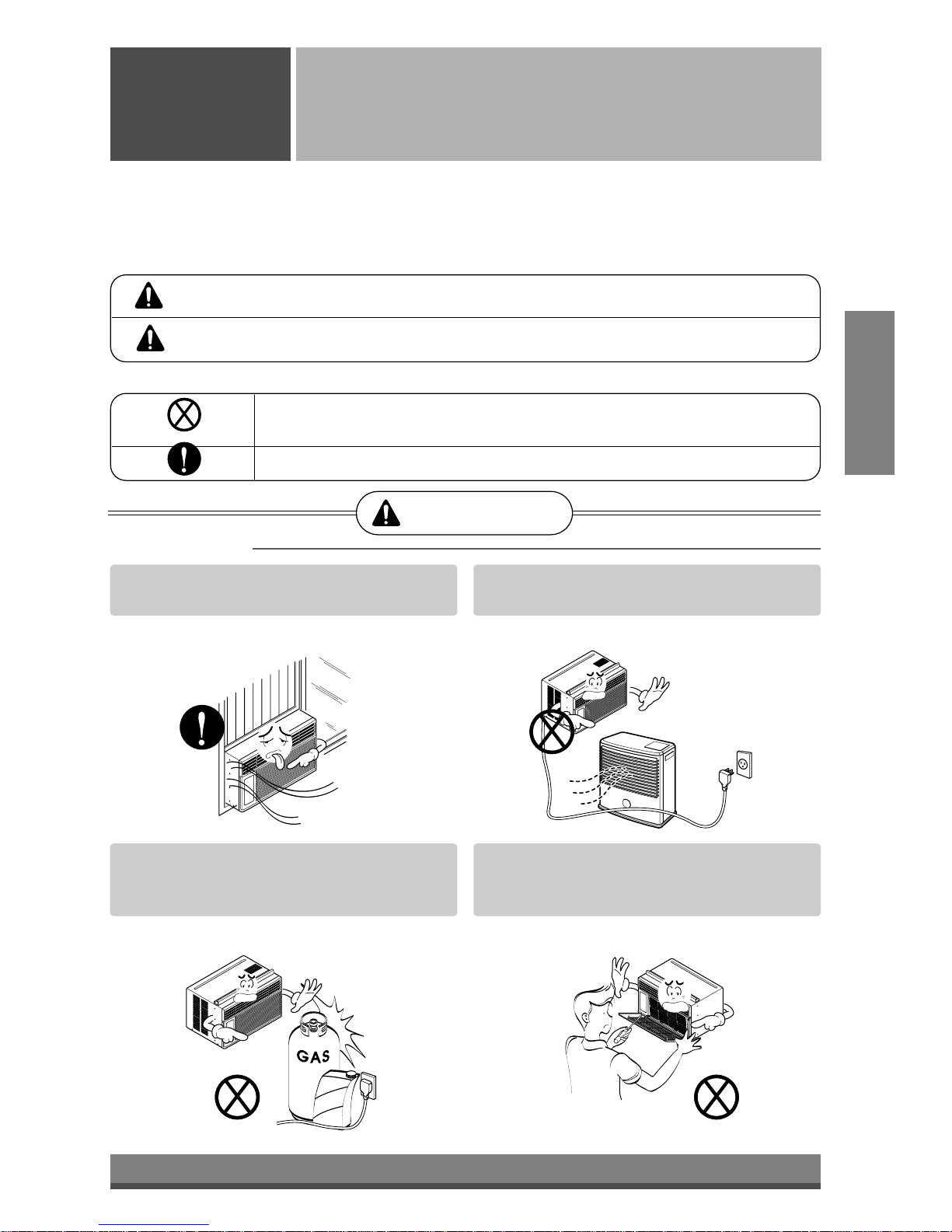

To prevent injury to the user or other people and property damage, the following instructions must
be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
WARNING
■Installation
Always install the expansion panel(s).
• No installation may cause fire and electric
shock accident.
Do not place the power cord near a heater.
• It may cause fire and electric shock.
Do not use the power cord near flammable
gas or combustibles such as gasoline,
benzene, thinner, etc.
• It may cause explosion or fire.
Do not disassemble or modify products.
• It may cause failure and electric shock.
Gasolin

4

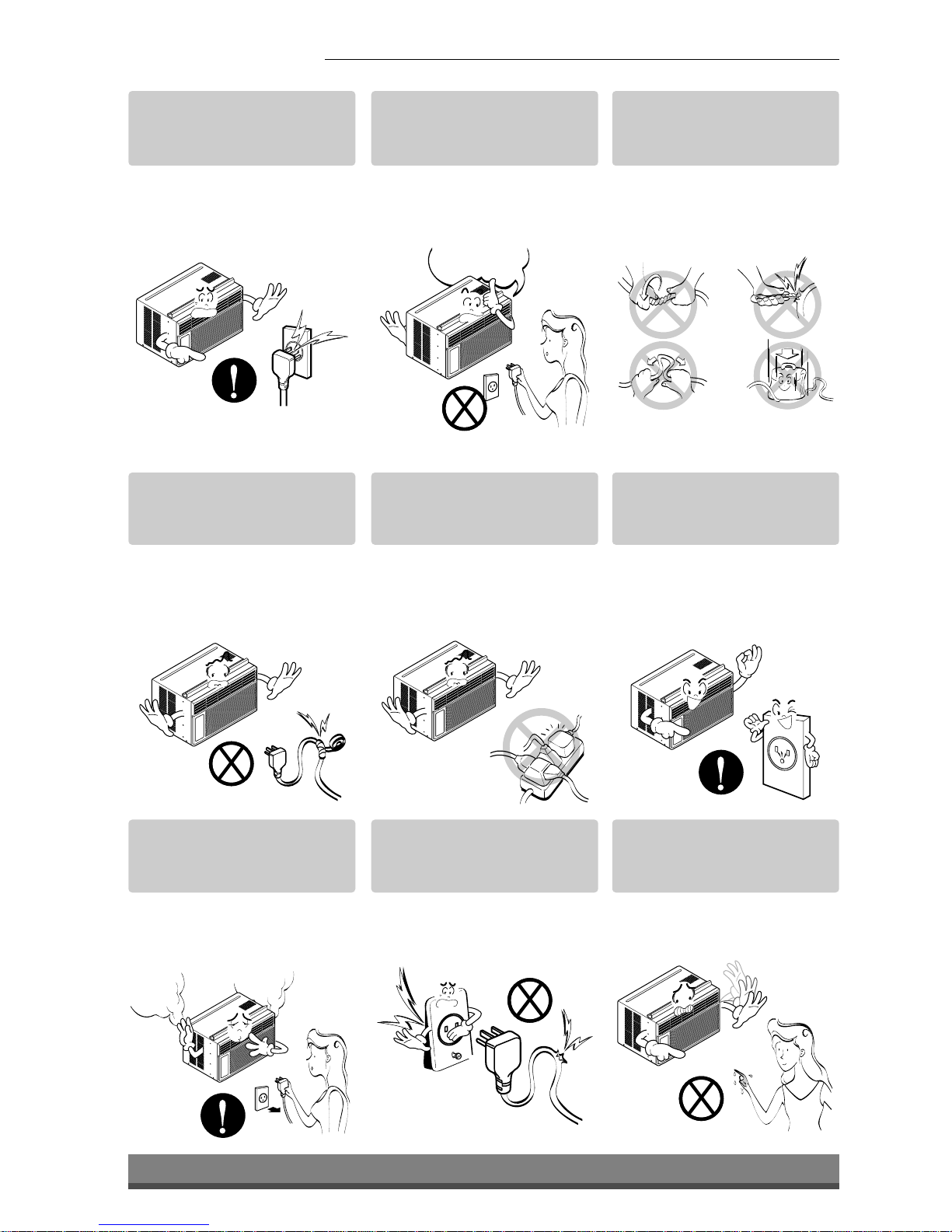

■Operation
Plug in the power plug
properly.
• Otherwise, it will cause
electric shock or fire due to
heat generation or electric
shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or
fire due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or
fire.
Do not modify power cord
length.
• It will cause electric shock or
fire due to heat generation.
Do not share the outlet with
other appliances.
• It will cause electric shock or
fire due to heat generation.
Always plug into a
grounded outlet.
• No grounding may cause
electric shock (See
Installation Manual).
Unplug the unit if strange
sounds, odors, or smoke
come from it.
• Otherwise it may cause fire
and electric shock accident.
Do not use the socket if it is
loose or damaged.
• It may cause fire and electric
shock.
Do not operate with wet
hands or in damp
environment.
• It will cause electric shock.
ON

5
ENGLISH
Do not allow water to run
into electric parts.
• It will cause failure of machine
or electric shock.
Leave the door closed while
the air conditioner is
running.
• It is not designed to cool the
entire house.
Do not operate the air
conditioner if you smell gas.
• It may cause explosion, fire,
and burn.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Do not block the inlet or
outlet.
• It may cause failure of
appliance or accident.
Ensure that the outer case
is not damaged by age or
wear.
• If leaving appliance damaged,
there is concern of damage
due to the falling of product.
Be cautious not to touch the
sharp edges when
installing.
• It may cause injury.
Hold the plug by the hand
(not the cable) when taking
• It may cause electric shock
and damage.
Turn off the main power
switch when not using it for
a long time.
• Prevent accidental startup
and the possibility of injury.
CAUTION
■Installation
Sharp
edges
■Operation
it out.

6
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
•There is danger of fire or
electric shock.
If water enters the product,
turn off the the power switch
of the main body of appliance.
Contact service center after
taking the power-plug out
from the socket.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Turn off the power and
breaker firstly when
cleansing the unit.
•Since the fan rotates at high
speed during operation, it
may cause injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
•This could injure the pet or
plant.
Do not use this appliance for
special purposes such as
cooling pets, foods, precision
machinery, or objects of art.
•It is an air conditioner, not a
precision refrigeration system.
Always insert the filter
securely.
Clean it every two weeks.
•Operation without filters will
cause failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
•The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not drink water drained
from air conditioner. / Do
not direct airflow at room
occupants only.
•It contains containments and
will make you sick. / This
could damage your health.
Wax
Thinner

NOTICE : Optional
7
H
S
I
L
G
NE

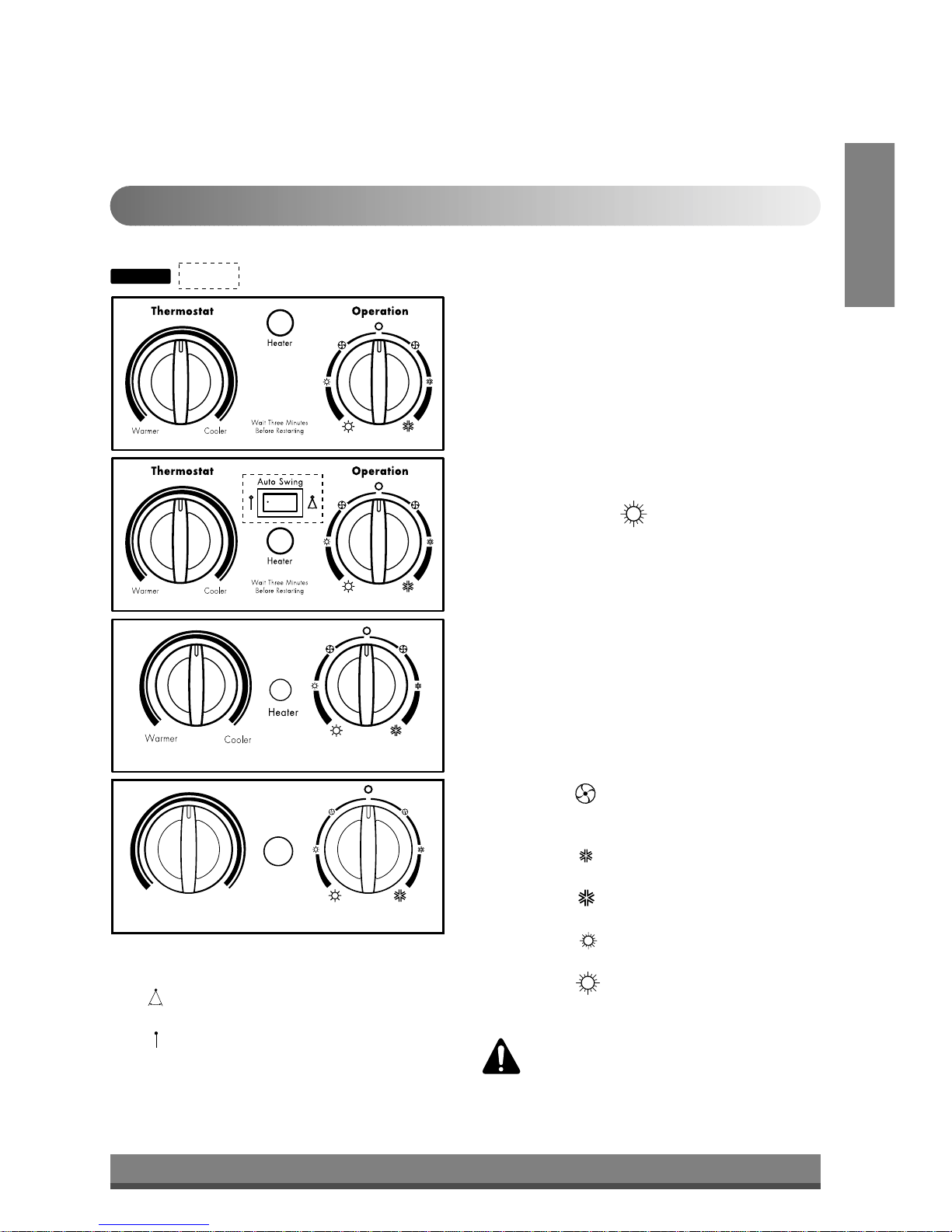

Location and Function of Controls
Operating
Instructions
Controls
The controls will look like one of the following.

Thermostat Operation
FAN FAN
Thermostat
Warmer Cooler
Heater
Operation
NOTICE
: Optional
9
ENGLISH
Controls
■
AUTO SWING (Optional)
ON ( ) : Air swing is operated while OPERATION
knob is set to the COOL or HEAT position.
OFF( ) : Stops the operation of air swing.
■THERMOSTAT
Turn the thermostat control to the desired
setting. The control position is a normal setting for
average conditions. You can change this setting, if
necessary, in accordance with your temperature
preference.
The thermostat automatically controls cooling or
heating, but the fan runs continuously
whenever the air conditioner is in operation. If the
room is too warm, turn the thermostat
control clockwise. If the room is too cool, turn the
thermostat control counterclockwise.
■HEATER ( ) LAMP
When the unit sets heating operation condition, the
green lamp is lighted.
When the frost settles on the heat exchanger of the
outside, defrosting is made automatically and the
green lamp is turned off.
The unit may give a "hiss" and the fan motor stops for
1 to 10 minutes.
This should not be regarded as a problem.
After defrosting, the heating operation begins again.

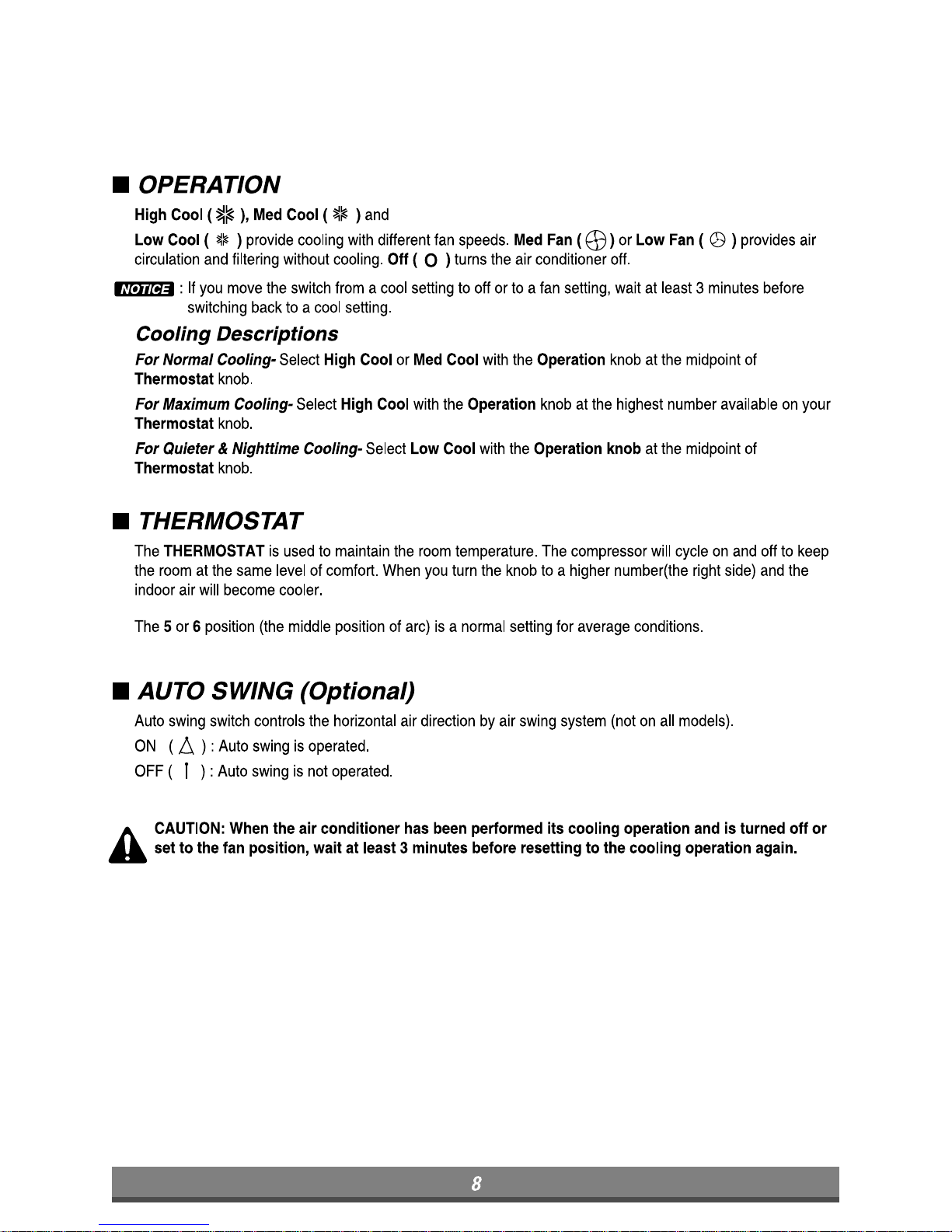

■OPERATION
OFF ( ) : Turns the air conditioner off.
LOW FAN ( ) : Permits the low fan speed
operation without cooling
(heating).
LOW COOL ( ) : Permits cooling with the low fan
speed operation.
HIGH COOL ( ) : Permits cooling with the high
fan speed operation.
LOW HEAT ( ) : Permits heating with the low
fan speed operation.
HIGH HEAT ( ) : Permits heating with the high
fan speed operation.
CAUTION : When the air conditioner has
been performed its cooling operation and
is turned off or set to the fan position, wait
at least 3 minutes before resetting to the
cooling operation again.
o
The controls will look like one of the following.

10

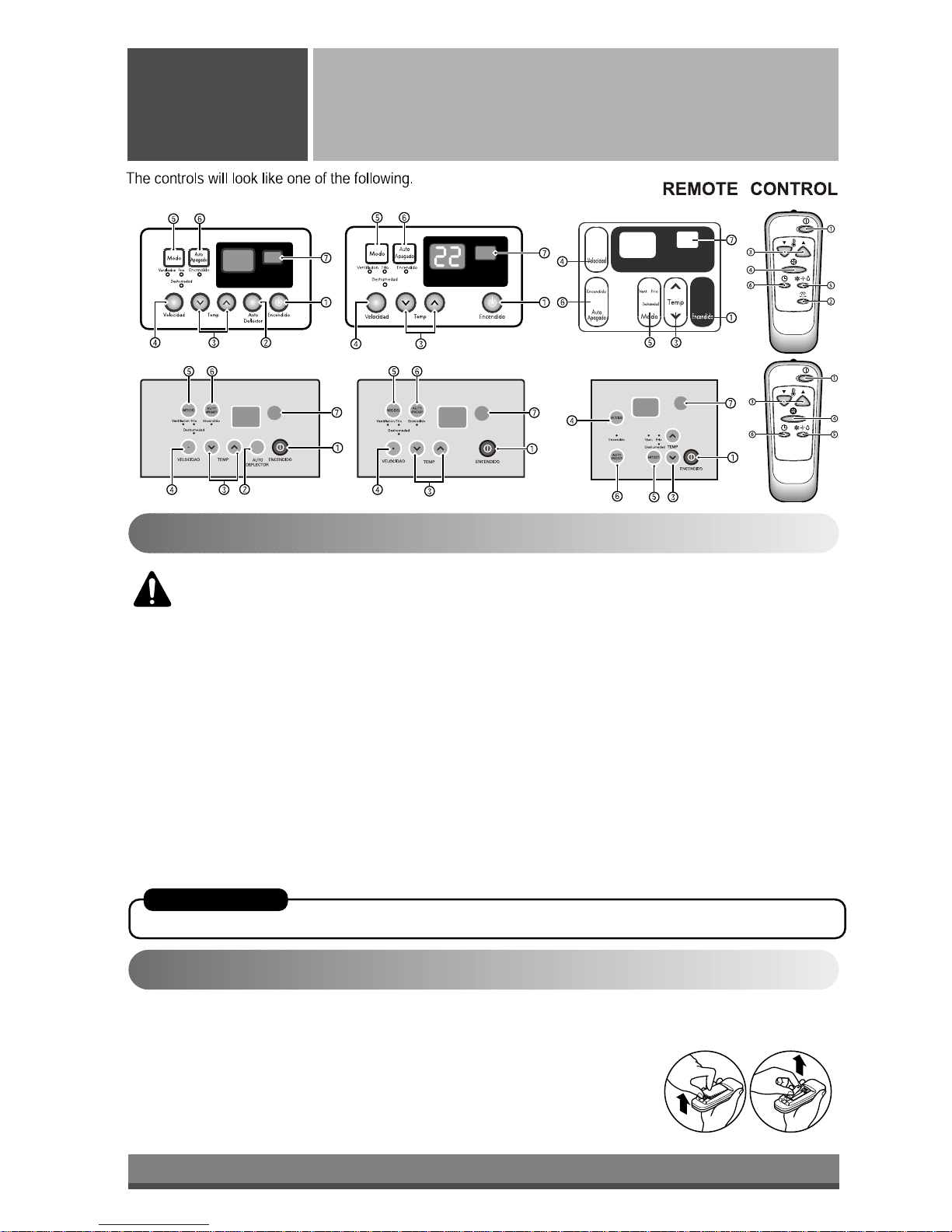

Remote Control Operation
Operating
Instructions
Controls
How to Insert the Batteries (AAA size)
CAUTION: The Remote Control unit will not function properly if strong light strikes the sensor
window of the air conditioner or it there are obstacles between the Remote Control unit and the
air conditioner.
1. POWER BUTTON
Operation starts, when this button is pressed and stops when you press the button again.
2. AUTO SWING (Optional)
The vertical louver swings horizontally by the automatic system and stops when you press the button again.
3. ROOM TEMPERATURE SETTING BUTTON
Control the room temperature within a range of 16°C to 30°C
4. FAN SPEED SELECTOR
Select the fan speed in three steps {High[F3] →Low[F1] →Med[F2] →High[F3]...}.
5. OPERATION MODE SELECTION BUTTON
Select Cooling, Fan, or Dehumidification mode with this button.
6. ON/OFF TIMER BUTTON
Set the time of starting and stopping operation. The timer is set by 1 hour.
7. SIGNAL RECEIVER
AUTO RESTART
In failure of electric power, the unit runs as previous setting operation.
1. Remove the cover from the back of
the remote controller.
2. Insert the two batteries.
3. Re-attach the cover.
•Do not use rechargeable batteries, such batteries differ from
standard dry cells in shape, dimensions, and performance.
•Remove the batteries from the
remote controller if the air
conditioner is not going to be
used for an extended length
of time.

VENTCLOSE OPEN
Part A
Part B
Adjusting the Air Flow Direction
Operating
Instructions
11
ENGLISH
Additional controls and important information.
Ventilation
Air Direction
The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is drawn out.
The direction of air can be controlled whenever you want to cool by adjusting the horizontal louver and the
vertical louver.
•HORIZONTAL AIR DIRECTION CONTROL
To control horizontal direction of air flow, press the air flow
direction control button and the air flow will be swept
horizontally by the automatic air-swing system.
If you want to stop the air flow from moving, press the button
again at the desired position of the vane.
•VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by moving the horizontal
louver.
•Auto Swing Models
The horizontal air direction is automatically controlled by
setting the AUTO SWING switch to the ON position.
:Before using the ventilation feature,
position the lever, as shown. First, pull down part
to horizontal line with part .
NOTICE

CABINET
DRAIN
PAN
DRAIN HOSE
SCREW
DRAIN PIPE
DRAIN HOSE
DRAIN PIPE
DRAIN ELBOW
DRAIN HOSE
Fig. 1
Fig. 2
12
How to Attach Drain Pan (Some Models)
How to Connect a Drain Hose
The air conditioner employs a proper drain method whereby the condensed water (moisture removed from the
air) is drained to the outside.
In very humid weather, (and for reverse cycle models in the reverse mode) excessive condensate water removed
from the air may cause some water to collect. To remove this excess water you can install the drain pan as
detailed below.
1. Take the drain pan which is located in the air discharge.
2. Remove the hole rubber from the base-pan (for some models).
3. Install the drain pan to the right corner of the cabinet with 4 (or 2)
screws.
4. Connect the drain hose to the outlet located at the bottom of the
drain pan.You can purchase the drain hose or tubing locally to
satisfy your particular needs. (Drain hose is not supplied).
A drain hole is provided at the rear of the air conditioner unit.
Select a drain method according to the following.
1. Remove the hole rubber from the base-pan. (for some models)
2. Connect a drain hose to the drain pipe as shown in Fig. 1.
3. Or connect a pipe elbow to the drain pipe, then connect a drain hose
to the pipe elbow as shown in Fig. 2.
Outdoor Coils
The coils on the outdoor side of the air conditioner should be checked
regularly. If they are clogged with dirt or soot they may be professionally
steam cleaned, a service available through a dealer.
Adjusting the Air Flow Direction
Operating
Instructions
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

13
ENGLISH

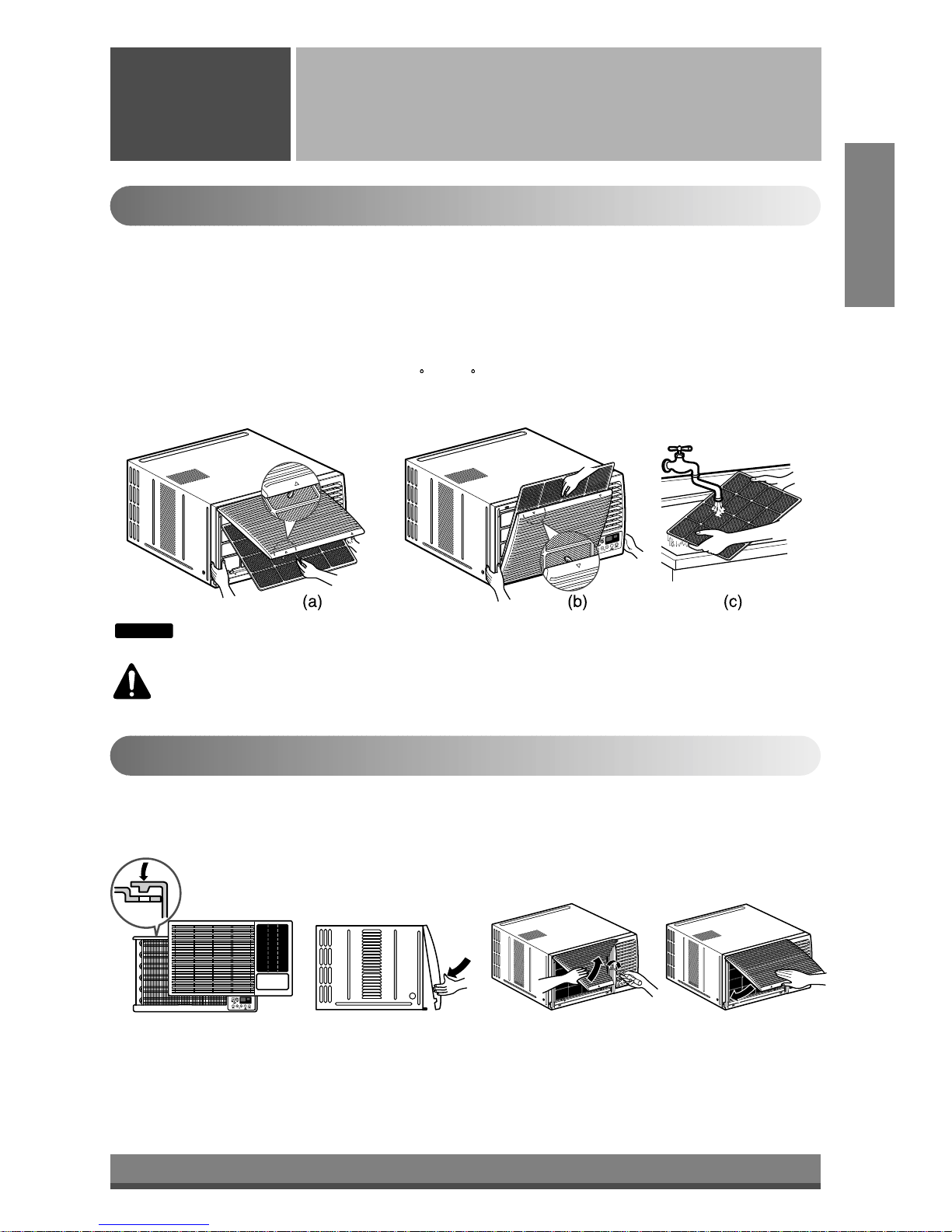

Air Filter Cleaning
How to Attach Front Grille to Cabinet
The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped particles in the
filter will build up and block the airflow. This reduces the cooling capacity and also causes an accumulation of
frost on the cooling coils.
1. Open the inlet grille upward by pulling out the bottom of the inlet grille.(a)
In another case, you can open the inlet grille downward by pulling out the top of the inlet grille.(b)
2. Remove the air filter from the front grille assembly by pulling the air filter up or down slightly.
3. Wash the filter using lukewarm water below 40 C (104 F).(c)
4. Gently shake the excess water from the filter completely. Replace the filter.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and
reduce performance.
:Mark ∆of inlet grille means opening direction.
NOTICE
1. Pull down front grille from the cabinet top.
2. Push front grille’s tips toward the cabinet in order to
insert front grille’s tabs into the cabinet.
3. Open the inlet grille.
4. Tighten the screw through the front grille into the
plate of the evaporator.
5. Close inlet grille.
Care and Maintenance
Care and
Maintenance

1 67 2 345 8
10 11 14 9 12 13
Screw
Foam
10 8 9 12 13 11 14 1 67 35 24 15
14
Hardware Installation
Hardware
Installation
Learning parts name prior to installation will help you understanding the installation procedure.
Features
1. CABINET
2. HORIZONTAL AIR
DEFLECTOR
(VERTICAL LOUVER)
3. VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
4. AIR DISCHARGE
5. FRONT GRILLE
6. AIR INTAKE(INLET GRILLE)
7. AIR FILTER
8. CONTROL BOARD
9. POWER CORD
10. EVAPORATOR
11. CONDENSER
12. COMPRESSOR
13. BASE PAN
14. BRACE
15. REMOTE CONTROLLER
Installation Hardware

White styrofoam block
10 ~15 mm
Over 50 cm
HEAT
RADIATION
FENCE
AWNING
FOAM
COOLED
AIR
70-150cm
Level
1/4 Bubble
Shipping screws
Main Power source
Circuit Breaker
Use a circuit breaker
or time delay.
15
ENGLISH

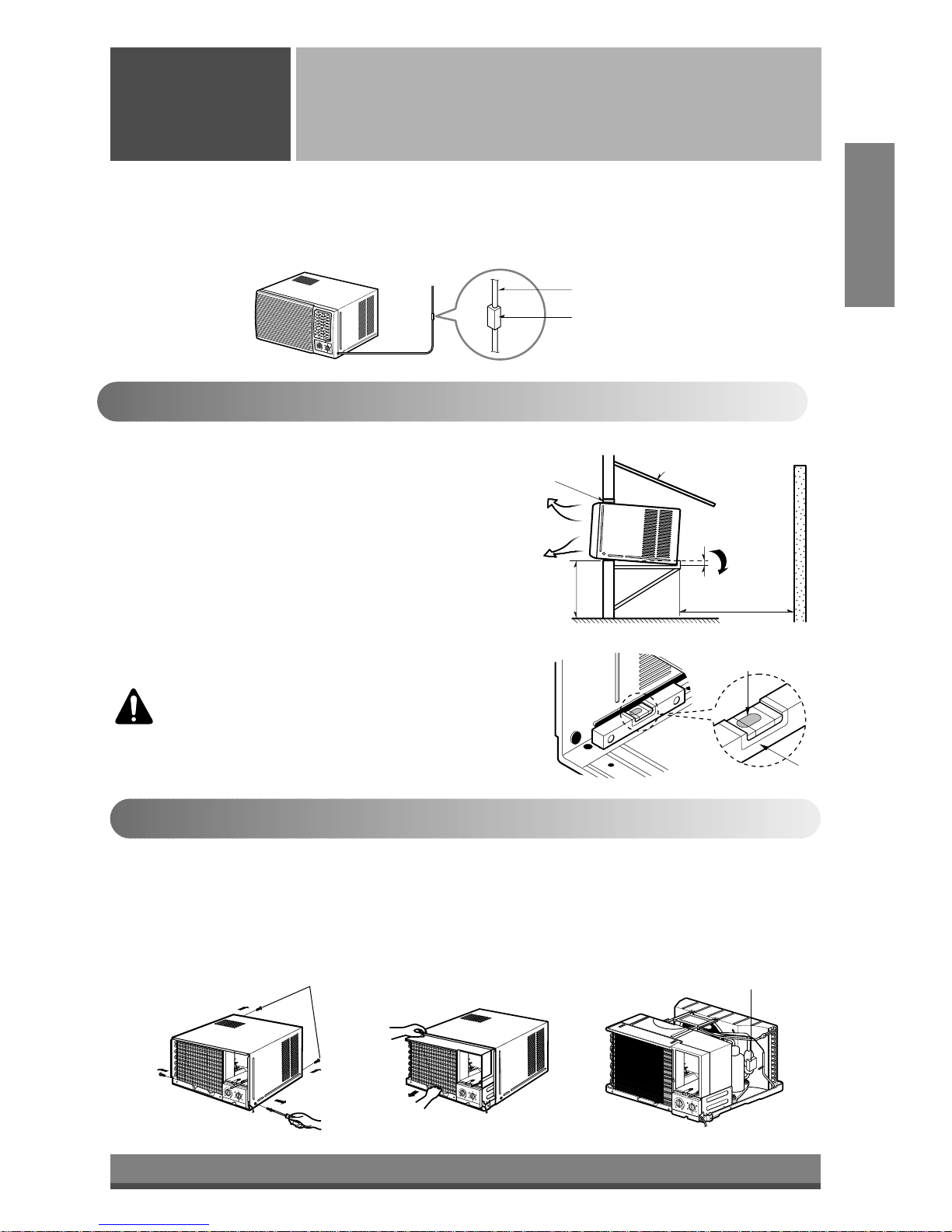

Installation Steps
Hardware
Installation
Read completely, then follow step-by step.
•The appliance shall be installed in accordance with national wiring regulation.
•If a power plug isn't to be used, provide a circuit breaker between power source and the unit, as following
picture.
Select the Best Location
1. To prevent vibration and noise, make sure the unit is
installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on
the unit.
3. There should be no obstacle, such as a
fence or wall, within 50cm from the back of the cabinet
because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling
efficiency of the air conditioner.
4. Install the unit a little obliquely outward not to leak the
condensed water into the room (about 10 ~ 15 mm or 1/4
bubble with level).
CAUTION: All side louvers of the cabinet must
remain exposed to the outside of the structure.
Remove the Air Conditioner From the Case
1. Remove the 2 shipping screws from the back of the
case.
2. Remove the 2 screws on each side of the case.
Keep these for later use.
3. Slide the air conditioner from the case by gripping
the base pan handle and pulling forward while
bracing the case.
4. Before installing the Air Conditioner back into the
case, remove the white styrofoam shipping block
from the compressor (Applicable for some models).

Power Cord
Screw
Screw
The Foam
16
Install the Air Conditioner in the Case
1. Slide the air conditioner into the case.
Reinstall the 2 screws removed earlier on each
side of the case.
CAUTION: The power cord must be
connected to an independent circuit. The
green wire must be grounded.
2. Stuff the foam between the top of the unit and the
wall to prevent air and insects from getting into the
room.
3. Before installing the front grille, pull out the vent
control lever located above the unit control knobs,
as shown.
5. Attach the front grille to the case by inserting the
tabs on the grille into the slots on the front of the
case. Push the grille in until it snaps into place.
6. Lift the inlet grill and secure the front grille with a
screw. Lower the inlet grille into place.
When you detach the front grille
from the case, push the grille to
your right side and pull it toward
you.
Use the Reversible Inlet Grille
1. If you want to pull out the filter upward, open the inlet grille slightly.
Turn inside out the front grille.
Disassemble the inlet grille from the front grille with separating the hinged part
by inserting a "—" type screw-driver tip.
Rotate the inlet grille 180 degrees and insert the hooks into the lower holes of
front grille.
Then, insert the filter
2. If you want to pull out the filter downward, use the reversible inlet grille without
change.(The grille is already assembled for that way.)

17
ENGLISH
Common Problems and Solutions
Common
Issues
Troubleshooting Tips
Save time and money! Review the chart below first and
you may not need to call for service.
Normal Operation
•You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy
days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from
the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation
Problem Possible Causes What To Do
■The air conditioner is unplugged.
■The fuse is blown/circuit breaker is
tripped.
■Power failure.
■Airflow is restricted.
■The thermostat may not be set
high enough.
■ TEMP Control set too higher
number.
■The air filter is dirty.
■The room may have been hot.
■Cold air is escaping.
■Cooling coils have iced up.
■Ice blocks the air flow and stops
the air conditioner from cooling the
room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
• If power failure occurs, push power button to OFF.
When power is restored, wait 3 minutes to restart
the air conditioner to prevent tripping of the
compressor overload.
•Make sure there are no curtains, blinds, or
furniture blocking the front of the air conditioner.
•Turn the knob to a higher setting. The highest
setting provides maximum cooling.
•Set the TEMP control to a lower number.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on you
need to allow time for the room to cool down.
•Check for open furnace floor registers and cold
air returns.
•Set the air conditioner's vent to the closed
position.
•See Air Conditioner Freezing Up below.
•Set the mode control at MED fan or high cool
with the thermostat at 1or 2(Left side).
•Set the mode control at HIGH fan or high cool
with the high temperature.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezing up

3
ESPAÑOL
Precauciones
Precauciones de
Seguridad
Para prevenir tanto lesiones al usuario u otras personas como daños materiales, es preciso seguir
estas instrucciones.
■El manejo incorrecto debido a la instrucción ignorada puede causar lesioes o daños cuya
gravedad está clasificada en als siguientes indicaciones.
ADVERTENCIA
PRECAUCION
Este símbolo indica la posibilidad de lesiones mortales o graves.
Este símbolo indica la posibilidad de lesiones o daños materi-ales.
■El significado de los símbolos utilizados en este manual se indica a continuación.
Asegúrese de no hacerlo.
Asegúrese de seguir las instrucciones.
ADVERTENCIA
■Instalación
Instale siempre el (los) panel(es) de
expansion.
• No instalarlo puede causar incendio y/o
accidente eléctrico.
No coloque el cable eléctrico cerca de un
calefactor.
• Puede causar incendio y descarga eléctrica.
No use el cable de corriente cerca de gas
inflamable o combustibles tales como
gasolina, benzina, solvente, etc.
• Puede causar explosión o incendio.
No desarme o modifique los productos.
• Puede causar fallos y descarga eléctrica.
Gasolin

4
■Funcionamiento
Enchufe la corriente
adecuadamente.
• De otro modo, causará
descarga eléctrica o incendio
debido a la generación de
calor.
No haga funcionar o detenga
la unidad insertando o
tirando del enchufe.
• Causará descarga eléctrica o
incendio debido a la
generación de calor.
No dañe ni use un cable no
especificado.
• Causará descarga eléctrica o
incendio.
No modifique la longitud del
cable de corriente eléctrica.
• Causará descarga eléctrica o
incendio debido a la
generación de calor.
No comparta la salida con
otros artefactos.
• Causará descarga eléctrica o
incendio debido a la
generación de calor.
Siempre enchufe las piezas
eléctricas en una salida
conectada a masa.
• Si no hay conexión a masa,
se puede producir una
descarga eléctrica. (Vea el
Manual de instalación.)
Desenchufe la unidad si se
producen sonidos u olores
extraños en la unidad.
• En caso que no, puede
causar incendio y accidente
de corto circuito.
No use el tomacorriente si
estásuelto o dañado.
• Puede causar incendio y
accidente eléctrico.
No haga funcionar la unidad
con las manos húmedas o
en un ambiente húmedo.
• Puede causar descarga
eléctrica.
ON
