LM50 2004-E1
MPS Variable Multi Split SYSTEM
Free Joint, 50Hz, R410A

2004 Product Data 1
General Description
Thank you very much for your special patronage of LG air-conditioners.
A high-grade, high-quality, advanced individual air-conditioning system that is able to respond to expanding,
more sophisticated housing environment needs.
LG Electronics Inc., which has been a top air conditioner maker for the three consecutive years, has developed
"MPS(Multi Power System) Variable Multi Split" system that can efficiently control air-conditioning in a better
way. Unlike traditional multi-type units, "MPS Variable Multi Split" is a next-generation multi type air-condition-
er designed to be installed under any circumstance.
MPS control provides comfortable and convenient environment as small capacity compressor is operating con-
tinuously compared to conventional ON/OFF cycle compressor. A number of indoor units can be linked to an
outdoor units so that each room can be individually air-conditioned.
This can be easily installed in a small space area, and is energy saving since the cooling of each room individu-
ally controlled.
A lot of information regarding the design and the installation of "MPS Variable Multi Split" system is included in
this publication. We hope that with this information you would become an expert of the "MPS Variable Multi
Split" system and be more comprehensive to the system.
LG Electronics Inc.
Air Conditioning Division

2MPS Variable Multi Split System(50Hz, R410A)

2004 Product Data 3
LG Airconditioners Product Data
TABLE OF CONTENTS
Table of contents Page
Part 1 Features...............................................................................................7
Part 2 MPS Variable Multi-Split system (R410A).......................................11

4MPS Variable Multi Split System(50Hz, R410A)

2004 Product Data 5
Part 1
Features

6MPS Variable Multi Split System(50Hz, R410A)
Features & Benefit
MPS(Multi Power System) Variable Control : (Except A2UC146FA0,A2UH146FA0)
Big Energy Saving with MPS Variable Control
• Basic Principle of MPS Variable Control
MPS control provides comfortable and convenient environment as there are two compressors with 60&40%
load sharing with on compressor of small capacity always working to maintain the set temperature conditions &
meanwhile other compressor is at rest if the load is low whereas in conventional system the only compressor is
working with ON/OFF cycles.
• Power Consumption Comparison
MPS Veriable Multi system opeates in one cycle with two compressors.
Only one compressor or two compressors run together, according to the load conditions.
With small load. only one compressor completes the cycle. It saves power consumption at low operation. This
concept is explained in the picture below.
Operating Ratio
100%
Cooling Capacity
Power Loss Zone
Cooling
Load
Operating Ratio
100%
Cooling Capacity
Saving Zone
40%
60%
100%
Cooling
Load
35%
Energy Saving
Max.
Conventional (On/Off Operation) MPS
*Condition of trial : ISO5115
100% 40% 60%
Conventional (On/Off Operation) MPS Control

2004 Product Data 7
Features & Benefit
90(Min)
0
100
200
300
400
500
(ppm)
6030
Nano Filter
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
Normal Filter
Air Purifying System
- It not only removes microscopic contaminants & dust, but it
also removes house mites, pollen, and pet fur to help pre-
vent allergic diseases like asthma.It provides odor free, dust
free and allergy free air.
•Effect of carbon Nano Ball
Deodorizing efficieny: 8~10times compared to conventional
carbon filter.
•What is Carbon Nano Ball?
Nano(1/1 Bil) ball structure, (200~500nm) consisted of car-
bon, is adopted as deodorizing material first in the world.
Nasty smell
Deodorizing
Formaldehyde
Deodorizing
V.O.C.
Deodorizing
Composition of Triple Deodorizing Filter
¥Remove odor !
¥Restrain mildew !
¥Keep Performance ! (Durability)
¥Save time to clean up.
AfterBefore Effect
In 30 minutes "Auto-
Clean" makes the
inner part of Air
conditioner Dry
After Cooling
Operation, Start "Auto-
Clean" automatically
Triple Deodorizing Filter :
- Deodorizing efficiency
: 10% up compared to conventional Deodorizing Filter
Auto Cleaning System :
- Auto Clean helps to remove odor and save clean-up
time. After using air-conditioner, “Auto Clean” makes the
inner part of Air conditioner dry in 30 min. It removes
moisture and mould so you can enjoy odor-free air and
save time to clean up.

8MPS Variable Multi Split System(50Hz, R410A)

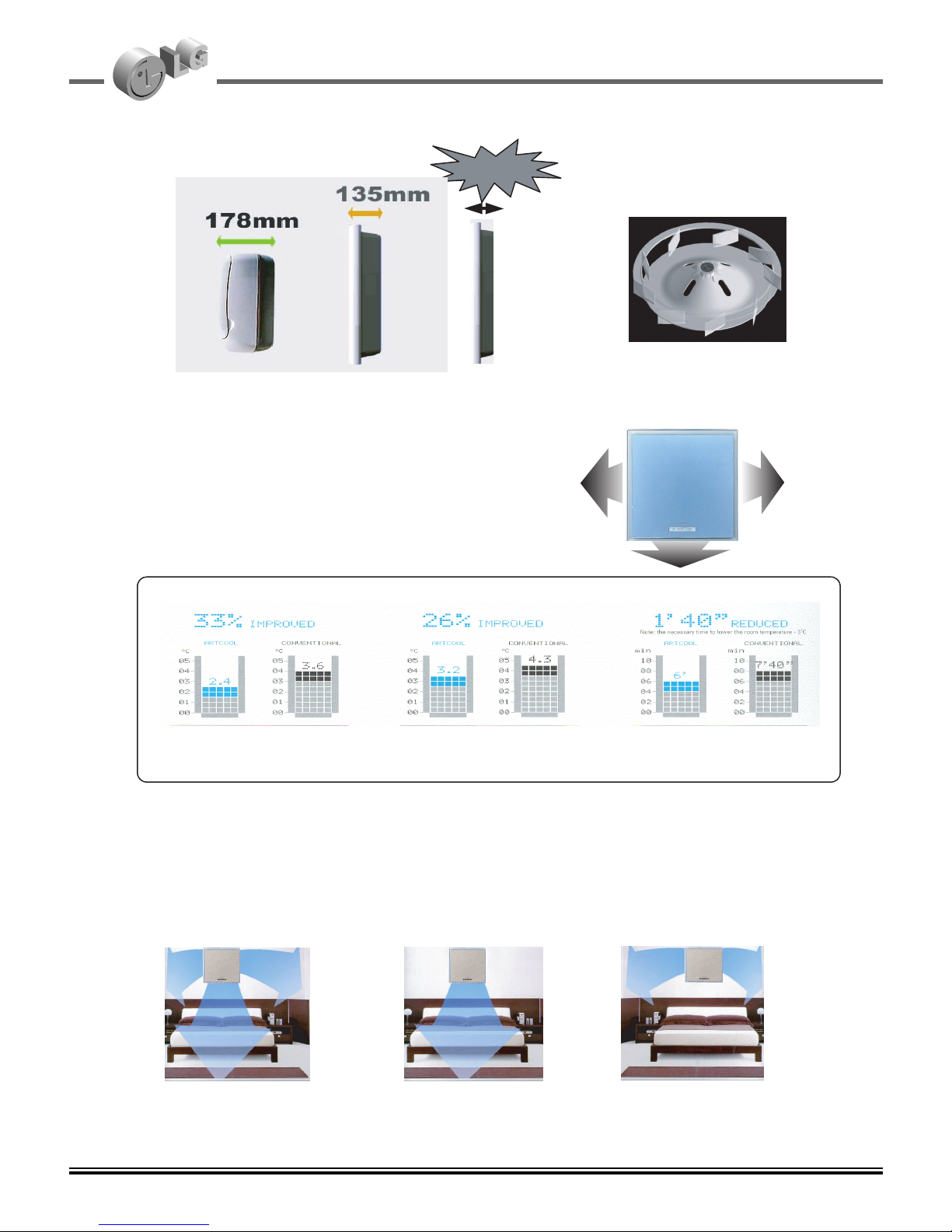

Features & Benefit
Vertical Temperature
Difference
Horizontal Temperature
Difference
Improved value of the 3-Dimensional Cooling
Time Reaching
Temperature
Thinnest Turbo Fan
129 mm
‘Fast & Even Widely’
Normal
‘Speedy & Powerful’
Jet Cool +
‘Indirectly & Softly’
Sleep Mode
Ultra-Slim design(Depth 129mm)
3-Dimensional Cooling System
New Cube 3-Dimension cooling system of ART COOL has Indirect
Cooling mode for sleep operation.
Being in sleep operation, cool air is discharged only right/left side!
Indirect cooling ensures you nice sleep.
Air Flow Control (ART COOL)
- In normal mode, 3 Dimensional air flow cools air more fast and even widely
- The bottom-ward air flow provides you with speedy and powerful cooling
- When you sleep, Side air flow provides indirect and soft cooling
Improved value of the 3-Dimensional Cooling
Vertical Temperature
Difference
Horizontal Temperature
Difference Time Reaching
Temperature

2004 Product Data 9
Features & Benefit
Environment Friendly Refrigerant :
- LG Air conditioners uses environment friendly refrigerant. Which don't do any harm to the environment.
Jet Cool:
- In this mode very quick and fast cooling is done. The unit will continue to supply high velocity air for 30 min-
utes, untill the room temperature reaches 18°C. After 30 minutes, unit will supply air at the set fan speed
whether indoor temperature has reached 18°C or not.
Self Diagnosis Function:
- This function provides diagnosis of the unit. Blinking of the operation LED of the indoor unit means there is
some error.
Cooling, Heating & Fan Operation:
- LG multi air conditioners can provide cooling, heating & fan operation. In the cooling mode, it cools the air with
an operation range of 18~30°C. In the heating mode, it heats the air with an operation range of 16~30°C. In
the fan operation mode, only indoor fan will run at the selected speed, outdoor fan and compressor will be off.
LCD Wireless Remocon:
- It provides ease of control.
Auto Restart Operation :
- When there is electricity failure the unit sharts off. After resumption of the power, unit will start in the same
mode as prior to the power failure. Memorized condition are on / off condition, operating mode (cooling/heat-
ing), set temperature and fan speed. The unit will memorize the above conditions and start with same memo-
rized condition.
Hot Start Function :
- During starting of the unit in the heating mode it prevents cold air blow from the unit.It starts the indoor fan only
after indoor unit pipe temperature reaches a preset value(28°C). When indoor unit pipe temperature has
reached 28°C, then for initial 1 minute the indoor fan runs at low speed and after that at the set fan speed.
Defrost / Deicing :
- In the heating mode, it prevents the ice formation on the outdoor unit. Sensing the outdoor piping temperature,
If it is lower than some preset value then the outdoor fan stops and compressor continues to run till a particular
temperature is reached. Thereby preventing the frost on the outdoor coil. After reaching a particular high tem-
perature outdoor fan again starts.
Time Delay Safety function:
-It delays restarting of the compressor by three minutes thereby preventing damage to the compressor .

10 MPS Variable Multi Split System(50Hz, R410A)

2004 Product Data 11
Part 2
MPS Variable Multi-Split System
R410A, Cooling Only/Heat Pump
AMNC076LQL0 AMNC096AP*1
AMNC096LQL0 AMNC126AP*1
AMNC126LRL0
AMNC186LTL0
AMNC246LTL0
AMNH076LQL0 AMNH096AP*1
AMNH096LQL0 AMNH126AP*1
AMNH126LRL0
AMNH186LTL0
AMNH246LTL0
A2UC146FA0
A2UC186FA0
A3UC216FA0
A4UC306FA0
A2UH146FA0
A2UH186FA0
A3UH216FA0
A4UH306FA0
1. Power Supply .................................................................................................................12
2. Model Number Nomenclature .......................................................................................13
3. Outline of System...........................................................................................................14
4. List of Functions .............................................................................................................16
5. Specifications ................................................................................................................17
6. Combination Table ........................................................................................................21
7. Dimensional Drawings ...................................................................................................27
8. Wiring Diagrams.............................................................................................................33
9. Piping Diagrams.............................................................................................................43
10. Capacity Tables............................................................................................................49
11. Operation Limit.............................................................................................................64
12. Air Velocity and Temperature Distributions(Reference Data) .......................................65
13. Sound Levels ...............................................................................................................66
14. Installation ....................................................................................................................69
15. Function of Remote Controller ....................................................................................76

12 MPS Variable Multi Split System(50Hz, R410A)

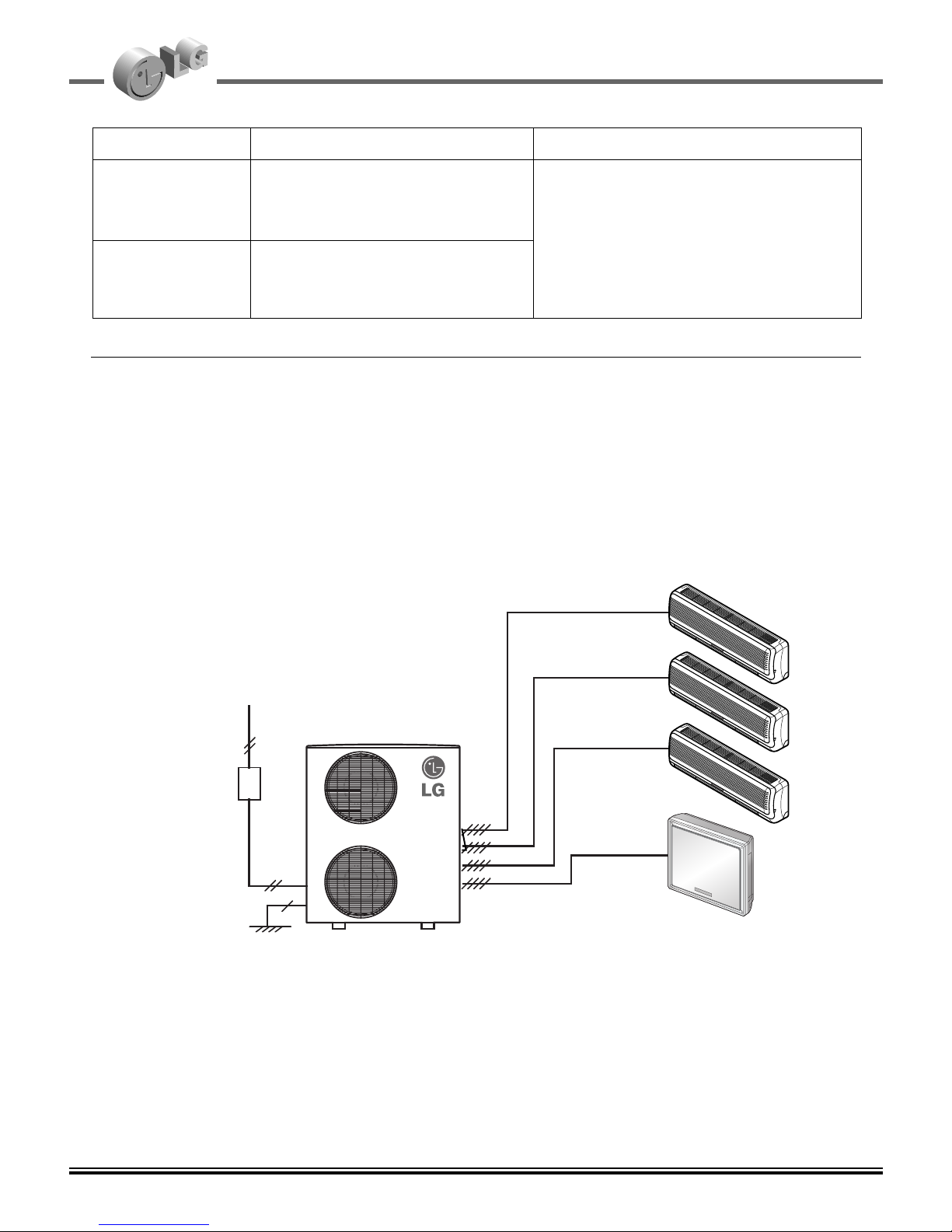

1. Power Supply
Type Outdoor Unit Power Supply
Cooling Only
1Ø, 220~240V, 50Hz
Heat Pump
Note : Power Supply Intake ; Outdoor Unit Only
External wiring procedure
- The power supply is needed only to the outdoor unit. The power supply to the indoor unit Is conducted
through the transmission wiring. Therefore, the power supply can be given at just one place. It will contribute
to simplify the work procedure and to save cost.
Circuit Breaker
14k : 15A
18k : 20A
21k : 20A
30k : 30A
[Outdoor Unit]
[A4UH306FA0]
[Indoor Unit]
Power source
1 Phase, 50Hz, 220~240V
A2UC146FA0
A2UC186FA0
A3UC216FA0
A4UC306FA0
A2UH146FA0
A2UH186FA0
A3UH216FA0
A4UH306FA0

2004 Product Data 13
2. Model Number Nomenclature
2.1 Indoor Units
2.2 Outdoor Units
AMN H 6
07 QL L 0
Chassis Name
Serial Number
Combination of Functions
ART COOL Type Front Panel Color
L : Wall Mounted A : ART COOL
B : Blue, D : Wood, M : Metal
L : Nano Plasma
Indoor Unit Type
Electrical Ratings
6: 1ø, 220~240V, 50Hz
Nominal Cooling Capacity in Btu/h
Ex) 7,000 Btu/h ➞‘07’, 18,000 Btu/h ➞‘18’
Model Type
C: Cooling Only H: Heat Pump
Multi Split System Indoor Unit
A3U H 621 F A 0
Multi Type
F: Free Joint Multi Type
Function
A: Basic
Serial Number
Electrical Ratings
6: 1ø, 220~240V, 50Hz
Nominal Cooling Capacity in Btu/h
Ex) 21,000 Btu/h '21', 30,000 Btu/h➞'30'➞
Model Type
C: Cooling Only H: Heat Pump
R410A Multi Split System Outdoor Unit
And No. of Connectable Indoor Units
Ex) A3U : Connectable 3 Indoor Units
A4U : Connectable 4 Indoor Units

14 MPS Variable Multi Split System(50Hz, R410A)
3. Outline of System
The system has number of indoor units attached to an outdoor unit which saves energy while in operation.
This system can be installed in small space and cooling can be controlled in each room individually.

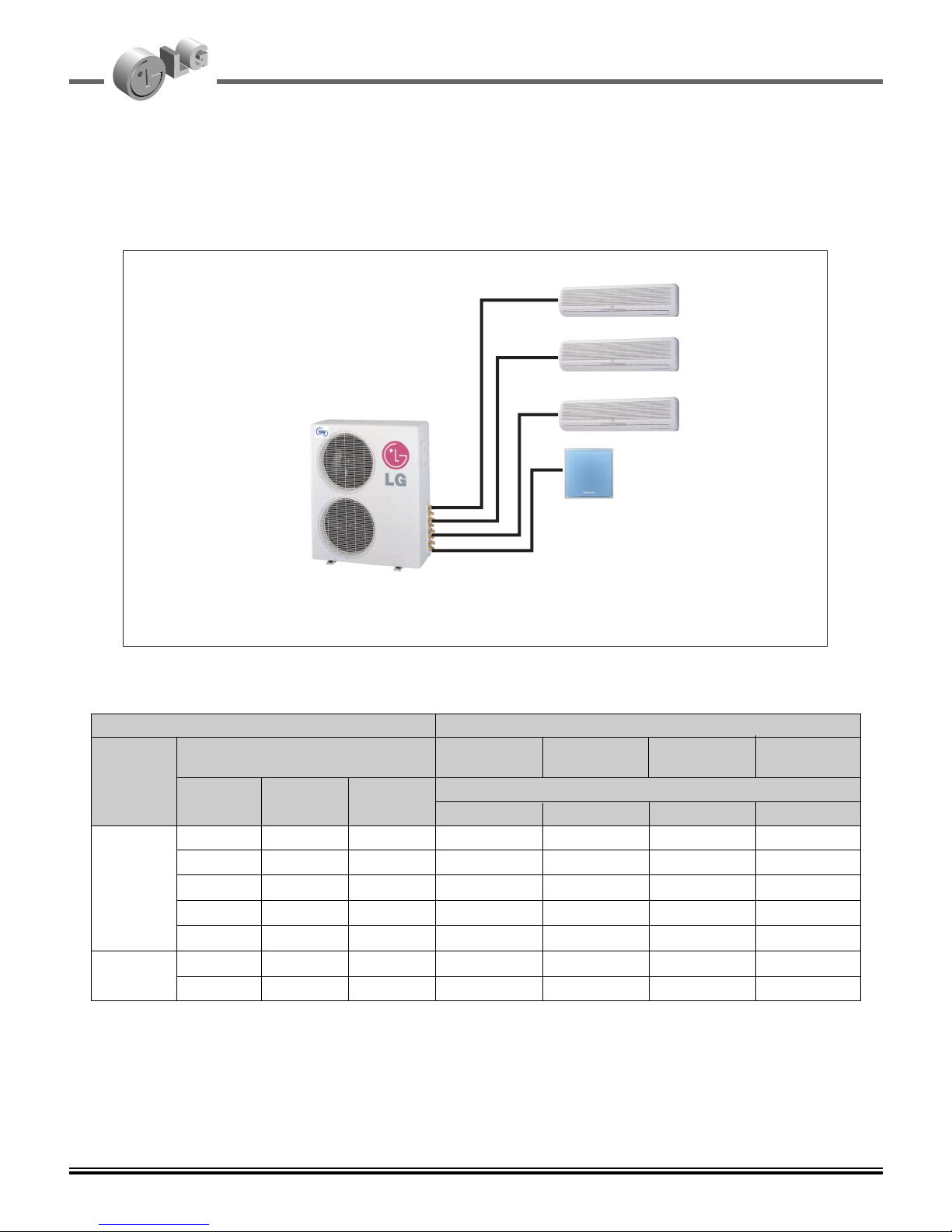

3.1 Example of System
[A4UH306FA0]
3.2 Combination of Indoor and Outdoor Unit
Indoor Units
Capacity
Model
Type
Wall
Mounted
ART COOL
Index kW Btu/h
Outdoor Unit
A2UC146FA0
A2UH146FA0
A2UC186FA0
A2UH186FA0
A3UC216FA0
A3UH216FA0
A4UC306FA0
A4UH306FA0
2234
No. of Connectable Indoor Units
7 2.1 7000 O O O O
9 2.6 9000 - O O O
12 3.5 12000 - O O O
18 5.3 18000 - - - O
24 7.0 24000 - - - O
9 2.6 9000 - O O O
12 3.5 12000 - O O O

2004 Product Data 15
3. Outline of System
3.3 External Appearance of Indoor Units
Wall Mounted
AMNC076LQL0 AMNH076LQL0
AMNC096LQL0 AMNH096LQL0
AMNC126LRL0 AMNH126LRL0
AMNC186LTL0 AMNH186LTL0
AMNC246LTL0 AMNH246LTL0
ART COOL
AMNC096AP*1 AMNH096AP*1
AMNC126AP*1 AMNH126AP*1
'* : Front Panel Color
B : Blue
D : Wood
M : Metal

16 MPS Variable Multi Split System(50Hz, R410A)
4. List of Functions
Model
Features
Airflow Direction Control(Left & Right) Manual Manual Manual Manual
Airflow Direction Control(Up & Down) Automatic Automatic Automatic Automatic
Airflow Outlet 1 3 1 3
Airflow Steps(Fan / Cool / Heat) 3/4/3 3/4/3 3/4/3 3/4/3
Auto Changeover(Operation) - - - -
Auto Cleaning - O - O
Auto Restart Operation O O O O
Central Control Accessory Accessory Accessory Accessory
CHAOS Wind(Auto Wind) O O O O
Child Lock Function - - - -
Cooling & Heating Fan Operation O(not heating) O(not heating) O O
Deice Control - - O O
Deodorizing Filter O(Triple) - O(Triple) -
Drain Pump - - - -
E.S.P Control - - - -
Forced Operation O O O O
Group Control - - - -
High Ceiling Operation - - - -
Hot Start Function - - O O
Jet Cool O O O O
Nano Plasma Air Purifying Filter O O O O
Plasma Heat Exchanger - - - -
Prefilter(Washable / Anti-fungus) O O O O
Self Diagnosis Function O O O O
Sleep Mode Operation O O O O
Soft Dry Operation O O O O
Soft Start Function - - - -
Test Function O O O O
Time Delay Safety Function O O O O
Timer(24 Hour, On/Off) O O O O
Timer(Weekly, On/Off) - - - -
Two Thermistor Control - - - -
Wired LCD Remote Control - - - -
Wireless LCD Remote Control O O O O
Zero Stanby Power - - - -
Zone Control - - - -
AMNC-LQ/LR/LT AMNC-AP AMNH-LQ/LR/LT AMNH-AP
Notes :
O : Basic
Optional : Factory-Installed
Accessory : Field-Installed
- : Not available on this system

2004 Product Data 17
5. Specifications
1764(2051) 2267(2638) 3024(3515 4536(5275) 5795(6740
7000 9000 12000 18000 23000
-----
-----
5.5(194) 6.0.(212) 9.0(318) 13(459) 14(495)
18~30 / - 18~30 / - 18~30 / - 18~30 / - 18~30 / -
8.4 8.4 14.4 23 28
IC-8415LG62A IC-8415LG62A IC-8420LG48A AMR-023E2 AMR-023E5
44446
25 25 37 34 63
0.11 0.11 0.16 0.15 0.28
0.9 / 400 0.9 / 400 0.9 / 400 2.0 / 370 2.0 / 370
Cross Flow Fan Cross Flow Fan Cross Flow Fan Cross Flow Fan Cross Flow Fan
1/3.43(87) 1/3.43(87) 1/3.43(87) 1/3.74(95) 1/3.74(95)
1080 / 970 / 880 1170 / 1100 / 1020 1290 / 1200 / 1120 1140 / 1040 / 940 1260 / 1140 / 1000
-----
34/31/28 35/32/30 38/36/34 42/38/35 46/40/38
Thermistor Thermistor Thermistor Thermistor Thermistor
0.197(5.0) 0.197(5.0) 0.197(5.0) 0.276(7.0) 0.276(7.0)
19 19 20 20 20
2R,10C 2R,10C 2R,12C 2R,13C 2R,13C
0.9 1.0 1.2 2.3 3.0
32.4*10.2*6.1(820*260*155) 32.4*10.2*6.1(820*260*155) 35.4*11.2*6.1(900*285*156) 42.9*12.4*6.8(1090*314*172) 42.9*12.4*6.8(1090*314*172)
7(15.4) 7(15.4) 9(19.8) 12(26.5) 12(26.5)
1/4 (6.35) 1/4 (6.35) 1/4 (6.35) 1/4 (6.35) 1/4 (6.35)
3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 1/2 (12.7) 1/2 (12.7)
20 20 20 20 20
35.4*9.2*13.4(900*233*340) 35.4*9.2*13.4(900*233*340) 38.4*9.2*14.6(976*233*372) 45.9*10.0*15.3(1165*255*388) 45.9*10.0*15.3(1165*255*388)
354/774 (360/780) 354/774 (360/780) 338/714 (340/720) 264/536 (270/540) 264/536 (270/540)
Nominal Cooling Capacity ★kcal/hr(W)
Btu/hr
Nominal Heating Capacity ★kcal/hr(W)
Btu/hr
Air Circulation H/M/L
CMM(CFM)
Setting temperature range °C
Fan motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Fan RPM Cooling(H/M/L) rpm
Heating(H/M/L) rpm
Noise Level (Sound Press,1m) H/M/L dBA
Temperature controller
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column
Dehumidification Rate l/h
Dimensions (W*H*D) inch(mm)
Net Weight kg(lbs)
Piping Liquid inch(mm)
Connection Gas inch(mm)
Drain hose (ID Ø)mm
Packing Dimension (W*H*D) inch(mm)
Stuffing Quantity Without S/Parts 20/40ft
Wall Mounted
AMNC076LQL0 AMNC096LQL0 AMNC126LRL0 AMNC186LTL0 AMNC246LTL0
Indoor Unit Type
Model
Note : 1. ★ See the page "Combination Table"
2. Due to our policy of innovation some specifications may be changed without notification.
5.1 Indoor Units
Nominal Cooling Capacity ★kcal/hr(W)
Btu/hr
Nominal Heating Capacity ★kcal/hr(W)
Btu/hr
Air Circulation H/M/L CMM(CFM)
Setting temperature range °C
Fan motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Fan RPM Cooling(H/M/L) rpm
Heating(H/M/L) rpm
Noise Level (Sound Press,1m) H/M/L dBA
Temperature controller
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column
Dehumidification Rate l/h
Dimensions (W*H*D) inch(mm)
Net Weight kg(lbs)
Piping Liquid inch(mm)
Connection Gas inch(mm)
Drain hose (ID Ø)mm
Packing Dimension (W*H*D) inch(mm)
Stuffing Quantity Without S/Parts 20/40ft
Front Panel Color "*" Position
ART COOL
AMNC096AP*1 AMNC126AP*1
Indoor Unit Type
Model
2267(2638) 3024(3515)
9000 12000
--
--
7.5(264) 8.5(300)
18~30 / - 18~30 / -
--
SIC-39CV-D828-1 SIC-39CV-D828-1
88
18 18
0.08 0.08
--
Turbo Fan Turbo Fan
1/16.9(430) 1/16.9(430)
(510/350/290) (560/460/360)
--
37/31/27 43/39/31
Thermistor Thermistor
0.197(5.0) 0.197(5.0)
20 20
2R,20C 2R,20C
1.1 1.4
22.4*22.4*5.1 (570*568*129) 22.4*22.4*5.1 (570*568*129)
9(19.84) 9(19.84)
1/4 (6.35) 1/4 (6.35)
3/8 (9.52) 3/8 (9.52)
20 20
26.2*25.7*9.1(665*653*231) 26.2*25.7*9.1(665*653*231)
237/534 (239/539) 237/534 (239/539)
M:Metal, B:Blue, D:Wood
Cooling Only

18 MPS Variable Multi Split System(50Hz, R410A)
5. Specifications
Heat Pump
Nominal Cooling Capacity ★kcal/hr(W)
Btu/hr
Nominal Heating Capacity ★kcal/hr(W)
Btu/hr
Air Circulation H/M/L
CMM(CFM)
Setting temperature range °C
Fan motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Fan RPM Cooling(H/M/L) rpm
Heating(H/M/L) rpm
Noise Level (Sound Press,1m)
H/M/L dBA
Temperature controller
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column
Dehumidification Rate l/h
Dimensions (W*H*D) inch(mm)
Net Weight kg(lbs)
Piping Liquid inch(mm)
Connection Gas inch(mm)
Drain hose (ID Ø)mm
Packing Dimension (W*H*D) inch(mm)
Stuffing Quantity
Without S/Parts 20/40ft
Wall Mounted
AMNH076LQL0 AMNH096LQL0 AMNH126LRL0 AMNH186LTL0 AMNH246LTL0
Indoor Unit Type
Model
1764(2051) 2267(2638) 3024(3515) 4536(5275) 5796(6740)
7000 9000 12000 18000 23000
2016(2343) 2520(2929) 3326(3867) 4990(5803) 6426(7472)
8000 10000 13200 19800 25500
5.5(194) 6.0(212) 9.0(318) 13(459) 14(495)
18~30 / 16~30 18~30 / 16~30 18~30 / 16~30 18~30 / 16~30 18~30 / 16~30
8.4 8.4 14.4 23 28
IC-8415LG62A IC-8415LG62A IC-8420LG48A AMR-023E2 AMR-023E5
44444
25 25 37 34 63
0.11 0.11 0.16 0.15 0.28
0.9 / 400 0.9 / 400 0.9 / 400 2.0 / 370 2.0 / 370
Cross Flow Fan Cross Flow Fan Cross Flow Fan Cross Flow Fan Cross Flow Fan
1/3.43(87) 1/3.43(87) 1/3.43(87) 1/3.74(95) 1/3.74(95)
1080 / 970 / 880 1170 / 1100 / 1020 1290 / 1200 / 1120 1140 / 1040 / 940 1260 / 1140 / 1000
1080 / 970 / 880 1170 / 1100 / 1020 1290 / 1200 / 1120 1140 / 1040 / 940 1260 / 1140 / 1000
34/31/28 35/32/30 38/36/34 42/38/35 46/40/38
Thermistor Thermistor Thermistor Thermistor Thermistor
0.197(5.0) 0.197(5.0) 0.197(5.0) 0.276(7.0) 0.276(7.0)
19 19 20 20 20
2R,10C 2R,10C 2R,12C 2R,13C 2R,13C
0.9 1.0 1.2 2.3 3.0
32.4*10.2*6.1(820*260*155) 32.4*10.2*6.1(820*260*155) 35.4*11.2*6.1(900*285*156) 42.9*12.4*6.8(1090*314*172) 42.9*12.4*6.8(1090*314*172)
7(15.4) 7(15.4) 9(19.8) 12(26.5) 12(26.5)
1/4 (6.35) 1/4 (6.35) 1/4 (6.35) 1/4 (6.35) 1/4 (6.35)
3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 1/2 (12.7) 1/2 (12.7)
20 20 20 20 20
35.4*9.2*13.4(900*233*340) 35.4*9.2*13.4(900*233*340) 38.4*9.2*14.6(976*233*372) 45.9*10.0*15.3(1165*255*388) 45.9*10.0*15.3(1165*255*388)
354/774 (360/780) 354/774 (360/780) 338/714 (340/720) 264/536 (270/540) 264/536 (270/540)
Note : 1. ★ See the page "Combination Table"
2. Due to our policy of innovation some specifications may be changed without notification.
Nominal Cooling Capacity ★kcal/hr(W)
Btu/hr
Nominal Heating Capacity ★kcal/hr(W)
Btu/hr
Air Circulation H/M/L CMM(CFM)
Setting temperature range °C
Fan motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Fan RPM Cooling(H/M/L) rpm
Heating(H/M/L) rpm
Noise Level
(Sound Press,1m) H/M/L dBA
Temperature controller
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column
Dehumidification Rate l/h
Dimensions (W*H*D) inch(mm)
Net Weight kg(lbs)
Piping Liquid inch(mm)
Connection Gas inch(mm)
Drain hose (ID Ø)mm
Packing Dimension (W*H*D) inch(mm)
Stuffing Quantity Without S/Parts 20/40ft
Front Panel Color "*" Position
ART COOL
AMNH096AP*1 AMNH126AP*1
Indoor Unit Type
Model
2267(2638) 3024(3515)
9000 12000
2520(2929) 3326(3867)
10000 13200
7.5(264) 8.5(300)
18~30 / 16~30 18~30 / 16~30
--
SIC-39CV-D828-1 SIC-39CV-D828-1
88
18 18
0.08 0.08
--
Turbo Fan Turbo Fan
1/16.9(430) 1/16.9(430)
(510/350/290) (560/460/360)
(510/350/290) (560/460/360)
37/31/27 43/39/31
Thermistor Thermistor
0.197(5.0) 0.197(5.0)
20 20
2R,20C 2R,20C
1.1 1.4
22.4*22.4*5.1 (570*568*129) 22.4*22.4*5.1 (570*568*129)
9(19.84) 9(19.84)
1/4 (6.35) 1/4 (6.35)
3/8 (9.52) 3/8 (9.52)
20 20
26.2*25.7*9.1(665*653*231) 26.2*25.7*9.1(665*653*231)
237/534 (239/539) 237/534 (239/539)
M:Metal, B:Blue, D:Wood

2004 Product Data 19
5. Specifications
Notes: 1. Capacities are based on the following conditions:
Cooling: - Indoor Temperature 27°C(80.6°F) DB /19°C(66.2°F) WB Heating: - Indoor Temperature 20°C(68°F) DB / 15°C(59°F) WB
- Outdoor Temperature 35°C(95°F) DB /24°C(75.2°F) WB - Outdoor Temperature 7°C(44.6°F) DB / 6°C(42.8°F) WB
- Interconnecting Piping Length 7.5m - Interconnecting Piping Length 7.5 m
- Level Difference of Zero. - Level Difference of Zero.
2. Capacities are Net Capacities.
3.
★ : See the page "Combination Table"
4. Due to our policy of innovation some specifications may be changed without notification.
Model
Cooling Capacity ★kcal/hr
W
Btu/hr
Heating Capacity ★kcal/hr
W
Btu/hr
Input ★Cooling/Heating W
Running Current ★Cooling/Heating A
Starting Current Cooling/Heating A
Power Supply Ø,V,Hz
Power Factor %
Compressor A Locked Rotor Amp. A
Type
Quantity No
Model
Maker
Capacity kcal/hr(Btu/hr)
Motor Type
Motor Input W
Oil Type
Oil Charge cc
O.L.P Type(model name)
Compressor B Locked Rotor Amp. A
Type
Quantity No
Model
Maker
Capacity kcal/hr(Btu/hr)
Motor Type
Motor Input W
Oil Type
Oil Charge cc
O.L.P Type(model name)
Refrigerant Charge g(oz), type
Type
Control
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column/No.
Fan Motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Discharge Side / Top
Speed rpm
Air Circulation CMM(CFM)
Noise Level(Sound Press,1m) dBA
Piping Connection Liquid inch(mm)
Gas inch(mm)
Drain(ID Ø)mm
Dimensions (W*H*D) inch(mm)
Net Weight kg(lbs)
Power Supply Cable No.* mm
2
Interunit Cable No.* mm
2
Max. Interunit Piping Length Total of Each Room m
For One Room m
Max. Installation Indoor Unit~Outdoor Unit m
Height Difference Indoor Unit~Indoor Unit m
Packing Dimension (W*H*D) inch(mm)
Stuffing Quantity With(Without) S/Parts 20/40ft
2268~3780 1764~4536 2016~5292 2268~7560
2636~4394 2051~5275 2345~6154 2638~8787
9000~15000 7000~18000 8000~21000 9000~30000
-- --
-- --
-- --
1300~1400 / - 780~1900/ - 880~2100/ - 1100~3250 / -
6.1~6.7 / - 3.5~8.5/ - 4.0~9.4/ - 4.8~15 / -
-- --
1,220-240,50 1,220-240,50 1,220-240,50 1,220-240,50
-- --
37 24 25.2 35.5
Rotary Rotary Rotary Rotary
11 11
GJ176PAA 5KS140DAD21 5KS150EAB21 5KS225DKSM681
LG. Electric Matsushita Electric Matsushita Electric Matsushita Electric
3654(14500) at 50Hz & 240V 2932(11635) at 50Hz & 240V 3130(12420) at 50Hz & 240V 4901(19450) at 50Hz & 240V
Permanent split capacitor Permanent split capacitor Permanent split capacitor Permanent split capacitor
1526 1290 1290 2175
FVS68D(PVE) FV50S(PVE) FV50S(PVE) FV50S(PVE)
500 670 670 670
Internal MRA98781-9090 MRA99150-9090 Internal
- 17.2 20.3 25.2
- Rotary Rotary Rotary
-1 11
- 5PS102EAC21 5PS112EBB21 5KS150DKSM564
- Matsushita Electric Matsushita Electric Matsushita Electric
-
2076(8240) at 50Hz & 240V 2253(8940) at 50Hz & 240V 3181(12625) at 50Hz & 240V
-
Permanent split capacitor Permanent split capacitor Permanent split capacitor
- 865 975 1320
- FV50S(PVE) FV50S(PVE) FV50S(PVE)
- 350 350 670
- MRA99901-9090 MRA99282-9090 MRA99150-9090
1050(37.04) at 7.5m 1350(47.62) at 7.5m 1500(52.91) at 7.5m 2500(88.2) at 7.5m
R410A R410A R410A R410A
Capiilary Tube L.E.V L.E.V L.E.V
0.276(7.0) 0.276(7.0) 0.276(7.0) 0.276(7.0)
18 18 18 18
2R,24C 2R,28C 2R,28C 2R,48C
27 67.2 67.2 41
AMR036E1 IC-28640LG28J IC-28640LG28J IC-9625LGSY
46 66
79 120 120 80
0.35 1.4 1.4 0.35
1.5/400 6/370 6/370 2/370
Propeller Propeller Propeller Propeller
1/15.25(387.6) 1/18.1(460) 1/18.1(460) 2/15.7(400)
Side Discharge Side Discharge Side Discharge Side Discharge
680 850 850 880 / 710
40(1412) 53(1872) 53(1872) 63(2225)
52 53 53 54/51
1/4(6.35)*2EA 1/4(6.35)*2EA 1/4(6.35)*3EA 1/4(6.35)*4EA
3/8(9.52)*2EA 3/8(9.52)*2EA 3/8(9.52)*3EA 3/8(9.52)*4EA
-- --
31.5*21.8*10.3 (801 * 555 * 262) 34.3*25.8*12.6 (870*655*320) 34.3*25.8*12.6 (870*655*320) 34.3*41.7*12.6 (870*1060*320)
48(106) 64(141) 64(141) 80(176)
3*2.1(Includes earth) 3*3.5(Includes earth) 3*3.5(Includes earth) 3*4.5(Includes earth)
4*0.75(Includes earth) 4*0.75(Includes earth) 4*0.75(Includes earth) 4*0.75(Includes earth)
30 30 45 60
15 15 15 15
7.5 7.5 7.5 7.5
7.5 7.5 7.5 7.5
37.8*24.0*15.1 (960*610*384) 40.1*28.1*17.3 (1020*715*440) 40.1*28.1*17.3 (1020*715*440) 41.1*44.9*17.3 (1045*1140*440)
108/222 (108/222) 80/170(81/171) 80/170(81/171) (51/111)
5.2 Outdoor Units
A2UC146FA0 A2UC186FA0 A3UC216FA0 A4UC306FA0
Cooling Only
