INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
Basic Safety Precautions . . . . . . . . . . . . . . . . . . 3 - 6
Electrical Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
CARE AND CLEANING
Before Calling for Service
TROUBLESHOOTING
Product Registration Information
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Storing the Air Conditioner
WARRANTY
Window Vent Panel and Extensions
Installation in Vertical Sliding Windows. . . . . . . 16, 17
Installation in Casement Style Windows. . . . . . .18, 19
INSTALLATION INSTRUCTIONS
Selection of Installation Location
Attaching the Hose and Diffuser
PARTS AND FEATURES
Key Parts and Components . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . 22
.. .. . . . . . .
Cleaning the Case. . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . 21
HOW TO USE
Before Using Your Air Conditioner
Control Panel and Remote . . . . . . . . . . . . . . . . 11,12
Preparing for Installation . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . 23, 24
. . . . . . . . . . . . . 25
2
Congratulations on your purchase
and welcome to the LG family.
Your new LG Air Conditioner
combines high-efficiency operation
with portable convenience.
If you follow the operating and care
instructions in this manual, your
air conditioner will provide you with
many years of reliable service.
THANK YOU!
. . . . . . . . . . . 9, 10

IMPORTANT SAFETY INSTRUCTIONS
3
EnglishEnglish
Do not store flammables like
gasoline benzene thinner
etc. near the air conditioner.
BASIC SAFETY PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS
4
Unplug the unit when not
using it for a long time.
Wax
Thinner

IMPORTANT SAFETY INSTRUCTIONS
5
EnglishEnglish
When gas leaks, open the
window for ventilation before
operating the unit.
Hold the plug by the head
it out.
（not the cable）when taking
For inner cleaning, contact an Authorized Service Center or a dealer.
Do not use harsh detergent that causes corrosion or damage on the unit.
Harsh detergent may also cause failure of product, fire, or electric shock.
Do not use this appliance for
special purposes such as
cooling pets foods，
precision
machinery，or objects of art
，

IMPORTANT SAFETY INSTRUCTIONS
6
If the liquid from the battery gets onto your skin
or clothers，
wash it well with clean water. Do
not use the remote if the battery has leaked.
y
If you eat the liquid from the battery,brush
your teeth and see doctor.Do not use the
remote if the battery has leaked.
y
ELECTRICAL SAFETY
WARNING
Electrical Shock Hazard
Failure to follow these instructions can result
in death, fire, or electrical shock.
•This unit must be properly grounded.
•Do not, under any circumstances, cut or
remove the ground prong.
•If you do not have a properly grounded
outlet, or if there is any doubt that the outlet
is not properly grounded, a qualified
electrician should check the outlet and
circuit, and, if necessary, install a properly
grounded outlet.
•This air conditioner must be plugged
into a grounded 60 Hz, 120 VAC outlet
protected by a 15 amp time delay fuse
or circuit breaker.
•This air conditioner must be installed in
accordance with national wiring codes.
•Do not alter or modify the plug or cord
of this air conditioner. If the power cord
becomes worn or damaged, the cord should
only be replaced by a qualified service
technician using genuine replacement parts.
•Do not use an extension cord.

7
English
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
For additional safety,
the power cord
features an integrated
circuit breaker. Test
and reset buttons are
provided on the plug
case.
The circuit breaker
should be tested
periodically by
pressing the TEST
button then the RESET button. If the TEST
button does not cause the circuit breaker to trip,
or if the RESET button will not stay engaged,
unplug the air conditioner immediately and
contact your LG service technician.

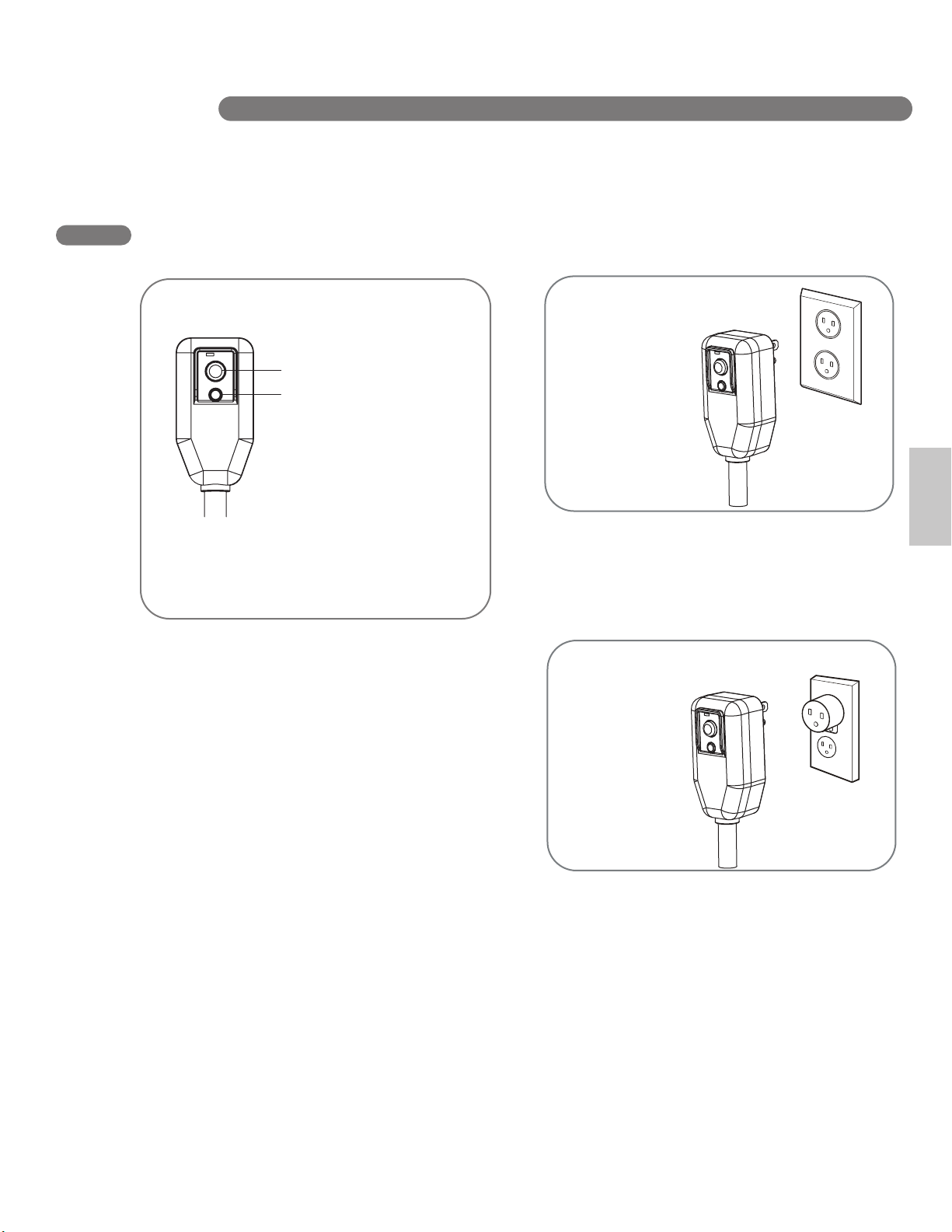

INTEGRATED CIRCUIT BREAKER
Test
Reset
ELECTRICAL SAFETY
Due to potential safety hazards, the use of
an adapter plug is strongly discouraged.
For temporary connections, use only a
UL-listed adapter. Ensure that the large slot
in the adapter is aligned with the large slot
in the outlet.
To prevent damage to the adapter’s ground
terminal, hold the adapter in place while
plugging in or unplugging the air conditioner.
• Attaching the adapter ground terminal to
the wall receptacle cover screw does not
ground the appliance unless the cover
screw is metal and not insulated, and the
wall receptacle is grounded through the
house wiring.
• Frequent connection and disconnection
can damage the ground terminal on the
adapter. Never use a broken or damaged
adapter.
SAVE THESE INSTRUCTIONS
PREFERRED
GROUNDING METHOD
Ensure proper
ground exists
before use.
TEMPORARY GROUNDING
METHOD
Ensure proper
ground exists
before use.

8
PARTS AND FEATU RES
KEY PARTS AND COMPONENTS
2
1
8
4
67
7
5
3
1
2
3
4
SWIVELING CASTERS
INFRARED REMOTE CONTROLLER
5POWER SUPPLY CORD HOLDER
Swiveling casters allow you to move the air conditioner easily
on most floor surfaces.
The remote controller allows you to adjust the temperature
and operate most functions of the air conditioner
from across the room.
AIR DISCHARGE
HOSE
Use the di
AND DIFFUSER
Use the diffuser and hose to connect the air conditioner to the
window installation kit to vent exhaust air outside.
CONTROL PANEL AND DISPLAY
Easy-to-read digital display shows the set temperature and
indicator lights show the operating mode. Simple push buttons
make changing settings quick and easy.
The direction of air can be controlled wherever you want to cool
by adjusting the horizontal louver.
8
6BOTTOM DRAIN PORT
Before moving the air conditioner, drain the internal water
in the collection tank completely by using bottom drain port.
7AIR FILTER
Wrap the power supply cord around the holders for your
convenience.
The horizontal direction is adjusted by moving the lever to the left
or right.
Touching the horizontal louvers adjusts the air direction up or
down.

Refer to the Installation Instructions included in
this manual before using the air conditioner.
Once the air conditioner has been properly
assembled and installed:
Plug the power cord into its own dedicated
properly grounded outlet.
Do not plug
other
it could overload the outlet and create a
e hazard.
Make sure the air conditioner and cord is
positioned where it does not create a
tripping hazard and will receive adequate
ventilation. Do not place it directly next to
furniture or objects that could block the
vent openings.
Make sure that any items that could be
blown over or damaged by the airflow from
the fan are out of the airflow path.
PREPARING FOR OPERATION
1
2
co into own dedicate
o not plug
appliances into the same outlet;
fire
3
•Do not remain in the direct airflow from the air
conditioner for extended periods of time.
•When used at the same time as stoves,
fireplaces, and other combustion devices,
make sure there is a sufficient flow of fresh air
into the room. Do not use in tightly enclosed
spaces with these types of devices.
•This air conditioner is intended for household
use as a consumer comfort appliance. Do not
use it as a precision climate control system,
or for purposes such as cooling precision
equipment, food, pets, plants, artwork, etc.
Such items could be damaged.
•Do not bend the hose downward when
window installation kit is not applied. It may
cause failure of air conditioner or performance
deterioration.
IMPORTANT:
Remove and store packing materials for reuse.
Remove any shipping tape before using the
air conditioner. If the tape leaves behind any
adhesive, rub a small amount of liquid dish
soap onto it and wipe with a damp cloth. Do
NOT use sharp instruments, alcohol, thinners,
or abrasive cleaners to remove adhesive.
They could damage the finish.
UNPACKING THE AIR CONDITIONER
BEFORE USING YOUR AIR CONDITIONER
HO W TO USE
9
English

BEFORE USING YOUR AIR CONDITIONER

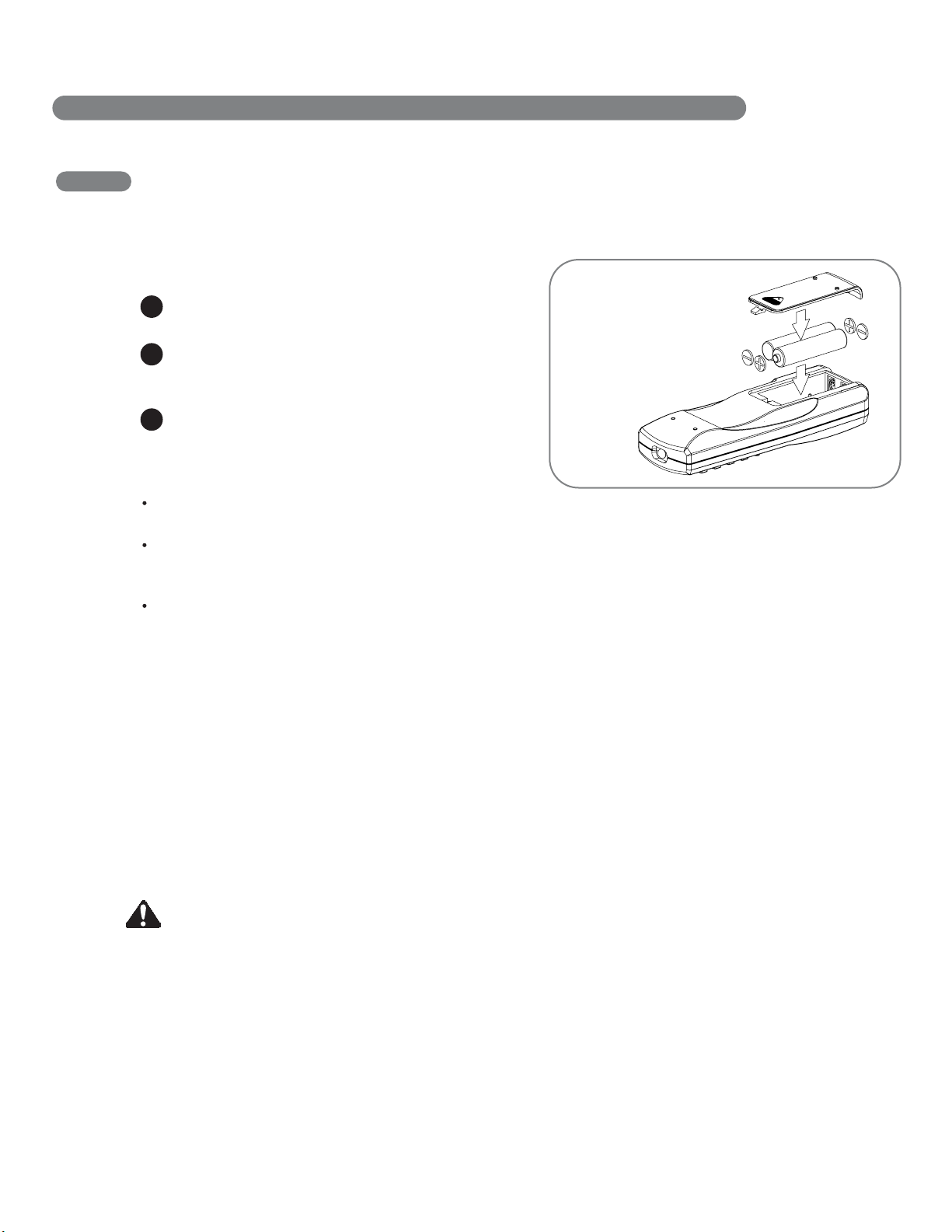

INSERTING BATTERIES IN THE REMOTE
Before using your remote, install the provided
AAA batteries.
Press and glide the battery cover on the back
of the remote, then you can remove the cover.
Insert two new alkaline AAA batteries into
the battery compartment, being sure to note
the proper polarity.
Reattach the battery cover.
NOTE :
Use only alkaline batteries. Do not use
rechargeable batteries.
When replacing batteries, always replace both
batteries with new batteries. Do not mix old
and new batteries.
If the air conditioner will not be used for an
extended period of time, remove the batteries
from the remote.
HO W TO USE
10
Be sure to note
proper polarity!
1
2
3
English
CAUTION
• Iftheliquidfromthebatteriesgetsontoyourskinorclothes,washitwellwithcleanwater.
Do not use the remote if the batteries have leaked.
• Ifyoueattheliquidfromthebatteries,brushyourteethandseedoctor.
The chemicals in batteries could cause burns or other health hazards.

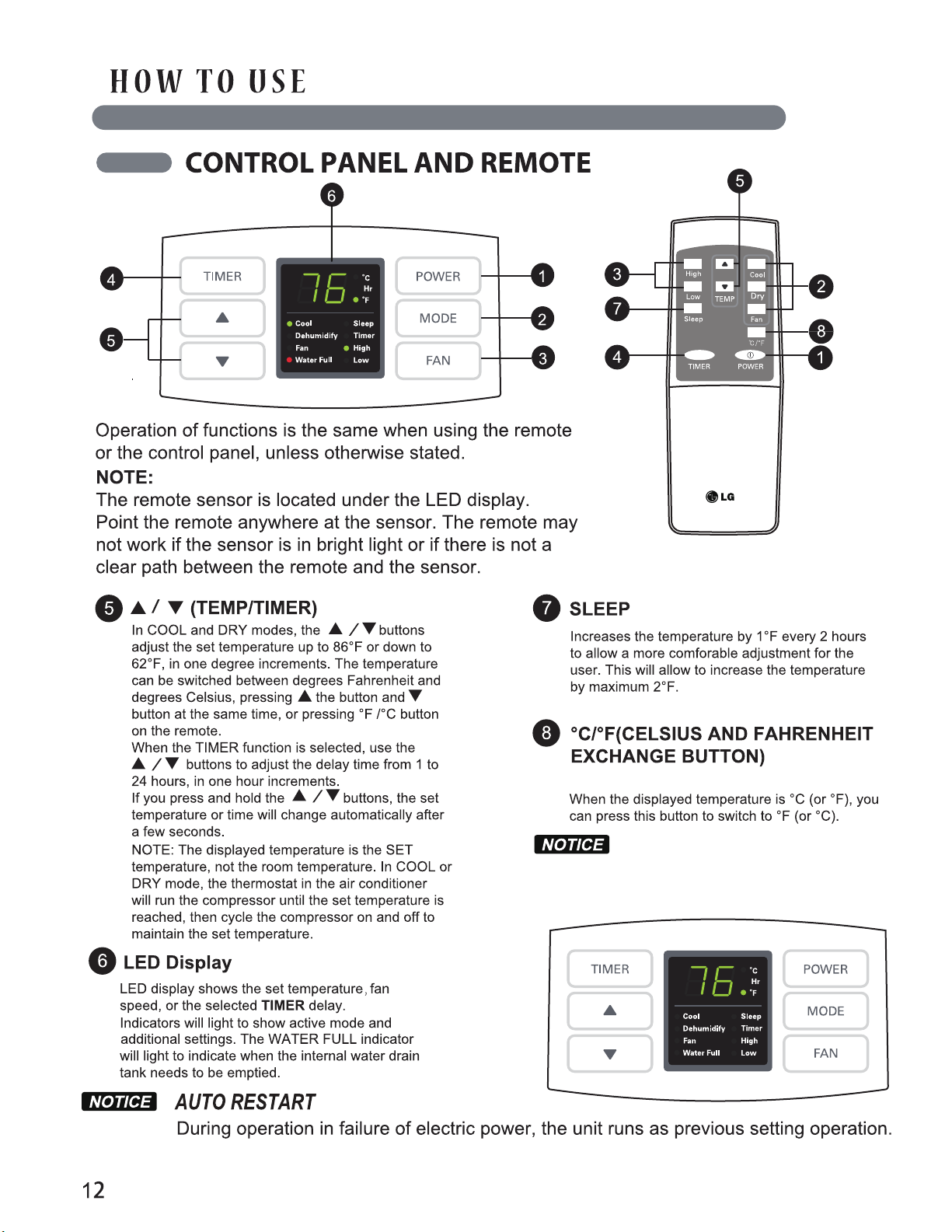

CONTROL PANEL AND REMOTE
POWER
Press the POWER button to turn the air conditioner
ON or OFF. Any control settings such as Cool, Dry,
Fan, and Fan Speed will be retained in memory when
the power is off. When turned on after being
unplugged, the air conditioner will automatically
reset. Any settings will need to be re-entered.
MODE
Press this button to select the operating mode such
as Cool, Dry (Dehumidify), or Fan for the air conditioner.
And you can see the active mode through the
indicator lights. The default setting is Cool. Press the
MODE button to change to Dry (Dehumidify), press
again to change to Fan, and again to change to Cool.
FAN
Adjusts the circulation fan speed between High and
Low fan speed. The selected fan speed will be
shown through the indicator lights. The function can
be used in Cool and Fan modes. When changing
fan speeds, there is a brief delay before the fan
motor changes speed.
Operation of functions is the same when using the remote
or the control panel, unless otherwise stated.
11
NOTE:
The remote sensor is located under the LED display.
Point the remote anywhere at the sensor. The remote may
not work if the sensor is in bright light or if there is not a
clear path between the remote and the sensor.
TIMER
4
When the TIMER function is selected, you can set
the air conditioner to either automatically turn
OFF or turn ON after a delay of up to 24 hours.
The display will show 0. Use the buttons
to adjust the delay time from 1 to 24 hours, in one
hour increments.
To set an automatic off delay, press the TIMER
button while the air conditioner is running and
use the buttons to adjust the delay time.
air conditioner will automatically turn off after the
set delay.
To set an automatic on delay, press the TIMER
button while the air conditioner is off and use
the buttons to adjust the delay time.
The display will show the number of hours
remaining until the unit is set to come on. The
air conditioner will automatically turn on after
the set delay.
If you want to know how many hours you have
setted, press the TIMER button and then you
can see the time through the LED display.
If you want to change the set timer, press the
TIMER button and adjust the time when the
number is flickering.
To cancel the Timer function, press the
TIMER
button and adjust the number to 0when the
number is flickering, then the function will be
canceled in a few seconds.
Another better method is press the TIMER
button and press this button again when the
number is still flickering.
1
2
5
2
8
8
1
3
4
7
Timer
1
2
3
6
4
HO W TO USE
COOL Compressor runs and cools the room. Use the
/ and FAN buttons to set the desired
temperature and circulation fan speed.
FAN Fan circulates air but compressor does not run.
Use the FAN button to set the desired fan speed.
DRY Dry mode is used to remove humidity from
the room without additional cooling.
Fan speed is pre-set and cannot be adjusted.
Mode Features
English
3
5

When you plug the power cord into grounded outlet,
LED display will show room temperature.
Plug in, the LED display will light

13
2 Type A Screws 1 Type B Screw 1 Type C Screw
The following components are used for window venting.
Not all components are used for every installation.

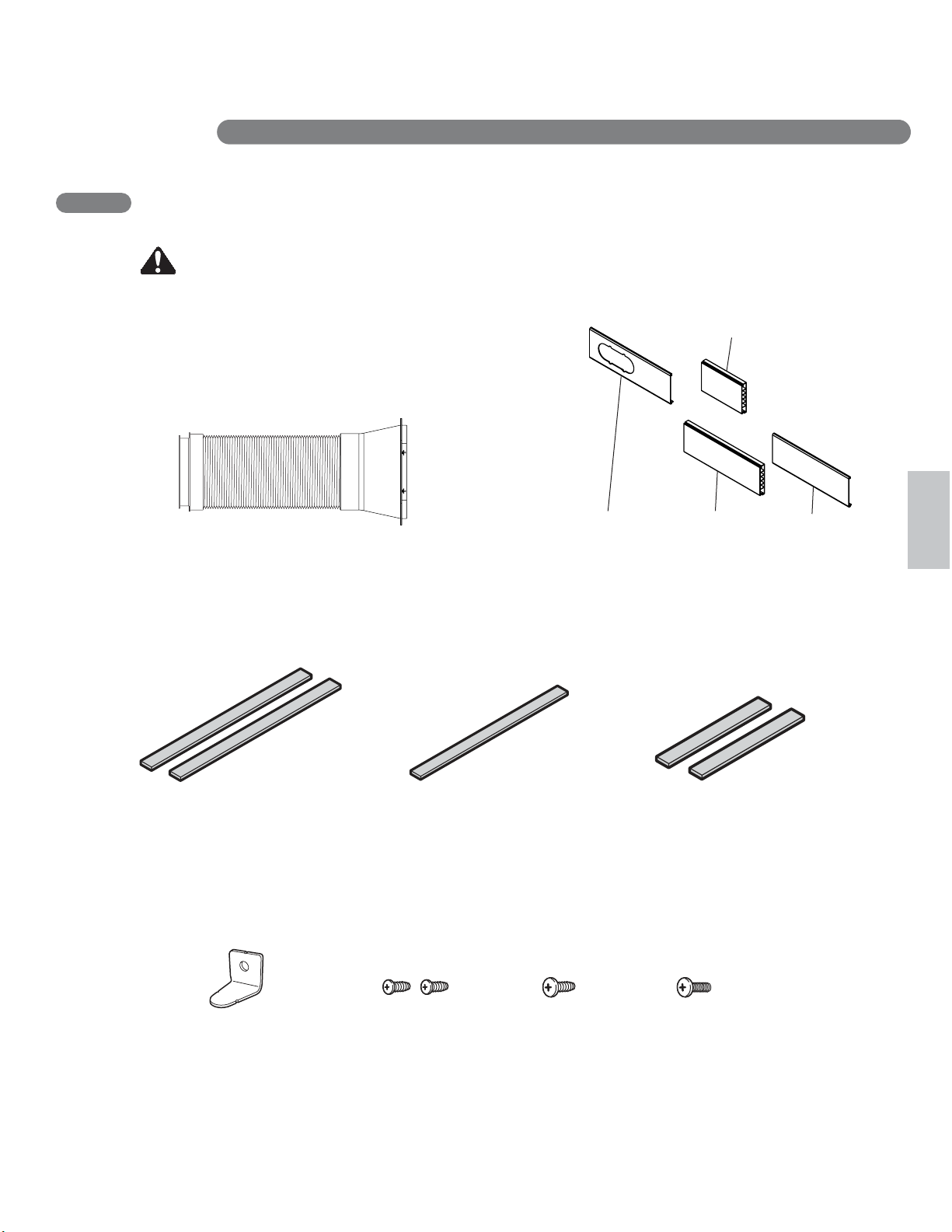

EXHAUST COMPONENTS
Window Installation Kit (includes 1 Window
Vent Panel and 3 Extension Panels)
Flexible Venting Hose
2 Type A Foam Seals
(Adhesive)
Diffuser
Security Bracket
1 Type B Foam Seal
(Non-adhesive)
2 Type C Foam Seals
(Adhesive type-Shorter)
English
INSTALLATION INSTRUCTIONS
PREPARING FOR INSTALLATION
WARNING The air conditioner is heavy! Use two or more people to
lift and install the unit! Failure to do so could result in back injury or other injuries.
1 Window Vent Panel
Panel A (18’’)
3 Extension Panels
Panel C (17’’) Panel D (17’’)
Panel B (9’’)

INSTALLATION INSTRUCTIONS
SELECTION OF INSTALLATION LOCATION
Place the unit on a level floor.
For best performance,allow at least 20 in
of air space on all sides of the unit for
good air circulation.
1
2
The length of the exhaust hose is specially designed according to the specification of this product.
Do not replace or extend it with your own private hose as this could cause malfunction.
WARNING
14
ATTACHING THE HOSE AND DIFFUSER
Grasp and lift to open the holder. Rotate the holder to open it completely.
Insert the vent hose into the exhaust air
outlet on the back of the air conditioner
by pushing it downward.
Rotate the holder to the closed position.
Installation is complete.
11
23
holder
20 in
20 in
Place the unit near a window. The hose
and diffuser will be used to connect the air
conditioner to the window installation kit to
vent exhaust air outside.
3
exhaust air
outlet

INSTALLATI ON I NSTRUCTIONS
WINDOW VENT PANEL AND EXTENSIONS
The window installation kit allows you to install the air conditioner in most vertical-sliding windows
18" to 50" wide, or casement-style windows from 18" to 50 " high.
For an 18" window opening, use the window
vent panel by itself.
For window openings from 19" to 26",
use the window vent panel (Panel A) and a
extension panel (Panel B).
use the window vent panel (Panel A) and a
extension panel (Panel C).
ehtesu,"05ot"53morfsgninepowodniwroF
window vent panel and two extension panels
(Panel C and Panel D).
Panel A
Panel A
18"
18"
Panel A
19"−26"
19"−26"
Panel B
Panel A
English
Fig. “a” Fig. “b”
27"−34"
Fig. “c” Fig. “d”
3ot"72morfsgninepowodniwroF 4",
A B C D
18" 9" 17" 17"
18" √a
19" −26" √ √ b
√ √ c
√d
Fig.
Panel
Window Length
1
√ √
1. Please check your window length and choose the
fit panels from the above tabel.
2. If your window length need more than 2 panels, after
adjust the length, please use type A screw to fix them.
Panel D
Panel A
Panel C
Panel A
Panel C
Panel D
Panel A
Panel C
Screw A
27" − 34"
35" −50"
27"−34"
35"−50"
35"−50"
Window Installation Kit (includes 1 Window
Vent Panel and 3 Extension Panels)
Panel A (18’’) Panel C (17’’) Panel D (17’’)
Panel B (9’’)
1 Window Vent Panel 3 Extension Panels
Panel B
Panel A
Panel C

INSTALLATION IN VERTICAL SLIDING WINDOWS
I NS TAL LA TI ON I NS TRU C TI ON S
17

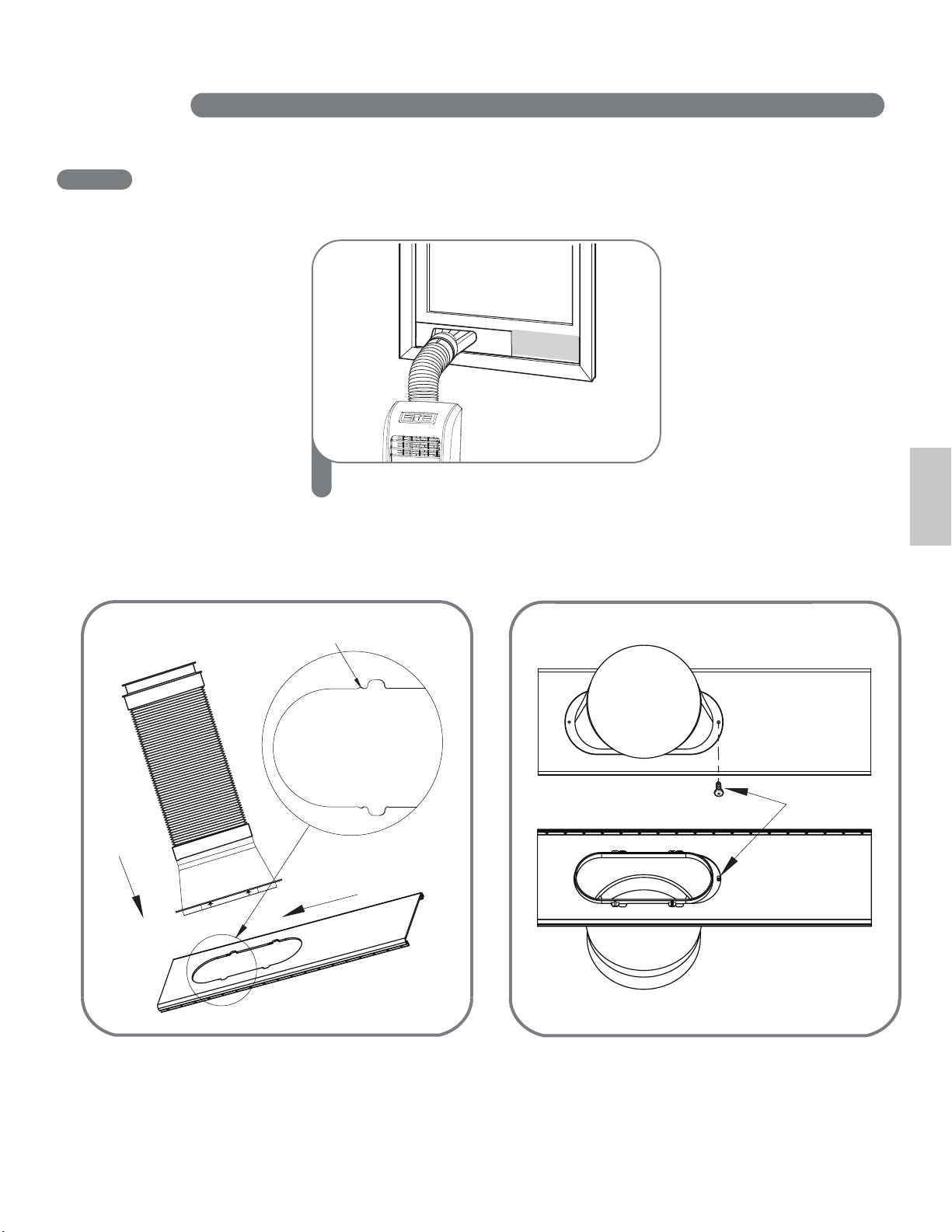

5Insert the diffuser into the Vent Panel. And
then slide.
English
If you want fix the diffuser more firmly, use
the type C screw.
Small gap
First
Insert
Second
Slide
First insert to the vent panel fully and then
slide for locking.
Type C screw

Foam seal A
(Adhesive type)
Foam seal C
(Adhesive
type-shorter)
1Cut the foam seal A (adhesive type) &
C (adhesive type-shorter) to the proper
length, and attach it to the window sash and
frame.
2Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
Foam seal B
(Non-adhesive type)
3Cut the foam seal B (Non-adhesive type) to
the window height. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
Vent
Panel
INSTALLATION IN CASEMENT STYLE WINDOWS
NOTE:The window installation kit can be used with casement windows between 18
″
and 50
″
tall.
I NSTAL LAT ION I NS T R U CTI ON S
Extension panel
(if required)
Joints en
Mousse C
(plus court de
type adhésif)
Sellado con
espuma A
(tipo adhesivo)
Sellado con
espuma C
(tipo adhesivo-
más corto)
Sellado con espuma B
(tipo adhesivo)
4
Install the window security bracket with a
type B screw as shown.
Type B screw
Security
bracket
18

INSTALLATION IN CASEMENT STYLE WINDOWS
INSTALLATION INSTRUCTIONS
19
English
5Insert the diffuser into the Vent Panel. And
then slide.
If you want fix the diffuser more firmly, use
the type C screw.
Small gap
First
Insert
Second
Slide
First insert to the vent panel fully and then
slide for locking.
Type C screw

CARE AND CLEANING
EMPTYING THE WATER COLLECTION TANK
Drain Cap
When the internal water collection tank is full, FL
will appear in the display and the air conditioner
will turn off until the tank is emptied.
Unplug the air conditioner, disconnect
the exhaust hose from the back, and move
the air conditioner to a suitable drain
location or outdoors. You may also place
a pan under the drain that will hold up
to 3 pints of water.
Remove the drain cap and the rubber plug
from the drain outlet.
Once the water collection tank is drained,
reinstall the rubber plug and the drain cap,
making sure it is on securely.
Place the air conditioner in the desired
location, reconnect the exhaust hose, and
plug in the air conditioner.
When need running in high humidity, or during the DRY mode remove the drain cap and the
exhaust from the back of the unit.
NOTES: When turned on after being unplugged, the air conditioner will automatically reset to
COOL mode, with a temperature setting of 75°F.
2
1
3
4
Using the bottom drain port
1
Install a drain hose (18mm [11/16"] inside diameter) and place the open end of the hose a suitable
drain location or outdoors.
2
FL apperars in the display
The water collection tank is full, drain the tank and restart the air conditioner.
NOTICE
English
Use Drain hose when use the DRY mode
20

CARE AND CLEANING
21
CLEANING THE CASE
Wipe the case with a slightly damp cloth, then wipe dry
with a dry cloth or towel.

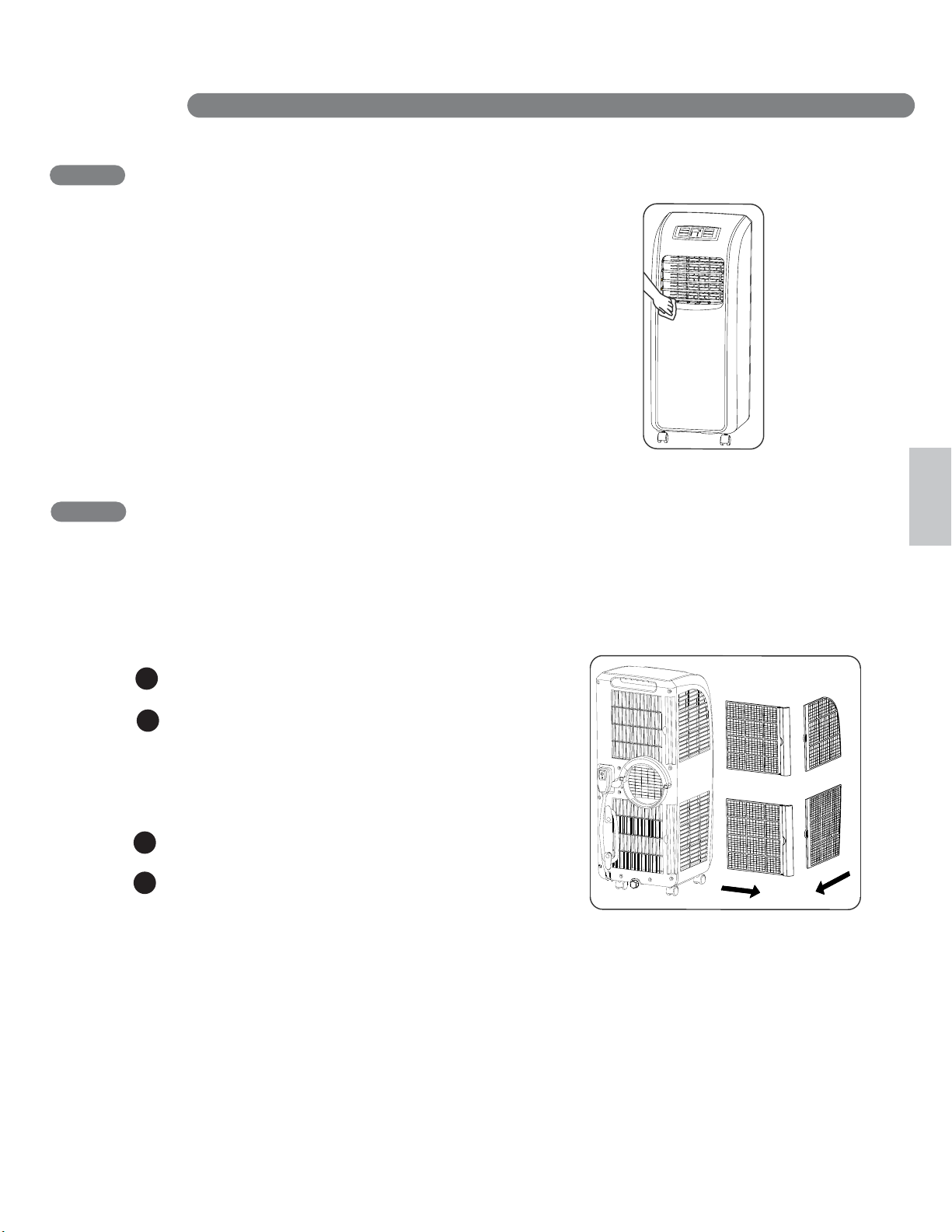

CLEANING THE AIR FILTER
The air filter should be cleaned every two weeks; depending on indoor air quality, more
frequent cleaning may be needed. A dirty air filter will decrease airflow and reduce efficiency.
Do not operate the air conditioner without
the air filter in place.
Pull out the air filter by the handle.
1
Use a vacuum cleaner to clean the filter. If the filter is
heavily soiled, it can be washed in warm water using a
mild detergent.
Do not use harsh cleaners or very hot water.
Do not wash in a dishwasher.
Allow the filter to dry completely before reinstalling.
Reinsert the filter.
2
3
4
English
• To prevent damage to the finish, do not use gasoline,
benzene, thinner, etc., or any abrasive cleansers to
clean the air conditioner; they may damage the finish.
• Never pour water onto or into the air conditioner.
It could damage internal components and create a
shock and fire hazard.
