LG
Window-Type Air Conditioner
OWNER'S MANUAL
LG
www.lgappliances.com
ENGLISH ESPAÑOL
IMPORTANT
Please read through this manual. It contains valuable
information about your air conditioner.This manual may
help save time and money by explaining proper air
conditioner maintenance and preventing improper use.
PRECAUTIONS
Pay close attention to precautions in order to prevent
potential hazards and damage from misuse or improper
installation. LG is not responsible for any damages
caused by misuse of the air conditioner.
MODELS, MODELOS: LWHD1000CR

2Room Air Conditioner
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact the authorized service technician for repair
or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions..........................3
Prior to Operation ...........................7
Introduction .....................................8
Electrical Safety .............................9
Installation ....................................11
Operating Instructions .................16
Maintenance and Service ............19
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS

Owner’s Manual 3
ENGLISH
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
■Installation
Don’t use a power cord, a
plug or a loose socket which
is damaged.
• Otherwise, it may cause a
fire or electrical shock.
Always plug into a grounded
outlet.
• Otherwise, it may cause a
fire or electrical shock.
Do not modify or extend the
power cord length.
• It will cause electric shock or
fire due to heat generation.
Do not disassemble or
modify products.
• It may cause failure and
electric shock.
Be caution when unpacking
and installing.
• Sharp edges may cause
injury.
Do not use the power cord near
flammable gas or combustibles
such as gasoline, benzene,
thinner, etc.
• It may cause explosion or
fire.
Gasolin

4Room Air Conditioner
Safety Precautions
■Operation
Do not place the power cord
near a heater.
• It may cause fire and electric
shock.
Do not allow water to run
into electric parts.
• It will cause failure of machine
or electric shock.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Wax
Thinner
Ventilate the room well when
using this appliance
together with a stove, etc.
• An oxygen shortage may
occur.
Turn off the power and
breaker firstly when
cleansing the unit.
• Since the fan rotates at high
speed during operation, it may
cause injury.
Turn off the main power
switch when not using it for
a long time.
• Prevent accidental startup and
the possibility of injury.
Unplug the unit if strange
sounds, odors, or smoke
come from it.
• Otherwise it may cause fire
and electric shock accident.
Do not open the suction
inlet grill of the product
during operation.
• Otherwise, it may electrical
shock and failure.
If water enters the product, turn
off the the power switch of the
main body of appliance. Contact
service center after taking the
power-plug out from the socket.
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
• There is danger of fire or
electric shock.
Do not share the outlet with
other appliances.
• It will cause electric shock or
fire due to heat generation.
Take the power plug out if
necessary, holding the head
of the plug and do not touch
it with wet hands.
• Otherwise, it may cause a
fire or electrical shock.

Owner’s Manual 5
ENGLISH
Safety Precautions

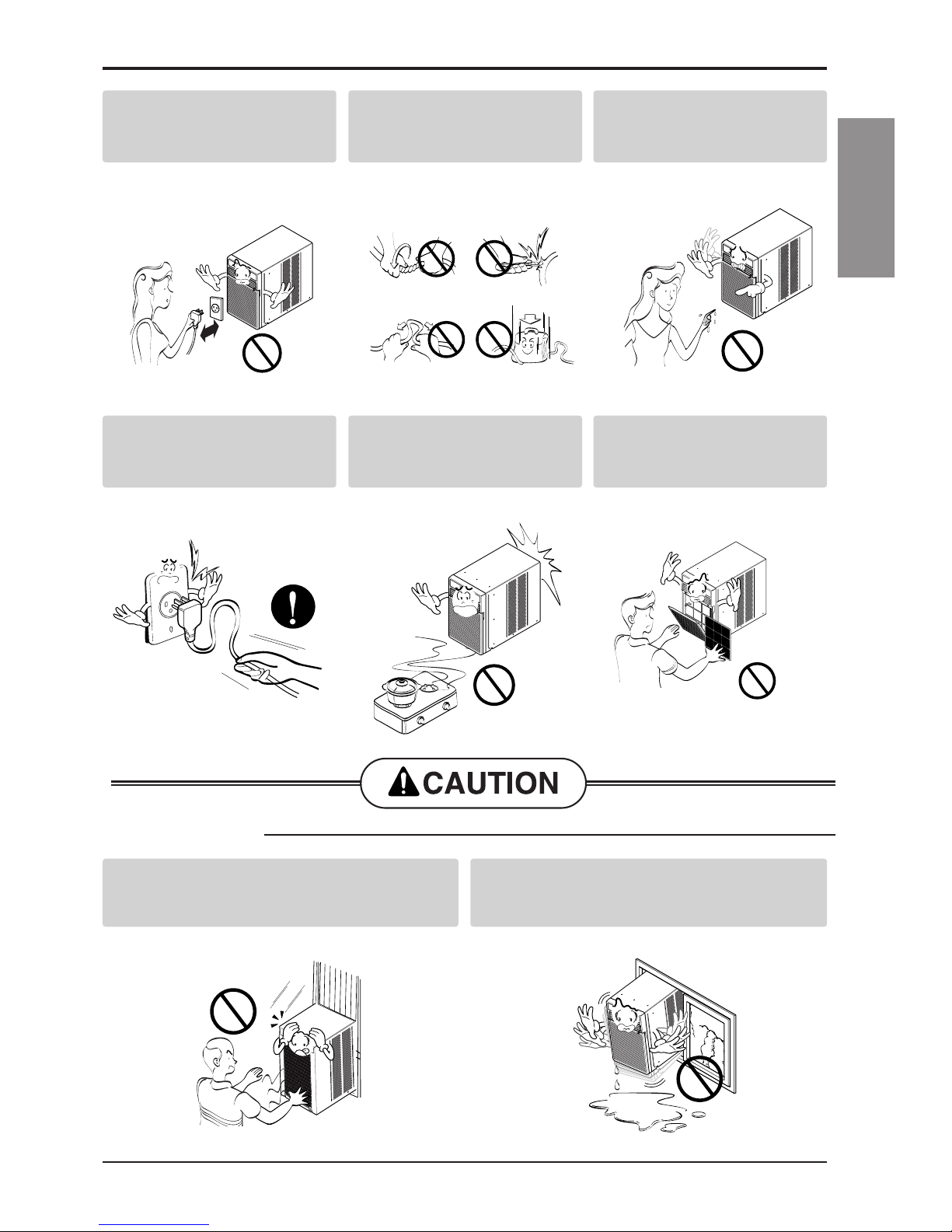

■Installation
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or
fire due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or
fire.
Do not operate with wet
hands or in damp
environment.
• It will cause electric shock.
Hold the plug by the head
when taking it out.
• It may cause electric shock
and damage.
When gas leaks, open the
window for ventilation
before operating the unit.
• Otherwise, it may cause
explosion, and a fire.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
• Otherwise, it may cause dispute with the
neighbors.
Keep level parallel in installing the product.
• Otherwise, it may cause vibration or water
leakage.

6Room Air Conditioner
Safety Precautions

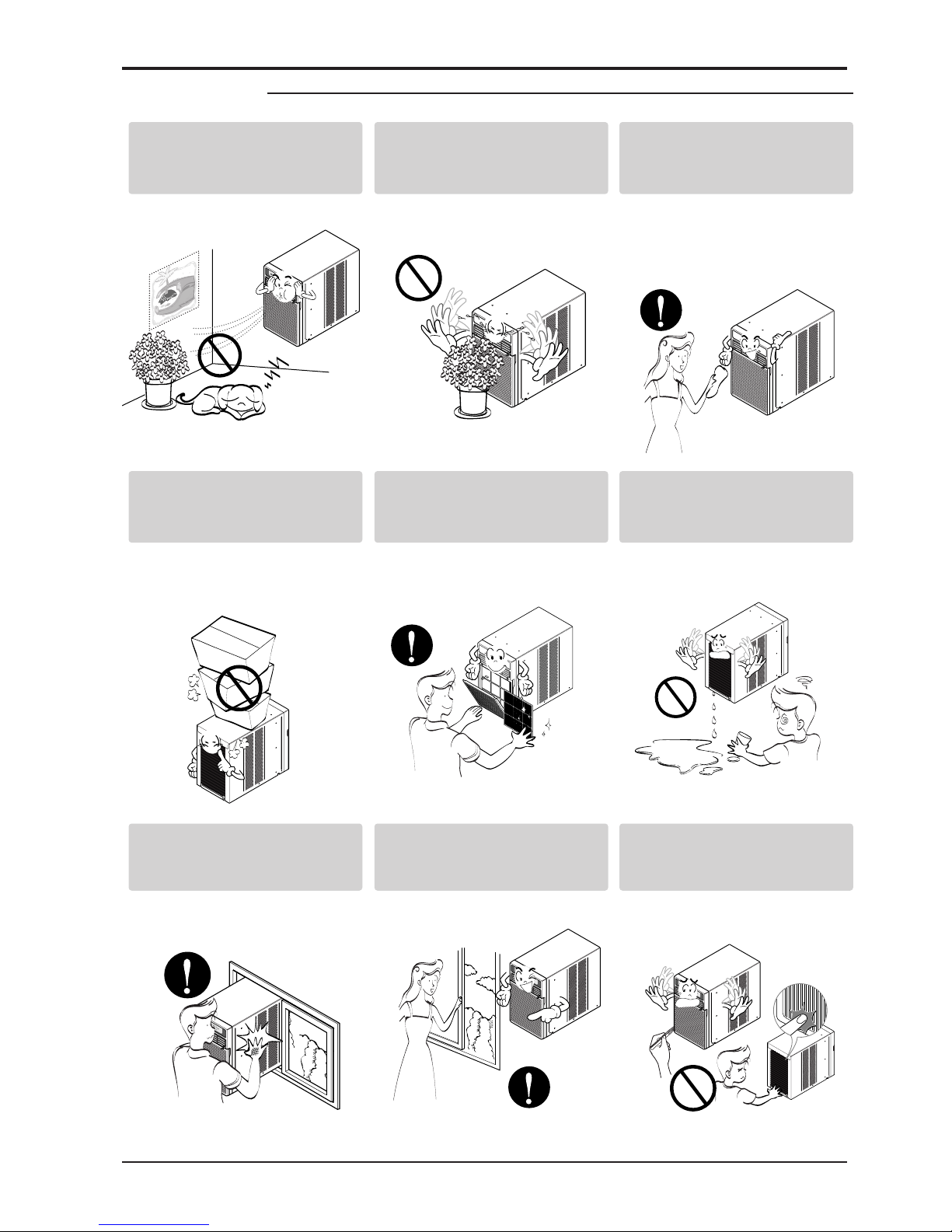

■Operation
Be cautious not to touch the
sharp edges when
installing.
• It may cause injury.
Avoid excessive cooling and
perform ventilation
sometimes.
• Otherwise, it may do harm
to your health.
Do not insert the hands or
bars through the air inlet or
outlet during operation.
• Otherwise, it may cause
personal injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
• It may cause injury.
Do not block the inlet or
outlet of air flow.
• It may cause product failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not step on the
indoor/outdoor unit and do
not put anything on it.
• It may cause an injury
through dropping of the unit
or falling down.
Always insert the filter
securely.
Clean it every two weeks.
• Operation without filters will
cause failure.
Do not drink water drained
from air conditioner.
• It contains containments and
will make you sick.

Owner’s Manual 7
ENGLISH
Prior to Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement
part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit’s power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Prior to Operation
Preparing for Operation
Usage
Cleaning and Maintenance
Service

8Room Air Conditioner
Introduction
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to
the air conditioner.
This symbol indicates special notes.
NOTICE
°C
CABINET
AIR DISCHARGE
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
CONTROL BOARD
CONDENSER
COMPRESSOR
EVAPORATOR
POWER CORD
BASE PAN
BRACE
SIDE LOUVER
FRONT GRILLE
AIR FILTER
AIR INTAKE
(INLET GRILLE)
°C
Symbols Used in this Manual
Features
This appliance should be installed in accordance with the National Electric Code.

Owner’s Manual 9
ENGLISH
Electrical Safety
Electrical Safety
Electrical Data
115V~ 230V~
Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Never push the test button during
operation
Otherwise this plug can damaged.
This device contains chemical, including
lead, known to the State of California to
cause cancer, and birth defects or other
reproductive harm.
Wash hands after handling.
Do not remove, modify or immerse this plug.
If this device trips, the cause it to be
corrected before further use.
The conductors inside this cord are
surrounded by shields, which monitor
leakage current.
These shields are not grounded.
<Made in Tower>
Periodically examine the cord for any
damage. Do not use this product in the
event the shields become exposed.
Avoid shock hazard, this unit can not
be user serviced opening the tamper
resistant. Sealed portion of the unit
voids all warranties and performance
claims. This unit not intended for use
as an on-off switch.
The shape may be different according to its model.
NOTICE
DO NOT USE AN EXTENSION CORD on 230,
208, and 230/208 Volt units.
All wiring should be made in accordance with local
electrical codes and regulations.
Aluminum house wiring may pose special
problems. Consult a qualified electrician.
NOTICE

10 Room Air Conditioner
Electrical Safety
Electrical Safety
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a standard
three-slot (grounding) wall power outlet to minimize the
hazard of electric shock. The customer should have the
wall receptacle and circuit checked by a qualified
electrician to make sure the receptacle is properly
grounded.
DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG.
A. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if you
wish to use an adapter, a TEMPORARY CONNECTION
may be made. Use UL-listed adapter, available from
most local hardware stores.
The large slot in the adapter must be aligned with the
large slot in the receptacle to assure a proper polarity
connection.
: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance
unless the cover screw is metal, and not insulated, and
the wall receptacle is grounded through the house
wiring. The customer should have the circuit checked
by a qualified electrician to make sure the receptacle
is properly grounded.
Disconnect the power cord from the adapter, using one
hand on each. Otherwise, the adapter ground terminal
might break. DO NOT USE the appliance with a broken
adapter plug.
B. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to an
eventual breakage of the ground terminal. The wall
power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However, if
you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension cord,
rated at 15A, 125V.

Owner’s Manual 11
ENGLISH
Installation
Installation
Window Requirements
Installation Kits Contents
8
7
9 10
3
12
11
16 17
1
6
13
15
4
14
2
5
21" min.
40 1/2" max.
15 1/2"
min.
21 1/2" min.
15 1/2" min.
16 1/2" max.
Horizontal sliding window Casement window
NO. NAME OF PARTS QTY
1 Curtain 1
2 Curtain Frame 1
3 Upper Guide 1
4 Side Guide 2
5 Support Bracket 1
6Bracket 1
7 Leveling Bolt & Nut 1
8 Bolt 2
9 Nut 2
10 Washer 2
11 Side Guide seal 1
12 Foam Seal Strip 1
13 Window Track Seal 1
14 Window Locking Bracket 1
15 Screw (Type A) 9
16 Screw (Type B) 3
17 Screw (Type C) 8
1. These instructions are for a horizontal sliding
or a casement window.
2. The electrical outlet must be within reach of
the power cord.
For installation in a casement window, the
window frame assembly and the side of the
building must be adequate to support the weight
of the air conditioner.

12 Room Air Conditioner
Installation
How to Install the Unit
1. To prevent vibration and noise, make sure the
unit is installed securely and firmly
2. Install the unit where the sunlight does not
shine directly on the unit.
3. The outside of the cabinet must extend outward
for at least 14" and there should be no
obstacles, such as a fence or wall, within 20"
from the back of the cabinet because it will
prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the
cooling efficiency of the air conditioner.
All side louvers of the cabinet must remain exposed to the outside of the structure.
4. Install the unit at a slight incline so the back is slightly lower than the front(about 1/4").
This will force condensed water to flow to the outside.
5. Install the unit with the bottom about 30"~60" above the floor level.
NOTICE
About 1/4"
30"~60"
Awning
Cooled air
Fence
Over 20"
Heat
radiation
Installing the Power cord
A
Power cord
Screw (Type A)
Power cord
B
Screw (Type A)
°C
°C
You can choose between the two methods below according to your preference and window sill
shape.
•Fasten the stopper using Type A screw, and
pass the power cord through slit "A".
•Fasten the stopper using left screw hole, and
rotate properly to pass the power cord through
slit "B".
Using slit "A" Using slit "B"

Owner’s Manual 13
ENGLISH
1. Loosely attach the Support Bracket to the
bottom of Bracket using Bolts, Washer, and
Nuts. Attach the Leveling Bolt and Nut. (Fig.
1)
2. Remove protective backing from Window
Track Seal and apply seal to window track.
(Fig.2)
3. Measure and lightly mark a line 8-1/4 inches
from window jamb. Center the Support
Bracket assembly on the window track and
fasten with 4 Type C screws.(Fig. 2)
4. Put the Support Bracket against the outside
wall and tighten the Bolts on top of the
Bracket. Adjust the Leveling Bolt so that the
air conditioner will be installed with a very
slight tilt (about 1/4") downward toward the
outside for proper drainage.
Tighten the nut. (Fig. 3)
DO NOT drill a hole in the bottom of the base
pan. The air conditioner is designed to operate
with the bottom of the base pan approximately
half-full of water.
5. Fasten Side Guides to the sides of the Air
Conditioner using 3 Type A screws per Guide.
Start with first screw at middle of Guide.
(Fig. 4)
6. Fasten Upper Guide on the top of the Air
Conditioner using 3 Type A screws. (Fig. 4)
NOTICE
Installation
Horizontal Sliding Window Installation
81/4inches81/4inches
WindoWindow JambambWindow Jamb
WindoWindow TrackWindow Track
WindoWindow Track
Seal
Window Track
Seal
Bracket
Support Bracket
Nut
Washer
Leveling Bolt & Nut
Bolt
Type C screwType C screw
About
1
/ 4 "
Outside Wall
Fastening Side Guides
Upper Guide
Side Guide
°C
Fig. 1
Fig. 2
Fig. 3
Fig. 4

14 Room Air Conditioner
Installation
7. Measure height of window opening from top
of Bracket assembly as shown Fig. 5.
Subtract 20-3/4 inches. Mark this
measurement on Curtain and cut the Curtain.
(Fig. 5)
8. Slide Curtain into Curtain Frame. Slide
Curtain Frame assembly into side Guides of
the Air Conditioner cabinet. Make sure
Curtain is firmly enclosed on all sides by the
Frame. (Fig. 6)
9. Cut side Guide seal into 2 equal lengths.
Remove protective backing and apply it to the
rear side of cabinet Side Guides, starting just
below Curtain Frame assembly. Pinch off
excess length so seal is even with the bottom
of side Guide. (Fig. 7)
10. Place Air Conditioner in window opening. It
should sit on Bracket assembly so that
Curtain Frame and cabinet Side Guides are
against top and side window jambs. Mate
front of Bracket with Base Guide attached to
the bottom of base pan.
11. Drill 1/8 inch holes in window track through
the existing holes on Base Guide. Screw 4
Type C screws through the holes. (Fig. 8)
12. If this is a casement window installation,
proceed to Casement Window Installation. If
not, slide inner window sash firmly against
side of the cabinet.
13. Drill 1/8 inch hole in window jamb to align
with the existing holes in the Curtain Frame.
Attach Curtain Frame to window frame with
2 Type B screws. (Fig. 8)
Frame Curtain
Curtain
Apply weather seal
to side guides
just below edge of
Curtain Frame .
Type B screwType B screw
Base panBase pan
BracketBracket
Windo
Windo
w Track
Base GuideBase Guide
Type C screw Window Track
°C
Fig. 5
Fig. 6
Fig. 7
Fig. 8

Owner’s Manual 15
ENGLISH
Installation
Check all seals and plug any remaining air
gaps with a suitable weatherproof caulk.

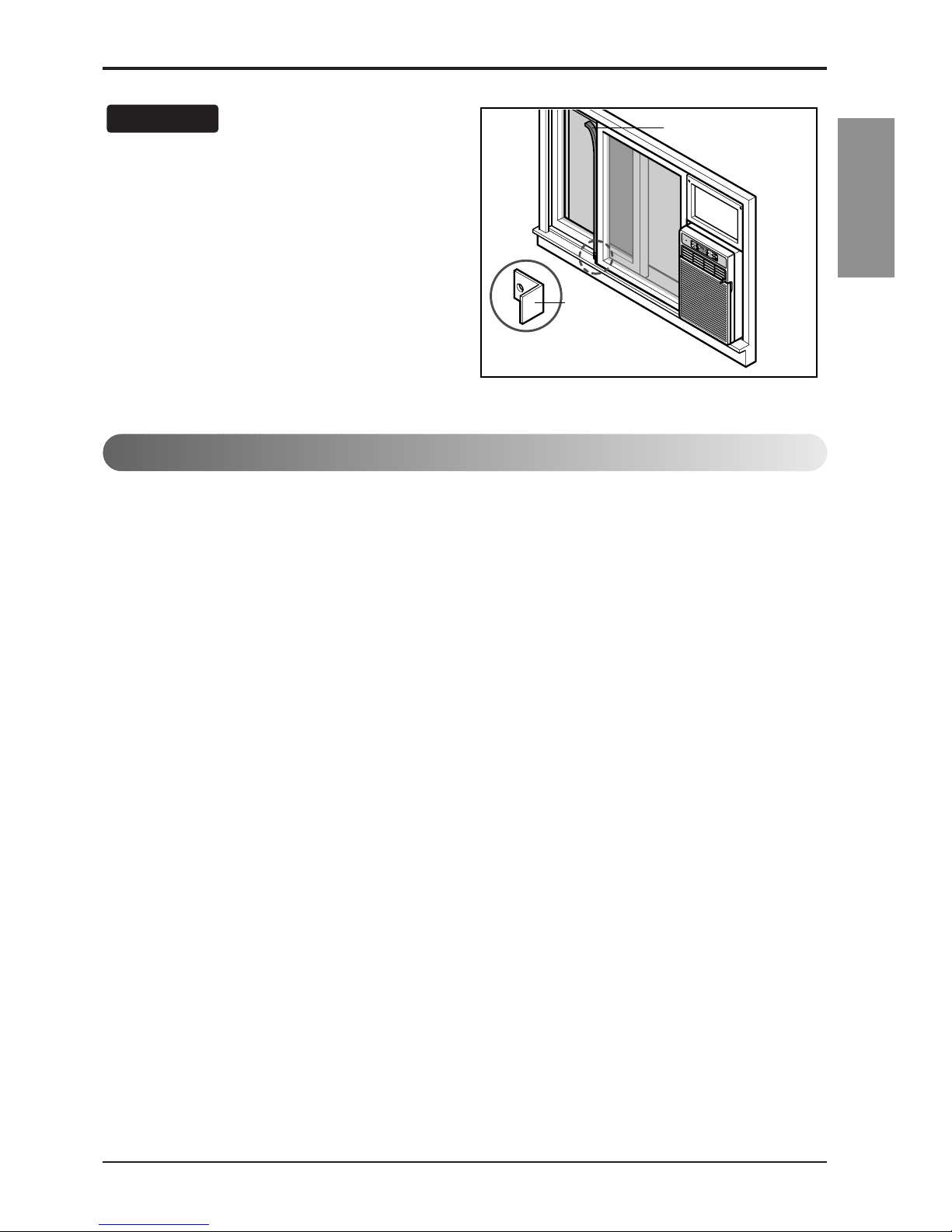

14. If this is a casement window installation,
proceed to Casement Window Installation.
If not, stuff the Foam Seal Strip between the
vertical sash and the window glass. (Fig. 9)
15. Attach the L Bracket with a Type B screw.
(Fig. 9)
NOTICE
Casement Window Installation
Fig. 9
1. Installation procedure is the same as that described in steps 1 through 11 and step 13 of the
Horizontal Sliding Window installation.
2. If the window opening is wider than 15-3/4 inches you will need to install a filler panel. Make this
panel from 3/4 inch thick wood and run it the full length of the window.
Attach it securely to the window frame and paint it to protect it from the weather.
3. Since styles and sizes of casement windows vary widely, it is advisable to have the air conditioner
installed by someone skilled in this type of installation.
Foam seal strip
Window
locking
bracket
°C

16 Room Air Conditioner
Operating Instructions
The remote control and control panel will look like those represented in the following pictures.
Operating Instructions

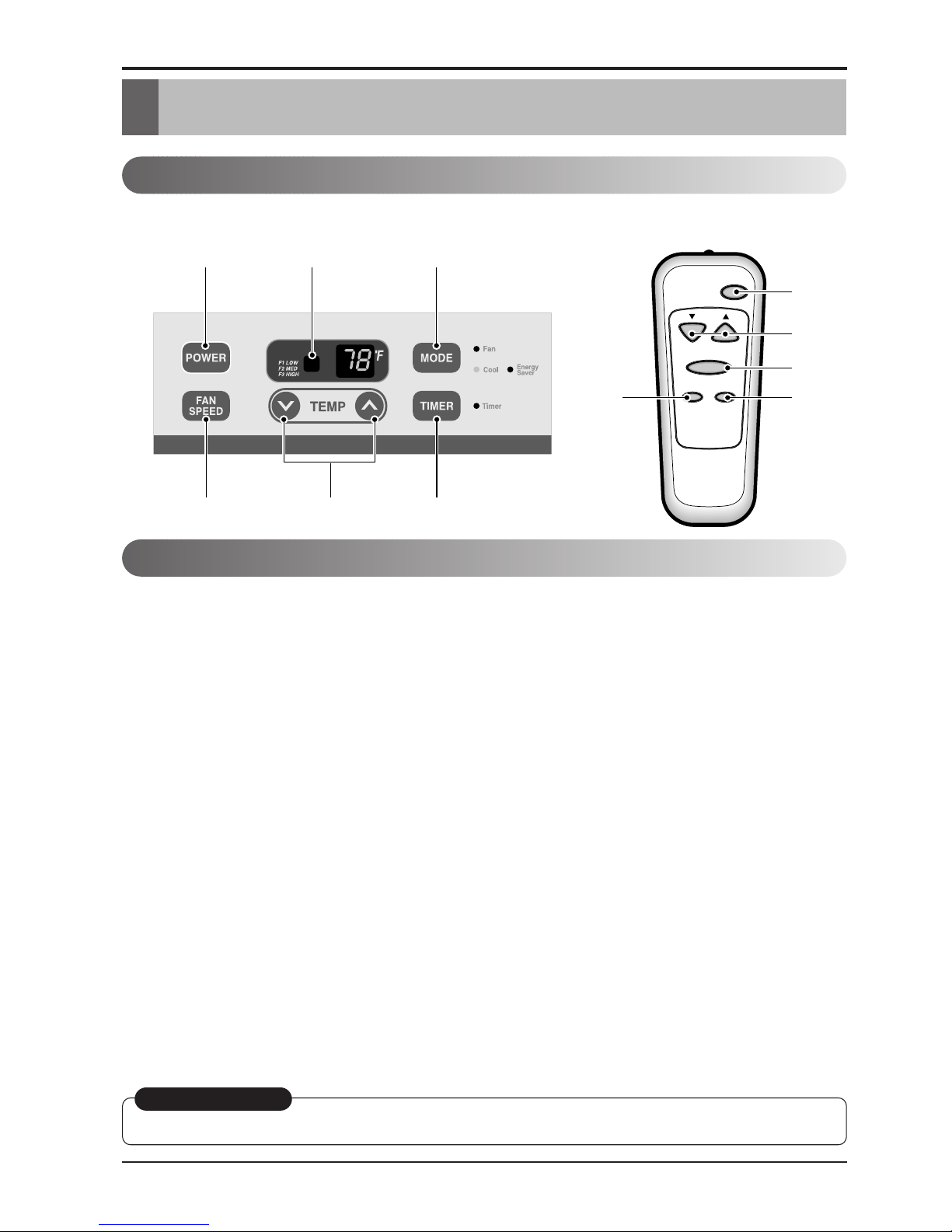

Controls
Remote Control Operations
Power
Temp
Fan Speed
Timer Mode
1
2
4
3
5
1
2
3
45
6
1. POWER
•To turn the air conditioner ON, push this button.
To turn the air conditioner OFF, push the button
again.
•This button takes priority over any other button.
•When you first turn it on, the unit is in cool mode,
high fan speed, temperature setting at 72˚F.
2. TEMPERATURE SETTING
•Use this button to automatically control the
temperature of the room.
The temperature can be set within a range of
60°F to 86°F by increments of 1°F.
3. MODE
- Every time you push this button, it will cycle
through the following modes: COOL, ENERGY
SAVER and FAN.
- ENERGY SAVER
•The fan stops when the compressor stops
cooling. Approximately every 3 minutes the fan
will turn on and the unit will check the room air to
determine if cooling is needed.
4. FAN SPEED
•Every time you push this button, it advances the
setting as follows: {High(F3) →Low(F1) →
Med(F2) →High(F3)}
5. TIMER
- SHUT-OFF TIME
•You will usually use shut-off time while you sleep.
•With unit running, use Timer to set number of
hours until shut-off.
•For your sleeping comfort, once Time is set, the
Temperature setting will raise 2°F after 30 min,
and 2°F after another 30 min.
•Every time you push Timer button, it advances
the Timer setting as follows: 1 Hour →2 Hours →
etc. → 12 Hours maximum.
- START TIME
•With unit not running, use timer to set number of
hours before unit starts.
•Every time you push Timer button, it advances
the Timer setting as follows: 1 Hour →2 Hours →
etc. →12 Hours maximum.
6. REMOTE CONTROL SENSOR
AUTO RESTART
When power is restored after an electrical power failure, the unit will begin to run at its last setting.

Owner’s Manual 17
ENGLISH
Operating Instructions

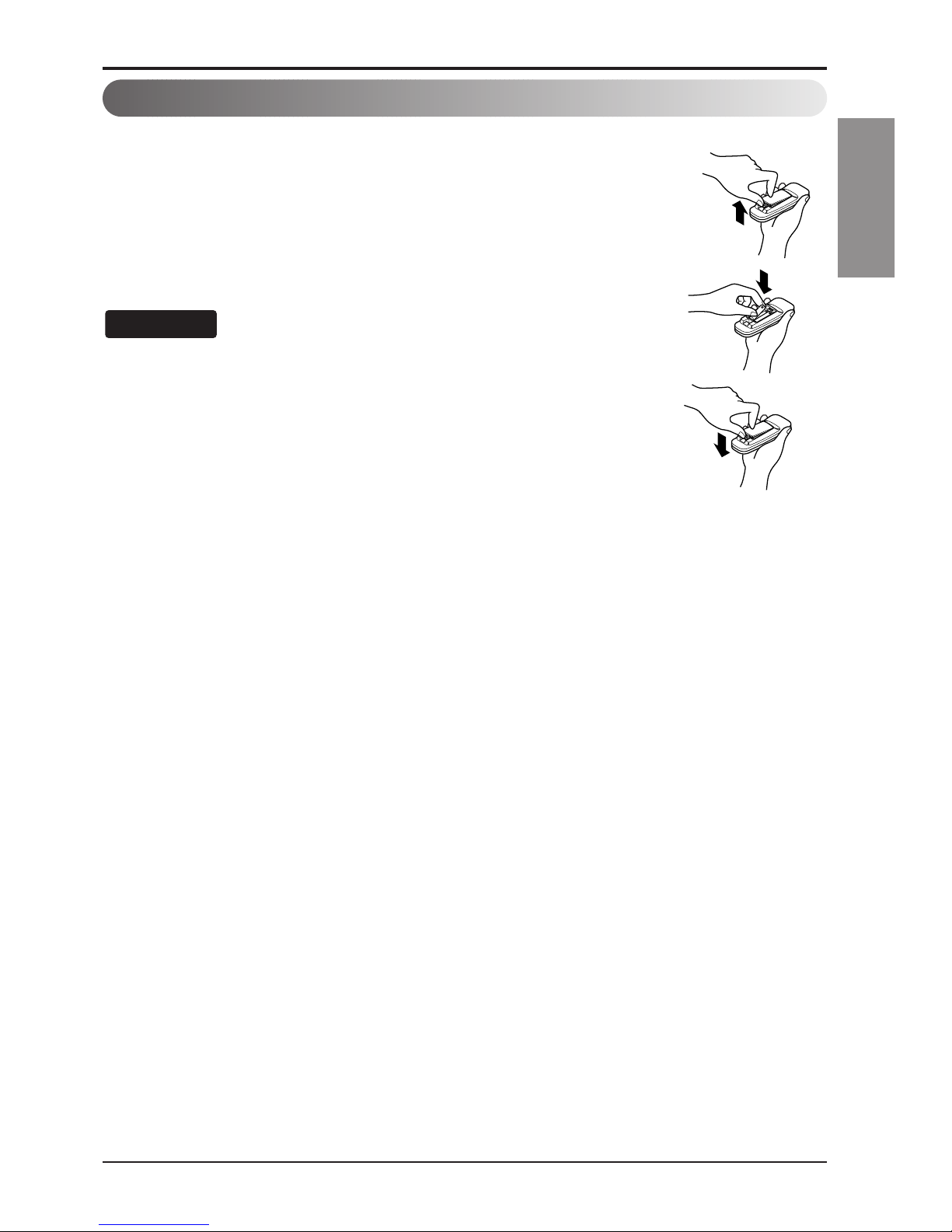

Inserting the Remote Control Batteries
1. Push out the cover on the back of the remote control with your thumb.
2. Pay attention to polarity and insert two new AAA 1.5V batteries.
3. Reattach the cover.
Do not use rechargeable batteries. Make sure that both batteries are new.
Do not mix alkaline, standard(Carbon-zinc) or rechargeable(Nickel-
cadmium) batteries.
•In order to prevent discharge, remove the batteries from the remote control
if the air conditioner is not going to be used for an extended period of time
Keep the remote control away from extremely hot or humid places.
To maintain optimal operation of the remote control, the remote sensor
should not be exposed to direct sunlight.
NOTICE

18 Room Air Conditioner
Operating Instructions

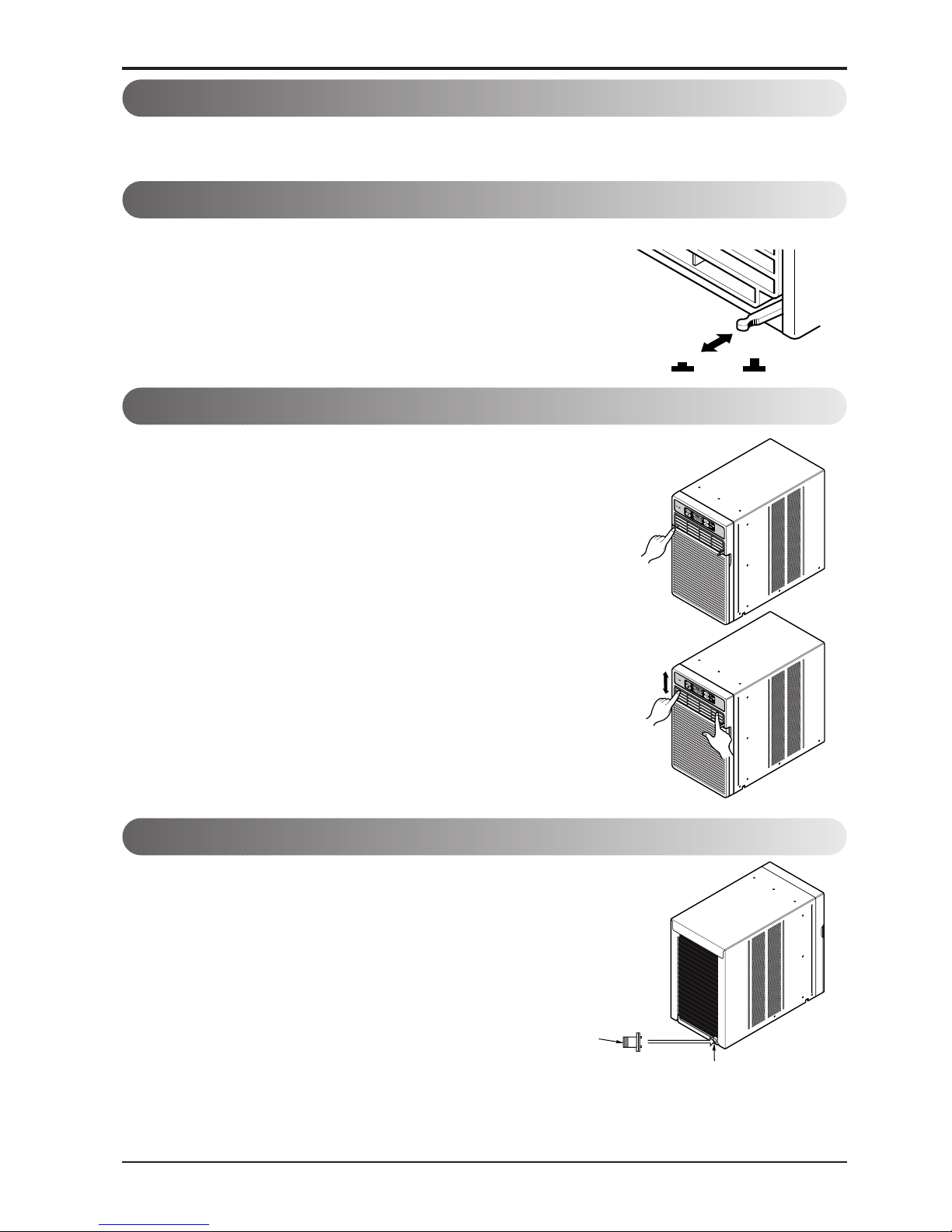

Additional Features
Ventilation
Air Direction
How to Secure the Drain Pipe
Additional controls and important information.
In humid weather, excess water may cause the BASE
PAN to overflow and be splashed on the side louver.
To drain the water, remove the DRAIN CAP and
secure the DRAIN PIPE to the rear hole of the BASE
PAN.
The ventilation lever must be in the CLOSE position in order to
maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation
lever to the OPEN position.
When the damper is opened and room air is exchanged with
external air.
The direction of air can be controlled wherever you want to cool
by adjusting the horizontal louver and the vertical louver.
•HORIZONTAL AIR-DIRECTION CONTROL
The horizontal air direction is adjusted by
rotating the vertical louver right or left.
•VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating the horizontal
louver forward or backward.
VENTCLOSE OPEN
Drain pipe
Drain cap
°C
°C

Owner’s Manual 19
ENGLISH

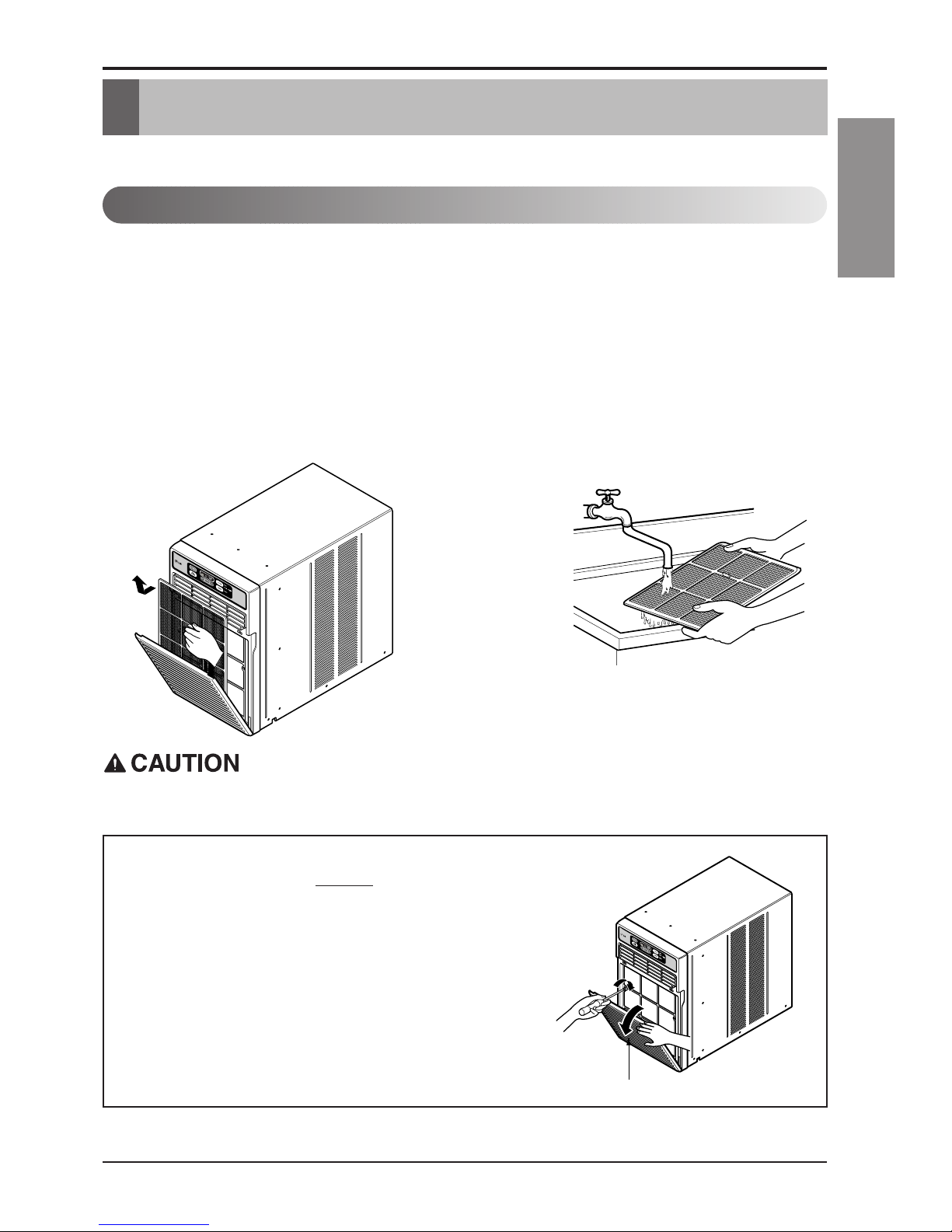

Maintenance and Service
Maintenance and Service
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
Air Filter Cleaning
The air filter behind the front grille should be checked and cleaned at least once every 2 weeks or
more often if necessary.
To remove:
1. Open the inlet grille downward by pulling out the top of the inlet grille.
2. Remove the air filter from the front grille assembly by pulling the air filter up slightly.
3. Clean the filter with warm, soapy water below 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce
performance.
NOTE!
Before using the air conditioner secure the front grille with two
screws enclosed with the owner’s manual.
1. Open the inlet grille downward and remove the air filter.
2. Fasten the front grille with screws.
3. Reinstall the air filter.
4. Close the inlet grille.
Inlet Grille
°C
°C

20 Room Air Conditioner
Maintenance and Service
Before calling for service, please review the following list of common
problems and solutions.
The air conditioner is operating normally when:
•You hear a pinging noise. This is caused by water being picked up by the fan on
rainy days or in highly humid conditions. This feature is designed to help remove
moisture in the air and improve cooling efficiency.
•You hear the thermostat click. This is caused by the compressor cycle starting
and stopping.
•You see water dripping from the rear of the unit. Water may be collected in the
base pan in highly humid conditions or on rainy days. This water overflows and
drips from the rear of the unit.
•You hear the fan running while the compressor is silent. This is a normal
operational feature.
Common Problems and Solutions
Before calling for service
If you have problems with your air conditioner, read the following information and
try to solve the problem. If you cannot find a solution, turn off the air conditioner
and contact your dealer.
Air conditioner does not operate
1. Ensure that the air conditioner is plugged into a proper outlet.
2. Check the fuse or circuit breaker.
3. Check whether the voltage is unusually high or low.
Air does not feel cold enough on the cooling setting
1. Ensure that the temperature settings are correct.
2. Check to see if the air filter is clogged with dust. If so, replace the filter.
3. Ensure that the air flow from the outside is not obstructed and that there is a
clearance of over 20" between the back of the air conditioner and the wall or
fence behind it.
4. Close all doors and windows and check for any source of heat in the room.
