LG LWHD1006R User manual

ww_ .lgappliances.com.
LG
Window-Type Air Conditioner
MODELS: LWHDIOO6R LWHD1209R
•Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.
•Please retain this owner's manual for future reference after
reading it thoroughly.
•Antes de instalar y poner en marcha su ventilador de
casa, haga el favor de leer cuidadosamente esta
instruccionde Usuario.
•Luego de su lectura, guarde este manual para el futuro
usuario para las referencias.

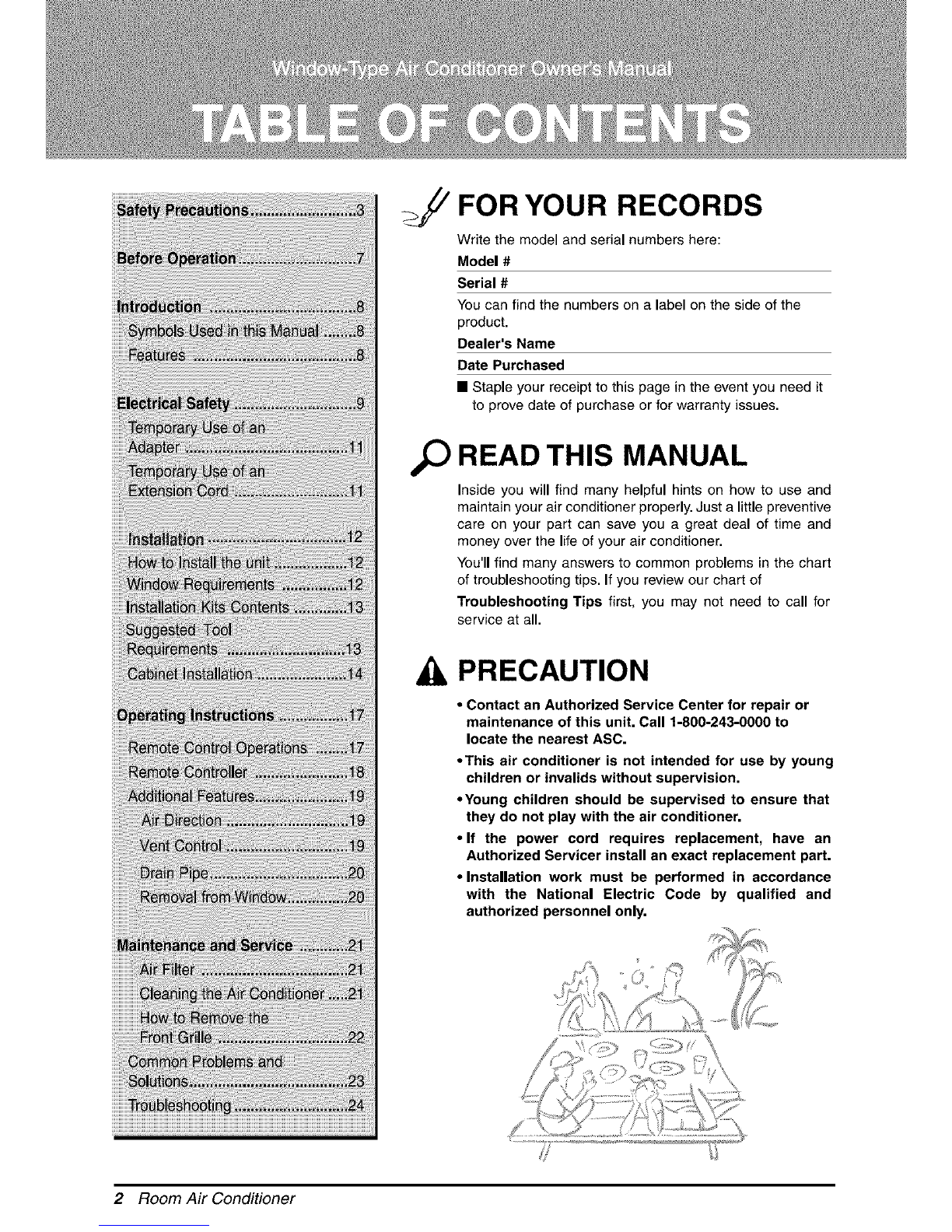

FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find the numbers on a label on the side of the
product.
Dealer's Name
Date Purchased
• Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
aO READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact an Authorized Service Center for repair or
maintenance of this unit. Call 1-800-243-0000 to
locate the nearest ASC.
•This air conditioner is not intended for use by young
children or invalids without supervision.
•Young children should be supervised to ensure that
they do not play with the air conditioner.
•If the power cord requires replacement, have an
Authorized Servicer install an exact replacement part.
•Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
2Room Air Conditioner

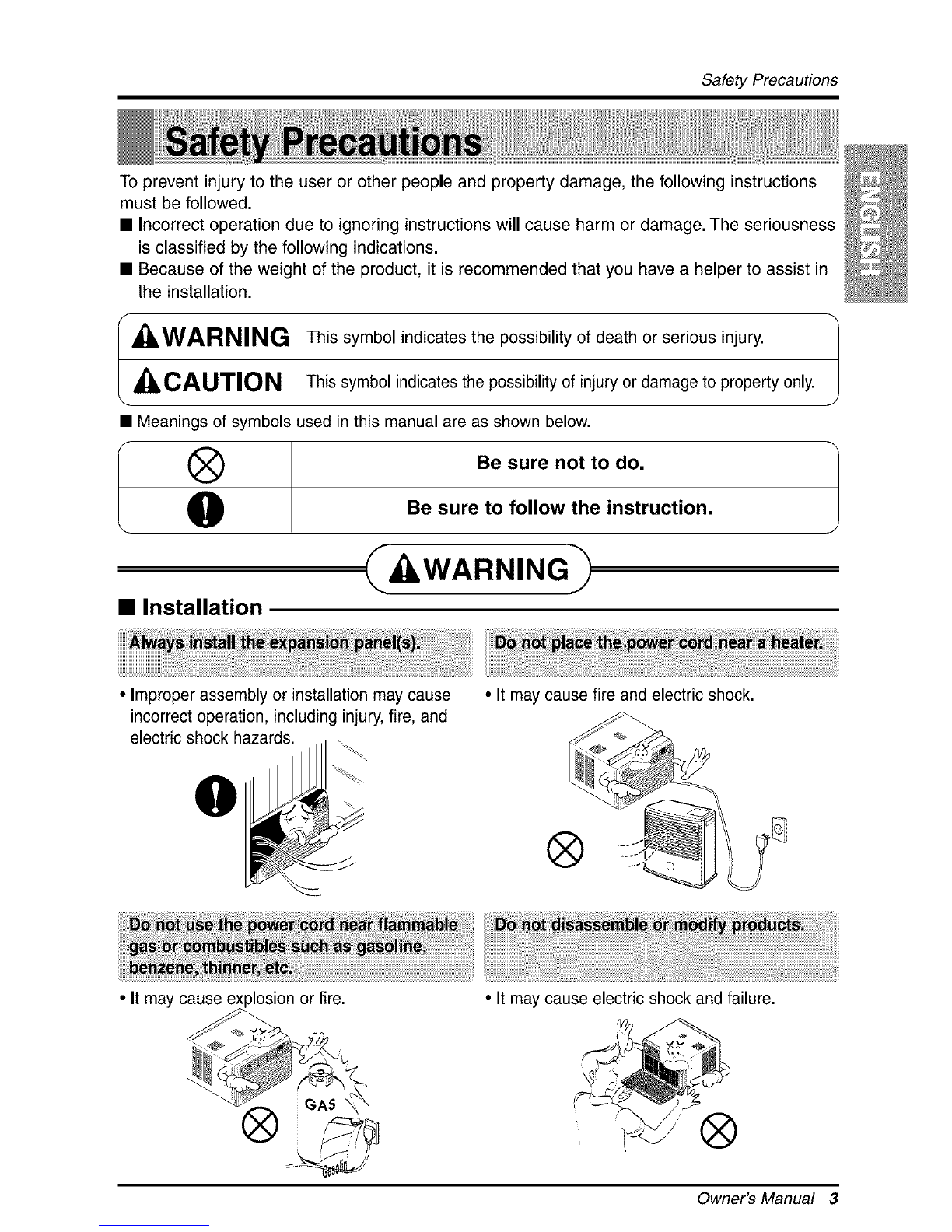

SafetyPrecautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
• Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness
is classified by the following indications.
• Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
WARNING This symbol indicates the possibility of death or serious injury. /
J
kCAUTION This symbol indicatesthe possibilityof injury or damageto property only.
• Meanings of symbols used in this manual are as shown below.
Be sure to follow the instruction.
, WARNING>
•Installation
•Improperassembly or installation may cause
incorrect operation, including injury,fire, and
electric shock hazards.
• Itmay cause fire and electric shock.
®
• It may cause explosionor fire. • Itmay cause electric shock andfailure.
Owner's Manual 3

SafetyPrecautions
• Operation
• Otherwise, it will cause
electric shock or fire.
• Itwill cause electric shock or
fire.
• It will cause electric shock or
fire. ON
\
• Otherwise it will cause fire
and electric shock accident.
•It will cause electric shock or
fire.
• It may causefire and electric
shock.
• Itwill cause electric shock or
fire.
• No grounding may cause
electric shock.
• Itmay cause electric shock.
®
4 Room Air Conditioner

•The air conditioner must be operated in a
enclosed area to be most effective.
Safety Precautions
• It will cause electric shock or failure of
machine.
• It maycause explosion, fire, and burn.
0
0
•Installation
°They are sharp and may
cause injury.
• Water may enter the unit and degrade the
insulation.It may cause an electric shock.
ILCAUTION
° Itmay cause failure of
appliance or performance
deteriorate.
Ifthe outer case is damaged,
it must be repaired or
replaced immediately.
Leaving it damaged could
result in the air conditioner
falling out of the window,
creatinga safety hazard.
®
Owner's Manual 5

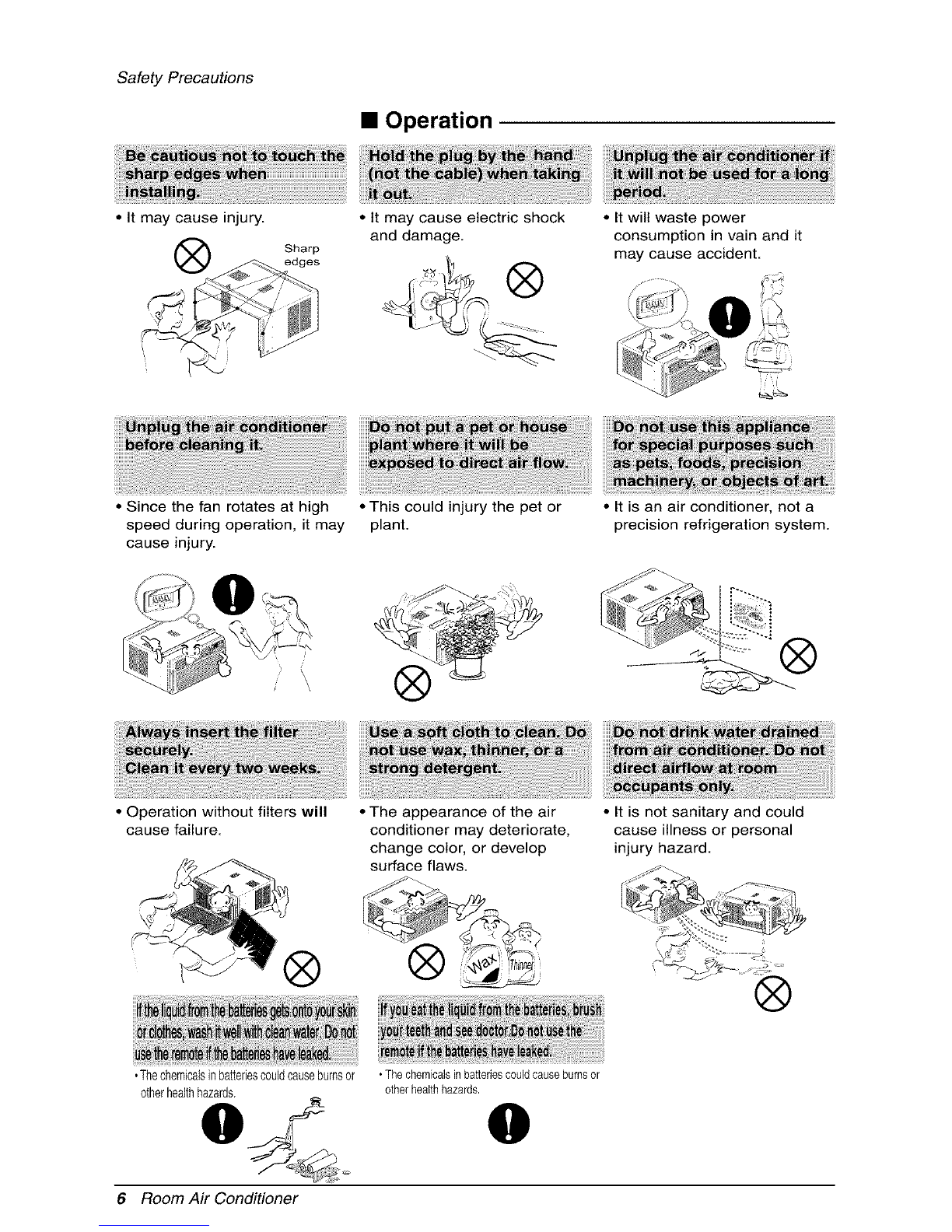

Safety Precautions
• It may cause injury.
•Operation
•It may cause electric shock
and damage. • It will waste power consumption in vain and it
may cause accident.
• Since the fan rotates at high
speed during operation, it may
cause injury.
• Operation without filters will
cause failure.
• This could injury the pet or
plant.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
• It is an air conditioner, not a
precision refrigeration system.
• It is not sanitary and could
cause illness or personal
injury hazard.
®
.Thechemicalsinbatteriescouldcauseburnsor
otherhealthhazards, • The chemicalsin batteries could cause burns or
otherhealth hazards.
6Room Air Conditioner

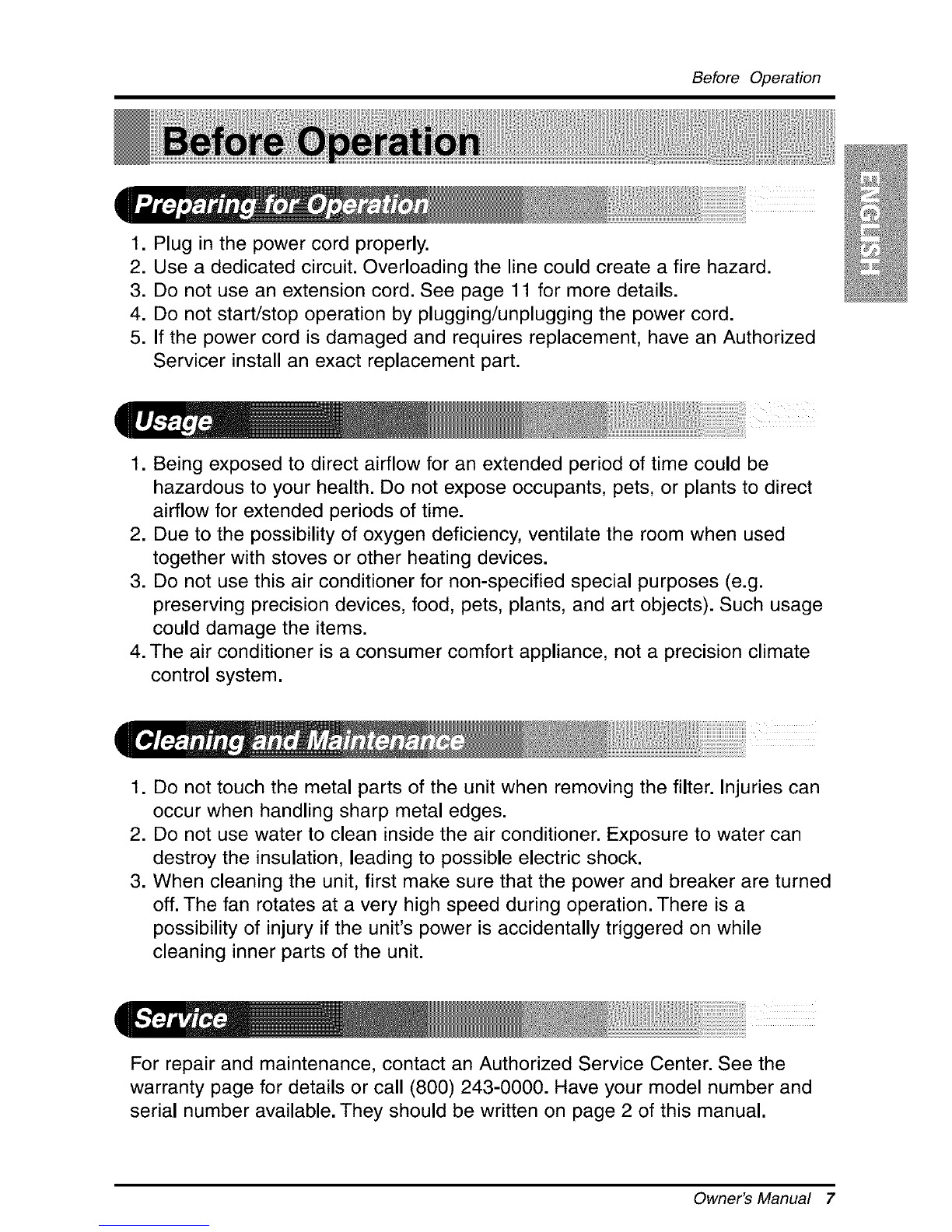

BeforeOperation
1. Plug in the power cord properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord. See page 11 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized
Servicer install an exact replacement part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
4.The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the
warranty page for details or call [phone]. Have your model number and
serial number available. They should be written on page 2 of this manual.
Owner's Manual 7

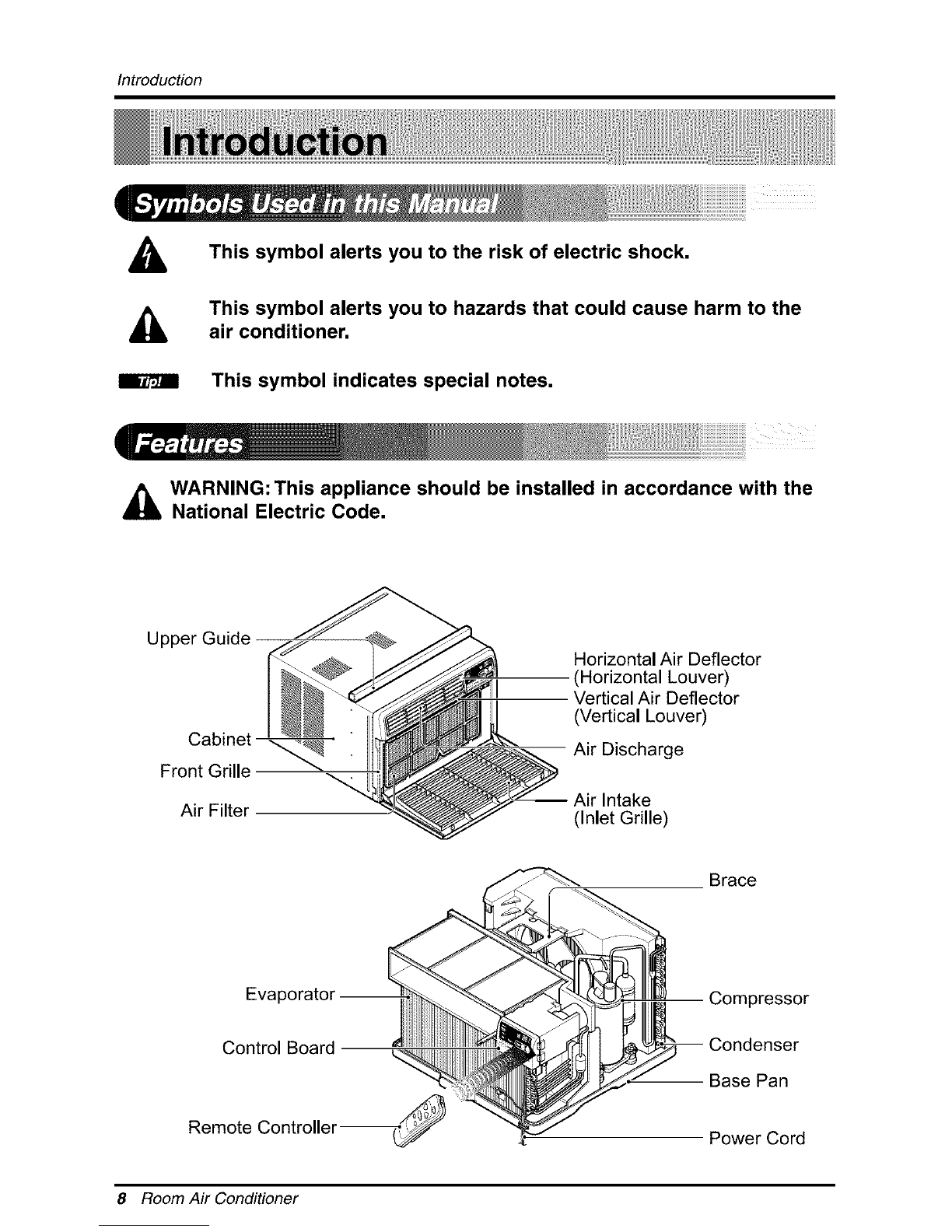

Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
,_ WARNING: This appliance should be installed in accordance with the
National Electric Code.
Upper Guide
Cabinet --
Front Grille
Air Filter
Horizontal Air Deflector
(Horizontal Louver)
Vertical Air Deflector
(Vertical Louver)
Air Discharge
Air Intake
(Inlet Grille)
Brace
Eva_
Control Board
Remote Controller _ _
Compressor
-- Base Pan
Power Cord
8Room Air Conditioner

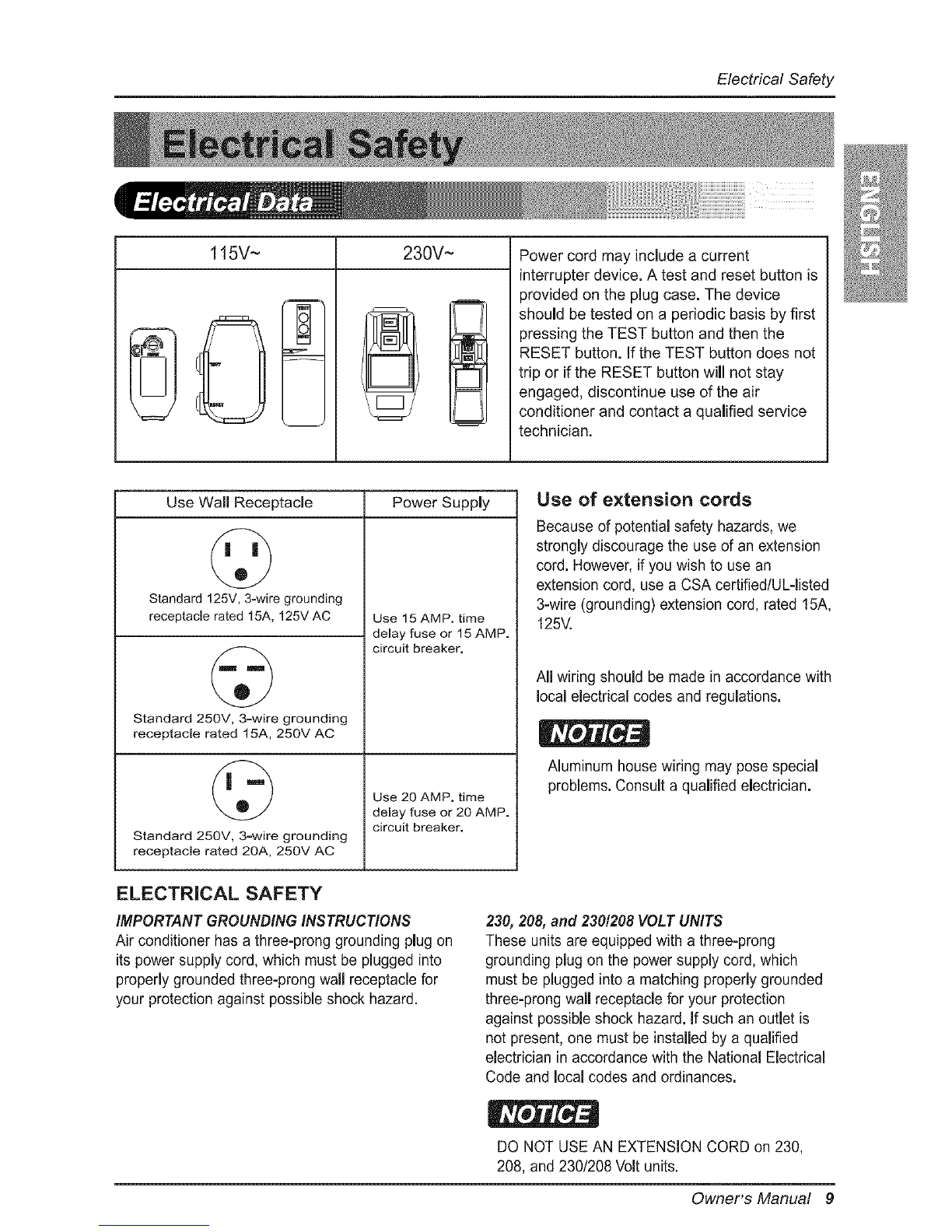

ElectricalSafety
115V~230V ~Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
©
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
@
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
©
Standard 250V, 3=wire grounding
receptacle rated 20A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
ELECTRICAL SAFETY
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug on
its power supply cord, which must be plugged into
properly grounded three-prong wall receptacle for
your protection against possible shock hazard.
Use of extension cords
Because of potential safety hazards, we
strongly discourage the use of an extension
cord. However, if you wish to use an
extension cord, use a CSA certified/UL-listed
3-wire (grounding) extension cord, rated 15A,
125V.
All wiring should be made in accordance with
localelectrical codes and regulations.
Aluminum house wiring may pose special
problems. Consult a qualified electrician.
230, 208, and 2301208 VOLT UNITS
These units are equipped with a three=prong
grounding plug on the power supply cord, which
must be plugged into a matching properly grounded
three-prong wall receptacle for your protection
against possible shock hazard. If such an outlet is
not present, one must be installed by a qualified
electrician in accordance with the National Electrical
Code and localcodes and ordinances.
DO NOT USE AN EXTENSION CORD on 230,
208, and 230/208 Volt units.
Owner's Manual 9

ElectricalSafety
WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner.
&WARNING: Changing the outlet without making the appropriate wiring
changes will create an unsafe condition that could result in fire or
electrical shock. Refer all such work to a licensed and qualified
electrician.
Preferred method
Ensure proper ground
exists before use
WARNING: Do not cut or remove the grounding prong from the power
plug.

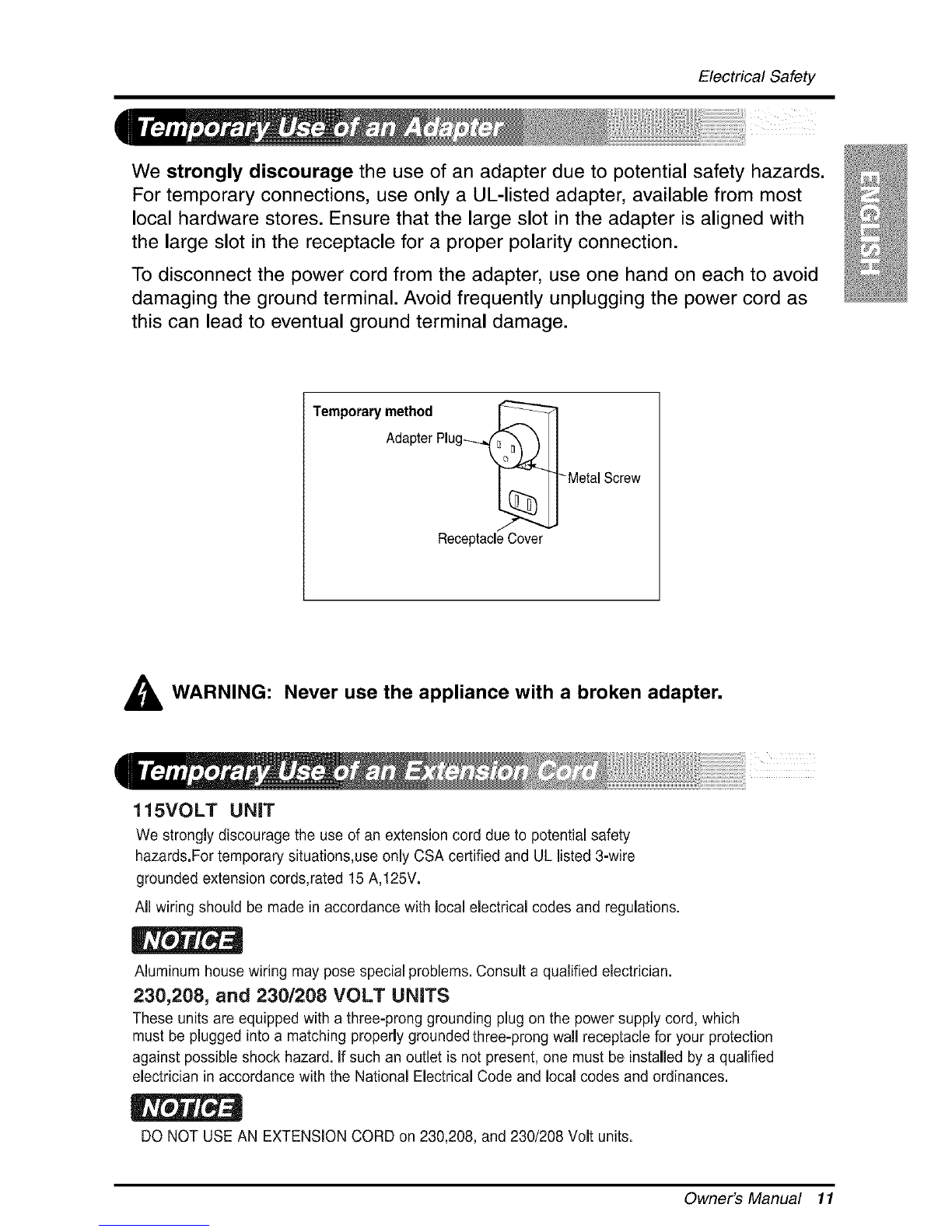

&WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by a
qualified electrician.
