LG LZ-H080GBA4 User manual

ENGLISH ESPAÑOL
PORTUGUÊS
OWNER’S MANUAL
AIR
CONDITIONER
VENTILATOR
Please read this manual carefully before operating
your set and retain it for future reference.
MFL67455601
Rev.00_052119
www.lg.com
Copyright © 2012 - 2019 LG Electronics Inc. All Rights Reserved.

2Ventilation system
Table of contents
3 SAFETY PRECAUTIONS
6 PRIOR TO OPERATION
6 Preparing for operation
6 Usage
6 Cleaning and maintenance
6 Service
7 INTRODUCTION
7 Symbols used in this Manual
7 Features
9 OPERATING INSTRUCTIONS (ACCESSORY)

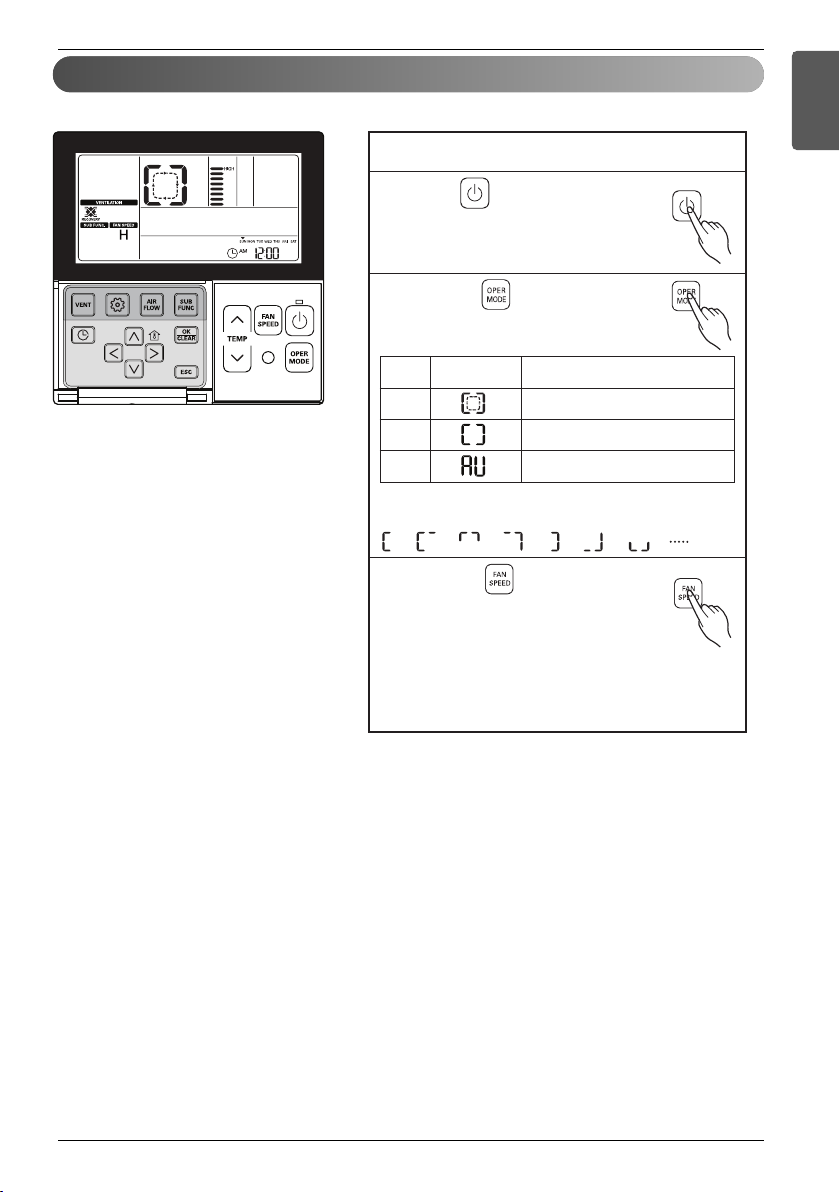

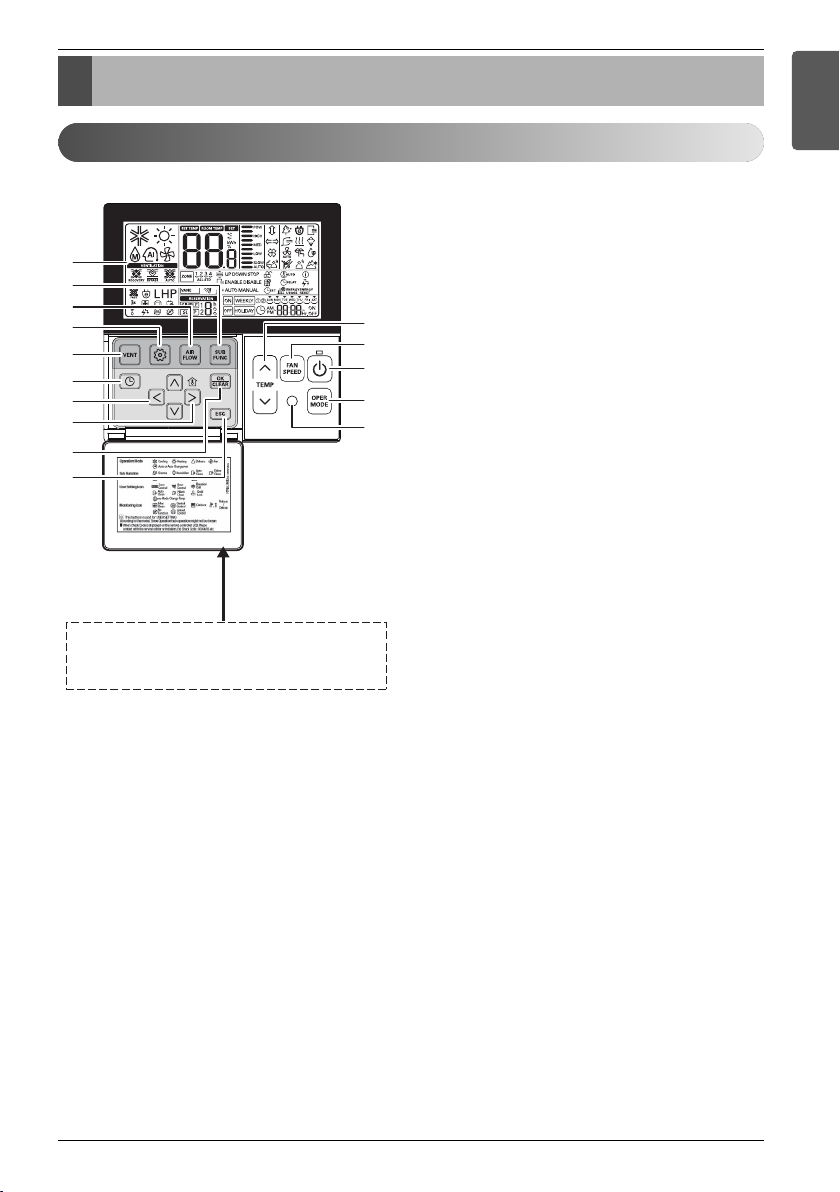

9 LCD Remote Controller
10 Method to Operate and Select Air Volume – Interlinked Operation with Ventilation.

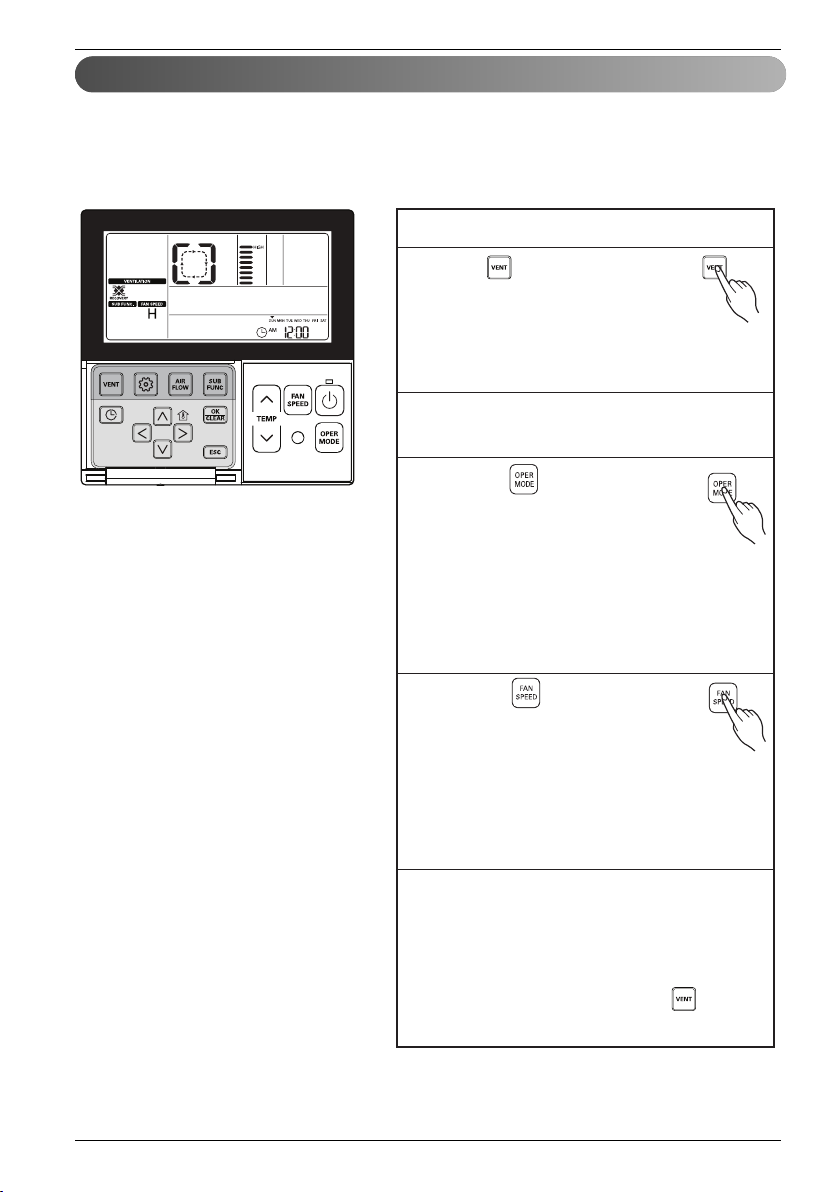

11 Method to Operate and Select Air Volume –Ventilation Single Operation
12 Fast/Energy saving ventilation mode
13 CHARACTERISTICS

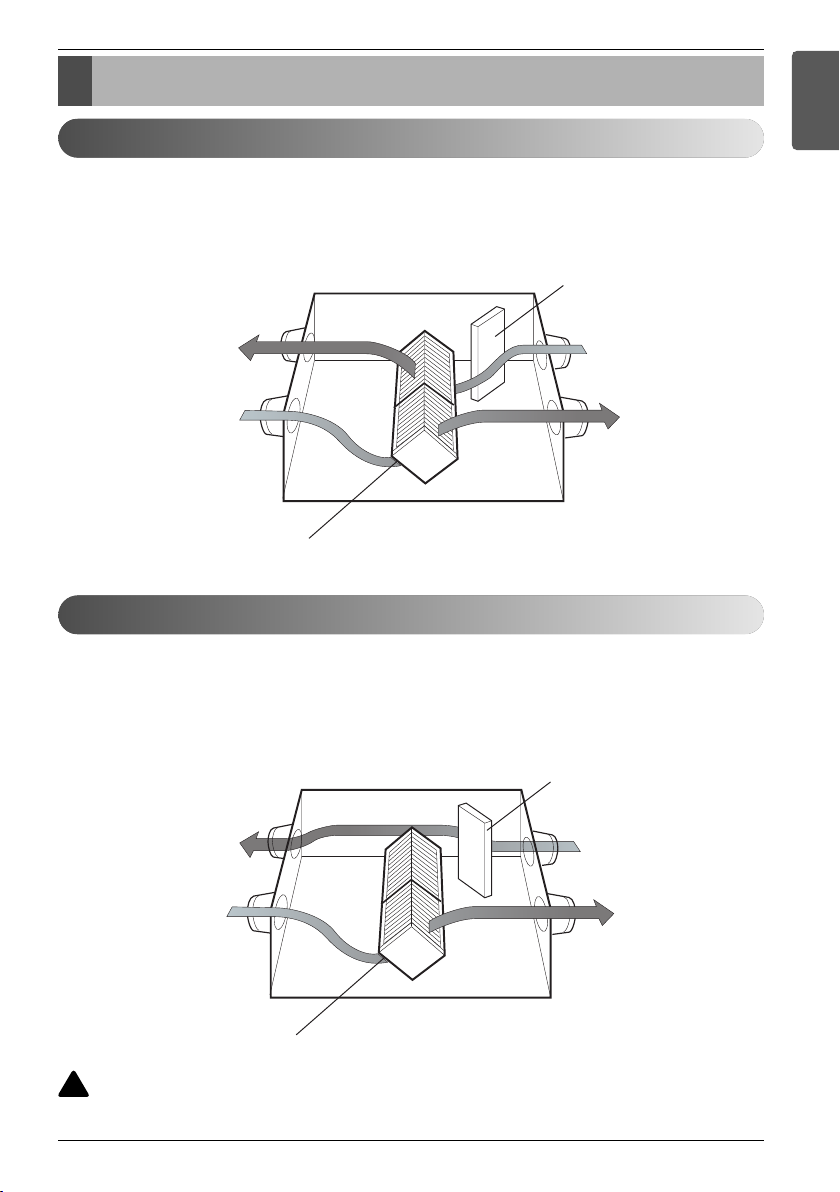

13 Ventilation via Total Heat Exchanger
13 Normal Ventilation
14 MAINTENANCE AND SERVICE
14 Handling and Cleaning

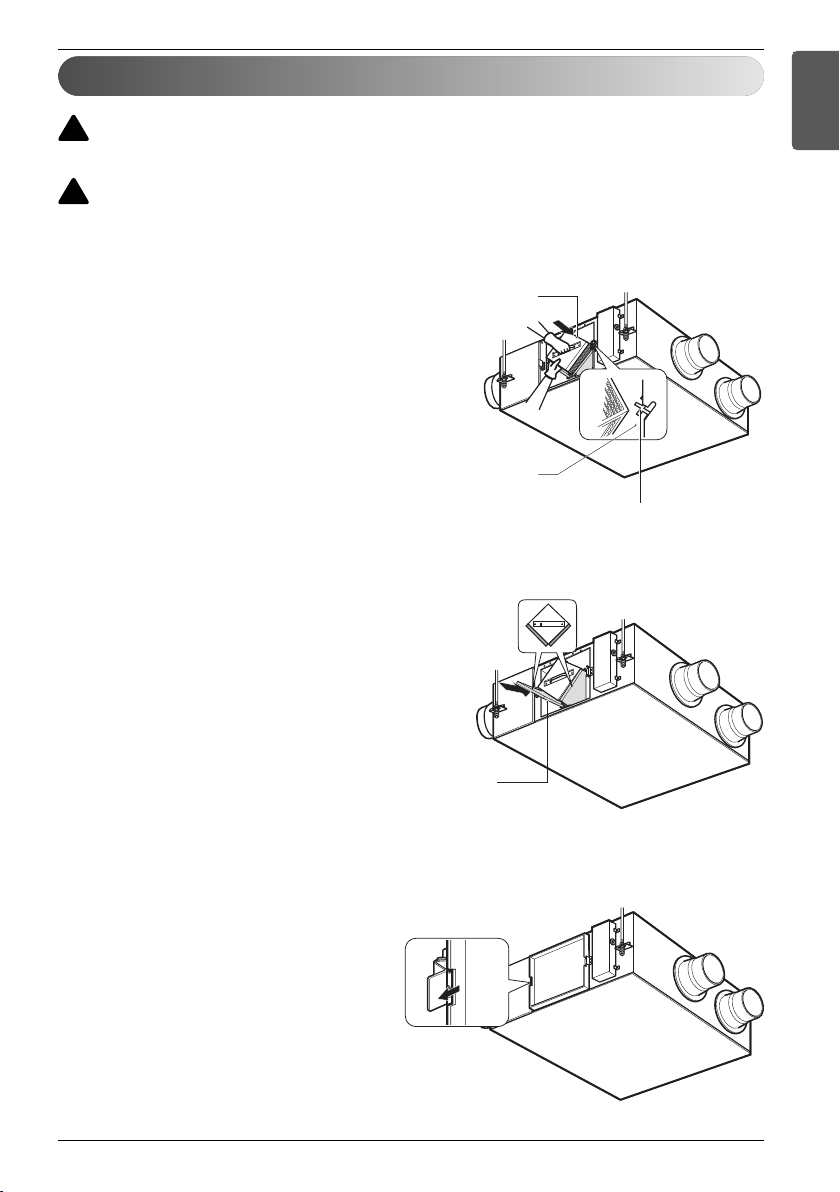

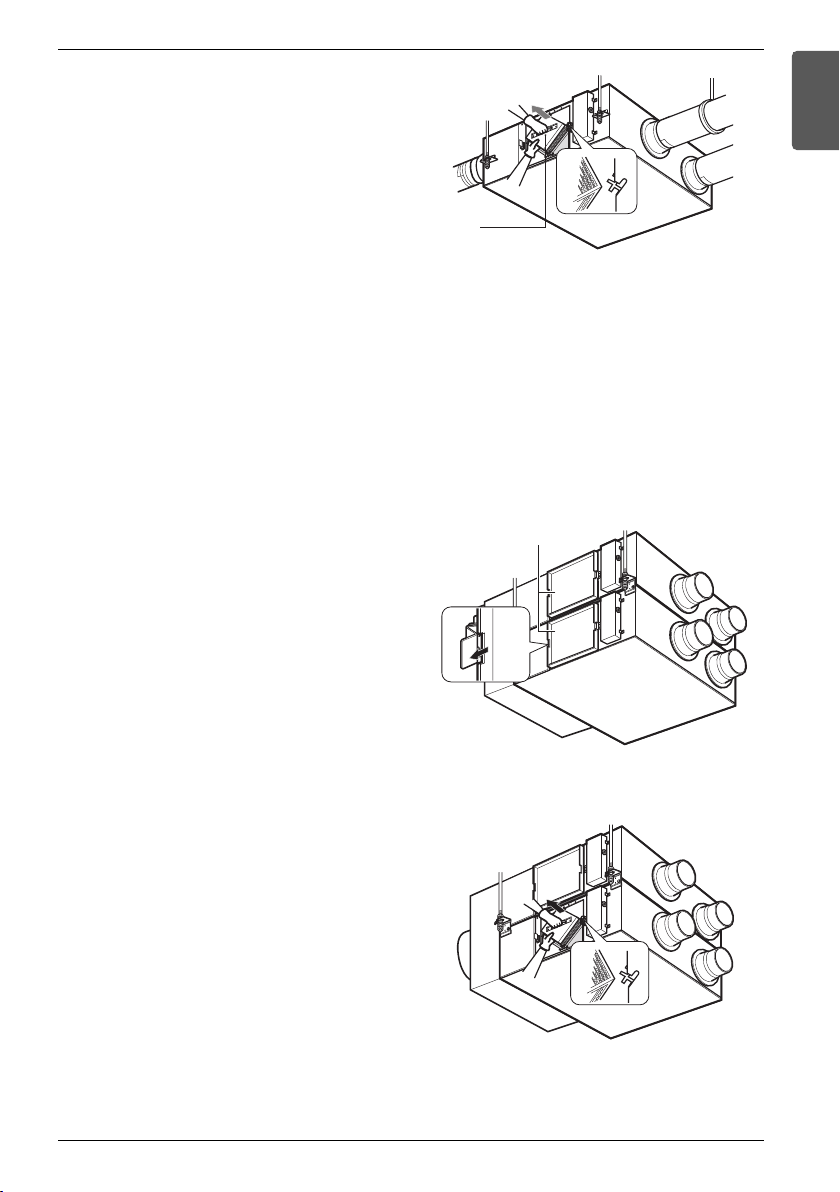

14 Method to take each part out

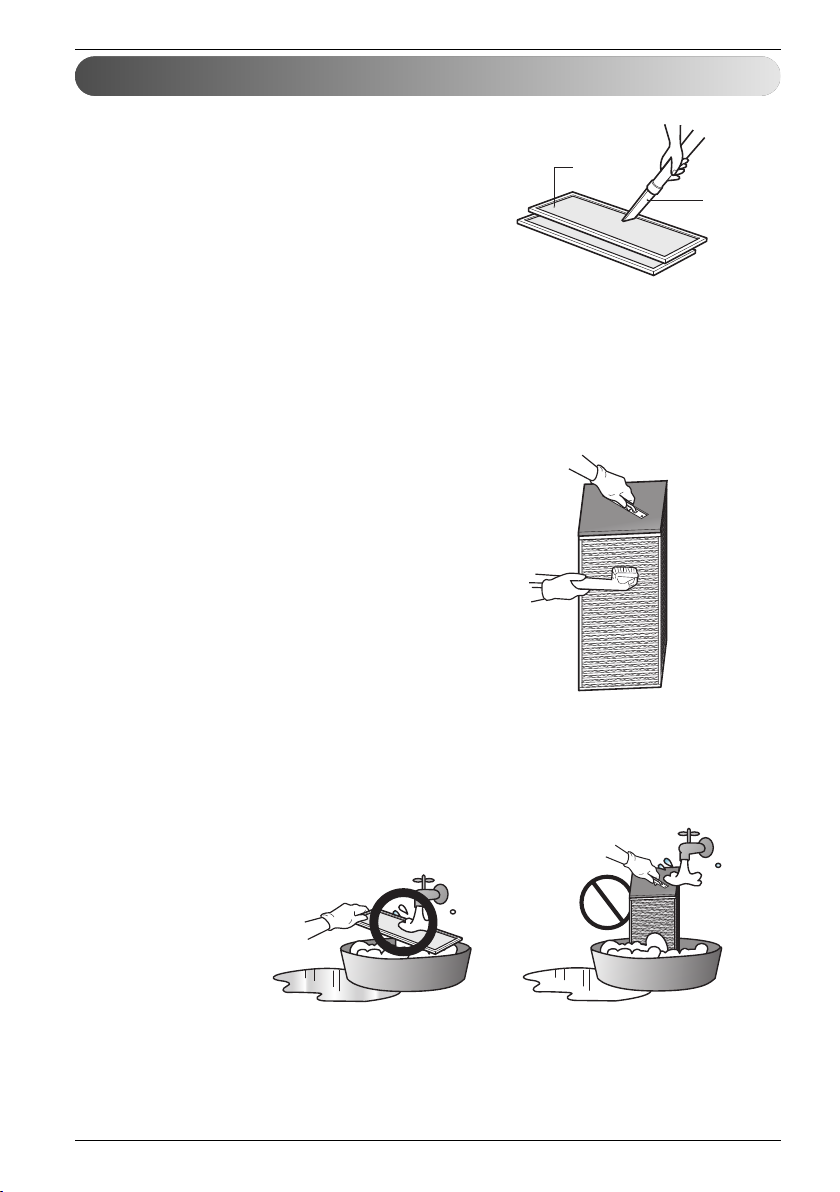

16 Method to Clean and Replace Each Part
17 Assembly and Check after Maintenance
18 CHECK ITEM PRIOR TO NOTIFY A FAILURE
18 ELECTRONICS SPECIFICATIONS
TABLE OF CONTENTS

Owner's Manual 3
Safety Precautions
ENGLISH
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
nMeanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
Installation
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
- There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.
- Do not disassemble or repair the product. There is risk of fire or electric shock.
• Always ground the product.
- There is risk of fire or electric shock.
• Install the panel and the cover of control box securely.
- There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric shock
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
• Do not modify or extend the power cable.
- There is risk of fire or electric shock.
• Do not install, remove, or re-install the unit by yourself (customer).
- There is risk of fire, electric shock, explosion, or injury.
• Be cautious when unpacking and installing the product.
- Sharp edges could cause injury. Be especially careful of the case edges and the fins on the condenser and
evaporator.
• For installation, always contact the dealer or an authorized service center.
- There is risk of fire, electric shock, explosion, or injury.
WARNING
CAUTION
!
!
WARNING
!

4Ventilation system
Safety Precautions
• Do not install the product on a defective installation stand.
- It may cause injury, accident, or damage to the product.
• Do not let the ventilator run for a long time when the humidity is very high and a door or a window is left open.
- Moisture may condense and wet or damage furniture.
• For re-installation of the installed product, always contact the dealer or an authorized service center.
- There is risk of fire, electric shock, explosion or injury.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Do not open the maintenance cover of the main body during operation.
- Otherwise, it may cause electrical shock.
• Use the outdoor air suction hole with the net installed to ensure that birds could not come in.
- Remove estrange things like the bird’s nest. Otherwise, it may cause scarcity of indoor oxygen.
• Install the air intake where polluted air can not be directly sucked in.
- It may cause various accidents, including suffocation, due to the suction of harmful gasses(CO, etc.)
• Install the product a place that can support its weight.
- Otherwise, it may cause accident due to falling of the product.
Operation
• Take care to ensure that power cable could not be pulled out or damaged during operation.
- There is risk of fire or electric shock.
• Do not place anything on the power cable.
- There is risk of fire or electric shock.
• Do not touch(operate) the product with wet hands.
- There is risk of fire or electrical shock.
• Do not place a heater or other appliances near the power cable.
- There is risk of fire and electric shock.
• Do not allow water to run into electric parts.
- It may cause There is risk of fire, failure of the product, or electric shock.
• Do not store or use flammable gas or combustibles near the product.
- There is risk of fire or failure of product.
• When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.
- Do not use the telephone or turn switches on or off.
There is risk of explosion or fire.
• If strange sounds, smell or smoke comes from product. Turn the breaker off.
- There is risk of electric shock or fire.
• Stop operation and close the window in storm or hurricane. If possible, remove the product from the window
before the hurricane arrives.
- There is risk of property damage, failure of product, or electric shock.
• When the product is soaked (flooded or submerged), contact an Authorized Service Center.
- There is risk of fire or electric shock.
• Be cautious that water could not enter the product.
- There is risk of fire, electric shock, or product damage.
• Turn the breaker off when cleaning or maintaining the product.
- There is risk of electric shock.

Owner's Manual 5
Safety Precautions
ENGLISH
• Don’t touch a dedicated circuit or breaker with wet hands.
- There is risk of electric shock.
• Use a firm stool or ladder when cleaning or maintaining the product.
- Be careful and avoid personal injury.
Installation
• Use two or more people to lift and transport the product.
- Avoid personal injury.
• Do not install the product where it will be exposed to sea wind (salt spray) directly.
- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could
cause product malfunction or inefficient operation.
• This appliance is not intended to be accessible to the general public.
• The user must carry out checks and cleaning of routine to avoid defective performance.
- In a special situation, only service personnel can carry out repair work.
Operation
• Do not expose the skin directly to cool air for long periods of time.
(Don't sit in the draft.)
- This could harm to your health.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer
ventilator, not a precision refrigeration system.
- There is risk of damage or loss of property.
• Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.
- There is risk of fire, electric shock, or damage to the plastic parts of the product.
• Do not step on or put anything on the product. (outdoor units)
- There is risk of personal injury and failure of product.
• Use a firm stool or ladder when cleaning or maintaining the product.
- Be careful and avoid personal injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
CAUTION
!

6Ventilation system
Prior to Operation
1. Contact an installation specialist for installation.
2. Use a dedicated circuit.
1. Being exposed to direct airflow for an extended period of time could be hazardous to
your health. Do not expose occupants, pets, or plants to direct airflow for extended
periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together
with stoves or other heating devices.
3. Do not use this ventilator for non-specified special purposes (e.g. preserving
precision devices, food, pets, plants, and art objects). Such usage could damage the
items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur
when handling sharp metal edges.
2. Do not use water to clean inside the ventilator. Exposure to water can destroy the
insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off.
The fan rotates at a very high speed during operation. There is a possibility of injury
if the unit’s power is accidentally triggered on while cleaning inner parts of the unit.
1. For repair and maintenance, contact your authorized service dealer.
2. If anyone other than a licensed Professional installs, repairs, or alters LG Electronics
Air Conditioning Products, the warranty is voided.
- All costs associated with repair are then the full responsibility of the owner.
Preparing for operation
Usage
Cleaning and maintenance
Service
Prior to Operation

Owner's Manual 7
ENGLISH
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
ventilator.
This symbol indicates special notes.
NOTICE
Features
WARNING
This appliance should be installed in accordance with national wiring regulations. This guide
acts as a guide to help to explain product features.
WARNING
Indoor Unit ground wires are required for preventing electrical shock accident during
current leakage, Communication disorder by noise effect and motor current leakage (without
connection to pipe).
!
1
5
6
7
8
2
3
4
Model: 500 CMH
1. Maintenance Cover
2. Air Filter
It prevents dust from clogging in Total
Heat Exchanger.
3. Total Heat Exchanger
It changes temperature and humidity
between Supplying Air and exhausted air.
4. Blower for Exhaust Air
It is a fan for discharging the
contaminated air to outdoor.
5. Control box
6. Blower for Supply Air
It is a fan for inhaling exterior air into an
indoor space.
7. Damper plate(board)
It converts exchanging mode between total
heat ventilation and general ventilation.
8. Total Heat Exchanger holder
It is used in guiding for the installation of
Total Heat Exchanger.
hThe form of total heat exchanger varies according to models.
Symbols used in this Manual
Introduction

8Ventilation system
Introduction
1
5
6
7
8
2
3
4

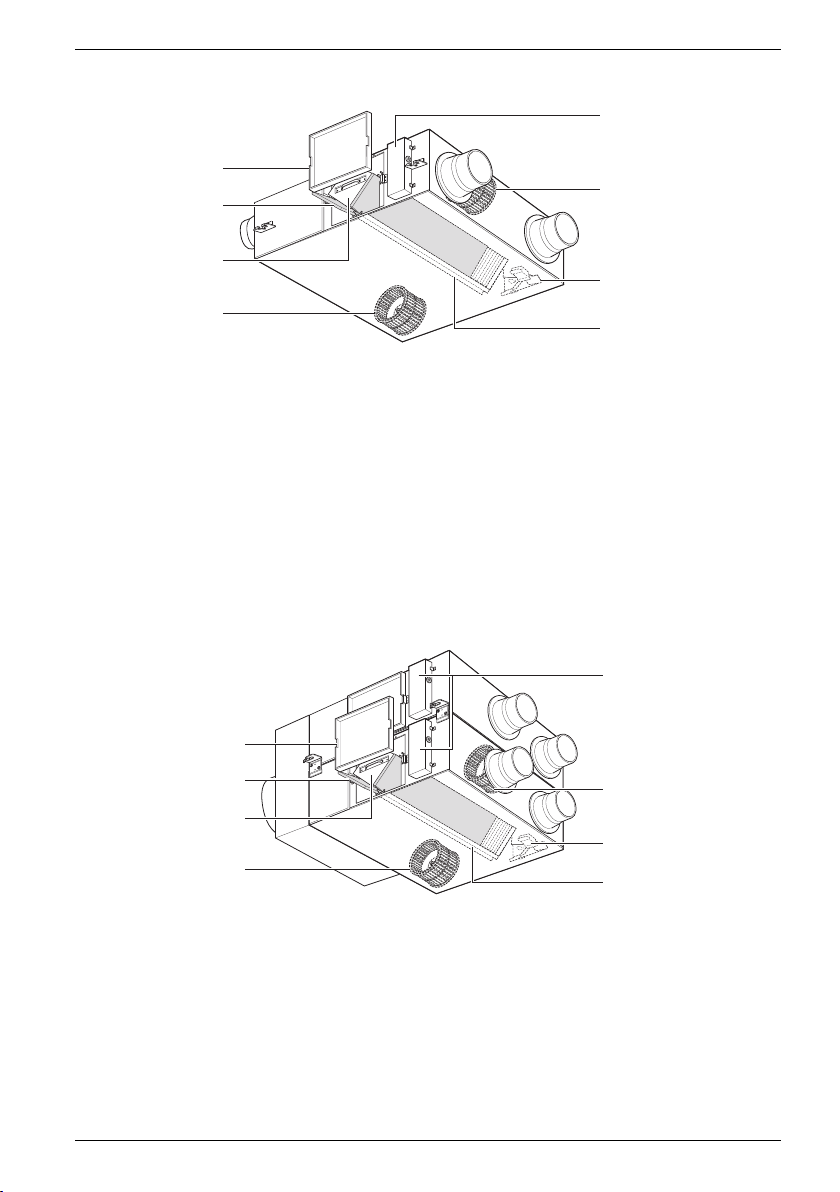

Models: 800 / 1 000 CMH
1. Maintenance Cover
2. Air Filter
It prevents dust from clogging in Total Heat
Exchanger.
3. Total Heat Exchanger
It changes temperature and humidity between
Supplying Air and exhausted air.
4. Blower for Exhaust Air
It is a fan for discharging the contaminated air
to outdoor.
5. Control box
6. Blower for Supply Air
It is a fan for inhaling exterior air into an
indoor space.
7. Damper plate(board)
It converts exchanging mode between total
heat ventilation and general ventilation.
8. Total Heat Exchanger holder
It is used in guiding for the installation of Total
Heat Exchanger.
hThe form of total heat exchanger varies according to models.
hThe form of total heat exchanger varies according to models.
1
2
3
4
5
6
7
8
Models: 1 500 / 2 000 CMH
1. Maintenance Cover
2. Air Filter
It prevents dust from clogging in Total Heat Exchanger.
3. Total Heat Exchanger
It changes temperature and humidity between
Supplying Air and exhausted air.
4. Blower for Exhaust Air
It is a fan for discharging the contaminated air to
outdoor.
5. Control box
6. Blower for Supply Air
It is a fan for inhaling exterior air into an indoor space.
7. Damper plate(board)
It converts exchanging mode between total heat
ventilation and general ventilation.
8. Total Heat Exchanger holder
It is used in guiding for the installation of Total Heat
Exchanger.

Owner's Manual 9
ENGLISH
Operating Instructions (Accessory)
Please attach the inform label inside of the door.
Please choose proper language depend on your
country.
1
4
5
10
11
8
7
92
3
6
13
12
14
15
LCD Remote Controller
hSome functions may not be operated and displayed depending on the product type.
Operating Instructions (Accessory)
1. OPERATION INDICATION SCREEN
2. SET TEMPERATURE BUTTON
3. FAN SPEED BUTTON
4. ON/OFF BUTTON
5. OPERATION MODE SELECTION BUTTON
6.
WIRELESS REMOTE CONTROLLER RECEIVER
• Some products don't receive the wireless
signals.
7. AIR FLOW BUTTON
8. SUBFUNCTION BUTTON
9. FUNCTION SETTING BUTTON
10. VENTILATION BUTTON
11. RESERVATION
12. UP, DOWN, LEFT, RIGHT BUTTON
• To check the indoor temperature, press
J
button.
13. ROOM TEMPERATURE BUTTON
14. SETTING/CANCEL BUTTON
15. EXIT BUTTON

10 Ventilation system
Operating Instructions (Accessory)
Press button on the remote
controller control panel.
- It is only used when air conditioner
and general ventilation is
interlinked.
1
Pressing 'Start/Stop' button at ventilation
mode will start ventilation.
2
Pressing button will change the
ventilation operation mode.
Pressing operation selection button
will change the mode in the order of
'heat exchange → normal → automatic'
❈It only displays on the remote controller
display when it is in ventilation mode, and it
displays the desired temperature when it
returns to air condition mode.
3
Pressing button in general
ventilation mode will change airflow
speed.
Pressing airflow speed button will
change the mode in the order of 'low →
high → power'.
If CO2sensor is installed, it can select from
'low → high → power → auto'.
4
Changing back to air conditioner mode
1)Automatic conversion : when no button is
pressed for 15 seconds or longer, it
automatically converts back to air
conditioner mode.
2) Manual conversion : pressing button in
ventilation mode will manually convert.
5
Ventilation interlinked operation
It is used when air conditioner is interlinked with ventilation product.
It is a function that cools and refreshes indoor air using the ventilation product at the same time
operating the air conditioning function.
Method to Operate and Select Air Volume – Interlinked Operation with Ventilation.

Owner's Manual 11
Operating Instructions (Accessory)
ENGLISH
Method to Operate and Select Air Volume –Ventilation Single Operation
Press button on the remote
controller.
1
Pressing button will change
the ventilation mode.
2
Pressing button will change
the strength of the wind
- Pressing the button can select
from 'low → high → power'.
- If CO2sensor is installed, it can select from
'low
→ high → power → auto'.
3
Ventilation single operation
Ventilation
mode
Heat
exchange
Normal
Automatic
Remote controller
display Contents
Circulate indoor air without loss of heat
Directly circulate indoor air without going
through heat exchanger
Circulate indoor air with automatically
comparing indoor and outdoor air
In the case of heat exchange mode, the display is
shown as below.
→→→→→→→
It is a function to cool and refresh the indoor air using general ventilation product..

12 Ventilation system
Operating Instructions (Accessory)
Fast/Energy saving ventilation mode
Press button in ventilation mode.
- It converts in the order of 'fast
→
power saving' in ventilation mode.
1
'Fast' is blinking on the display, and pressing
button will stabilize 'fast' icon, and the
function is set.
2
Pressing button will exit the
settings.
3
Press button in ventilation mode.
- It converts in the order of 'fast
→
power saving' in ventilation mode.
1
'Power saving' is blinking on the display, and
pressing button will stabilize 'power
saving' icon, and the function is set.
2
Pressing button will exit the
settings.
❈General ventilation and direct expansion
ventilation have the same additional
functions.
❈Ventilation/heater/humidifier additional
function settings are the same as air
conditioner.
3
Fast : ventilates fast
Power saving : efficiently ventilates and performs
power savings.
It is a function to operate ventilation function more efficiently through the ventilation additional
functions, fast / power saving settings.

Owner's Manual 13
Characteristics
ENGLISH
Exhaust Air
Outdoor Air
Total Heat Exchanger
Damper
Return Air
Supply Air
Exhaust Air
Outdoor Air
Total Heat Exchanger
Damper
Return Air
Supply Air
Exhausts indoor air via the Total Heat Exchanger outdoor.
• The outdoor air heat exchanged is supplied to indoor. Operate the ventilator in the
Ventilation via Total heat exchanger in summer/winter when cool/heat operation is done.
Exhausts the polluted indoor-air directly without via the Total Heat
Exchanger.
• Operate the ventilator in the Normal Ventilation in spring/autumn when the Total heat exchanger
is not required.
Normal Ventilation
CAUTION
In case of high outdoor pollution degree like yellow sand please pause the ventilator.
!
Ventilation via Total Heat Exchanger
Characteristics

14 Ventilation system
Maintenance and Service
Method to take each part out
To prevent function of the ventilator deteriorating, clean dust adhered to the air filter and total heat
exchanger regularly.
Cleaning Cycle
- Air filter: More than once every 6 months.
- Total heat exchanger: More than once every 2 years (Cleaning cycle may increase according to
pollution degree.)
WARNING
Turn the breaker off when cleaning the product.
CAUTION
• Take care to ensure that you could not damage when taking the air filter out since there is a
sharp part on it.
• Gloves should be worn when doing the maintenance work.
!
!
Models: 500 / 800 / 1 000 CMH
1. Remove the maintenance cover.
Put the hands inside of the ceiling from the
maintenance cover, and pull the maintenance
cover up.
(Looser the hinge and detach the maintenance
cover.)
2. Take the air filter out.
Take the air filter with each contained to the
left/right downside of the Total heat exchanger.
hIf it adheres to the ceiling in reverse, it is
equal to the left/right topside of the Total
heat exchanger.
Main Body
Air Filter
Main Body
Handling and Cleaning
Maintenance and Service

Owner's Manual 15
ENGLISH
Maintenance and Service
3. Take the Total heat exchanger out.
Catch the handle and then take the Total heat
exchanger out from the main body. (2 units)
Main Body
Handle
Models: 1 500 / 2 000 CMH
1. Remove the maintenance cover.
Put the hands inside of the ceiling from the maintenance cover, and pull the maintenance cover up.
(Looser the hinge and detach the maintenance cover.)
2. Take the air filter out.
Take the air filter with each contained to the
left/right downside of the Total heat exchanger.
hIf it adheres to the ceiling in reverse, it is
equal to the left/right topside of the Total
heat exchanger.
3. Take the Total heat exchanger out.
Catch the handle and then take the Total heat
exchanger out from the main body. (4 units)
Maintenance Cover
Main body
Main body

16 Ventilation system
Cleaner
Air Filter
Total Heat ExchngerAir Filter
Maintenance and Service
Method to Clean and Replace Each Part
1. Cleaning of Air Filter
Clean once every 6 months.
• Clean dirt from the air filter using a vacuum cleaner or
washing with water.
(if dirt is conspicuous, wash with a neutral detergent in
lukewarm water)
• After washing with water, dry well in the shade.
(Do not expose the air filter to direct sunlight or heat
from a fire when drying it)
• If the air filter is damaged, purchase it from the service
center or professional agent.
2. Cleaning of Total Heat Exchanger
Suck dusts adhered to the surface of the Total heat
exchanger with a cleaner.
• Use the cleaner that attached to brush at its nozzle, and
use a soft brush.
• Do not use a hard nozzle on the cleaner.
(Otherwise, surface of the Total heat exchanger may be
damaged.)
• Never wash the Total heat exchanger with water.
• Replacement expenses are for a consideration after 2
years from the purchasing date.
• Expenses are for a consideration when you will contact
the service center even within 2 years from the
purchasing date.
• For service, always contact the dealer or an Authorized
Service Center.

Owner's Manual 17
ENGLISH
Assembly and Check after Maintenance
Maintenance and Service
1. Assembly of Total heat
exchanger
Securely put the corner parts (4 parts) of the
Total heat exchanger into the
holder for assembly and slide them into the
inside of the main body.
2. Assembly of air filter
Assemble the air filter into the holder
structure of the Total heat exchanger.
• Take care to ensure that surface of the
Total heat exchanger could not be
damaged.
• Dusts adhered to the Total heat exchanger
may cause deterioration of Air volume.
3. Assembly of maintenance cover
Fix the cover to the right hinge and fix it to
the left side. (A nameplate is adhered
toward the reading direction).
WARNING
Turn the breaker off when cleaning the product.
CAUTION
Gloves should be worn when doing the maintenance work.
!
!
Main Body
Main Body
Assemble the
air filter into the
holder structure. Holder for
Total Heat Exchanger
Air Filter
Total Heat
Exchanger
Hinge
Main Body

18 Ventilation system
Check Item prior to notify a failure
Electronics Specifications
Item Unit LZ-H050GBA2 LZ-H080GBA2 LZ-H100GBA2
Step - SUPER-HIGH / HIGH / LOW SUPER-HIGH / HIGH / LOW SUPER-HIGH / HIGH / LOW
Power Supply Ø/V/Hz 1 / 220 / 60 1 / 220 / 60 1 / 220 / 60
Current Amps 1.92 / 1.58 / 0.79 2.77 / 2.16 / 1.44 3.41 / 2.91 / 1.76
Power Input W230 / 220 / 85 360 / 270 / 165 470 / 385 / 210
Item Unit LZ-H150GBA2 LZ-H200GBA2
Step - SUPER-HIGH / HIGH / LOW SUPER-HIGH / HIGH / LOW
Power Supply Ø/V/Hz 1 / 220 / 60 1 / 220 / 60
Current Amps 5.60 / 5.40 / 2.90 6.80 / 5.90 / 3.60
Power Input W720 / 540 / 340 930 / 770 / 420
Item Unit LZ-H080GBA4 LZ-H100GBA4 LZ-H150GBA4
Step - SUPER-HIGH / HIGH / LOW SUPER-HIGH / HIGH / LOW SUPER-HIGH / HIGH / LOW
Power Supply Ø/V/Hz 1 / 220 / 60 1 / 220 / 60 1 / 220 /60
Current Amps 2.77 / 2.16 / 1.44 3.41 / 2.90 / 1.76 5.60 / 5.40 / 2.90
Power Input W390 / 280 / 187 480 / 385 / 210 780 / 540 / 377
Item Unit LZ-H200GBA4
Step - SUPER-HIGH / HIGH / LOW
Power Supply Ø/V/Hz 1 / 220 / 60
Current Amps 6.80 / 5.90 / 3.60
Power Input W960 / 770 / 420
Symptom Check item Counter-measure
The product doesn't work Is power not supplied? Supply power
The product doesn't work
through you press the 'On' switch
Is the indoor temperature less
than 15 ℃ (59 ℉) or more
than 40 ℃ (104 ℉)?
It's standby mode for protecting
total heat exchanger.
Is air filter, total heat exchanger
clogged severely?
Follow cleaning and changing
method.
Are the PCB and remote
controller rightly connected?
Connect rightly PCB and
remote controller.
The fan doesn't run
Is the outdoor temperature the
limit temperature?
(Less than -10 °C (14 °F), more
than 45 °C (113 °F))
Switch on Option No. 5.
Repower the product and check
whether it works or not. Switch
off Option No. 5. and repower
the product once again
Even though you push the
button of remote controller, any
function doesn't work.
Is the icon " " displaying on
remote controller?
It's child lock mode.
Refer to remote controller.
Check Item prior to notify a failure

[Representative] LG Electronics México, S.A de C.V
Sor Juana Inés de la Cruz No. 555
Col. San Lorenzo Industrial
Tlalnepantla de Baz, Estado de México C.P. 54033
Tel. [phone]
Página web http://www.lg.com.nnx
[Manufacturer] LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro,
Seongsan-gu, Changwon-si, Gyeongsangnam-do, KOREA
Models
LZ-H050GBA2
LZ-H080GBA2 LZ-H080GBA4
LZ-H100GBA2 LZ-H100GBA4
LZ-H150GBA2 LZ-H150GBA4
LZ-H200GBA2 LZ-H200GBA4
