LG MULTI F A2UW16GFA0 Product guide

Heat pump 60Hz/R410A
6CIM-01A
P/No. : MFL67502703

Part 1 General information
Part 2 Product data
Part 3 Design and installation
Part 4 Special Part
60Hz/R410A

Introduction
Preface
New era brings the more sophisticated and advanced buildings which in turn demands for specialized and optimized direct
expansion air conditioning systems. Also energy efficiency, environment friendly, low noise and low maintenance are the
features which are essential for these systems.
As a part of vertical integration LG makes all the key components in house, which gives us an edge to LG to make better
and latest technology products with best quality in optimized time.
systems are equipped with inverter technology and R410A refrigerant which is perfect solution to various installa-
tion locations.
This Engineering product data book incorporates information about the product itself, and installation, designing for
system.
The comprehensive study of this book will improve your knowledge about the system and its application in detail.
LG Electronics Inc.
Air Conditioning & Energy Solution Company

Part 1 General information
1. Model line up
2. Nomenclature
3. Appearance
4. Combination

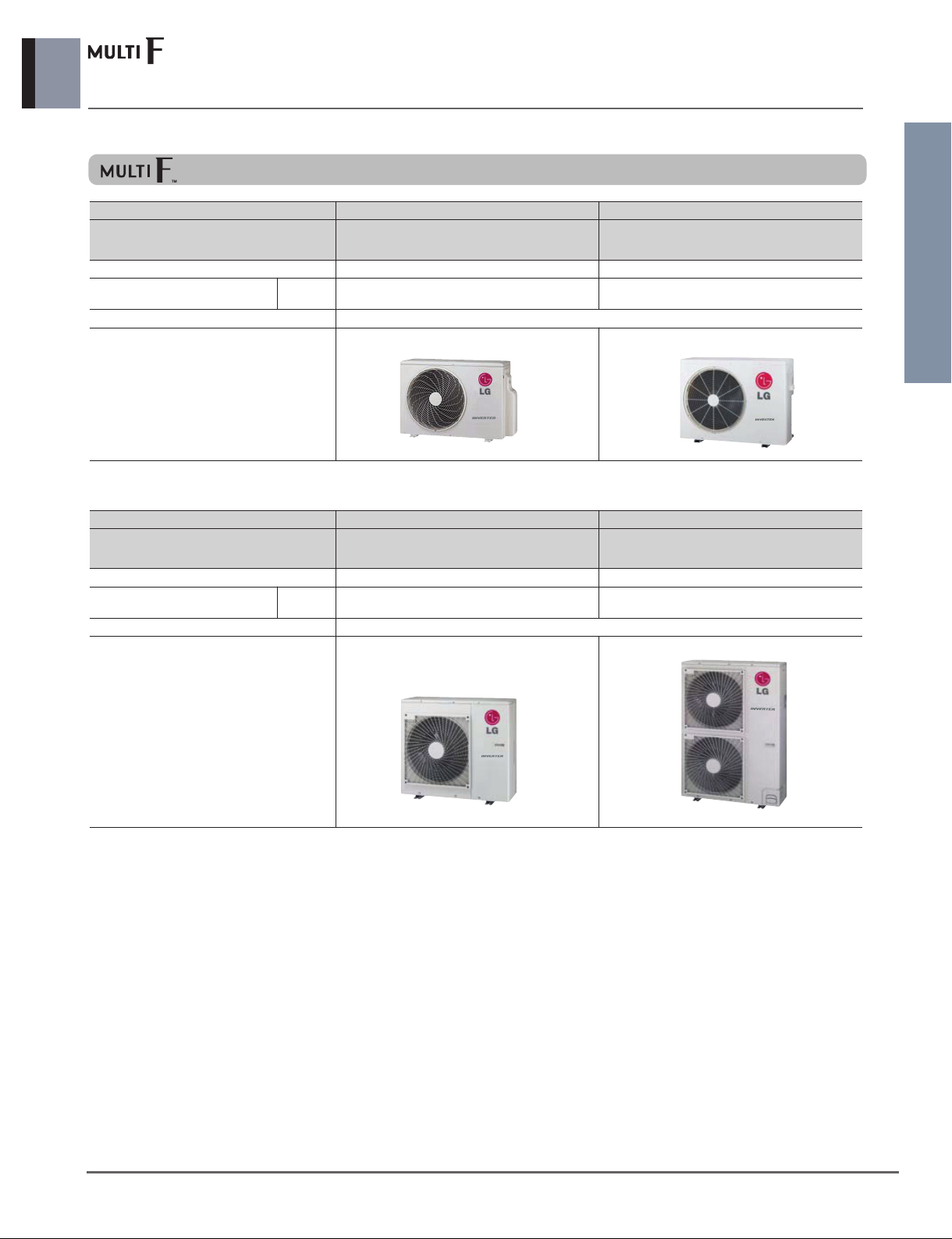

1. Model line up
Heat pump 60Hz/R410A _ 1
Part 1 General information
1.1 Outdoor units
(1 phase)
Nominal Capacity(kW) 4.7 6.2
Model Name A2UW16GFA0 A3UW21GFA0
No.of connectable indoor units Max.2 Max.3
Total capacity index of con-
nectable indoor units kBtu/h 24 36
Power supply 220 V, 1 Ø, 60 Hz
Chassis
Nominal Capacity(kW) 8.8 11.7
Model Name A5UW30GFA0 A5UW40GFA0
No.of connectable indoor units Max.5 Max.5
Total capacity index of con-
nectable indoor units kBtu/h 54 60
Power supply 220 V, 1 Ø, 60 Hz
Chassis

2_ Heat pump 60Hz/R410A
Part 1 General information
2. Nomenclature
2.1 Outdoor unit(Global)
Electrical rating
Indicates that this is multi system outdoor unit using R410A
Ex) A5U : Connectable max. 5 indoor units
A9U : Connectable max. 9 indoor units
Model type
W : DC inverter heat pump
Ex) 30,000 Btu/h Class →‘30’
Cooling/heating capacity
G : 220-240V, 1Ø, 50Hz / 220V, 1Ø, 60Hz
L : 380-415V, 3Ø, 50Hz / 380V, 3Ø, 60Hz
Multi type
Function
A : Basic
F : Free joint multi type
Serial number
A5U W30G F A 0

Heat pump 60Hz/R410A _ 3
Part 1 General information

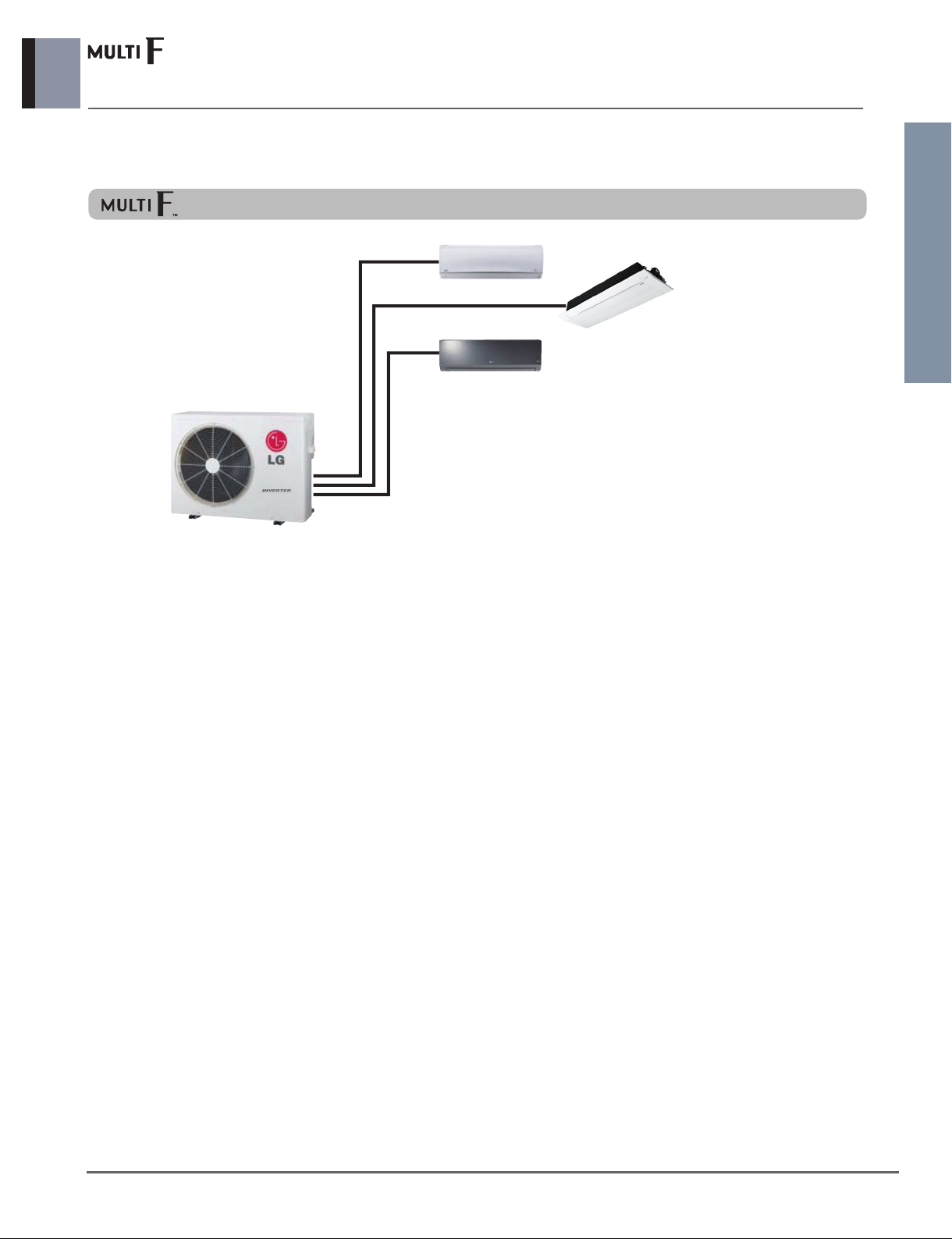

3. Appearance
LG multi system provides various indoor units such as wall mounted, ART COOL, ART COOL Mirror, ceiling cassette,
ceiling concealed duct, ceiling & floor , Ceiling suspended and console.
Outdoor unit

4_ Heat pump 60Hz/R410A
Part 1 General information
4.1 Selection procedure
Outdoor units selection
In general, outdoor unit may be selected as follows, though the location of the unit, and usage of the room, etc. should be
considered.
The combination of indoor and outdoor unit was to be decided that the sum of indoor unit capacity index should be smaller
than the max. combination capacity of outdoor unit. Up to Max.9 indoor units can be connected to one outdoor unit. It is rec-
ommended to choose a large capacity outdoor unit if the installation space is large enough.
4. Combination
Nominal Capacity(kW) 4.7 6.2 8.8 11.7
Model name A2UW16GFA0 A3UW21GFA0 A5UW30GFA0 A5UW40GFA0
Rated
capacity (kW)
Cooling 4.69 6.15 8.79 11.2
Heating 5.27 7.03 10.1 12.5
Connectable
indoor units
Number of indoor units Max. 2 Uints Max. 3 Uints Max. 5 Uints Max. 5 Uints
Maximum Total
Capacity Index (kBtu/h)
24 36 54 60

Heat pump 60Hz/R410A _ 5
Part 1 General information
4. Combination
4.2 Combination of indoor and outdoor unit
The total capacity index of indoor units is the sum of capacity index of each units and should be within the capacity index of
the outdoor unit.
Nominal Capacity of
Outdoor Unit
MULTI F
4.7 kW 6.2 kW 8.8 kW / 11.7 kW
Indoor Unit Type
Indoor Unit Capacity
Index (kBtu/h)
Connectable Indoor Units
Wall mounted
7 O OO
9
O OO
12
O OO
18
- OO
24
- -O
ART COOL
9 O OO
12
O OO
ART COOL Mirror
7 O OO
9
O OO
12
O OO
18
- OO
24
- -O
Ceiling Cassette
(1-way)
9 O OO
12
O OO
Ceiling Cassette
(4-way)
7 O OO
9
O OO
12
O OO
18
- OO
24
- -O
Ceiling & Floor and Ceiling
Suspended
9 O OO
12
O OO
18
- OO
24 - -O
Ceiling Concealed Duct (High
Static Pressure)
18 - OO
24
- -O
Ceiling Concealed Duct
(Low Static Pressure)
9 O OO
12 O OO
18
- OO
24 - -O
Console
9 O OO
12
O OO
18
- OO

Part 2 Product data
n Outdoor units
1. Multiple piping type

Multiple piping type
1. Power supply
2. List of functions
3. Specifications
4. Combination table
5. Dimensions
6. Piping diagrams
7. Wiring diagrams
8. Capacity tables
9. Operation range
10. Electrical characteristics
11. Field wiring diagram
12. Sound levels

Heat Pump 60Hz/R410A _ 1
1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
1.1 Power supply

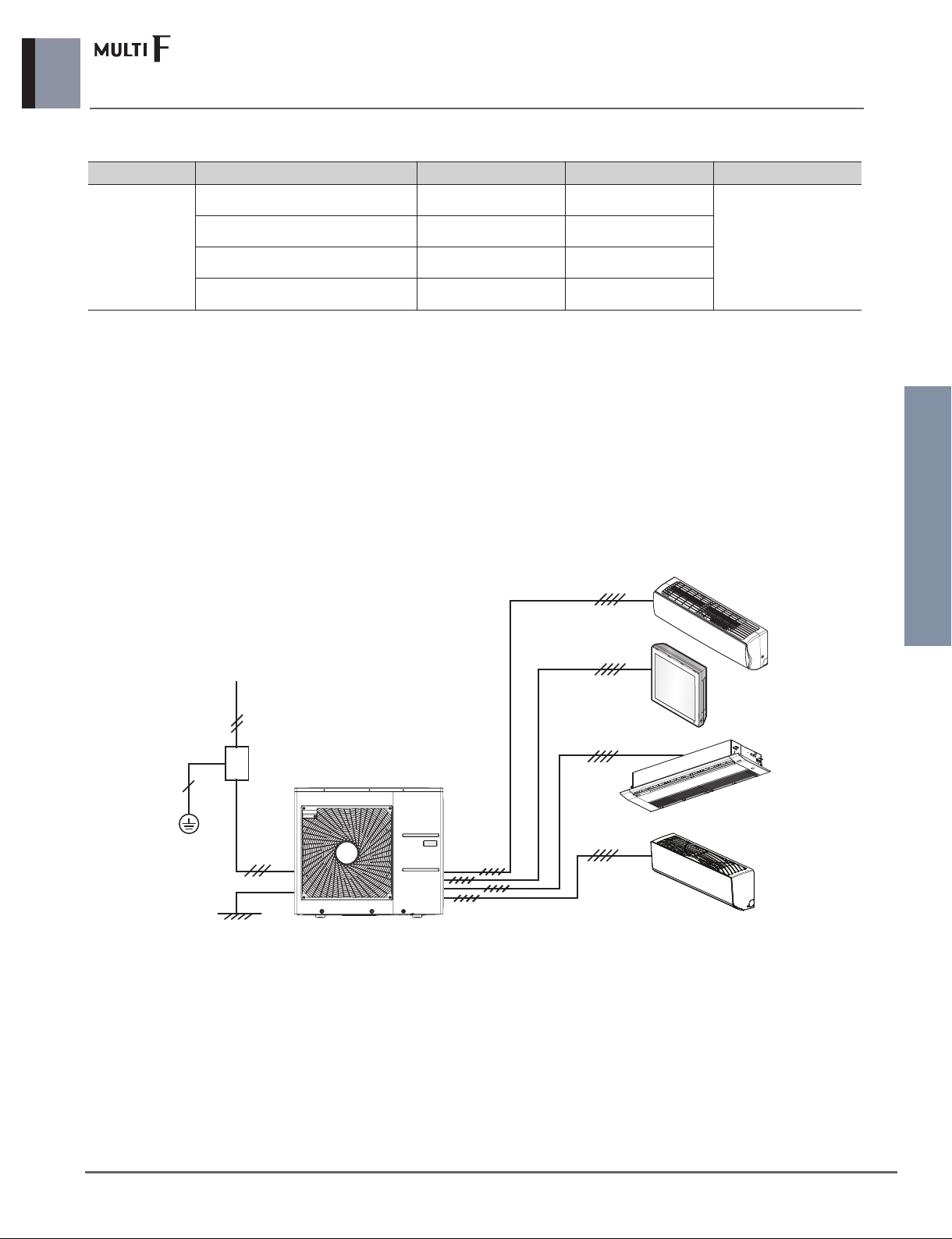

External wiring procedure
- The power supply work is needed only to the outdoor unit. The power supply to the indoor unit is conducted through the
transmission wiring. Therefore, the power supply work can be carried out at just one place of the outdoor unit. It will
contribute to simplify the work procedure and to save cost.
- Wiring cable size must comply with the applicable local and national code.
Outdoor unit
[Indoor unit]
Power supply
Circuit breaker
Earth wire
Type Outdoor unit Capacity[kBtu/h(kW)] Circuit breaker capacity Power supply
Heat Pump
A2UW16GFA0 16.0 (4.69) 15A
220 V, 1 Ø, 60 Hz
A3UW21GFA0 21.0 (6.15) 20A
A5UW30GFA0 30.0 (8.79) 25A
A5UW40GFA0 38.2 (11.2) 30A

1. Multiple piping type MULTI F
2_ Heat Pump 60Hz/R410A
Part 2 Product data_Outdoor units
1.2 List of functions
[Note]
• O: Applied, • X: Not applied
Accessory model name : Installed at field, ordered and purchased separately by the corresponding model name, supplied with
separate package.
* : A5UW40GFA0 model only is applied.
Category Functions A2UW16GFA0
A3UW21GFA0
A5UW30GFA0
A5UW40GFA0
Reliability
Convenience
Network function
Device A2UW16GFA0
A3UW21GFA0
A5UW30GFA0
A5UW40GFA0
Central Controller
BNU (Building
Network Unit)
Installation
PDI(power distribution indicator)
ODU Dry Contact
Low Ambient Kit
Defrost / Deicing O O
High pressure switch X X
Low pressure switch X X
Phase protection X X
Restart delay (3-minutes) O O
Self diagnosis O O
Soft start O O
Test function X X
Night Silent Operation O O
Wiring Error Check O O
Peak Control O O
Mode Lock O O
Forced Cooling Operation (Outdoor Unit) OO
Network soluation(LGAP) O O
Simple Controller X PQCSB101S0
Function controller X PQCSB101S0 + PQCSC101S0
Function Scheduler X PQCSB101S0 + PQCSD130A0
AC Ez X PQCSZ250S0
AC Smart ll X PQCSW320A1E
Option Kit (SD card type) X PQCSE341A0 / PQCSE342A0
ACP(Advanced Control Platform) X PQCPA11A0E / PQCPB11A0E
AC Manager X PQCSS520A0E
PI485 X PMNFP14A0/PMNFP14A1
DO(Digital Output) Kit X PQNFP00T0
LONWORKS Gateway X PQNFB16A1
BACnet Gateway X PQNFB17B0
Y branch X X
Header branch X X
Air Guide X X
X PQNUD1S00
X
O*
O (Logical operation) O (Logical operation)

Heat Pump 60Hz/R410A _ 3
1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
1.3 Specifications
Note :
1. All data are based on the following conditions:
- Cooling Temperature : Indoor 27°C(80.6°F) DB / 19°C(66.2°F) WB
Outdoor 35°C(95°F) DB / 24°C(75.2°F) WB
- Heating Temperature : Indoor 20°C(68°F) DB / 15°C(59°F) WB
Outdoor 7°C(44.6°F) DB / 6°C(42.8°F) WB
- Piping Length : Interconnected Pipe Length = 7.5m
- Difference Limit of Elevation (Outdoor ~ Indoor Unit) is Zero.
2. Wiring cable size must comply with the applicable local and national code.
3. Due to our policy of innovation some specifications may be changed without notification.
4. Sound Level Values are measured at Anechoic chamber.
Therefore, these values can be increased owing to ambient conditions during operation.
Outdoor unit A2UW16GFA0 A3UW21GFA0
Testing Combination
Capacity
Cooling
Min.~Rated~Max. kW
Min.~Rated~Max. Btu/h
Heating
Min.~Rated~Max. kW
Min.~Rated~Max. Btu/h
Power Input Cooling
Min.~Rated~Max. kW
Heating Min.~Rated~Max. kW
SEER / SCOP Wh / Wh
Seasonal Energy Label Cooling / Heating -
Annual Energy Consumption Cooling / Heating kWh
Power Supply V , Ø , Hz
Running Current Cooling
Min.~Rated~Max. A
Heating Min.~Rated~Max. A
Starting Current Cooling Max. A
Heating Max. A
Wiring Connections Power Supply Cable (included Earth)
No. x mm
2
(AWG)
Power and Communication Cable (included Earth) Outdoor ~ BD unit No. x mm
2
(AWG)
Combination
Sum of Indoor Units Capacity kBtu/h
Number of Indoor Units EA
Number of BD Units EA
Casing Color -
Dimensions W x H x D mm
W x H x D inch
Net Weight kg (lbs)
Compressor
Type -
Model Model x No.
Motor type -
Motor Output W x No.
Refrigerant
Type -
Precharged Amount g (oz)
Chargeless-Pipe Length m (ft)
Additional Charging Volume g/m (oz/ft)
Control -
Refrigerant Oil Type -
Charged volume cc x No.
Heat Exchanger
#1_(Row x Column x Fins per inch) x No. -
#2_(Row x Column x Fins per inch) x No. -
Fan Type -
Air Flow Rate m3/min x No.
Fan Motor Type
Output W x No.
Sound Pressure Level Cooling Rated dB(A)
Heating Rated dB(A)
Sound Power Level Cooling Max. dB(A)
Piping Connections Liquid Outer Dia. mm(inch) x No.
Gas Outer Dia. mm(inch) x No.
Piping Length
Total Piping Max. m (ft)
Main Piping Max. m (ft)
Total Branch Piping Max. m (ft)
Each Branch Piping Max. m (ft)
Maximum Height
Difference
Outdoor Unit ~ Indoor Unit Max. m (ft)
Indoor Unit ~ Indoor Unit Max. m (ft)
Operation Range
(Outdoor Temperature)
Cooling Min. ~ Max. ℃ DB (℉ DB)
Heating Min. ~ Max. ℃ WB (℉ WB)
MS09AQ NB0 x 2EA MS07AQ NB0 x 3EA
0.88 ~ 4.69 ~ 5.39 1.41 ~ 6.15 ~ 7.32
3,000 ~ 16,000 ~ 18,400 4,800 ~ 21,000 ~ 25,000
0.97 ~ 5.27 ~ 5.69 1.47 ~ 7.03 ~ 7.76
3,300 ~ 18,000 ~ 19,400 5,000 ~ 24,000 ~ 26,500
0.29 ~ 1.26 ~ 1.63 0.14 ~ 1.58 ~ 2.36
0.29 ~ 1.28 ~ 1.66 0.21 ~ 1.71 ~ 2.72
6.10 / 3.80 6.10 / 3.90
A++ / A A++ / A
270 / 1,842 356 / 2,226
220, 1, 60 220, 1, 60
1.3 ~ 5.8 ~ 7.4 0.6 ~ 6.6 ~ 10.3
1.3 ~ 5.8 ~ 7.5 0.9 ~ 7.4 ~ 11.8
--
--
3C x 2.5 (12) 3C x 2.5 (12)
--
24 36
23
--
Warm Gray Warm Gray
770 × 545 × 288 870 × 655 × 320
30-5/16 x 21-15/32 x 11-11/32 34-1/4 x 25-25/32 x 12-19/32
37 (81.6) 45 (99.2)
Twin Rotary Twin Rotary
GKT141MA x 1 GKT176MA x 1
BLDC BLDC
1,500 (at 60Hz) x 1 1,500 (at 60Hz) x 1
R410A R410A
1,400 (49.4) 1,800 (63.5)
15 (49.2) 22.5 (73.8)
20 (0.22) 20 (0.22)
Electronic Expansion Valve Electronic Expansion Valve
FVC68D FVC68D
570 x 1 670 x 1
(2 x 24 x 14) x 1 (2 x 28 x 14) x 1
--
Propeller Propeller
28.2 x 1 50 x 1
BLDC BLDC
43 x 1 85.4 x 1
49 51
51 53
62 64
Ø 6.35 (1/4) x 2 Ø 6.35 (1/4) x 3
Ø 9.52 (3/8) x 2 Ø 9.52 (3/8) x 3
30 (98.4) 50 (164.0)
--
--
20 (65.6) 25 (82.0)
15 (49.2) 15 (49.2)
7.5 (24.6) 7.5 (24.6)
-10 (14.0) ~ 46 (114.8) -10 (14.0) ~ 48 (118.4)
-18 (-0.4) ~ 18 (64.4) -18 (-0.4) ~ 18 (64.4)

1. Multiple piping type MULTI F
4_ Heat Pump 60Hz/R410A
Part 2 Product data_Outdoor units
Note :
1. All data are based on the following conditions:
- Cooling Temperature : Indoor 27°C(80.6°F) DB / 19°C(66.2°F) WB
Outdoor 35°C(95°F) DB / 24°C(75.2°F) WB
- Heating Temperature : Indoor 20°C(68°F) DB / 15°C(59°F) WB
Outdoor 7°C(44.6°F) DB / 6°C(42.8°F) WB
- Piping Length : Interconnected Pipe Length = 7.5m
- Difference Limit of Elevation (Outdoor ~ Indoor Unit) is Zero.
2. Wiring cable size must comply with the applicable local and national code.
3. Due to our policy of innovation some specifications may be changed without notification.
4. Sound Level Values are measured at Anechoic chamber.
Therefore, these values can be increased owing to ambient conditions during operation.
Outdoor unit A5UW30GFA0 A5UW40GFA0
Testing Combination
Capacity
Cooling
Min.~Rated~Max. kW
Min.~Rated~Max. Btu/h
Heating
Min.~Rated~Max. kW
Min.~Rated~Max. Btu/h
Power Input Cooling
Min.~Rated~Max. kW
Heating Min.~Rated~Max. kW
SEER / SCOP Wh / Wh
Seasonal Energy Label Cooling / Heating -
Annual Energy Consumption Cooling / Heating kWh
Power Supply V , Ø , Hz
Running Current Cooling
Min.~Rated~Max. A
Heating Min.~Rated~Max. A
Starting Current Cooling Max. A
Heating Max. A
Wiring Connections Power Supply Cable (included Earth)
No. x mm
2
(AWG)
Power and Communication Cable (included Earth) Outdoor ~ BD unit No. x mm
2
(AWG)
Combination
Sum of Indoor Units Capacity kBtu/h
Number of Indoor Units EA
Number of BD Units EA
Casing Color -
Dimensions W x H x D mm
W x H x D inch
Net Weight kg (lbs)
Compressor
Type -
Model Model x No.
Motor type -
Motor Output W x No.
Refrigerant
Type -
Precharged Amount g (oz)
Chargeless-Pipe Length m (ft)
Additional Charging Volume g/m (oz/ft)
Control -
Refrigerant Oil Type -
Charged volume cc x No.
Heat Exchanger
#1_(Row x Column x Fins per inch) x No. -
#2_(Row x Column x Fins per inch) x No. -
Fan Type -
Air Flow Rate m3/min x No.
Fan Motor Type
Output W x No.
Sound Pressure Level Cooling Rated dB(A)
Heating Rated dB(A)
Sound Power Level Cooling Max. dB(A)
Piping Connections Liquid Outer Dia. mm(inch) x No.
Gas Outer Dia. mm(inch) x No.
Piping Length
Total Piping Max. m (ft)
Main Piping Max. m (ft)
Total Branch Piping Max. m (ft)
Each Branch Piping Max. m (ft)
Maximum Height
Difference
Outdoor Unit ~ Indoor Unit Max. m (ft)
Indoor Unit ~ Indoor Unit Max. m (ft)
Operation Range
(Outdoor Temperature)
Cooling Min. ~ Max. ℃ DB (℉ DB)
Heating Min. ~ Max. ℃ WB (℉ WB)
MS07AQ NB0 x 5EA MS09AQ NB0 x 5EA
1.32 ~ 8.79 ~ 10.6 0.88 ~ 11.2 ~ 13.5
4,500 ~ 30,000 ~ 36,000 3,000 ~ 38,200 ~ 46,000
1.47 ~ 10.1 ~ 12.1 0.97 ~ 12.5 ~ 15.0
5,000 ~ 34,500 ~ 41,400 3,300 ~ 42,700 ~ 51,200
0.44 ~ 2.20 ~ 3.38 0.78 ~ 2.73 ~ 4.15
0.50 ~ 2.20 ~ 3.70 0.82 ~ 2.81 ~ 4.45
6.10 / 3.80 6.10 / 3.90
A++ / A A++ / A
505 / 3,353 643 / 4,236
220, 1, 60 220, 1, 60
2.0 ~ 9.9 ~ 16.2 3.5 ~ 12.1 ~ 18.4
2.2 ~ 9.8 ~ 16.5 3.6 ~ 12.5 ~ 19.7
--
--
3C x 2.5 (12) 3C x 3.5 (10)
--
54 60
55
--
Warm Gray Warm Gray
950 × 834 × 330 950 × 1,170 × 330
37-13/32 x 32-27/32 x 13 37-13/32 x 46-1/16 x 13
64 (141.1) 84 (185.2)
Twin Rotary Twin Rotary
GJT240MA x 1 GPT442MBA x 1
BLDC BLDC
2,020 (at 60Hz) x 1 4,000 (at 60Hz) x 1
R410A R410A
3,200 (112.9) 3,800 (134.0)
37.5 (123.0) 37.5 (123.0)
20 (0.22) 20 (0.22)
Electronic Expansion Valve Electronic Expansion Valve
FVC68D FVC68D
900 x 1 1,300 x 1
(2 x 38 x 14) x 1 (2 x 32 x 14) x 1
- (2 x 22 x 14) x 1
Propeller Propeller
60 x 1 45 x 2
BLDC BLDC
124.2 x 1 85.4 x 2
51 53
53 55
64 67
Ø 6.35 (1/4) x 5 Ø 6.35 (1/4) × 5
Ø 9.52 (3/8) x 5 Ø 9.52 (3/8) × 5
75 (246.1) 85 (278.9)
--
--
25 (82.0) 25 (82.0)
15 (49.2) 15 (49.2)
7.5 (24.6) 7.5 (24.6)
-10 (14.0) ~ 48 (118.4) -10 (14.0) ~ 48 (118.4)
-18 (-0.4) ~ 18 (64.4) -18 (-0.4) ~ 18 (64.4)

Heat Pump 60Hz/R410A _ 5
1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
Models : A2UW16GFA0
Cooling
Heating
Note :
1. Cooling Capacity is based on : indoor temp.27°CDB, 19°CWB
; outdoor temp. 35°CDB, 24°CWB
2. Heating Capacity is based on : indoor temp.20°CDB, 15°CWB
; outdoor temp. 7°CDB, 6°CWB
3.
Maximum total capacity index of connected indoor units is 24 kBtu/h.
4. At least two indoor units should be connected to outdoor unit.
5. Total capacity of indoor units connected should be minimum 40%
of outdoor unit rated capacity.
1.4 Combination table
Operation
Combination
(kBtu/h)
Cooling
Each capacity
(kW)
Total Capacity Input
(W)
Min Rated Max
Unit-A Unit-B Total Unit-A Unit-B Btu/h kW Btu/h kW Btu/h kW Min Rated Max
1 UNIT
2 UNIT
Operation
Combination
(kBtu/h)
Heating
Each capacity
(kW)
Total Capacity Input
(W)
Min Rated Max
Unit-A Unit-B Total Unit-A Unit-B Btu/h kW Btu/h kW Btu/h kW Min Rated Max
1 UNIT
7 - 7 2.5 - 5,100 1.5 8,400 2.5 9,200 2.7 340 560 710
9 - 9 3.2 - 6,500 1.9 10,800 3.2 11,800 3.5 420 700 890
12 - 12 3.9 - 8,000 2.3 13,200 3.9 14,500 4.2 520 860 1,120
2 UNIT
7 7 14 2.3 2.3 9,600 2.8 16,000 4.7 17,200 5.0 650 1,080 1,390
7 9 16 2.3 3.0 10,800 3.2 18,000 5.3 19,400 5.7 770 1,280 1,660
7 12 19 1.9 3.3 10,800 3.2 18,000 5.3 19,400 5.7 770 1,280 1,660
9 9 18 2.6 2.6 10,800 3.2 18,000 5.3 19,400 5.7 770 1,280 1,660
9 12 21 2.3 3.0 10,800 3.2 18,000 5.3 19,400 5.7 770 1,280 1,660
12 12 24 2.6 2.6 10,800 3.2 18,000 5.3 19,400 5.7 770 1,280 1,660
7 - 7 2.1 - 4,200 1.2 7,000 2.1 8,400 2.5 320 520 620
9 - 9 2.6 - 5,400 1.6 9,000 2.6 10,800 3.2 400 660 850
12 - 12 3.5 - 7,200 2.1 12,000 3.5 14,400 4.2 530 880 1,220
7 7 14 2.1 2.1 8,400 2.5 14,000 4.1 16,100 4.7 620 1,020 1,450
7 9 16 2.1 2.6 9,600 2.8 16,000 4.7 18,400 5.4 760 1,260 1,630
7 12 19 1.7 3.0 9,600 2.8 16,000 4.7 18,400 5.4 760 1,260 1,630
9 9 18 2.3 2.3 9,600 2.8 16,000 4.7 18,400 5.4 760 1,260 1,630
9 12 21 2.0 2.7 9,600 2.8 16,000 4.7 18,400 5.4 760 1,260 1,630
12 12 24 2.3 2.3 9,600 2.8 16,000 4.7 18,400 5.4 760 1,260 1,630

1. Multiple piping type MULTI F
6_ Heat Pump 60Hz/R410A
Part 2 Product data_Outdoor units
Models : A3UW21GFA0
Cooling
Note :
1. Cooling Capacity is based on : indoor temp.27°CDB, 19°CWB
; outdoor temp. 35°CDB, 24°CWB
2. Heating Capacity is based on : indoor temp.20°CDB, 15°CWB
; outdoor temp. 7°CDB, 6°CWB
3.
Maximum total capacity index of connected indoor units is 36 kBtu/h.
4. At least two indoor units should be connected to outdoor unit.
5. Total capacity of indoor units connected should be minimum 40%
of outdoor unit rated capacity.
7 - - 7 2.1 - - 6,300 1.8 7,000 2.1 7,700 2.3 140 527 787
1Unit 9 - - 9 2.6 - - 6,300 1.8 9,000 2.6 9,900 2.9 252 677 1,011
12 - - 12 3.5 - - 7,200 2.1 12,000 3.5 13,200 3.9 336 903 1,349
18 - - 18 5.3 - - 10,800 3.2 18,000 5.3 19,800 5.8 504 1,354 2,023
7 7 - 14 2.1 2.1 - 8,400 2.5 14,000 4.1 15,400 4.5 392 1,053 1,573
7 9 - 16 2.1 2.6 - 9,600 2.8 16,000 4.7 17,600 5.2 448 1,204 1,798
9 9 - 18 2.6 2.6 - 10,800 3.2 18,000 5.3 19,800 5.8 504 1,354 2,023
7 12 - 19 2.1 3.5 - 11,400 3.3 19,000 5.6 20,900 6.1 532 1,430 2,135
2Unit 9 12 - 21 2.6 3.5 - 12,600 3.7 21,000 6.2 23,100 6.8 588 1,580 2,360
12 12 - 24 3.1 3.1 - 13,800 4.0 21,000 6.2 23,100 6.8 588 1,580 2,360
7 18 - 25 1.7 4.4 - 14,400 4.2 21,000 6.2 23,100 6.8 588 1,580 2,360
9 18 - 27 2.1 4.1 - 14,400 4.2 21,000 6.2 23,100 6.8 588 1,580 2,360
12 18 - 30 2.5 3.7 - 14,400 4.2 21,000 6.2 23,100 6.8 588 1,580 2,360
18 18 - 36 3.1 3.1 - 14,400 4.2 21,000 6.2 23,100 6.8 588 1,580 2,360
7 7 7 21 2.1 2.1 2.1 12,600 3.7 21,000 6.2 25,000 7.3 588 1,580 2,360
7 7 9 23 1.9 1.9 2.4 13,800 4.0 21,000 6.2 25,000 7.3 588 1,580 2,360
7 9 9 25 1.7 2.2 2.2 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
7 7 12 26 1.7 1.7 2.8 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
3Unit 9 9 9 27 2.1 2.1 2.1 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
7 9 12 28 1.5 2.0 2.6 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
9 9 12 30 1.8 1.8 2.5 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
7 12 12 31 1.4 2.4 2.4 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
7 7 18 32 1.3 1.3 3.5 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
9 12 12 33 1.7 2.2 2.2 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
12 12 12 36 2.1 2.1 2.1 14,400 4.2 21,000 6.2 25,000 7.3 588 1,580 2,360
Combination
(kBtu/h)
Each capacity
(kW)
Total Capacity (kW)
Cooling
Min Rated Max
Input
(W)
Unit-A Unit-B Unit-C Total Unit-A Unit-B Unit-C Btu/h kW Btu/h kW Btu/h kW Min Rated Max
Operation

Heat Pump 60Hz/R410A _ 7
1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
Heating
7 - - 7 2.3 - - 7,560 2.2 8,000 2.3 8,800 2.6 210 570 907
1Unit 9 - - 9 2.9 - - 7,560 2.2 10,000 2.9 10,900 3.2 378 733 1,166
12 - - 12 3.9 - - 7,920 2.3 13,200 3.9 14,500 4.2 504 977 1,554
18 - - 18 5.8 - - 11,880 3.5 19,800 5.8 21,800 6.4 756 1,466 2,331
7 7 - 14 2.5 2.5 - 10,080 3.0 16,800 4.9 18,500 5.4 588 1,140 1,813
7 9 - 16 2.5 3.2 - 11,520 3.4 19,200 5.6 21,100 6.2 672 1,303 2,072
9 9 - 18 3.2 3.2 - 12,960 3.8 21,600 6.3 23,700 6.9 756 1,466 2,331
7 12 - 19 2.5 4.2 - 13,680 4.0 22,800 6.7 25,000 7.3 798 1,547 2,461
2Unit 9 12 - 21 3.0 4.0 - 15,120 4.4 24,000 7.0 26,500 7.8 882 1,710 2,720
12 12 - 24 3.5 3.5 - 15,840 4.6 24,000 7.0 26,500 7.8 882 1,710 2,720
7 18 - 25 2.0 5.1 - 16,680 4.9 24,000 7.0 26,500 7.8 882 1,710 2,720
9 18 - 27 2.3 4.7 - 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
12 18 - 30 2.8 4.2 - 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
18 18 - 36 3.5 3.5 - 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
7 7 7 21 2.3 2.3 2.3 15,120 4.4 24,000 7.0 26,500 7.8 882 1,710 2,720
7 7 9 23 2.1 2.1 2.8 16,560 4.9 24,000 7.0 26,500 7.8 882 1,710 2,720
7 9 9 25 2.0 2.5 2.5 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
7 7 12 26 1.9 1.9 3.2 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
9 9 9 27 2.3 2.3 2.3 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
3Unit 7 9 12 28 1.8 2.3 3.0 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
9 9 12 30 2.1 2.1 2.8 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
7 12 12 31 1.6 2.7 2.7 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
7 7 18 32 1.5 1.5 4.0 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
9 12 12 33 1.9 2.6 2.6 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
12 12 12 36 2.3 2.3 2.3 17,280 5.1 24,000 7.0 26,500 7.8 882 1,710 2,720
Combination
(kBtu/h)
Each capacity
(kW)
Total Capacity (kW)
Heating
Min Rated Max
Input
(W)
Unit-A Unit-B Unit-C Total Unit-A Unit-B Unit-C Btu/h kW Btu/h kW Btu/h kW Min Rated Max
Operation
Note :
1. Cooling Capacity is based on : indoor temp.27°CDB, 19°CWB
; outdoor temp. 35°CDB, 24°CWB
2. Heating Capacity is based on : indoor temp.20°CDB, 15°CWB
; outdoor temp. 7°CDB, 6°CWB
3.
Maximum total capacity index of connected indoor units is 36 kBtu/h.
4. At least two indoor units should be connected to outdoor unit.
5. Total capacity of indoor units connected should be minimum 40%
of outdoor unit rated capacity.

1. Multiple piping type MULTI F
8_ Heat Pump 60Hz/R410A
Part 2 Product data_Outdoor units
Models : A5UW30GFA0
Cooling
7 - - - - 7 2.1 - - - - 6,300 1.9 7,000 2.1 7,700 2.3 444 740 1,029
9 - - - - 9 2.6 - - - - 6,300 1.9 9,000 2.6 9,900 2.9 540 900 1,167
1Unit 12 - - - - 12 3.5 - - - - 7,200 2.1 12,000 3.5 13,200 3.9 660 1,100 1,294
18 - - - - 18 5.3 - - - - 10,800 3.2 18,000 5.3 19,800 5.8 1,020 1,700 2,225
24 - - - - 24 7.0 - - - - 14,400 4.2 24,000 7.1 25,500 7.5 1,470 2,450 3,088
7 7 - - - 14 2.1 2.1 - - - 8,400 2.5 14,000 4.1 16,100 4.7 492 820 980
7 9 - - - 16 2.1 2.6 - - - 9,600 2.8 16,000 4.7 18,400 5.4 636 1,060 1,294
9 9 - - - 18 2.6 2.6 - - - 10,800 3.2 18,000 5.3 20,700 6.1 810 1,350 1,676
7 12 - - - 19 2.1 3.5 - - - 11,400 3.4 19,000 5.6 20,900 6.1 924 1,540 1,843
9 12 - - - 21 2.6 3.5 - - - 12,600 3.7 21,000 6.2 23,100 6.8 1,128 1,880 2,441
12 12 - - - 24 3.5 3.5 - - - 14,400 4.2 24,000 7.1 26,400 7.8 1,410 2,350 3,147
2Unit 7 18 - - - 25 2.1 5.3 - - - 15,000 4.4 25,000 7.4 28,750 8.5 1,542 2,570 3,304
9 18 - - - 27 2.6 5.3 - - - 16,200 4.8 27,000 7.9 31,050 9.1 1,770 2,950 3,586
12 18 - - - 30 3.5 5.3 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
7 24 - - - 31 2.0 6.8 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
9 24 - - - 33 2.4 6.4 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
18 18 - - - 36 4.4 4.4 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
12 24 - - - 36 2.9 5.9 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
18 24 - - - 42 3.8 5.0 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
24 24 - - - 48 4.4 4.4 - - - 18,000 5.3 30,000 8.8 33,000 9.7 1,950 3,250 3,667
7 7 7 - - 21 2.1 2.1 2.1 - - 12,600 3.7 21,000 6.2 24,150 7.1 738 1,230 1,588
7 7 9 - - 23 2.1 2.1 2.6 - - 13,800 4.1 23,000 6.8 26,450 7.8 912 1,520 1,814
7 9 9 - - 25 2.1 2.6 2.6 - - 15,000 4.4 25,000 7.4 28,750 8.5 1,080 1,800 2,167
7 7 12 - - 26 2.1 2.1 3.5 - - 15,600 4.6 26,000 7.6 29,900 8.8 1,176 1,960 2,529
9 9 9 - - 27 2.6 2.6 2.6 - - 16,200 4.8 27,000 7.9 31,050 9.1 1,248 2,080 2,647
7 9 12 - - 28 2.1 2.6 3.5 - - 16,800 4.9 28,000 8.2 32,200 9.5 1,338 2,230 2,794
9 9 12 - - 30 2.6 2.6 3.5 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 12 12 - - 31 2.0 3.4 3.4 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 7 18 - - 32 1.9 1.9 4.9 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 12 12 - - 33 2.4 3.2 3.2 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 9 18 - - 34 1.8 2.3 4.7 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
12 12 12 - - 36 2.9 2.9 2.9 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 9 18 - - 36 2.2 2.2 4.4 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
3Unit 7 12 18 - - 37 1.7 2.9 4.3 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 7 24 - - 38 1.6 1.6 5.6 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 12 18 - - 39 2.0 2.7 4.1 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 9 24 - - 40 1.5 2.0 5.3 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
12 12 18 - - 42 2.5 2.5 3.8 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 9 24 - - 42 1.9 1.9 5.0 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 18 18 - - 43 1.4 3.7 3.7 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 12 24 - - 43 1.4 2.5 4.9 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 18 18 - - 45 1.8 3.5 3.5 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 12 24 - - 45 1.8 2.3 4.7 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
12 18 18 - - 48 2.2 3.3 3.3 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
12 12 24 - - 48 2.2 2.2 4.4 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 18 24 - - 49 1.3 3.2 4.3 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
9 18 24 - - 51 1.6 3.1 4.1 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
12 18 24 - - 54 2.0 2.9 3.9 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
18 18 18 - - 54 2.9 2.9 2.9 - - 18,000 5.3 30,000 8.8 33,600 9.9 1,584 2,640 3,206
7 7 7 7 - 28 2.1 2.1 2.1 2.1 - 16,800 4.9 28,000 8.2 33,600 9.9 1,224 2,040 3,137
7 7 7 9 - 30 2.1 2.1 2.1 2.6 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 9 9 - 32 1.9 1.9 2.5 2.5 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
4Unit 7 7 7 12 - 33 1.9 1.9 1.9 3.2 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 9 9 9 - 34 1.8 2.3 2.3 2.3 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 9 12 - 35 1.8 1.8 2.3 3.0 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 9 9 9 - 36 2.2 2.2 2.2 2.2 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
Combination
(kBtu/h) Each capacity
(kW)
Total Capacity (kW)
Cooling
Min Rated Max
Input
(W)
Unit-A Unit-B Unit-C Unit-D Unit-E Total Unit-A Unit-B Unit-C Unit-D Unit-E Btu/h kW Btu/h kW Btu/h kW Min Rated Max
Operation

Heat Pump 60Hz/R410A _ 9
1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
7 9 9 12 - 37 1.7 2.1 2.1 2.9 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 12 12 - 38 1.6 1.6 2.8 2.8 - 18,000 5.3 30,000 8.8 34,500 10.1 1,350 2,250 3,422
9 9 9 12 - 39 2.0 2.0 2.0 2.7 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 7 18 - 39 1.6 1.6 1.6 4.1 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 9 12 12 - 40 1.5 2.0 2.6 2.6 - 18,000 5.3 30,000 8.8 34,500 10.1 1,350 2,250 3,422
7 7 9 18 - 41 1.5 1.5 1.9 3.9 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 9 12 12 - 42 1.9 1.9 2.5 2.5 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 12 12 12 - 43 1.4 2.5 2.5 2.5 - 18,000 5.3 30,000 8.8 34,500 10.1 1,350 2,250 3,422
7 9 9 18 - 43 1.4 1.8 1.8 3.7 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 12 18 - 44 1.4 1.4 2.4 3.6 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 12 12 12 - 45 1.8 2.3 2.3 2.3 - 18,000 5.3 30,000 8.8 34,500 10.1 1,350 2,250 3,422
4Unit 9 9 9 18 - 45 1.8 1.8 1.8 3.5 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 7 24 - 45 1.4 1.4 1.4 4.7 - 18,000 5.3 30,000 8.8 34,500 10.1 1,350 2,250 3,422
7 9 12 18 - 46 1.3 1.7 2.3 3.4 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 9 24 - 47 1.3 1.3 1.7 4.5 - 18,000 5.3 30,000 8.8 34,500 10.1 1,350 2,250 3,422
12 12 12 12 - 48 2.2 2.2 2.2 2.2 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 9 12 18 - 48 1.6 1.6 2.2 3.3 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 12 12 18 - 49 1.3 2.2 2.2 3.2 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 9 9 24 - 49 1.3 1.6 1.6 4.3 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 12 24 - 50 1.2 1.2 2.1 4.2 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 18 18 - 50 1.2 1.2 3.2 3.2 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 12 12 18 - 51 1.6 2.1 2.1 3.1 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 9 9 24 - 51 1.6 1.6 1.6 4.1 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 9 12 24 - 52 1.2 1.5 2.0 4.1 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 9 12 24 - 54 1.5 1.5 2.0 3.9 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
9 9 18 18 - 54 1.5 1.5 2.9 2.9 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
12 12 12 18 - 54 2.0 2.0 2.0 2.9 - 18,000 5.3 30,000 8.8 36,000 10.6 1,350 2,250 3,422
7 7 7 7 7 35 1.8 1.8 1.8 1.8 1.8 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 7 9 37 1.7 1.7 1.7 1.7 2.1 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 9 9 39 1.6 1.6 1.6 2.0 2.0 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 7 12 40 1.5 1.5 1.5 1.5 2.6 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 9 9 9 41 1.5 1.5 1.9 1.9 1.9 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 9 12 42 1.5 1.5 1.5 1.9 2.5 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 9 9 9 9 43 1.4 1.8 1.8 1.8 1.8 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 9 9 12 44 1.4 1.4 1.8 1.8 2.4 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
9 9 9 9 9 45 1.8 1.8 1.8 1.8 1.8 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 7 18 46 1.3 1.3 1.3 1.3 3.4 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 9 9 9 12 46 1.3 1.7 1.7 1.7 2.3 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 9 12 12 47 1.3 1.3 1.7 2.2 2.2 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
5Unit 9 9 9 9 12 48 1.6 1.6 1.6 1.6 2.2 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 12 12 45 1.4 1.4 1.4 2.3 2.3 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 9 18 48 1.3 1.3 1.3 1.6 3.3 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 9 9 12 12 49 1.3 1.6 1.6 2.2 2.2 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 12 12 12 50 1.2 1.2 2.1 2.1 2.1 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 9 9 18 50 1.2 1.2 1.6 1.6 3.2 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
9 9 9 12 12 51 1.6 1.6 1.6 2.1 2.1 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 12 18 51 1.2 1.2 1.2 2.1 3.1 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 9 12 12 12 52 1.2 1.5 2.0 2.0 2.0 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 9 9 9 18 52 1.2 1.5 1.5 1.5 3.0 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 7 24 52 1.2 1.2 1.2 1.2 4.1 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 9 12 18 53 1.2 1.2 1.5 2.0 3.0 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
7 7 7 9 24 54 1.1 1.1 1.1 1.5 3.9 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
9 9 9 9 18 54 1.5 1.5 1.5 1.5 2.9 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
9 9 12 12 12 54 1.5 1.5 2.0 2.0 2.0 18,000 5.3 30,000 8.8 36,000 10.6 1,280 2,200 3,380
Combination
(kBtu/h) Each capacity
(kW)
Total Capacity (kW)
Cooling
Min Rated Max
Input
(W)
Unit-A Unit-B Unit-C Unit-D Unit-E Total Unit-A Unit-B Unit-C Unit-D Unit-E Btu/h kW Btu/h kW Btu/h kW Min Rated Max
Operation
Note :
1. Cooling Capacity is based on : indoor temp.27°CDB, 19°CWB
; outdoor temp. 35°CDB, 24°CWB
2. Heating Capacity is based on : indoor temp.20°CDB, 15°CWB
; outdoor temp. 7°CDB, 6°CWB
3.
Maximum total capacity index of connected indoor units is 54 kBtu/h.
4. At least two indoor units should be connected to outdoor unit.
5. Total capacity of indoor units connected should be minimum
40% of outdoor unit rated capacity.
