LG Multi V ARNU48GBRZ Series User manual

Multi V Fresh Air Intake Unit
Original instruction
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring standards
by authorized personnel only.
Please retain this installation manual for future reference after reading it thoroughly.
INSTALLATION MANUAL
AIR
CONDITIONER
www.lg.com
Copyright © 2012 - 2022 LG Electronics Inc. All Rights Reserved.
MFL67475722
Rev.01_122022
ENGLISH TÜRKÇE

2Fresh Air Intake Unit
TABLE OF CONTENTS
3 FEATURES
4 SAFETY PRECAUTIONS
6 INSTALLATION
6 Installation Limit
9 Selection of the best location
10 Ceiling dimension and hanging bolt location
11 Indoor Unit Installation
11 Wiring Connection
12 Check the Drainage
13 Indoor Unit Drain Piping
15 DIP Switch Setting of Indoor unit PCB
16 Group Control Setting
20 Model Designation
20 Airborne Noise Emission
20 Limiting concentration
21 OUTLET AIR TEMP & AIR FLOW RATE
TABLE OF CONTENTS

Features
Air filters
Wired Remote Controller
(Optional)
Air intake vents
Air outlet vents
Name
Quantity
Shape for gas pipe
for liquid pipe
Clamp metal
2 EA
Insulation for
fitting
1 SET
Drain hose
1 EA
Clamp
(Tie Wrap)
8 EA
Washer for
hanging bracket
4 EA
Others
Standard Accessories
• Owner's manual
• Installation manual
Features
Installation Manual 3
ENGLISH

4Fresh Air Intake Unit
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
nBe sure to read before installing the air conditioner.
nBe sure to observe the cautions specified here as they include important items related to safety.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the
following indications.
nMeanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
WARNING
CAUTION
!
!
WARNING
!
Installation
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
- There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.
- Do not disassemble or repair the product. There is risk of fire or electric shock.
• Always ground the product.
- There is risk of fire or electric shock.
• Install the panel and the cover of control box securely.
- There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric shock.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
• Do not modify or extend the power cable.
- There is risk of fire or electric shock.
• Do not let the air conditioner run for a long time when the humidity is very high and a door or a
window is left open.
- Moisture may condense and wet or damage furniture.
• Be cautious when unpacking and installing the product.
- Sharp edges could cause injury. Be especially careful of the case edges and the fins on the
condenser and evaporator.
• For installation, always contact the dealer or an Authorized Service Center.
- There is risk of fire, electric shock, explosion, or injury.
• Do not install the product on a defective installation stand.
- It may cause injury, accident, or damage to the product.
• Be sure the installation area does not deteriorate with age.
- If the base collapses, the air conditioner could fall with it, causing property damage, product failure,
and personal injury.

Installation Manual 5
Safety Precautions
ENGLISH
• Use a vacuum pump or Inert (nitrogen) gas when do leakage test or air purge. Do not compress air or
Oxygen and do not use Flammable gases. Otherwise, it may cause fire or explosion.
- There is the risk of death, injury, fire or explosion.
• The appliance shall be disconnected from its power source during service and when replacing parts.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• This equipment shall be provided with a supply conductor complying with the national regulation.
Operation
• Do not store or use flammable gas or combustibles near the product.
- There is risk of fire or failure of product.
CAUTION
!
Installation
• Always check for gas (refrigerant) leakage after installation or repair of product.
- Low refrigerant levels may cause failure of product.
• Install the drain hose to ensure that water is drained away properly.
- A bad connection may cause water leakage.
• Keep level even when installing the product.
- To avoid vibration or water leakage.
• Do not install the product where the noise or hot air from the outdoor unit could damage the
neighborhoods.
- It may cause a problem for your neighbors.
• Use two or more people to lift and transport the product.
- Avoid personal injury.
• Do not install the product where it will be exposed to sea wind (salt spray) directly.
- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins,
could cause product malfunction or inefficient operation.
• If you eat the liquid from the batteries, brush your teeth and see doctor.
Do not use the remote if the batteries have leaked.
- The chemicals in batteries could cause burns or other health hazards.

6Fresh Air Intake Unit
Installation
Read completely, then follow step by step.
Installation Limit
FAU
Outdoor : 20HP
5HP 5HP 5HP 5HP
5HP 5HP 5HP 5HP 5HP
Standard Standard Standard
Outdoor : 20HP
FAU
Outdoor : 10HP
5HP 5HP
FAU
<Only Fresh Air Intake Unit install> <Mixture Install>
<Wrong Install>
FAU
Standard Standard Standard Standard
* FAU : Fresh Air Intake Unit
Standard: Standard Indoor Unit
1. Fresh Air Intake Unit Combination
CAUTION
Failure to comply with the above connection conditions for installation, it can cause cooling &
heating capacity down.
!
2. Connection of the Outdoor Unit
It is possible to connect Heat Pump Models.
It is not possible to connect Heat Recovery Models.
Installation
NO Connection Condition Combination
1System only includes Fresh Air
Intake Units
1) The total capacity of all Fresh Air Intake Units should
be 50 to 100% of outdoor unit.
2Mixture connection with general
Indoor unit and Fresh Intake Unit
1) The total capacity index of all indoor units must be 50
to 100% of the outdoor unit capacity.
2) The total capacity index of Fresh Air Intake Units
must be less than 30% of outdoor unit capacity.
3) The maximum quantity of outside air units connected
to one system is four(4).
▶The total capacity of indoor units exceed 100 % of outdoor unit

Installation Manual 7
Installation
ENGLISH
4. The Control System
1) In case of connecting with Standard indoor units, Standard indoor unit should be a master unit.
Separate Fresh Air Intake Unit with Standard indoor units.
Set only one of Standard indoor units to Master.
FAU
Set one of the Standard Indoor Unit to Master
StandardStandard Standard
Slave
* FAU : Fresh Air Intake Unit
Standard: Standard Indoor Unit
①Inlet Hood
Inlet Hood should be installed such that no water enter inside the unit
②Intake Air Duct
The Intake Air Duct must have down-slope about 1/30.
The length of Intake Air Duct should be longer than 2 m.
③Fresh Air Intake Unit
If wired remote controller is not connected, it will display strange value to the room temperature
④Exhaust Fan
Fresh Air Intake Unit will make room the positive pressure.
Exhaust fan should be installed to maintain the room pressure.
⑤Door
It would be possible to raise in the room air pressure because of Fresh Air Intake Unit.
In that case, the door could hurt someone in front of door.
So be careful of the positive pressure to design the door.
3. Installation of intake air duct
Min. 2m
Outlet Air
Exhaust air
1/30 Slope
Inlet Hood
Intake Air Duct
Fresh Air Intake Unit
Exhaust Fan
Door

8Fresh Air Intake Unit
Installation
5. Cycle check and SVC
For Fresh Intake Unit cycle check and SVC, LG MV 5.8 or later version should be used.
2) In case of using central remote controller, mixture of indoor units and Fresh Air Intake Unit in
same zone is not possible.
Separate Fresh Air Intake Unit zone with Standard indoor units zone.
FAU
48 kBtu/h
ZONE 1
FAU
48 kBtu/h 48 kBtu/h 48 kBtu/h
Standard Standard
ZONE 2
FAU
48 kBtu/h
ZONE 1
FAU
48 kBtu/h 48 kBtu/h 48 kBtu/h
Standard Standard
ZONE 2

Installation Manual 9
Installation
ENGLISH
Install the air conditioner in the location that satisfies the following conditions.
• The place shall easily bear a load exceeding four times the indoor unit’s weight.
• The place shall be able to inspect the unit as the figure.
• The place where the unit shall be leveled.
• The place shall allow easy water drainage.(Suitable dimension “H” is necessary to get a slope to drain as
figure.)
• The place shall easily connect with the outdoor unit.
• The place where the unit is not affected by an electrical noise.
• The place where air circulation in the room will be good .
• There should not be any heat source or steam near the unit.
Top view
(unit: mm)
H
Front view
600600
Front
Inspection hole
(600X600)
Control box
1000
Selection of the best location
CAUTION
In case that the unit is installed near the sea, the installation parts may be corroded by salt, The
installation parts (and the unit) should be taken appropriate anti-corrosion measures.
!
Minimum height for motor replacement.
Less than 200mm
Hole size should be
more than the size of IDU.
Insufficient space. Difficult for servicing
20cm to 1000mm2
Sufficient space in the ceiling for servicing.
More than 1000mm1
Remarks
Distance between
False ceiling & Actual ceiling
Number of
Inspection hole
[Inspection Hole Standard]

10 Fresh Air Intake Unit
Installation
nInstallation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to
absorb unnecessary vibration.
• Install the unit leaning to a drainage hole side as a
figure for easy water drainage.
• A place where the unit will be leveled and that can
support the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.
CASE 1
POSITION OF SUSPENSION BOLT
CASE 2
POSITION OF CONSOLE BOLT
Drainage hole
M10 Nut
M10 washer
X 4
X 4
M10 Nut
M10 washer X 4
X 8
A
B
CD
(G)
H
I
EF
B8 Chassis (76/96k)
BR Chassis (48k)
• Thoroughly study the following installation locations:
1. In such places as restaurants and kitchens, considerable amount of oil steam and flour adhere to the fan, the fin of the
heat exchanger, resulting in heat exchange reduction, spraying, dispersing of water drops, etc.
In these cases, take the following actions:
• Make sure that the ventilation fan for smoke-collecting hood on a cooking table has sufficient capacity so that it draws oily
steam which should not flow into the suction of the air conditioner.
• Make enough distance from a cooking room to install the air conditioner in such a place where it may not suck in oil
steam.
2. Avoid installing air conditioner in such circumstances where cutting oil mist or iron powder is in suspension in factories, etc.
3. Avoid places where inflammable gas is generated, flows in, is stored or vented.
4. Avoid places where sulfurous acid gas or corrosive gas is generated.
5. Avoid places near high frequency generators.
NOTICE
Ceiling dimension and hanging bolt location
(Unit:mm)
A B C D E F G H I J K L
B8 Chassis
1680 1565 1160 330 460 580 700 1400 1635 390 445 15
(76/96k)
Dimension
Capacity(Btu/h)
(Unit:mm)
A B C D E F (G) H I
BR Chassis 1282 1230 477 56 590 30 120 1006 294
(48k)
Dimension
Capacity(Btu/h)

Installation Manual 11
Installation
ENGLISH
• Select and mark the position for fixing bolts.
• Drill the hole for set anchor on the face of ceiling.
• Insert the set anchor and washer onto the
suspension bolts for locking the suspension bolts
on the ceiling.
• Mount the suspension bolts to the set anchor firmly.
• Secure the installation plates onto the suspension
bolts (adjust level roughly) using nuts, washers
and spring washers.
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
Connect the wires to the terminals on the control board individually according to the outdoor unit connection.
• Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respectively.
Clamping of cables
1) Arrange 2 power cables on the control panel.
2) First, fasten the steel clamp with a screw to the inner boss of control panel.
3) For the cooling model, fix the other side of the clamp with a screw strongly. For the heat pump model, put the
0.75mm2 cable(thinner cable) on the clamp and tighten it with a plastic clamp to the other boss of the control panel.
BR Chassis (48k)
Terminal Block Indoor
1(L) 2(N) 3(A) 4(B)
INDOOR POWER
IDU IDU
Outdoor unit Indoor unit Central controller
SODU SODU DRY1 DRY2 GND
INTERNET 12V
Outdoor unit
INPUT
B8 Chassis (76/96k)
Terminal Block Indoor
1(L) 2(N) 3(A) 4(B)
Terminal Block
Indoor Power Input
IDU IDU
Outdoor unit Indoor unit Central controller
SODU SODU DRY1 DRY2 GND
INTERNET 12V
Outdoor
unit
Wiring Connection
Indoor Unit Installation
CAUTION
Tighten the nut and bolt to prevent unit falling.
!
WARNING
Make sure that the screws of the terminal are free from looseness.
!
CAUTION
The Power cord connected to the unit should be selected according to the following
specifications.
!

12 Fresh Air Intake Unit
Installation
1. Remove the Air Filter.
2. Check the drainage.
• Spray one or two glasses of water upon the
evaporator.
• Ensure that water flows drain hose of indoor
unit without any leakage.
Check the Drainage
INSULATION, OTHERS Insulate the joint and tubes completely.
All thermal insulation must comply with local requirement.
INDOOR UNIT
THERMAL INSULATION
Make sure that there is no clearance here.
Overlap with thermal
insulator for piping.
Thermal insulator for refrigerant pipe
(Local supply) Thermal insulator for
piping(Local supply)
Hose crip for thermal insulator(Local supply)
Union for liquid pipe
Refrigerant pipe and thermal
insulator(Local supply)
Union for gas pipe
Thermal insulator for refrigerant pipe
(Local supply)
Hose crip for thermal insulator
(Local supply)

Installation Manual 13
Installation
ENGLISH
Drain Pump
unused
Ceiling
1~3mm
Drainage hole Drainage hole
Front of view
1. Install declination of the indoor unit is very important for the drain of the duct type air conditioner.
2. Minimum thickness of the insulation for the connecting pipe shall be 5mm.
• The unit must be horizontal or declined to the drain hose connected when finished installation.
Drain Pump
use
Indoor Unit Drain Piping
The air conditioner uses a drain pump to drain water.
Use the following procedure to test the drain pump operation:
• Connect the main drain pipe to the exterior and leave it
provisionally until the test comes to an end.
• Feed water to the flexible drain hose and check the piping
for leakage.
• Be sure to check the drain pump for normal operation and
noise when electrical wiring is complete.
• When the test is complete, connect the flexible drain hose
to the drain port on the indoor unit.
Feed water
Drain Pump
Drain pan
Flexible drain hose
(accessory)
Main
drain pipe
Glue the joint
Drain
port
Drain hose connection
Use the clip (accessory)
Maintenance
drain port
Upward
routing
not allowed
Pipe clamp
Indoor unit
1/50~1/100
MAX 700mm
Piping material: Polyvinyl chloride pipe inner
diameter Ø 25mm and pipe fittings
Heat insulation material: Polyethylene foam with
thickness more than 8 mm.
Drain test
• Drain piping must have down-slope (1/50 to 1/100): be sure not to
provide up-and-down slope to prevent reversal flow.
• During drain piping connection, be careful not to exert extra force on the
drain port on the indoor unit.
• The outside diameter of the drain connection on the indoor unit is 32mm.
• Be sure to install heat insulation on the drain piping.
CAUTION
!
CAUTION
The supplied flexible drain hose should not be strained. A strained hose may cause leakage of
water.
!

14 Fresh Air Intake Unit
Installation
1) Never fail to have an individual power specialized for the air conditioner. As for the method of
wiring, be guided by the circuit diagram posted on the inside of control box cover.
2) Provide a circuit breaker switch between power source and the unit.
3) The screws which fasten the wiring in the casing of electrical fittings are liable to come loose
from vibrations to which the unit is subjected during the course of transportation. Check them
and make sure that they are all tightly fastened. (If they are loose, it could give rise to burn-out
of the wires.)
4) Specification of power source
5) Confirm that electrical capacity is sufficient.
6) Be sure that the starting voltage is maintained at more than 90 percent of the rated voltage
marked on the name plate.
7) Confirm that the cable thickness is as specified in the power sources specification.
(Particularly note the relation between cable length and thickness.)
8) Never fail to equip a leakage breaker where it is wet or moist.
9) The following troubles would be caused by voltage drop-down.
• Vibration of a magnetic switch, damage on the contact point, fuse breaking, disturbance by the
normal function of an overload protection device.
• Proper starting power is not given to the compressor.
HAND OVER
Teach the customer the operation and maintenance procedures, using the operation manual.
(air filter cleaning, temperature control, etc.)

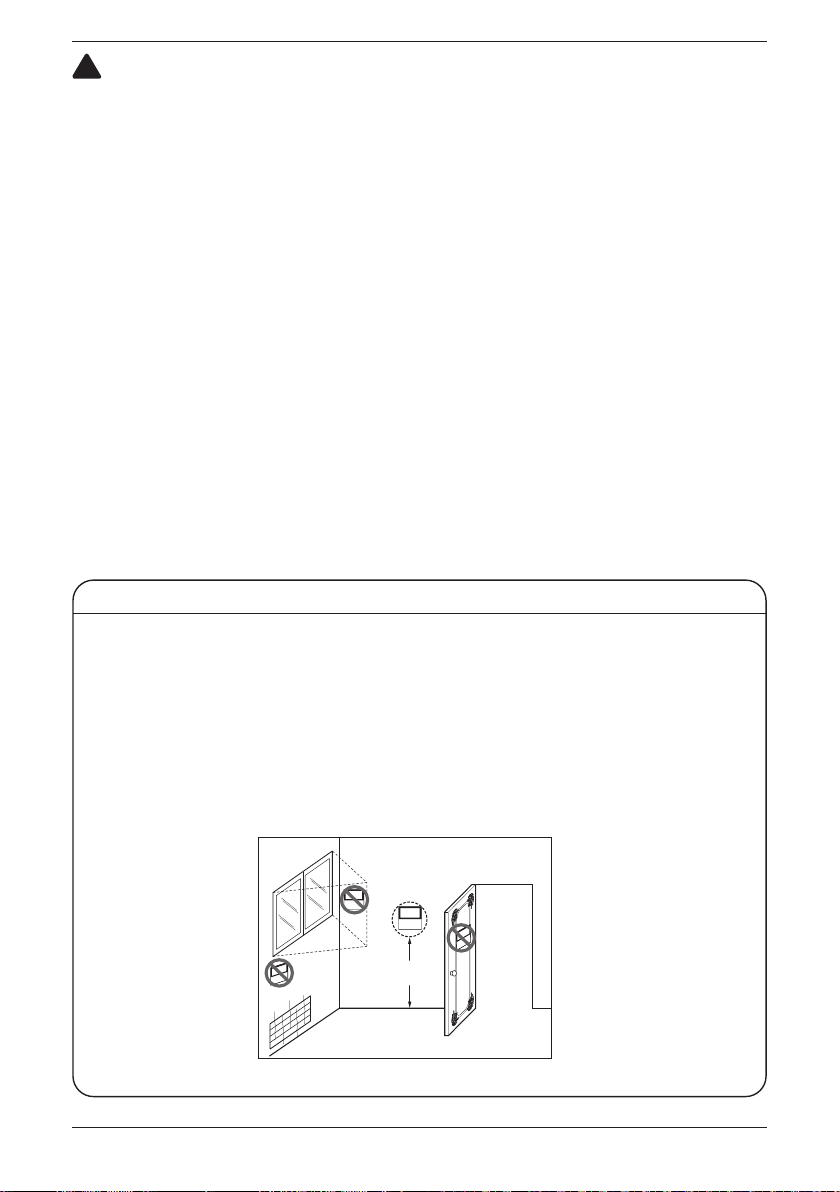

WIRED REMOTE CONTROLLER INSTALLATION
• Since the room temperature sensor is in the remote controller, the remote controller box should be installed in a place away
from direct sunlight, high humidity and direct supply of cold air to maintain proper space temperature.
Install the remote controller about 5ft(1.5m) above the floor in an area with good air circulation at an average temperature.
Do not install the remote controller where it can be affected by:
- Drafts, or dead spots behind doors and in corners.
- Hot or cold air from ducts.
- Radiant heat from sun or appliances.
- Concealed pipes and chimneys.
- Uncontrolled areas such as an outside wall behind the remote controller.
- This remote controller is equipped with a seven segment LED. display. For proper display of the remote controller
LED's, the remote controller should be installed properly as shown in Fig.1.
(The standard height is 1.2~1.5 m from floor level.)
Fig.1 Typical locations for remote controller
5feet
(1.5meters)
no
no
no
yes
CAUTION
After the confirmation of the above conditions, prepare the wiring as follows:
!

Installation Manual 15
Installation
ENGLISH
DIP Switch Setting of Indoor unit PCB
Function Description Setting Off Setting On Default
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Communication
Cycle
Group Control
Dry Contact Mode
Installation
Heater linkage
Ventilator linkage
Vane selection
(Console)
Region selection
Etc.
N/A (Default)
N/A (Default)
Selection of Master or Slave
Selection of Dry Contact
Mode
Fan continuous operation
N/A
Selection of Ventilator
linkage
Selection of up/down side
Vane
Selection tropical region
Spare
-
-
Master
Wired/Wireless remote
controller
Selection of Manual or Auto
operation Mode
Continuous operation Removal
-
Linkage Removal
Up side + Down side Vane
General model
-
-
-
Slave
Auto
-
-
Working
Up side Vane
Only
Tropical model
-
Off
Off
Off
Off
Off
Off
Off
Off
CAUTION
For Multi V Models, DIP switch 1, 2, 6, 8 must be set OFF.
!

16 Fresh Air Intake Unit
Installation
Group Control Setting
1. Group Control 1
Wired remote controller 1 + Standard Indoor Units
DIP Switch in PCB (Cassette and Duct Type indoor units)
1. It is possible to 16 indoor units(Max) by one wired remote controller.
Set only one indoor unit to Master, set the others to Slave.
2. It is possible to connect with every type of indoor units.
3. It is possible to use wireless remote controller at the same time.
4. It is possible to connect with Dry Contact and Central controller at the same time.
GND
Signal
12 V
Master Slave Slave Slave
Master
Display Error Message Only connect serial signal and GND lines
between slave indoor unit
LGAP Network System
- No. 3 Off - No. 3 On
- The Master indoor unit is possible to recognize Dry Contact and Central Controller only.
- In case of Central controller and Group controller at the same time, it is possible to connect
standard 2series indoor units or later since Feb. 2009.
- In case of Central controller setting, the Central controller can control indoor units after
setting only the address of master indoor unit.
- Slave indoor unit will be operated like master indoor unit.
- Slave indoor unit can not be individually controlled by Central controller.
- Some remote controller can’t perform with Dry Contact and Central controller at the same
time. So contact us further information about it.

Installation Manual 17
Installation
ENGLISH
(2) Group Control 2
Wired remote controllers + Standard Indoor Units
It is possible to control N indoor units by wired remote controller M units. (M+N≤17 Units)
Set only one indoor unit to Master, set the others to Slave.
Set only one wired remote controller to Master, set the others to Slave.
Other than those, it is same with the Group Control 1.
GND
Signal
12 V
Slave
Slave
Master
Master
Master
Display Error Message
Donʼt connect serial 12V line
Master
LGAP Network System
6. In case of Group Control, it is possible to use following functions.
- Selection of operation options (operation/stop/mode/set temperature)
- Control of flow rate (High/Middle/Low)
- It is not possible at some functions.
Master/Slave setting of indoor units be set possible using a PCB Dip Switch.
It is possible to connect indoor units since Feb. 2009.
In the other cases, please contact LGE.
It can be the cause of malfunctions when there is no setting of master and slave.
5. In case of any error occurs at indoor unit, display on the wired remote controller.
Exception of the error indoor unit, an individual indoor unit control possibility.
2. Group Control 2

18 Fresh Air Intake Unit
Installation
3. Group Control 3
Mixture connection with indoor units and Fresh Air Intake Unit
In case of connecting with standard indoor unit and Fresh Intake Unit, separate Fresh Air Intake
Unit with standard units.
(Because setting temperature are different.)
Other than those, it is same with Group Control 1.
GND
Signal
12 V
LGAP Network System
Display Error Message
FAU
Master FAU
Slave Master
Master
Master
Slave
FAU Standard Standard FAU FAU Standard Standard FAU
* FAU : Fresh Air Intake Unit
Standard: Standard Indoor Unit

Installation Manual 19
Installation
ENGLISH
4. 2 Remote Control
5. Accessories for group control setting
Wired remote controller 2 + Indoor unit 1
LGAP Network System
Display Error Message
Master
Master Slave
❈ Maximum 2wired remote controllers can be connected with 1 indoor unit.
1. It is possible to connect two wired remote controllers with one indoor unit.
2. Every types of indoor unit is possible to connect two remote controller.
3. It is possible to use wireless remote controller at the same time.
4. It is possible to connect with Dry Contact and Central controller at the same time.
5. In case of any error occurs at indoor unit, display on the wired remote controller.
6. There isnʼt limits of indoor unit function.
Slave
Mas te r
Mas te r
PZCWRCG3
Maste r S lave
PZCWRC2
Indoor unit 2 EA +Wired remote controller 1 EA
hPZCWRCG3 cable used for connection hPZCWRC2 cable used for connection
Indoor unit 1 EA +Wired remote controller 2 EA
It is possible to set group control by using below accessories.

20 Fresh Air Intake Unit
Installation
The A-weighted sound pressure emitted by this product is below 70 dB.
** The noise level can vary depending on the site.
The figures quoted are emission level and are not necessarily safe working levels. Whilst there is a
correlation between the emission and exposure levels, this cannot be used reliably to determine
whether or not further precautions are required. Factor that influence the actual level of exposure of the
workforce include the characteristics of the work room and the other sources of noise, i.e. the number
of equipment and other adjacent processes and the length of time for which an operator exposed to the
noise. Also, the permissible exposure level can vary from country to country. This information, however,
will enable the user of the equipment to make a better evaluation of the hazard and risk.
Limiting concentration is the limit of Freon gas concentration where immediate measures can be
taken without hurting human body when refrigerant leaks in the air. The limiting concentration shall
be described in the unit of kg/m3(Freon gas weight per unit air volume) for facilitating calculation
nCalculate refrigerant concentration
Refrigerant concentration =
Total amount of replenished refrigerant in refrigerant facility (kg)
Capacity of smallest room where indoor unit is installed (m3)
Limiting concentration
ARN U G96 ZB8 4
Serial Number
Chassis Name
Electrical Ratings
1:1Ø, 115V, 60Hz
6:1Ø, 220 - 240V, 50Hz
3:1Ø, 208/230V, 60Hz
2:1Ø, 220V, 60Hz
7:1Ø, 100V, 50/60Hz
G:
1Ø, 220 - 240V, 50Hz/1Ø, 220V, 60Hz
Total Cooling Capacity in Btu/h
EX) 5,000 Btu/h ➝'05' 18,000 Btu/h ➝'18'
Combination of Inverter Type and Cooling Only or Heat Pump
N: AC Inverter and H/P V: AC Inverter and C/O
U: DC Inverter and H/P and C/O
System with Indoor Unit using R410A
❈ LGETA:U Ex) URN
Combinations of functions
A:Basic function L: Neo Plasma(Wall Mounted)
C: Plasma(Ceiling Cassette)
G: Low Static K: High Sensible Heat
U: Floor Standing without Case
SE/S8 - R: Mirror V: Silver B:Blue(ART COOL Type Panel Clolr)
SF - E: Red V: Silver G:Gold 1: Kiss (Photo changeable)
Q: Console Z: Fresh Air Intake Unit
Limiting concentration: 0.44kg/m3(R410A)
Airborne Noise Emission
Model Designation
