LG Art Cool Gallery Series User manual

Room Air Conditioner
SVC MANUAL(General)
MODEL : ARTCOOL-Inverter Type
CAUTION
Before Servicing the unit, read the safety precautions in General SVC manual.
Only for authorized service personnel.
Internal Use Only
http://biz.lgservice.com

- 1 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Air Conditioner Service Manual
CONTENTS
Part 1 General Information
1. Safety Precautions........................................................................................................3
2. Nomenclature ...............................................................................................................6
Part 2 Functions & Controls
1. List of Functions & Controls........................................................................................8
2. Basic Mode Controls .................................................................................................10
3. Special Mode Controls ...............................................................................................12
4. Utility Functions .........................................................................................................13
5. Protection Functions & Controls...............................................................................18
Part 3 Test Run
1. Check before Test Run ...............................................................................................25
2. Test Run Flow Chart ..................................................................................................26
3. Test Run Detail ...........................................................................................................27
Part 4 Trouble Shooting Guide ...............................................................................................28

- 2 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
1. Safety Precautions ............................................................................................................3
2. Nomenclature......................................................................................................................6
Part 1 General Information

Part 1 General Information
- 3 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
1. Safety Precautions
1.1 Cautions in Repair
To prevent injury to the user or other people and property damage, the following instructions must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the follow-
ing indications.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
Dangerous Voltage
Be sure to disconnect the power cable plug from the plug socket before disas-
sembling the equipment for a repair.Internal components and circuit boards are at
main potential when the equipment is connected to the power cables. This volt-
age is extremely dangerous and may cause death or severe injury if come in con-
tact with it.
Do not touch the discharging refrigerant gas during the repair work.
The discharging refrigerant gas.The refrigerant gas can cause frostbite.
Release the refrigerant gas completely at a well-ventilated place first.
Otherwise, when the pipe is disconnected, refrigerant gas or refrigerating
machine oil discharges and it Can cause injury.
When the refrigerant gas leaks during work, execute ventilation. If the refrigerant
gas touches to a fire, poisonous gas generates. A case of leakage of the refriger-
ant and the closed room full with gas is dangerous because a shortage of oxygen
occurs. Be sure to execute ventilation.
When removing the front panel or cabinet, execute short-circuit and discharge
between high voltage capacitor terminals. If discharge is not executed, an electric
shock is caused by high voltage resulted in a death or injury.
Do not turn the air-conditioner ON or OFF by plugging or unplugging the power
plug. There is risk of fire or electrical shock.

Part 1 General Information
- 4 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Do not turn on the breaker under condition that front panel and cabinet are
removed.
Be sure to earth the air conditioner with an earthing conductor connected to the
earthing terminal.
Conduct repair works after checking that the refrigerating cycle section has
cooled down sufficiently. Otherwise, working on the unit, the hot refrigerating
cycle section can cause burns.
Do not tilt the unit when removing panels. Otherwise, the water inside the unit
can spill and wet floor.
Do not use the welder in a well-ventilated place. Using the welder in an enclosed
room can cause oxygen deficiency.
Be sure to turn off power switch before connect or disconnect connector, or parts
damage may be occurred.
Do not use a defective or underrated circuit breaker. Use the correctly rated
breaker and fuse. Otherwise there is a risk of fire or electric shock.
Install the panel and the cover of control box securely. Otherwise there is risk of
fire or electric shock due to dust, water etc.
Indoor/outdoor wiring connections must be secured tightly and the cable should
be routed properly so that there is no force pulling the cable from the connection
terminals. Improper or loose connections can cause heat generation or fire.
Do not touch, operate, or repaire the product with wet hands. Hoding the plug by
hand when taking out. Otherwise there is risk of electric shock or fire.

Part 1 General Information
- 5 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Check to see if the parts are mounted correctly and wires are connected.
Improper installation and connections can cause an electric shock or an injury.
Check the installation platform or frame has corroded. Corroded installation plat-
form or frame can cause the unit to fall, resulting in injury.
Be sure to check the earth wire is correctly connected.
After the work has finished, be sure to do an insulation tset to check the resis-
tance is 2[Mohm] or more between the charge section and the non-charge metal
section (Earth position). If the resistance value is low, a disaster such as a leak or
electric shock is caused at user’s side.
Check the drainage of the indoor unit after the repair. If drainage is faulty the
water to enter the room and wet floor.
1.2 Inspections after Repair
Check to see if the power cable plug is not dirty or loose. If the plug is dust or
loose it can cause an electrical shock or fire.
Do not use a joined power cable or extension cable, or share the same power
outlet with other electrical appliances. otherwise, it can cause an electrical shock,
excessive heat generation or fire.
Do not insert hands or other objects through the air inlet or outlet while the prod-
uct is operating. There are sharp and moving parts that could cause personal
injury.
Do not block the inlet or outlet of air flow. It may cause product failure

Part 1 General Information
- 6 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
2. Nomenclature
12 -345678910
Code Type Code of Model Meaning
1 Producing Center, A~Z L: Chang-won R22 N: India
Refrigerant A: Chang-won R410A Z: Brazil
C: Chang-won R407C D: Indonesia
T: China M: Mexico
K: Turkey R22 V: Vietnam
E: Turkey R410A S: Out Sourcing
H: Thailand
2 Product Type A~Z S: Split Type Air Conditioner
3 Cooling/Heating/Inverter A~Z C: Cooling only
H: Heat pump
X: C/O + E/Heater
Z: H/P + E/Heater
V: AC Inverter C/O
N: AC Inverter H/P
Q: DC Inverter C/O
W: DC Inverter H/P
4, 5 Capacity 0~9 Cooling/Heating Capacity
Ex. "09" →9,000 Btu/h
6 Electric Range 1~9 1: 115V/60Hz, A: 220V, 50Hz, 3Phase
A~Z 2: 220V/60Hz B: 208~230V, 60Hz, 3Phase
3: 208-230V/60Hz C: 575V, 50Hz, 3Phase
5: 200-220V/50Hz D: 440~460, 60Hz, 3Phase
6: 220-240V/50Hz E: 265V, 60Hz
7: 110V, 50/60Hz F: 200V, 50/60Hz
8: 380-415V/50Hz
9: 380-415V/60Hz
7 Chassis A~Z Name of Chassis of Unit
8 Look A~Z Look,
Color (Artcool Model)
9 Function A~Z
10 Serial No. 0~9 LG Model De
* ARTCOOL COLOR (SF)
velopment Serial No.
Basic A
Basic+4Way B
Plasma Filter C
Plasma Filter+4 Way D
Tele+LCD E
Tele+LCD+Nano plasma+4Way F
Nano Plasma F+(A/changeove)+A/clean+Low A G
Nano Plasma F+(A/changeove)+A/clean+4way+Low A H
Tele+LED+4way I
Internet J
Plasma F+4Way+Oxy generator K
Nano Plasma F+(A/changeove)+A/clean L
Nano Plasma F+(A/changeove)+A/clean+4way M
Nano Plasma F+(A/changeove)+A/clean+PTC N
Nano Plasma F+(A/changeove)+Autoclean+4way+PTC P
Nano Plasma F+(A/changeove)+A/clean+4way+Low A+PTC Q
Negative ION+A/Clean R
(Nano)Plasma+Negative ION+A/Clean S
4way+(Nano)Plasma F+Negative ION+Healthy dehumidification+A/Clean T
Nano Plasma F+4Way+(A/changeove)+A/clean+ U
1 Kiss
E Red
V Silver
G Gold
Ex.F → SF Chassis

- 7 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
1. List of Controls & Functions ..........................................................................................8
2. Basic Mode Controls......................................................................................................10
3. Special Mode Controls...................................................................................................12
4. Utility Functions .............................................................................................................13
5. Protection Functions & Controls .................................................................................18

- 8 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
1. List of Functions & Controls
Cooling Mode
Heating Mode
Healthy Dehumidification
Automatic Mode Optional
Auto Changeover Optional
Jet Cool
Jet Heat
Energy saving Optional
Forced operation
Auto Clean
Plasma Optional
Electric Heater Optional
Air volume control
Auto Swing
Horizontal Airflow Optional
Natural Air control
Sleep mode Auto control
Auto Restart Function
Temperature Display Optional
Indication Lamps Optional
Preheat Optional
Heating Logic Selection Optional
Category Function Description Remark
Cooling operation
Heating operation
Dry operation
Air volume & set temp. are automatically selected for
comfort on Cooling/Heating mode
Cooling mode is automatically changed to heating
mode and vice verse
Powerful cooling mode
Powerful heating mode
Air volume & set temp. are automatically selected for
saving energy in cooling mode
Operation without remote controller
After cooling operation, this function makes the evapo-
rator dry
Air filtration using plasma filter
Electric heater
Indoor Fan speed Control
Vertical Airflow Direction control
Horizontal Airflow Direction control
Air volume control Program
Air volume & set temp. are automatically changed for
comfortable sleep
When power returns after a power failure, Unit restarts
in the previous operating mode
88 segment LED display
LED display
Preheating the compressor in winter
Thermo ON/OFF Temp., Blow out logic
Basic mode
controls
Special Mode
controls
Utility Functions
Notes: The Exploded View part has the particular Function table for each model.

- 9 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Five Second Delay (Fan)
Two Minutes Stand-by
(Comp.)
Hot Start
Freeze prevention
Automatic Defrost
Power Relay Control
Inverter (with inverter
power control)
Active Power filter Control
Comp. Freq. Control
Overheating Protection
(Power Module)
Freq. Speed Control
(Up/Down)
Total Current Control
(Over Current Protection)
DC Peak Control
4Way Valve Control
Out Door Fan Motor
Control
Discharge Pipe Temp
Control
Low Ambient Function
Comp. Torque Control Optional
Category Function Description Remark
For noise prevention
For overload prevention
To prevent cold wind blow on heating mode start
Evaporator frost prevention
Condenser frost prevention
Over current prevention
Modulation of voltage & frequency
Power factor correction
To prevent overloading
To protect power module
For cycle stabilization
To protect power device
To protect power module
For Heating mode
For controlling the capacity
For overheating protection
For operation at low temp.
For vibration prevention
Protection
Controls &
Functions
Notes: The Exploded View part has the particular Function table for each model.

- 10 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
2. Basic Mode Controls
2.1 Cooling Mode
Setting
Temp.
-0.5°C.
+0.5°C.
Comp. OFF
INV. Comp.
Frequency Low
High LowHigh
Thermo ON
Thermo OFF
•Operating frequency of compressor depends on the load condition, like the difference between the room temp. and
the set temp., frequency restrictions.
•If the compressor operates at some frequency, the operating frequency of compressor cannot be changed within 30
seconds. ( not emergency conditions)
•Compressor turned off when
- intake air temperature is in between ±0.5°C of the setting temp. limit for three minutes continuously.
- intake air temperature reaches below 1.0°C of the temperature of setting temp..
•Compressors two minutes time delay.
- After compressor off, the compressor can restart minimum 2 minutes later.
2.2 Heating Mode
+2°C.
+4°C.
Comp. OFF
INV. Comp.
Frequency Low
High LowHigh Comp. OFF
Setting
Temp.
Thermo ON
Thermo OFF
•Operating frequency of compressor depend on the load condition, The difference between the room temp. and set
temp., frequency restrictions.
•If compressor operates at some frequency, the operating frequency of compressor cannot be changed within 30 sec-
onds.
•Condition of compressor turned off
- When intake air temperature reaches +4°C above the setting temperature.
•Condition of compressor turned on
- When intake air temperature reaches +2°C above the setting temperature.
* Condition of indoor fan turned off
- While in compressor on : indoor pipe temp. < 20°C
- While in compressor off : indoor pipe temp. < 30°C
•While in defrost control, between the indoor and outdoor fans are turned off.
•Compressor 2minutes delay
- After compressor off, the compressor can restart minimum 2 minutes later.
Notes: The Temp. of Thermo ON/OFF are different in heating mode and fuzzy operation for heating.

- 11 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
2.3 Healthy Dehumidification operation
•When the dehumidification operation is set by the remote controller, the intake air temperature is detected and the set-
ting temp. is automatically set according to the intake air temperature.
•When intake air temp. is 1 C above the setting temp., condition of compressor is same as in cooling mode operation.
•When intake air temperature reaches 1 C below the setting temp., compressor operates in step1~step3 and the indoor
fan speed again operates at low speed or comes to a stop.
2.4 Automatic operation
•When the Auto operation is set by the remote controller, the intake air temperature is detected and the setting temp. is
automatically set according to the intake air temperature and operation mode.
•The air volume is automatically set according to the intake air temperature.

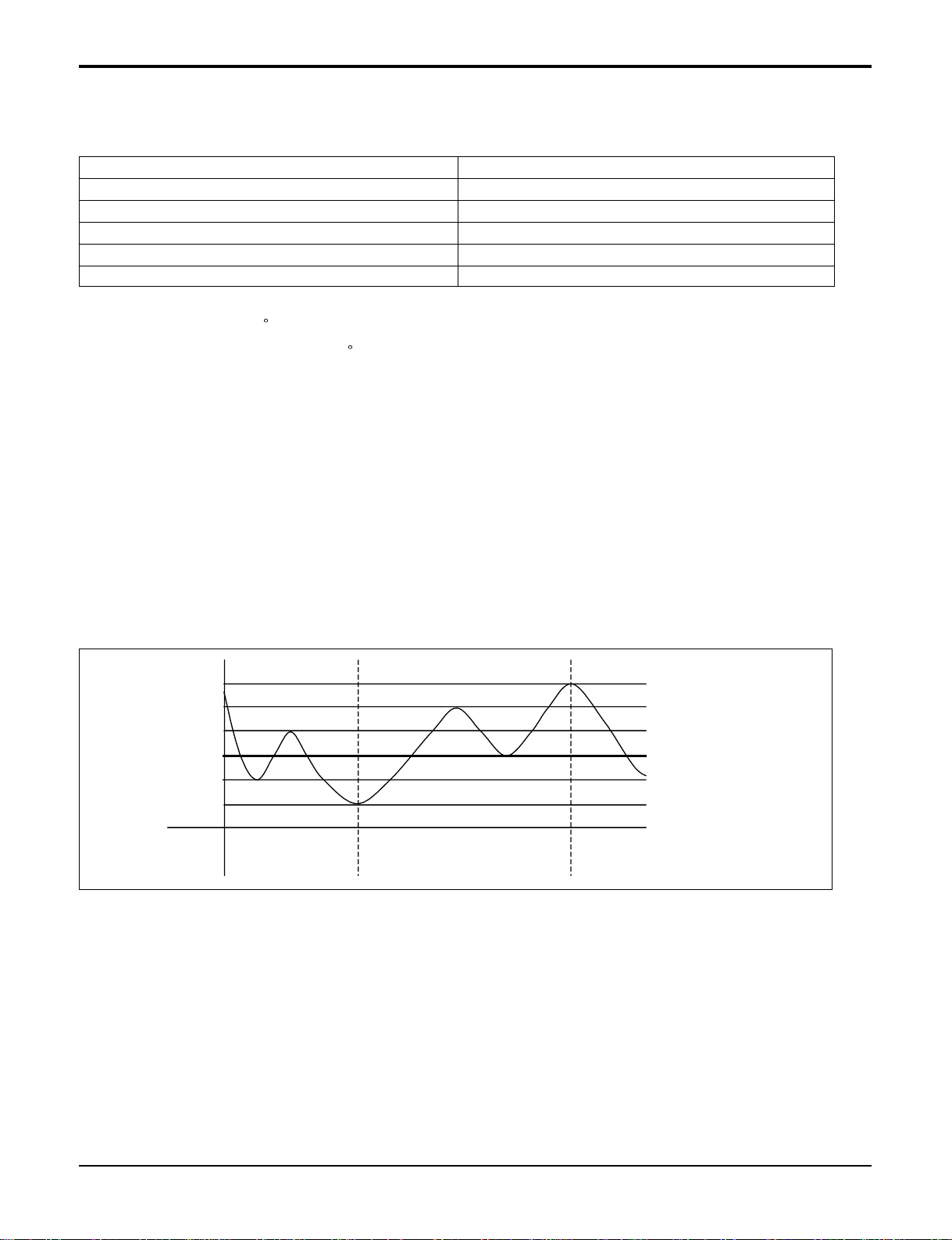

2.5 Auto changeover operation
•The air conditioner changes the operation mode automatically to keep indoor temperature.
•When room temperature vary over ±2°C with respect to setting temperature, air conditioner keeps the room tempera-
ture in ±2°C with respect to setting temperature by changing the mode from cooling to heating and vice versa.
Intake air Temp. Setting Temp.
26°C ≤intake air temp. 25°C
24°C ≤intake air temp.< 26°C intake air temp. -1°C
22°C ≤intake air temp. < 24°C intake air temp. -0.5°C
18°C ≤intake air temp. < 22°C intake air temp.
intake air temp. < 18°C18°C
+0.5°C
-0.5°C
-2°C
+4°C
+2°C
Cooling thermo off
Heating thermo off
Switching point
Switching point
Setting
Temp.
Cooling
operation Heating operation Cooling operation
Mode

- 12 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
3. Special Mode Controls
3.1 Jet Cool operation
•In the heating mode or Fuzzy operation, the Jet cool function does not work.
When it is input while in other mode of operation (cooling, dehumidification, ventilation), the Jet cool operation takes
place.
•In the Jet cool mode, the indoor fan is operated at super-high speed for 30 min. at cooling mode operation.
•In the Jet cool mode, the room temperature is maintained at a setting temperature of 18°C.
•When the sleep timer mode is input during the Jet cool operation, the Jet cool mode has the priority.
•When the Jet cool button is pressed, the upper/lower vane of the unit is reset to those of the initial cooling mode and
then operate so that the air outflow could reach further.
3.2 Jet Heat operation
•While in cooling mode or Fuzzy operation, the Jet Heat function does not work.
When it is input while in the Heating mode operation (dehumidification), the Jet Heat mode operation takes place
•In the Jet Heat mode, the indoor fan operated at super-high speed for 60 min. at Heating mode operation.
•In the Jet Heat mode, the room temperature is maintained at a temperature of 30°C.
•When the sleep timer mode is input during the Jet Heat mode operation, the Jet Heat mode has the priority.
•When the Jet Heat button is pressed, the upper/lower vane of the unit is the unit reset to those of the initial Jet heating
mode and then operates so that the air outflow could reach under flow.
3.3 Energy saving operation in cooling mode
•During cooling and dehumidification mode of operation, the Energy saving button can be input.
•In this operation, before we feel cold the set temperature and air volume is set automatically to save energy.
•The operation time and the other thing was decided by experiment.

- 13 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
4. Utility Functions
4.1 Forced operation
•To operate the appliance by force in case when the remote control is lost, the forced operation selection switch is on
the main unit of the appliance, and operate the appliance in the standard conditions.
•The operating condition is set according to the outdoor temp. and intake air temperature as follows.
•The unit select the last operation mode in 3 hours.
•Operating procedures when the remote control can't be used is as follows :
- The operation will be started if the ON/OFF button is pressed.
- If you want to stop operation, re-press the button.
4.1 Forced operation
•To operate the appliance by force in case when the remote control is lost, the forced operation selection switch is on
the main unit of the appliance, and operate the appliance in the standard conditions.
•The operating condition is set according to the outdoor temp. and intake air temperature as follows.
•The unit select the last operation mode in 3 hours.
•Operating procedures when the remote control can't be used is as follows :
- The operation will be started if the ON/OFF button is pressed.
- If you want to stop operation, re-press the button.
- The ON/OFF switch is on the display PCB or side of indoor unit

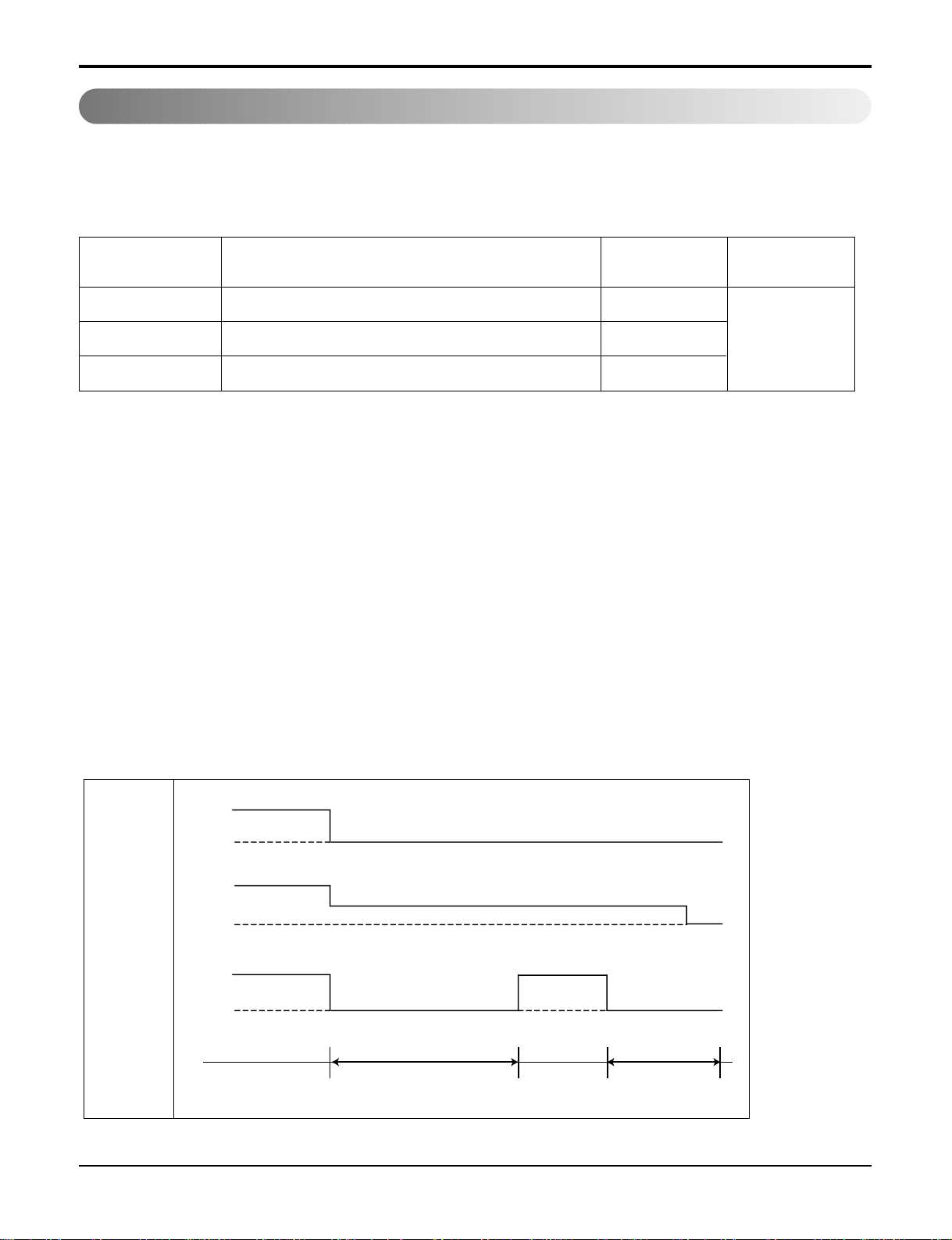

4.2 Auto cleaning operation
•Function used to perform Self Cleaning to prevent the Unit from Fungus and bad odor.
•Used after the Cooling Operation before turning the unit off, clean the Evaporator and keep it dry for the next opera-
tion.
•The function is easy to operate as it is accessed through the Remote controller.
Indoor temp.
over 24°C
21~24°C
below 21°C
Setting temp.
22°C
22°C
22°C
Setting speed of
indoor fan
High speed
Operating Mode
Cooling
Healthy Dehumidification
Heating
Unit
Operation
13~14 minutes 1minute 2~3 minutes
ON
OFF
Comp.
Time
Indoor
Fan
ON
OFF
ON
OFF Setting step OFFL Low

- 14 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
4.3 Air volume control
•Indoor fan motor control have 6 steps.
•Air volume is controlled "SH", "H", "Med", "Low" by the remote con-
troller.
•"LL" step is selected automatically in Hot start operation.
4.4 Natural Air Control(Auto Wind)
•When the Auto Step is selected and then operated, the high, medi-
um, or low speed of the airflow mode is operated for 2~15 sec. ran-
domly by the Chaos Simulation.

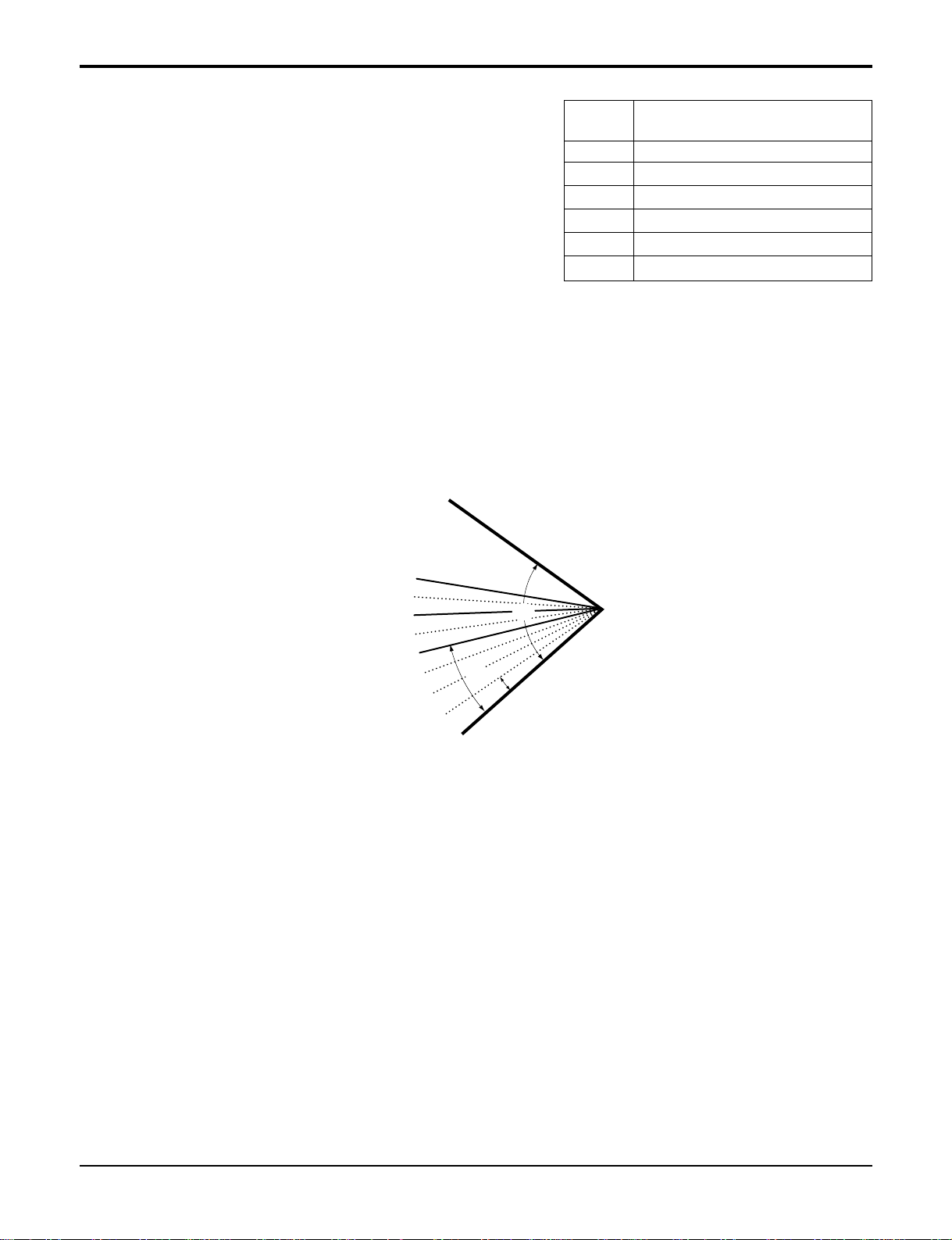

4.5 Auto Swing
•By the Chaos swing key input, the upper/lower vane automatically operates with the Chaos swing or it is fixed to
the desired direction.
LL Very low, In heating mode
L Low
M Med
H High
SH Super high
Auto Natural wind
Step Discription
CLOSED
Mode 8
Mode 7
Mode 6
Mode 5
Mode 4
Mode 3
Mode 2
Mode 1
OPEN
65°
8°
20°

- 15 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls

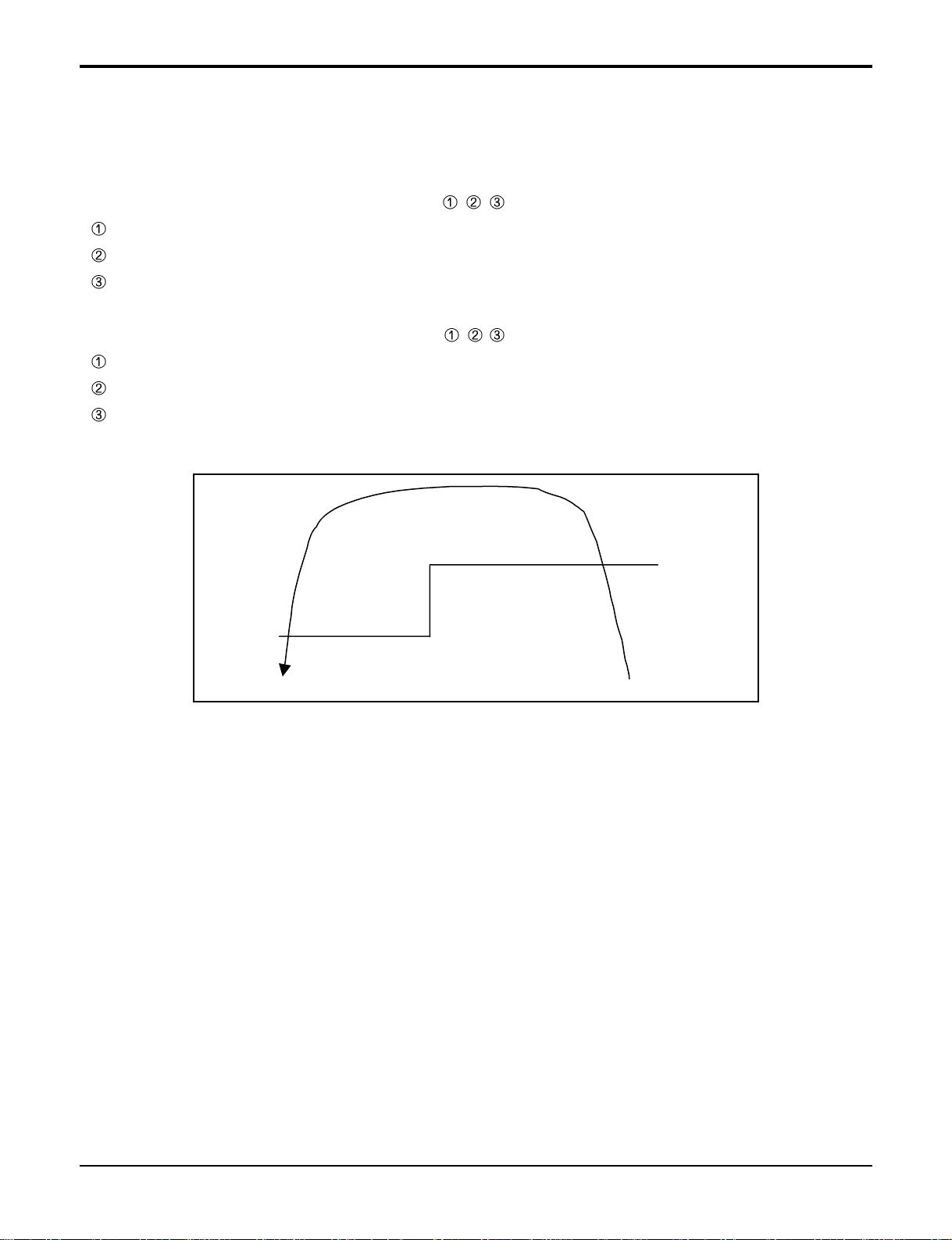

4.6 Sleep mode Auto control
•When the set sleep time is reached set time of [1,2,3,4,5,6,7hr] input by the remote control during the operation, the
operation of the appliance stops.
•When the appliance is on pause, the sleep timer mode cannot be input.
4.6.1 Sleep timer operation for cooling cycle
•While in cooling mode , 30 min. after the start of the sleep timer, the setting temperature increase by 1 C. After anoth-
er 30minutes lapse, it increases again by 1°C.
4.6.2 Sleep timer operation for heating cycle
•While in heating mode, 60 min. after the start of the sleep timer, the getting temperature decreases by 1 C. After
another 60minutes lapse, it decreases again by 1°C.
4.7 Auto restart
•When the power comes back after a sudden power failure during operation, the mode before the power failure is kept
on the memory and the appliance and it automatically operates in the saved mode on the memory.
•Operation mode that is kept on the memory
- State of operation ON/OFF
- Operation mode/setting temp./selected airflow speed
- Sleep timer mode/remaining time of sleep timer
- Chaos Swing
Setting temp. (˚C)
1.0˚C up
1.0˚C up
Cooling ON temp.
(Setting temp. +0.5˚C)
Cooling OFF temp.
(Setting temp. -0.5˚C)
0.5 1 Sleep time (hr)
Setting temp. (°C)
Heating ON temp.
(Setting temp. +2˚C)
Heating OFF temp.
(Setting temp.+4°C)
1 2 Sleep time (hr)
1.0°C down
1.0°C down

Part 2 Functions & Controls
- 16 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

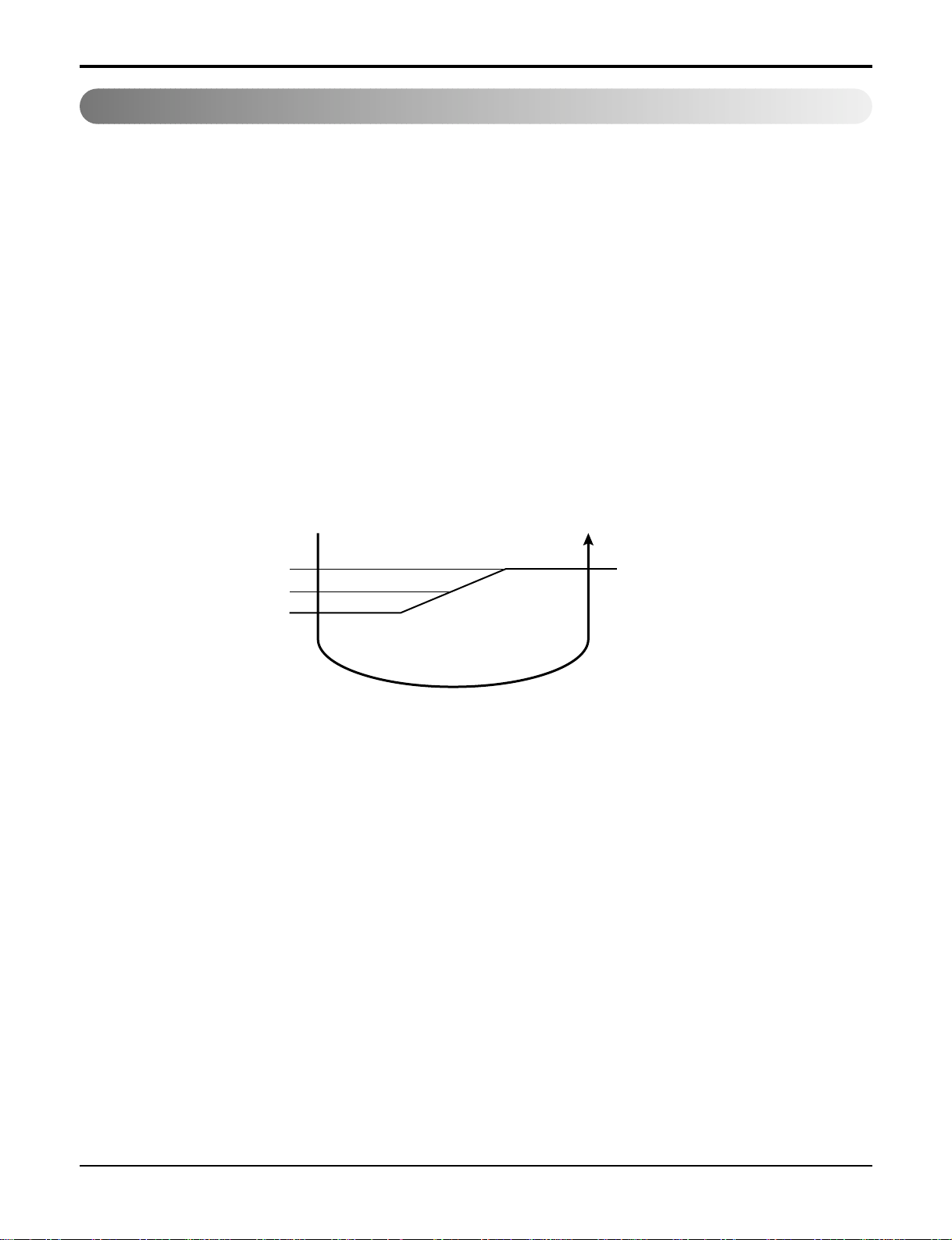

4.8 Preheat
•This is operation to preheat the compressor by conducting current through motor coils of the compressor for preventing
phenomena that liquid refrigerants are income due to difference between temperature of the outside pipe and tempera-
ture of the compressor as outdoor temperature becomes low.
•Enter preheat operation of the compressor if meeting , , conditions as below at the same time.
where outdoor temperature is less than 5°C
where discharge temperature of the compressor is more than 15°C
where the compressor turns off
•Release preheat operation if meeting one or more of , , conditions.
where outdoor temperature is more than 5°C
where diacharge temperature of the compressor is more than 25°C
where the compressor turns on
25˚C
15˚C
COMP
Discharge Temerature Preheat Off
Preheat On

Part 2 Functions & Controls
- 17 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

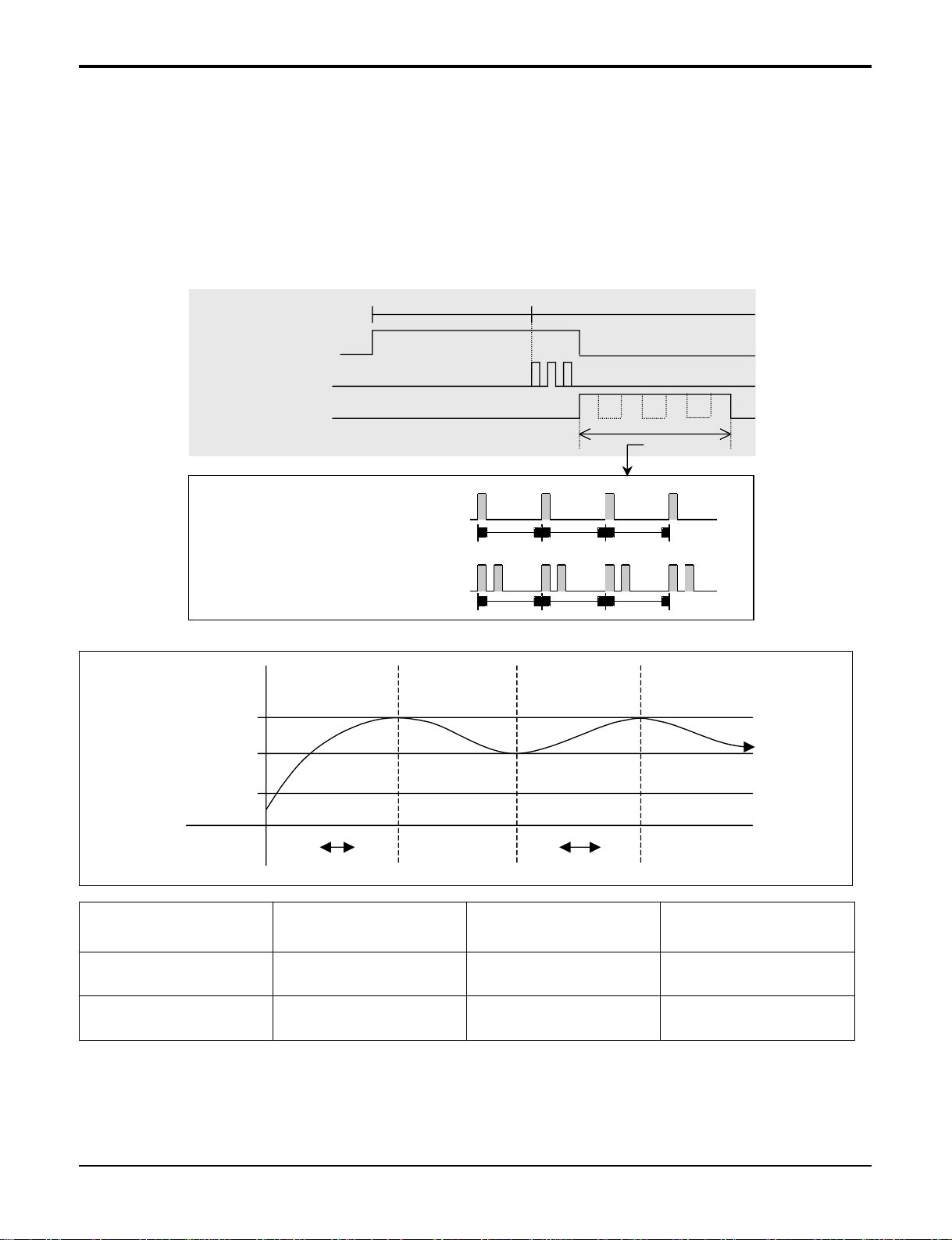

4.9 Selection of Heat Logic Option
1) The buzzer sounds 3 times if pressing the tact switch for 10seconds. If turning off the tack switch in this case, the
operation LED flickers and existing/additional heat Logic is toggled.
2) Display of operation LED in selection of heat option.
- When selecting additional heat Logic : Flickering numbers of LED; 1 time
- When selecting existing heat Logic : Flickering numbers of LED; 2 times
3) Setting is selectable regardless of operation status (on/off)
Tact S/W
Buzzer sound
Operation LED
Flickering 4 times
10sec
ON
OFF
ON
OFF
When selecting additional heat Logic
1.5sec
(1time)
(2times)
When selecting existing heat Logic
0.25sec
0.25*3sec
1.5sec 1.5sec
1.5sec 1.5sec 1.5 sec
+2°C.
+4°C.
Comp. OFF
INV. Comp.
Frequency Low
High LowHigh Comp. OFF
Setting
Temp.
Thermo ON
Thermo OFF
Logic 1, Blink 1time
Logic 2, Blink 2time
Thermo OFF
3°C
4°C
Remark
Blow out for Detect to
Room Temp.
Thermo ON
0°C
2°C

- 18 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls
5.1 Five Seconds Stand-by (fan)
•Prevention fan in indoor unit rotate after 5 seconds when unit is turned on.
5.2 Two Minutes Stand-by (comp.)
•Compressor starts two minutes later, after it is turned off
5.3 Hot start
•When unit starts in the heating mode to prevent cold wind blowing, the indoor fan does not rotate until the temp. of
heat exchanger reaches 30°C(model by model)
5.4 Freeze prevention (Protection of the evaporator pipe from frosting)
•If the indoor pipe temperaure is below 0°C in 7 min. after the compressor operates without pause while in cooling cycle
operation mode, ➔compressor, outdoor fan are turned off.
•When indoor pipe temp. is 7°C or higher after 2 min pause of compressor ➔compressor, outdoor fan is turned on
NOTE: Some Models are different by T1.
5. Protection Functions & Controls
Comp. free
Comp. Step 4
Comp. Step 2
Comp. off
T1
3˚C
6˚C7˚C
Indoor pipe
temp.
T1: 0 ~ 2°C

- 19 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Part 2 Functions & Controls

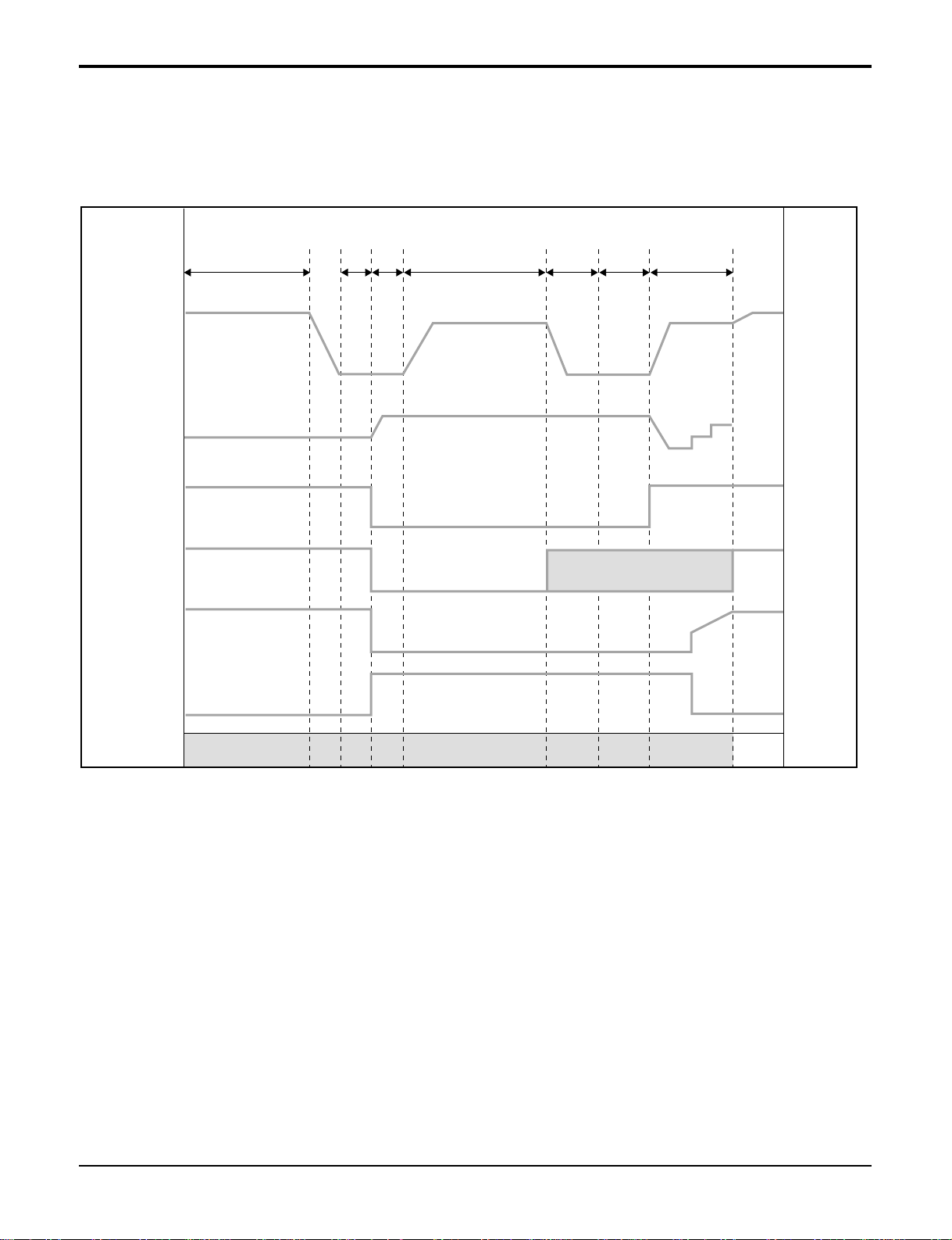

5.5 Automatic defrost
•While in heating mode operation in order to protect the evaporator pipe of the outdoor unit from freezing, the cycle is
reversed to cooling made to defrost the evaporator pipe of the outdoor unit.
•Defrosting control is available 50 minutes later after heating cycle has started and the pipe temperature of outdoor unit
reaches below -6°C.
Setting Freq.
Operating
Freq. of
Comp.
4-Way
EEV
Open step
Outdoor
FAN
Indoor
FAN
Pre-Heat
LED
Deice STEP
Fh
min
Minimum Time
of Heating Main Deice time
Fh
min Fh
min
ON
OFF Setting
Speed
ON
Hot
Start
OFF Hot
Starting
ON
OFF OFF
0123456
Setting Starting step
Setting
Freq.
Setting
Speed
Setting
Speed
Hi Speed
