LG PC24SQ User manual

www.lg.com
OWNER'S MANUAL
AIR
CONDITIONER
Read this owner's manual thoroughly before operating the appliance and keep
it handy for reference at all times.
This manual is the simplified version of original manual. You can obtain the
original manual from www.lg.com.
TYPE: WALL MOUNTED
EN English FR Français EL Ελληνικά NL Nederlands
Copyright © LG Electronics Inc. All Rights Reserved.
2018
P/NO: 5401156187 rev.:
Original instruction

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
Open Source Software Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is
contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright
notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering
the cost of performing such distribution (such as the cost of media, shipping, and handling)
upon email request to [email protected]. This offer is valid for a period of three years
after our last shipment of this product. This offer is valid to anyone in receipt of this
information.
SAFETY INSTRUCTIONS ................................................... 3
IMPORTANT SAFETY INSTRUCTIONS................................................4
OPERATION ....................................................................... 11
Notes for Operation .............................................................................. 11
Parts and Functions.............................................................................. 11
Wireless Remote Control......................................................................12

3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
The following symbols are displayed on indoor and outdoor
units.
This symbol indicates that this appliance uses a
flammable refrigerant. If the refrigerant is leaked and
exposure to an external ignition source, there is a risk
of fire.
This symbol indicates that the Operation Manual should
be read carefully.
This symbol indicates that a service personnel should
be handling this equipment with reference to the
Installation Manual.
This symbol indicates that information is available such
as the Operating Manual or Installation Manual.

4
EN
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
Installation
•Do not install the air conditioner on an unstable surface or in a
place where there is danger of it falling.
•Contact an authorized service center when installing or relocating
the air conditioner.
•Install the panel and the cover of the control box safely.

5
EN
•Do not install the air conditioner in a place where flammable
liquids or gases such as gasoline, propane, paint thinner, etc., are
stored.
•Make sure that the pipe and the power cable connecting the
indoor and outdoor units are not pulled too tight when installing
the air conditioner.
•Use standard circuit breaker and fuse that conform to the rating of
the air conditioner.
•Do not input air or gas into the system except with the specific
refrigerant.
•Use non-flammable gas (nitrogen) to check for leak and to purge
air; using compressed air or flammable gas may cause fire or
explosion.
•The indoor/outdoor wiring connections must be secured tightly,
and the cable should be routed properly so that there is no force
pulling the cable from the connection terminals. Improper or loose
connections can cause heat generation or fire.
•Install dedicated electric outlet and circuit breaker before using the
air conditioner.
•Do not connect the ground wire to a gas pipe, a lightning rod, or a
telephone ground wire.
•Keep any required ventilation openings clear of obstruction.
Operation
•Be sure to use only those parts listed in the service parts list.
Never attempt to modify the equipment.
•Make sure that children do not climb on or hit the outdoor unit.
•Dispose of the batteries in a place where there is no danger of
fire.
•Use only the refrigerant specified on the air conditioner label.

6
EN
•Cut off the power supply if there is any noise, smell, or smoke
coming from the air conditioner.
•Do not leave flammable substances such as gasoline, benzene, or
thinner near the air conditioner.
•Contact an authorized service center when the air conditioner is
submerged by flood waters.
•Do not use the air conditioner for an extended period of time in a
small place without proper ventilation.
•In the event of a gas leak (such as Freon, propane gas, LP gas,
etc.) ventilate sufficiently before using the air conditioner again.
•To clean the interior, contact an authorized service center or
dealer. Using harsh detergents may cause corrosion or damage to
the unit.
•Be sure to ventilate sufficiently when the air conditioner and a
heating appliance such as a heater are used simultaneously.
•Do not block the inlet or outlet of air flow.
•Do not insert hands or other objects through the air inlet or outlet
while the air conditioner is operating.
•Make sure that the power cable is neither dirty, loose, nor broken.
•Never touch, operate, or repair the air conditioner with wet hands.
•Do not place any objects on the power cable.
•Do not place a heater or other heating appliances near the power
cable.
•Do not modify or extend the power cable. Scratches or peeling
insulation on the power cables may result in fire or electric shock,
and should be replaced.
•Cut off the power supply immediately in the event of a blackout or
a thunderstorm.

7
EN
•Take care to ensure that power cable could not be pulled out or
damaged during operation.
•Do not touch refrigerant pipe, water pipe and any internal parts
while the unit is operating or immediately after operation.
Maintenance
•Do not clean the appliance by spraying water directly onto the
product.
•Before cleaning or performing maintenance, disconnect the power
supply and wait until the fan stops.
Technical Safety
•Installation or repairs made by unauthorized persons can pose
hazards to you and others.
•Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes their
competence to handle refrigerants safely in accordance with an
industry recognized assessment specification.
•Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under the
supervision of the person competent in the use of flammable
refrigerants.
•The information contained in the manual is intended for use by a
qualified service technician who is familiar with the safety
procedures and equipped with the proper tools and test
instruments.
•Failure to read and follow all instructions in this manual can result
in equipment malfunction, property damage, personal injury and/or
death.

8
EN
•The appliance shall be installed in accordance with national wiring
regulations.
•When the power cord is to be replaced, the replacement work
shall be performed by authorized personnel using only genuine
replacement parts.
•This appliance must be properly grounded to minimize risk of
electric shock.
•Do not cut or remove the grounding prong from the power plug.
•Attaching the earth wire to the power outlet cover screw does not
ground the appliance unless the cover screw is metal, uninsulated,
and the power outlet is grounded through house wiring.
•If you have any doubt whether the air conditioner is properly
grounded, have the power outlet and circuit checked by a qualified
electrician.
•The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult a service agent or a
similarly qualified person before disposing of them.
•If the supply cord is damaged, it must be replaced by the
manufacturer or its service agents or similarly qualified person in
order to avoid a hazard.
•The appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for
operation.
•The appliance shall be stored in a room without continuously
operating open flames (for example an operating gas appliance)
and ignition sources (for example an operating electric heater).
•The appliance shall be stored so as to prevent mechanical
damage from occurring.

9
EN
CAUTION
To reduce the risk of minor injury to persons, malfunction,
or damage to the product or property when using this
product, follow basic precautions, including the following:
Installation
•Do not install the air conditioner in an area where it is directly
exposed to sea wind (salt spray).
•Install the drain hose properly for the smooth drainage of water
condensation.
•Exercise caution when unpacking or installing the air conditioner.
•Do not touch the leaking refrigerant during installation or repair.
•Transport the air conditioner with two or more people or use a
forklift.
•Install the outdoor unit such that it is protected from direct
sunlight. Do not place the indoor unit in a place where it is directly
exposed to sunlight via the windows.
•Safely dispose of packing materials such as screws, nails or
batteries using proper packaging after installation or repair.
•Install the air conditioner in a place where the noise from the
outdoor unit or the exhaust fumes will not inconvenience the
neighbors. Failure to do so may result in conflict with the
neighbors.
Operation
•Remove the batteries if the remote control is not to be used for an
extended period of time.

10
EN
•Make sure that the filter is installed before operating the air
conditioner.
•Be sure to check if there is a refrigerant leak after installing or
repairing the air conditioner.
•Do not place any object on the air conditioner.
•Never mix different types of batteries, or old and new batteries for
the remote control.
•Do not let the air conditioner run for a long time when humidity is
very high or when a door or a window has been left open.
•Stop using the remote control if there is a fluid leak in the battery.
If your clothes or skin are exposed to the leaking battery fluid,
wash off with clean water.
•Do not expose people, animals, or plants to the cold or hot wind
from the air conditioner for extended periods of time.
•If the leaking battery fluid has been swallowed, rinse the inside of
the mouth thoroughly and consult a doctor.
•Do not drink the water drained from the air conditioner.
•Do not use the product for special purposes, such as preserving
foods, works of art, and etc. It is an air conditioner for consumer
purposes, not a precision refrigeration system. There is risk of
damage or loss of property.
•Do not recharge or disassemble the batteries.
Maintenance
•Never touch the metal parts of the air conditioner when removing
the air filter.
•Use a sturdy stool or ladder when cleaning, maintaining, or
repairing the air conditioner at a height.
•Never use strong cleaning agents or solvents when cleaning the
air conditioner or spray water. Use a smooth cloth.

11
OPERATION EN
Notes for Operation
Suggestion for Energy Saving
•Do not over-cool the space. This may be harmful for your health and may consume more
electricity.
•Block sunlight with blinds or curtains while you are operating the air conditioner.
•Keep doors or windows closed tightly while you are operating the air conditioner.
•Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
•Speed up the fan to cool or warm indoor air quickly, within a short period of time.
•Open windows regularly for ventilation. The indoor air quality may deteriorate if the air conditioner
is used for long durations.
•Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or reduce the unit performance.
Parts and Functions
Indoor Unit Outdoor Unit Indoor Display Screen
8
9
Air Filter
Air Intake
Front Cover
Air Outlet
Air Deflector (Horizontal
Vane)
Air Deflector (Vertical Louver)
On/Off Button
Display
Signal Receiver
1
2
3
4
5
6
7
8
9
Air Intake Vents
Air Outlet Vents
Base Plate
Power Supply Cable
Drain Hose
Coolant Piping
1
2
3
4
5
6
Desired temperature / Room
temperature
Defrosting / Preheating
Wi-Fi
Timer
On/Off
1
2
3
4
5
NOTE
•The number and location of operation lamps may vary according to the model of the air
conditioner.
•The feature may be changed according to the type of model.

12
EN
Wireless Remote Control
Inserting Batteries
If the display screen of the remote control
begins to fade, replace the batteries. Insert AAA
(1.5 V) batteries before using the remote
control.

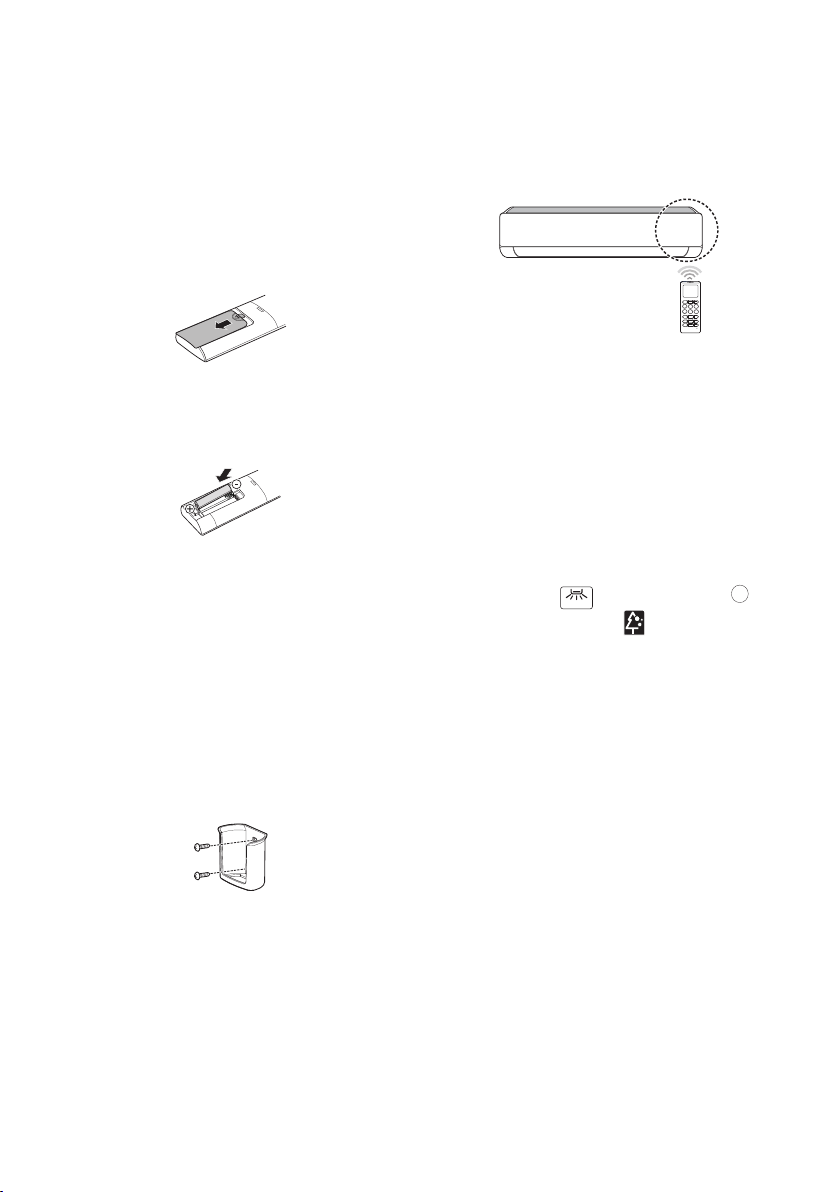

1Remove the battery cover.
2Insert the new batteries and make sure that
the + and - terminals of the batteries are
installed correctly.
Installing the Remote Control
Holder
To protect the remote control, install the holder
where there is no direct sunlight.
1Choose a safe and easily accessible
location.
2Fix the holder by fastening 2 screws firmly
with a screwdriver.
Operating Method
Point the remote control towards the signal
receiver at the right side of the air conditioner to
operate it.
NOTE
•The remote control may operate other
electronic devices if it is directed towards
them. Make sure to point the remote control
towards the air conditioner signal receiver.
•For proper operation, use a soft cloth to clean
the signal transmitter and receiver.
•In case of a function not provided in the
product, no buzzer sound occurs from the
product when a button for such function on
the remote control is pressed except for Air
Flow Direction (
SWING
), Energy Display (
kW [3 s]
),
Air Purification function ( ).

13
EN
Setting the Current Time
1Insert batteries.
•The icon below blinks at the bottom of the
display screen.
2Press or button to select the
minutes.
3Press SET/CANCEL button to finish.
NOTE
•The On/Off Timer is available after setting the
current time.
Using the °C/°F Conversion
Function (Optional)
This function changes unit between °C and °F
•Press and hold
℃↔℉ [5 s]
SWING
button about 5 seconds.
Operating the Air Conditioner
without the Remote Control
You can use the ON/OFF button of the indoor
unit to operate the air conditioner when the
remote control is unavailable.
1Open the front cover (Type2) or horizontal
vane (Type1).
2Press the ON/OFF button.
Type1
ON/OFF
Type2
ON/OFF
NOTE
•The stepping motor may be broken, if the
horizontal vane opens rapidly.
•The fan speed is set to high.
•The feature may be changed according to the
type of model.
•The temperature cannot be altered when
using this emergency ON/OFF button.
•For cooling & heating models, the temperature
is set from 22 °C to 24 °C

14
EN

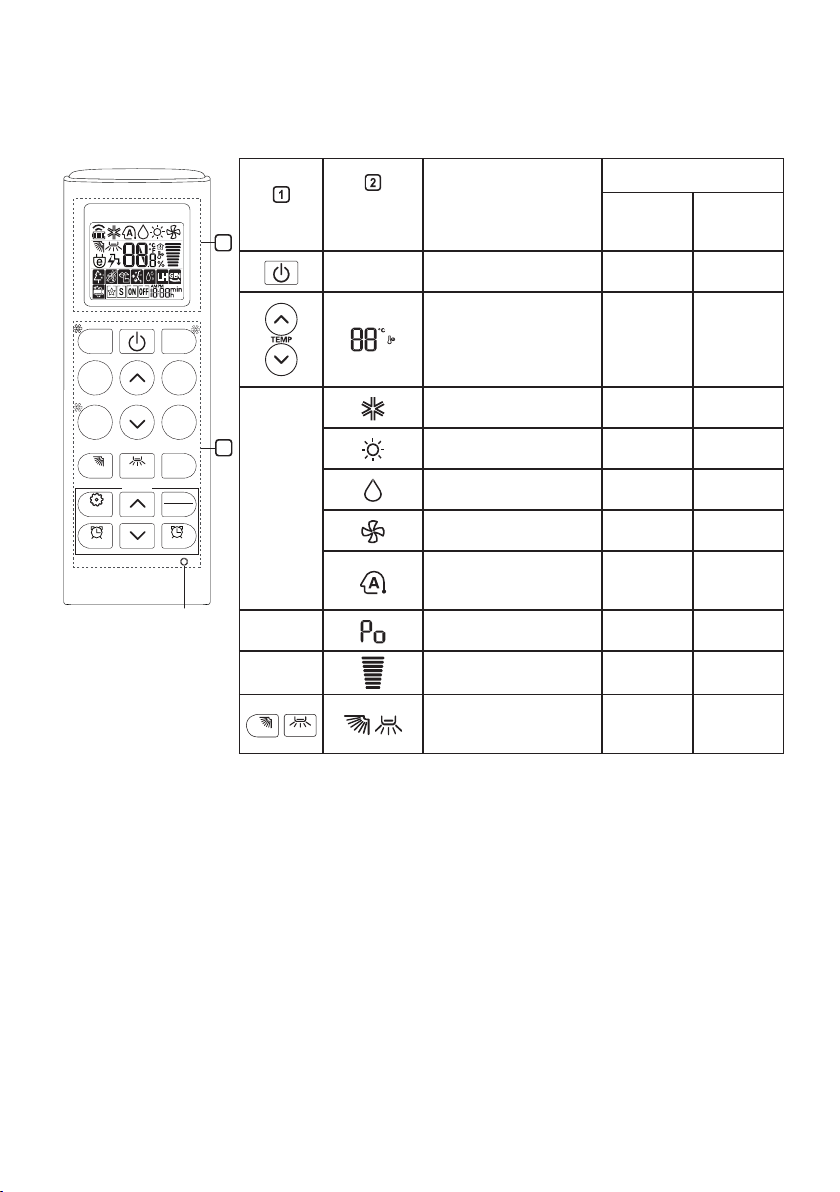

Using Wireless Remote Control
You can operate the air conditioner more conveniently with the remote control.
SWING
kW [3 s]
℃↔℉ [5 s] DIAGNOSIS [5 s]
SWING
SET UP
ROOM
TEMP
JET
MODE
MODE
TEMP
FAN
SPEED
FUNC.
TIMER CANCEL
SET
CANCEL
*
*
1
2
*
RESET
Button
Display
Screen
Description
Available Function
Single
Split Multi
-To turn on/off the air
conditioner. O O
To adjust the desired
room temperature in
cooling, heating or
auto changeover
mode.
O O
MODE
To select the cooling
mode. O O
To select the heating
mode. O O
To select the
dehumidification mode. O O
To select the fan
mode. O O
To select the auto
changeover/auto
operation mode.
O O
JET
MODE
To change room
temperature quickly. O O
FAN
SPEED
To adjust the fan
speed. O O
SWING
SWING
To adjust the air flow
direction vertically or
horizontally.
O O
NOTE
•* buttons may be changed according to the type of model.
•When connected to the Multi Outdoor unit, the Energy Display, Energy
Control, Silent and Smart Diagnosis function may not be supported.

15
EN
SWING
kW [3 s]
℃↔℉ [5 s] DIAGNOSIS [5 s]
SWING
SET UP
ROOM
TEMP
JET
MODE
MODE
TEMP
FAN
SPEED
FUNC.
TIMER CANCEL
SET
CANCEL
*
*
1
2
*
RESET
Button
Display
Screen
Description
Available Function
Single
Split Multi

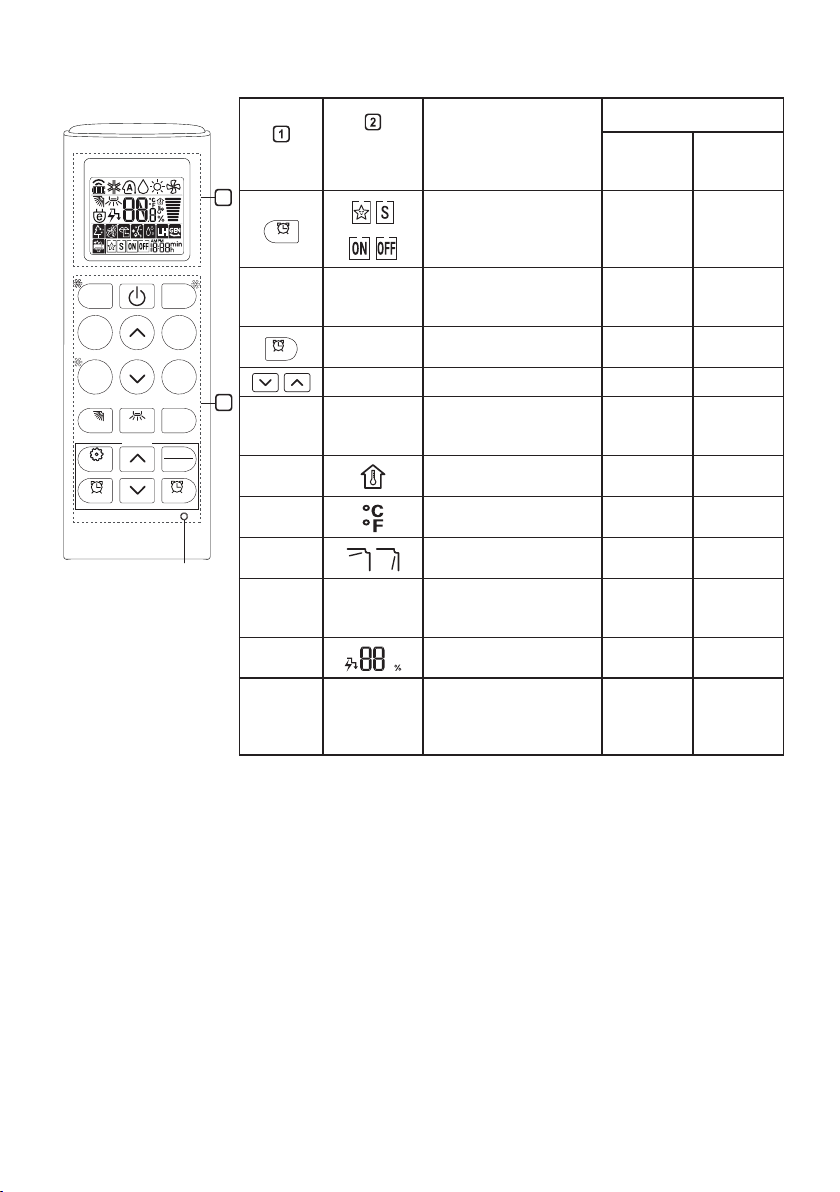

TIMER
To turn on/off air
conditioner
automatically at
desired time.
O O
SET/
CANCEL -
To set/cancel the
special functions and
timer.
O O
CANCEL
-To cancel the timer
settings. O O
-To adjust time. O O
*LIGHT
OFF -
To set the brightness
of the display on the
indoor unit.
O O
ROOM
TEMP
To display the room
temperature. O O
°C↔°F
[5 s]
To change unit
between °C and °F O O
*COMFORT
AIR
To adjust the air flow
to deflect wind. O O
kW
[3 s] -
To set whether or not
to display information
regarding energy.
O X
*ENERGY
CTRL
To bring the effect of
the power saving. O X
DIAGNOSIS
[5 s]
-
To conveniently check
maintenance
information of a
product.
O X

16
EN
SWING
kW [3 s]
℃↔℉ [5 s] DIAGNOSIS [5 s]
SWING
SET UP
ROOM
TEMP
JET
MODE
MODE
TEMP
FAN
SPEED
FUNC.
TIMER CANCEL
SET
CANCEL
*
*
1
2
*
RESET
Button
Display
Screen
Description
Available Function
Single
Split Multi
FUNC.
To purify the air by
removing particles that
enters the indoor unit.
O
(Optional)
O
(Optional)
To reduce noise from
outdoor units. O X
To remove moisture
generated inside the
indoor unit.
O O
RESET - To initialize the remote
control settings. O O
NOTE
•Some functions may not be supported, depending on the model.
•* buttons may be changed according to the type of model.
•Press the SET/CANCEL button to operate the selected FUNC.

www.lg.com
MANUEL DU PROPRIÉTAIRE
CLIMATISATION
Lisez attentivement le manuel du propriétaire avant d'utiliser l'appareil et gardez-le à
portée de main pour vous y référer à tout moment.
Le présent manuel est la version simplifiée du manuel original. Vous pouvez obtenir
le manuel original sur www.lg.com.
TYPE: MONTAGE MURAL
Traduction de l’instruction originale
Copyright © 2018 LG Electronics Inc. Tous droits réservés.

TABLE DES MATIÈRES Ce manuel peut contenir des images ou un
contenu différent du modèle que vous avez
acheté.
Ce manuel est sujet à révision par le
fabricant.
Informations sur les logiciels libres
Pour obtenir le code source sous la licence publique générale, la licence publique générale limitée,
la licence publique Mozilla ou les autres licences libres de ce produit, rendez-vous sur http://
opensource.lge.com.
En plus du code source, tous les termes de la licence, ainsi que les exclusions de garantie et les
droits d’auteur, sont disponibles au téléchargement.
LG Electronics peut aussi vous fournir le code source sur CD-ROM moyennant le paiement des frais
de distribution (support, envoi et manutention) sur simple demande adressée par e-mail à
[email protected]. Cette offre est valable pour une période de trois ans à compter de la date de
la dernière distribution de ce produit. Cette offre est valable pour toute personne possédant cette
information.
CONSIGNES DE SÉCURITÉ ......................................................3
Consignes importantes relatives à la sécurité ................................................ 4
UTILISATION..............................................................................11
Notes pour l'utilisation................................................................................... 11
Pièces et fonctions........................................................................................ 11
Télécommande sans fil................................................................................. 12

3
CONSIGNES DE SÉCURITÉ FR
Les consignes de sécurité suivantes sont destinées à éviter les
risques ou dommages imprévus issus d'une utilisation dangereuse
ou incorrecte de l'appareil.
Les consignes sont séparées en 'AVERTISSEMENT' et 'ATTENTION'
comme décrit ci-dessous.
Ce symbole s'affiche pour indiquer des problèmes et
des utilisations qui peuvent présenter des risques. Lire
attentivement la partie qui comporte ce symbole et
suivre les instructions afin d'éviter tout risque.
AVERTISSEMENT
Cela indique que tout manquement à suivre les instructions
peut entraîner des blessures graves ou la mort.
ATTENTION
Cela indique que tout manquement à suivre les instructions
peut entraîner des blessures légères ou endommager
l'appareil.
Les symboles suivants sont affichés sur les unités intérieure et
extérieure.
Ce symbole indique que cet appareil utilise un
réfrigérant inflammable. S'il y a une fuite du réfrigérant
et qu'il est exposé à une source d'allumage externe, il y
a un risque d'incendie.
Ce symbole indique que le manuel d'utilisation doit être
lu attentivement.
Ce symbole indique qu'un personnel de service devrait
manipuler cet équipement en se référant au Manuel
d'installation.
Ce symbole indique que des informations sont
disponibles telles que le Manuel d'utilisation ou le
Manuel d'installation.

4
FR
Consignes importantes relatives à la sécurité
AVERTISSEMENT
Pour réduire le risque d'explosion, d'incendie, de décès, de
choc électrique, de blessure ou d'ébouillantage de
personnes lors de l'utilisation de cet appareil, suivez les
précautions de base, y compris les suivantes :
Enfants au sein du foyer
Cet appareil n'est pas destiné à être utilisé par des personnes (y
compris des enfants) ayant des capacités physiques, sensorielles
ou mentales réduites, ou manquant d'expérience et de
connaissances, à moins qu'elles ne soient supervisées ou aient
reçu des instructions quant à l'utilisation de l'appareil par une
personne responsable de leur sécurité. Les enfants doivent être
surveillés pour s'assurer qu'ils ne jouent pas avec l'appareil.
Pour une utilisation en Europe :
Cet appareil peut être utilisé par des enfants âgés de 8 ans et plus
et par des personnes ayant des capacités physiques, sensorielles
ou mentales réduites ou bien manquant d'expérience et de
connaissances, s'ils sont surveillés ou ont reçu des instructions
relatives à l'utilisation de l'appareil d'une manière sûre et s'ils
comprennent les dangers impliqués. Les enfants ne doivent pas
jouer avec l'appareil. Le nettoyage et la maintenance par
l'utilisateur ne doivent pas être exécutés par des enfants sans
surveillance.
Installation
•Ne pas installer la climatisation sur une surface instable ou dans
un endroit où il existe danger de chute.
•Contacter un centre de service agréé lors de l'installation ou du
déplacement de la climatisation.
•Installer le panneau et le couvercle de la boîte de commande de
façon sécurisée.
