take a fresh new look at
room air conditioners
rooms with a view
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
CAT-RAC-2004
All trademarks are property of their respective owners.
All features do not appear on all models.
Design and specifications are subject to change without notice.
© 2004 LG Electronics, Inc. All rights reserved.

Whisper quiet sound. Innovative
design. Industry-leading quality
and technology. It’s clear to see
why LG is the number one
manufacturer of room air
conditioners in the world.
Look into our complete line of feature-rich, energy
efficient models, and you’ll understand why LG Room
Air Conditioners are the preferred choice among home
owners and apartment dwellers.
Cutting-edge styles with Low Profile designs, smaller
chassis, plus the advanced technology of our PLASMA
heat exchanger result in longer life and extreme
energy efficiency.
Let us help you choose the right LG air conditioner to
help improve the view from any room in your home.
picture this

Since 1968, LG has established an industry-
leading record of research and innovation with
a single goal in mind: the coolest, quietest and
most comfortable room possible. The result is
more innovative features and greater reliability
than you can find from any other air conditioner.

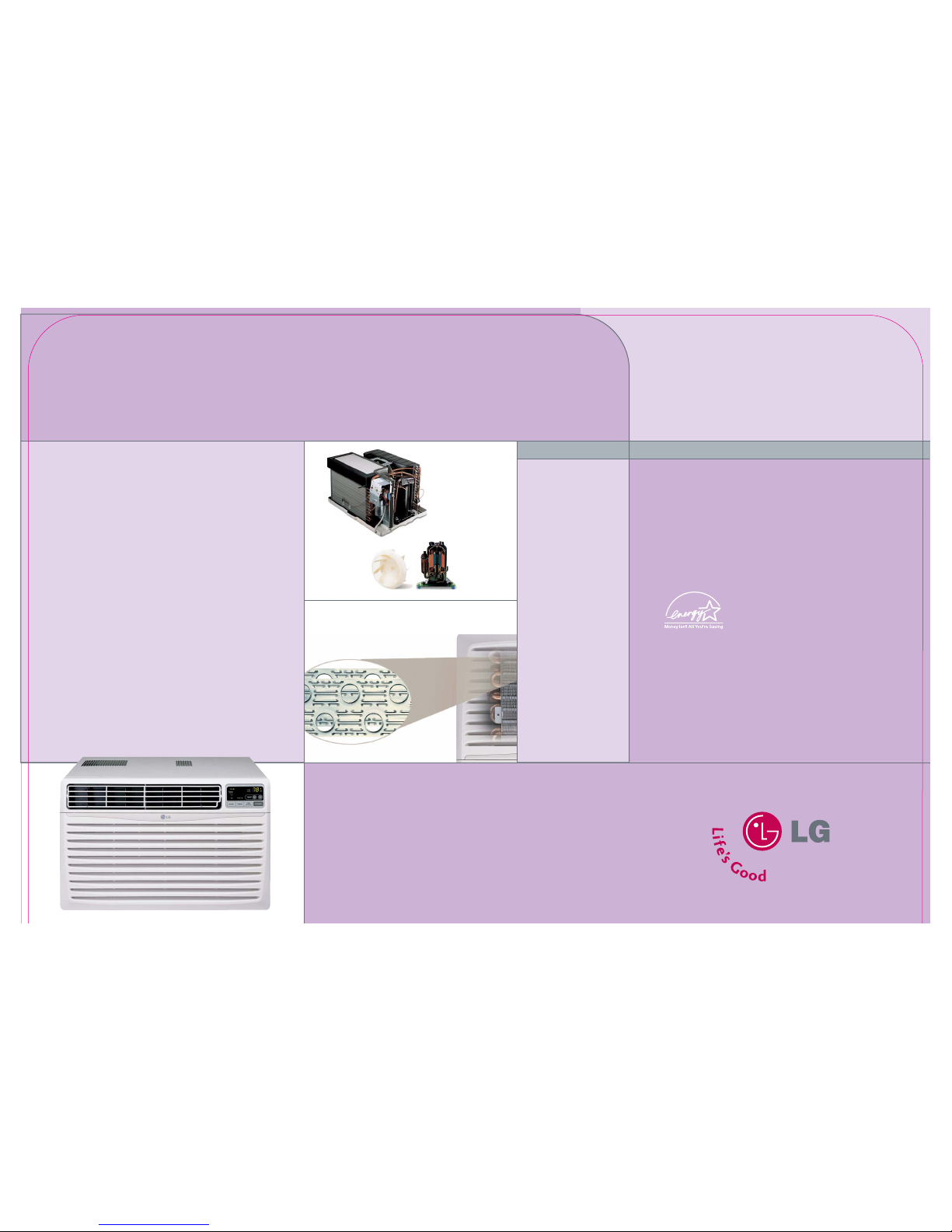

Start with the Compressor
This is the heart of any air conditioner. And LG is
proud to lead the world in the manufacture of
room air conditioner compressors. Its quality is
undisputed across the globe.
Unique PLASMA Heat Exchanger
LG patent PLASMA treated heat exchanger makes
all the difference in extending the life of your unit.
Our innovative PLASMA heat exchanger coating
prevents water from accumulating and blocking
the air flow, which can cause corrosion. The result
is a longer lasting, highly energy efficient and
far quieter air conditioner.
* Not all features on all models. Design and specifications subject to change without notice.
a history of innovation.
LG is leading the way with a complete line of models built to achieve High
EER ratings. Look for the Energy Saver Function and our comprehensive
line of Energy Star models.
High Efficiency
High Energy Efficient Ratings are a top priority for LG.
Energy efficient models require less energy to run,
meaning they cost you less to operate. Ask to view
our Energy Guide Labels.
Energy Star Models
Room air conditioners with the Energy Star
logo use at least 10% less energy
(models with louvered sides).
Energy Saver Function
Allows the fan and compressor to turn off when the
desired temperature setting is reached. The fan will
cycle on every 3 minutes to check that the thermostat
matches the desired temperature.
LoDecibel™ Quiet Operation
A great air conditioner should be felt, but not heard.
LG air conditioners are among the quietest available.
energy conservation matters to us all.
compressor
PLASMA heat exchanger

Remote Control
Every LG Standard, Deluxe and Premium
air conditioner comes with a remote
control that adjusts temperature, fan
speed, timer, mode and power.
One Touch Air Filter
Provides easy access to the air filter
by opening the grille. The filter can
be removed for easy cleaning.
4-Way Air Deflection
Take control of air direction vertically
and horizontally (8000 BTU and above).
Wide Air Discharge
Wide louvers allow for more cool air to
be discharged.
Electronic Controls
Easy to access and read buttons are located
on all electronic models.
Temperature Setting by 1°F
One degree increments from 60° to 86° F
provide precise temperature control.
Fan Speeds
Select the fan speed for various levels
of cooling.
12 Hour Timer
Program the air conditioner to turn on right
before you arrive home or turn off shortly
after you leave for added convenience and
energy efficiency.
Auto Restart
The summer is the most frequent time for
power failures due to high heat, storms and
increased electricity. Auto Restart will turn
the unit back on automatically when the
power returns.
Fresh Air Vent
Circulates outdoor air into the room
(8000 BTU and above).
LG air conditioners slide seamlessly
into your life. Remote controls allow you
to change settings without leaving
the sofa. Timers can be set to turn the
air conditioner on or off without
you even being home.
you’re in complete control.
* Not all features on all models. Design and specifications subject to change without notice.

We hope you’ve found the information in this booklet informative. But with
so many innovations and features, we realize that purchasing the
appropriate air conditioner can be more confusing than in years past. Which
is why we want to help you make the perfect decision for your specific needs.
Consider the following factors in selecting your unit, then match your needs to the units
shown on the following pages:
• Room size (refer to the chart on the opposite page)
• Window dimensions (refer to the specification chart)
• Your home’s electrical requirements (see the chart on the opposite page)
• Energy efficiency preferences
• Convenience features
• Home decor considerations
Window or wall, big or small, LG has the perfect
air conditioner to fit any room in your home.
To calculate a room’s area, multiply its length times its width
(Area = Length x Width). The chart below will show you the
BTUs necessary for that particular room.
Room Size Total Sq. Ft. BTUs Necessary
10’ x 15’ 150 up to 5200
10’ x 20’ 200 6000
13’ x 20’ 260 7000
17’ x 20’ 340 8000
18’ x 25’ 450 10000
22’ x 25’ 550 12000
25’ x 28’ 700 14000
25’ x 40’ 1000 18000
35’ x 40’ 1400 24000
Air conditioners require various
types of plugs in accordance
with voltage/current.
The chart below shows you
the right plug type for that
particular unit.
electrical requirements selection guide
* Not all features on all models. Design and specifications subject to change without notice.
which one is right for you?
115 Volt
15 Amp
230/208 Volt
15 Amp
230/208 Volt
20 Amp
230/208 Volt
30 Amp

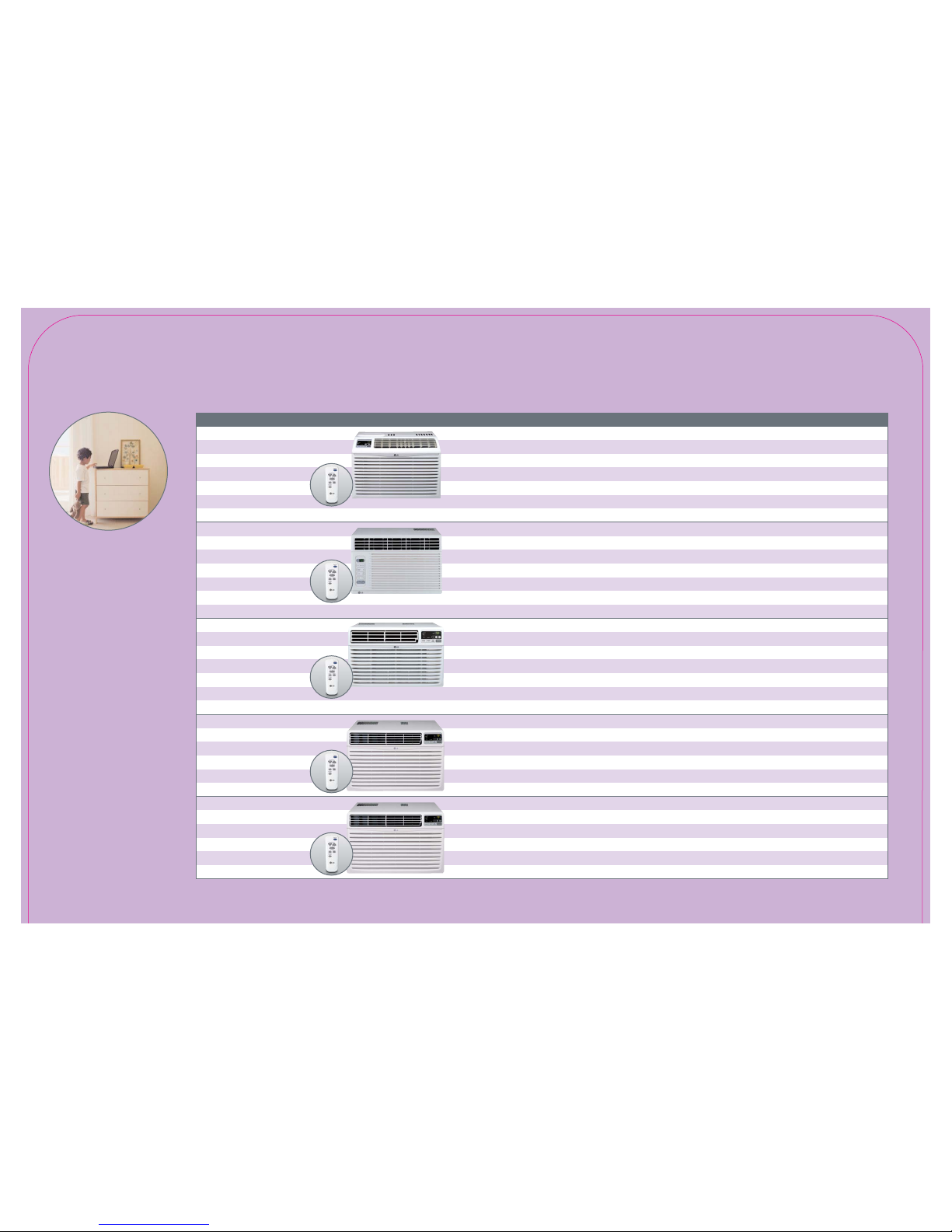

our standard line...
more than standard features.
models BTUs EER a perfect fit features
L5004R 5,050 9.7 Unit Size (H*W*D): 11 1/8" * 17 1/3" * 12 13/16" Compact size design
Weight: 40lbs Turbo Fan
Room Size: 10' * 15' 2-way Air Deflection
Window Width: 21"~35" Temperature Setting by 1 degree
Window Height (min.): 12" Digital Timer up to 12 hours
Remote Control
Auto Start
L6004R 6,000 9.7 Unit Size (H*W*D): 12 9/32" * 18 4/7" * 17 1/4" Turbo Fan
Weight: 48lbs 2-way Air Deflection
Room Size: 10' * 20' Temperature Setting by 1 degree
Window Width: 22"~36" One touch easy to clean air filter
Window Height (min.): 13" Digital Timer up to 12 hours
Remote Controls
Auto Restart
L8004R 8,000 9.8 Unit Size (H*W*D): 12 3/8" * 19 9/16" * 19 3/8" New Compact Design
L1004R 10,000 9.8 Weight (L8004R/L1004R): 63/68lbs 4-way Air Deflection
Room Size (L8004R/L1004R): 17' * 20'/18' *25' Turbo Fan
Window Width: 22"~36" Temperature Setting by 1 degree
Window Height (min): 13" Digital Timer up to 12 hours
Remote Control
Auto Start
L1204R 12,000 9.8 Unit Size (H*W*D): 14 31/32" * 23 5/8" * 22 1/16" 4-way Air Deflection
Weight: 79lbs Turbo Fan
Room Size: 22' * 25' Temperature Setting by 1 degree
Window Width: 27"~39" Digital Timer up to 12 hours
Window Height (min): 16" Remote Control
Auto Start
L1404R 14,000 9.8 Unit Size (H*W*D): 16 27/32" * 26" * 26 27/32" 4-way Air Deflection
L1804R 18,000 9.7 Weight (L1404R/1804R): 84/115lbs Turbo Fan
Room Size (L1404R/1804R): 25' * 28'/25' * 40' Temperature Setting by 1 degree
Window Width: 29"~41" Digital Timer up to 12 hours
Window Height (min):18" Remote Control
Auto Start
* Not all features on all models. Design and specifications subject to change without notice.

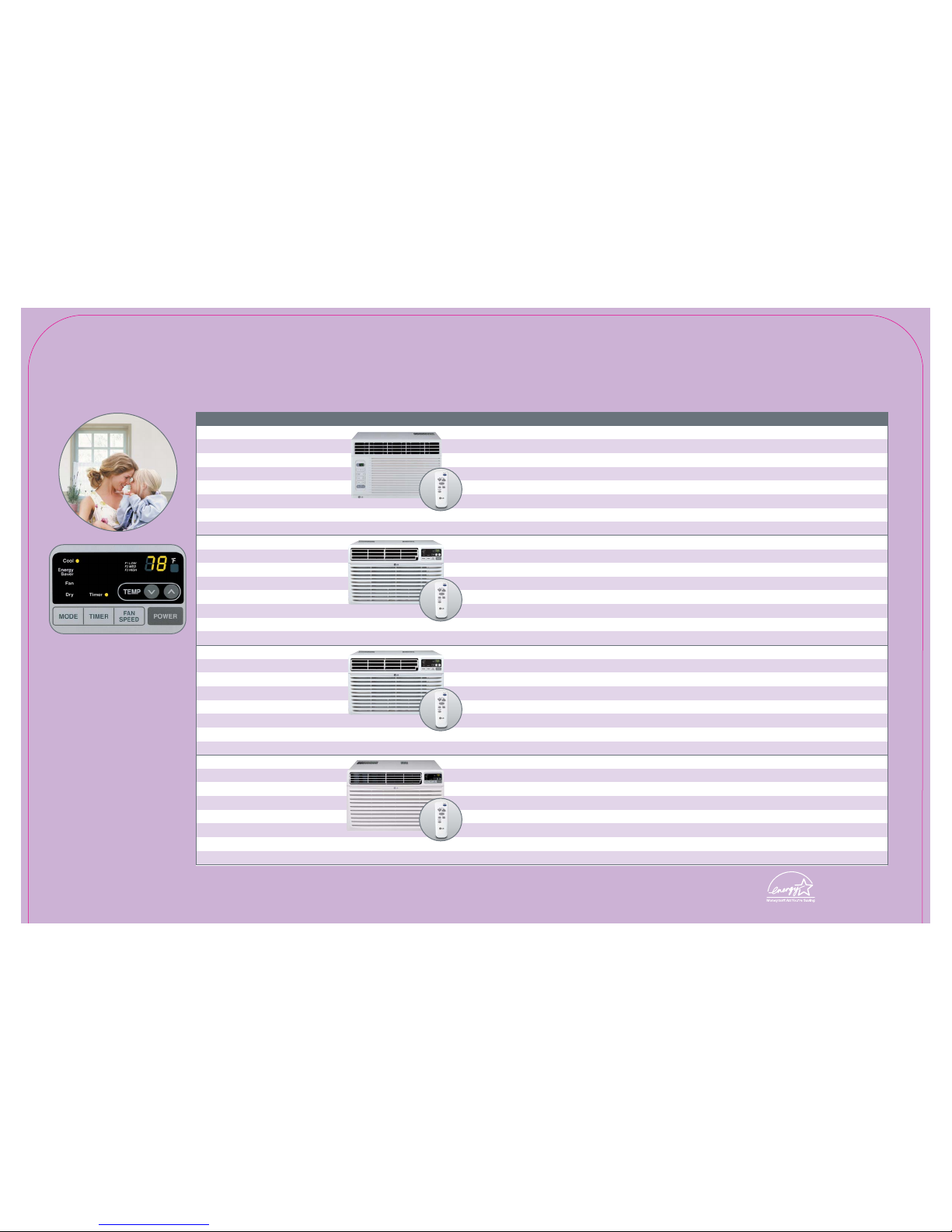

our deluxe line...
all with the energy star.
* Not all features on all models. Design and specifications subject to change without notice.
models BTUs EER a perfect fit features
LW5200ER 5,200 10.8 Unit Size (H*W*D): 12 9/32" * 18 4/7" * 17 1/4" PLASMA heat exchanger coating
Weight: 48lbs Energy Star rating
Room Size: 10'* 20' Temperature Setting by 1 degree
Window Width: 22"~36" Digital Timer up to 12 hours
Window Height (min.): 13" Energy Saver Function
2-way Air Deflection
Remote Control
Auto Restart
LW8000ER 8,000 10.8 Unit Size (H*W*D): 13 29/32" * 20 3/32" * 19 3/8" PLASMA heat exchanger coating
Weight: 62lbs Energy Star rating
Room Size: 17'* 20' Temperature Setting by 1 degree
Window Width: 27"~39" Digital Timer up to 12 hours
Window Height (min): 16" Energy Saver Function
4-way Air Deflection
Remote Control
Auto Restart
LW1000ER 10,000 10.8 Unit Size (H*W*D): 14 31/32" * 23 5/8" * 22 1/16" PLASMA heat exchanger coating
LW1200ER 12,000 10.8 Weight: (LW1000ER/LW1200ER): 77/79lbs Energy Star rating
Room Size (LW1000ER/LW1200ER): 18' *25'/22' *25' Temperature Setting by 1 degree
Window Width: 27"~39" Digital Timer up to 12 hours
Window Height (min): 16" Energy Saver Function
4-way Air Deflection
Remote Control
Auto Restart
LW1400ER 14,000 10.8 Unit Size (H*W*D): 16 27/32" * 26" * 26 27/32" PLASMA heat exchanger coating
LW1804ER 18,000 10.7 Weight: (LW1400ER/LW1804ER): TBD/115lbs Energy Star rating
Room Size (LW1400ER/LW1804ER): 25' *28'/25' *40' Temperature Setting by 1 degree
Window Width: 29"~41" Digital Timer up to 12 hours
Window Height (min): 18" Energy Saver Function
4-way Air Deflection
Remote Control
Auto Restart
*LW1804ER has digital
temperature display design

our premium line...
helps you keep a low profile.
models BTUs EER a perfect fit features
LP6000ER 6,000 10.7 Unit Size: Contemporary low profile contour design
Width (Indoor/Outdoor): 23 5/8" / 20 7/8" PLASMA heat exchanger coating
Height (Outdoor): 12" Energy Star rating
Depth: 18 1/32" Temperature Setting by 1 degree
Room Size: 10' * 20' 4-way Air Deflection
Window Size: Energy Saver Function
Width: 26" ~ 39 3/8" LCD Remote Control
Height (min): 12" Digital Timer up to 12 hours
Sleep Mode
Auto Restart
Built-in handles for easy installation
Expandable built-in window panels
LP7000R 7,000 9.7 Unit Size: Contemporary low profile contour design
Width (Indoor/Outdoor): 23 5/8" / 20 7/8" PLASMA heat exchanger coating
Height (Outdoor): 12" Temperature Setting by 1 degree
Depth: 18 1/32" 4-way Air Deflection
Room Size: 12' * 20' Energy Saver Function
Window Size: LCD Remote Control
Width: 26" ~ 39 3/8" Digital Timer up to 12 hours
Height (min): 12" Sleep Mode
Auto Restart
Built-in handles for easy installation
Expandable built-in window panels
* Not all features on all models. Design and specifications subject to change without notice.
Does your decor call for something different than the traditional box-
shaped unit? Leave it to the LG designers to create a completely new
and contemporary look. Our new low profile line will take up less of
your window, leaving you more of a view.
think outside the box.

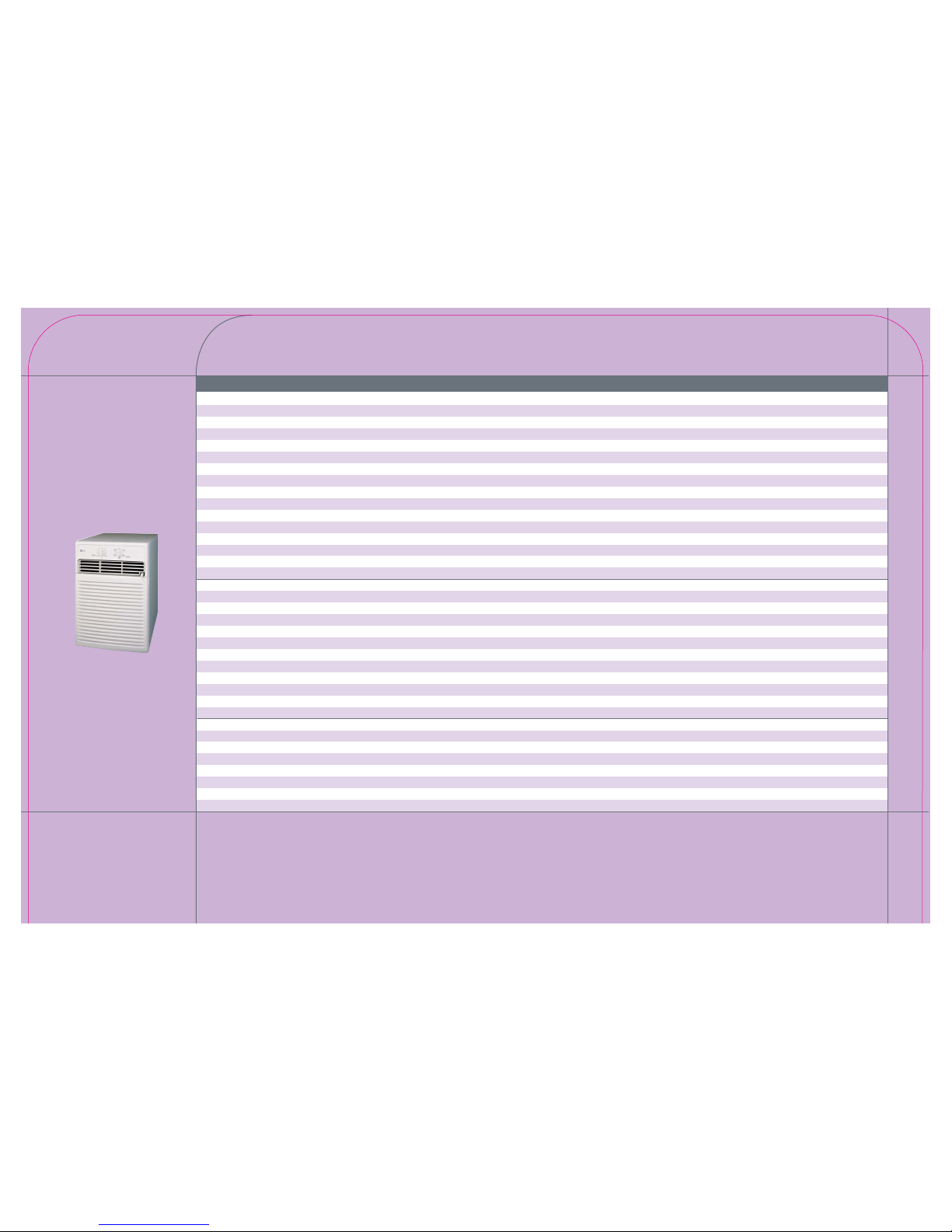

our specialized lines...
with through-the-wall and slider casement.
model BTUs EER voltage features
LT0810C 8,000 10.0 115V Compact Design for Existing Sleeves
LT1010C 10,000 9.5 Unit Size (H*W*D): 14 13/32" * 24 21/32" * 19 21/32"
LT1210C 11,700 9.5 Mechanical Controls
Wide Air Discharge (4-way Air Deflection)
LoDecibel™ Quiet Operation
2 Fan / 3 Cool Speed
One touch easy to clean air filter
Trim Kit included
LT1030C 10,000 9.5 230/208V Compact Design for Existing Sleeves
LT1230C 11,700 9.5 Unit Size (H*W*D): 14 13/32" * 24 21/32" * 19 21/32"
Mechanical Controls
Wide Air Discharge (4-way Air Deflection)
LoDecibel™ Quiet Operation
2 Fan/3 Cool Speed
One touch easy to clean air filter
Trim Kit included
TTW Sleeve added Through-The-Wall Sleeve Unit Size (H*W*D): 15 17/32" * 26" * 16 23/32"
AXSVB2 Folding type for space-saving
Easy to handle for installation
Rear grille included
LC6000 6,000 9.5 115V Slim Design for Sliding Casement Window
LC8000 8,000 9.5 Unit Size (H*W*D): 20 1/2" * 14 1/2" * 23 3/5"
LC1000 10,000 9.5 Mechanical Controls
LC1200 12,000 9.5 4-way Air Deflection
LoDecibel™ Quiet Operation
Wide Air Discharge
* Not all features on all models. Design and specifications subject to change without notice.

* Not all features on all models. Design and specifications subject to change without notice.
Standard Deluxe
Buyer Model L5004R L6004R L8004R L1004R L1204R L1404R L1804R LW5200ER LW8000ER LW1000ER LW1200ER LW1400ER LW1804ER LP6000ER LP7000R
performance
BTU performance (Cooling) 5050 6000 8000 10000 12000 13500 17500/18000 5200 8000 10000 12000 13500 7500/18000 6000 7000
BTU performance (Heating)
EER 9.7 9.7 9.8 9.8 9.8 9.8 9.7 10.8 10.8 10.8 10.8 10.8 10.7 10.7 9.7
ENERGY STAR •• • • • • •
COP Dehumid. (Pts/Hr) 1.4 1.5 2.3 3 3.6 TBD 5.5 1.4 2.2 2.7 3.2 TBD 5.6 1.3 1.9
COP Dry Air Flow (CFM) 140 152 210 240 280 TBD 371 140 215 247 311 371 371 194 212
electrical ratings
Voltage/60 Hz 115 115 115 115 115 115 208/230 115 115 115 115 115 208/230 115 115
Watts (Cooling) 530 620 820 1020 1220 TBD 1800/1850 480 750 910 1140 TBD 1620/1670 560 700
Rated Amps (Cooling) 4.9 5.8 6.6 7.6 11.0 TBD 9.0/8.3 4.4 6.8 8.4 10.2 TBD 8.0/7.5 5.2 6.5
features
Thermostat Control Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor Thermistor
Air Diflection 2-WAY 2-WAY 4-WAY 4-Way 4-WAY 4-WAY 4-WAY 2-WAY 4-WAY 4-WAY 4-WAY 4-WAY 4-WAY 4-WAY 4-WAY
Remote control • • • • • • • • • • • • • • •
Auto swing
Fan Speed: Cooling 2 2 3 3 3 3 3 2 3 3 3 3 3 3 3
Fan Only 2 2 3 3 3 3 3 2 3 3 3 3 3 3 3
Compressor ROTARY ROTARY Rotary Rotary ROTARY ROTARY ROTARY ROTARY ROTARY ROTARY ROTARY ROTARY ROTARY ROTARY ROTARY
In Door Fan Type Turbo Turbo Turbo Turbo Turbo Turbo Turbo Turbo Turbo Turbo Turbo Turbo Turbo Blower Blower
Type Air Discharge Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under Over/Under
Chassis Type Fixed Fixed Fixed Fixed SLIDE OUT SLIDE OUT SLIDE OUT Fixed SLIDE OUT SLIDE OUT SLIDE OUT SLIDE OUT SLIDE OUT Fixed Fixed
others
Carton
Height 13 1/8 " 15 3/16 " 15 3/8 " 15 3/8 " 18 7/16 " 18 7/16 " 20 29/32 " 15 3/16 " 18 1/8 " 18 7/16 " 18 7/16 " 20 29/32 " 20 29/32 " 15 3/16" 15 3/16"
Width 19 5/8 " 21 1/4 " 22 3/8 " 22 3/8 " 27 5/32 " 27 5/32 " 30 1/2 " 21 1/4 " 22 7/16 " 27 5/32 " 27 5/32 " 30 1/2 " 30 1/2 " 29 3/16" 29 3/16"
Depth 15 1/5 " 17 1/4 " 21 7/16 " 21 7/16 " 23 15/32 " 23 15/32 " 28 31/32 " 17 1/4 " 22 3/8 " 23 15/32 " 23 15/32 " 28 31/32 " 28 31/32 " 20 1/2" 20 1/2"
Dimension
Height 11 1/8 " 12 9/32 " 12 3/8 " 12 3/8 " 14 31/32 " 14 31/32 " 16 27/32 " 12 9/32 " 13 29/32 " 14 31/32 " 14 31/32 " 16 27/32 " 16 27/32 " 12" 12"
Width 17 1/3 " 18 4/7 " 19 9/16 " 9 9/16 " 23 5/8 " 23 5/8 " 26 " 18 9/16 " 20 3/32 " 23 5/8 " 23 5/8 " 26 " 26 " 20 7/8" 20 7/8"
Depth 12 13/16 " 17 1/4 " 19 3/8 " 19 3/8 " 22 1/16 " 22 1/16 " 26 27/32 " 14 9/16 " 19 3/8 " 22 1/16 " 22 1/16 " 26 27/32 26 27/32 " 1 8 1/32" 18 1/32"
Net Weight (lbs.) 40 48 63 68 79 84 115 48 62 77 79 TBD 115 55 57
Shipping Weight (lbs.) 44 52 67 52 86 91 121 52 67 86 88 TBD 86 62 64
Stuffing Quantity (40 ft.) 923 688 523 523 300 300 192 688 419 300 300 192 192 400 400
specifications
window and low profile.

Buyer Model Number LC6000 LC8000 LC1000 LC1200
performance specifications
BTU performance Cooling 6000 8000 10000 12000
EER 9.5 9.5 9.5 9.5
Volts/Hz 115/60 115/60 115/60 115/60
Amps - Cooling 5.8 7.8 9.6 11.5
Watts - Cooling 630 840 1050 1260
Air Flow (CFM @ High/Mid/Low) 170/150/130 200/180/160 280/250/220 280/250/220
Moisture Removal Capacity (Pts/Hr) 1.8 2.3 3.1 3.3
Noise dbA @ High/Low 50/47 52/49 54/51 54/51
features
Air Directions 4-way 4-way 4-way 4-way
Air Flow Discharge top top top top
Thermostat Control ••••
Compressor Type Rotary Rotary Rotary Rotary
Fan Speeds (cooling) 3 3 3 3
FanOnly 2222
general information
Prodcut Dimension
Width 14 1/2" 14 1/2" 14 1/2" 14 1/2"
Depth 23 3/5" 23 3/5" 23 3/5" 23 3/5"
Height 20 1/2" 20 1/2" 20 1/2" 20 1/2"
Shipping Dimension
Width 17 1/2" 17 1/2" 17 1/2" 17 1/2"
Depth 26" 26" 26" 26"
Height 22 1/16" 22 1/16" 22 1/16" 22 1/16"
Net Weight 57 66 77 79
Shipping Weight 71 83 93 95
Shipping Quantity (40FT) 300 300 300 300
installation information
Mounting or Installation Kit - Type/Describe Standard Mount Standard Mount Standard Mount Standard Mount
Minimum Windows Openning-Width 15 1/2" 15 1/2" 15 1/2" 15 1/2"
Maximum Windows Openning-Width 16 1/2" 16 1/2" 16 1/2" 16 1/2"
Minimum Windows Openning-Height 21 1/2" 21 1/2" 21 1/2" 21 1/2"
Maximum Windows Openning-Height 40 1/2" 40 1/2" 40 1/2" 40 1/2"
Slide Out Chassis
Installation Kit ••••
* Not all features on all models. Design and specifications subject to change without notice.
specifications
slider casement

2004 LGEUS MODEL LT8010C LT1010C LT1030C LT1210C LT1230C
performance
BTU performance (Cooling) 8000 10000 10000/9800 11700 11700/11400
EER 10.0 9.5 9.5 9.5 9.5
COP None None None None None
Dehumid. ( Pts/Hr) 2.2 3.2 3.2 3.8 3.8
Dry Air Flow (CFM) H/M/L 230/205/190 275/245/215 275/245/215 290/260/230 290/260/230
dBA Level (Indoor/Outdoor) 49/59 51/60 51/60 52/61 52/61
electrical ratings
Voltage/60 Hz 115 115 230/208 115 230/208
Watts (Cooling) 800 1050 1050/1030 1230 1230/1200
Rated Amps (Cooling) 7.5 9.8 4.7/5.2 11.5 5.8/6.2
features
Control Type MECHANICAL MECHANICAL MECHANICAL MECHANICAL MECHANICAL
Thermostat Control • • • • •
Air Deflection 4-WAY 4-WAY 4-WAY 4-WAY 4-WAY
Remote control No No No No No
Fan Speed:
Cooling (Heating) 3 3 3 3 3
Fan Only 2 2 2 2 2
Compressor ROTARY ROTARY ROTARY ROTARY ROTARY
Type Air Discharge Over/Under Over/Under Over/Under Over/Under Over/Under
Chassis Type Fixed Fixed Fixed Fixed Fixed
Trim Kit • • • • •
Accessory Kit for Sealing • • • • •
others
Carton
Height 17 23/32" 17 23/32" 17 23/32" 17 23/32" 17 23/32"
Width 27 23/32" 27 23/32" 27 23/32" 27 23/32" 27 23/32"
Depth 22 15/32" 22 15/32" 22 15/32" 22 15/32" 22 15/32"
Dimension
Height 14 13/32" 14 13/32" 14 13/32" 14 13/32" 14 13/32"
Width 24 21/32" 24 21/32" 24 21/32" 24 21/32" 24 21/32"
Depth with front grille 19 21/32" 19 21/32" 19 21/32" 19 21/32" 19 21/32"
Net Weight (lbs.) 72 79 80 80 80
Shippling Weight (lbs.) 79 86 86 87 87
Stuffing Quantity (40 ft) 339 339 339 339 339
Sleeve* (Optional, not included)
Height 15 17/32" 15 17/32" 15 17/32" 15 17/32" 15 17/32"
Width 26" 26" 26" 26" 26"
Depth 16 23/32" 16 23/32" 16 23/32" 16 23/32" 16 23/32"
* Not all features on all models. Design and specifications subject to change without notice.
through-the-wall
specifications
