LG UU09W User manual

P/NO : MFL68907813
INSTALLATION MANUAL
AIR
CONDITIONER
www.lg.com
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it thoroughly.
Ɠ This product contains Fluorinated Greenhouse Gases. (R410A)
[ Representative ] LG Electronics Inc. EU Representative : LG Electronics European Shared Service Center B.V.
Krijgsman 1, 1186 DM Amstelveen, The Netherlands
[ Manufacturer ] LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro, Seongsan-gu, Changwon-si,
Gyeongsangnam-do, KOREA
Single Inverter Outdoor Unit
Original instruction
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
ΕΛΛΗΝΙΚΆ
ČEŠTINA
NEDERLANDS
POLSKI
LIMBA ROMÂNĂ
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 1

2TIPS FOR SAVING ENERGY
ENGLISH
• Excessive cooling may be harmful to your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air condition-
er is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them labeled on the side of each unit.
Dealer’s name :
Date of purchase :
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
TIPS FOR SAVING ENERGY
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 2

IMPORTANT SAFETY INSTRUCTIONS 3
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous
situations and ensure peak performance of your product
WARNING
Serious injury or death can result if directions are ignores.
CAUTION
Minor injury or product damage can result if directions are ignored.
WARNING
• Installation or repairs made by unqualified persons can result in
hazards to you and others.
Refrigeration work must be performed by a qualified person who
is "F-Gas" registered.
• Installation work must be performed in accordance with the
National Electric Code by qualified and authorized personnel only.
• The information contained in the manual is intended for use by a
qualified service technician familiar with safety procedures and
equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual
can result in equipment malfunction, property damage, personal
injury and/or death.
Installation
• Do not use a defective or underrated circuit breaker. Use the cor-
rectly rated breaker and fuse. There is risk of fire or electric
shock.
• For electrical work, contact the dealer, seller, a qualified electri-
cian, or an Authorized Service Center. Do not disassemble or
repair the product by yourself. There is risk of fire or electric
shock.
• Always ground the product as per the wiring diagram. Do not
connect the ground wire to gas or water pipes lightening rod or
telephone ground wire. There is risk of fire or electric shock.
• Install the panel and the cover of control box securely. There is
risk of fire or electric shock due to dust , water etc.
• Use the correctly rated breaker or fuse. There is risk of fire or
electric shock.
!
!
!
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 3

4IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Do not modify or extend the power cable. If power cable is dam-
aged or has deteriorated, then it must be replaced. There is risk
of fire or electric shock.
• For installation, removal or reinstall , always contact the dealer or
an Authorized Service Center. There is risk of fire, electric shock,
explosion, or injury.
• Do not install the product on a defective installation stand. Be
sure that the installation area does not deteriorate with age. It
may cause product to fall.
• Never install the outdoor unit on a moving base or a place from
where it can fall down.
The falling outdoor unit can cause damage or injury or even death
of a person.
• In outdoor unit the step-up capacitor supplies high voltage elec-
tricity to the electrical components. Be sure to discharge the
capacitor completely before conducting the repair work.
A charged capacitor can cause electrical shock.
• When installing the unit, use the installation kit provided with the
product. Otherwise the unit may fall and cause severe injury.
• Indoor/outdoor wiring connections must be secured tightly and
the cable should be routed properly so that there is no force
pulling the cable from the connection terminals. Improper or
loose connections can cause heat generation or fire.
• Safely dispose off the packing materials. Like screws, nails, bat-
teries, broken things etc after installation or svc and then tear
away and throw away the plastic packaging bags. Children may
play with them and cause injury.
• Be sure to check the refrigerant to be used. Please read the label
on the product. Incorrect refrigerant used can prevent the normal
operation of the unit.
•
Do not turn on the breaker or power under condition that front panel,
cabinet, top cover, control box cover are removed or opened.
Otherwise, it may cause fire, electric shock, explosion or death.
• Use a vacuum pump or Inert (nitrogen) gas when doing leakage test
or air purge. Do not compress air or Oxygen and do not use
Flammable gases. Otherwise, it may cause fire or explosion.
- There is the risk of death, injury, fire or explosion.
Operation
• When the product is soaked (flooded or submerged) in water ,
contact an Authorized Service Center for repair before using it
again. There is risk of fire or eletric shock.
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 4

IMPORTANT SAFETY INSTRUCTIONS 5
ENGLISH
• Be sure to use only those parts which are listed in the svc parts
list. Never attempt to modify the equipment. The use of inappropri-
ate parts can cause an electrical shock, excessive heat generation or
fire.
• Do not touch , operate, or repair the product with wet hands.
Hold the plug by hand when taking it out. There is risk of electric
shock or fire.
• Do not place a heater or other heating appliances near the power
cable. There is risk of fire and electric shock.
• Do not allow water to run into electric parts. Install the unit away
from water sources. There is risk of fire, failure of the product, or
electric shock.
• Do not store or use or even allow flammable gas or combustibles
near the product. There is risk of fire.
• Do not use the product in a tightly closed space for a long time.
Perform ventilation regularly. Oxygen deficiency could occur and
hence harm your health.
• Do not open the front grille of the product during operation. (Do
not touch the electrostatic filter, if the unit is so equipped.) There
is risk of physical injury, electric shock, or product failure.
• If strange sound, smell or smoke comes from product.
Immediately turn the breaker off or disconnect the power supply
cable. There is risk of electric shock or fire.
• Ventilate the product room from time to time when operating it
together with a stove, or heating element etc. Oxygen deficiency
can occur and hence harm your health.
• When the product is not to be used for a long time, disconnect
the power supply plug or turn off the breaker. There is risk of
product damage or failure, or unintended operation.
• Take care to ensure that nobody especially kids could step on or
fall onto the outdoor unit. This could result in personal injury and
product damage.
• Take care to ensure that power cable could not be pulled out or
damaged during operation. There is risk of fire or electric shock.
• Do not place ANYTHING on the power cable. There is risk of fire
or electric shock.
• When flammable gas leaks, turn off the gas and open a window
for ventilation before turning on the product. Do not use the tele-
phone or turn switches on or off. There is risk of explosion or fire.
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 5

6IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
CAUTION
Installation
• Two or more people must lift and transport the product. Avoid
personal injury.
• Do not install the product where it will be exposed to sea wind
(salt spray) directly. It may cause corrosion on the product.
• Install the drain hose to ensure that the condensed water is
drained away properly. A bad connection may cause water leak-
age.
• Keep level even when installing the product. To avoid vibration or
noise.
• Do not install the product where the noise or hot air from the out-
door unit could damage or disturb the neighborhoods. It may
cause a problem for your neighbors and hence dispute.
• Always check for gas (refrigerant) leakage after installation or
repair of product. Low refrigerant levels may cause failure of
product.
• Please install safely at a place that can sufficiently endure the
weight of the product.
If the strength is not sufficient, the product may fall and cause
injury.
Operation
• Do not use the product for special purposes, such as preserving
foods, works of art, etc. It is a consumer air conditioner, not a
precision refrigeration system. There is risk of damage or loss of
property.
• Do not block the inlet or outlet of air flow. It may cause product
failure.
• Use a soft cloth to clean. Do not use harsh detergents, solvents
or splashing water etc. There is risk of fire, electric shock, or
damage to the plastic parts of the product.
• Do not touch the metal parts of the product when removing the
air filter. There is risk of personal injury.
• Do not step on or put anyting on the product. (outdoor units)
There is risk of personal injury and failure of product.
• Always insert the filter securely after cleaning. Clean the filter
every two weeks or more often if necessary. A dirty filter
reduces the efficiency.
!
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 6

IMPORTANT SAFETY INSTRUCTIONS 7
ENGLISH
• Do not insert hands or other objects through the air inlet or outlet
while the product is operating. There are sharp and moving parts
that could cause personal injury.
• Be cautious when unpacking and installing the product. Sharp
edges could cause injury.
• If the refrigerant gas leaks during repair, do not touch the leaking
refrigerant gas. The refrigerant gas can cause frostbite (cold
burn).
• Do not tilt the unit when removing or uninstalling it. The con-
densed water inside can spill.
• Do not mix air or gas other than the specified refrigerant used in
the system. If air enters the refrigerant system, an excessively
high pressure results, causing equipment damage or injury.
• If the refrigerant gas leaks during the installation, ventilate the
area immediately. Otherwise it can be harmfull for your health.
• Dismantling the unit, treatment of the refrigerant oil and eventual
parts should be done in accordance with local and national stan-
dards.
• Replace all batteries in the remote control with new ones of the
same type. Do not mix old and new batteries or different types of
batteries. There is risk of fire or product failure.
• Do not recharge or disassemble the batteries. Do not dispose off
batteries in a fire. They may burn or explode.
• If the liquid from the batteries gets onto your skin or clothes,
wash it well with clean water. Do not use the remote if the bat-
teries have leaked. The chemicals in batteries could cause burns
or other health hazards.
• If you eat the liquid from the batteries, brush your teeth and see
doctor. Do not use the remote if the batteries have leaked.
The chemicals in batteries could cause burns or other health haz-
ards.
• Do not let the air conditioner run for a long time when the humid-
ity is very high and a door or a window is left open. Moisture may
condense and wet or damage furniture.
• Do not expose your skin or kids or plants to the cool or hot air
draft. This could harm to your health.
• Do not drink the water drained from the product. It is not sanitary
and could cause serious health issues.
• Use a firm stool or ladder when cleaning, maintaining or repairing
the product at height. Be careful and avoid personal injury.
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 7

8TABLE OF CONTENTS
ENGLISH
2TIPS FOR SAVING ENER-
GY
3IMPORTANT SAFETY
INSTRUCTIONS
9INSTALLATION
10 INSTALLATION OF OUT-
DOOR UNIT
11 CONNECTING PIPES
11 Preparation of Piping
12 Connection of piping - Outdoor
13 Forming the piping
14 WIRING CONNECTION
14 Electrical Wiring
14 Connecting Cables between Indoor Unit
and Outdoor Unit
16 Connecting the cable to Outdoor Unit
17 LEAKAGE TEST AND
EVACUATION
17 Preparation
17 Leakage test
18 Evacuation
19 TEST RUNNING
21 INSTALLATION PI485
22 FUNCTION
22 Dip S/W Setting
(UU09W/UU12W/UU18W/UU24W
/UU30W)
23 Forced Cooling Operation
24 Saving Power Consumption
24 Night Quiet Mode
25 Mode Lock
26 INSTALLATION GUIDE AT
THE SEASIDE
26 SEASONAL WIND AND
CAUTIONS IN WINTER
TABLE OF CONTENTS
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 8

INSTALLATION 9
ENGLISH
more than
30cm more than
30cm
Figure FigureName
Screw driver
Electric drill
Measuring tape, Knife
Hole core drill
Spanner
Torque wrench
Multi-meter
Hexagonal wrench
Ammeter
Gas-leak detector
Thermometer,
Level
Flaring tool set
Name
Installation Tools
INSTALLATION
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 9

10 INSTALLATION OF INDOOR, OUTDOOR UNIT
ENGLISH
You need to select adequate installation location considering the following conditions, and make
sure to acquire the consent of the user.
- Select a place that has no direct impact of snow or rain
- Select a place with no danger of snowfall or icicle drop
- Select a place without weak floor or base such as decrepit part of the building or with a lot of
snow accumulation
- Install at a place with fluent water draining to prevent damage from localized heavy rain and
avoid frequent flooded area.
• Single Operation
If installed tube is shorter than 7.5 m,
additional charging is not necessary.
Additional Refrigerant
= [A-7.5 (m)] x Additional refrigerant (g/m)
INSTALLATION OF OUTDOOR UNIT
More than
300mm
Fence or
obstacles
More than 700mm
More than 600mm
More than
More than
300mm
300mm
More than
300mm
Sunroof
Outdoor unit
Indoor unit
A
B
Outdoor unit
Indoor unit
A
B
Model Pipe Size mm(inch) Length A(m) Elevation B(m) Additional refrigerant
(g/m)
Gas Liquid Standard Max. Standard Max.
UU09W Ø9.52 (3/8) Ø6.35 (1/4) 7.5 20 5 15 20
UU12W Ø9.52 (3/8) Ø6.35 (1/4) 7.5 20 5 15 20
UU18WE Ø12.7 (1/2) Ø6.35 (1/4) 7.5 25 5 15 20
UU18W Ø12.7 (1/2) Ø6.35 (1/4) 7.5 30 5 30 20
UU24WE Ø15.88 (5/8) Ø9.52 (3/8) 7.5 30 5 15 40
UU24W Ø15.88 (5/8) Ø9.52 (3/8) 7.5 50 5 30 40
UU30W Ø15.88 (5/8) Ø9.52 (3/8) 7.5 50 5 30 40
Installation Places
Piping length and the elevation
- If an awning is built over the unit to prevent direct
sunlight or rain exposure, make sure that heat radi-
ation from the condenser is not restricted.
- Ensure that the spaces indicated by arrows around
front, back and side of the unit are respected.
- Do not place animals and plants in the path of the
warm air.
- Take the air conditioner weight into account and
select a place where noise and vibration are mini-
mum.
- Select a place so that the warm air and noise from
the air conditioner do not disturb neighbors.
- Select a place that can sufficiently endure the
weight and vibration of the outdoor unit and where
even installation is possible.
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 10

CONNECTING PIPESINSTALLATION OF INDOOR, OUTDOOR UNIT 11
ENGLISH
Main cause of gas leakage is defect in flaring work. Carry out correct flaring work in the following
procedure.
Cut the pipes and the cable.
- Use the accessory piping kit or the pipes pur-
chased locally.
- Measure the distance between the indoor
and the outdoor unit.
- Cut the pipes a little longer than measured
distance.
- Cut the cable 1.5m longer than the pipe
length.
Burrs removal
- Completely remove all burrs from the cut
cross section of pipe/tube.
- Put the end of the copper tube/pipe to down-
ward direction as you remove burrs in order
to avoid to let burrs drop in the tubing.
Putting nut on
- Remove flare nuts attached to indoor and
outdoor units, than put them on pipe/tube
having completed burr removal.
(Not possible to put them on after flaring
work)
Flaring work
- Carry out flaring work using dedicated flaring
tool for R-410A as shown below.
Firmly hold copper tube in a bar(or clamp) as
indicated dimension in the table above.
Check
- Compare the flared work with figure below.
- If flare is noted to be defective, cut off the
flared section and do flaring work again.
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"
Inclined
Inside is shining without scratches.
Smooth all round
Even length
all round
Surface
damaged Cracked Uneven thickness
= Improper flaring =
Flare nut
Copper tube
Pipe
Reamer
Point down
Copper
tube 90° Slanted Uneven Rough
Preparation of Piping
Outside diameter "A"
mm inch mm
Ø6.35 1/4 1.1~1.3
Ø9.52 3/8 1.5~1.7
Ø12.7 1/2 1.6~1.8
Ø15.88 5/8 1.6~1.8
CONNECTING PIPES
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 11

12 CONNECTING PIPES
ENGLISH
Connection of piping -
Outdoor
- Align the center of the piping and sufficiently
tighten the flare nut by hand.
- Finally, tighten the flare nut with torque
wrench until the wrench clicks.
When tightening the flare nut with torque
wrench ensure the direction for tightening
follows the arrow on the wrench.
* When tighten the pipe, hold the haxagonal
body.
- When connecting in a downward direction,
knock out the knock-out hole of the base
pan. (refer to figure 2)
Preventing foreign objects from entering
(Figure3)
- Plug the pipe through-holes with putty or
insulation material(procured locally)to stop up
all gaps,as shown in the figure 3.
Continuous
TorqueTorque
wrenchwrench
(250mm)(250mm)
Torque
wrench
(250mm)
Torque
wrench
(250mm)
Torque wrench
Outdoor unit
Gas side piping
(Bigger Dia.)
Liquid side piping
(Smaller Dia.)
Tubing Cover
Knock-out Base pan
<Figure 2>
Gas side piping
Liquid side piping
Drain hose
Connecting wire
Connection pipe
<Figure 3>
Resin, Clay, Putty or insulating material
(produced locally)
Insects or small animals entering the out-
door unit may cause a short circuit in the
electrical box.
CAUTION
!
Outside diameter Torque
mm inch kg·m
Ø6.35 1/4 1.8~2.5
Ø9.52 3/8 3.4~4.2
Ø12.7 1/2 5.5~6.6
Ø15.88 5/8 6.6~8.2
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 12

CONNECTING PIPES 13
ENGLISH

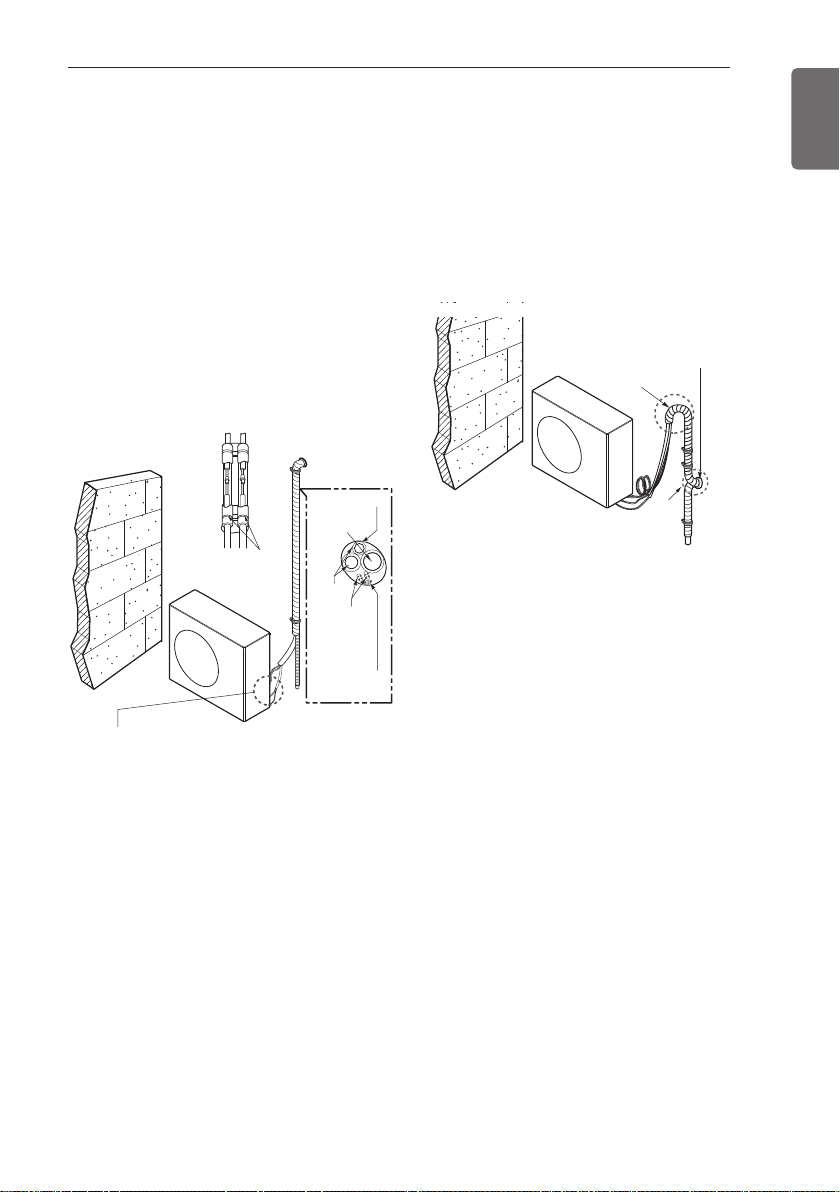

Forming the piping
Form the piping by wrapping the connecting
portion of the indoor unit with insulation mate-
rial and secure it with two kinds of vinyl tape.
- If you want to connect an additional drain
hose, the end of the drain outlet should be
routed above the ground. Secure the drain
hose appropriately.
In cases where the outdoor unit is installed
below the indoor unit perform the following.
1Tape the piping, drain hose and connecting
cable from down to up.
2Secure the tapped piping along the exterior
wall using saddle or equivalent.
In cases where the Outdoor unit is installed
above the Indoor unit perform the following.
1Tape the piping and connecting cable from
down to up.
2Secure the taped piping along the exterior
wall. Form a trap to prevent water entering
the room.
3Fix the piping onto the wall by saddle or
equivalent.
Trap
Plastic
band
Seal a small
opening around
the pipings with
gum type sealer.
TrapTrapTrap
Seal a small openingSeal a small opening
around the pipingsaround the pipings
with gum type sealer.with gum type sealer.
Seal a small opening
around the pipings
with gum type sealant.
OUTDOOR
UNIT
OUTDOOROUTDOOR
UNITUNIT
OUTDOOR
UNIT
• Trap is required to prevent water from
entering into electrical parts.
Taping
Drain hose
Pipings
Connecting
cable
Power supply
cord
PlasticPlastic
bandband
Plastic
band
Seal a smallSeal a small
opening aroundopening around
the pipings withthe pipings with
gum type sealer.gum type sealer.
Seal a small
opening around
the pipings with
gum type sealant.
Trap
Seal a small opening
around the pipings
with gum type sealer.
OUTDOOROUTDOOR
UNITUNIT
OUTDOOR
UNIT
OUTDOOR
UNIT
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 13

14 WIRING CONNECTION
ENGLISH
Connecting Cables between Indoor Unit and Outdoor Unit
- Connect the wires to the terminals on the control board individually according to the outdoor
unit connection.
- Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of
indoor unit respectively
Outdoor
Indoor
Main
power source Switch box
ELCB
Model Phase(Ø) ELCB
UU09W 1 15A
UU12W 1 15A
UU18WE 1 15A
UU18W 1 20A
UU24WE 1 20A
UU24W 1 25A
UU30W 1 25A
1(L) 2(N) 1(L) 2(N) 31(L) 2(N) 1(L) 2(N) 3
POWER SUPPLY TO INDOOR UNITPOWER SUPPLY TO INDOOR UNIT
UU09W/UU12W
UU18W/UU18WE/UU24WE
UU24W/UU30W
Electrical Wiring
Perform the electrical wiring work according
to the electrical wiring connection.
- All wiring must comply with local require-
ments.
- Select a power source that is capable of sup-
plying the current required by the air condi-
tioner.
- Use a recognized ELCB(Electric Leakage
Circuit Breaker) between the power source
and the unit. A disconnection device to ade-
quately disconnect all supply lines must be
fitted.
- Model of circuit breaker recommended by
authorized personnel only
WIRING CONNECTION
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 14

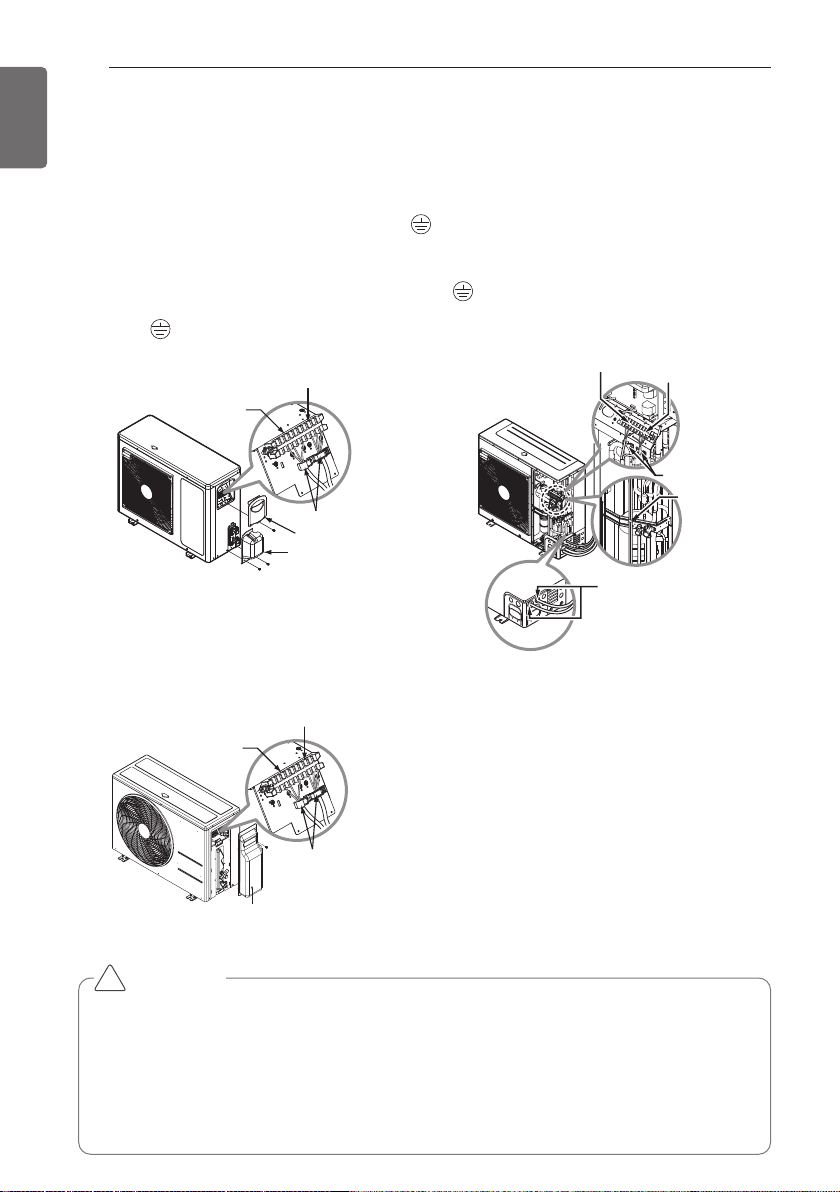

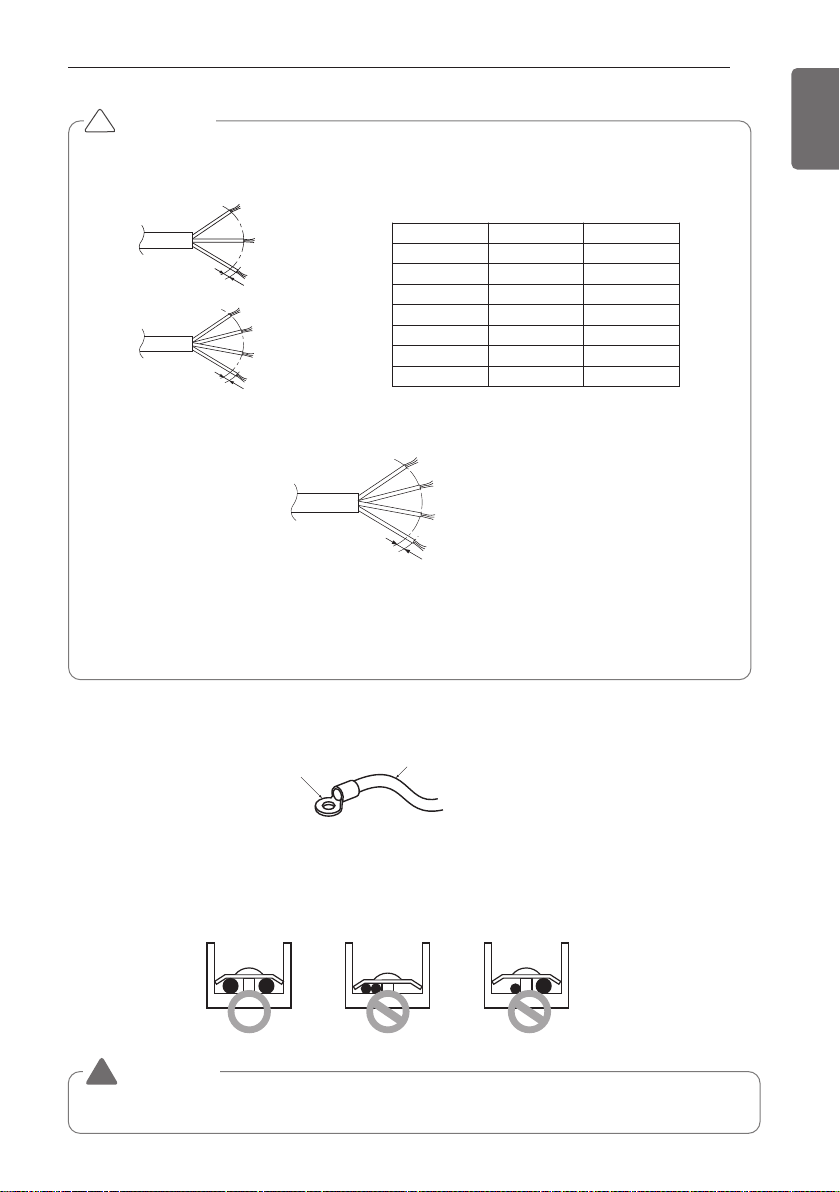

WIRING CONNECTION 15
ENGLISH
CAUTION
!
The power cord connected to the outdoor unit should comply to IEC 60245 or HD 22.4 S4
(This equipment shall be provided with a cord set complying with the national regulation.)
GN/YL
1 Phase(Ø)
20mm
3 Phase(Ø)
20mm
GN/YL
Model Phase(Ø) Area(mm2)
UU09W 1 2.5
UU12W 1 2.5
UU18WE 1 2.5
UU18W 1 2.5
UU24WE 1 2.5
UU24W 1 2.5
UU30W 1 2.5
NORMAL CROSS-SECTIONAL AREA
The connecting cable connected to the outdoor unit should comply to IEC 60245 or HD
22.4 S4 (This equipment shall be provided with a cord set complying with the national reg-
ulation.)
20mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA 0.75mm
2
When the connection line between the indoor unit and outdooor unit is over 40m, connect
the telecommunication line and power line separately.
If the supply cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer of its service agent.
Precautions when laying power wiring
Use round pressure terminals for connections to the power terminal block.
Round pressure terminal Power wire
When none are available, follow the instructions below.
- Do not connect wiring of different thicknesses to the power terminal block. (Slack in the power
wiring may cause abnormal heat.)
- When connecting wiring which is the same thickness, do as shown in the figure below.
WARNING
Make sure that the screws of the terminal are free from looseness.
!
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 15

16 WIRING CONNECTION
ENGLISH
Connecting the cable to Outdoor Unit
Remove the side panel for wiring connection.
Use the cord clamp to fix the cord.
Earthing work
- Case 1 : Terminal block of Outdoor Unit have mark.
Connect the cable of diameter 1.6mm2or more to the earthing terminal provided in the
control box and do earthing.
- Case 2 : Terminal block of Outdoor Unit don't have mark.
Connect the cable of diameter 1.6mm2or more, to the panel of control box, marked as
and fasten with earth screw
CAUTION
!
• The circuit diagram is not subject to change without notice.
• Be sure to connect wires according to the wiring diagram.
• Connect the wires firmly, so that They won’t be pulled out easily.
• Connect the wires according to color codes by referring the wiring diagram.
• The Power cord connected to the unit should be selected according to the specifications
on 13 page.
* Make sure the rubber
bushes are Properly
used in knock-out holes
after connecting main
Power cable
Connecting
cable terminal
Power cord
terminal
Cord clamp
Cord clamp
Cover control
Tubing Cover
Connecting cable
terminal
Power cord
terminal
Cord clamp
Tubing Cover
Connecting cable
terminal
Power cord
terminal
Cord clamp
UU18W/UU18WE/UU24WE UU24W/UU30W
UU09W/UU12W
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 16

LEAKAGE TEST AND EVACUATION 17
ENGLISH
Air and moisture remaining in the refrigerant system have undesirable effects as indicated below.
- Pressure in the system rises.
- Operating current rises.
- Cooling (or heating) efficiency drops.
- Moisture in the refrigerant circuit may freeze and block capillary tubing.
- Water may lead to corrosion of parts in the refrigeration system.
Therefore, the indoor/outdoor unit and connecting tube must be checked for leak tight, and vacu-
umed to remove incondensible gas and moisture in the system.
Preparation
- Check that each tube (both liquid and gas side tubes) between the indoor and outdoor units
have been properly connected and all wiring for the test run have been completed. Remove the
service valve caps from both the gas and the liquid side on the outdoor unit. Check that both the
liquid and the gas side service valves on the outdoor unit are kept closed at this stage.
Leakage test
- Connect the manifold valve (with pressure gauges) and dry nitrogen gas cylinder to this service
port with charge hoses.
- Pressurize the system to no more than 3.8 MPa with dry nitrogen gas and close the cylinder
valve when the gauge reading reached 3.8 MPa Next, test for leaks with liquid soap.
CAUTION
Be sure to use a manifold valve for leakage test. If it is not available, use a stop valve for this
purpose. The "Hi" knob of the manifold valve must always be kept close.
!
CAUTION
To avoid nitrogen entering the refrigerant system in a liquid state, the top of the cylinder must
be higher than its bottom when you pressurize the system. Usually, the cylinder is used in a ver-
tical standing position.
!
LEAKAGE TEST AND EVACUATION
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 17

18 LEAKAGE TEST AND EVACUATION
ENGLISH
Evacuation
- Connect the charge hose end described in the
preceding steps to the vacuum pump to evac-
uate the tubing and indoor unit. Confirm the
"Lo and Hi" knob of the manifold valve is open.
Then, run the vacuum pump. The operation
time for evacuation varies with tubing length
and capacity of the pump. The following table
shows the time required for evacuation.
- When the desired vacuum is reached, close
the "Lo and Hi" knob of the manifold valve
and stop the vacuum pump.
Finishing the job
- With a service valve wrench, turn the valve
stem of liquid side valve counter-clockwise
to fully open the valve.
- Turn the valve stem of gas side valve count-
er-clockwise to fully open the valve.
- Loosen the charge hose connected to the
gas side service port slightly to release the
pressure, then remove the hose.
- Replace the flare nut and its bonnet on the
gas side service port and fasten the flare nut
securely with an adjustable wrench. This
process is very important to prevent leakage
from the system.
- Replace the valve caps at both gas and liquid
side service valves and fasten them tight.
This completes air purging with a vacuum
pump.
The air conditioner is now ready to test run.
1Do a leakage test of all joints of the tubing
(both Indoor unit and outdoor unit) and
both gas and liquid side service valves.
Bubbles indicate a leak. Be sure to wipe
off the soap with a clean cloth.
2After the system is found to be free of
leaks, relieve the nitrogen pressure by
loosening the charge hose connector at
the nitrogen cylinder. When the system
pressure is reduced to normal, disconnect
the hose from the cylinder.
Charge hose
Indoor unit
Outdoor unit
Manifold valve Pressure
gauge
Nitrogen gas
cylinder (in vertical
standing position)
Lo Hi
Indoor unit
Outdoor unit
Manifold valve
Vacuum pump
Open Open
Pressure
gauge
Lo Hi
Required time for evacuation when 11.36 l/h
vacuum pump is used
If tubing length is less
than 10 m (33 ft)
If tubing length is
longer than 10 m (33 ft)
30 min. or more 60 min. or more
0.07 kPa or less
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 18

TEST RUNNING 19
ENGLISH
1Precautions In Test Running
- The initial power supply must provide at least 90% of the rated voltage.
Otherwise, the air conditioner should not be operated.
CHECK THE FOLLOWING ITEMS WHEN INSTALLATION IS COMPLETE
- After completing work, be sure to measure and record trial run properties, and store measured
data, etc.
- Measuring items are room temperature, outside temperature, suction temperature, blow out
temperature, wind velocity, wind volume, voltage, current, presence of abnormal vibration and
noise, operating pressure, piping temperature, compressive pressure.
- As to the structure and appearance, check following items.
- The test run is started by pressing the room temperature checking button and down timer
button for 3 seconds at the same time.
- To cancel the test run, press any button.
CAUTION
• For test run, carry out the cooling operation firstly even during heating season. If heating oper-
ation is carried out firstly, it leads to the trouble of compressor. Then attention must be paid.
• Carry out the test run more than 5 minutes without fail.
(Test run will be cancelled 18 minutes later automatically)
!
□Is the circulation of air adequate?
□Is the draining smooth?
□Is the heat insulation complete
(refrigerant and drain piping)?
□Is there any leakage of refrigerant?
□Is the remote controller switch operated?
□Is there any faulty wiring?
□Are not terminal screws loosened?
M4......118N.cm{12kgf.cm}
M5......196N.cm{20kgf.cm}
M6......245N.cm{25kgf.cm}
M8......588N.cm{60kgf.cm}
2Connection of power supply
- Connect the power supply cord to the independent power supply.
Circuit breaker is required.
- Operate the unit for fifteen minutes or more.

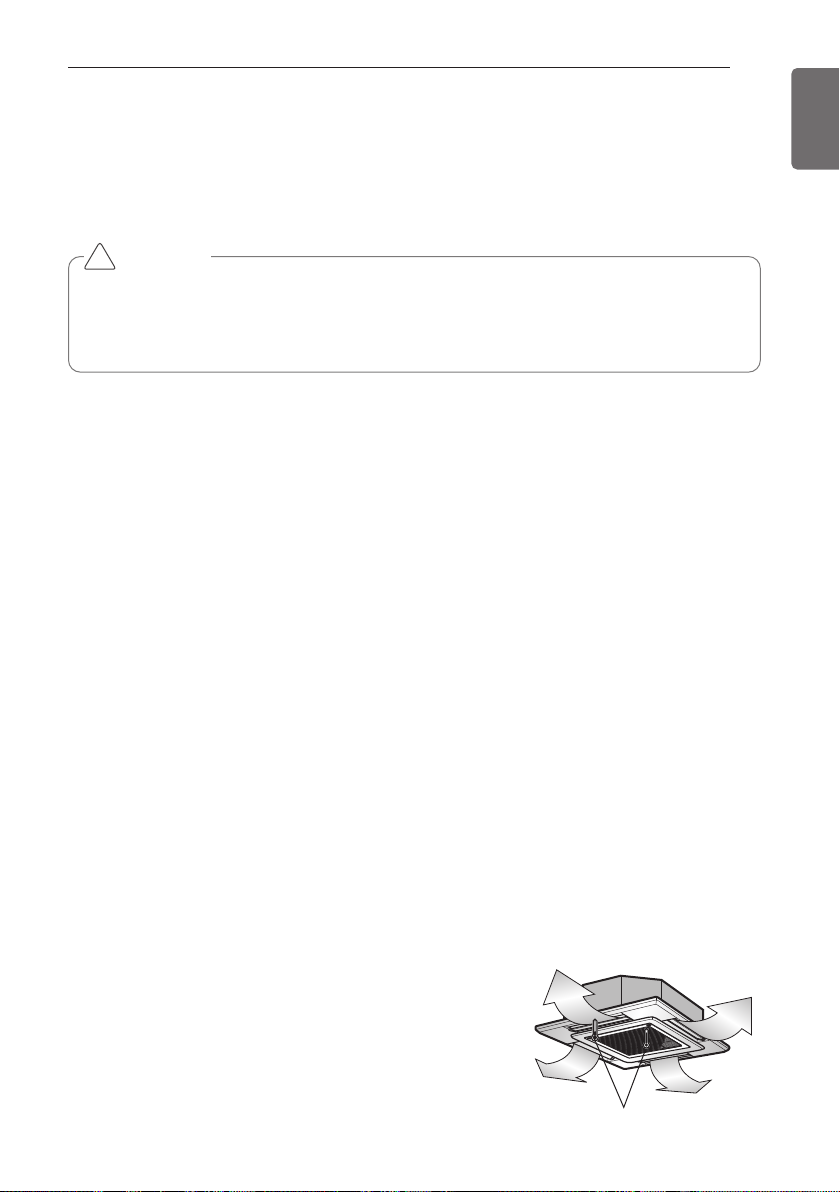

3Evaluation of the performance
- Measure the temperature of the intake and discharge air.
- Ensure the difference between the intake temperature
and the discharge one is more than 8°C (Cooling) or
reversely (Heating).
Thermometer
TEST RUNNING
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 19

20 TEST RUNNING
ENGLISH
HAND OVER
Teach the customer the operation and maintenance procedures, using the operation manual
(air filter cleaning, temperature control, etc.).
CAUTION
After the confirmation of the above conditions, prepare the wiring as follows:
1Never fail to have an individual power specialized for the air conditioner. As for the method of
wiring, be guided by the circuit diagram pasted on the inside of control box cover.
2Provide a circuit breaker switch between power source and the unit.
3The screw which fasten the wiring in the casing of electrical fittings are liable to come loose
from vibrations to which the unit is subjected during the course of transportation. Check
them and make sure that they are all tightly fastened. (If they are loose, it could give rise to
burn-out of the wires.)
4Specification of power source
5Confirm that electrical capacity is sufficient.
6Be sure that the starting voltage is maintained at more than 90 percent of the rated voltage
marked on the name plate.
7Confirm that the cable thickness is as specified in the power sources specification.
(Particularly note the relation between cable length and thickness.)
8Never fail to equip a leakage breaker where it is wet or moist.
9The following troubles would be caused by voltage drop-down.
- Vibration of a magnetic switch, damage on the contact point there of fuse breaking, distur-
bance to the normal function of a overload protection device.
- Proper starting power is not given to the compressor.

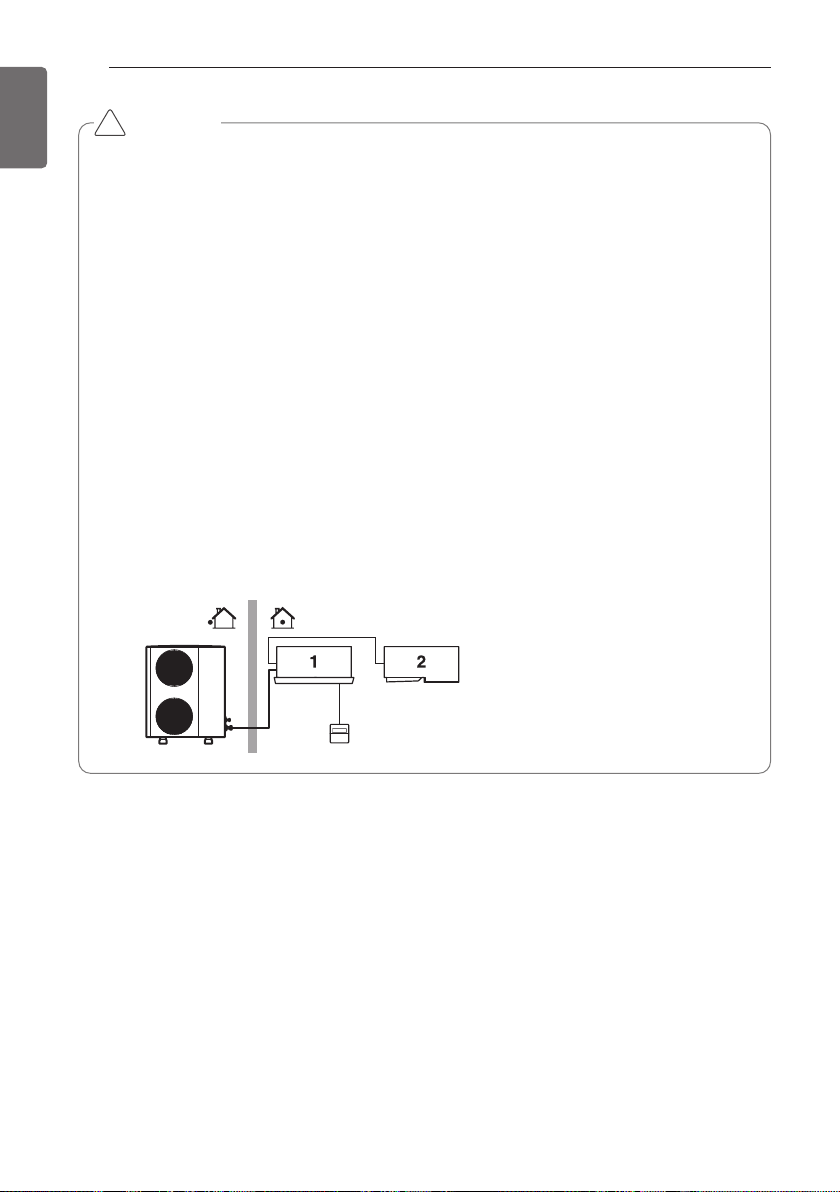

10 Use only 1 remote-controller contained in indoor unit, when using simultaneous operation
system as shown below.
After setting the ESP value in the Ceiling Concealed Duct Type Indoor Unit, the main power
turns off and then remove the remote controller. (Only for synchro combination, over
36kBtu/h)
!
1,MFL68907813(영) 17. 8. 1. 영영 2:46 Page 20
