Introduction [Level 2]
Introduction ................................ 2
Theft-Deterrent Feature ............. 4
Overview ..................................... 5
Operation .................................... 6
Introduction [Level 3]
Safety Information [Level 4]
[regulation_BYOM]
[regulation thunder_BYOM]
The lightning flash with the arrowhead
symbol within an equilateral triangle is
intended to alert the user about the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
[regulation exclamation_BYOM]
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the product.
Always operate the vehicle in a safe
manner. Do not become distracted by
the vehicle while driving and always
be fully aware of all driving conditions.
Do not change settings or any
functions.
Pull over in a safe and legal manner
before attempting such operations.
To promote safety, certain functions
are disabled unless the parking brake
is on.
To reduce the risk of electric shock,
do not remove the cover or back of
this product. There are no user-
serviceable parts inside. Refer
servicing to qualified service
personnel.

3 Infotainment System
To reduce the risk of fire or electric
shock, do not expose this product to
dripping or splashing water, rain, or
moisture.
When driving your vehicle, be sure to
keep the volume of the unit low
enough to allow you to hear sounds
coming from the outside.
Do not drop it and avoid heavy
impacts at anytime.
The driver should not watch the
monitor while driving. If the driver
watches the monitor while driving, it
may lead to carelessness and cause
an accident.
CAUTION:
Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electrical shock.
Some states/provinces may have
laws limiting the use of video screens
while driving. Use the system only
where it is legal to do so.
Do not use your phone in private
mode when you are driving. You
must stop at a safe location to use it.
For your safety, some features are
disabled while your vehicle is in
motion.
RF Radiation Exposure Statement
[Level 4]
This equipment should be installed and
operated with minimum distance 20cm
between the radiator and your body.
<France Notice>
Pour la France métropolitaine
2.400 - 2.4835 GHz (Canaux 1à 13)
autorisé en usage intérieur
2.400 -2.454 GHz (canaux 1 à 7)
autorisé en usage extérieur
Pour la Guyane et la Réunion
2.400 - 2.4835 GHz (Canaux 1à 13)
autorisé en usage intérieur
2.420 - 2.4835 GHz (canaux 5 à 13)
autorisé en usage extérieur
<Italy Notice>
A general authorization is requested for
outdoor use in Italy.
The use of these equipments is
regulated by:
1. D.L.gs 1.8.2003, n. 259, article 104
(activity subject to general
authorization) for outdoor use and
article 105 (free use) for indoor use,
in both cases for private use.
2. D.M. 28.5.03, for supply to public of
RLAN access to networks and
telecom services.
L’uso degli apparati è regolamentato
da:
1. D.L.gs 1.8.2003, n. 259, articoli 104
(attività soggette ad autorizzazione
generale) se utilizzati al di fuori del
proprio fondo e 105 (libero uso) se
utilizzati entro il proprio fondo, in
entrambi i casi per uso private.
2. D.M. 28.5.03, per la fornitura al
pubblico dell’accesso R-LAN alle
reti e ai servizi di telecomunicazioni.

Infotainment System 4
<Brazilian Notice>
This equipment operates in secondary
character, that is, not entitled to
protection against harmful interference,
even for stations of the same type, and
may not cause interference to systems
operating on a primary.
[ANATEL_ONIX]
Please avoid continuous exposure to
power sound over than 85 decibels to
prevend auditive system damage.
General Information [Level 4]
The Infotainment system provides
Infotainment in your car, using the
latest technology.
See your dealer to have the system or
software updated and upgraded.
The radio can be easily used by
registering up to 35 FM or AM with the
PRESET button [1~5] per every seven
pages.
The Infotainment system can play the
USB storage device or iPod/iPhone
products.
The Bluetooth phone connection
function allows for the use of wireless
hands-free phone calls, as well as a
phone music player.
Connect a portable music player to the
auxiliary sound input to enjoy the rich
sound of the Infotainment system.
The "Overview" section provides a
simple overview of the Infotainment
system's functions and summary of
all regulatory devices.
The "Operation" section explains the
basic controls for the Infotainment
system.
Trademarks and Licenses [Level 4]
[logo divx_BYOM]
DivX Certified® to play DivX® video,
including premium content.
Covered by one or more of the
following U.S. patents: 7,295,673;
7,460,668; 7,515,710; 7,519,274.
DivX®, DivX Certified® and
associated logos are trademarks of
Rovi Corporation or its subsidiaries
and are used under license.
[logo bluetooth_BYOM]
Bluetooth® is a trademark owned by
Bluetooth SIG, Inc.

5 Infotainment System
[logo ipod_iphone_BYOM]
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed to
connect specifi cally to iPod or
iPhone respectively, and has been
certifi ed by the developer to meet
Apple performance standards. Apple
is not responsible for the operation
of this device or its compliance with
safety and regulatory standards.
Please note that the use of this
accessory with iPod, iPhone may
affect wireless performance.
Theft-Deterrent Feature
[Level 3]
The Infotainment system has an
electronic security system installed to
prevent theft.
The Infotainment system only works in
the vehicle in which it was first installed,
and cannot be used in another vehicle.

Infotainment System 6
Overview [Level 3]
Control panel [Level 4]
[front_BYOM]
(1) Display
Display for Play/Reception/Menu
state and information.
(2) Volume (yVOL z) buttons
Press [y] to increase the volume.
Press [z] to decrease the volume.
(3) POWER (P) button
Press and hold this button to turn
the power on/off.
(4) HOME ( ) button
Press this button to enter the home
menu.

7 Infotainment System
Operation [Level 3]
System on/off [Level 4]
Press and hold [P] on the control
panel to turn the power on.
The last audio or movie will be
executed.
Press and hold [P] on the control
panel to turn the power off.
The time, date and temperature, if
available, are displayed on the
screen.
[clock_BYOM]
Note
The temperature is displayed when the
ignition switch (car ignition key) is in the ON
position.
Turning on/off automatically [Level
4]
When the ignition switch (car ignition
key) is in the ACC or ON position, the
Infotainment system is turned on
automatically.
When the ignition switch (car ignition
key) is in the OFF position and the user
opens the driver door of the vehicle, the
Infotainment system is turned off
automatically.
Note
If the user press and hold [P] on the
control panel when the ignition switch
(car ignition key) is in the OFF position,
the Infotainment system is turned on. In
this case, the Infotainment system is
turned off automatically after about 10
minutes.
Volume control [Level 4]
Press [yVOL z] on the control panel
to adjust the volume. The current sound
volume is indicated.
[volume_BYOM]
Turning on the Infotainment system
power will set the volume level to its
previous selection (when it is less
than the maximum starting volume).
If the volume level is louder than
maximum starting volume level when
the Infotainment system is turned on,
the Infotainment system is adjusted
automatically to maximum starting
volume level.

Infotainment System 8
MUTE [Level 4]
Press [yVOL z] on the control panel,
and then press [ ] to turn the mute
function on and off.
[mute_BYOM]
Auto volume control [Level 4]
Once the speed-compensating sound
volume setup starts operating, the
volume will automatically be controlled
according to the vehicle’s speed to
offset the noise from the engine and
tires.
1. Press [HOME ( )] on the control
panel.
2. Press [settings] > [radio settings] >
[auto volume].
[settings radio_J300 General]
3. Set Off/Low/Medium/High by
pressing [S/ T].
Volume limit by high temperature
[Level 4]
If the inside temperature of the radio is
very high, the Infotainment system will
limit the controllable maximum volume.
If necessary, the volume will
automatically decrease.

9 Infotainment System

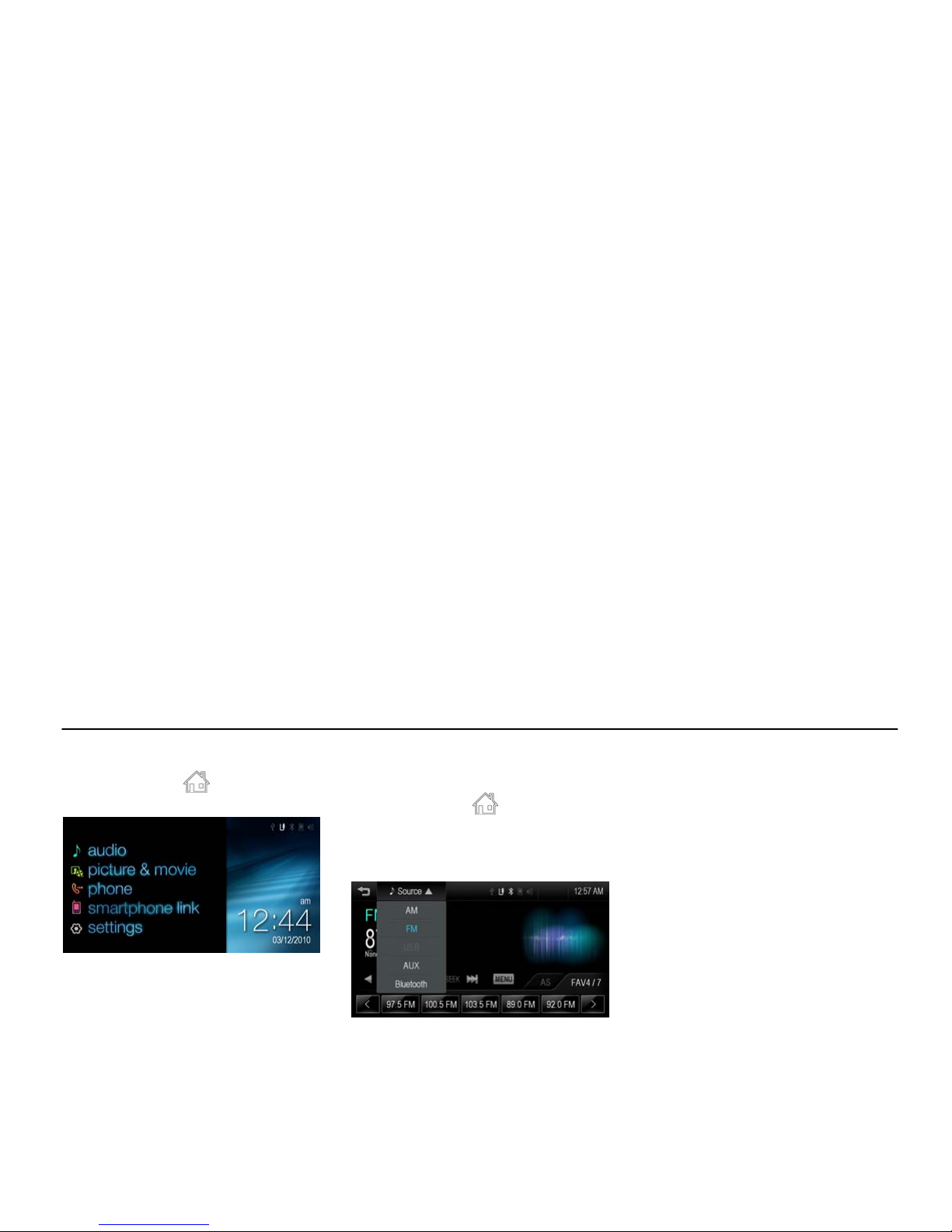

Using HOME menu [Level 4]
1. Press [HOME ( )] on the control
panel.
[home_J300 EU]
2. Press the desired menu.
Press [audio] to select FM/ AM, USB/
iPod/ Bluetooth music play or auxiliary
sound (AUX) input.
Press [picture & movie] to view picture,
movie or auxiliary video (AUX) input.
Press [phone] to activate phone
features (if connected).
Press [smartphone link] to activate an
application through your connected
smartphone. This function may not be
supported depending on the region.
The supporting application may be
varied depending on the region.
Press [settings] to enter the system
setup menu.
Selecting function [Level 4]

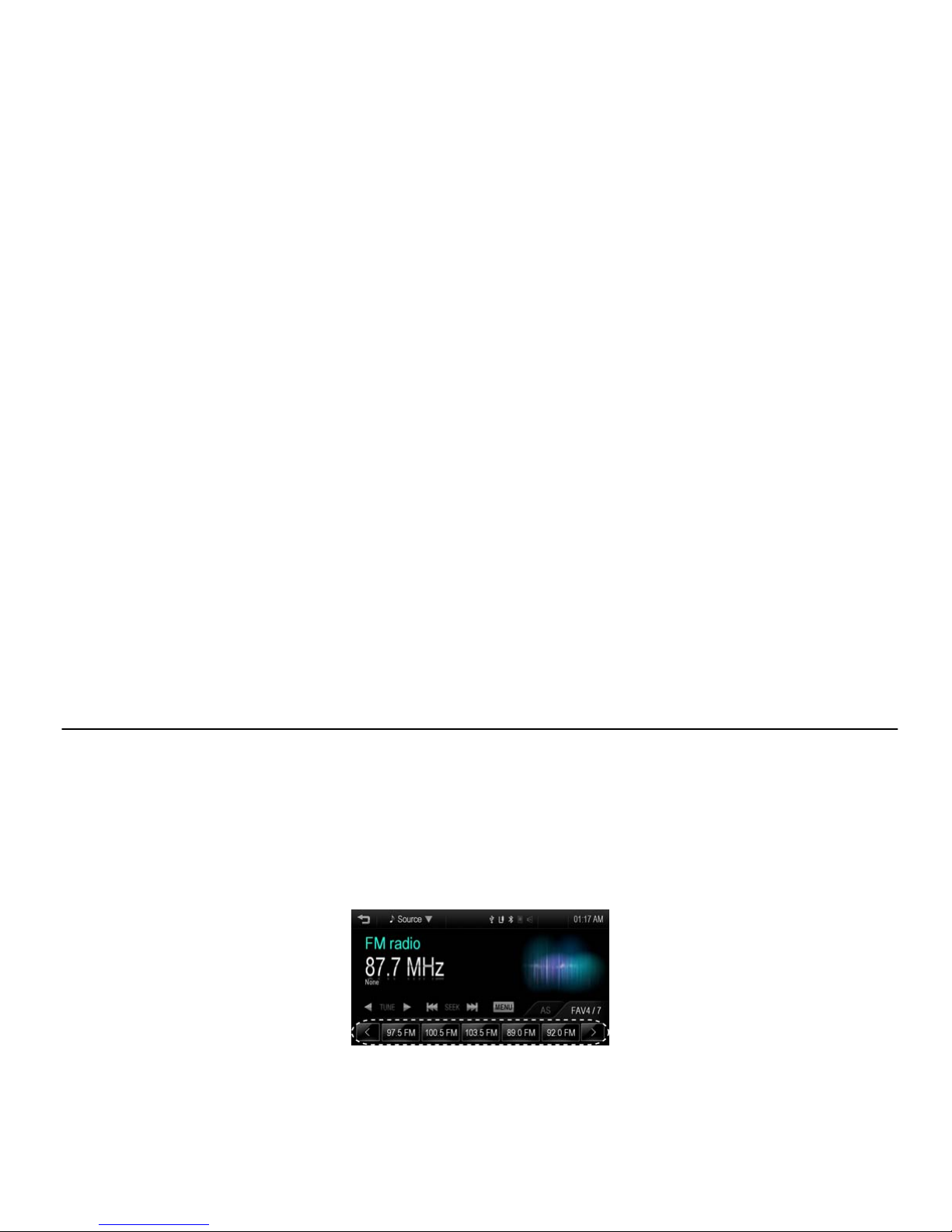

Audio
1. Press [HOME ( )] on the control
panel.
2. Press [audio] on the home menu.
Press [Source R] on the screen.
[function_J300 EU]
Press [AM] to select AM radio.
Press [FM] to select FM radio.
Press [USB] to select USB.
Press [iPod] to select iPod/iPhone.
Press [AUX] to select auxiliary sound
(AUX) input.
Press [Bluetooth] to play Bluetooth
music.
Note
Press [4] to return to the HOME menu.
If the playback source (USB/ iPod/ AUX/
Bluetooth) is not connected to the
Infotainment system, this function is not
available.

Infotainment System 10

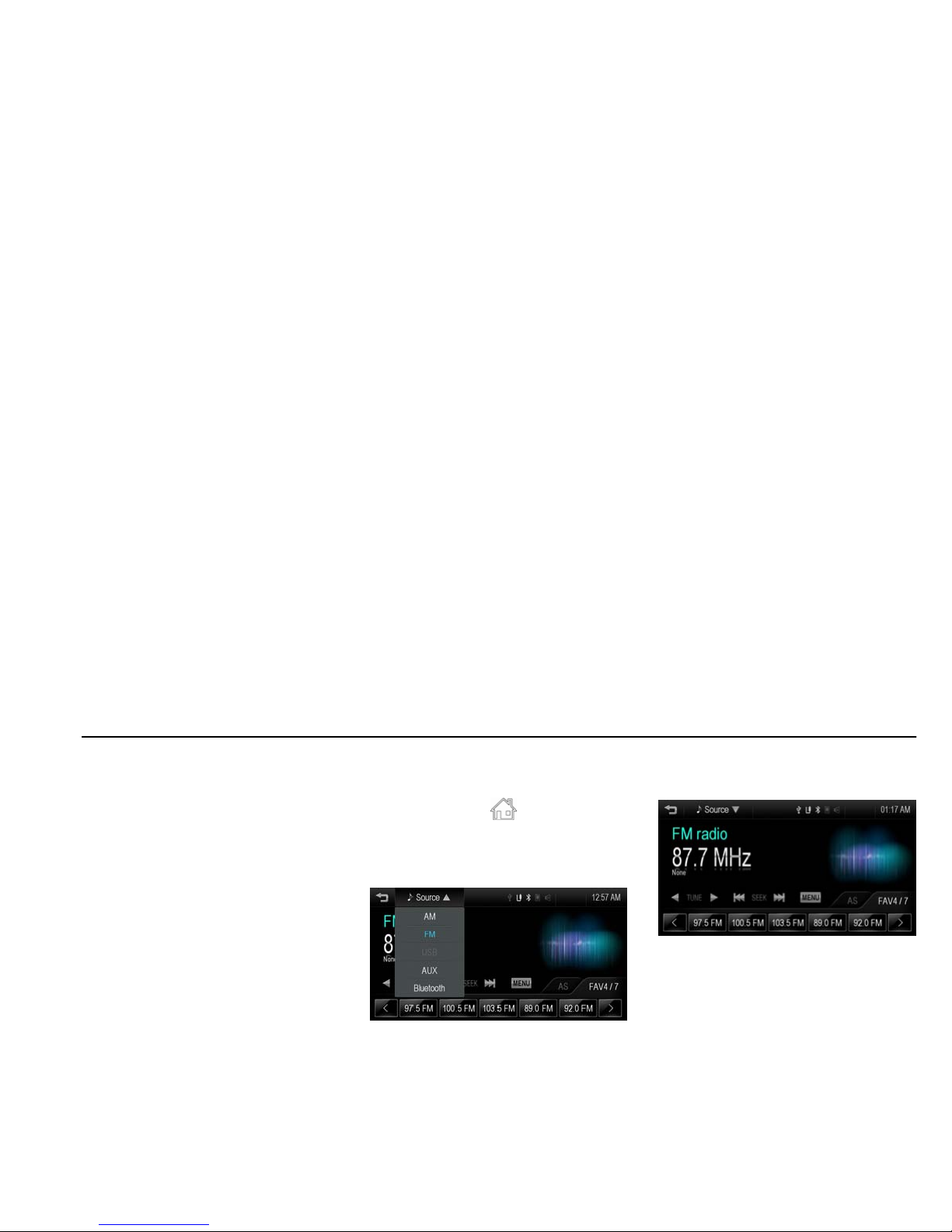

Picture & movie
1. Press [HOME ( )] on the control
panel.
2. Press [Picture & movie] on the
home menu.
3. Press [Source R] on the screen.
[function usb_J300 EU]
Press [USB (picture)] to view picture
files contained in the USB storage
device.
Press [USB (movie)] to view movie
files contained in the USB storage
device.
Press [AUX (movie)] to view movie
files connected to auxiliary video
(AUX) device.
Note
Press [4] to return to the HOME menu.
If the playback source (USB (picture) /
USB (movie) / AUX (movie)) is not
connected to the Infotainment system, this
function is not available.
Bluetooth hands-free phone device
To operate Bluetooth hands-free
function, connect the Bluetooth phone
to the Infotainment system.
1. Press [HOME ( )] on the control
panel.
2. Press [phone] on the home menu.
[phone main_J300 EU]
Note
Press [4] to return to the HOME menu.
If your Bluetooth phone is not connected
to the Infotainment system, this function is
not available. For details, refer to the
“Pairing and connecting Bluetooth” of
the “Phone” section.

11 Infotainment System
Smartphone link
This function may not be supported
depending on the region.
Install the application on your
smartphone to operate this function,
and then connect your smartphone and
the Infotainment system through the
USB port or Bluetooth wireless
technology.
iPhone: USB connection
Android phone: Bluetooth wireless
technology
1. Press [HOME ( )] on the control
panel.
2. Press [smartphone link] on the
home menu.
[function smart_ONIX]
Note
Press [4] to return to the HOME menu.
Settings
1. Press [HOME ( )] on the control
panel.
2. Press [settings] on the home menu.
[settings main_J300 EU]

Infotainment System 12
Radio [Level 2]
AM-FM Radio…....…................. 12
AM-FM Radio [Level 3]
Listening to FM/AM radio [Level 4]
1. Press [HOME ( )] on the control
panel.
2. Press [audio] on the home menu.
3. Press [Source R] on the screen.
[function_J300 EU]
4. Press [FM] or [AM] on the screen.
The FM or AM radio band of the most
recent listened station is displayed.
[fm_J300 EU]
Note
Press [4] to return to the HOME menu.

13 Infotainment System
Searching for broadcasting
automatically [Level 4]
Press [gSEEK l] to automatically
search for available station with good
reception.
Hold and drag to left or right of the
radio station to automatically search
for available station with good
reception.
Searching for broadcasting
manually [Level 4]
Repeatedly press [qTUNE r] to
manually find the desired broadcasting
station.
Searching for broadcasting by
using the PRESET button [Level 4]
Saving PRESET button
1. Select the band (FM or AM) you
want to store a station into.
2. Select the desired station.
3. Press [S/ T] to select the desired
page of saved favorites.
[fm preset_J300 EU]
4. Hold down any of the PRESET
button to save the current radio
station to that button of the selected
favorites page.
Up to 7 favorites pages can be saved,
and each page can store up to five
radio station.
To change a PRESET, simply tune to
the new desired radio station and hold
the button.
Listening to PRESET button directly
1. Repeatedly press [S/ T] to select
the desired FAV (Favorites) page.
2. Press PRESET button to directly
listen to the radio station saved to
that button.

Infotainment System 14
Autostore [Level 4]
The stations with the most superior
reception are stored automatically as
radio station in corresponding order.
1. Select the desired band (FM or AM).
2. Press [AS].
[as_J300 EU]
3. Repeatedly press [S/ T] to select
the desired AS (Autostore) page.
4. Press PRESET button to directly
listen to the radio station saved to
that button.
Note
To update the FM/AM autostore, press
and hold [AS].
If the user presses [AS] on the FM/AM
radio screen when there are is no stored
station on the radio station, the FM/AM
autostore will be updated.
Viewing station information [Level
4]
Press the station on the FM/AM radio
screen.
[fm info_ONIX]
The information displayed includes the
frequency.

15 Infotainment System
Using the FM/AM radio menu
[Level 4]
General operation of the radio menu
1. Select the desired band (FM or AM).
2. Press [MENU] on the FM/AM radio
screen.
[fm menu_ONIX]
3. Press the desired menu to select
the relevant item or to display the
item’s detailed menu.
4. Press [4] to return to the previous
menu.
Favorite list (FM/AM menu)
1. From the FM/AM menu, press the
[favorite list] to display the favorite
list.
The favorite list information is
displayed.
[fm menu favorite_J300 EU]
2. Scroll through the list using [Q/ R].
Tune to the desired station by
selecting it.
FM/AM station list (FM/AM menu)
1. From the FM/AM menu, press the
[FM station list] / [AM station list] to
display the FM/AM station list.
The station list information is
displayed.
[am menu station_BYOM]
2. Scroll through the list using [Q/ R].
Tune to the desired station by
selecting it.

Infotainment System 16
Update FM/AM station list (FM/AM
menu)
1. From the FM/AM menu, press the
[update FM station list] / [update AM
station list] to display the update
FM/AM station list.
The FM/AM broadcasting list
update will proceed.
[fm menu update_ONIX]
2. During the FM/AM broadcasting list
update, press [Cancel] to stop it
from saving changes.
Tone settings (FM/AM menu)
From [tone settings] menu, sound
features can be setup differently
according to the FM/AM audio and
each audio player’s functions.
1. From the FM/AM menu, press the
[tone settings] to enter the sound
setup mode.
The tone settings menu is displayed.
[fm menu tone_BYOM]
EQ (Equalizer) mode: Select or turn
off the sound style (Manual Pop 
Rock Country Classical Talk ) by
using [S/ T].
Press [-/+] to select the desired sound
style manually.
Bass: Adjust the bass level from -12
to +12.
Mid (Midrange): Adjust the midrange
level from -12 to +12.
Treble: Adjust the treble level from -12
to +12.
Fader: Adjust the front/rear speaker
balance by dragging the dot in the
vehicle interior image.
Balance: Adjust the left/right speaker
balance by dragging the dot in the
vehicle interior image.
Reset: Restore the initial settings
values back to the default settings.
2. Press [OK].

17 Infotainment System
Audio/Picture/Movie/
Auxiliary device system
[Level 2]
Audio system ........................... 17
Picture system ......................... 26
Movie system ........................... 28
Auxiliary device system…....... 31
Audio system [Level 3]
The Infotainment system can play the
music files contained in the USB
storage device or iPod/iPhone products.
Before using Audio system [Level
4]
Caution for using MP3/WMA/OGG/
WAV files
This product can play music files
with .mp3, .wma, .ogg, .wav (lower
case letters).
MP3 files that can be played by this
product are as follows.
- Bit rate: 8 kbps ~ 320 kbps
- Sampling frequency: 48 kHz, 44.1
kHz, 32 kHz (for MPEG-1 audio
layer-3),
24 kHz, 22.05 kHz, 16 kHz (for
MPEG-2 audio layer-3)
While this product can play files with
8kbps ~ 320kbps bit rate, files with a
bit rate above 128kbps will result in
higher quality sound.
This product can display ID3 Tag
information (Version 1.0, 1.1, 2.2, 2.3
or 2.4) for MP3 files, such as the
album name and the artist.
To display album (disc title), track
(track title), and artist (track artist)
information, the file should be
compatible with the ID3 Tag V1 and
V2 formats.
Cautions for using USB storage
device and iPod/iPhone
Operation cannot be guaranteed if
the HDD built-in USB mass storage
device or CF or SD memory card is
connected by using an USB adaptor.
Use an USB or flash memory type
storage device.
Take caution to avoid static electricity
discharge when connecting or
disconnecting the USB. If connection
and disconnection are repeated
many times in a short time, this may
cause a problem in using the device.
Operation is not guaranteed if the
connecting terminal of the USB
device is not metal.

Infotainment System 18
Connection with i-Stick Type USB
storage device may be faulty due to
vehicle vibration, so their operation
cannot be guaranteed.
Be careful not to touch the USB
connecting terminal with an object or
any part of your body.
The USB storage device can only be
recognized when it is formatted in
FAT16/32, exFAT file system. NTFS
and other file systems cannot be
recognized.
According to the type and capacity of
the USB storage device and the type
of the stored file, the time it takes to
recognize the files may differ. This is
not a problem with the product in this
case, so please wait for the files to be
processed.
Files in some USB storage device
may not be recognized due to
compatibility problems
Do not disconnect the USB storage
device while it is being played. This
may cause damage to the product or
the performance of the USB device.
Disconnect the connected USB
storage device when the vehicle
ignition is turned off. If the ignition is
turned on while the USB storage
device is connected, the USB storage
device may be damaged or may not
operate normally in some cases.
USB storage device can only be
connected to this product for the
purpose of playing music/movie,
viewing photo files, or upgrading.
The USB terminal of product should
not be used to charge USB
accessory equipment since the heat
generation using the USB terminal
may cause performance issues or
damage to the product.
When the logical drive is separated
from a mass USB storage device,
only the files from the top-level logical
drive can be played for USB music
files. This is the reason that the
music files to be played should be
stored in the top-level drive of the
device. Music files in particular USB
storage device may also not be
normally played if an application is
loaded by partitioning a separate
drive inside the USB device.
Music files to which DRM (Digital
Right Management) is applied cannot
be played.
This product can support USB
storage device that are in capacity
with a limit of 2500 music files, 2500
photo files, 250 movie files, 2500
folders, and 10 stages of folder
structure. Normal usage cannot be
guaranteed for storage devices that
exceed this limit.
The iPod/iPhone can play all music
files supported. But the music file lists
are displayed up to 2500 files on the
screen in alphabetical order.

19 Infotainment System
The iPod/iPhone product models that
are connected/supported by this
Infotainment system are as follows.
- iPod 2G Nano/iPod 3G Nano/
iPod 4G & 5G Nano
- iPod 120GB & 160GB Classic
- iPod 1G, 2G, & 3G Touch
- iPhone 3G & 3GS
- iPhone 4/4S
Only connect the iPod/iPhone with
connection cables supported by
iPod/iPhone products. Other
connection cables cannot be used.
In some rare cases, the iPod/iPhone
product may be damaged if the
ignition is turned off when it is
connected to the product.
When the iPod/iPhone product is not
being used, keep it separately from
this product with the car ignition
turned off.
When the iPod/iPhone is connected
to the USB port by using the
iPod/iPhone cable, the Bluetooth
music is not supported.
Connect the iPod/iPhone to the USB
port by using the iPod/iPhone cable
to play the music files of iPod/iPhone.
When the iPod/iPhone is connected
to the AUX input terminal, the music
files are not played.
Connect the iPod/iPhone to the AUX
input terminal by using the AUX cable
for iPod/iPhone to play the movie file
of iPod/iPhone. When the
iPod/iPhone is connected to the USB
port, the movie file is not played.
The playback functions and the
information display items of the
iPod/iPhone used with this
Infotainment system may be different
from the iPod/iPhone in terms of play
order, method, and the information
displayed.
Refer to the following table for the
classification items related to the
search function provided by the
iPod/iPhone product.
[iPod table_BYOM]
