LG PQDSBCDVM0 User manual

P/NO : MFL42540219 www.lg.com
INSTALLATION MANUAL
• Please read this installation manual completely before installing the product.
• Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
• Please retain this installation manual for future reference after reading it
thoroughly.
TYPE : Dry contact for demand control
MODEL : PQDSBCDVM0
ITALIANO ESPAÑOL FRANÇAIS DEUTSCHENGLISH

Dry contact for demand control Installation manual
TABLE OF CONTENTS
I Safety Precautions..................................................................................3
I Name of each part ..................................................................................5
I Accessory Parts......................................................................................6
I Installation Method..................................................................................7
I Setting and using method .......................................................................8
1. Power source input .......................................................................................8
2. System structure ...........................................................................................9
3. Connection with Outdoor unit ......................................................................11
4. Setting of input signal..................................................................................12
5. Setting of ʻSWDIPʼ.......................................................................................14
6. Setting of ʻSW_STEPʼ .................................................................................15
7. Setting of ʻSW_Addressʼ .............................................................................18
8. Outdoor unit monitoring...............................................................................19
2Dry contact for demand control

Do not touch the board
when the power is
connected.
• It can cause a fire, electric
shock, explosion, injury and
problem to the product.
Always request for
installation of the product
to the service center or
the installation service
provider.
• It can cause a fire, electric
shock, explosion and injury.
When reinstalling the
previously installed product,
request for service to the
service center or the
installation service provider.
• It can cause a fire, electric
shock, explosion and injury.
I
During installation
Service center
Service center
Do not install the product where it can
be exposed to rain.
• It can cause problems to the product.
Do not install the product in a humid
location.
• It can cause problems to the product.
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
IIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
IMeanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
WARNING
Installation manual 3
Safety Precautions
ENGLISH

I
During use
Do not modify or extend the
power cord.
• It can cause a fire and
electric shock.
Do not use any flaming
devices near the product.
• It can cause a fire.
Do not use any heating
devices near the power cord.
• It can cause a fire and
electric shock.
Do not pour water inside the
product.
• It can cause an electric
shock and problem to the
product.
When the product is
submersed in water, always
request for service to the
service center or the
installation service provider.
• It can cause a fire and
electric shock.
Make the children and the
elderly use the product with
the help of a guardian.
• It can cause a safety
accident and problems to the
product.
Do not give impact to the
product.
• It can cause problems to the
product.
Service center
4Dry contact for demand control
Safety Precautions

Name of each part
1. SWDIP : Switch to select main function
2. SW_Address2 : Switch to set a upper address of the outdoor unit
3. SW_Address1 : Switch to set a lower address of the outdoor unit
4. SW_STEP : Switch to select a control mode.
5. CN_PWR : DC Input terminal
6. ERROR : Error display with relay contact
7. BUS-A : RS-485 (+) Terminal
8. BUS-B : RS-485 (-) Terminal
9. CN_CAPACITY : Signal input terminal to control a capacity of outdoor unit
10. CN_SPEED/CAP : Signal input terminal for Analog Input/Low noise operation
11. CN_OUT : Outdoor unit connector
12. LED1 : Display LED for RS-485 status
13. LED01G,02G,03G : Display LED for communication status
14. CN_JIG : Connector for writing program
15. SW1 : Reset switch
DRY CONTACT FOR DEMAND CONTROL
12 34 5
6
7
8
91011
12
13
14
15
Installation manual 5
Name of each part
ENGLISH

Accessory Parts
Accessory Parts
6Dry contact for demand control
ODU Dry contact
PQDSBCDVM0 BRACKET (1EA)
Multi-V
Multi-V Sub cable
WIRE ASSY 1(1EA)
SCREW (4EA)
WIRE ASSY 2(1EA)
Others : Tie Wrap (3 EA) - Cable Tie
Clamp (1 EA)

Installation manual 7
Installation Method
①Connect the connection wires according to the instructions.
(Please refer to Setting and Using Method)
②Perform the switch setting according to switch setting method.
(Please refer to Setting and Using Method)
③Fix the Dry contact on suitable space inside of the outdoor unit.
1. Install the product on flat surface and screw at least 2 places. Otherwise the Dry contact may not
be anchored properly.
2. Do not screw too tightly. It may cause deformation of the case.
3. Do not deform the case at random. It may cause malfunction of the Dry contact.
ENGLISH
Installation Method

Setting and using method
1. Power source input
After change any Dry contact setting, then you must press RESET switch to reflect the setting.
I
When wiring power source from outdoor unit
Outdoor Unit
PCB
DC12V or DC15V
GND
Power Source
DC12V
GND
Notes
This device can accept only DC Power input.
Do not input 220VAC. Otherwise It will cause a serious damage.
I
I
When using external power source
8Dry contact for demand control
Setting and using method

2. System structure
I
When outdoor unit has RS-485 communication function
(Master Mode)
Notes
This dry contact module is available after MultiV3 series.
Installation manual 9
Setting and using method
ENGLISH
RS-485
BUS_B
BUS_A
CN_OUT TTL
Multi-V
WIRE ASSY 1(1EA)
I
When outdoor unit doesnʼt have RS-485 communication function
(Slave Mode)

I
When using ODU Dry contact with Central Control Devices
(Slave Mode)
BUS_B
BUS_A
Central
Control
Devices
Multi-V
WIRE ASSY 1(1EA)
CN_OUT TTL
Notes
This dry contact module is available after MultiV3 series.
10 Dry contact for demand control
Setting and using method

INT.A
RS_485
CN_OUT
INT.B
Connector
for PI485
Outdoor unit
PCB
Outdoor unit
PCB
3. Connection with Outdoor unit
I
I
When outdoor unit has RS-485 communication function
(RS-485 Built-in model)
I
When outdoor unit doesnʼt have RS-485 communication function
ENGLISH
Installation manual 11
Setting and using method

4. Setting of input signal
I
When using contact signal input without external power
LG does not
supply this section
(Field supply)
Notes
Do not input the voltage signal in
"NON VOLT" setting mode otherwise
it will cause serious damage
SW_VOLT2 SW_VOLT1
Input_3 Input_2 Input_1 comm
Input_LNO comm
LG does not
supply this section
(Field supply)
SW_VOLT2 SW_VOLT1
Input_3 Input_2 Input_1 comm
Input_LNO comm
Connect separate
External voltage of
DC12V
I
When using contact signal input with external power
12 Dry contact for demand control
Setting and using method

I
When using analog input signal
SW_VOLT2 SW_VOLT1
Direct Digital Controller
GND
DC 0~10V
input
Installation manual 13
Setting and using method
ENGLISH
Notes
• When using an analog signal, Central control Devices can not be used together.
Do not use signal cable over 1meter.
• Do not change a command too quickly.
Keep the command 30 seconds at least, otherwise it will cause a damage to outdoor unit.
• This function is very sensitive to supplied power.
So when using analog inputs, supply a constant-voltage by external power source.

Notes
After change ʻSWDIPʼ setting, then you must press reset switch to reflect the setting.

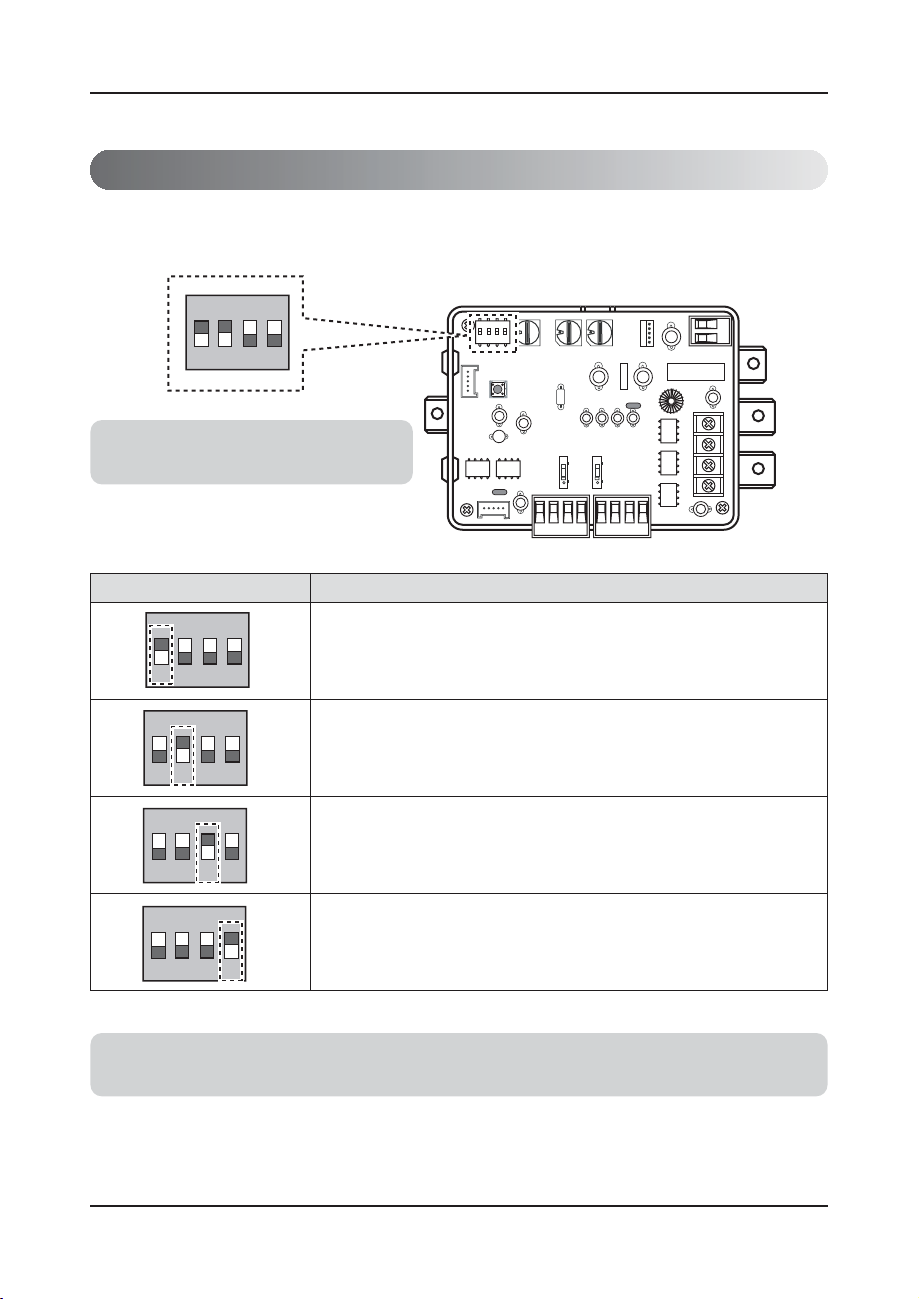

5. Setting of ʻSWDIPʼ
I
Using ʻSWDIPʼ, select the option of control function as
described below
14 Dry contact for demand control
Setting and using method
ON
L1 2 3 4
Position Function
ON
L1 2 3 4
ON : Master Mode
OFF : Slave Mode
ON
L1 2 3 4
ON : Enable Low Noise Operation
OFF : Disable Low Noise Operation
ON
L1 2 3 4
No Function
ON
L1 2 3 4
ON : On Boarding Mode
OFF: No Function
Notes
Default State is L1: ON, L2: ON

6. Setting of ʻSW_STEPʼ
I
Use the ʻSW_SETPʼ to set a control step for contact signal
input.
: The type of input signal and control step can be set using ʻSW_STEPʼ
- Type of input signal
Installation manual 15
Setting and using method
ENGLISH
SW_STEP
SW_STEP Input Signal
0, 1, 2, 3, 4, 5, 6 Contact signal input
D Analog input signal
- Detail of the control step for contact signal input
SW_ STEP Input_1 Input_2 Input_3 Comp capacity
Of outdoor unit(%) Type of input
0
0 0 0 No control
Contact signal
100 70
010 40
001 COMP OFF
1
0 0 0 No control
Contact signal
100 70
010 50
001 COMP OFF
2
0 0 0 No control
Contact signal
1 0 0 80
0 1 0 50
0 0 1 COMP OFF

Notes
• Do not change a command too quickly.
Keep the command 30 seconds at least, otherwise it will cause a damage to outdoor unit.
Setting and using method
16 Dry contact for demand control
SW_ STEP Input_1 Input_2 Input_3 Comp capacity
Of outdoor unit(%) Type of input
3
0 0 0 No control
Contact signal
100 70
010 40
001 ALL OFF
4
0 0 0 No control
Contact signal
100 70
010 50
001 ALL OFF
5
0 0 0 No control
Contact signal
100 80
010 50
001 ALL OFF
6
0 0 0 No control
Contact signal
100 50
01 0 COMP OFF
001 ALL OFF

Setting and using method
Installation manual 17
ENGLISH
- Detail of the control step for analog input signal
Notes
• Do not change a command too quickly.
Keep the command 30 seconds at least, otherwise it will cause a damage to outdoor unit.
SW_ STEP Input Voltage Comp capacity
Of outdoor unit(%) Type of input
D
0 No control
Analog input
1 100
290
380
470
560
650
745
840
9 COMP OFF
10 ALL OFF
E
0COMP OFF
140
245
350
460
570
680
790
8100
9100
10 100

Setting and using method
18 Dry contact for demand control
7. Setting of ʻSW_Addressʼ
I
Use the ʻSW_Addressʼ to set an address of outdoor unit
- Master Mode
use SW_ADDRESS2 to set a group(0~F)
If you set a group as “0”, the address of outdoor unit should be “00~0F”
- Slave Mode (when using with central control device)
use all to set the address of outdoor unit for sending to central control device.
Notes
• Using this switch, the address of outdoor unit can be set as 0~254(00~FE)
• If the outdoor unit has itʼs own address, you need not to set address in slave mode.
• After change ʻSW_Adressʼ setting, then you must press reset switch to reflect the setting.
SW_
ADDRESS2
SW_
ADDRESS1
Outdoor address setting
Address : 0 0
SW_Address2 SW_Address1

Installation manual 19
ENGLISH
8. Outdoor unit monitoring
I
Monitoring outdoor unit error : Refer to below and connect to the
control device that you want to control.
Notes
• Maximum external power source is recommended as below
AC : 3A at 250V
DC : 3A at 30V
Error Display
Field Supply
(Depends on Operation
display power type)
Power
AC or DC
Setting and using method

20 Dry contact for demand control
