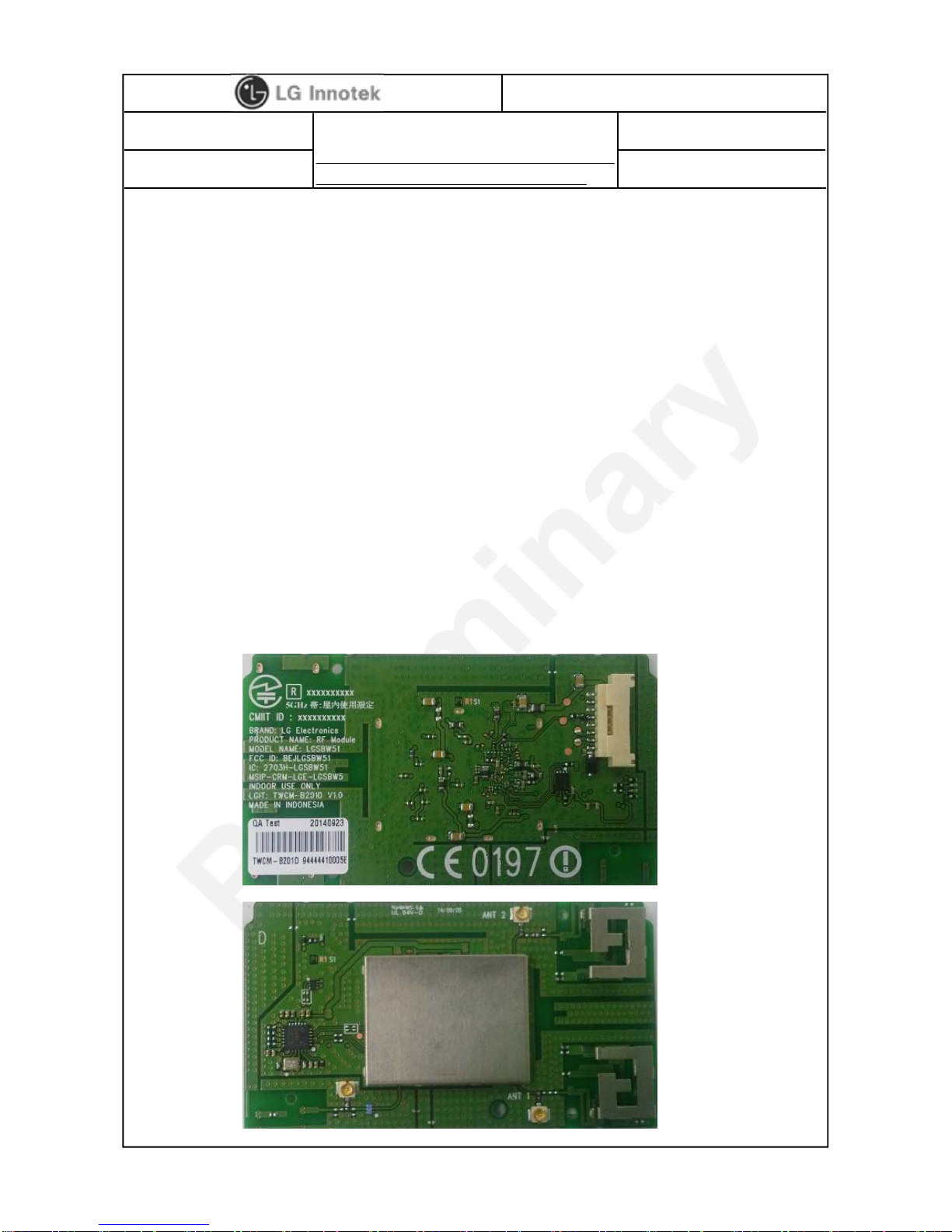

2. Picture of Product
1. Features
TWCM-B201D is the small size and low power module for IEEE 802.11ac wireless LAN
& BT4.0 + HS. TWCM-B201D is based on Broadcom BCM43569 solution.
IEEE 802.11 a/b/g/n/ac Dual Band WLAN infrastructure
Bluetooth 4.0 + HS
Size : 68.0mm x 38.0mm
Two stream spatial multiplexing up to 300Mbps(802.11n)/ 867Mbps(802.11ac)
WLAN Metal Press antenna, BT Printed antenna on
Use on-chip OTP (One-Time Programmable)
Host Interface : USB2.0 (WLAN & BT)
- This model is using the common USB2.0 to control WLAN and BT
Security : WAPI, WEP, WPA, WPA2, WMM, AES, WEP, TKIP, CKP
Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2014.09.24 MODEL NAME: TWCM-B201D(LGIT)
LGSBW51(LGE)
REV. DATE : 2014.09.24
REV.NO : v0.01
-
Copyrightⓒ. 2014. All Rights Reserved.
3/9
3. Installation Manual
TWCM-B201D installed position
Install the module like below in the back of the TV

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2014.09.24 MODEL NAME: TWCM-B201D(LGIT)
LGSBW51(LGE)
REV. DATE : 2014.09.24
REV.NO : v0.01
-
Copyrightⓒ. 2014. All Rights Reserved.
4/9
4. Block Diagram
3.3V
802.11ac MAC
Main Clock(40MHz)
ANT1
2 x 2
Radio 802.11ac PHY Security
OTP
Internal Bus
GPIO
WLAN
USB 2.0
BCM43569
Connector
5G
SPDT
2G
SPDT
5G
SPDT
2G
SPDT
Diplexer
ANT0
Diplexer
LPF
BT ANT Serial Flash (1M)
BT
USB 2.0
USB HUB
USB Hub Clock_(24MHz)
5. Absolute Maximum Ratings
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (40℃)-90%
Caution : The specifications in Table 1 define levels at which permanent damage to the
device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2014.09.24 MODEL NAME: TWCM-B201D(LGIT)
LGSBW51(LGE)
REV. DATE : 2014.09.24
REV.NO : v0.01
-
Copyrightⓒ. 2014. All Rights Reserved.
5/9
6. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Ambient Humidity (40℃)--85 %
Supply Voltage 4.75 5.0 5.25 Vdc
7. Standard Test Conditions
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
Temparature 25 ±5℃
Humidity 65 ±5%
Input Voltage Supply Voltage
VDD_3.3V +3.3V ±0.165V
7-1. Ambient condition
7-2. Power supply voltages

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2014.09.24 MODEL NAME: TWCM-B201D(LGIT)
LGSBW51(LGE)
REV. DATE : 2014.09.24
REV.NO : v0.01
-
Copyrightⓒ. 2014. All Rights Reserved.
6/9
8. Pin Description
Pin No. Pin Name I/O Pin Description
1 VCC I +3.3V
2 WLAN USB D- I/O USB Communication signal USB_DN
3 WLAN USB D+ I/O USB Communication signal USB_DP
4 GND - Ground
5 WLAN_WAKE_HOST O WLAN wake-up signal
6 GND - Ground
7 BT_WAKE_HOST O Bluetooth wake-up signal
8 GND - Ground
