LG 60UL3E User manual

INSTALLATION MANUAL
Please read this manual carefully before operating your set and
retain it for future reference.
60UL3E
70UL3E
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
LG Digital Signage
(MONITOR SIGNAGE)

ENGLISH
2
Table of contents
3 Location and Function of Controls
3 Parts and Button
3 Basic functions
4 First Use Wizard
4 Language & Location
5 Installation Menu
5 Introduction
6 Public Display Settings
6 - Public Display Settings
6 - Power On Status
7 - Volume
7 - Key Management
8 - Limited Mode
9 - Power On Default
9 - Aux Source Setting
9 - Power Management
9 - Factory Reset
10 Network
10 - MAC Address
10 - Network Setting
11 - Wake On LAN
11 - Server Setting
12 General
12 - Configuration Setup
14 - Set ID Setup
14 - Power Saving
15 - HCEC Setup
16 - Clock Setup
16 - Password Change
16 - Lock Mode
16 - Crestron

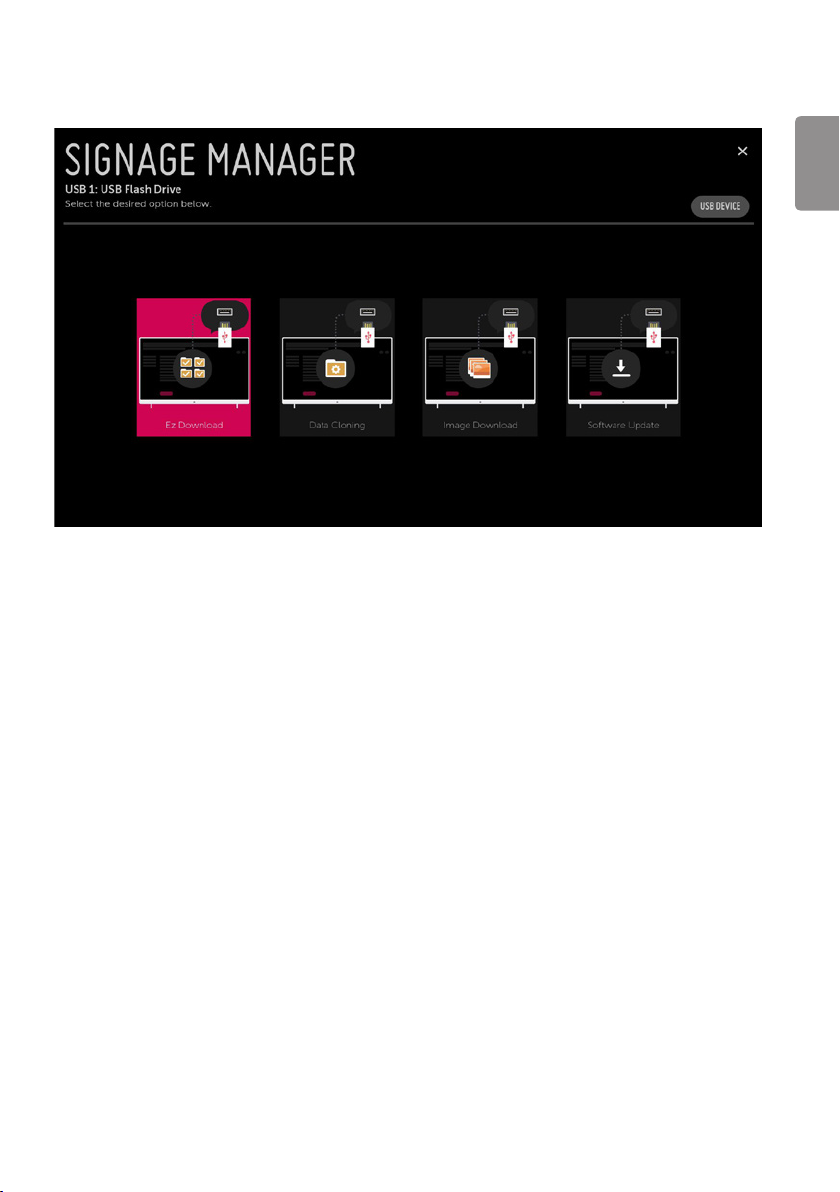

17 Signage Manager
24 - USB Download Menu
25 KEY CODES
26 EXTERNAL CONTROL DEVICE SETUP
26 RS-232C Setup
26 USB to Serial converter with USB Cable
26 RS-232C with RS-232C Cable
27 Set ID
28 Communication Parameters
28 Command reference list
29 TRANSMISSION / RECEIVING
PROTOCOL

ENGLISH
3
Location and Function of Controls
Parts and Button
Basic functions
Power On (Press)
Power O1(Press and Hold)
Menu Control (Press2)
Menu Selection (Press and Hold3)
1 All running apps will close.
2 You can access and adjust the menu by pressing the button when Signage is on.
3 You can use the function when you access menu control.

ENGLISH
4
First Use Wizard
* Image shown may differ from your Signage.

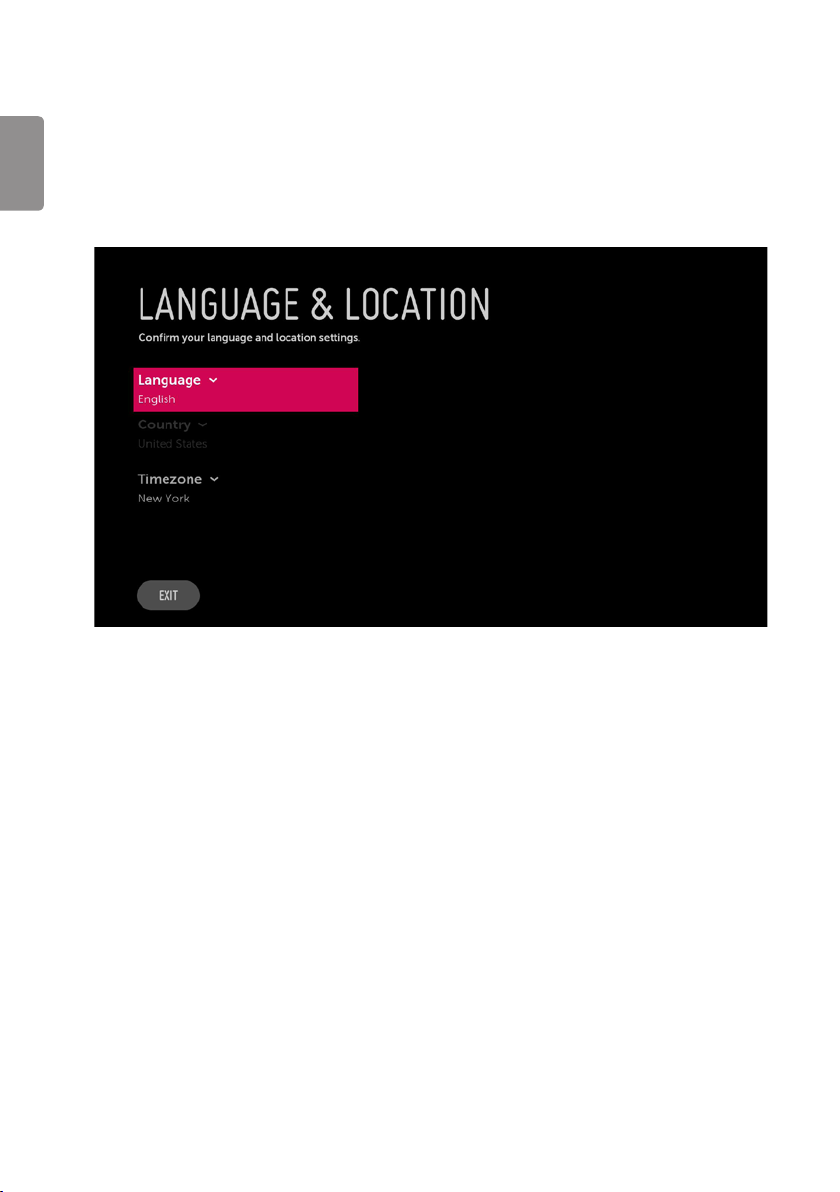

Language & Location
(Depending upon model)
•Select the Language and Country. Some countries need to select the Time Zone.

ENGLISH
5
Installation Menu
* Image shown may differ from your Signage.
Introduction
The abundant functions for Signage linked with software installation can be projected on OSD as‘Installation
Menu’.
The wide range of features can be performed simply on additional window to enhance the Signage’s easy
installation and convenient operation for System Integrators.
1 Press the Setting button for more than 5 seconds using the user remote control, banner will appear at top left
on the screen.
2 Enter a four digit password and press button.
-The initial password“1-1-0-5”.

ENGLISH
6

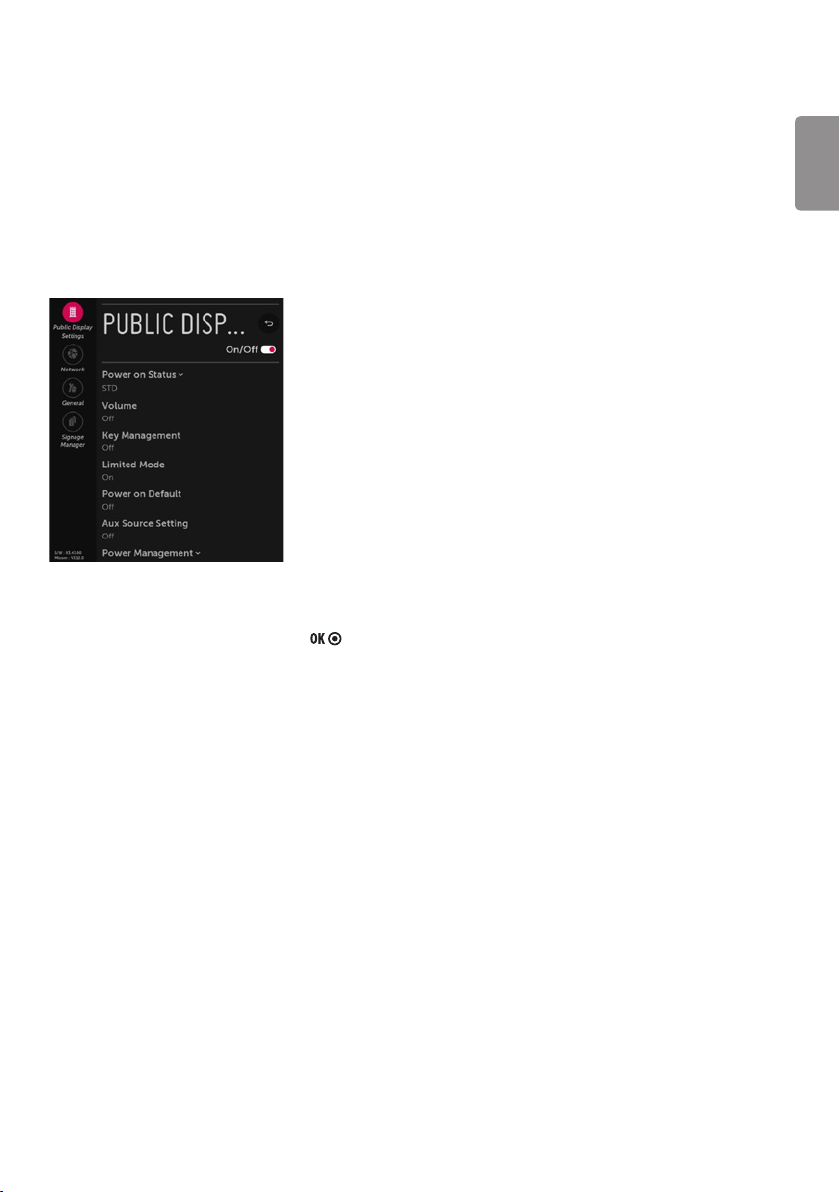

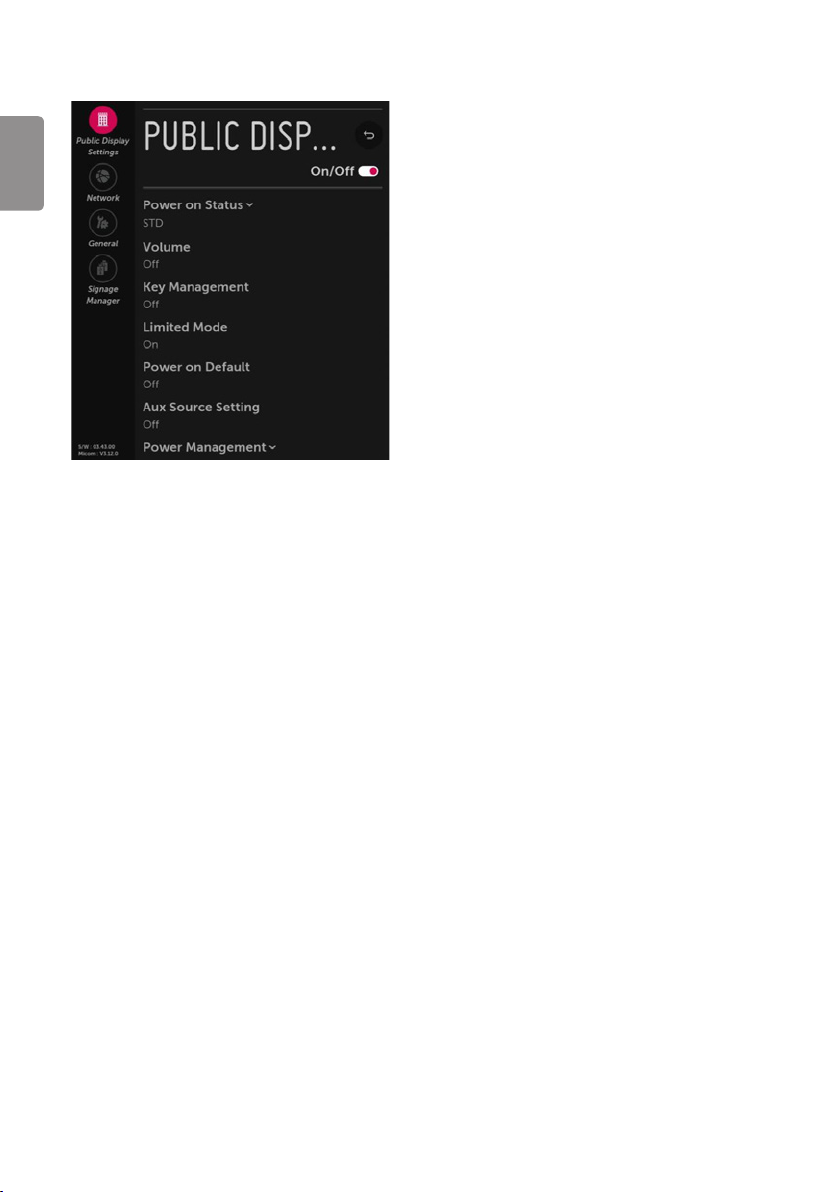

Public Display Settings
When ‘Public Display Settings’is set to On (Work), all functions of Public Display Mode apply.
Public Display Settings
•Decide to work all functions of ‘Public Display Settings’or not by setting ‘Public Display Settings’as On (Work)
or O (Do Not Work).
•When ‘Public Display Settings’is set to On (Work), all functions of Public Display Mode apply.
•When ‘Public Display Settings’is set to O (Do Not Work), all functions of Public Display Mode Do Not apply.
•When it is set to ‘On’, all items reserved at the Schedule list are deleted and the reservation function is not
supported. (applied for the model oering the reservation function)
Power On Status
•Decide to select working status of Signage Set when turn on main power.
•You can set with PWR, STD, LST.
•PWR always make Signage set On status when turn on main power.
•STD make Stand-by status when turn on main power.
•LST make Signage Set work like previous power status. As same concept as Power Backup mode; If main power
were turned o in Power On status, Signage Set would work in On status. If main power were turned o in
Stand-by status, Signage Set would work in Stand-by status.
•If there Block All is both IR Operation and Local Key Operation from Key Management, In order to provide the
Option that must be able to turn on the Signage in the Signage turned o situation, change the value of the
PWR. (Reference the Key Management)

ENGLISH
7
Volume
•Decide to apply volume policy of ‘Start Volume’, ‘Maximum Volume’ and ‘Minimum Volume’as On (Work) or O
(Do Not Work).
•(0 ≤ Min ≤ Start ≤ Max ≤ 100)
Start Volume
•This entry sets the start volume level when is power on.
-The level is specified as a number between minimum volume to maximum value. (Min ≤ Start ≤ Max)
-The default setting is ‘Off’ (disabled).
-When enabled, if the value is lower than the minimum specified in the minimum volume entry, the
minimum volume entry must be used.
-When enabled, if the value is larger than the maximum specified in the maximum volume entry, the
maximum volume value must be used.
Maximum Volume
•This entry sets the maximum volume level the set. The level is specied as a number between ‘Minimum
Volume’to 100. (Min ≤ Max ≤ 100).
-If the command volume up to higher than maximum volume’ is received, that should be ignored.
-The default value is 100.
Minimum Volume
•This entry sets the minimum volume level the set will produce.
-The level is specified as a number between 0 to‘Maximum Volume’. (0 ≤ Min ≤ Max)
-If the command volume down to lower than minimum volume is received, that should be ignored.
-The default value is 0.
Key Management
•Manage key usability of Local(Front) Key and Remote Control. When selected to ‘On’, following‘IR Operation’
and ‘Local Key Operation’ will be worked by below.
IR Operation
•Decide whether work the LG remote control or not.
-When ‘IR Operation’is set to 'Normal', all remote keys are available.
-'Use PWR Only' makes block all remote keys except power key.
-When ‘IR Operation’is set to 'Block All', all normal remote keys don’t work.
Local Key Operation
•Decide to operate 'Local/Front Key' working behavior by setting ‘Local Key Operation’ as 'Normal', 'Use PWR
Only' and 'Block All'.
-When ‘Local Key Operation’ is set to 'Normal', all local keys are available.
-'Use PWR Only' makes block all local keys except power key.
-When ‘Local Key Operation’ is set to 'Block All', all local keys don’t work.

ENGLISH
8
Limited Mode
•Congure Signage function’s limitation. When selected to‘On’, following sub-menus will be worked by below.
Menu Display
•Function to decide whether work with menu (including relevant menus too) of control key (On – Enter
possible) or not (O – Enter Impossible).
-Although select Off (Enter impossible), the action that press a Menu button for 5 seconds to enter
‘Installation Menu’is available.
-When select On (Enter possible), Menu works.
OSD Display
•Decide to display OSD or not by setting‘OSD Display’ as On (Display) or O (Do not Display).
-When ‘OSD Display’ is set to ‘Off’(Do not Display), all OSD is not displayed except some exception.
-Although select ‘Off’ (Do not Display), the action that press a Menu button for 5 seconds to enter
‘Installation Menu’and entering service menu are available. (In-Start, Power-Only, Adjust, Installation
Menu...)
System Provider Mode
•‘System Provider Mode’allows access to the menu system from the front panel or remote control but access is
controlled as follows:
-When value is ‘On’, Accessible Items on the menu system, others are not permissible. (Depending upon
model)
» Input select screens
» Sleep timer
» Aspect Ratio
» 'Photo & Video' / Music' / ‘Network’ / ‘Bluetooth’Menu.
» Input Manager

ENGLISH
9
Power On Default
•Set to On (Work) or O (Do Not Work).
•When ‘Power On Default’ is set to O, it is not applied to the subordinate Input, A/V Setting, Aspect Ratio
menu.
•When Power On Default is set to On, it can set by entering the subordinate menu.
Input
•Set whether it is turned on by the set input source or by the last stored input source.
A/V Setting
•If ‘A/V Setting’is changed from ‘O’ to ‘On’, A/V parameters that are set before entering‘Installation Menu’are
applied whenever turn on power.
Aspect Ratio
•The aspect ratio determines the default aspect ratio that the set returns to on power up.
Aux Source Setting
•Set to On (Work) or O (Do Not Work).
•The Auxiliary (Input) Source Setting feature will enable or disable for each external input.
•User cannot disable the current input’s ‘Aux Source Setting’.
Power Management
•The Power Management feature will turn o the Signage if no input control command is received from either
the Local or IR Key within selected hours.
-Activity on either of these inputs shall reset the ‘Power Management’ timer and prevent interruption of
Signage viewing.
-This entry can be set to a value which is corresponding to the desired hours (1 hour to 7 hours).
-Default value is ‘Off (disabled)’.
Factory Reset
•Change all settings to their default values.

ENGLISH
10
Network
MAC Address
•Displays the MAC address (not customizable).
Network Setting
One-click network connection
•Connects easily to a wired network.
•This menu supports to connect to an available network.
To connect to a network through Set Expert
•For use in special circumstances such as in oces (in cases where a static IP is used).
1 Select a network connection.
2 When connecting via Wired, Congures the IP settings of the Signage set. You can set the IP address,
subnet mask, gateway and DNS server.

ENGLISH
11
Wake On LAN
•Sets the Wake On LAN function to Enable or Disable.
-The Wake On LAN feature enables the Signage to receive software updates and/or be powered ON upon
receipt of Wake Up Frame packets and/or Magic Packet data via the wired LAN. To facilitate use of this
feature, note that the appropriate wired connection must be made. (‘Wake up Frame’- Depending upon
model)
Server Setting
(Depending upon model)
•Sets the information to connect to the external server.
CMS Server
•Sets the network information to connect to SuperSign CMS. (or other compatible solutions)
Control Server
•Sets the network information to connect to SuperSign Control. (or other compatible solutions)

ENGLISH
12
General
Conguration Setup
On Timer Operation
•It is a mode to select ‘Timer Power On’ working one time or repeatedly.
•'Once': ‘Timer Power On’ in the user menu operates only one time when the Timer Power On menu is set to On.
•‘Repeat’ : ‘Timer Power On’operates repeatedly when the Timer Power On menu is set to On.
USB Auto Playback
(Depending upon model)
•When ‘USB Auto Playback’ is set to ‘Movie’, Signage nds and plays the USB’s movie les located at the root(top)
directory Movies if USB is plugged in.
•When ‘USB Auto Playback’ is set to ‘Photo’, Signage nds and plays the USB’s photo les located at the root(top)
directory Photos if USB is plugged in.
•If it reaches the last le, it starts the rst le again
Auto Sensing
•If ‘Auto Sensing’ is set to ‘On’, the input is automatically switched when the input signal that you set to “ON’is
received.
•If ‘Auto Sensing’ is set to ‘Disable’, the input is not switched when the input signal is received.
-SIMPLINK and Auto Sensing cannot work simultaneously. If SIMPLINK is set to On, Auto Sensing is
automatically set to Disable.
-If the signal is removed while Auto Sensing (automatic input switch) is enabled, the input returns to the
previous setting.
If the several input are connected by enabling Auto Sensing and the automatic input returns to the
previous setting.
If the several inputs are connected by enabling Auto Sensing and the automatic input switch is
performed several times, the input returns to the previous setting only for the last input and does not
repeat the operation for the rest.

ENGLISH
13
DPM
(Depending upon model)
•You can congure the DPM (Display Power Management) function.
•If this option is not set to O, the Signage set enters the DPM mode when there is no input signal.
•If you set this option to O, the DPM function is disabled.
Sustain Aspect Ratio
(Depending upon model)
•Sustain Aspect Ratio sets the power mode of the HDMI Switching IC, which detects HDMI external input
signals in the Signage Standby state after DPM Power O turns o the Signage.
•If Sustain Aspect Ratio is set to ON, the HDMI Switching IC is supplied with power even in Standby state after
DPM turns o the Signage.
•If Sustain Aspect Ratio is set to OFF, the HDMI Switching IC maintains low power mode in Standby state after
DPM turns o the Signage.
Screen Saver
•When the currently displayed app has not received any user input for an hour, it will be replaced by a Screen
Saver.
•If you turn this option ‘O’, the current picture may create an afterimage burned onto your screen, possibly
permanently.

ENGLISH
14
Set ID Setup
Set ID Lock
•Set the ‘Set ID’ item in GENERAL Menu whether to activate or not.
•Set to On (Work) or O (Do Not Work).
Set ID
•Set the ‘Set ID’ of Signage Set with 1~99.
Power Saving
Static Saving
•It is the item for setting the level to reduce the backlight control from the items for saving the consuming
power, which is increased or decreased by 10 steps from 0 to 100. 100 makes the consuming power set to the
same one from the Signage. 0 reduces the consuming power to the minimum. The default value is 100.
-The value displayed at the OSD is not changed and only the actual setting value is converted to
percentage based on the static saving value to set.
-0 ~ 30: HIGH, 40 ~ 60 : MID, 70 ~ 90 : LOW, 100 : OFF.
Keyless Off Hours
•Automatically Signage will be turned o if there is no key input for the preset time period.

ENGLISH
15
HCEC Setup
CEC Mode
(Depending upon model)
•You will have 2 modes to choose [Default], [HCEC].
•If [Default] is selected, you can use SIMPLINK which is provided in LG Signage. Also you can enable and disable
SIMPLINK through SIMPLINK MENU.
IR Decoding
•When ‘IR Decoding’is set to ‘Enable’, the Signage decodes and changes it into a CEC Message and sends it to
Command via the HDMI CEC Line. The default value is Disable.
Device ID
•Sets the ID of a device(Logical Address) connected to the CEC Line. You can choose ‘All’ and from ‘0 x 01’ to ‘0 x
0E’(All, 0 x 01 ~ 0 x 0e).
•The default value is ‘All’.
StandBy
•Set the sending and receiving scenario of OpStandBy(0 x 0c) command.
•This detailed scenario is described on the table below.
Send Receive
Send Only O X
Receive Only X O
All O O
O X X

ENGLISH
16
Clock Setup
Clock Source
•You can select ‘O’, ‘NTP’, ‘Admin’.
•NTP : Clock is synchronized using Network Time Protocol. It's only enabled when network cable is connected.
•Admin : It's automatically set to Admin when clock is updated by commercial protocols like TVLink-HCEC.
•O : Clock is synchronized using any available clock source.
-Input (Depending upon model)
» You can select 'Input' according to 'Clock Source'.
» Input is set to 'None', 'HCAP', 'Protocol', 'HTNG' automatically when Clock Source is 'Admin'.
Password Change
•To ensure more security, Password can be changed by installers’own design.
1 Change password by using virtual keyboard.
2 Input the password again for conrmation.
Lock Mode
•If ‘Lock Mode’ is ‘Yes’, the following features will be unavailable.
USB
•If it is set to ‘Enable’, USB devices do not work in relative features. (Exclude S/W update)
Factory Reset
•If it is set to ‘Enable’, User Menu General Reset to Initial Settings is disabled.
Crestron
(Depending upon model)
•This function enables synchronization with applications provided by Crestron.
•Server: This menu sets the server’s IP address for the network connection with the server. (equipment provided
by Crestron)
•Port (1024~65535): This menu sets the port for the network connection with the server. The default port
number is 41794.
•IP ID (3-254): This menu sets a unique ID for synchronizing with the application.

ENGLISH
17
Signage Manager
You can update les from USB to Signage through the Signage manager.

ENGLISH
18
Ez Download
•Ez Download is a function that enables users to download the desired items all at once, such as EPK (software
update le), TLL, Image, Micom.
-Images and Software Update files should be copied into the folder named LG_DTV on the USB.
» TLL files should be copied to the root folder of the USB.
» If you press ‘EZ Download’ menu, EZ Download is launched.
» If ".DZM" file exist file will be selected previously download file.
•DZM le is created in USB after the download is complete.
If USB containing “DZM” is connected after Signage is turned on, Signage Manager will be automatically
launched. Then, EZ Download is displayed and previously downloaded les are selected automatically.

ENGLISH
19

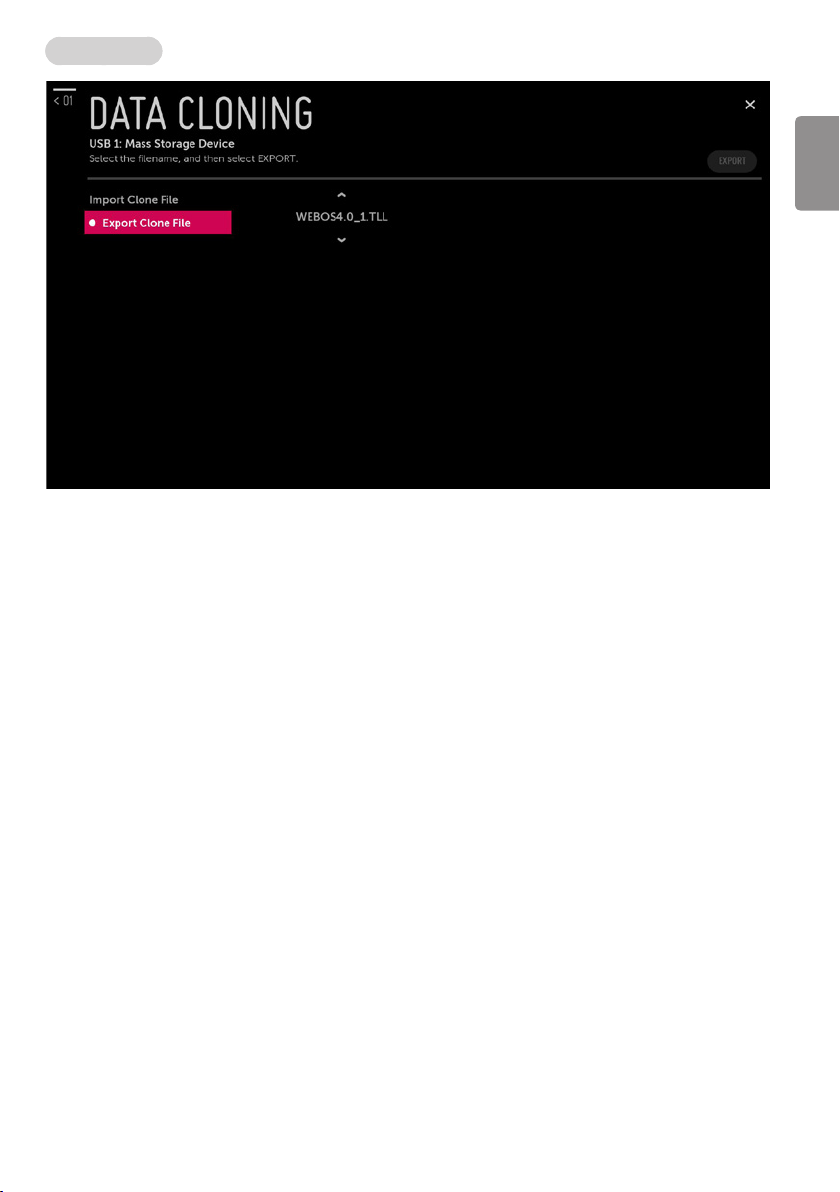

Export Clone File
•“Export Clone File”creates “TLL” le in USB root folder. “TLL” le can be used to “Import Clone File”. While
writing is in process, the user must not turn Signage o nor unplug the USB memory card. The following
reference images might be slightly dierent.

ENGLISH
20

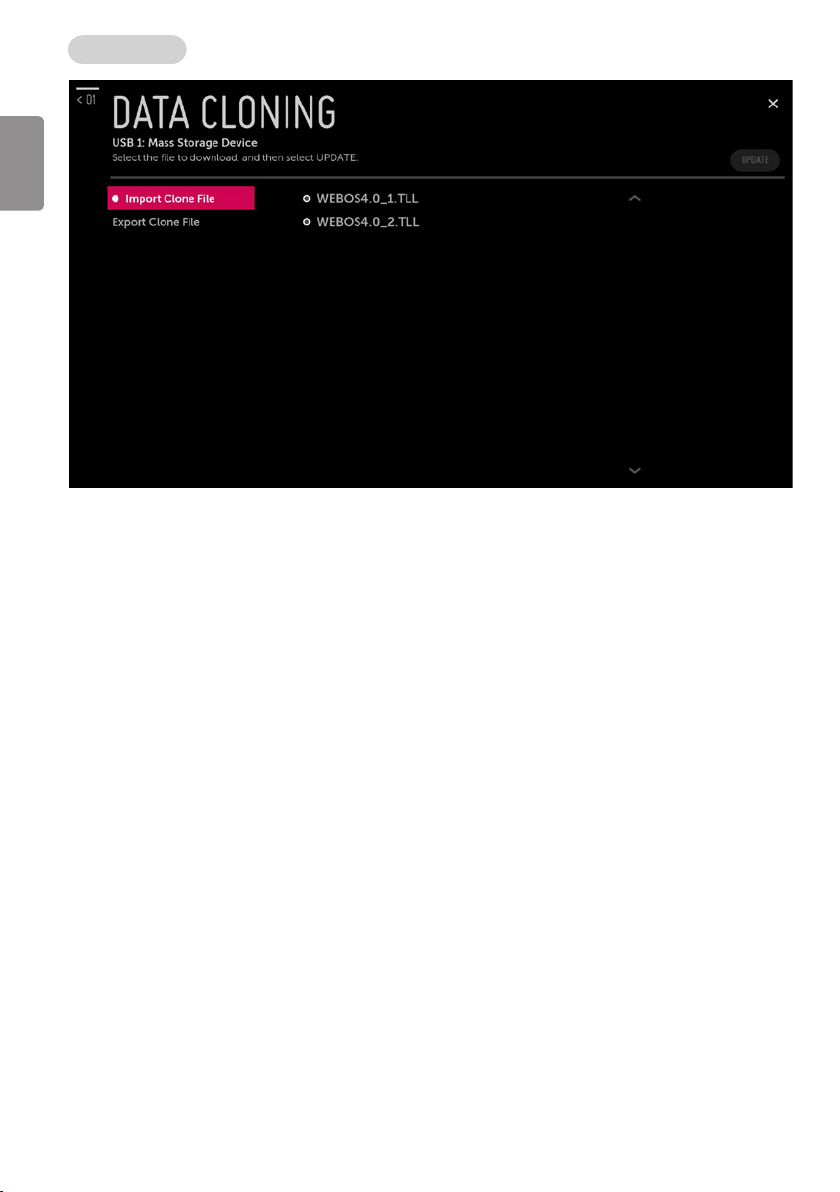

Import Clone File
•Once the internal Signage data is written to the USB memory card, the user can start “Import Clone File”
process with the data le generated and stored in USB memory card. The user should not turn Signage o nor
unplug the USB memory card while processing. The following reference images might be slightly dierent.
