LG 4300 User manual
© copyright 2006 12-239v3 LA GARD INC - A Member of The Kaba Group
4300 Dual-Handed Swingbolt or 6040-DB Deadbolt Lock Instructions
MANAGER PROGRAMMING
CHANGING YOUR CODE (Without
e
KEY or
e
KEYII)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
If your unit is programmed for Dual Code, each code must be
changed independently.
1 Enter existing code and hold down the last digit until unit
double signals twice and the LED stays on.
2 Press the “0” key.
3 Enter your NEW six (6) digit code two times.
m If a mistake is made wait thirty (30) seconds and repeat steps 1
- 3.
4 Test unit operation several times before closing the door.
• Valid Code Entry - Double signal after valid six (6) digit code is
entered.
• Invalid Code Entry - Triple signal and old code is still valid.
MANAGER CODE MUST BE CHANGED PRIOR TO
PERFORMING ANY ACTION OTHER THAN OPENING THE
LOCK
OPENING THE LOCK (Without
e
KEY or
e
KEYII)
1 Enter valid six (6) digit code.
2 The unit will indicate a valid code entry with a double signal.
3 Within four (4) seconds open lock by either rotating the keypad
to open position (Clock-wise) or turning the handle to the open
position.
4 Pull door open.
• Invalid Code Entry - Unit will signal three (3) times.
Suggested Keypad
ACTIVATING USER
(Manager Only, without e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold down last digit of code until unit
double signals twice and the LED stays on.
2 PRESS 1. Unit signals twice.
3 Press User number, 2 to 9. Unit signals twice.
4 Enter NEW six (6) digit User code two times.
5 If a mistake is made wait thirty (30) seconds and repeat steps
1- 4.
• Valid Code Entry - Double signal after valid six (6) digit code is
entered.
• Invalid Code Entry - Triple signal and old code is still valid.
DISABLE USER
(Manager Only, without e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold down last digit of code until unit
double signals twice and the LED stays on.
2 PRESS 2. Unit signals twice.
3 Press User number, 2 to 9. Unit signals once.
4 User is temporarily disabled.
5 If a mistake is made wait thirty (30) seconds and repeat steps
1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is
entered.
• Invalid Code Entry - Triple signal and old code is still valid.
STANDARD FEATURES
MANAGER CODE
(Factory set to 1-2-3-4-5-6 or 7-8-9
depending on code length)
• Activate/Delete Users
• Enable/Disable Users
• Set Time Delay Values
• Open Lock
USER CODE
• Open Lock
• Change Code
TIME DELAY
• Delay period 1 - 99 minutes
• Open period 1 - 19 minutes
DUAL CODE
• Two codes required to open
SIGNAL TO DISABLE LOCK OPENING
(Optional Alarm Box
Required)
• Input signal disables opening of lock by valid code
WRONG TRY PENALTY
• Four (4) consecutive invalid codes initiates five minute
delay period.
LOW BATTERY WARNING
• Repeated audio and visual signal (LED flashing and
repeated beeping) during opening indicates battery low.
AUDIO AND VISUAL SIGNAL
• Double signal (LED flashes and unit beeps) indicates
entry is valid or accepted.
• Triple signal indicates invalid or not accepted.
AUDIT TRAIL
• For audit features see LPAUDIT Software Package
3750-K
Round Entry
PC PROGRAMMABLE FEATURES
MULTIPLE USERS
Up to nine (1 Manager and 8 Users)
User # Installed 2 3 4 5 6 7 8 9
ACTIVE
CODE LENGTH
TIME DELAY OVERRIDE
• Ability to add second combination to override delay
period
SILENT SIGNAL ALARM
(Optional Alarm Box Required)
• Duress signal if last number of code(s) is entered using
one number higher or one number lower.
SIGNAL TO DISABLE LOCK
(Optional Alarm Box Required)
• Input signal disables all lock functions by valid code
e
KEY or
e
KEYII
• Use of key and code required

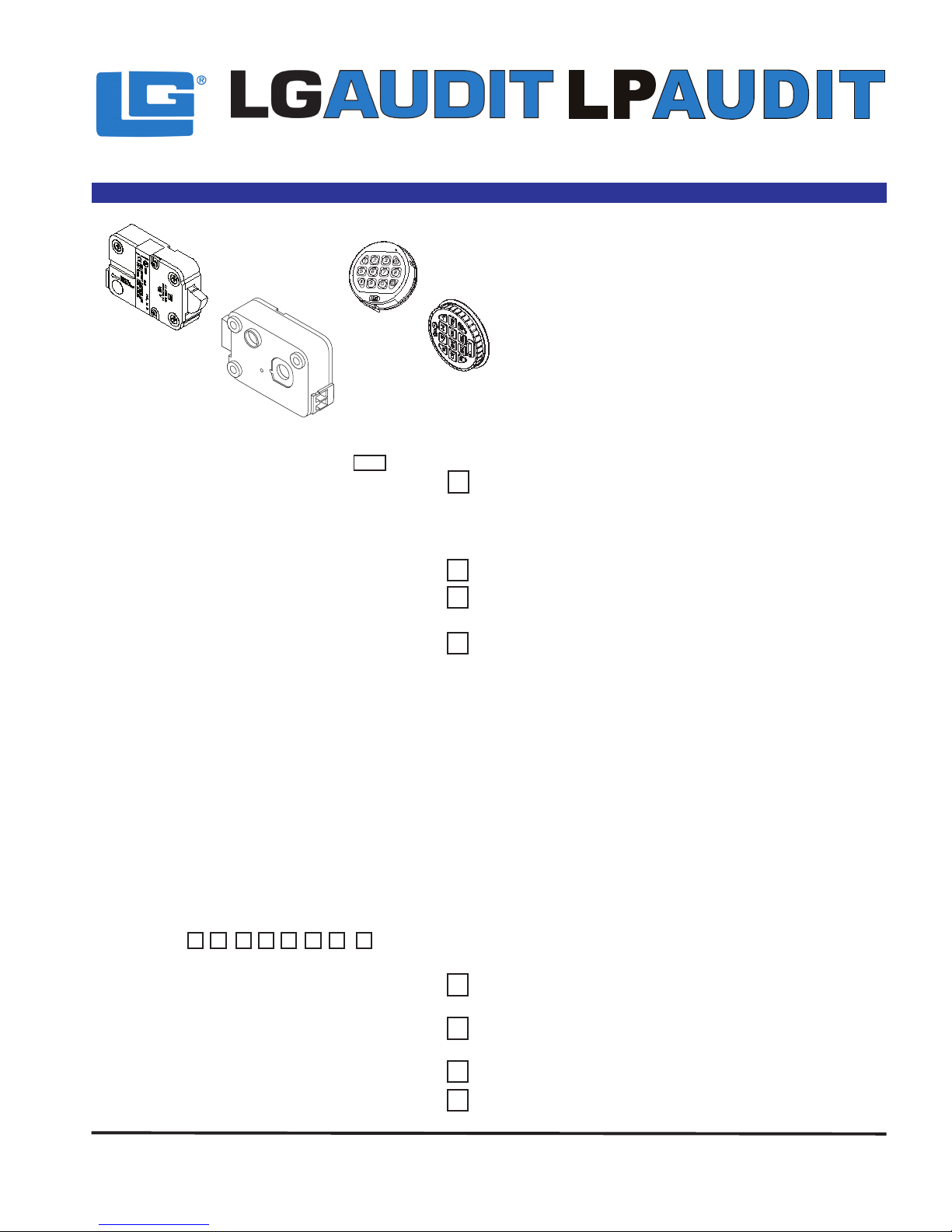

Lock Choices
4300
Dual-Handed Swingbolt
6040-DB
Deadbolt
• All locks are shipped from the factory in Pre Set-up
mode, with no features installed.
• Lock will open when 1 is pressed.
• Please follow LPAUDIT PC software instructions to
initially configure locks to default settings.
4300 is a new part
number replacing the
6260
3125 Round
Entry
© copyright 2006 12-239v3 LA GARD INC - A Member of The Kaba Group
DELETE USER
(Manager Only, without
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold down last digit of code until unit double signals twice and the LED stays on.
2 PRESS 3. Unit signals twice.
3 Press User number, 2 to 9. Unit signals once.
4 User is deleted.
5 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
DUAL CODE OPERATION
(
If feature is active, without
e
KEY or
e
KEYII
)
1 Must add second user to open lock. (See ADD USER)
• Second User cannot be disabled or removed.
2 If Time Delay is active, one valid code will start Delay period.
• Both codes required to open lock in Open period.
SET/CHANGE TIME DELAY VALUES
(Manager Only, without
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold down last digit of code until unit double signals twice and the LED stays on.
2 PRESS 9. Unit signals twice.
3 Enter Delay period value, from 00 to 99 minutes. For example five (5) minutes would be entered by pressing the 0 key and
then the 5 key.
4 Enter Open period value, from 00 to 19 minutes. For example two (2) minutes would be entered by pressing the 0 key and then
the 2 key. Unit will signal twice.
Note: Selecting 0000 minutes deactivates the Time Delay Feature.
5 Confirm all four values. Unit signals twice and feature is active.
NOTE: If Time Delay is active it may only be deactivated or delay value decreased in Open Period.
TIME DELAY OVERRIDE
(If feature is active, without
e
KEY or
e
KEYII
)
• Must add User 9. (See ADD USER)
- User 9 cannot be disabled or removed.
• Entry of Override code during Delay period will open the lock.
SILENT SIGNAL ALARM
(If feature is active AND optional Alarm Box is connected to an alarm system.) Without
e
KEY or
e
KEYII
.
• Enter last digit of code one number higher or one number lower.
Example: Code: 1-2-3-4-5-6
Duress: 1-2-3-4-5-5 or 1-2-3-4-5-7
• The lock will open without any indication that the duress signal has been sent.
CHECK USER STATUS
(Manager Only, without
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold down last digit of code until unit double signals twice and the LED stays on.
2 PRESS AND HOLD DOWN 1. Unit signals twice.
3 Press User number, 2 to 9.
4 Unit will signal once is the user is active, twice is the user is disabled, three times if the User is available. The unit will signal
with one extended signal is the User is unavailable.
5 To exit PRESS 0 or 1.
RECEIVE AUDIT
(Manager Only, without
e
KEY or
e
KEYII
)
This function requires Serial Interface (P/N 43087) and LGVIEW Software
1 Plug Interface into PC and open LGVIEW software on PC.
2 Connect Interface to front of keypad and click safe icon button on the PC software to begin acquisition.
3 Enter Manager code and hold down last digit of code until unit double signals twice and the LED stays on.
4 PRESS 7. Unit signals once and Audit will be sent.
5 Disconnect Interface Cable from PC and keypad.
REINSTATE USER
(Manager Only, without
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold down last digit of code until unit double signals twice and the LED stays on.
2 PRESS 1. Unit signals twice.
3 Press User number, 2 to 9. Unit signals once.
4 User is reinstated.
5 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
CHANGING YOUR CODE
(With
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
If your unit is programmed for Dual Code, each code must be changed independently.
1 Enter existing code and hold in key until unit double signals twice and the LED stays on. Leave the key in the unit.
2 Press the “0” key.
3 Enter your NEW six (6) digit code two times, touching the key after each complete six-digit code entry.
4 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
5 Test unit operation several times before closing the door.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
MANAGER CODE MUST BE CHANGED PRIOR TO PERFORMING ANY ACTION OTHER THAN OPENING THE LOCK
OPENING THE LOCK
(With
e
KEY or
e
KEYII
)
1Enter valid six (6) digit code and insert key.
2The unit will indicate a valid code and key entry with a double signal.
3Within four (4) seconds open lock by either rotating the keypad to open position (Clock-wise) or turning the handle to the open
position.
4Pull door open.
• Invalid Code Entry - Unit will signal three (3) times.
ACTIVATING USER
(Manager Only, with
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold in key until unit double signals twice and the LED stays on. Remove key.
2 PRESS 1. Unit signals twice.
3 Press User number, 2 to 9. Unit signals twice.
4 Enter NEW six (6) digit User code two times, touching the key after each complete six-digit code entry.
5 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
DISABLE USER
(Manager Only, with
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold in key until unit double signals twice and the LED stays on.
2 PRESS 2. Unit signals twice.
3 Press User number, 2 to 9. Unit signals once.
4 User is temporarily disabled.
5 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
REINSTATE USER
(Manager Only, with
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold in key until unit double signals twice and the LED stays on.
2 PRESS 1. Unit signals twice.
3 Press User number, 2 to 9. Unit signals once.
4 User is reinstated.
5 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
DELETE USER
(Manager Only, with
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold in key until unit double signals twice and the LED stays on.
2 PRESS 3. Unit signals twice.
3 Press User number, 2 to 9. Unit signals once.
4 User is deleted.
5 If a mistake is made wait thirty (30) seconds and repeat steps 1- 3.
• Valid Code Entry - Double signal after valid six (6) digit code is entered.
• Invalid Code Entry - Triple signal and old code is still valid.
CHECK USER STATUS
(Manager Only, with
e
KEY or
e
KEYII
)
ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
1 Enter Manager code and hold in key until unit double signals twice and the LED stays on.
2 PRESS AND HOLD DOWN 1. Unit signals twice.
3 Press User number, 2 to 9.
4 Unit will signal once is the user is active, twice is the user is disabled, three times if the User is available. The unit will signal with one
extended signal is the User is unavailable.
5 To exit PRESS 0 or 1.
© copyright 2006 12-239v3 LA GARD INC - A Member of The Kaba Group
BATTERY LOW WARNING
• Repeated beeping during an opening indicates that the battery is low and needs immediate replacement. LA GARD recommends the
replacement of batteries at least once annually.
• Uses one (1) 9-Volt Alkaline Battery. LA GARD recommends the use of Duracell™ or Eveready™ Alkaline batteries.
• If battery is depleted and will not allow lock to open, follow instructions found on the User Instructions for your keypad. Lock
contains a non-volatile memory, even with batteries removed the lock will retain all programming.
WRONG TRY PENALTY
• Entry of four (4) consecutive invalid codes starts a 5-minute delay period.
- LED flashes red at ten (10) second intervals.
• At the end of the delay period, two more consecutive invalid codes will restart an additional 5-minute delay period.
During delay period a single keystroke will respond with three signals.
DUAL CODE OPERATION
(If feature is active.)
1 Must add second user to open lock. (See ADD USER)
• Second User cannot be disabled or removed.
2 If Time Delay is active, one valid code will start Delay period.
• Both codes required to open lock in Open period.
SET/CHANGE TIME DELAY VALUES
(Manager Only, with
e
KEY or
e
KEYII
)
1 Enter Manager code and hold in key until unit double signals twice and the LED stays on.
2 PRESS 9. Unit signals twice.
3 Enter Delay period value, from 00 to 99 minutes. For example five (5) minutes would be entered by pressing the 0 key and then the 5
key.
4 Enter Open period value, from 00 to 19 minutes. For example two (2) minutes would be entered by pressing the 0 key and then the 2
key. Unit will signal twice.
Note: Selecting 0000 minutes deactivates the Time Delay Feature.
5 Confirm all four values. Unit signals twice and feature is active.
NOTE: If Time Delay is active it may only be deactivated or delay value decreased in Open Period.
TIME DELAY OVERRIDE
(If feature is active.)
• Must add User 9. (See ADD USER)
- User 9 cannot be disabled or deleted. If the User is disabled or deleted, this feature will no longer function.
• Entry of Override code during Delay period will open the lock.
SILENT SIGNAL ALARM
(If feature is active AND optional Alarm Box is connected to an alarm system.)
• Enter last digit of code one number higher or one number lower.
Example:Code: 1-2-3-4-5-6
Duress: 1-2-3-4-5-5 or 1-2-3-4-5-7
• The lock will open without any indication that the duress signal has been sent.
RECEIVE AUDIT
(Manager Only, with
e
KEY or
e
KEYII
)
This function requires Serial Interface (P/N 43087) and LGVIEW Software
1 Plug Interface into PC and open LGVIEW software on PC.
2 Enter Manager code and hold in key until unit double signals twice and the LED stays on.
3 Remove key and connect Interface to front of keypad and click safe icon button on the PC software to begin acquisition.
4 PRESS 7. Unit signals once and Audit will be sent.
5 Disconnect Interface Cable from PC and keypad.

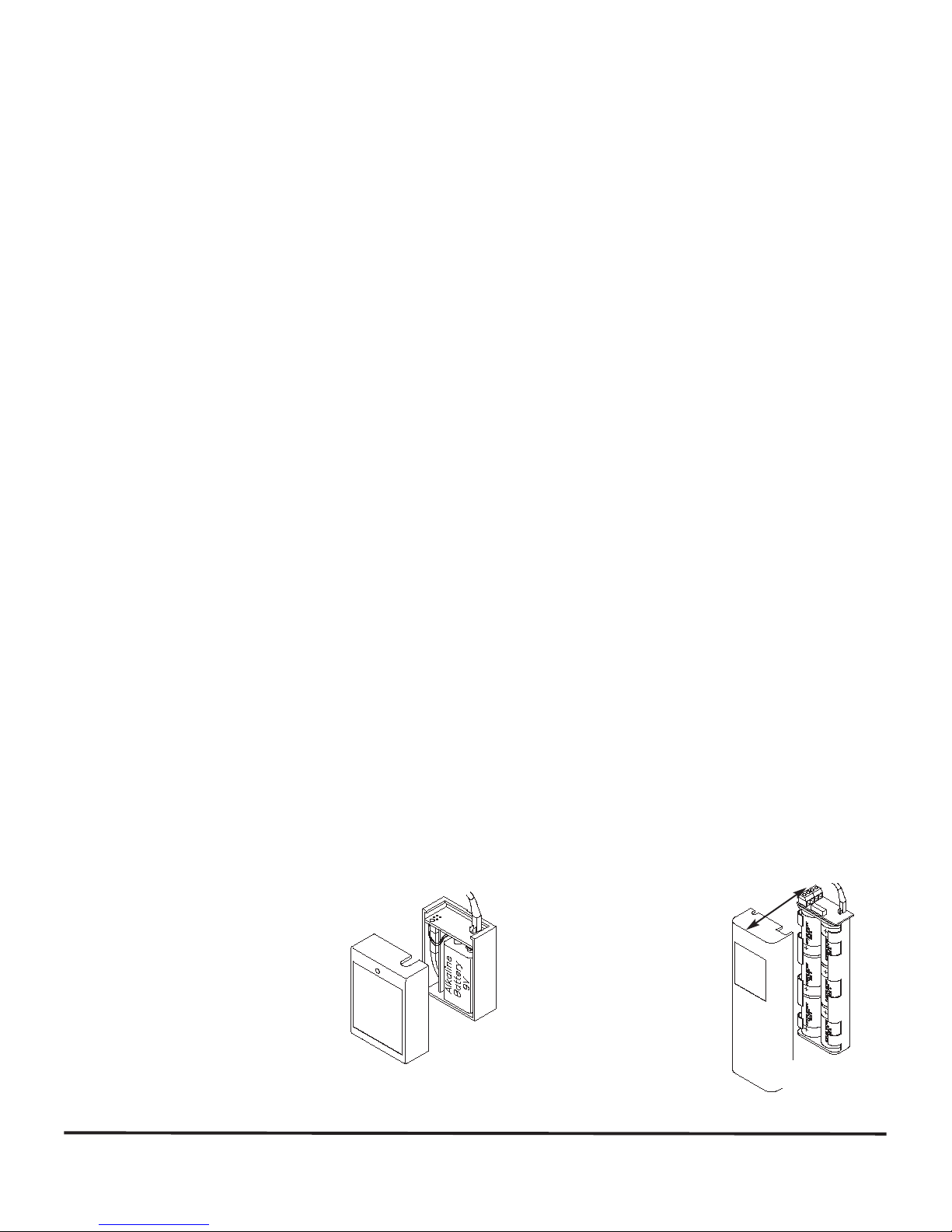

CHANGING YOUR BATTERY
1 Open safe door.
2 Remove battery box cover by pulling the
front portion away from the safe door.
3 The connector is easily removed by
unsnapping it from the two terminals on
the top of the battery.
Never Pull on the Battery Leads
4 Connect a new 9-Volt Alkaline battery to
the battery clip.
5 Push the battery and the leads
completely up into the battery
compartment.
6 Replace the cover and test the unit
several times before closing the door
2788 Small Battery
Box or 2789 Small
Battery Alarm Box
4001 Large
Battery Box or
4002 Large
Battery/Alarm Box
CHANGING YOUR BATTERY
1 Open safe door.
2 Remove battery box cover by
pulling the front portion away
from the safe door.
3 Remove six “C” cell Alkaline
batteries.
4 Insert six new “C” cell batteries
5 Replace the cover and test the
unit several times before closing
the door
WARNING: The port for the
e
KEYII is a data port only. Connecting power to this port will damage the system.
LOCKS USING THE KEY FEATURE MUST BE ORDERED THAT WAY FROM THE FACTORY. PLEASE SEE PRICE LIST FOR
PART NUMBERS FOR LOCKS SET-UP FOR
e
KEY or
e
KEYII USE
.
© copyright 2006 12-239v3 LA GARD INC - A Member of The Kaba Group
This manual suits for next models
1
Other LG Door Lock manuals
