LG PTVK420 User manual

LG Ventilation Kit
LG
website http://www.lgservice.com
e-mail http://www.lgeservice.com/techsup.html
IMPORTANT
• Please read this installation manual completely before
installing the product.
• Installation work must be performed in accordance with
the national wiring standards by authorized personnel
only.
• Please retain this installation manual for future reference
after reading it thoroughly.
INSTALLATION MANUAL
Model: PTVK410 / PTVK420

2LG Ventilation Kit
VENTILATION KIT INSTALLATION MANUAL
TABLE OF CONTENTS
1. Safety Precautions.............................................................................................................3
2. Included Items....................................................................................................................4
3. Assembly Diagram.............................................................................................................5
4. Ventilation Kit Installation (PTVK410) ..............................................................................6
5. Flange Installation (PTVK420) ..........................................................................................7
6. Front Panel Installation .....................................................................................................9
7. Electrical Wiring To The Indoor Unit...............................................................................13

1. Safety Precautions
Installation Manual 3
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the following indications.
1. Electric works should be carried out according to ‘The technology requirement on the
electric installation’, The wiring standard’and this manual by a qualified personnel.
2.
If the installation isn’t complete, electric shock or fire may occur, or death or injury can be caused.
3. If the capacity of the power circuit is insufficient or its installation wasn’t done completely,
this may cause electric shock, fire or etc..
4. If the installation was done by a user, there may be incompleteness, which may cause
electric shock, fire, injury and death.
5. When operating the machine (applying power to the machine), do not carry out any electric
work and do not put hand or finger into it. This may cause electric shock, injury and death.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
Warning
1. Before installation, read this manual and carry out the worksaccording to it.
2. This machine can be installed on the ceiling air conditioner cassette type unit.(However,
please check the applicable models with PDB.)
3. When installing, the diameter of the duct connected to the flange, PTVK-420, is Ø150
4. Before installation, be sure to check all the included items. (However, be sure to use all
kinds of certified products when purchasing the items other than those provided by LG at
your local store.)
5. Be sure to carry out the earth work. (However, do not connect the unit to gas pipe, water
pipe, a lightning rod and a phone earth line. In addition, if the earth wasn’t completely done,
this may cause electric shock and fire.)
Caution
1. Safety Precautions

Item ➀ Ventilation kit ➁Bolt ➂ Bolt ➃ Insulation
Q’ty 1 4 4 1
4LG Ventilation Kit
2. Included Items
2. Included Items
Provided by LG.
PTVK410
Figure
➀➁➂ ➃
Item Flange Screw
Q’ty 1 7
PTVK420
Figure
➄➅
M4 x 10

Installation Manual 5
3. Assembly Diagram
3. Assembly Diagram
Indoor
Ventilation 1
Front panel
Bolt 2
Flange 5
Ventilation 1

6LG Ventilation Kit
4. Ventilation Kit Installation (PTVK410)
4. Ventilation Kit Installation (PTVK410)
4.1 Cut the styrofoam's groove for ventilation kit(➀)
4.2 Trim the cutting surface
Cuttin
g
Surface
4-1 and 4-2 are intended to obtain the air inflow path for ventilation.
If not used, do not cut the styrofoam.
Caution

5. Flange Installation (PTVK420)
Installation Manual 7

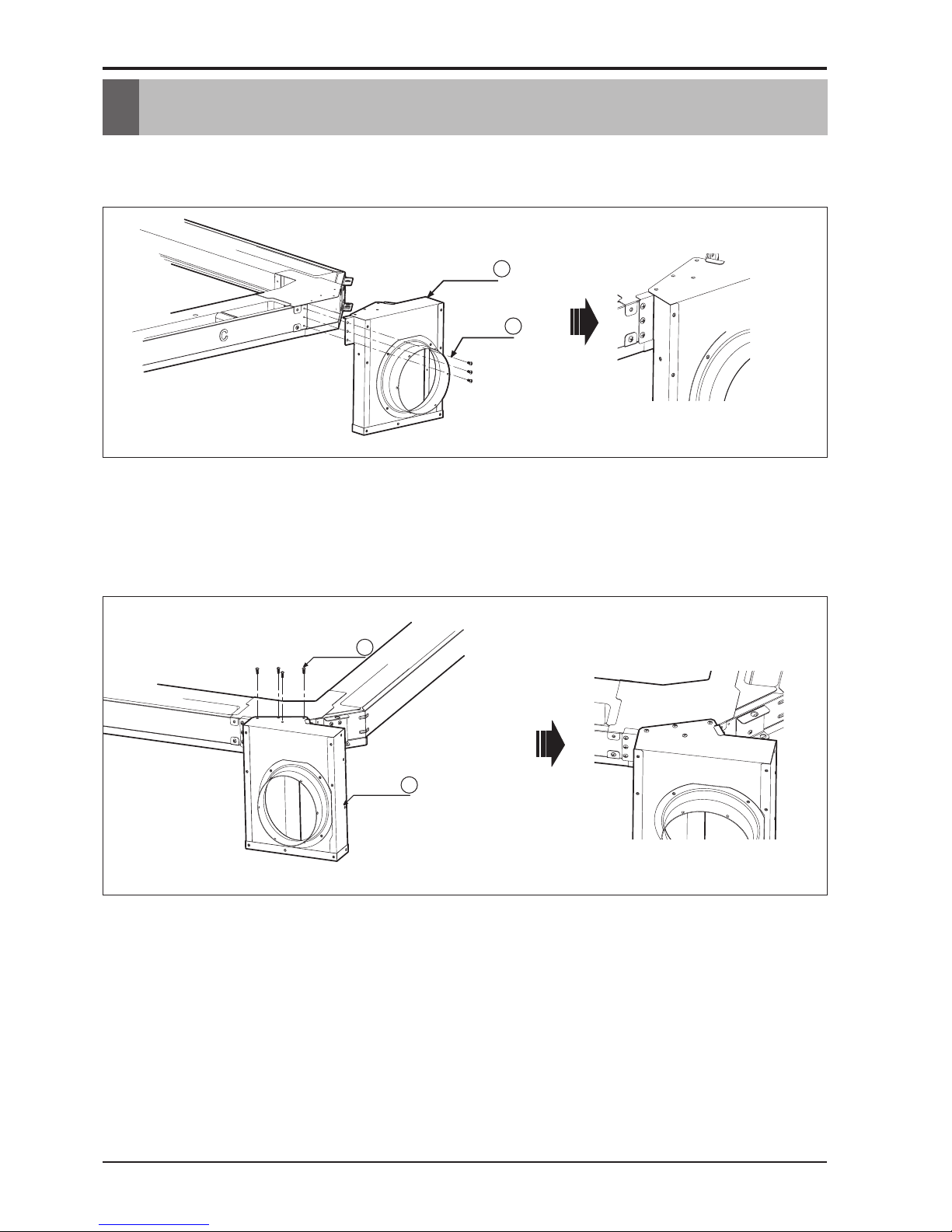

5. Flange Installation (PTVK420)
5-1. Use screws (➅) to fix 3 points on the side of the flange (➄).
5-2. Use screws (➅) to fix 4 points on the upper surface of the flange (➄).
Screw 6
Flange 5
Screw 6
Flange 5

8LG Ventilation Kit
5. Flange Installation (PTVK420)
5-3. Remove four screws which bond drain pan.
Indoor
Drain pan
bond screw
Drain pan
Indoor
Ventilation Kit ( 1 ) Bolt( 2 )
5-4. Attach ventilation kit ( ➀ ) to air conditoner with bolt ( ➁ )

Installation Manual 9
6. Front Panel Installation
6. Front Panel Installation
Part of this instruction is the same as the installation manual.
6-1. Disassemble the front panel packing and remove the front grill and checking edge cover from
the front panel.
Front grill
Edge cover

10 LG Ventilation Kit
6. Front Panel Installation

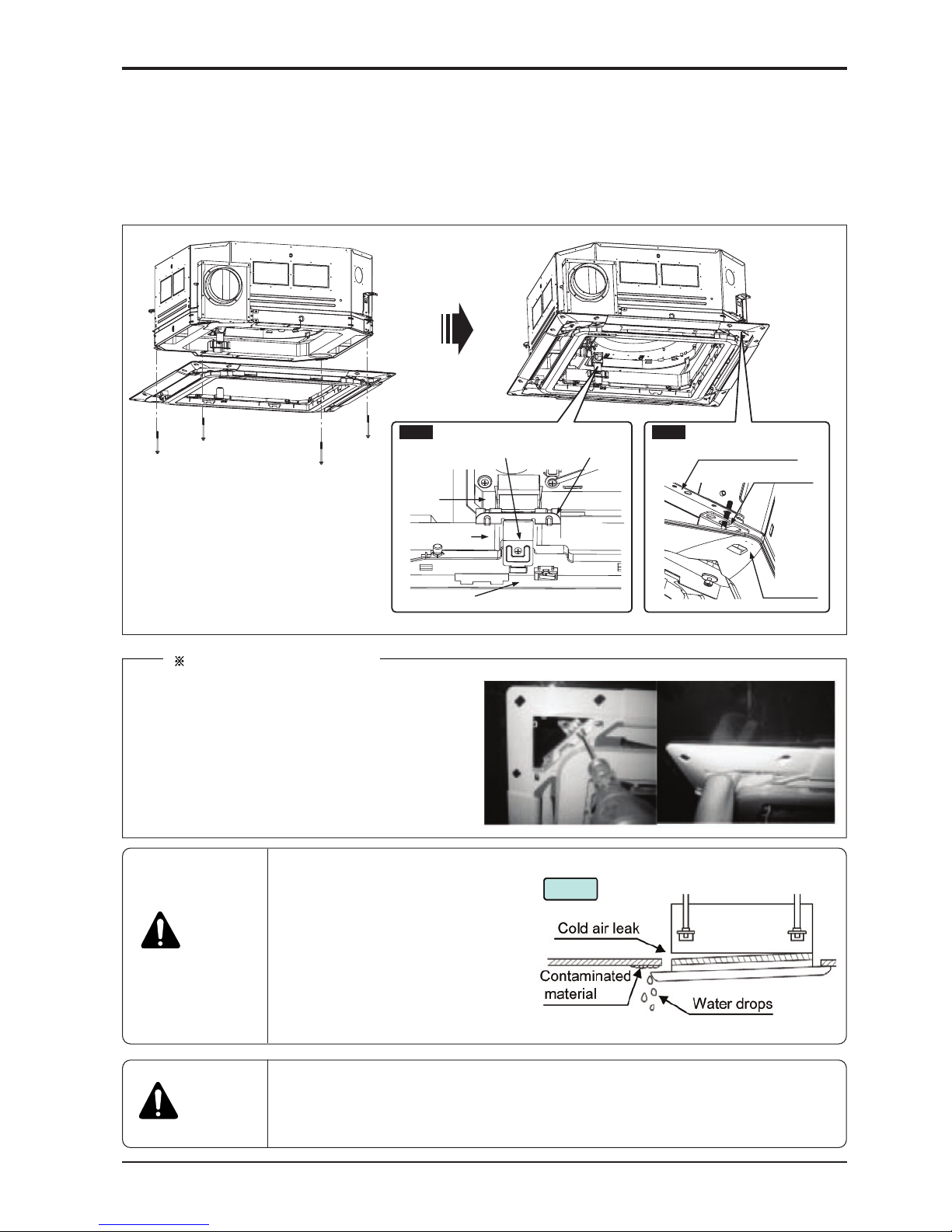

6-2. Attach the front panel to the assembly( ➀ + ➄ + ➅ + indoor unit) and use bolt(➁) to fix both the
front panel and the assembly to the indoor unit.
When attaching, get the bracket of the front panel to the hanger of the ventilation kit(
➀ ).[Fig.2]
Be sure to assemble the bolts tightly, so that they are tightened to the upper part of the indoor
unit. [Fig.3]
Firstly, insert 1/3 of bolt (➂) into 2 diagonal
places. After checking the position with the
ceiling, insert them into all of 4 places.
Through the edge hole, adjust the ceiling fixing
bolts to fit the ceiling and the front panel.
During above 6-2, the bolts(➂) are
only used for PTVK use the bolts in
the front panel package box. For
details, see the section of the front
panel in the air conditioner installation
manual. When the machine +
ventilation kit + front panel are not
closely assembled, cold air may leak
and cooling/heating gets weak and
water drops may fall. [Fig. 4]
Fig. 2 Fig. 3
INDOOR UNIT BRACKET
KIT BRACKET
FRONT PANEL
VENTILATION HOOK
INDOOR
FRONT PANEL
VENTILATION KIT
FRONT PANEL BRACKET
Front panel installation
Caution
Be sure to completely mount the fixing hanger on the ventilation kit hanger, so
that the front panel doesn’t fall.
If this isn’t assembled completely, fall, injury and accident may occur.
Warning
Fig.4

Installation Manual 11
6. Front Panel Installation

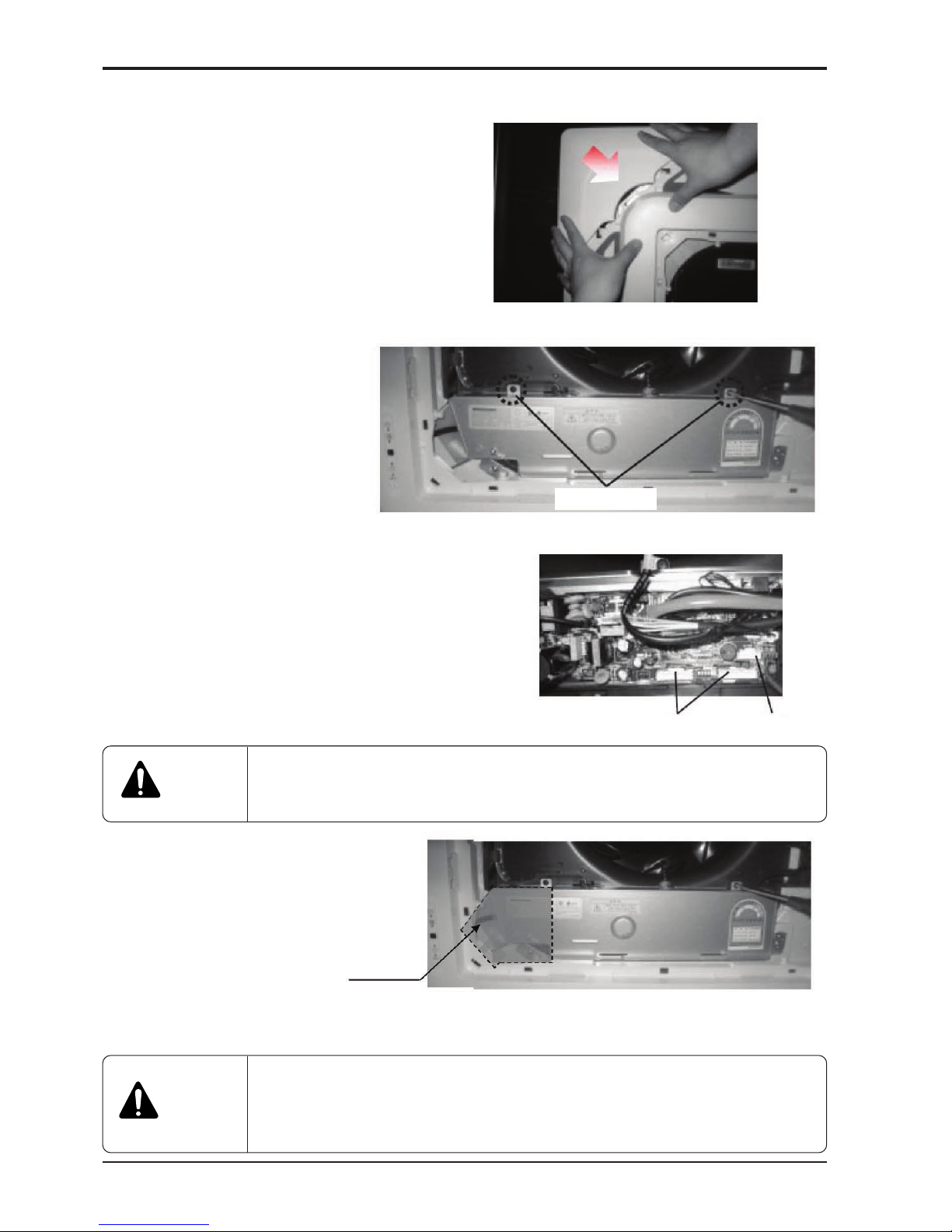

6-3. Close the checking edge.
6-4. Loosen 2 screws and open the
cover of the control box. .
6-5. Connect 1 display connector connected to the front
panel and 2 wind direction adjusters to the
specified area of the indoor unit PCB.
• When the insulation ( ➃ ) isn’t attached, water drops may gather in the control box and fall.
•When attaching and detaching the control box, attach it in the way that the
insulation (
➃ ) isn’t detached.
Warning
CN-VANE 1, 2
Screw point
CN-DISP
•Be sure to check the wiring diagram on the control box cover and connect them.
•Display connector : CN-DISP
•Wind direction adjustment connector : CN-VANE 1, 2.
Caution
Insulation ➃
6-6. Close the cover of the control box,
and attach the insulation (
➃ ) to the
cover as shown in the right Fig.
Close the front grill after attaching it.
→Attach to the upper part of the ventilation inflow inlet
and the control box.

12 LG Ventilation Kit
6. Front Panel Installation
➀ Ventilation Kit (PTVK410) ➁ Ventilation Kit connection flange (PTVK420)
➂ Duct ➃ Hood ➄ Filter ➅ Fan motor
Supplies
Purchased
items
1. Ventilation duct( ➂ )
Diameter, Ø150 and length, 4m is the requirement and middle duct bending should be less than
once. When using the duct not insulated(spiral, flat duct and etc.), the insulation should be done
and the thickness of the insulation should be more than 13mm.
2. Ventilation fan motor(➅)
The fan motor should have 160CMH of wind, and less than 1A ofoperation current at 15mmAq
and should be installed in the middle of the duct(2m). (This measurement is based on the duct
diameter, Ø150mm and length, 4m) Fan motor should be insulated or the insulation work should
be done and the thickness of the insulation should be more than 13mm.
3. Filter(➄)
Less than 4~5 Mesh recommended.
❈Hood and ventilation fan motor, filter and duct should be purchased and installed by a user(an
installer).
1. All the components of the duct should be precisely insulated and when connecting
between each component, sealing must be done precisely.
2. The outdoor duct should be installed to bend downward to outdoor, so that rainfalls
couldn’t come in. (The inclination should be 1/100 to 1/50)
3. To prevent small animals like birds, mice and etc. or insects, please install net to
the outdoor air inflow inlet.
4. When the metal duct penetrates the wooden wall, please electrically insulate
between duct and the wall. (Please install plastic sleeve and etc. to insulate.)
5. Consider surroundings since the contaminated substances and bad smell from
outside may come inside through the duct.
6. When installing the duct, do not install as below.
Caution
2) To bend the duct too many times 3) To reduce the duct diameter 1) To bend the duct excessively
• If a wrong fan motor was chosen, decrease of ventilation, damageto the
machine and fire may occur.
• Be sure to use the fan motor with the safety certification specification.
Warning

Installation Manual 13

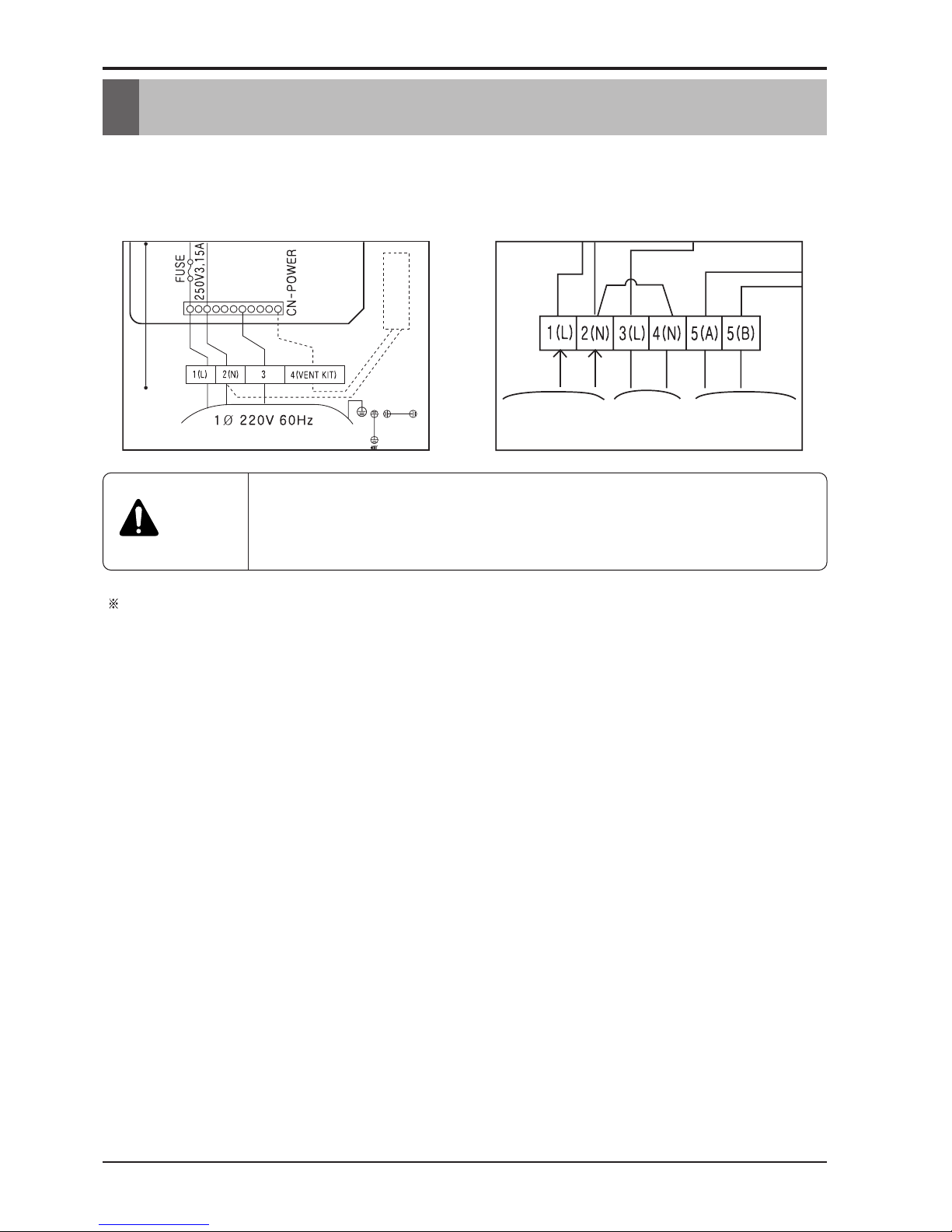

7. Electrical Wiring To The Indoor Unit
BR BL
RD
WH BK
MAIN POWER
1Ø220V 60Hz
CONNECT TO
VENTILATION
CONNECT TO
OUTDOOR
BR
BK
BL RD
G/N
CONTROL BOX
CONTROL BOX COVER
Fan & Motor
INDOOR
7. Electrical Wiring To The Indoor Unit
7-1. The wiring of the fan motor should be done as below to connect to the indoor unit terminal.
7-2. The wire of the fan motor shouldn’t be exposed. (Use CD pipe and etc. to protect the wire.)
For setting the ventilation mode of the CST remote controller, please refer to the user manual.
➀ CST Single machine : Connect to 2, 4 ➁ Multi V machine : Connect to 3, 4
•When the wire is exposed, the malfunction of the machine and fire may
occur due to damage to the wire.
•Wrong wiring may cause damage to the machine, malfunction and fire.
Warning

14 LG Ventilation Kit
Memo

P/No.: MFL41933302
