HBS-500 User Manual

Bluetooth®Stereo Headset

English

Рyccкий

Қазақша

Українська

www.lg.com

English

LG Electronics Inc., 2015

Note: For the best performance and

to prevent any damage to, or misuse of the

HBS-500, please read all of the information

carefully prior to using the HBS-500.

Any modications or changes to this manual due to

typographical errors or inaccuracies of stated information

shall only be made by LG Electronics Inc.

HBS-500 User Manual

Bluetooth®Stereo Headset

Description of parts

Extra Ear Gels

(medium & large)

- The small size Ear Gels are equipped to the product.

User Manual

USB Charging

Cable

WEEE Card

(Europe Only)

Warranty Card

Item Description

Bluetooth

specication

4.1 (Headset / Hands-Free / A2DP / AVRCP Proles)

Battery

Battery 3.7 V / 125 mAh Li-Polymer

Standby time / Talk Time Up to 500 hours / Up to 9 hours

Music play time Up to 7.5 hours

Charging time Less than 2 hours

Charging rated input DC 4.75 V ~ 5.6 V, 400 mA

Operation temperature -10°C ~ 60°C

Dimension / weight 140 mm (W) X 168 mm (L) X 18.1 mm (T) / 29 g

ENG

Package Contents

Specications

Memory Flex Neck

Strap

LED Indicator

VOLUME UP Button

(FF, Next Song)

VOLUME DOWN Button

(REW, Previous Song)

Earbud (R)

Charging Port

MFB (Multi-Function Button) :

Power/Call/Play Button

Microphone

Earbud (L)

Product Information / Информация о продукте

Typeof product / Тип изделия:

Model / Модель:

Serial No./ Серийный номер:

TheDate of Purchase / Дата покупки:

Seller Information / Информация о продавце

Storename / Название магазина:

Address/ Адрес:

Phonenumber / Телефон:

Commodityreceived in proper condition. I have read and agree with Warranty

Conditions.

Товарполучил в исправном состоянии. С условиями гарантии ознакомлен

исогласен.

Customer’ssign / Подпись покупателя Placefor seller ’sstamp / Место для

печатипродавца

Dearcustomer!

Thecompany LG Electronics thanks for your choice and guarantee high quality and

awlessoperation products subject to the rules of its operation.

Lifetime:3 years

Warrantyperiod: 1 year

To avoid possible misunderstandings, save for a lifetime documents attached to the

product when it is sold (sales receipt,instruction manual, warranty card).

WarrantyConditions

Thewarranty is valid only if the original receipt issued to the original purchaser by

thedealer, specifying the date of purchase and serial number, is presented with

theproduc t tobe repaired or replaced. LG Electronics reserves the right to refuse

warrantyser vice if this information has been removedor changed after the original

purchaseof the product from the dealer.

If LGElectronics repairs or replaces the product, the repaired or replaced product

shallbe warranted for the remaining time of the original warranty period or for

ninety (90) daysfrom the date of repair, whichever is longer. Repair or replacement

mayinvolve the use of functionally equivalent reconditioned units. Replaced parts

orcomponents will become the propert y of LGElectronics.

ThisWarranty does not cover any failure of the product due to normal wear and

tear,or due to misuse, including but not limited to use in other than the normal and

customary manner,in accordance with instructions for use and maintenance of the

product.Nor does this warranty cover any failure of the product due to accident,

modicationor adjustment, ac ts of God or damage resultingfrom liquid.

Thiswarranty does not cover product failures due to improper repair installations,

modicationsor ser vice performed by a non-LGElec tronicsauthorized person.

Tamperingwith any of the seals on the product will void the warranty.

LimitedWarranty

SUBJECTTO THE CONDITIONS OF THIS LIMITED WARRANTY,LG ELECTRONICS

WARRANTSTHIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND

WORKMANSHIPAT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER,AND

FORA SUBSEQUENT PERIOD OF ONE (1) YEAR. SHOULD YOUR PRODUCT NEED

WARRANTYSERVICE, PLEASE RE TURN ITTO THE DEALER FROM WHOM IT WAS

PURCHASED OR CONTACTYOUR LOCAL LGELECTRONICS CONTACT CENTER TO

GET FURTHER INFORMATION.

ENG

Power On / Power Off

- Power On : Press and hold the MFB for 2 seconds.

- Power Off : Press and hold the MFB for 3 seconds.

Charging

- When the charger is connected (with the power on or off) the headset will turn off.

- While charging, the LED indicator will show a solid red light and then change to

violet when charged 80% and above.

- When charging is completed, the LED indicator will show a solid blue light.

Low Battery

- An announcement will be made once every 2 minutes.

- If the battery is not charged, the headset will turn off.

Battery Status Alert

Press and holding the VOLUME DOWN button for 1 second.

Battery Status High Medium Low

Voice Prompt Battery High Battery Medium Battery Low

LED Indicator Blinking

Blue

Blinking

Violet

Blinking

Red

How to Use

Pairing

- Before using the headset for the rst time, you must pair it with a Bluetooth-enabled

handset.

Easy Pairing (First Time Pairing)

1. Press and hold the MFB for 2 seconds to turn on the HBS-500. When the headset

enters Pairing Mode, the LED indicator will show a solid blue light.

2. Using your handset, nd the Bluetooth Menu and search for or add new devices.

• Select LG HBS500 from the list of devices and pair it with your handset.

3. If asked for the Pass/PIN code please enter 0000 (4 Zeros).

* Note : If your handset supports Secure Simple Pairing (SSP), you will not need to

enter Pass/PIN code.

• Once pairing has completed successfully, you will hear “Your headset paired.”

• The HBS-500 will automatically turn off if not paired within 3 minutes.

Manual Pairing (Pairing with another phone or re-pairing)

• With the power off, press the VOLUME DOWN button and press and hold the

MFB for 2 seconds.

• When the headset enters Pairing Mode, the LED indicator will show a solid blue

light. After the procedure repeat Easy Pairing steps 2 through 3.

ENG

Advanced Multipoint

The HBS-500 is capable of having two devices connected to the headset at the

same time. This will give you the freedom of using call waiting between calls on

both of your connected phones.

Connection

- Pair the headset with one of your Bluetooth-enabled handsets (see the pairing

instructions on page 4).

- Turn off the headset.

- With the power off, press the VOLUME DOWN button and press and hold the

MFB for 2 seconds to enter Manual Pairing mode.

- Pair and connect the headset with your other Bluetooth-enabled handset. (this

will be your primary handset).

- Once this handset is paired and connected, go back and connect the originally

paired handset to the headset. This will now be your secondary handset.

* NOTE: When the HBS-500 is connected to two handsets at the same time

(Multipoint), the headset calling functions will work with the primary handset.

* NOTE: In case of failure to connect to the primary phone through Easy Pairing,

HBS-500 will enter pairing mode.

Calling Function

- Voice Dialing and Last Number Redial features work with the primary handset (or

handset which made the last outgoing call).

Call Waiting

- While speaking on an active call, press the MFB for 1 second to switch to an

incoming call.

- To switch between 2 active calls, press the MFB for 1 second.

- To terminate the active call or both calls at once, briey press the MFB.

- If both handsets are receiving an incoming call, the headset will default to the

primary device.

Multi-connection

How to Use

ENG

- The headset and handset will automatically reconnect when the HBS-500 is

turned back on while in range.

- The secondary handset need to be connected via selecting LG HBS500 from the

list of devices at Bluetooth menu.

Out of range

- If the paired devices are separated by a range of 10 meters(33 feet) or more, the

headset and handset will disconnect and HBS-500 will vibrate to alert.

* If vibrate is set to off pressing and holding the VOLUME UP button for 2 seconds,

HBS-500 will not vibrate.

- If the headset and handset do not automatically reconnect when they are back

within the required range, briey press the MFB on the HBS-500 to reconnect

manually.

* It is possible to use these functions only when your handset supports them. For

further information about using these features, please consult your handset’s

user manual.

- While in multi-connection and streaming, the inactive paired device, which is

out of range, will be disconnected. The HBS-500 will alert once with no attempt

to reconnect.

How to Use

Auto Reconnect

Answering a call / Ending a call

- When there is an incoming call, the headset will ring and vibrate.

* HBS-500 will not vibrate if vibration function is on ‘off’.

- Briey press the VOLUME DOWN button to stop vibration.

- Briey press the MFB.

Transferring a call

- While on a call on your handset, press and hold the VOLUME UP button for 2

seconds on the HBS-500 to transfer the audio either from headset to handset or

from handset to headset.

Calling

ENG

Voice dialing

- Briey press the MFB to activate Voice Command.

Note: If the handset does not support Voice Dialing, it is possible that performing

this action will activate Last Number Redial.

Last number redial

- Press and hold the MFB for 1second to activate Last Number Redial.

The headset will beep, and call the last number dialed.

Call waiting

- Answer a second call without hanging up the rst call by pressing the MFB for

1 second (you will hear a beep). Press the MFB for 1second to return to the

original call.

- Briey press the MFB to terminate the active call or both calls at once. (subject

to handset’s support)

Rejecting a Call

- Press the MFB for 1 second when the handset rings.

Mic Mute

- Press and hold the VOLUME UP and VOLUME DOWN buttons at the same time

for 1 second to mute/unmute the Mic during conversation.

- Press the VOLUME button.

Volume control

Audio streaming controls

- PLAY : Double press MFB.

- PAUSE : While playing music, double press MFB.

- NEXT SONG : Double press VOLUME UP button.

- PREVIOUS SONG : Double press VOLUME DOWN button.

- FAST FORWARD : Press and hold VOLUME UP button.

- REWIND : Press and hold VOLUME DOWN button.

How to Use

ENG

Equalizer

- While playing music, press and hold the VOLUME UP and VOLUME DOWN

buttons at the same time for 1 second to switch between Bass Boost (default),

Normal, and Treble Boost.

- The bass coming from the speakers can vary as a result of the size of the ear gel

that is being used.

How to Use

Vibrate Control

- To activate or deactivate the Vibrate function, press and hold the VOLUME UP

button for 2 seconds. You will hear “Vibrate on” or “Vibrate off” when it is activated or

deactivated.

- When the HBS-500 is set to vibrate off, the headset will not vibrate when receiving an

incoming call or when it is out of range.

- By powering the unit off and then powering the unit back on, the vibration functionality

will be activated.

Tone & TalkTM

The HBS-500 Bluetooth headset supports SMS reading on

AndroidTM based devices.

To download the application, search for Tone & Talk in Google

PlayTM * or scan the QR code. Follow the installation instructions.

* Google Play is a trademark of Google, Inc.

ENG

LED Indicator

Issue Possible problem Resolution

Does not

turn on

Check whether the battery of

the HBS-500 is fully charged. Charge the battery.

Unable to

communicate

with the LG

Bluetooth

Headset

HBS-500

Check whether the handset

supports the headset or

hands-free Bluetooth proles.

Determine whether your

handset supports the headset

or hands-free Bluetooth proles.

Check whether the battery of

the HBS-500 is low.

Charge the battery.

Unable to pair

the HBS-500

with the

Bluetooth

device

Check and make sure the

headset is on.

Press and hold the MFB for 2

seconds to turn on the headset.

Check and make sure the

headset is placed in pairing

mode.

Press the VOLUME DOWN

button and press and hold the

MFB for 2 seconds.

Low sound

(speaker) Check the speaker volume. lncrease the volume level.

Function HBS-500 Status Action

Operating

Pairing mode The blue LED light stays on.

Headset / hands-free

prole connected

The blue LED light ickers 1 time.

Call connected The blue LED light ickers 1 time.

Charging Charging The red LED light stays on and changes to

violet when charged 80% and above.

Charging complete

The blue LED light stays on.

Troubleshooting

ENG

Do not drop the unit from high places.

Do not modify, repair, or take apart.

Do not expose directly to water, alcohol, benzene, etc., for cleaning.

Do not expose directly to ammables.

Do not place or keep the unit near ammables.

Keep unit away from humidity & dust.

Do not place heavy objects on the unit.

Only use the headset with an original LG charger, otherwise it may be damaged.

• Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

• There is a risk of explosion if the battery is replaced by an incorrect type.

• Dispose of used batteries according to the instructions.

• The neck strap is made of a shape memory alloy. However, bending the neck strap

repeatedly is not recommended.

• This product contains small parts, including earphones, ear buds, and cables. Keep

out of reach of children.

• If you have an implanted medical device, consult with a doctor prior to using this

product.

YMMBC42X000000

Y : Year (5-2015, 6-2016, 7-2017 …..)

MM : Month (01-Jan, 02-Feb, 03-Mar …..)

BC : Manufacturer Code

42 : Model Code

X : Region (D-Domestic, E-Export)

000000 : Serial Number (000000~999999)

Precautions

Information of product serial number

ENG

FCC NOTICE TO USERS :

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

IMPORTANT NOTE :

To comply with the FCC RF exposure compliance requirements, no change to the

antenna or the device is permitted. Any change to the antenna or the device could result

in the device exceeding the RF exposure requirements and void user’s authority to

operate the device.

CE NOTICE TO USERS :

Hereby, LG Electronics Inc. declares that this HBS-500 is in

compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

Additional Information

Declaration of Conrmation

FCC ID: BEJHBS500QD ID: 65824

1. Radio frequency exposure

This Bluetooth®Stereo Headset HBS-500 is a radio transmitter and receiver. When in

operation, it communicates with a Bluetooth® equipped mobile device by receiving and

transmitting radio frequency (RF) electromagnetic elds (microwaves) in the frequency

range 2.4 to 2.4835 GHz.

Your Bluetooth®Headset is designed to operate in compliance with the RF exposure

guidelines and limits set by national authorities and international health agencies when

used with any compatible LG Electronics mobile phone.

ENG

052

2. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere.

It is rare, but your electronic device could generate sparks. Sparks in such areas could

cause an explosion or re resulting in bodily injury or even death. Areas with a potentially

explosive atmosphere are often, but not always, clearly marked.

3. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that

has not been used for a long period of time could have reduced capacity the rst few times

it is used. Do not expose the battery to extreme temperatures, never above +60°(+140°F)

or below -10°(14°F). For maximum battery capacity, use the battery in room temperature.

If the battery is used in low temperatures, the battery capacity will be reduced. The battery

can only be charged in temperatures between +10°(+50°F) and +45°(+113°F). For your

safety, do not remove the battery incorperated with the product.

If you need to replace the battery, take it to the nearest authorised LG Electronics service

point or dealer for assistance.

4. Recycling the battery in your Bluetooth®Headset

The battery in your Bluetooth® Headset must be disposed of properly and should never

be placed in municipal waste. The LG Electronics service partner removing battery will

dispose of it according to local regulations.

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium

(Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of

cadmium or 0.004% of lead.

2 All batteries/accumulators should be disposed separately from the municipal waste

stream via designated collection facilities appointed by the government or the local

authorities.

3 The correct disposal of your old batteries/accumulators will help to prevent potential

negative consequences for the environment, animal and human health.

4 For more detailed information about disposal of your old batteries/accumulators,

please contact your city office, waste disposal service or the shop where you

purchased the product.

Additional Information

ENG

SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG

ELECTRONICS WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS

IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL

PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF ONE

(1) YEAR. SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE

RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT

YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO GET FURTHER

INFORMATION.

Limited Warranty

Important safety information

ENG

Avoiding hearing damage

Permanent hearing loss may occur if you use your Handsfree car kit at a high

volume. Set the volume to a safe level. You can adapt over time to a higher volume of

sound that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or mufed speech, stop listening and have your

hearing checked. The louder the volume, the less time is required before your hearing

could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.

• Avoid turning up the volume to block out noisy surroundings.

• Turn the volume down if you can’t hear people speaking near you.

Please refer to your handset user guide for more information on how to adjust

listening levels on your handset.

Using headsets safely

Use of Headset to listen to music while operating a vehicle is not recommended and

is illegal in some areas. Be careful and attentive while driving. Stop using this device

if you nd it disruptive or distracting while operating any type of vehicle or performing

any other activity that requires your full attention.

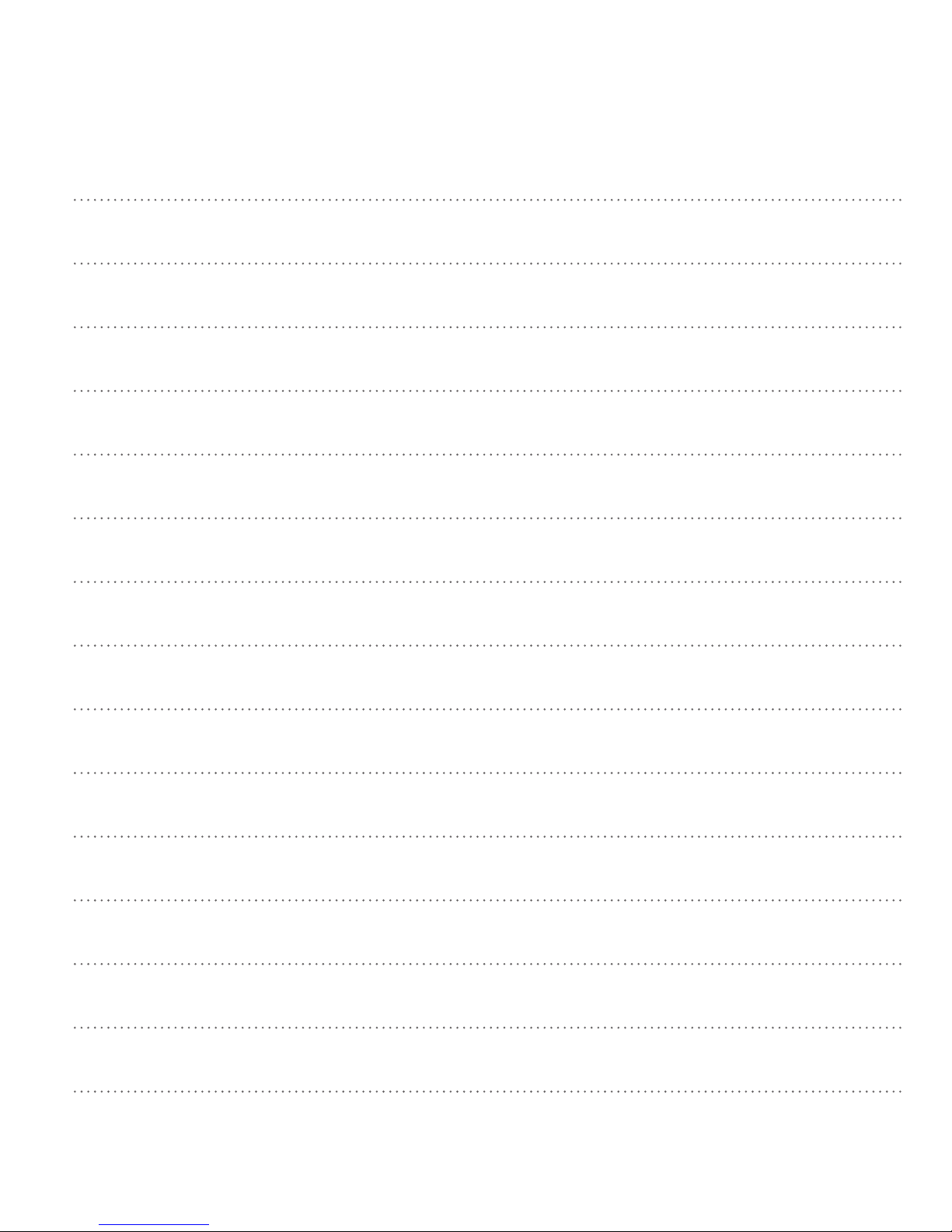

MEMO

Русский

Все права сохранены.

LG Electronics Inc., 2015

Примечание. Для наилучшего качества

работы, а также предотвращения любых

повреждений или неправильного использования

HBS-500 внимательно прочитайте информацию по

использованию HBS-500.

Любые изменения и исправления

типографских ошибок или неточной информации в

данном руководстве могут быть внесены только LG

Electronics Inc.

HBS-500 Руководство пользователя

Стереогарнитура Bluetooth®

Описание деталей

- Амбушюры маленького размера входят в комплект поставки продукта.

Характеристика Описание

Технические характеристики Bluetooth®4.1 (профили: наушники / гарнитура / A2DP / AVRCP)

Аккумулятор Аккумулятор 3,7 В / 125 мАч, литий-полимерный

Режим ожидания / режим разговора До 500 часов / до 9 часов

Время воспроизведения музыки До 7,5 часов

Время зарядки Менее 2 часов

Номинальное потребление при зарядке 4,75 ~ 5,6 В пост. тока, 400 мА

Рабочая температура -10°C – 60°C

Размер / вес 140 мм (Ш) X 168 мм (Д) X 18,1 мм (Т) / 29 г

РУС

Комплектация упаковки

Характеристики

Гибкий шейный

ремешок с памятью

формы

Световой

индикатор

Кнопка увеличения громкости

(перемотка вперед, следующая песня)

Кнопка уменьшения громкости

(перемотка назад, предыдущая песня)

Наушник-

вкладыш (П)

MFB (многофункциональная

кнопка): кнопка питания/

вызова/воспроизведения

Микрофон

Наушник-

вкладыш (Л)

Разъем для подключения

зарядного устройства

Дополнительные амбушюры

(средние и большие)

Руководство

пользователя

Зарядный

кабель USB

Карта WEEE

(только для Европы)

Гарантийный

талон
