LG 20LS2R Series User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LP69A
FACTORY MODEL : 20LS2R-ZA
MODEL : 20LS2R
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ..........................................................................3
SPECIFICATION........................................................................................6
ADJUSTMENT INSTRUCTION ...............................................................10

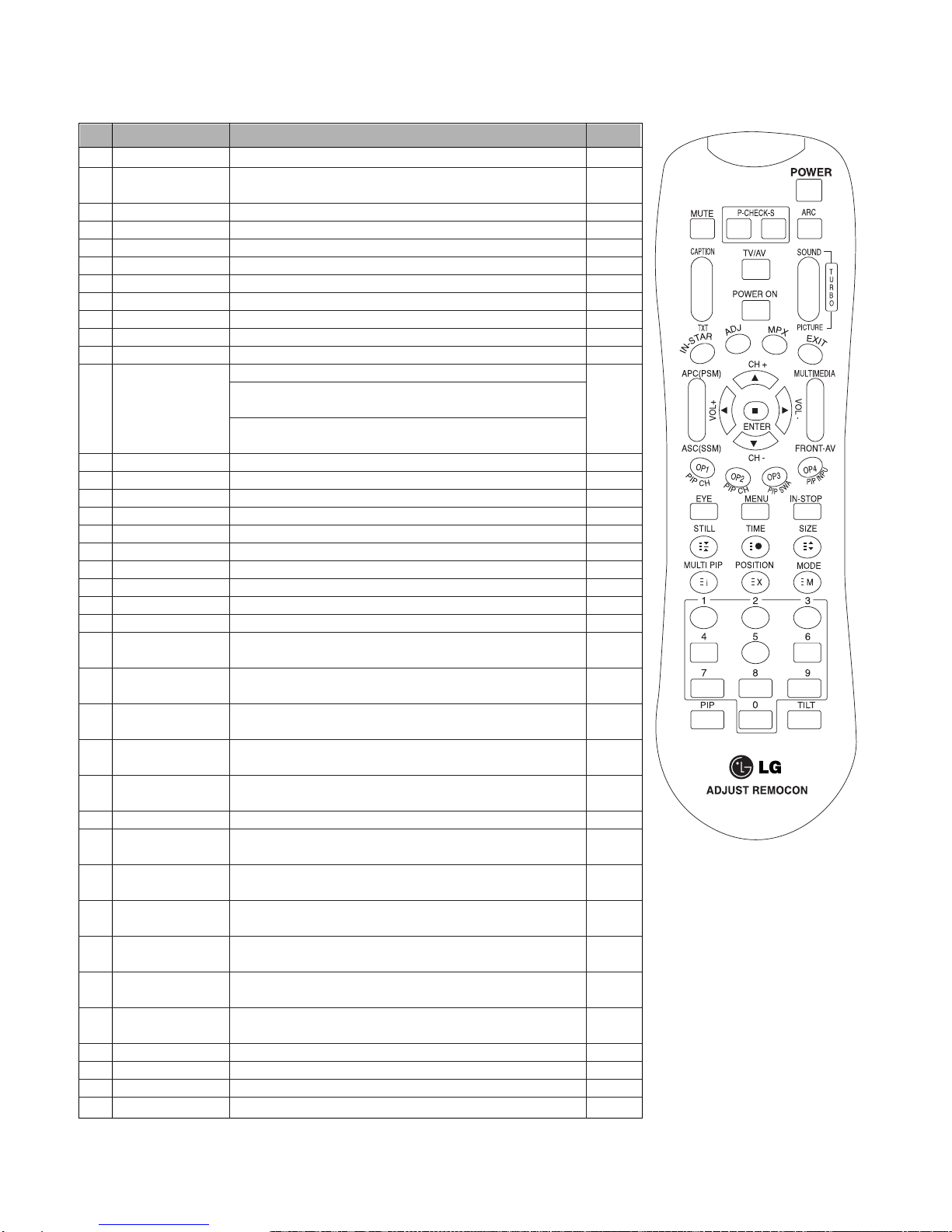

SERVICE REMOTE CONTROL...............................................................14
TROUBLE SHOOTING............................................................................15
BLOCK DIAGRAM...................................................................................21
EXPLODED VIEW .................................................................................. 22
REPLACEMENT PARTS LIST ............................................................... 24
SVC. SHEET ...............................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuitboard printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 -
1. Application range
This specification is applied to the 20”/ 23” Wide LCD TV used
LP69A chassis.
2. Requirement for Test
Testing for standard of each part must be followed in below
condition.
(1) Power : Standard input voltage (100-240V~, 50/60Hz)
*Standard Voltage of each products is marked by models.
(2) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(3) The receiver must be operated for about 20 minutes prior
to the adjustment.
3. Test method
3.1 Performance : LGE TV test method followed
3.2 Demanded other specification
Safety : CE, IEC Specification
EMC : CE, IEC
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
4. General Specification(TV)
No Item Specification Remark
1 Video input applicable system PAL-D/K, B/G, I, SECAM L, NTSC, NTSC. 4.43 (ZA)
2 Receivable Broadcasting System PAL/SECAM BG (ZA/TA)
PAL/SECAM DK EU/Non-EU
PAL I/I (PAL Market)
SECAM L/L’
3 RF Input Channel VHF : E2 ~ E12 PAL
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21~ S41
L/L’ : B, C, D FRANCE
4 Input Voltage 100-240V~, 50/60Hz
5 Market EU
6 Tuning System FVS 100 program PAL, 200 PR.(Option)
FS NTSC
7 Operating Environment Temp : 0 ~ 40 deg
Humidity : 10~90 %RH
8 Storage Environment Temp : -20 ~ 50 deg
Humidity : 10~90 %RH
9 Display LCD Module

1 Viewing Angle R/L 80/80
<CR≥10> U/D 70/70
2 Luminance Luminance (cd/m2) 350 450
3 Contrast Ratio CR 600 700 All white / All black
4 CIE Color Coordinates WHITE Wx Typ. 0.295 Typ.
Wy -0.03 0.305 +0.03 In AV input
RED Rx 0.640 PSM : Dynamic
Ry 0.330 White
GREEN Gx 0.290 (100 IRE)
Gy 0.600
BLUE Bx 0.150
By 0.060
5. Module Sepcification
5.1. LCD 20” (AUO T200MXW02 V0)
5.1. Electro optical characteristic specifications(module standard)
- 7 -
1. Display area 443.61 (H) *249.41(V) mm
2. Outline dimension 472.0 (H) x 276.5 (V) x23.0 (D) mm Typ
3. Number of Pixels 1366 (H) x 768(V) 1Pixel=3RGB Cells
4. Cell pitch 324.75um (H) x 324.75um (V) µm 1Pixel=3RGB Cells
5. Color arrangement RGB vertical stripe
6. Weight(net) 3 Kg Max
7. Operating Environment Temperature 0 ~ 50 deg
Humidity 10 ~ 90 %
8 Storage Environment Temperature -20 ~ 60 deg
Humidity 10 ~ 90 %
9 Electrical Interface LVDS
10 Back light Unit 6 CCFL (6 lamps)
11 R/T 8ms Typ.
No. Item Min Typ. Max Unit Remark
No. Item Specification
Min Typ. Max Remark

- 8 -
7. Component Video Input (Y, PB, PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
1 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I)
4 720*480 31.47 59.94 27.000 SDTV 480P
5 720*480 31.50 60.00 27.027 SDTV 480P
6 720*576 31.25 50.00 27.000 SDTV 576P
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45.00 60.00 74.250 HDTV 720P
9 1280*720 37.50 50.00 74.250 HDTV 720P 50Hz
10 1920*1080 33.72 59.94 74.176 HDTV 1080I
11 1920*1080 33.75 60.00 74.250 HDTV 1080I
12 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz
8. RGB Input (PC)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
1 720*400 31.469 70.08 28.32 DOS
2 640*480 31.469 59.94 25.17 VESA(VGA)
3 640*350 31.468 70.090 25.175 DOS
4 800*600 37.879 60.31 40.00 VESA(SVGA)
5 1024*768 48.363 60.00 65.00 VESA(XGA)
6 1280*768 47.7 60.00 80.14 VESA
7 1360*768 47.700 60.00 84.62 WXGA
6. Model Specification
No Item Specification Remark
1. Market EU
2. Broadcasting system PAL BG/I/DK, SECAM-L/L’,
SECAM BG/DK
3 RF Input Channel VHF : E2 ~ E12 PAL
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21~ S41
L/L’ : B, C, D FRANCE
4. SCART Jack(1EA) PAL, SECAM, NTSC
5. Video Input (1EA) PAL, SECAM, NTSC 4 System(Rear) :PAL50, SECAM, NTSC, PAL60
6. S-Video Input (1EA) PAL, SECAM, NTSC 4 System(Rear) : PAL50, SECAM, NTSC, PAL60
7. Component Input (1EA) Y/ Pb/Pr 480i/480P/720P/1080I
8. RGB Input (1EA) RGB-PC, RGB-DTV
9. HDMI Input (1EA) HDMI-PC
HDMI-DTV
10. Audio Input (3 EA) 3EA : CVBS, Scart, PC Audio L/R Input

- 9 -
9. RGB input ( DTV )
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
1 720*480 31.47 59.94 27.000 SDTV 480P
2 720*480 31.50 60.00 27.027 SDTV 480P
3 720*576 31.25 50.00 27.000 SDTV 576P
4 1280*720 37.5 50.00 74.250 HDTV 720P 50Hz
5 1280*720 44.96 59.94 74.176 HDTV 720P
6 1280*720 45.00 60.00 74.250 HDTV 720P
7 1920*1080 33.72 59.94 74.176 HDTV 1080I
8 1920*1080 33.75 60.00 74.250 HDTV 1080I
9 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz
11. HDMI input (DTV)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
1. 720*480 31.47 59.94 27.000 SDTV 480P
2. 720*480 31.50 60.00 27.027 SDTV 480P
3. 720*576 31.25 50.00 27.000 SDTV 576P
4. 1280*720 37.5 50.00 74.250 HDTV 720P 50Hz
5. 1280*720 44.96 59.94 74.176 HDTV 720P
6. 1280*720 45.00 60.00 74.250 HDTV 720P
7. 1920*1080 33.72 59.94 74.176 HDTV 1080I
8. 1920*1080 33.75 60.00 74.250 HDTV 1080I
9. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz
10. HDMI input (PC)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
1 720*400 31.469 70.08 28.32 DOS
2 640*480 31.469 59.94 25.17 VESA(VGA)
3 640*350 31.468 70.090 25.175 DOS
4 800*600 37.879 60.31 40.00 VESA(SVGA)
5 1024*768 48.363 60.00 65.00 VESA(XGA)
6 1280*768 47.7 60.00 80.14 VESA
7 1360*768 47.700 60.00 84.62 WXGA

- 10 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to 20”/ 23” LCD TV which is
manufactured in TV (or Monitor) Factory or is produced on the
basis of this data.
2. Specification
1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
2) Power Adjustment: Free Voltage
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard
5) Reserve after operation: Above 30 Minutes
6) Adjustment equipments: Color Analyzer(CA-210 or CA-
110), Pattern Generator (MSPG-925L or Equivalent), DDC
Adjustment Jig equipment, SVC remote controller
3. Main PCB check process
* APC - After Manual-Insult, executing APC
3.1. Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message.
If display “Error”, Check connect computer, jig, and set.
3) Click “Connect” tab.
If display “Can’t ”, Check connect computer, jig, and set.
4) Click “Read” tab, and then load download file(XXXX.bin) by
clicking “Read”.
5) Click “Auto” tab and set as below
6) click “Run”.
7) After downloading, check “OK” message.
3.2. ADC Process
(1) PC input ADC
1) Auto RGB Gain/Offset Adjustment
- Convert to PC in Input-source
- Signal equipment displays
Output Voltage : 730 mVp-p
Impress Resolution WXGA (1360 x 768 @ 60Hz)
Model : 107 in Pattern Generator
Pattern : 28 in Pattern Generator (MSPG-925 Series)
[gray pattern that left & right is black and center is
white signal (Refer below picture)].
- Adjust by commanding AUTO_COLOR _ADJUST
(0xF1) 0x00 0x02 instruction.
2) Confirmation
- We confirm whether “0x8C” address of EEPROM
“0xB4” is “0xAA” or not.
- If “0x8C” address of EEPROM “0xB4” isn’t “0xAA”, we
adjust once more.
- We can confirm the ADC values from “0x00~0x05”
addresses in a page “0xB4”
* Manual ADC process using Service Remote control.
After enter Service Mode by pushing “INSTART” key,
execute “Auto-RGB” by pushing “G” key at “Auto-
RGB”.
(2) COMPONENT input ADC
1) Component Gain/Offset Adjustment
- Convert to Component in Input-source
- Signal equipment displays
Impress Resolution 480P
MODEL : 212 in Pattern Generator
(480p Mode, Y : 100%, Pb/Pr : 75%)
PATTERN : 08 in Pattern Generator
(MSPG-925 Series)
filexxx.bin
(6)
(7) .......OK
(5)
<Adjustment pattern (PC)>

- 11 -
- Adjust by commanding AUTO_COLOR_ADJUST
(0xF1) 0x00 0x02 instruction.
2) Confirmation
- We confirm whether “0x8E” address of EEPROM
“0xB4” is “0xAA” or not.
- If “0x8E” address of EEPROM “0xB4” isn’t “0xAA”, we
adjust once more.
- We can confirm the ADC values from “0x00~0x05”
addresses in a page “0xB4”.
3.3. Function Check
AACheck display and sound
- Check Input and Signal items. (cf. work instructions)
1) TV
2) AV1 (SCART)
3) AV2 (CVBS/ S-Video)
4) COMPONENT (480P)
5) RGB (PC : 1024 x 768 @ 60hz)
6) HDMI
7) PC Audio In and H/P Out
* Display and Sound check is executed by Remote control.
4. Total Assembly line process
4.1. Adjustment Preparation
(1) Above 30 minutes H/run in RF no signal
(2) 15 Pin D-Sub Jack is connected to the signal of Pattern
Generator.
4.2. Confirm color coordinate of RGB
(1) Set Input to RGB.
(2) Input signal : WXGA (1360 x 768 @ 60Hz),Full white
216/255 gray level (85 IRE, Model : 107, Pattern : 78 at
MSPG925L)
(3) Set CSM : Cool
(4) Confirm whether x = 0.283±0.03, y = 0.298±0.03 or not.
4.3. Confirm color coordinate of AV2
(1) Set Input to AV2
(2) Input signal : CVBS, PAL @ 50Hz
Full white 216/255 gray level (85 IRE, Model : 202, Pattern
: 78 at MSPG925L)
(3) Set PSM : Dynamic / CSM : Cool
(4) Confirm whether x = 0.283±0.03, y = 0.298±0.03 or not.
4.4. Confirm color coordinate of component
(1) Set Input to COMPONENT.
(2) Input signal : 480P
Full white 216/255 gray level (85 IRE Model : 212, Pattern :
78 at MSPG925L)
(3) Set PSM : Dynamic / CSM : Cool
(4) Confirm whether x = 0.283±0.03, y = 0.298±0.03 or not.
4.5. Other quality
AConfirm that each items satisfy under standard condition
that was written product spec.
AConfirm Video and Sound at each source
(1) AV
1) Select input AV1 and whether picture is displayed or not.
- SCART output displayed or not.
2) Select input AV2 (S-video) and whether picture is
displayed or not
3) Select input AV2 (CVBS) and whether picture is
displayed or not
(2) TV
- Select input TV and check below item
* In Gumi Factory
C05 (E05) – TELETEXT Function Check
; (Applicable to the model that has Teletext code set-up
item in Product spec)
C07 (E07) – Nicam DUAL Check.
C52 (E52) – Nicam Stereo Check.
Refer to “7.Preset CH information”.
(3) RGB
- Select input RGB and whether picture is displayed or not.
(4) COMPONENT
- Select input COMPONENT and whether picture is
displayed or not.
(5)HDMI
- Select input HDMI and whether picture is displayed or not
4.6. DPM operation confirmation
- Check if Power LED Color and Power Consumption operate
as standard.
(1) Set Input to RGB and connect D-sub cable to set.
(2) Measurement Condition : 230V@ 50Hz (Analog)
(3) Confirm DPM operation at the state of screen without
Signal
4.7 DDC EDID Write
1) Connect D-sub Signal Cable to D-Sub Jack.
2) Connect HDMI Signal Cable to HDMI Jack.
3) Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.
4) Check whether written EDID data is correct or not. (refer
to Product spec).
(1) 20LS2R EDID DATA
1) ANALOG DATA 128Byte

2) DIGITAL DATA 256Byte
4.8. HDCP SETTING
(High-Bandwidth Digital Contents Protection)
1) Connect D-sub Signal Cable to D-Sub Jack.
2) Input HDCP key with HDCP-key- in-program.
3) HDCP Key value is stored on EEPROM(AT24C64) which is
E00~F20 addresses of 0xBC~0xBE page.
4) AC off/ on and on HDCP button of MSPG925 and confirm
whether picture is displayed or not of using MSPG925.
5) HDCP Key value is different among the sets.
4.9. Outgoing condition Configuration
1) After all function test., press IN-STOP Key by SVC Remote
controller. And Make Ship Condition.
2) When pressing IN-STOP key by SVC remocon, Green and
red LED are blinked alternatively. And then Automatically
turn off. (Must not AC power OFF during blinking)
4.10. Internal pressure
- Confirm whether is nomal or not when between power
board's ac block and GND is impacked on 1.5kV(dc) or
2.2kV(dc) for one second.
4.11 Option data setting (SVC OSD setting)
(1) PAL Model (Change by Suffix)
- 12 -
Option1
1 200PR No
2 ACMS YES
3 TEXT FLOF TOP / FLOF
4 CH+AU 0 0 : Except below area
1 : China, Australia
5 BOOSTER No AGC Threshold point
Option2
1 SYS No BG/IDK/L
2 A2 ST YES Acting FM-ST after checking Nicam
3 I II SAVE No
4 HDEV No
5 V-CURVE No
6 MONO No
Option3
1 KEY-TYPE 2 8 key
Option4
1 Default Lang 3
2 Lang 0 English Deutsch French Italiano
Spanish Nederlands Svenska
Norsk Dansk Suomi
Portuguese Romaneste Polski
Magyar Chesky ΡУССКИЙ
3 T-Lang 0 AUSTRIA BULGARIA CROATIA
CZECH DENMARK ENGLAND
ESTONIA FINLAND FRANCE
GERMANY GREECE HUNGARY
ITALY LATVIA NETHERLANDS
NORWAY POLAND PORTUGAL
RUMANIA RUSSIA SERBIA
SLOVAKIA SLOVENIA SPAIN
SWEDEN SWITZERLAND
TURKEY ARAB HEBREW Others
Option5
1 2 HR-OFF Yes
2 TV-LINK-TUNER No
3 FACTORY MODE No
4 CHANNEL-MUTE Yes
No. Item Condition Remark

- 13 -
5. Adjustment Command
5.1. Adjustment Commands(LENGTH=84)
5.2 EEPROM DATA READ
(1) Signal Table
(2) Command Set
* Purpose : To read the appointment Address of E2PROM by
128(80h)-byte
5.3. E2PROM Data Write
(1) Signal Table
LEN : 84h+Bytes
CMD : 8Eh
ADH : E2PROM Slave Address(A0,A2,A4,A6,A8), Not
00h(Reserved by BufferToEEPROM)
ADL : E2PROM Sub Address(00~FF)
Data : Write data
(2) Command Set
* Purpose
1) EDID write : 16-byte by 16-byte, 8 order (128-byte)
write(TO “00 – 7F” of “EEPROM Page A4”).
2) FOS Default write : 16-mode data (HFh, HFl, VF, STD,
HP, VP, Clk, ClkPh, PhFine) write.
3) Random Data write : write the appointment Address of
E2PROM.
5.4. VRAM Read
1) Send CMD(70h) to read Video RAM value from MICOM
And save its value to 128-Bytes Buffer(Common Buffer for
the use of EDID)
2) Delay 500ms ( Time to Wait and Read Video RAM from
MICOM)
3) Be transmitted the contents of MICOM’s 128-bytes Buffer to
PC. (128th Data is the CheckSum of 127-bytes data :
That’s OK if the value of adding 128-bytes Data is Zero)
FACTORY ON E0 00 00 Factory mode on
FACTORY OFF E2 00 00 Factory mode off
EEPROM ALL INIT. E4 00 00 EEPROM All clear
EEPROM Read E7 00 00 EEPROM Read
EEPROM Write E8 00 data EEPROM Write by some
values
COLOR SAVE
(R/G/B cutoff, Drive, EB 00 00 Color Save
Contrast, Bright)
H POSITION 20 00 00 – 100 They have different range
V POSITION 30 00 00 – 100 each mode, FOS Adjustment
CLOCK 90 00 00 – 100
PHASE 92 00 00 – 100
R DRIVE 16 00 00 – FF Drive adjustment
G DRIVE 18 00 00 – FF
B DRIVE 1A 00 00 – FF
R CUTOFF 80 00 00 – 7F Offset adjustment
G CUTOFF 82 00 00 – 7F
B CUTOFF 84 00 00 – 7F
BRIGHT 10 00 00 – 3F Bright adjustment
CONTRAST 12 00 00 - 64 Luminance adjustment
AUTO_COLOR_ F1 00 02 Auto COLOR Adjustment
ADJUST
CHANGE_COLOR F2 00 0,1,2,3 0: COOL
_TEMP 1: NORMAL
2: WARM
3: USER
FACTORY_DEFAULT F3 00 00 Factory mode off
& II_SW is “1”
& Input change to “ TV”
AUTO_INPUT F4 00 0,1,2,4 0 : TV
CHANGE 1 : AV1
2 : AV2
3 : Component
4 : RGB
5 : DVI
ADR VAL Description
CMD
(hex)
Adjustment Contents
128 Bytes
Delay 100ms
Data 128
EEPROM READ E7 A0 0 0-Page 0~7F Read
80 0-Page 80~FF Read
A2 0 1-Page 0~7F Read
80 1-Page 80~FF Read
A4 0 2-Page 0~7F Read
80 2-Page 80~FF Read
A6 0 3-Page 0~7F Read
80 3-Page 80~FF Read
Adjustment contents CMD(hex) ADH(hex) ADL(hex) Details
EEPROM WRITE E8 94 16-Byte Write
84+n n-byte Write
Adjustment contents CMD(hex) ADH(hex) Details

- 14 -
SVC REMOCON
NO KEY FUNCTION
REAMARK
1 POWER
2 POWER ON
3 MUTE
4 P-CHECK
5 S-CHECK
6 ARC
7 CAPTION
8 TXT
9 TV/AV
10 TURBO SOUND
11 TURBO PICTURE
12 IN-START
13 ADJ
14 MPX
15 EXIT
16 APC(PSM)
17 ASC(SSM)
18 MULTIMIDIA
19 FRONT-AV
20 CH ±
21 VOL ±
22 ENTER
23 PIP CH-(OP1)
24 PIP CH+(OP2)
25 PIP SWAP(OP3)
26 PIP INPUT(OP4)
27 EYE
28 MENU
29 IN-STOP
30 STILL
31 TIME
32 SIZE
33 MULTI PIP
34 POSITION
35 MODE
36 PIP
37 TILT
38 0~9
To turn the TV on or off
To turn the TV on automatically if the power is supplied to the TV. (Use
the POWER key to deactivate):It should be deactivated when delivered.
To activate the mute function.
To check TV screen image easily.
To check TV screen sound easily
To select size of the main screen (Normal, Spectacle, Wide or Zoom)
Switch to closed caption broadcasting
To toggle on/off the teletext mode
To select an external input for the TV screen
To start turbo sound
To start turbo picture
To enter adjustment mode when manufacturing the TV sets.
To adjust the screen voltage (automatic):
In-start$mute$Adjust$AV(Enter into W/B adjustment mode)
W/B adjustment (automatic):
After adjusting the screen$W/B adjustment$Exit two times(Adjustment completed)
To enter into the adjustment mode. To adjust horizontal line and sub-brightness.
To select the multiple sound mode (Mono, Stereo or Foreign language)
To release the adjustment mode
To easily adjust the screen according to surrounding brightne ss
To easily adjust sound according to the program type
To check component input
To check the front AV
To move channel up/down or to select a function displayed on the screen.
To adjust the volume or accurately control a specific function.
To set a specific function or complete setting.
To move the channel down in the PIP screen.
To use as a red key in the teletext mode
To move the channel in the PIP screen
To use as a green key in the teletext mode
To switch between the main and sub screens
To use as a yellow key in the teletext mode
To select the input status in the PIP screen
To use as a blue key in the teletext mode
To set a function that will automatically adjust screen status to match
the surrounding brightness so natural color can be displayed.
To select the functions such as video, voice, function or channel.
To set the delivery condition status after manufacturing the TV set.
To halt the main screen in the normal mode, or the sub screen at the PIP screen.
Used as a hold key in the teletext mode(Page updating is stopped.).
Displays the teletext time in the normal mode
Enables to select the sub code in the teletext mode
Used as the size key in the PIP screen in the normal mode
Used as the size key in the teletext mode
Used as the index key in the teletext mode (Top index will be
displayed if it is the top text.)
To select the position of the PIP screen in the normal mode
Used as the update key in the teletext mode (Text will be
displayed if the current page is updated.)
Used as Mode in the teletext mode
To select the simultaneous screen
To adjust screen tilt
To manually select the channel.
Shortcut keys
Shortcut keys
Shortcut keys
Use the AV
key to enter
the screen
W/B
adjustment
mode.
Shortcut keys
Shortcut keys
Shortcut keys

TROUBLE SHOOTING
1. No Power (LED indicator off) : [A] Process
- 15 -
Check 15V or
ST_5V of Power B/D. Fail
Pass
Check 15V or
ST_5V of Power B/D.
Check Output of
IC1100, IC1101. Fail Check short of
IC100, Q307.
Pass
Pass
Fail Re-soldering of Change
defect part of IC100, Q307.
Change IC1100, IC1101.
Pass
Change IC1102, IC1103.
Check Output of
IC1101, IC1103. Fail Check short of
IC307, TU600, IC500. Fail Re-soldering of Change
defect part of IC307,
TU600, IC500.
Pass
Pass
Change IC1104, IC1105.
Change LED Assy.
Check Output of
IC1104, IC1105.
Pass
Check LED Assy.
Pass
Check P304 Connector.
Fail Check short of
IC100, IC400.
Fail
Fail Re-soldering of Change
defect part of IC100, IC400.

- 16 -
2. No RASTER : [B] Process
Check LED status
On Display Unit.
Fail
Pass
Repeat A PROCESS.
Check Panel Link
Cable or Module.
Pass
Fail Change Panel Link Cable or Module.
Check Inverter
Connector or
inverter.
Fail Change Inverter Connector or Inverter.
Pass
Change IC100
Check Output of
L300
Pass
Check the LVDS
Output of IC100
Pass
Check Input source Cable and Jack.
Fail
Change Module.
Fail
Fail Change L300.

- 17 -
3. No RASTER on PC Signal
Repeat [A, B]
process.
Pass
Check the input/
output of R735,
R736.
Fail Check the J701.
Pass
Re-soldering or change the
defect part, Check the X100.
Check
the input/output
of R128, R131,
R136.
Pass
Check the
input/output of IC100.
Pass
Check input source cable and jack.
Fail
Fail Re-soldering or Change
the defect part.

- 18 -
4. No Raster on Component Signal
Repeat [A, B]
process.
Pass
Check the input/
output of R901.
Fail Check the J900.
Pass
Re-soldering or change the
defect part, Check the X100.
Check
the input/output
of R125.
Pass
Check the
input/output of IC100.
Pass
Check input source cable and jack.
Fail
Fail Re-soldering or Change the defect part.

5. No Raster on HDMI Sinal
6. No Raster on AV(Scart in
Video, S-Video) Signal 7. No Rasteron TV(RF) Signal
- 19 -
Repeat [A, B]
process.
Pass
Check the input/
output of IC100.
Fail Re-soldering or change the
defect part, Check the X100.
Pass
Check input source cable and jack.
Check input source cable and jack.
Repeat [A, B]
process.
Fail Check short of
IC100, Q307.
Pass Pass
Fail Check 5V of TU600.
Re-Soldering or change
the defect part.
Check
the input/output of
L804, L1002,L1003,
L1004.
Fail Change L804, L1002,
L1003, L1004.
Pass
Check Output of
IC1104, IC1105.
Pass
Fail Re-soldering of Change
defect part, Check the X100.
Pass Pass

8. No sound
- 20 -
Check the input
Sourse.
Fail
Pass
Change the source input.
Check input/Output
ofIC100.
Fail
Pass
Re-soldering of Change the defect part,
Check the X110
Check the input/
output of IC500 Fail Re-soldering of Change
the defect part.
Pass
Check the Speaker
Pass
Check the Speaker wire.
Fail Change Speaker.
