LG 50PZ850 User manual

x
PLASMA TV
Please read this manual carefully before operating the
set and retain it for future reference.
50PV490 50PZ850
60PV490 60PZ850
50PT490
50PT490U
50PT490R
P/NO : SAC34134232 (1106-REVO0) www.lg.com
Downloaded From TV-Manual.com Manuals

2 UCENSES
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is
an official DivX Certified® device that plays DivX video. Visit www.divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
"DivX Certified@ to play DivX@ video up to HD 1080p, including premium
content."
"DivX®, DivX Certified® and associated Iogos are registered trademarks of DivX,
Inc. and are used under license."
"Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274"
.... NOTE
• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
Downloaded From TV-Manual.com Manuals

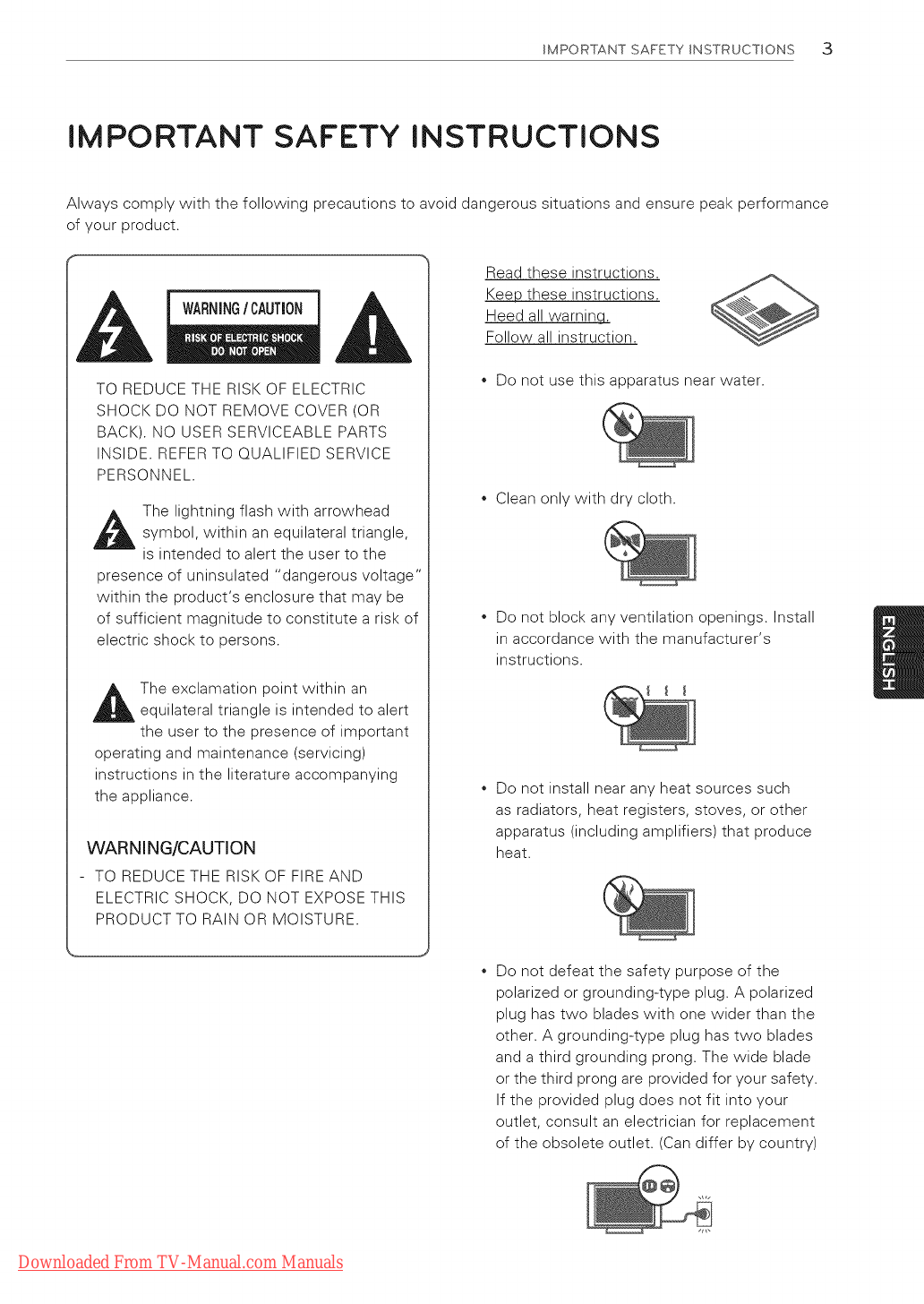

IMPORTANT SAFETY INSTRUCTIONS 3
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
,_The lightning flash with arrowheadsymbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be
of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnincL
Follow all instruction.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding-type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet. (Can differ by country)
Downloaded From TV-Manual.com Manuals

4IMPORTANT SAFETY INSTRUCTIONS
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Never touch this apparatus or antenna during
a thunder or lightning storm.
When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
CAUTION concerning the Power Cord:
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.
Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
Downloaded From TV-Manual.com Manuals

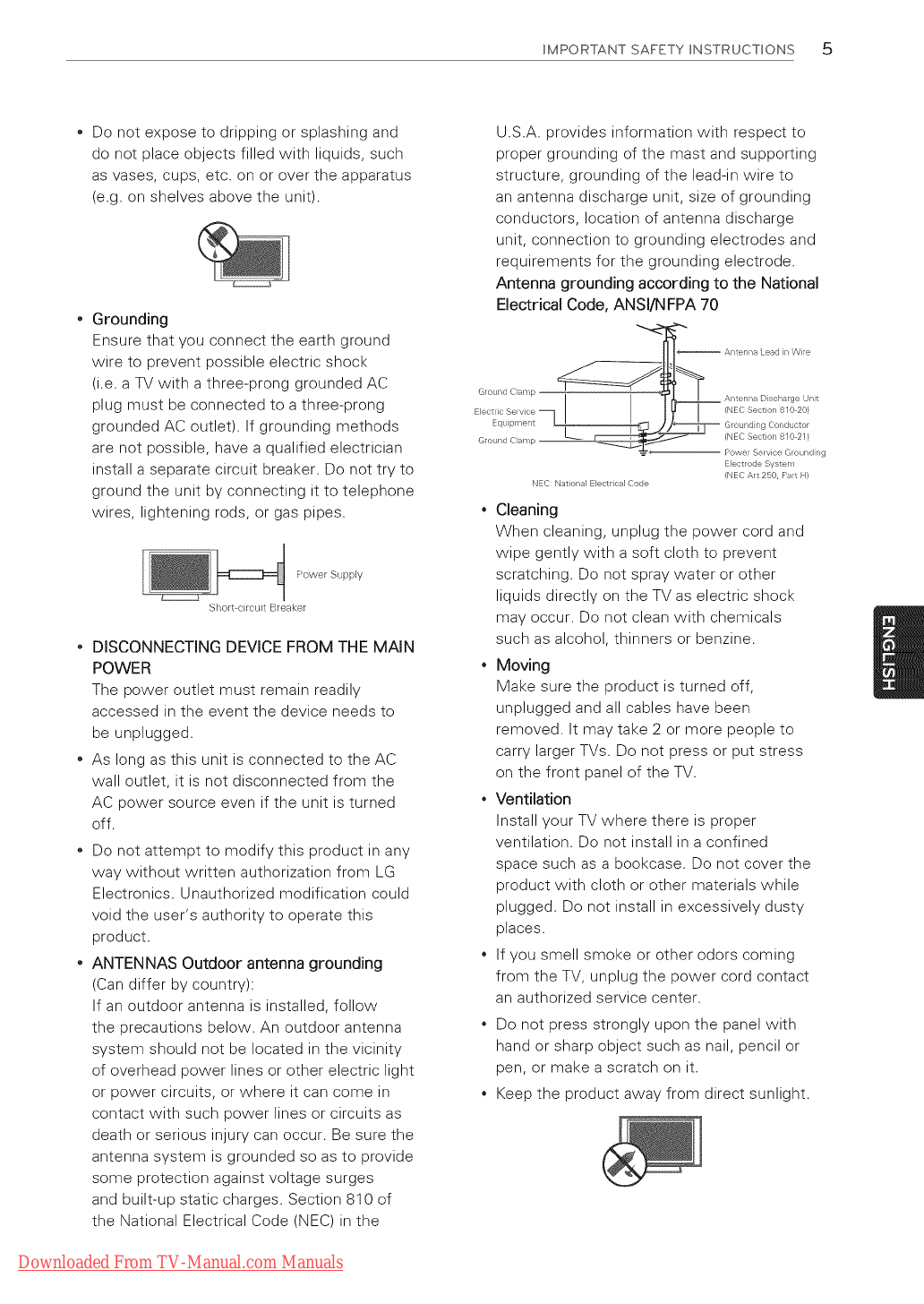

IMPORTANT SAFETY INSTRUCTIONS .5
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
Grounding
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
Short circuit Breaker
DISCONNECTING DEVICE FROM THE MAIN
POWER
The power outlet must remain readily
accessed in the event the device needs to
be unplugged.
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user's authority to operate this
product.
ANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
Lead n Wire
Ground Clamp D scharge Unt
Electlic Selvice (NEC Sect on 8 0 20/
Equipment "_
Ground Clamp -- (NEC Section 8/0 21}
Power Se vice Grounding
Electrode System
(NEC Art 250, Pat H)
NEC National E}ectrical Code
Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
Moving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.
If you smell smoke or other odors coming
from the TV, unplug the power cord contact
an authorized service center.
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
Keep the product away from direct sunlight.
Downloaded From TV-Manual.com Manuals

6 IMPORTANT SAFETY INSTRUCTIONS
*Dot Defect
The Plasma panel is a high technology
product with resolution of two million to six
million pixels. In a very few cases, you could
see fine dots on the screen while you're
viewing the TV. Those dots are deactivated
pixels and do not affect the performance and
reliability of the TV.
Generated Sound
"Cracking" noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
*Viewing 3D Imaging (For 3D TV)
- When viewing 3D imaging, watch the TV
from an effective viewing angle and within
the appropriate distance. If you exceed this
viewing angle or distance, you may not be
able to view the 3D imaging. Furthermore,
the 3D imaging may not display if it is viewed
while you are lying down.
- If you watch the 3D imaging too closely or
for a long period of time, it may harm your
eyesight.
- Watching the TV or playing video games
that incorporate 3D imaging with the 3D
glasses for a long period of time can cause
drowsiness, headaches or fatigue to you
and/or your eyes. If you have a headache,
or otherwise feel fatigued or drowsy, stop
watching the TV and take a rest.
- Pregnant woman, seniors, persons with
heart problems or persons who experience
frequent drowsiness should refrain from
watching 3D TV.
- Some 3D imaging may cause you to duck
or dodge the image displayed in the video.
Therefore, it is best if you do not watch 3D
TV near fragile objects or near any objects
that can be knocked over easily.
- Please prevent children under the age of
5 from watching 3D TV. It may affect their
vision development.
- Warning for photosensitization seizure: Some
viewers may experience a seizure or epilepsy
when exposed to certain factors, including
flashing lights or images in TV or video
games. If you or anybody from your family
has a history of epilepsy or seizure, please
consult with your doctor before watching 3D
TV.
Also certain symptoms can occur in
unspecified conditions without any previous
history. If you experience any of the following
symptoms, immediately stop watching the
3D imaging and consult a doctor: dizziness or
lightheadedness, visual transition or altered
vision, visual or facial instability, such as eye
or muscle twitching, unconscious action,
convulsion, loss of conscience, confusion
or disorientation, loss of directional sense,
cramps, or nausea. Parents should monitor
their children, including teenagers, for these
symptoms as they may be more sensitive to
the effects of watching 3D TV.
Risk of photosensitization seizure can be
reduced with the following actions.
- Take frequent breaks from watching 3D TV.
- For those who have vision that is different
in each eye, they should watch the TV after
taking vision correction measures.
- Watch the TV so that your eyes are on the
same level as the 3D screen and refrain from
sitting too closely to the TV.
- Do not watch the 3D imaging when tired or
sick, and avoid watching the 3D imaging for a
long period of time.
- Do not wear the 3D glasses for any other
purpose than viewing 3D imaging on a 3D TV.
- Some viewers may feel disoriented after
watching 3D TV. Therefore, after you watch
3D TV, take a moment to regain awareness
of your situation before moving.
Downloaded From TV-Manual.com Manuals

ForUSAandCanada
Thisequipmenthasbeentestedandfound
tocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15ofthe
FCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcan
radiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththe
instructions,maycauseharmfulinterference
toradiocommunications.Howeverthereis
noguaranteethatinterferencewillnotoccur
inaparticularinstallation.Ifthisequipment
doescauseharmfulinterferencetoradioor
televisionreception,whichcanbedetermined
byturningtheequipmentoffandon,theuser
isencouragedtotrytocorrecttheinterference
byoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweenthe
equipmentandthereceiver.
Connecttheequipmenttoanoutleton
acircuitdifferentfromthattowhichthe
receiverisconnected.
Consultthedealeroranexperiencedradio/
TVtechnicianforhelp.
Thisdevicecomplieswithpart15oftheFCC
Rules.Operationissubjecttothefollowing
twoconditions:(1)thisdevicemaynotcause
harmfulinterferenceand(2)thisdevicemust
acceptanyinterferencereceived,including
interferencethatmaycauseundesired
operationofthedevice.
Anychangesormodificationsinconstructionof
thisdevicewhicharenotexpresslyapproved
bythepartyresponsibleforcompliance
couldvoidtheuser'sauthoritytooperatethe
equipment.
ThisreminderisprovidedtocalltheCATV
systeminstaller'sattentiontoArticle820-40of
theNationalElectricCode(U.S.A.).Thecode
providesguidelinesforpropergroundingand,
inparticular,specifiesthatthecableground
shallbeconnectedtothegroundingsystemof
thebuilding,asclosetothepointofthecable
entryaspractical.
IMPORTANT SAFETY INSTRUCTIONS 7
Downloaded From TV-Manual.com Manuals

8 TABLEOFCONTENTS
TABLE OF CONTENTS
2LICENSES
3
8
IMPORTANT SAFETY IN-
STRUCTIONS
TABLE OF CONTENTS
31 - Locking the buttons on the TV (Child
Lock)
31 Using the quick menu
32 Using the customer support
32 - Testing the Picture /Sound
32 - Using the product or service informa-
tion
10 ASSEMBLING AND PREPARING
10 Unpacking
11 Additional accessories
13 Optional Extras
14 Parts and buttons
15 Lifting and moving the TV
15 Setting up the TV
15 - Attaching the stand
17 - Mounting on a table
18 - Mounting on a walt
19 - Tidying cables
19 - Attaching Pen Holder Bracket
20 REMOTE CONTROL
23 WATCHING TV
23 Connecting to an antenna or cable
23 - Connecting an antenna or basic cable
23 - Connecting a cable box
24 Turning the TV on for the first time
25 Watching TV
25 Managing channeis
25 - Setting up channeis
26 - Using favorite channels
27 - Checking current program info
29 Using additional options
29 - Adjusting aspect ratio
30 - Changing AV modes
30 - Using the input list
33 3D IMAGING (FOR 3DTV)
33 3D Technology
33 - When watching 3D imaging
33 - When using 3D Glasses
33 - 3D Imaging Viewing Range
34 Viewing 3D Imaging
36 PENTOUCH
36 Using Pentouch
37 - Step of Using the Pentouch Program
37 - System Requirements
37 - Installing the Pentouch Program
37 - Installing the USB Dongle Driver
38 - Removing the Pentouch Program and
Driver
38 - Pairing between Touch Pen and Dongle
40 - Using the Pentouch Function
40 - Display Resolution Settings for Pen-
touch
42 Checking the Pentouch Functions
43 - Using Tootbar
44
46
48
48
49
50
- Using
- Using
- Using
- Using
- Using
- Using
Sketchbook
Photo Editor
Family Diary
Gallery
Internet
My Office
Downloaded From TV-Manual.com Manuals

TABLE OF CONTENTS 9
51 ENTERTAINMENT
51 - Connecting USB storage devices
52 - Browsing flies
54 - Viewing Videos
57 - DivX registration code
58 - Viewing Photos
60 - Listening to music
80 MAINTENANCE
80 Cleaning Your TV
80 - Screen and frame
80 - Cabinet and stand
80 - Power cord
80 Preventing "image burn" or "Burn-in" on
your TV screen
62 CUSTOMIZINGTV SETTINGS
62 The Main Menus
63 Customizing Settings
63 - CHANNEL Settings
64 - PICTURE Settings
68 - AUDIO Settings
69 - TIME Settings
70 - LOCK Settings
72 - OPTION Settings
74
75
76
MAKING CONNECTIONS
Connection Overview
Connecting to a HD receiver, DVD or VCR
player
76 - HDMI Connection
76 - DVl to HDMI Connection
76 - Component Connection
76 - Composite Connection
77 Connecting to a PC
77 - HDMI Connection
77 - DVl to HDMI Connection
77 - RGB Connection
78 Connecting to an Audio System
78 - Digital optical audio connection
78 Connecting to a USB
79 SIMPLINK Connection
79 - Activating and Using the SIMPLINK
menus
81 TROUBLESHOOTING
84 SPECIFICATIONS
88 IR CODES
9O EXTERNAL CONTROL DEVICE
SETUP
98 OPEN SOURCE LmCENSE
Downloaded From TV-Manual.com Manuals

10 ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
Remote control and batteries (AAA) Owner's manual CD manual
(Included Pentouch Software)
Polishing cloth 1
(Depending on model)
1 Gently wipe the spots on the cabinet with the polishing cloth.
Downloaded From TV-Manual.com Manuals

ASSEMBLING AND PREPARING 11
PT490, PT490U, PT490R, PZ850 series
MSx 18
(For 50PV490, 50PT490,
50PT490U, 50PT490R, 50PZ850) (For 60PV490, 60PZ850)
8-
x2 x4 x8 x2 x4
M6x28 M4x22 MSx18 MSx35 MSx18
Screw for assembly Power Cord holder
Power Cord Protection cover, Tape Ferrite core
(Depending on model) Cable holder
x2
Pen Holder Bracket E D-sub 15 pin signal cable Eye-bolt & Wall bracket
1 You can attach the pen holder bracket in a position that is convenient for you.
The number of pen holder bracket may differ depending on the model.
2 The number of 3D glasses may differ depending on the model or country.
3D Glasses s
(Depending on model)
Additional accessories
Touch Pen Dongle
(AN-TD200)
Pentouch Caution Guidelines
Charging Cable
Owner's manual
Touch Pen 1
(AN-TP200)
1 The number of touch pen may differ depending on the model.
Downloaded From TV-Manual.com Manuals

12 ASSEMBLING AND PREPARING
CAUTION
_-@ NOTE
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
• IHow to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to a wall plug.
[to a wall plug]
[Figure 1]
//___ [to the TV]
[Cross Section of
Ferrite Core]
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall
plug.
[to a wall plug] [to the TV]
[Cross Section of
[Figure 2] Ferrite Core]
3 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV. Then Wind
the PC audio cable on the ferrite core once. Place the ferrite core close to an external device.
__10 mm(+/-5ram)
[to an External device] _m_--/ [to the TV]
Cross Section of [Figure 3] [Cross Section of
Ferrite Core] Ferrite Core]
- If there is one ferrite core, follow as shown in Figure 1.
- If there are four ferrite cores, follow as shown in Figures 2 and 3.
Downloaded From TV-Manual.com Manuals

ASSEMBLING AND PREPARING 13
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
This device only works with compatible LG Plasma TV.
3D Glasses _ D-sub 15 pin signal cable _
(AG-S230, AG-S250, AG-S270) Touch Pen Touch Pen Dongle (AN-TP200) (AN-TD200)
1 Supports PZ850 series
2 When using the VGA (D-sub 15 pin signal cable) PC connection, use the shielded signal interface cable
with a ferrite core to maintain standards compliance for the product.
Downloaded From TV-Manual.com Manuals

14 ASSEMBLING AND PREPARING
Parts and buttons
Side Connection panel
USB input
HDMI input
AV (Audio and
Video) input
Screen
Remote control and
intelligent 1sensors
Speakers
......... ,}
,_/i ................ _ .... + ...... _ Touch buttons 2
I
\
/
/
Rear Connection
panel (See p.74)
ToUch bUtton2 Description
/I Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the main menus, or saves your input and exits the menus.
ENTER ® Selects the highlighted menu option or confirms an input.
- VOL + Adjusts the volume levet.
v CH A Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
Downloaded From TV-Manual.com Manuals

ASSEMBLING AND PREPARING 15
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
-_ CAUTION
*Avoid touching the screen at all times, as |
this may result in damage to the screen. J
*It is recommended to move the TV in the
box or packing material that the TV originally
came in.
*Before moving or lifting the TV, disconnect
the power cord and all cables.
*When holding the TV, the screen should face
away from you to prevent damage.
*Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
_
*When transporting a large TV, there should
be at least 2 people.
*When transporting the TV by hand, hold the
TV as shown in the following illustration.
Setting up the TV
Put your TV on a pedestal stand and mount the TV
on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
Lay the TV with the screen side down on a flat
surface.
CAUTION
*Lay a foam mat or softprotectivecloth
on thesurfaceto protectthe screenfrom
damage. Make sure no objects press
against the screen.
Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
Attach the protection cover tape.
- This will protect the opening from
accumulating dust and dirt.
- When installing the wall mounting bracket,
use the Protection cover.
Protection cover
Protection
cover tape
*When transporting the TV, do not expose the
TV to jolts or excessive vibration.
*When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
Downloaded From TV-Manual.com Manuals

16 ASSEMBLING AND PREPARING
3Assemble the parts of the STAND POLE with
the TV.
Model Screw for Number of
assembly screws
50PV490, M6 x 28 2
50PT490,
50PT490U,
50PT490R,
50PZ850
60PV490, M8 x 35 2
60PZ850
Secure the TV and the STAND BASE with the
8 screws.
_ for assernbiY _urnber of screws I
\
Stand Pole
Model Screw for Number of
assembly 'screws
50PV490, M4 x 22 4
50PT490,
50PT490U,
50PT490R,
50PZ850
60PV490, M5x18 4
60PZ850
Stand Base
CAUTION
Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
To detach the stand,
1Lay the TV with the screen side down on a flat
surface.
2Remove the 6 screws and pull the stand away
from the TV.
tD
/
Downloaded From TV-Manual.com Manuals

ASSEMBLING AND PREPARING 17
Mounting on a table
Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
2Connect the power cord to a wall outlet.
CAUTION
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
1Insert and tighten the eye-bolts on the back of
the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
_ CAUTION 1
|* Make sure that children do not climb on or |
hang on the TV. J
i@ NOTE 1
Use a platform or cabinet that is strong and
large enough to support the TV securely. |
J
Downloaded From TV-Manual.com Manuals

18 ASSEMBLING AND PREPARING
Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
We recommend that you use an LG brand wall
mount when mounting the TV to a wall.
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
50PV490 60PV490
50PT490 60PZ850
50PT490U
50PT490R ,
50PZ850
VESA 400 x 400 600 x 400
Standard screw M6 M8
Number of screws 4 4
Wall mount bracket PSW400B, PSW600B
(optional) PSW400BG PSW600BG
CAUTION
*Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
*If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
y @ NOTE
*Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
, For more information, refer to the manual
supplied with the wall mount.
Downloaded From TV-Manual.com Manuals

ASSEMBLING AND PREPARING 19
Tidying cables
1Install the power cord holder and power cord.
It will help prevent the power cable from being
removed by accident.
Attaching Pen Holder Bracket
You can attach the pen holder bracket in a
convenient position for use as below.
2
Power cord holder
Gather and bind the cables with the cable
holder.
Cable holder
-_ CAUTION
*Do not move the TV by holding the cable
holder and power cord holder, as the cable
holders may break, and injuries and damage
to the TV may occur.
r@NOTE
*Do not attach it to the intelligent sensors, or
remote control's signal receiver.
Remote control and
intelligent sensors
Downloaded From TV-Manual.com Manuals

20 REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the ,_,+}and {-} ends to the label inside the compartment, and close the
battery cover. To remove the batteries, perform the installation actions in reverse.
C_ CAUTION
, Do not mix old and new batteries, as this may damage the remote control.
Make sure to point the remote control toward at the remote control sensor on the TV.
ENERGY INPUT
ENERGY AVMODE INPUT
)
ENERGY AVMODE INPUT
SAVING
(_ (POWER)
Turns the TV on or off.
LIGHT (Depending on model)
Illuminates the remote control buttons.
ENERGY SAVING (See p,64)
usts the Energy Saving settings,
3D (For 3D TV) (See p.33)
Used for viewing 3D video.
AV MODE (See p.30)
Selects an AV mode.
INPUT (See p.30)
Rotates through inputs,
Aiso switches the TV on from standby,
TV
Returns to the last TV channel.
Downloaded From TV-Manual.com Manuals
