LG WAW73JW2RP User manual

OWNER’S MANUAL AND OPERATION GUIDE
Total Water Solution
LG Electronics Healthcare Water Purifier
www.lg.com/in
Keep the Owner’s Manual in an easily accessible place.
Be sure to read “Safety Precaution” before use.
The Product Warranty can be found inside the Owner’s Manual.
WAW73JW2RP
WAW53JW2RP
WAW33RW2RP

2
Features of LG Healthcare water purifier
■Stainless steel water tank
We use ‘stainless steel’ for the water tank to maintain the hygiene and
quality of water.
■2nd generation Electrolysis Sterilizing Care™
Electrolysis turns tap water into sterilized water without the use of
chemicals with 99.99 %sterilization performance. It is an LG Eco
Sterilization system.
■UV Circular sterilizer™ (for WAW73JW2RP model only)
UV sterilizing is divided into 3 types: Purification, Circulation, and Power
Failure Compensation. The operating time differs for each mode.
This Function maintains safe water in various situations.
■2-in-1 care™ (for WAW73JW2RP, WAW53JW2RP models only)
This unique filter system ensures convenience with 2 different water
functions: as drinking water and for cleaning fruits & veggies.
■Flexible Installation
Can be used as either Wall-mount type or Counter-top, depending on the
customer’s environment for water purifier installation.
■Anytime Water
Water is always available since it is saved in a water tank after filtration
even if power is turned off.
■8-Stage Purification
LG’s unique 8-Stage Purification System not only purifies water but also
stores and maintains your water hygienically.
Notice
What is Electrolysis Sterilizing Care™?
• The inside track of the water purifier where water is moving is cleaned by LG’s
exclusive sterilization system; even the invisible inside area of the water
purifier is cleaned thoroughly. (See the water pipe drawing on page 30.)
• Electrolysis Sterilizing Care™ is performed by authorized LG service centers.
(※ The method of Electrolysis Sterilizing Care™ service is subject to change
without prior notice for purposes of providing better service.)

3
Table of contents
Safety precautions....................................................................................4~12
Name and function of each part ..................................................................13
- Indicator part
Process of water purification ........................................................................14
Check before using.......................................................................................15
Name and function of each part .................................................................16
- Control Panel Features
Before using
When and how to replace a filter............................................................25~27
Daily check ...................................................................................................28
Check before reporting a failure ..................................................................29
Water piping drawing..............................................................................30~32
Product standard ..........................................................................................33
Warranty card
What you should know
Function of control part ................................................................................17
- Purified water level indicator
- UV sterilizing indicator
How to use....................................................................................................18
- How to drink purified water
- How to use water continuously
- How to use cleaning water for fruits & veggies
How to install ..........................................................................................19~20
How to clean...........................................................................................21~24
Usage

4
Safety precautions
These contents are intended to keep users safe and to prevent the loss of property
and inconvenience.
Please read them carefully and use the product correctly.
WARNING / CAUTION
WARNING
Failure to follow the instruction correctly may result in
death or serious injury.
Failure to follow the instruction correctly may result in
injury or loss of properties.
This sign is designed to draw attention to items and
manipulations that may cause danger. Read carefully and
follow the directions to avoid danger.
CAUTION

5
Safety precautions
WARNING
Power related matters
Do not move the product when
the water purifier is running.
- There is risk of breakdown or electric
shock.
Never pull the cord part or touch
the power plug with wet hands.
- There is risk of electric shock or fire.
The power plug must be
connected to a 230 Voutlet only.
- Breakdown and risk of electric shock
due to short circuit may occur.
Never bend the power cord by
force or press with heavy objects
to prevent damage.
- There is risk of electric shock or fire.
Never connect or modify the cord
randomly during installation.
- There is risk of electric shock or fire.
Do not plug multiple devices at
the same time when using a multi-
outlet.
- There is risk of fire unusual heat.

6
Safety precautions
Never bend the power cord by
force or put heavy objects on it.
- It may cause fire or electric shock.
Do not plug and unplug the product
repeatedly.
- There is risk of electric shock or fire.
This may cause product failure.
Power related matters
WARNING
If the power cord is damaged, or the
outlet is loose, do not use the product.
Instead, contact the Service Center.
- It may cause electric shock, electricity
leak or fire.
If the product is not used for a
long time, close the water supply
valve and unplug the power cord.
- If the product is not used for a long
time, the water inside the tank can go
bad. Therefore, the water inside the
tank should be emptied.
When the power cord is damaged, to
avoid danger, repair should only be
performed by a service technician.
- Otherwise, fire, electric shock, or
malfunction may occur.
UV Circular sterilizer™ function
is active only when power is
turned on. Do not unplug (or turn
off) the power source. (for
WAW73JW2RP only)
CloseClose
Open
Open
When UV Sterilizing is on

7
Safety precautions

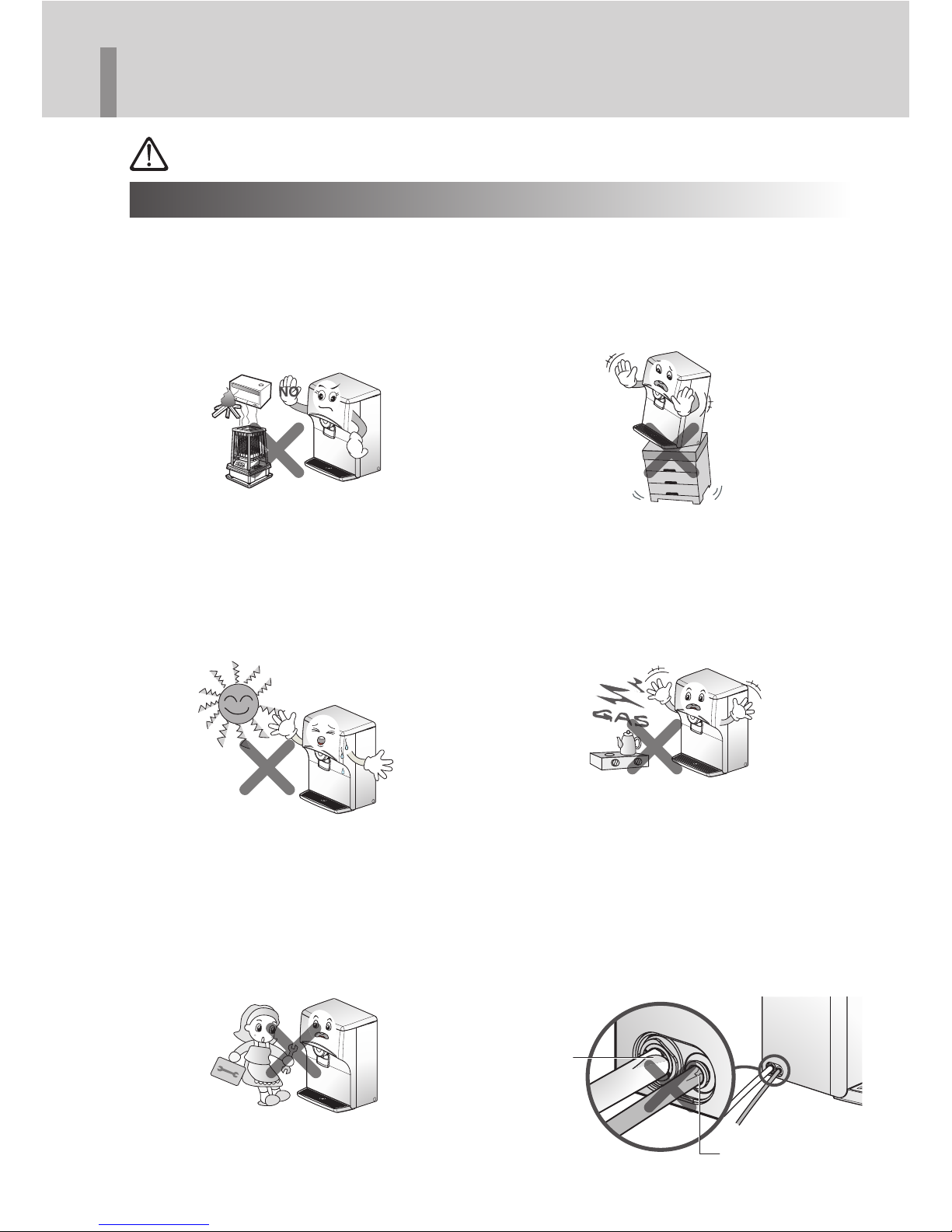

Do not install the product where
combustible gas may leak.
- Gas may leak around the water purifier
and explosion or fire may occur.
Do not install the water purifier on
an unstable place.
- If the water purifier falls over, casualties
or property damage may occur.
Installation
WARNING
Keep the product away from direct
sunlight or heat, especially
moisture during installation.
- There is risk of electric shock or
deformation.
Never disassemble, repair, and
remodel the product.
- There are risks of breakdown, electric
shock, and fire. Contact the Service
Center if repair is required.
Do not place heating equipment,
electric heaters, flame-generating
products, etc., near the product.
- There is risk of fire.
During the installation or relocation of
the product, take care against the
possibility of damaging the pipe
(inlet, outlet) to prevent water leak.
- If the pipe is deformed or scratched, it
can cause water leak.
Deformation
Scratch

8
Safety precautions
WARNING
Do not sit or put heavy objects on
the product.
- There are risks of breakdown or electric
shock as well as injury.
Do not put foreign objects or
fingers into the water purifier
while the purifier is operating.
- There are risks of scaling and electric
shock. (Caution is needed especially
for children.)
During use
Do not let water get inside the
electric parts of the water purifier.
- There is risk of electric shock or fire.
Do not spray pesticides or
flammable sprays while running
the product.
- It is harmful to health, and it can also
cause product failure or fire.

9
Safety precautions
WARNING
Do not poke the inside of the
water purifier with any tool or
sharp object.
- It can cause electric shock.
Do not let the children hang on the
product.
- The product might fall and hurt them.
Clean only after the power plug is
disconnected.
- There is risk of electric shock or fire.
During use

10
Safety precautions
Installation
CAUTION
As an indoor product, install in a
place away from direct sunlight
and protected from snow and rain.
- Product failure may occur.
Do not tilt the product by more
than 30 degrees when moving.
- Product failure may occur.
Do not connect hot water to the
product.
- Product failure may occur.
Make sure you use a new hose
and parts for installation.
- If you use used parts, water might leak,
and such will cause electric shock or
property damage.
After the installation, make sure
that the connection of the hose
and that of the water purifier are
both open (if not, open them).
- If bolts loosen and water leaks, such
may cause electric shock or property
damage.
There should be more than 10 cm
gap between each side of the
product and the wall for smooth
pipe connection.
- It can cause water leak.
30 º
10 cm

11
Safety precautions
CAUTION
During use
Replace filters regularly according
to the replacement period.
- Taste may change.
If the filter is not replaced at regular
intervals, output water may not flow
(due to clogging).
The filter cycle differs by usage,
location, season, water quality, etc.
When cleaning the product, never
spray water directly or clean with
benzene, thinner, alcohol, etc.
Instead, use a soft, dry cloth.
If there is strange noise, burning
smell, or smoke coming from the
water purifier, turn off the purifier
immediately, cut off the power
supply, and then call the service
center.
- There is risk of electric shock or fire.
Use only standard filter from LG.
- If filter from another company or
nonstandard product is used,
breakdown may occur, or the product
may not purify water well.

12
Safety precautions
During use
CAUTION
Do not connect hot water to the
product.
- Product failure may occur.
After the installation, make sure
the hose's joint does not leak.
- Malfunction and breakdown may occur.
Drink the purified water as soon
as possible so that fresh water
flows in at all times.
- If the water is stored for a long time,
bacteria may grow, or the taste may
change.

13

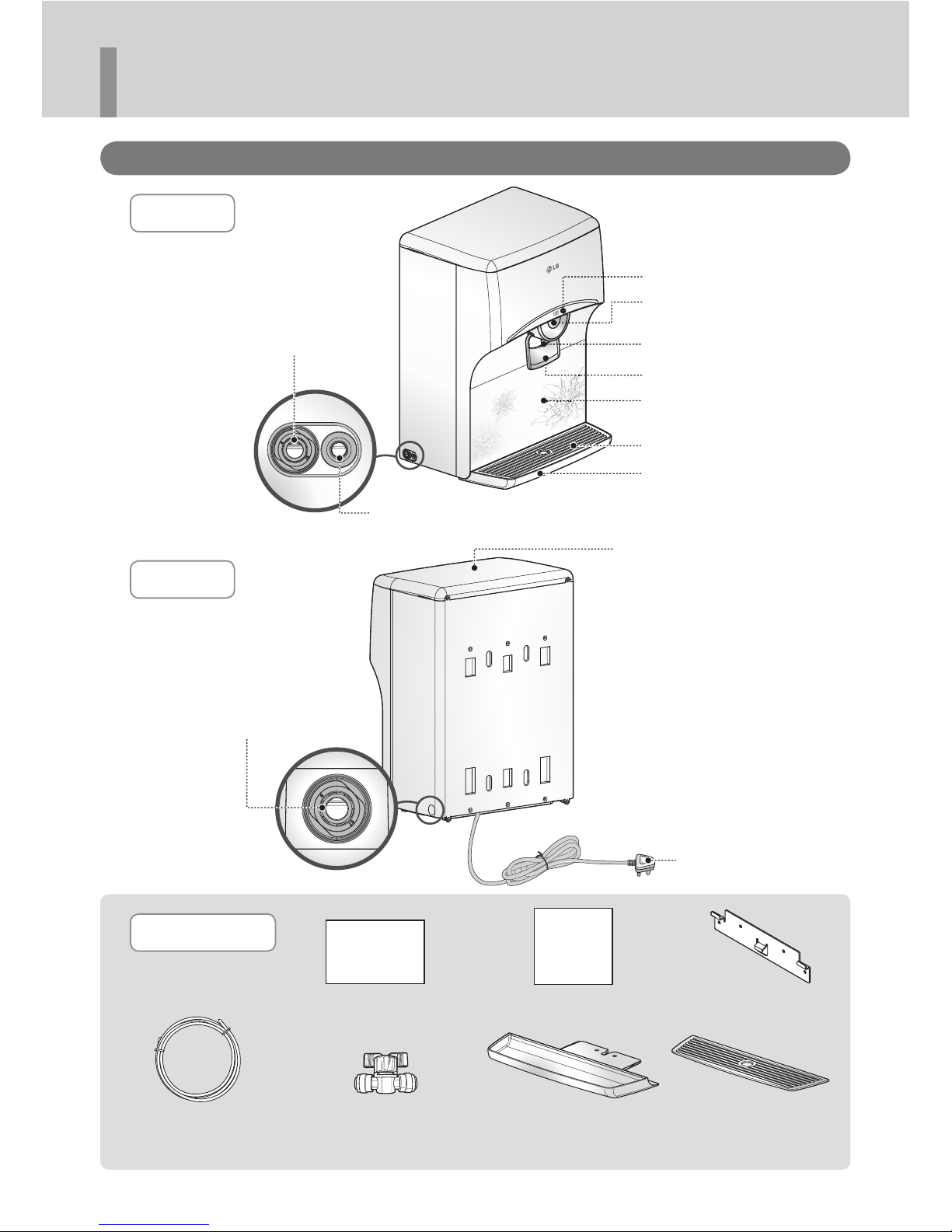

Name and function of each part
Touch lever
UV sterilizing indicator
(for WAW73JW2RP only)
Purified water outlet
Purified water level indicator
Filter cover (floral pattern :
for WAW73JW2RP only)
Water tray cover
Water tray
Power cord
Indicator part
Top cover
Front
Rear
Owner’s Manual
3/8’’ tube
(for WAW73JW2RP,
WAW53JW2RP only)
Mounting guide
3/8’’ valve
(for WAW73JW2RP,
WAW53JW2RP only)
Water tray Water tray cover
Mounting Plate
(2ea)
Owner’s
Manual
Mounting
guide
Tap water inflow entrance
(Large hole)
Drain water
(Small hole)
Cleaning water for fruits & veggies
(for WAW73JW2RP,
WAW53JW2RP only)
Accessories

14

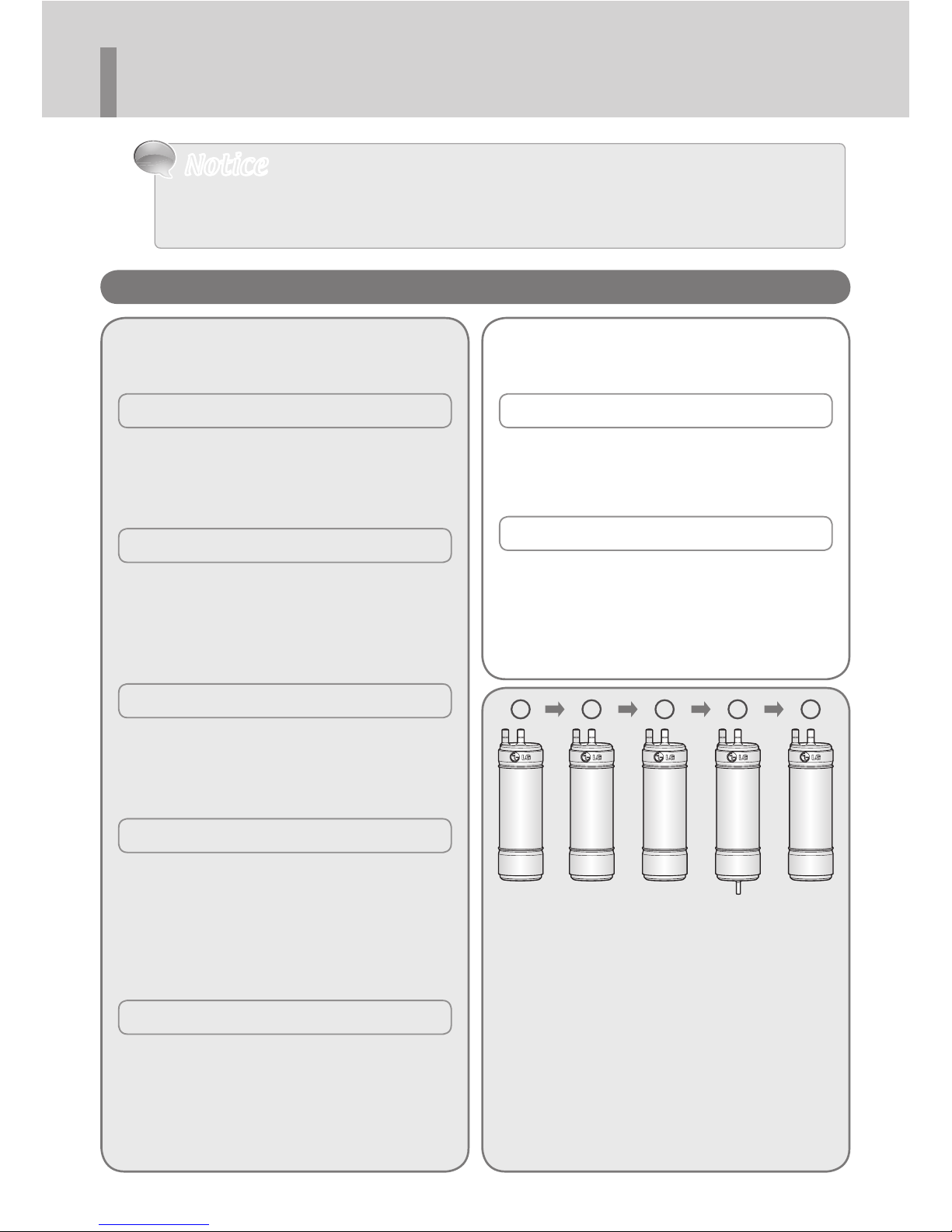

Process of water purification
Process of Purification
Notice
The filter is a vital part of the water purifier. If authentic filter is not used, or old filter
is used even if it is an authentic one, such can cause performance deterioration.
Step 1: Out Sediment filter
Step 2: Sediment filter
Step 3: Pre-carbon filter
Step 4: RO membrane filter
Step 5: Post-carbon filter
Drinking water
Remove large visible impurities as
well as finer suspended particles such
as dirt and sand from the water.
This protects the part (or place) with
which water comes in contact by
filtering unseen dust and contaminated
substances.
The remaining chlorine and volatile
organic compound are removed at
this pre-carbon filter.
Heavy metallic substances, ionized
substances, and microorganism are
removed through this membrane filter.
At this step, 1)drained water comes
out through the drain hose.
The remaining smell in the water is
filtered at this step, and the taste of
water is improved.
Step 1: Out Sediment filter
Step 2: UF membrane filter
Cleaning water for fruits & veggies
(※ for WAW73JW2RP, WAW53JW2RP only)
Remove large visible impurities as
well as finer suspended particles such
as dirt and sand from the water.
The 0.05~0.2 micron-sized hollow fiber
membrane filters microorganisms and
other impurities and lets mineral contents
pass through.
(Filters can be added
depending on the installation environment.)
1 2 3 4 5
Out
Sediment
Filter
Sediment
Filter
Pre-
carbon
Filter
RO
membrane
Filter
Post-
carbon
Filter
- You can use the drain water for daily
activities such as mop wash, watering
plants etc.
- Do not use this water for drinking and
cooking.
※Out Sediment Filter is not provided
with the product for installation. It can
be provided as a different part (shape
and size) with the same functions.

15

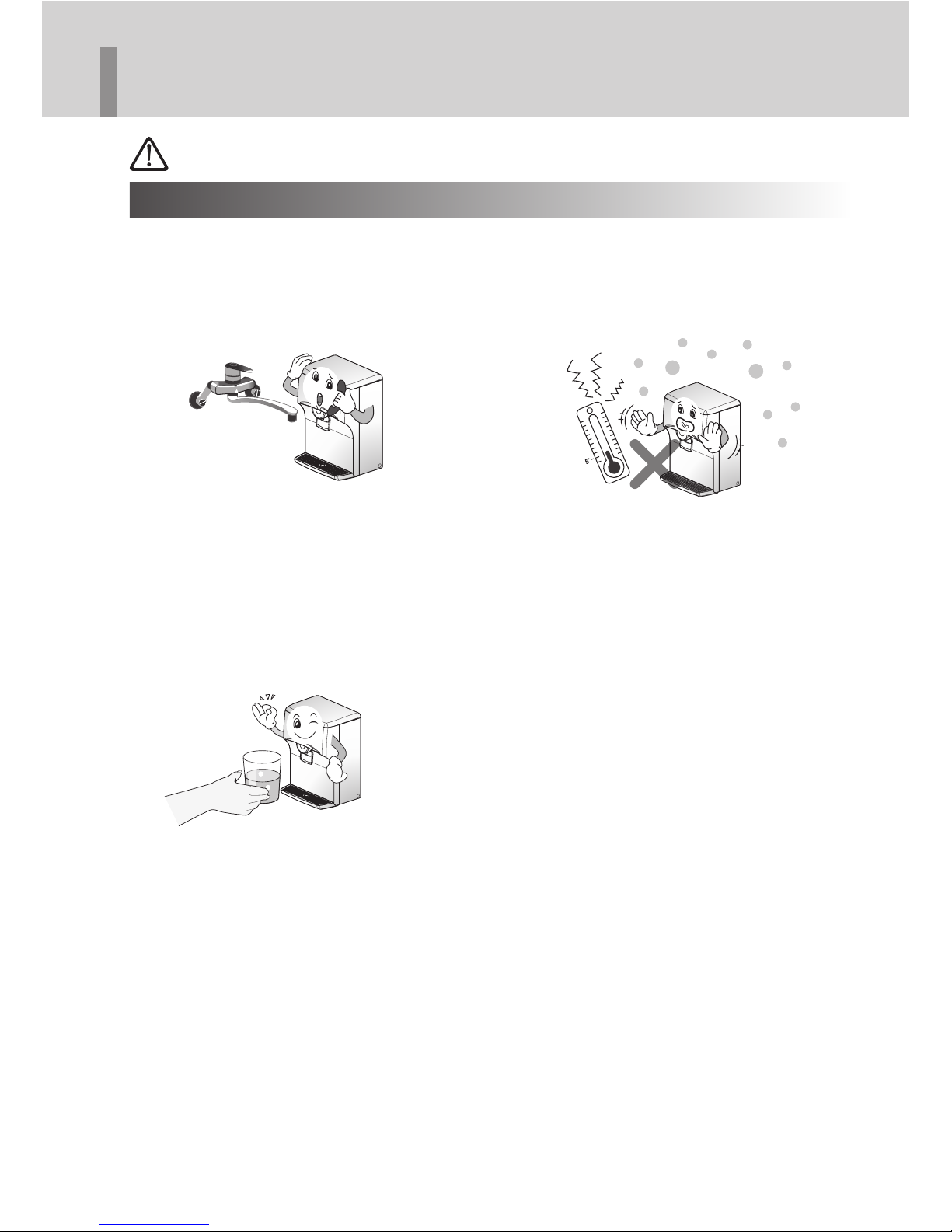

Check before using
※
Be sure to check before use!
Open the Tap water Valve
When the Display's indicator light is turned off
When the product is not used for a Long time (ex. 2~3 days)
After the installation
Periodical change of filter
The product operates when Tap water is supplied.
When the Display's indicator light is turned off, check if power supply is stopped due to
blackout or other causes.
If water has been kept in the tank or has not been used for a long time, then drain the
water completely.
Drain the newly purified water one more time and use the purified water generated
after this process.
Throw away the water when the inside tank is full more than once before use.
It takes around 1 hour for the water to reach full level, but the time differs by water,
pressure, temperature, and filter activating rate.
Filter replacement is very important for clean water.
Take note of the time for filter replacement, since the old filter will not function well.
Notice
If the product is not used for a long time, unplug the power cord and close the
Tap water valve.

16
Name and function of each part
1Top cover
This cover prevents the influx of external, foreign materials/dusts into the water tank.
2Purified water level indicator
This indicates the purified water level of storage water by 3 levels.
※ It denotes the water level of tank; it may not be adjusted arbitrarily.
3UV sterilizing indicator (for WAW73JW2RP model only)
A unit showing that the sterilizing function is running when the product is
turned on.
4Purified water outlet
This is where purified water is discharged.
5Touch lever
If you pull this, you can get purified water.
※If you pull the lever, purified water is released continuously.
6Filter cover (floral pattern: for WAW73JW2RP model only)
A detachable cover for changing the filter
Control Panel Features
2
1
5
4
6
3

17
Function of the control part
Purified water level indicator
(This is not a button)
This indicates the purified water level of
storage water in 3 levels.
UV sterilizing indicator
(for WAW73JW2RP model only / This is not
a button.)
A unit showing that the sterilizing function is
running when the built-in sterilizing module
is turned on.


Notice
Notice
The water level is indicated in 3 levels, with level 3 as the highest.
※The water level indicator is fixed, so it cannot be changed.
UV sterilizing is divided into 3 types: Purification, Circulation, and Power Failure
Compensation; the operating time differs for each mode.
• Purification Sterilizing: This function works whenever the tank is filled with
water to be purified. The processing time may vary depending on the amount
of water.
• Circulation Sterilizing: This function is automatically activated when the tank
is full of water stored for a certain period of time. An internal circulation pump
mixes water to kill the germs contained in the water.
• Power Failure Compensation Sterilizing: This function is to sterilize the
water in the tank in case of blackout or when power has not been supplied for
a long time. This process takes the longest time.
1st level 2nd level 3rd level
When UV
Sterilizing is on
When UV
Sterilizing is off

18

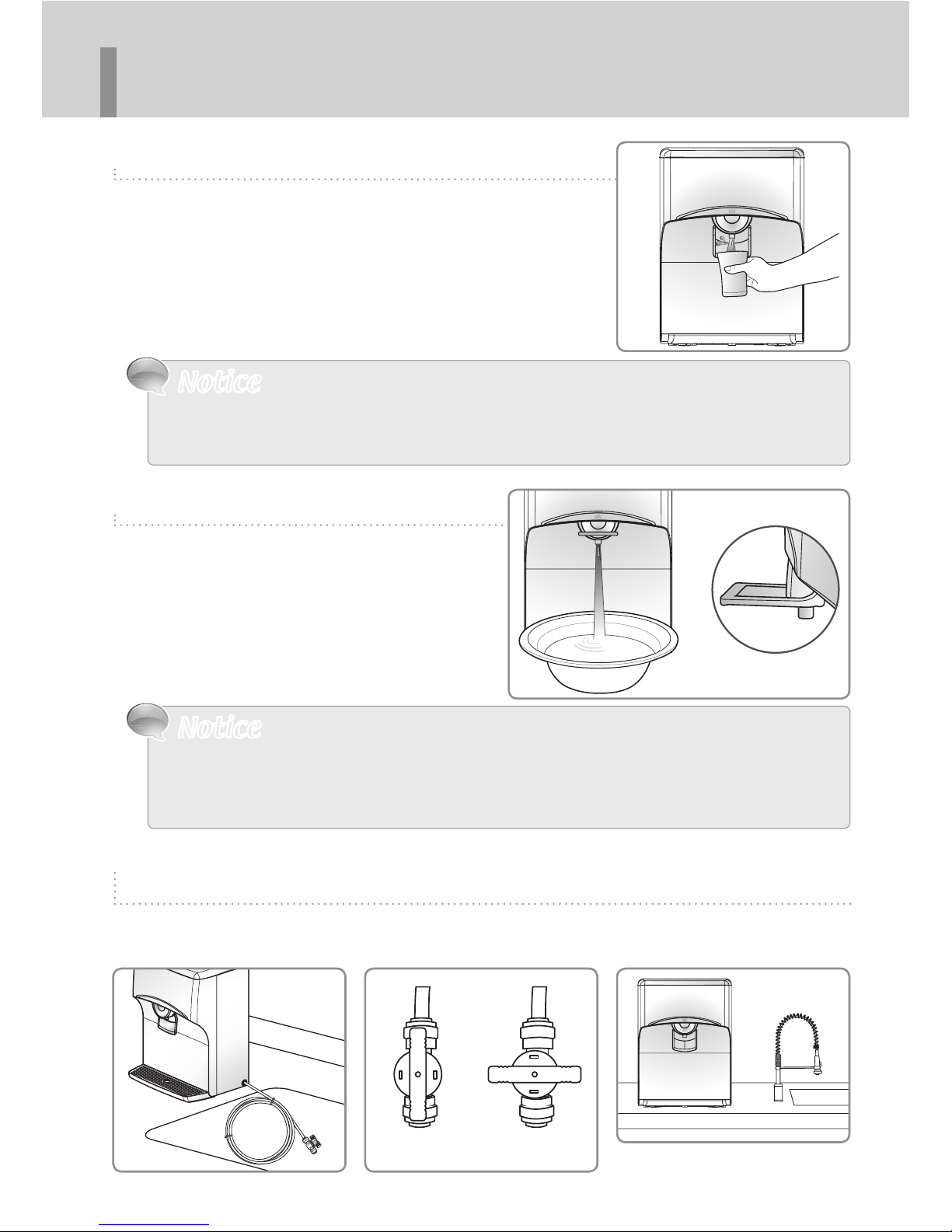

How to use
How to drink purified water
A function to discharge water while the touch lever is
pulled. Taking the hand off the lever or removing the
pulling force may stop the water from coming out.



How to use water continuously
A function to make water come out
continuously by pulling up the touch lever.
To stop this continuous mode, pull down the
touch lever.
※A faucet can be installed
as needed.
Notice
Notice
• Take care so that water does not run or splash onto the front.
• To have water come out, the touch lever should be pulled to a proper extent.
• When getting continuously flowing water, take care so that water does not spill
or splash onto the front.
• Note that water is released as soon as the touch lever is pulled up.
Open Close
How to use cleaning water for fruits & veggies
(for WAW73JW2RP, WAW53JW2RP only)
A function for discharging water while the valve is opened.
Do not use this water for drinking and cooking.

19

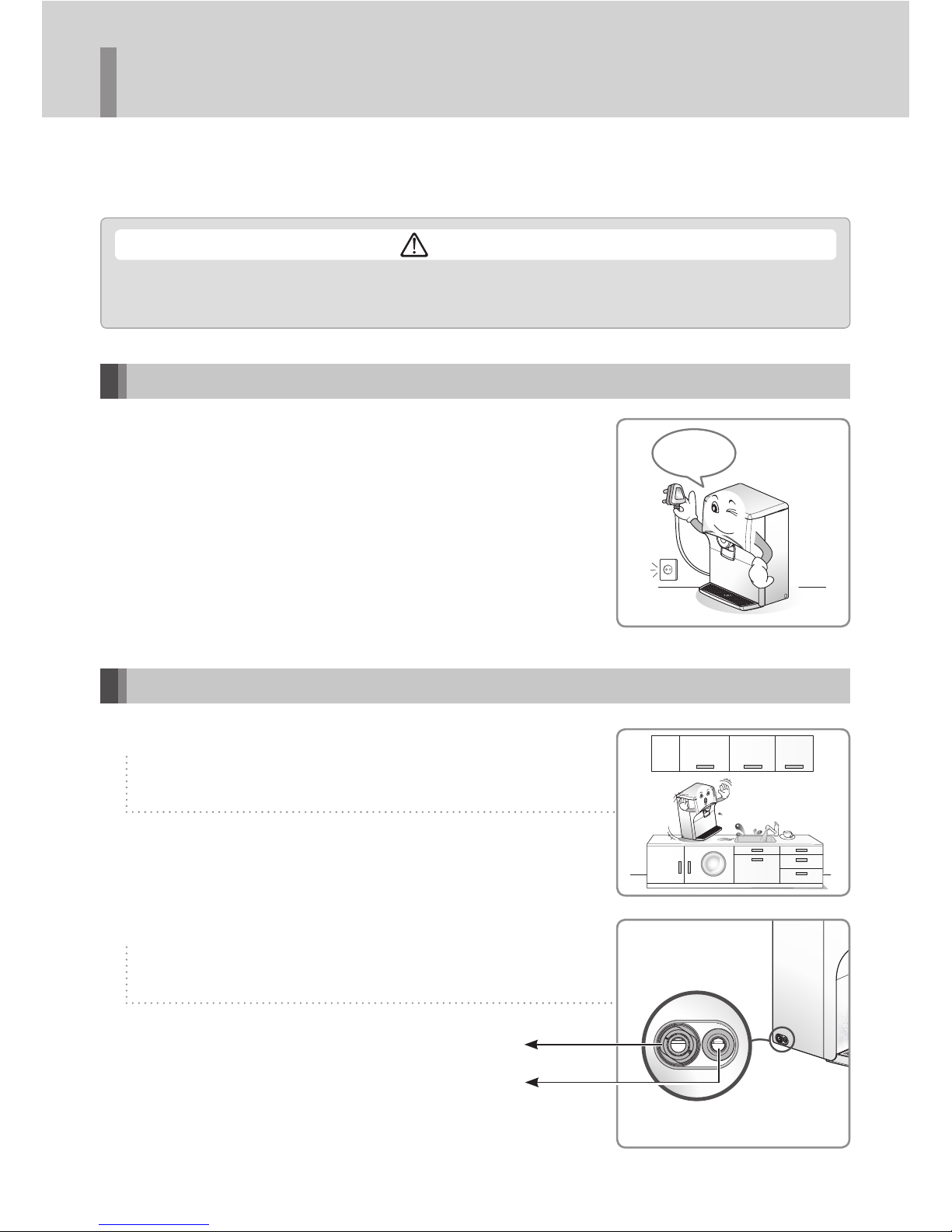

How to install
For the optimization of performance, consult with the company’s installation
technician regarding the details.
Voltage
Installation of water purifier
※ There may be some remaining water in the filter due to the verification test; this does
not mean that the product is a used one.
- Do not worry, it is a new product.
Check the voltage before use; this product is for
230 V~ 50 Hz only.
Do not install the water purifier in places with
humidity, direct sunlight, dust, and splashing
water.

230 V
Connect the tap water hose to and drain
water to . The drain water pipe should be
connected to any drain area.

 Tap water inflow entrance (Large hole)
Drain water (Small hole)
CAUTION

20
How to install
Install on a place where there is at least
10 cm gap between the sides of the product
and the wall and with solid and flat ground.
Between the side of the product & wall

After installation, throw away the water when
the tank is full more than once before use.

More than 10 cm
Maintain Distance
and Level
One time after
Installation
Movement and installation
Normal water piping
Before moving (maintenance), drain the water from
the water tank.
※If you want to reinstall, call the service center.
Connect to the Normal Water Pipe.
(If connected to the hot water pipe, the purifier's
filter may be damaged.)
Normal
water pipe
Hot Water
Notice
• It takes around 1 hour for the water to reach full level, but the time differs by
water pressure.
• It depends on the water condition (pressure, temperature, property).
