LG WQD74RJ5P Instruction Manual

OWNER’S MANUAL AND OPERATION GUIDE
Total Water Solution
LG Electronics Healthcare Water Purifier
P/No.: MFL66990801 www.lg.com
Keep the Owner’s Manual handy.
Be sure to read “Safety Precaution” before use.
Product Warranty is inside the Owner’s Manual.
WQD74RJ5P

2
Features of LG Healthcare Water Purifier
■ Sterilization-Hygiene 'Inside Care System'
This ‘Inside care system’ manages all the water passages in the purifier
with LG’s own Sterilization-Hygiene Tech to keep water clean.
■ Certification of Sterilization
This water purifier has gained Certification of Sterilization called ‘S mark’
from Korean Testing Research Institute.
■ Premium Design
The unique design that uses tempered-glass and artistic patterns upgrades
the quality of kitchen interior.
■Use of Stainless to Water Tank
We use ‘Stainless’ for the water tank to maintain the hygiene and quality of
water.
■ Filter lamp for cleanness
Based on the change of filter lamp’s color, consumers can decide when to
change filters by themselves.
■ Continuous-Button
In case of you need to get plenty of water, use this Continuous-Button.
This button enables water to come out continuously.
(*Regular Button Press will bring only certain amount of water.)
■ Energy saver Button
If you press Energy saver Button, then the operation hour of the heater will
be reduced automatically. This process saves power-consumption.

3
Table of Contents
This product is 230V use only.
Don't ever try to use 110V through transformer.
Safety Precautions ...................................................................................4~11
The names of each part and functions.........................................................12
- Indicator part
Process of water purification ........................................................................13
Check before using.......................................................................................14
The names of each part and functions ........................................................15
- Control Panel Features
Before using
When and how to replace a filter............................................................25~27
Daily Check ..................................................................................................28
Check before reporting the failure................................................................29
Product standard..........................................................................................30
Warranty card
What to know
The function of control part ..........................................................................16
- Filter indicator
- Hot water temperature indicator
- Cold water temperature indicator
How to manipulate .......................................................................................17
- How to turn off hot water function
- How to turn off Cold water function
- How to use Energy saving function
How to use....................................................................................................18
- To drink cold water
- To drink hot water
- To use water continuously
How to install..........................................................................................19~20
How to clean...........................................................................................21~24
The usage

4
Safety Precautions
These contents are to keep users in safety and to prevent the loss of property and
inconvenience.
Please read carefully and use correctly.
WARNING / CAUTION
WARNING If not followed correctly, the user may be dead or sustain
a serious injury.
If not followed correctly, the user may sustain an injury or
may loss properties.
This sign is to call an Caution about things and
manipulations that may cause danger. Read carefully and
follow the directions to avoid danger.
CAUTION

5

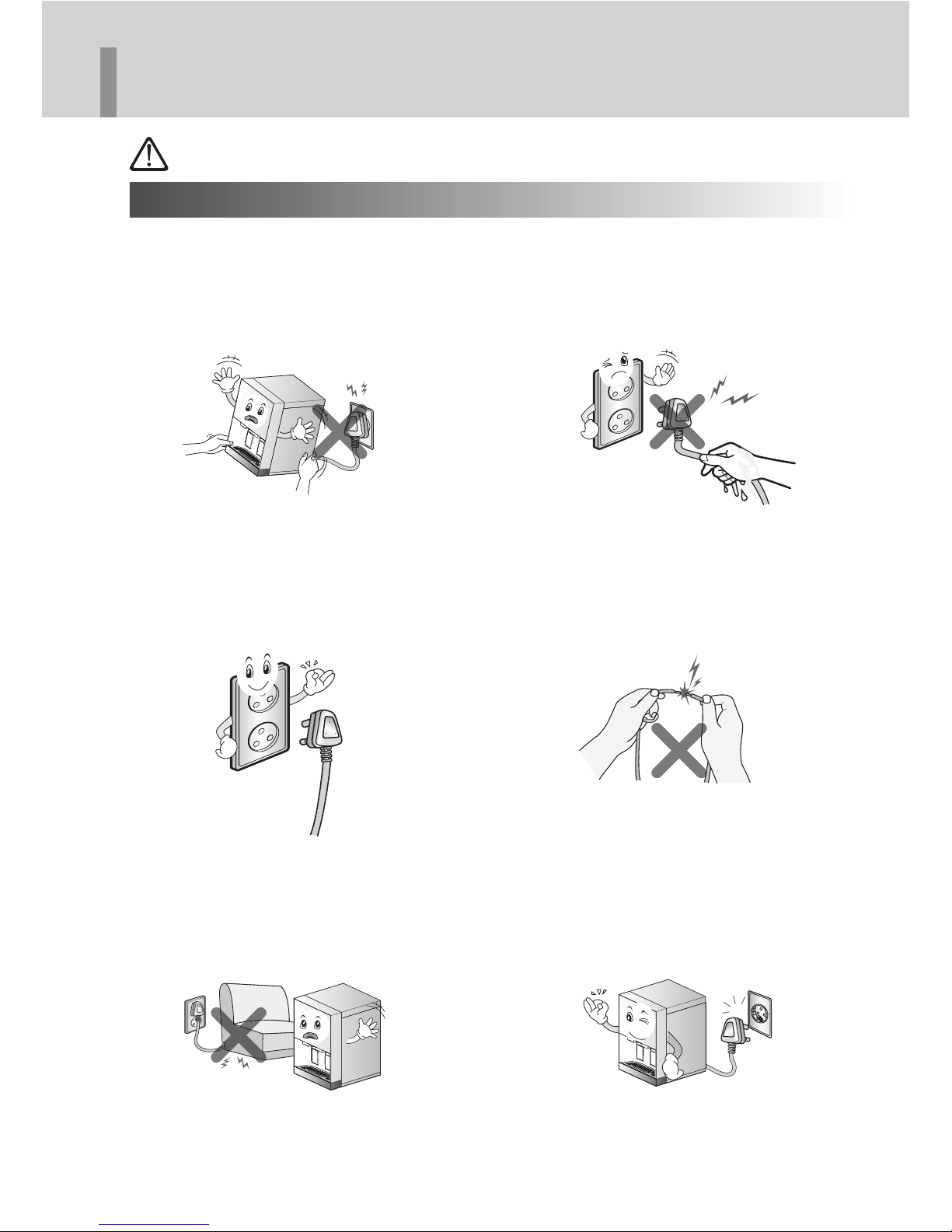

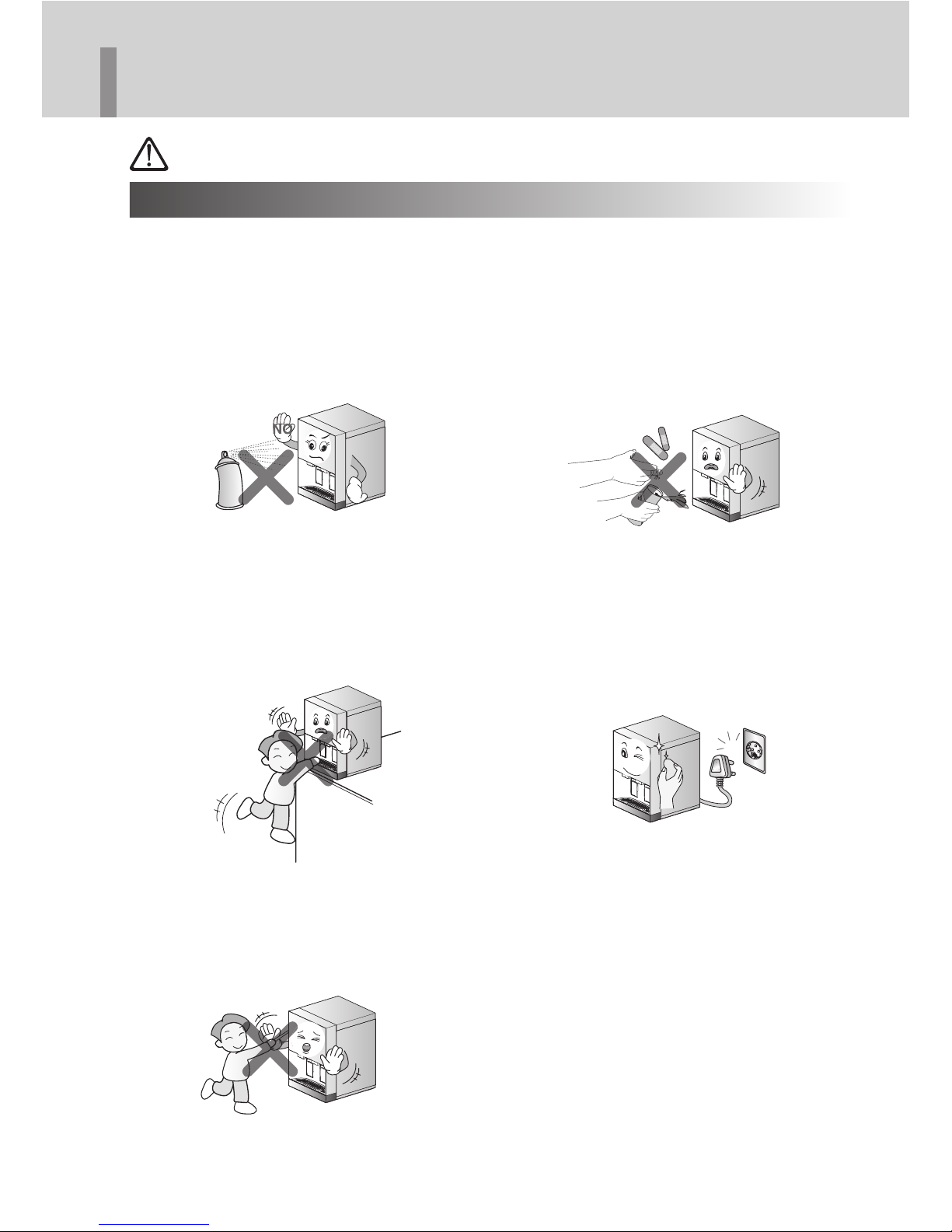

Safety Precautions
WARNING
Power related matters
Do not move the product when
water purifier is running.
- There is a risk of breakdown or electric
shock.
Do not pull out cord part nor
touch power plug with wet hands.
- There is a risk of electric shock or fire.
Power plug must be used with a
grounded 230V outlet only.
- There can be a breakdown and a risk of
electric shock by a short circuit.
Do not bend the power cord
by force nor press with heavy
objects to prevent damage.
- There is a risk of electric shock or fire.
Do not connect nor modify the
cord randomly during installation.
- There is a risk of electric shock or fire.
Must use grounded outlet when
using extension outlet.
- Using non-grounded outlet may cause
electric shock and injury.

6
Safety Precautions
Do not force to bend the power
cord or put heavy things on it.
- It may cause fire or electric shock.
Do not install the water purifier
on an unstable place.
- If the water purifier falls over, casualties
or property damages may occur.
Do not plug in and out
continuously.
- There is a risk of electric shock or fire.
This may cause the product failure.
When not using for a long time,
lock the water supply valve and
pull out the power plug.
- Water inside the cold/ hot water-tanks can
go bad when not used for a long time, and
therefore, make sure to empty the tanks,
too.
Power related matters
Installation
WARNING
Do not use multiple devices at the
same time when using multi-
outlet.
- There is a risk of fire unusual heat.
Do not place heating equipment,
electric heaters, flame-generated
products, etc near the product.
- There is a risk of fire.

7
Safety Precautions
Do not install the product where
combustible gas can leak.
- Gas may leak around the water purifier
and explosion or fire may occur.
Do not sit nor put heavy things on
the product.
- There are risks of breakdown or electric
shock as well as injury.
In case the outlet cannot ground
so that separately grounded, do
not ground to a gas pipe or
faucet.
- There is a risk of gas explosion or
electric shock.
During use
When it is used
WARNING
Avoid direct sunlight or heat,
especially moist when install.
- Refrigeration effects fall and there is a
risk of electric shock.
Do not let water get inside of the
water purifier.
- There is a risk of electric shock or fire.
No one should disassemble,
repair, and remodel of its own.
- There are risks of breakdown, electric
shock, and fire. Contact Service Center
if a repair is required.

8
Safety Precautions
WARNING
Do not put foreign objects or
fingers inside the water purifier
while the purifier is running.
- There are risks of scald and electric
shock. (Caution is needed, especially
for children)
Clean after the power plug is
pulled out.
- There is a risk of electric shock or fire.
When it is used
Do not spray pesticides or
flammable sprays while running.
- It is harmful to health as well as can
cause product failure or fire.
Do not let children hang on the
product.
- Children can get injured by the product
falling down.
Do not poke the inside of the
product with gimlet or pin.
- It can cause electric shock.

9
45º
10Cm
10Cm
Safety Precautions
When install
CAUTION
Do not tilt the product more than
45 degrees when moving.
- Product failure can be caused.
As an indoor product, install
where the product can avoid
direct sunlight and protected from
snow and rain.
- Product failure can be caused.
Connect to the power after 30-
minutes of moving.
- Product failure can be caused.
Do not connect hot water to the
product.
- Product failure can be caused.
After the installation, make sure
the hose's joint does not leak.
- If the screw is loosen, water leaks and
electric shock and property damage
can occur.
The back and sides of the product
need more than 10cm spaces
apart from the wall for smooth
airflow.
- Product failure can be caused.

10
Safety Precautions
When it is used
CAUTION
If there's a strange noise, burning
smell, or smoke from the water
purifier, immediately turn off the
purifier and cut off the power and
then call service center.
- There is a risk of electric shock or fire.
Replace filters regularly
according to the replacement
period.
- Taste can be changed.
Filter cycle is different by the usage,
location, season, water quality, etc.

11
Safety Precautions
When it is used
CAUTION
When clean the product, do not
spray water directly nor clean
with benzene, thinner, alcohol, etc
but use a soft, dry cloth.
Use LG's standard filter.
- If the filter from other company or non-
standard product is used, it may cause
breakdown or not purify well.
After the installation, make sure
the hose's joint does not leak.
- Malfunction and breakdown can be
caused.
Drink the purified water as soon
as possible so that always fresh
water flows in.
- If the water is kept long, it can grow
bacteria or taste can be changed.
Make sure to use cup type
containers for hot water.
- There is a risk of scald.
Do not connect hot water to the
product.
- Product failure can be caused.

12

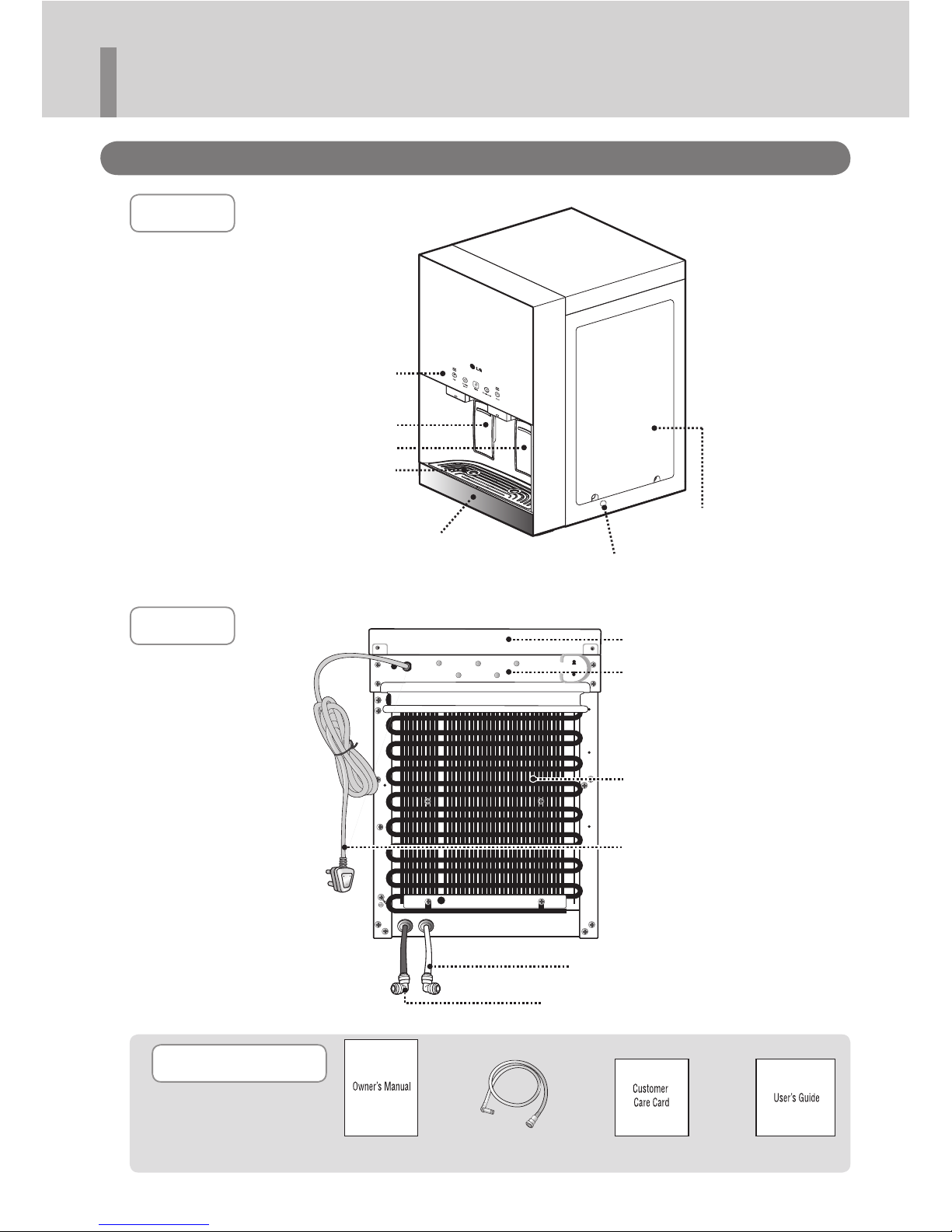

Control Panel
Hot Water Touch Lever
Cold Water Touch Lever
Water tray Cover
Water tray
Filter Cover
Hot water drainer
The names of each part and functions
Indicator part
Upper part cover
Back cover
Wire condenser
Power cord
Drainer (Blue)
Tap water inflow entrance (white)
Accessories
Front
Rear
Owner’s Manual Drain Hose Customer Care Card User's Guide

13

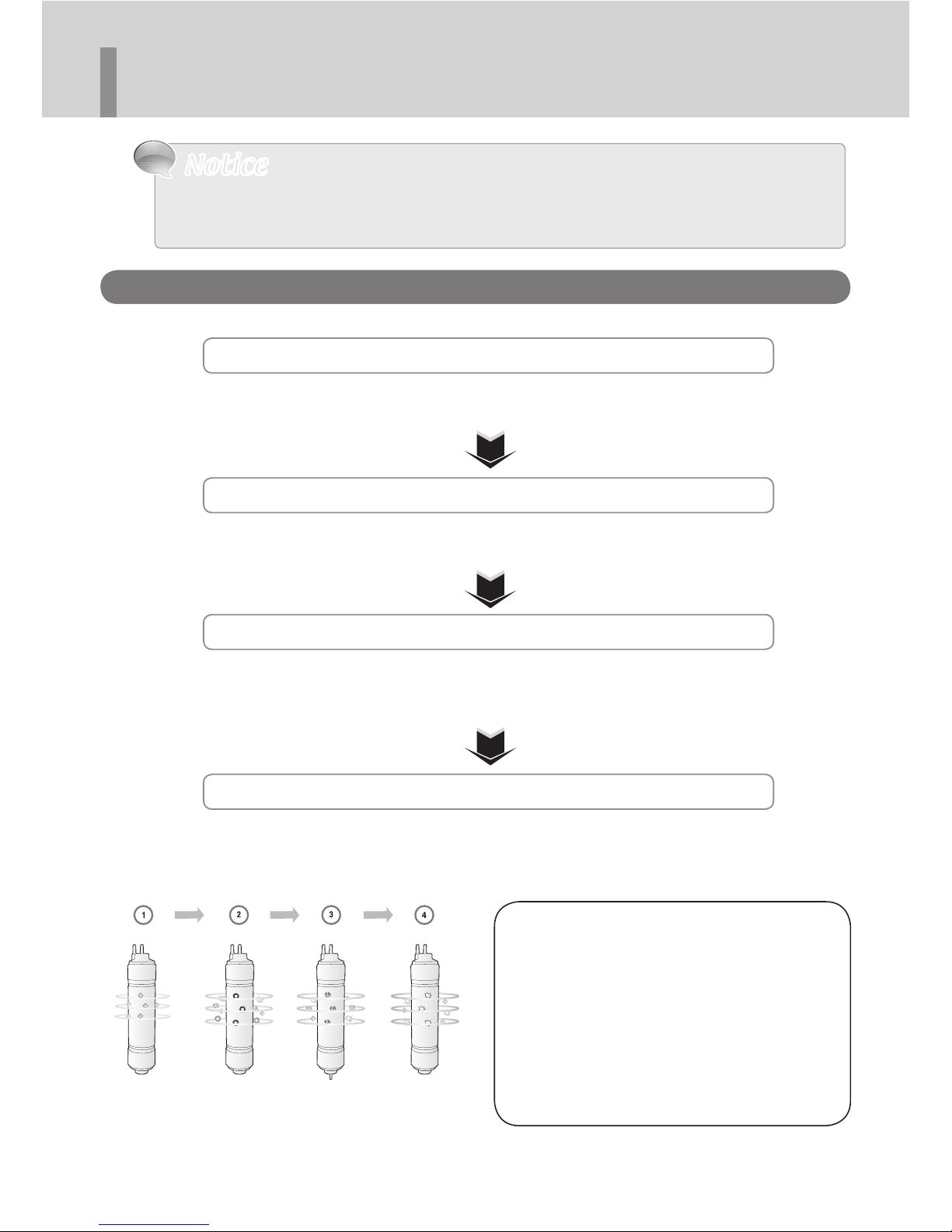

Process of water purification
Process of purification
Notice
Filter is vital to water purifier. If authentic filter is not used, or old filter is used
though it's authentic, then this can cause performance deterioration.
Step 1: Sediment filter
Step 2: Pre carbon filter
Step 4: Post carbon filter
Step 3: Membrane Filter(R/O)
This protects the part (or place) where water contacts by filtering
unseen dregs and contaminated substances.
Remaining Chlorine and volatile organic compound is removed at
this pre-carbon filter.
Smell left in water is filtered at this step,
and the taste of water is improved.
■Drained Water
- You can use drained water for daily
activities like dish wash, laundry,
cleaning etc.
- Please do not use this water for
drinking and cooking.
Heavy metallic substances, ionized substances and microorganism
is removed through this membrane filter.
At this step, drained water comes out along the drain hose.
Sediment
Filter Pre carbon Filter Membrane Filter(R/O) Post carbon Filter

14

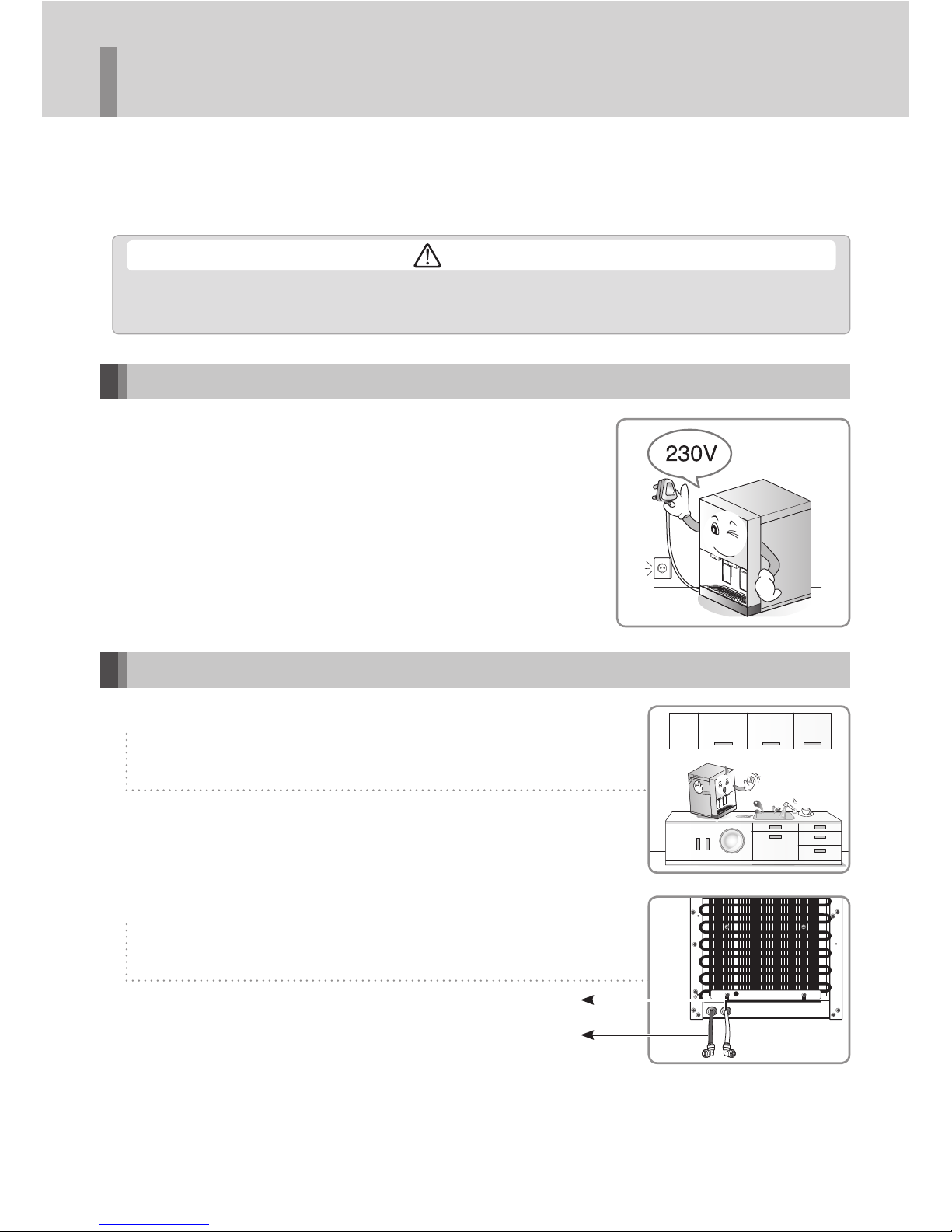

Check before using Make sure to check before use!
Open the Tap water Valve
When the Display's indicator light is turned off
When the product is not used for a Long time (ex. 2~3 days)
After the installation
Periodical change of filter
How to drain hot water
The product operates when Tap water is supplied.
When the Display's indicator light is turned off, check if the power supply is stopped by
power outage or other causes.
If water has been kept in the tank or hasn’t been used for a long time then drain the
water completely.
Do one more time of draining with newly purified water then use.
Throw away the water stored to the full level in the inside tank for more than once
before use.
It takes around 3 hours at water stored to the full level, but it is different time by water
pressure.
Filter changing is very important for clean water.
Do not miss the time for filter replacement, since old filter can’t function well.
Take off the cap of the hot water drainer on the side of the product, and connect it with
a drain hose.
(Please be careful not to be scalded by hot water)
Notice
If the product is not used for a long
time, then please unplug and fasten
the valve of Tap water.
CAUTION
• This product is 230V~ 50Hz use
only.
- Please use earth-connected socket
when plugging in.
- Power is required for the operation
of water purifier.

15
The names of each part and functions
Hot Water Temperature indicator
This indicates the temperature of hot water by 3 levels.
* It expresses the level of temperature but can’t be adjusted as you want.
「Hot」button
A button is to use hot water.
「Energy saver」button
This button enables to save power by adjusting the temperature.
Filter Indicator
This part notifies the time for filter replacement.
(Blue indicates the filter can be used and Orange indicates the filter needs
to be replaced.
「Continuous」button
This button enables water to come out continuously.
(Water comes out for 30sec)
「Cold」button
This button is to use cold water.
Cold water temperature indicator
This indicates the temperature of cold water by 3 levels.
* It expresses the level of temperature but can’t be adjusted as you want.
Control Panel Features

16
The function of Control part
Filter Indicator (This is not a button)
This notifies the time for filter replacement.

Level1 Level2 Level3
Level1 Level2 Level3
Hot water temperature indicator
(This is not a button)
This indicates the temperature of hot water by
3 levels.

Level1 Level2 Level3
Level1 Level2 Level3
Cold water temperature indicator
(This is not a button)
This indicates the temperature of cold water by
3 levels.

Level1 Level2 Level3
Level1 Level2 Level3
Notice
When filter is usable, it’s lit on as Blue light, and when it’s time for filter
change, then it’s lit on Orange light.
Notice
When hot water temperature indicated by three level, 3 level is hotter than
other level.
※ (The indicated temperature is the temperature of inside the tank, so the
temperature of actual drinking water may be different.)
Notice
When cold water temperature indicated by three level, 3 level is colder than
other level.
※ (The indicated temperature is the temperature of inside the tank, so the
temperature of actual drinking water may be different.)

17
How to manipulate
How to turn off hot water function
Press the button ‘hot water’ and ‘Energy saver’
at the same time for 10 sec, then hot water-
function will be turned off and LED of ‘hot
water’ button and Hot water indicator part will
be turned off.

How to turn off cold water function
Press ‘Continuous’ button and ‘cold water’
button at the same time for 10 sec, then cold
water function will be turned off and LED of
Cold water button and Cold water indicator
part will be turned off.

How to use Energy saving function
If ‘Energy saver ’ button is pressed, indicator
light of Power save mode will be turned on
and the operation time of the heater will be
reduced automatically, thus the amount of
power-consumption will be reduced.

Notice
To use hot water again, then press ‘hot water’ and ‘Energy saver’ button at the
same time for 10 sec, then Hot water function will be turned on.
Notice
To use cold water again, then press ‘Cold water’ and ‘Continuous’ button at
the same time for 10 sec, then cold water function will be turned on.
Notice
• If 'Energy saving' mode is chosen, the lamp at 'Energy saver' button will be
turned on.
• If 'Energy saving' mode is cancelled, then the lamp at 'Energy saver' button
will be turned off.

18
How to use
To drink cold water
Press "Cold water" button and then press its
touch lever or simply press only the touch
lever, then the water will come out.

To drink hot water
Press "Hot water" button and then
press its touch lever, then water will
come out. Select hot water by pressing
"Hot water" button and then press its
touch lever with a cup, then hot water
will come out.

To use water continuously
Press "Continuous" button and then
press cold water's touch lever only
once, then water come out
continuously. To stop continuous use,
press Continuous button or cold water's
touch lever once again, and the water
will stop.
* Water comes out for 30 seconds with
the Continuous function.

Notice
• Press upper part of the touch lever for smooth operation.
• If using all cold and hot water, please waiting water stored to the full level, it
takes around 3 hours, but it is different time by water pressure.
Notice
For safety, Continuous function is available to the cold water only.
Notice
• For safety, always have to press "Hot water" button and then press its touch lever for
hot water to come out.
• If Hot water lever is pressed without being pressed of 'hot water' button, then indication
lamp will be blinking.
• Touch-lever works well, when it's pressed on upper part.
• If not used after pressing 'Hot water' button, then hot water button lamp will be turned
off in 5 sec.

19
How to install
For the optimization of performance, consult details with the company’s
installation technician.
CAUTION
Voltage
Installation of water purifier
* There may be some remaining water in filter due to verification test, this doesn’t mean
that the product is a used one.
- Please do not worry, it is not used.
Check the voltage before using, this product is
for 230V~ 50Hz only.
Please install the water purifier with avoiding
places under the product and also avoid humid,
direct light, dust, and splashing water.

Connect Tap water. Tap water-intake. Install
Draining hose to dishwater part or underneath
of the sink.

Origin-water-intake connection part (White)
Draining hose of Water for living part (Blue)

20
How to install
Please install on a place at least 10cm away
from the walls and with a solid and flat ground.

After installation, you must throw away the
full level water more than once before use.

Movement and installation
Normal water piping
If newly installed or moved location, connect
the power after 30 minutes of install.
Must connect to the Normal Water Pipe.
(If connect to the hot water's pipe, purifier's
filter can be damaged.)
Maintain Distance
and Level
One time after
Installation
30 minutes
after move
Normal water’s
pipe
Hot
water
More than 10cm
More than 10cm
Notice
• It takes around 3 hours at water stored to the full
level, but it is different time by water pressure.
