LGMG T65J-H Use and care manual

LGMG North America Inc.
Operation and Safety Manual
T65J-H/T72J-H/T85J-H/T92J-H
Telescopic Boom
Mobile Elevating Work Platform
△
!WARNING
Before operation and maintenance, the
drivers and service personnel shall
always read and thoroughly understand
all information in this manual. Failure to
do so may result in, fatal accidents or
personal injury.
This manual must be kept with this
machine at all times.

This page left blank intentionally

LGMG North America Inc. Operation and Safety Manual
I
Contents
Contents.......................................................................................................I
Chapter 1 Safety.........................................................................................1
1.1 Danger.............................................................................................. 3
1.2 Before Operating the Machine, Please Ensure that: ......................... 3
1.3 Classification of Dangers.................................................................. 3
1.4 Purpose............................................................................................ 3
1.5 Maintenance of Safety Signs ............................................................ 4
1.6 Danger of Electric Shock .................................................................. 4
1.7 Danger of Tilting................................................................................ 4
1.8 General Safety.................................................................................. 6
1.9 Danger of Operating the Machine on Slopes .................................... 6
1.10 Danger of Falling ............................................................................ 7
1.11 Danger of Collision.......................................................................... 7
1.12 Dangers of Explosion and Fire........................................................ 8
1.13 Danger of Damage to the Machine................................................. 8
1.14 Danger of Body Injury..................................................................... 8
1.15 Battery Safety................................................................................. 8
1.16 Personal Fall Protection.................................................................. 9
1.17 Ground Information......................................................................... 9
Chapter 2 Legend .....................................................................................11
Chapter 3 Decals ......................................................................................15
Chapter 4 Machine Specifications.............................................................21
Chapter 5 Control Box...............................................................................43
5.1 Lower Control Box.......................................................................... 45
5.2 Upper Control Box.......................................................................... 47
Chapter 6 Pre-Operational Check.............................................................51
6.1 Before Operating the Machine, Please Ensure that: ....................... 53
6.2 Basic Principles .............................................................................. 53

LGMG North America Inc. Operation and Safety Manual
II
6.3 Pre-Operational Check ................................................................... 53
Chapter 7 Workplace Inspection ...............................................................55
7.1 Basic Principles .............................................................................. 57
7.2 Workplace Inspection...................................................................... 57
Chapter 8 Functional Test .........................................................................59
8.1 Basic Principles .............................................................................. 61
8.2 At the Ground Controller................................................................. 61
8.3 On the Platform .............................................................................. 61
Chapter 9 Operation Instructions...............................................................65
9.1 Basic Principles .............................................................................. 67
9.2 Starting Up the Engine.................................................................... 67
9.3 Emergency Stop............................................................................. 67
9.4 Emergency Power .......................................................................... 67
9.5 Operating the Machine on Ground.................................................. 68
9.6 Operating the Machine on the Platform........................................... 68
9.7 Platform Overload........................................................................... 70
9.8 Non-Level State of the Machine...................................................... 70
9.9 System Fault................................................................................... 70
9.10 SkyGuard Instructions .................................................................. 73
9.11 DPF Instructions ........................................................................... 73
9.12 Low temperature start kit (If Equipped)......................................... 74
9.13 Upon Every Use............................................................................ 75
Chapter 10 Transport Description..............................................................77
10.1 Compliance and Obedience.......................................................... 79
10.2 Brake Release When Using the Capstan...................................... 79
10.3 Ensuring Transport Safety ............................................................ 79
10.4 Guidance on Lifting the Machine................................................... 80

LGMG North America Inc. Operation and Safety Manual
III
Foreword
Thank you for choosing to use this Mobile Elevating Work Platform from LGMG North America. This
machine is designed according to A92.20-2021.The information specified in this manual is intended for
the safe and proper operation of this machine for its’ intended purpose.
For maximum performance and utilization of this machine, thoroughly read and understand all the
information in this manual before starting, operating, or performing maintenance on this machine.
Due to continuous product improvements, LGMG NorthAmerica reserves the right to make specification
changes without any prior notifications. For any updated information, contact LGMG NorthAmerica.
Ensure all preventive maintenance to the machine is performed according to the interval specified in the
maintenance schedule.
Keep this manual with this machine for reference at all times. When the ownership of this machine is
transferred, this manual shall be transferred with this machine. This manual must be replaced
immediately if it is lost, damaged, or becomes illegible.
This manual is copyrighted material. The reproduction or copy of this manual is not allowed without the
written approval of LGMG North America.
The information, technical specifications and drawings in this manual are the latest available when this
manual is issued. Due to continuous improvement, LGMG North America reserves the right to change
the technical specifications and machine design without notice. If any specifications and information in
the manual are not consistent with your machine, please contact the service department of LGMG North
America.
△
! WARNING
Only personnel who have been properly trained and qualified to operate or maintain
this machine can operate, repair and maintain this machine.
Improper operation, maintenance, and repair are dangerous and can cause personal
injury and death.
Before any operation or maintenance, the operator shall thoroughly read this
manual. Do not operate, perform any maintenance or make any repairs on this
machine before reading and understanding this manual.
The user shall load the platform strictly according to the load rating of the platform.
Do not overload the platform or make any modifications to the platform without
permission from LGMG.
The operation regulations and preventions in this manual are only applicable for the
specified use of this machine.

LGMG North America Inc. Operation and Safety Manual
IV
Safety Precautions
The operator of this machine shall understand and follow the existing safety regulations of state and
local governments. If these are unavailable, the safety instructions in this manual shall be followed.
To help prevent accidents, read and understand all warnings and precautions in this manual before
operation or performing maintenance.
The safety measures are specified in Chapter 1 Safety.
It is impossible to foresee every possible hazard and the safety instructions in this manual may not cover
all safety prevention measures. Always ensure the safety of all personnel and protect the machine
against any damage. If unable to confirm the safety of some operations, contact LGMG North America.
The operation & maintenance prevention measures listed in this manual are only applicable to the
specified uses of this machine. LGMG North America assumes no responsibility if this machine is used
beyond the range of this manual. The user and the operator shall be responsible for the safety of such
operations.
Do not perform any operation forbidden in this manual in any situation.
The following signal words are applicable for identifying the level of safety information in this manual.
△
!DANGER:
An imminent situation, that if not avoided, will result in severe injuries or death. This
is also applicable to situations that will cause serious machine damage, if not
avoided.
△
!WARNING:
A potentially dangerous situation, that if not avoided, may result in severe injuries or
death. This is also applicable to situations that may cause serious machine damage,
if not avoided.
△
!NOTICE:
A situation, that if not avoided, may result in minor or intermediate injury. This is also
applicable to situations that may cause machine damage or shorten machine service
life.

LGMG North America Inc. Operation and Safety Manual
1
Chapter 1 Safety

LGMG North America Inc. Operation and Safety Manual
2

LGMG North America Inc. Operation and Safety Manual
3
1.1 Danger
△
! WARNING: Failure to follow the
instructions and safety rules in this
manual may result in serious injury or
death. Alcoholics, drug users, and
those who take anti-reactive drugs are
strictly prohibited from approaching
and operating the machine.
1.2 Before Operating the
Machine, Please Ensure that:
1) You are equipped with full-body protective
equipment such as helmets, safety belts,
safety shoes, goggles and protective
gloves, and are in good physical condition.
2) You have understood and practiced the
safety rules for machine operation in this
operation manual.
3) You know and understand the rules for safe
operation of the machine before proceeding
to the next step.
4) You always perform pre-operational
checks.
5) You always perform pre-use functional
tests.
6) You check the workplace.
7) You use the machine for the specified
purpose only.
8) You read, understand and abide by all
applicable laws and regulations.
9) You have been trained to operate the
machine safely.
1.3 Classification of Dangers
△
!NOTICE
Classification of hazards
The meanings of symbols, color codes
and characters of LGMG’s products
are as follows:
Security warning symbol: are used for
warning of potential personal injuries.
Observe all safety instructions below
these signs, to avoid situations
causing potential personal injury and
death.
Red: Signifies dangerous situations. If
not avoided, will result in personal
death or severe injury.
Orange: Signifies dangerous
situations. If not avoided, may result in
personal death or severe injury.
Yellow: Signifies dangerous situations.
If not avoided, may result in minor or
intermediate personal injury.
Blue: Signifies dangerous situations. If
not avoided, property loss or damage
can occur.
1.4 Purpose
The purpose of this machine is limited to lifting
personnel and their tools and materials to
high-altitude workplaces, and it can be used
indoors and outdoors.
△
! WARNING: It is strictly forbidden

LGMG North America Inc. Operation and Safety Manual
4
to modify the machine without
permission, to carry goods, and to
hang or lift articles.
1.5 Maintenance of Safety
Signs
1) Replace lost and damaged safety signs.
2) Clean the safety signs with a neutral
detergent or water.
3) Solvent-based detergents may damage the
safety signs. Do not use solvent-based
detergents to clean the safety signs.

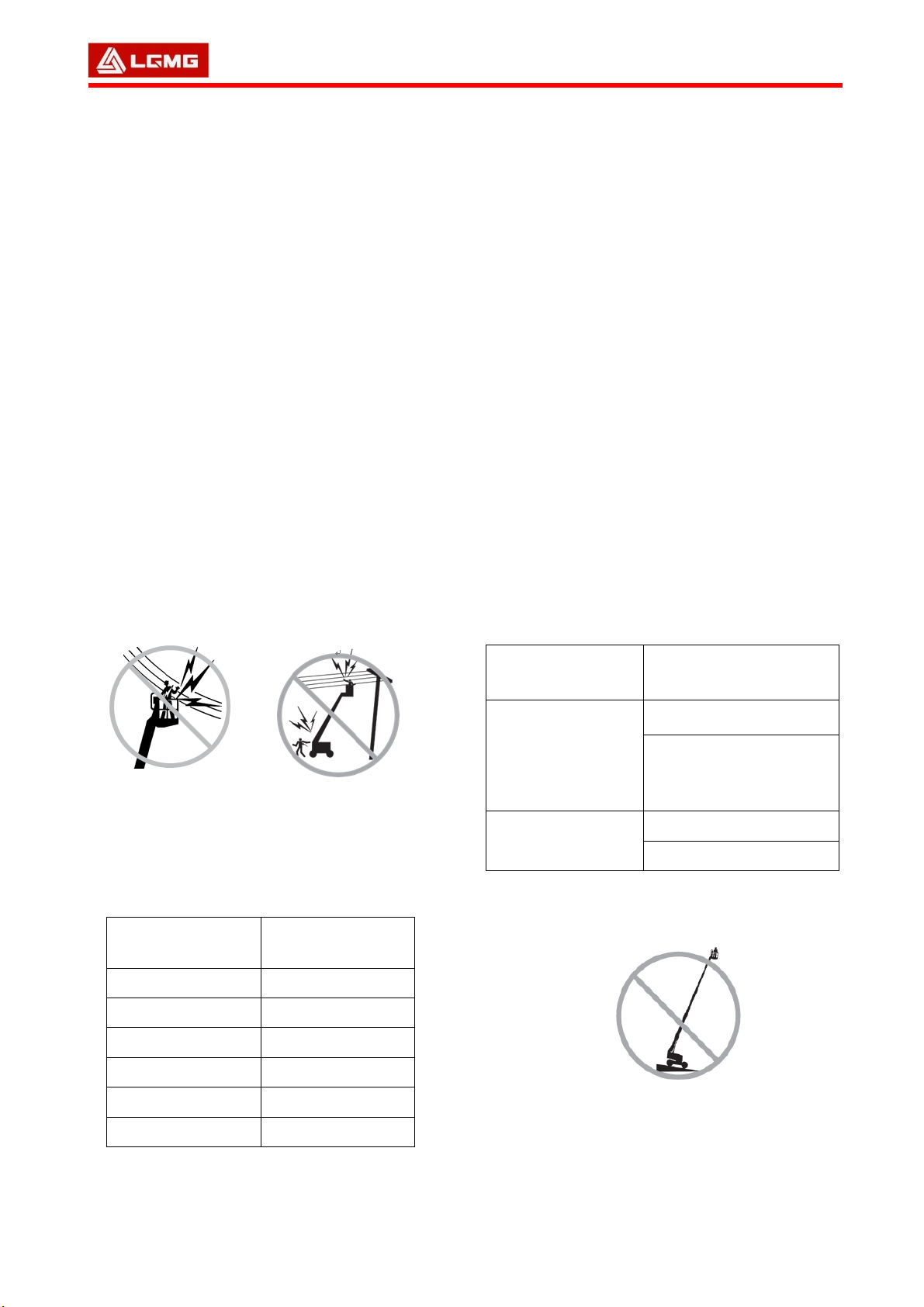

1.6 Danger of Electric Shock
△
! WARNING: This machine is not
insulated and does not provide
protection against electric shock when
in contact with or near electrical wiring,
power source or electrical equipment.
Please maintain an adequate safety distance
from electrical wiring, power source and
electrical equipment in accordance with
applicable laws and regulations and the
instructions in the following table.
Voltage
Required safety
distance
0-50 KV
3.05m/10ft
50 KV-200 KV
4.60m/15ft
200 KV-350 KV
6.10m/20ft
350 KV-500 KV
7.62m/25ft
500 KV-750 KV
10.67m/35ft
750 KV-1,000 KV
13.72m/45ft
Table 1-1 Safe distance between the equipment
and power line
△
! CAUTION: The effects of strong
winds or gusts on the movement of the
platform, the swinging and slackening
of the wires shall be taken into
account.
1) If the machine comes into contact with a
live wire, get away from the machine
immediately.
2) Personnel are prohibited from touching or
operating the machine before cutting off the
power to the wires.
3) Do not operate or use the machine during
lightning or storms.
4) Do not use the machine as a ground wire
during welding.
1.7 Danger of Tilting
1) The personnel, equipment and materials on
the platform shall not exceed the maximum
load capacity of the platform.
Item
T65J-H/T72J-H
T85J-H/T92J-H
Maximum Load
Capacity of the
Platform
300kg/661
450kg/992
(Restricted range of
motion)
Maximum
occupants
2
3 (Restricted)
Table 1-2 Maximum load capacity of the
platform
2) Do not raise or extend the boom unless the
machine is on a firm, level surface.

LGMG North America Inc. Operation and Safety Manual
5
3) If the platform is overloaded, the buzzer will
alarm. Please reduce the platform load first.
4) When the platform is lifted, the driving
speed should not exceed 0.8 km/h
(0.5mph).
5) The tilt angle sensor cannot be used as a
level indicator. The buzzer on the turntable
will only sound when the machine is heavily
tilted.

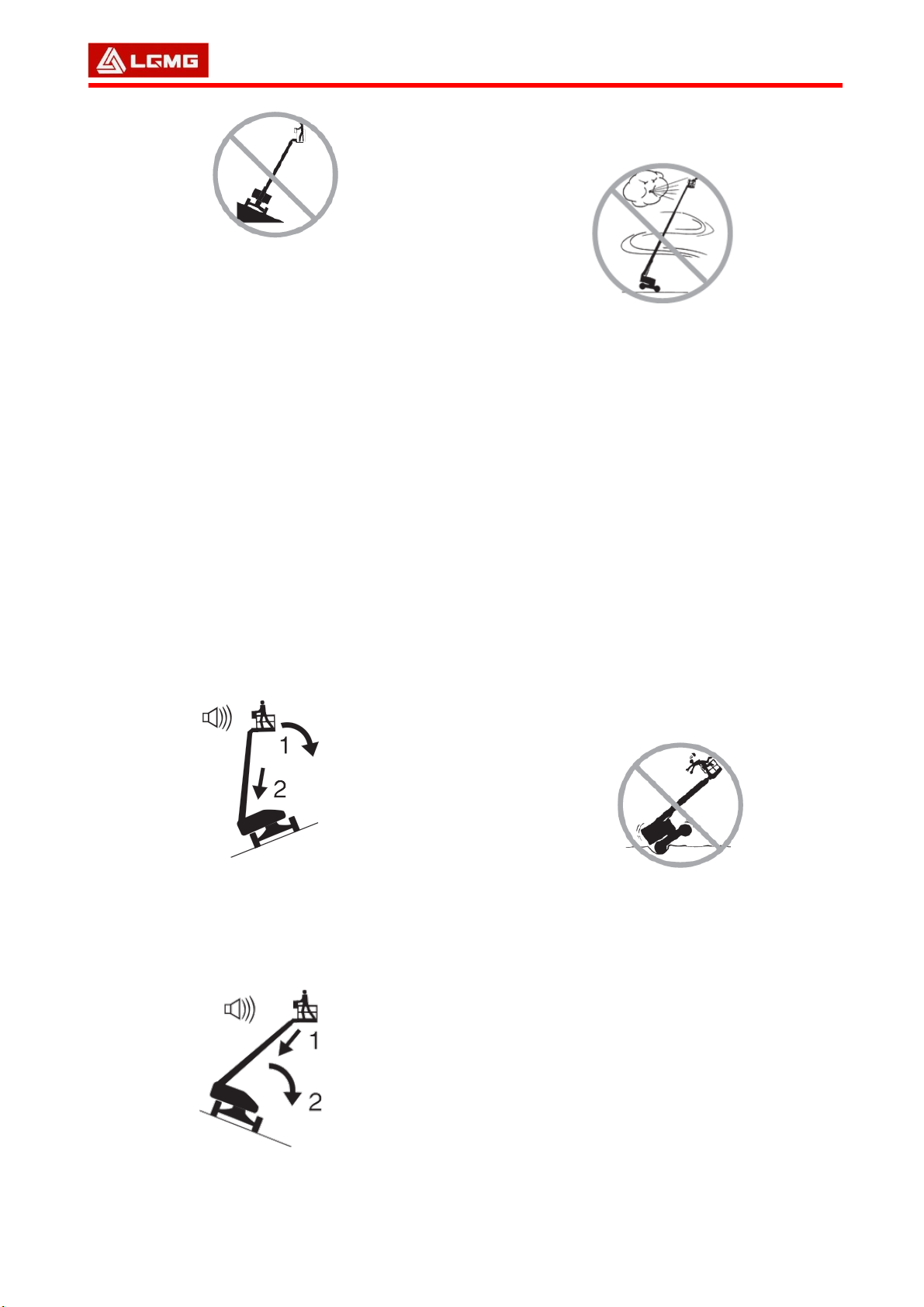

6) Please be very careful if the buzzer sounds
when the platform is lifted. The machine's
non-level indicator will light up and the drive
function will not work in either direction.
First determine the status of the upper
boom on the slope, as shown below. Then
follow the steps below to descend the boom
before moving the machine to a solid and
level ground. Do not rotate the boom when
descending.
If the buzzer sounds when the platform goes up
the slope
①Lower the boom
②Retract the boom
If the buzzer sounds when the platform goes
down the slope
①Retract the boom
②Lower the boom
7) Do not lift the boom when the wind speed
may exceed 12.5 m/s (28mph). If the wind
speed exceeds 12.5 m/s (28mph) after the
boom is lifted, lower the boom and do not
continue to operate the machine.
8) Do not operate the machine in strong winds
or gusts. Do not increase the surface area
of the platform or load. Increasing the area
exposed to the wind will reduce the stability
of the machine.
9) Do not use the upper control box to operate
the machine when the platform is trapped,
jammed, or other objects nearby are
blocking its normal movement. If you plan
to operate the machine with the lower
control box, all personnel must leave the
platform before you do so.
10) In the retracted state, please be very
careful and reduce the speed when the
machine is running on gravels, unstable or
smooth surfaces and near the entrance of
the cave or steep slopes.
11) When the boom is lifted, the machine
cannot run on uneven terrain, unstable
surfaces, or other dangerous conditions, or
run near these areas.

LGMG North America Inc. Operation and Safety Manual
6

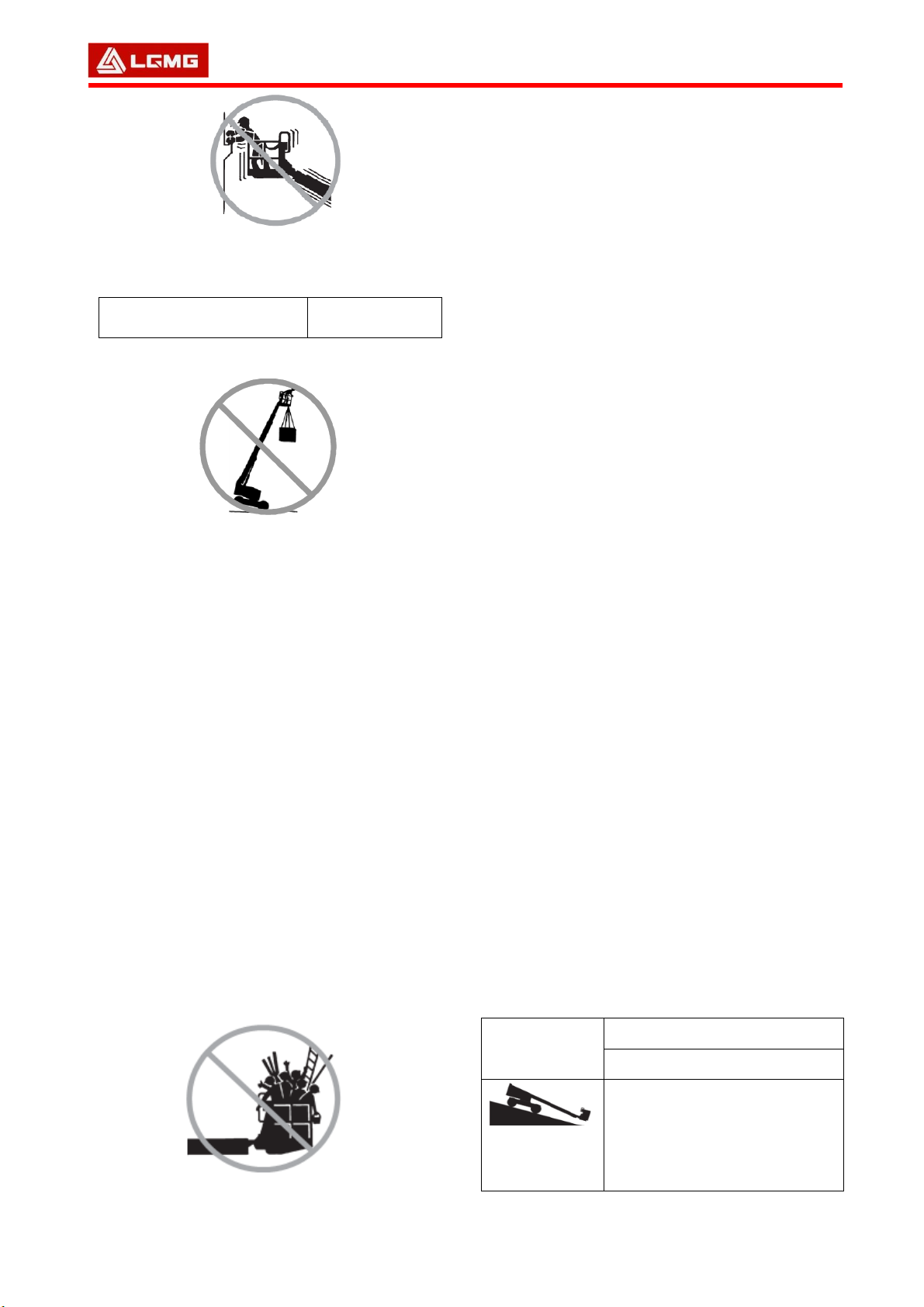

12) Do not push or pull anything outside the
platform.
Maximum manual force
400N
Table 1-3 Maximum manual force
13) Do not use the machine as a crane.
14) Do not place, tie or hang loads on any part
of the machine.
15) Do not use the boom to push a machine or
other objects.
16) Do not drive in high-speed descending any
slope.
1.8 General Safety
1) Do not operate the machine with the hood
open.
2) Do not allow the boom to approach or touch
anything.
3) Do not change or use all sensors such as
length transducer, tilt angle sensor, the
weighing sensor and rope-breaking
detection devices.
4) Do not bundle the boom or platform to
adjacent objects.
5) This machine shall not be modified without
the prior written permission of the
manufacturer. Additional devices installed
on platforms, pedals or guardrails for
placing tools or materials will increase the
weight and surface area of the platform.
6) Do not place ladders or scaffolds in the
platform or against any part of the machine.
7) Only tools and materials that are evenly
distributed and can be safely moved by
people on the platform can be transported.
8) Do not use the machine on moving surfaces
or vehicles.
9) Do not place your hands and arms near the
area where there is a risk of cutting or
crushing.
10) Do not alter or damage any parts that may
affect the safety and stability of the
machine.
11) Do not replace parts that affect machine
stability with parts of different specifications.
12) Ensure that all tires are in good condition
and the nuts are properly tightened, and do
not replace the original tires with tires of
different specifications.
13) The ambient temperature of the machine is
-20 °C ~ 40 °C.
14) Ensure that this manual is kept in a file box
in the platform.
1.9 Danger of Operating the
Machine on Slopes
Do not drive the machine on slopes exceeding
the machine's maximum uphill, downhill or side
slope ratings. The slope rating applies only to
machines that are in the retracted state.
The maximum slope rating for when the boom is
retracted is as follows
Item
Parameters
T65J-H/T72J-H/T85J-H/T92J-H
Platform in
downhill
direction
45%(24°)

LGMG North America Inc. Operation and Safety Manual
7

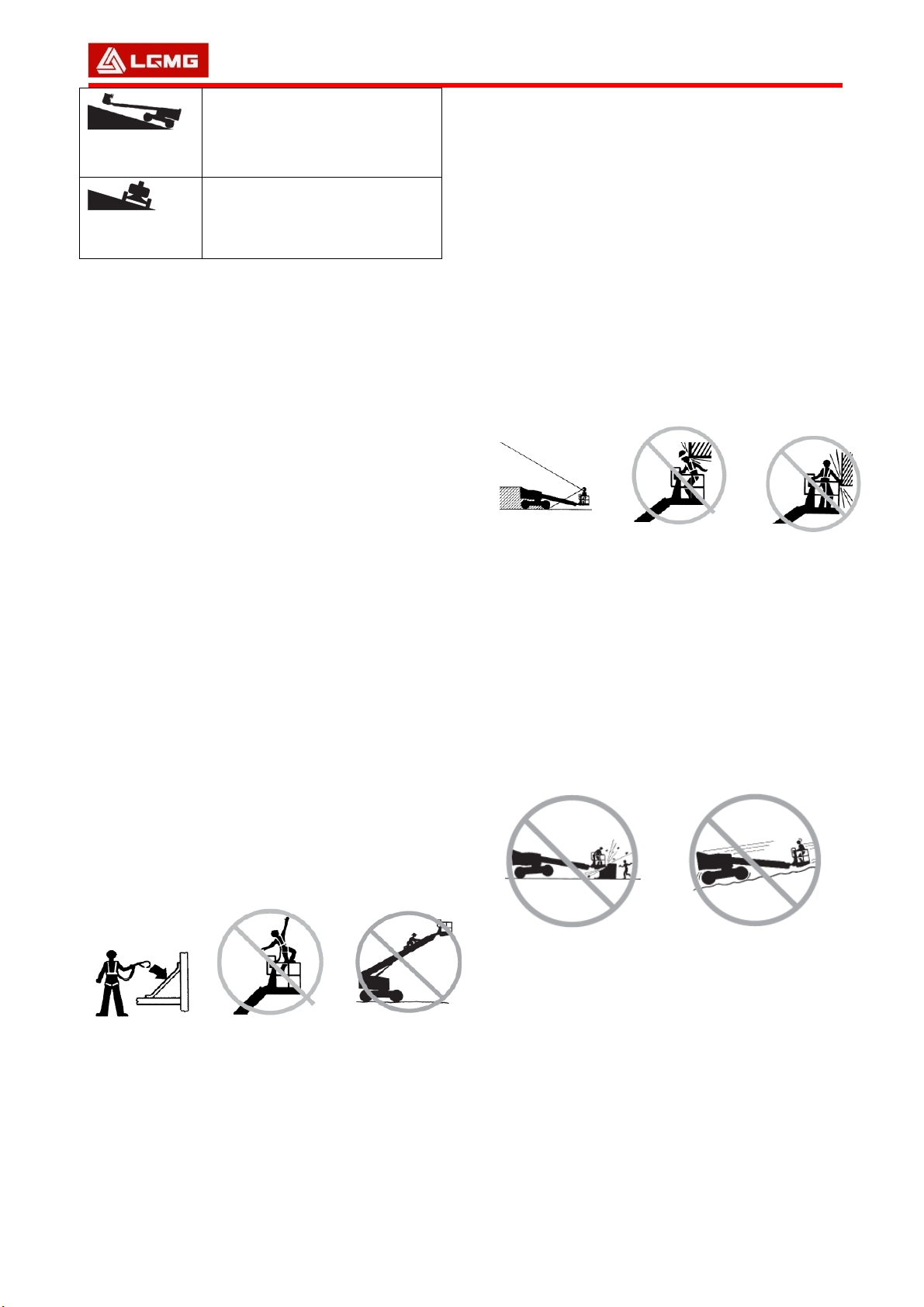

Platform in uphill
direction
30%(17°)
Platform side
slope
25%(14°)
Table 1-4 Maximum slope rating for when the
boom is retracted
△
! CAUTION: The slope rating is
limited by ground conditions and
traction. Please refer to driving on a
slope in the "Operation Instructions"
section of this manual.
1.10 Danger of Falling
1) In the process of operation, the staff on the
platform must wear safety protection
equipment such as helmets, safety belts
and safety shoes according to the
requirements on site, and use, inspect and
periodically replace the safety equipment
according to the manufacturer's
instructions.
△
! WARNING: The seat belt hooks
must be secured to the approved rope
attachment points, and only one hook
can be tied to each rope attachment
point.
2) Do not sit, stand or climb on the guardrail of
the platform. Stand steadily on the platform
floor at all times.
3) When the platform is lifted, do not climb
down from the boom.
4) Keep the platform floor free of debris and
sundries.
5) Please close the entrance door before
operation.
6) Do not enter or exit the platform unless the
machine is in a retracted state.
1.11 Danger of Collision
1) When operating the machine on the ground,
please maintain normal judgment and
planning. Maintain a safe distance among
the operator, the machine and objects.
2) When starting or operating the machine,
please pay attention to the range of visibility
and blind spots.
3) When rotating the turntable, please pay
attention to the position of the boom and
the tail of the turntable.
4) Check the work area to avoid overhead
obstacles or other possible hazards.
5) When holding onto the platform guardrail,
beware of the danger of squeezing.
6) Lower the boom only when there are no
people or obstacles in the lower area.
7) Limit the machine speed according to
ground conditions, congestion levels, slope,
personnel location and any other factors
that may cause a collision.
8) Do not operate the machine in the path of
any cranes or moving elevated machines
unless the crane controller is locked or
precautions have been taken to prevent
any potential collisions.
9) Do not drive dangerously or play while
operating the machine.

LGMG North America Inc. Operation and Safety Manual
8
10) Users must follow user rules, workplace
rules and government rules for personal
protective equipment.
11) Please observe the direction of the driving
and steering functions.
1.12 Dangers of Explosion
and Fire
1) Do not start the engine if you smell or
notice a leak of liquefied petroleum gas,
gasoline, diesel or other explosive
materials.
2) Do not refuel the machine when the engine
is running.
3) Refuel the machine and charge the battery
only in open and well-ventilated places that
are away from sparks, burning cigarettes
and other sources of fire.
4) Do not use the machine or charge the
battery in places that are dangerous or
where flammable or explosive gases or
dust may exist.
5) Do not spray ether into an engine equipped
with a glow plug.
1.13 Danger of Damage to the
Machine
1) Do not use a damaged or faulty machine.
2) Do not use the machine as a ground wire
during welding, and the battery anode and
cathode must be disconnected during
welding.
3) Do not use the machine in places where
strong magnetic fields, strong ionization
and radioactive radiation may exist.
4) Do not use any battery or charger larger
than 12V to start the engine.
5) Prior to each shift, please strictly perform
pre-operational check and test all functions.
A damaged or faulty machine should be
marked immediately and stop operation.
6) Ensure that all inspections and
maintenance have been carried out in
accordance with the instructions in this
manual.
7) Ensure that all labels are properly
positioned and easily identifiable.
8) When cleaning the vehicle, it is forbidden to
wash the electrical components directly
with water.
1.14 Danger of Body Injury
1) Please always operate the machine in a
well-ventilated area to avoid exhaust
poisoning.
2) Do not operate the machine when there is
hydraulic oil leakage which may penetrate
or burn the skin, and always wear safety
goggles and protective gloves when
checking for hydraulic oil leakage.
3) Incorrect contact with any components
under the hood can result in serious injuries
and only trained maintenance personnel
can open the hood for maintenance. The
operator may open the hood for inspection
only during pre-operational checks. All
hoods must remain closed during
operation.

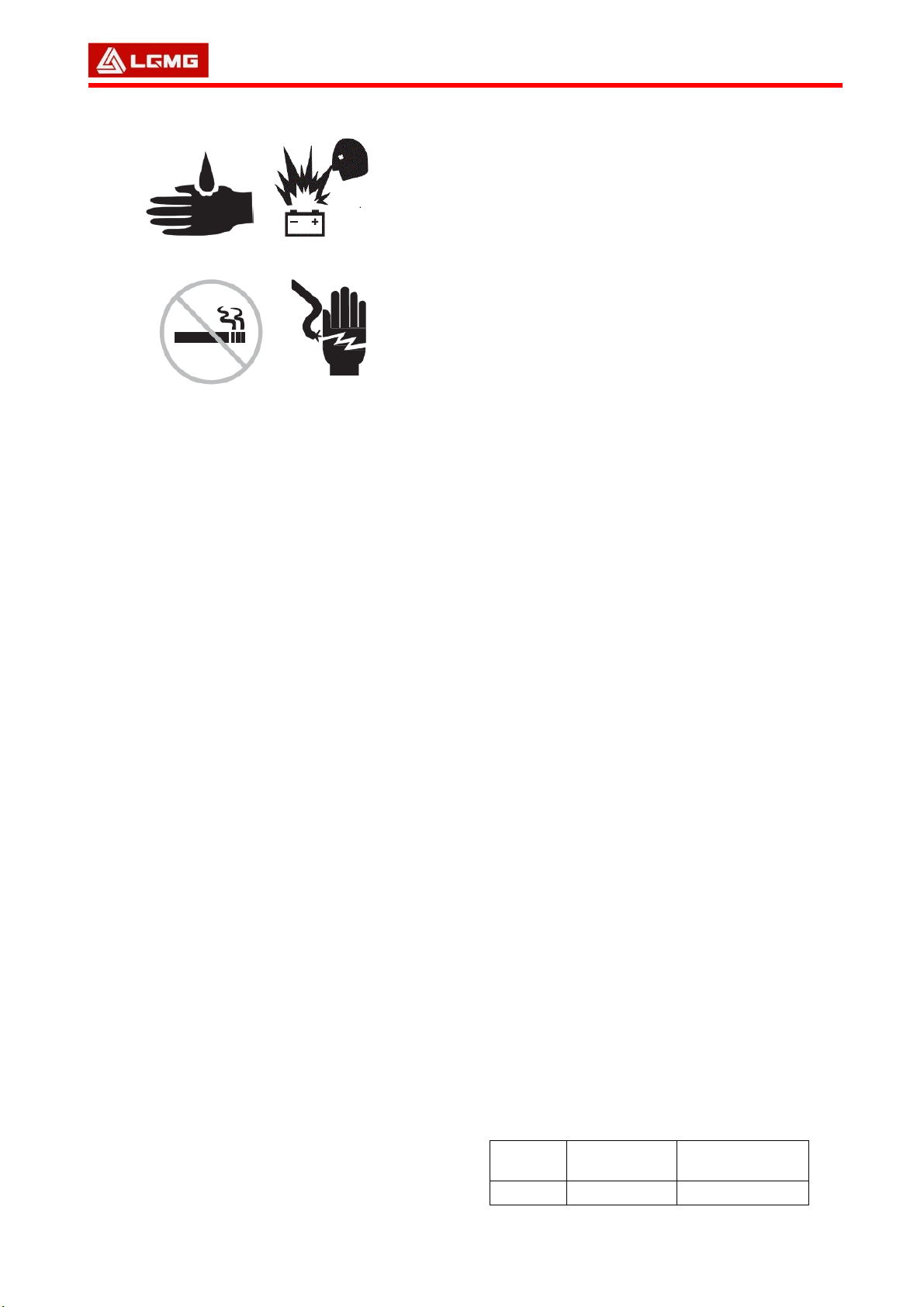

1.15 Battery Safety
1) Danger of burns
The battery is a maintenance-free lead
storage battery containing acidic
substances. It is forbidden to
disassemble the battery case.
If the acid in the battery overflows, use
soda water to neutralize.
The battery pack must be placed
vertically.
Do not expose batteries or chargers to
water or rain.
Disconnect the main power switch
when transporting, repairing or parking
the vehicle for a long time.

LGMG North America Inc. Operation and Safety Manual
9
2) Danger of explosion
Sparks, flames or ignited cigarettes are
prohibited from approaching the
battery. The battery may release
explosive gases.
Do not touch the battery terminals or
cable clamps with tools that may cause
sparks.
3) Danger of electric shock
The battery charger can be connected
to the groundedAC three-wire power
socket.
Check the cable and wiring for damage
daily and replace the damaged items
before operation.
Avoid electric shock caused due to
contact with battery terminals.
Remove all rings, watches and other
accessories when checking.
1.16 Personal Fall Protection
Personal falling protection equipment
(PFPE) is required during machine
operation.
Occupants must wear a safety belt or
harness in accordance with
governmental regulations.Attach the
lanyard to the anchor provided in the
platform.
Operators must comply with employer,
job site and governmental rules
regarding the use of personal
protective equipment.
All PFPE must comply with
corresponding government regulations
and must be subject to check and use
in accordance with the manufacturer's
instructions.
1.17 Ground Information
△
! WARNING: Rollover and personal
injury will be caused under severe
working conditions and complex and
unsafe ground conditions, and stable
ground conditions and good working
conditions can ensure the normal
operation of the machine; therefore
before operation, verify that the
ground in the working area is safe and
strong enough to support the machine.
△
! DANGER: Rollover and personal
injury may occur under the following
conditions:
On steep slopes or in caves;
When there are protrusions,
obstacles or debris on the ground;
On the inclined surface;
On the unstable or smooth surface;
Near the mining area where the soil
foundation is soft soil;
On saturated soil or frozen soil;
On suspended floor;
On kerbs and road edges;
On surface support that is not
strong enough to withstand the full
load of the machine;
Under other possible unsafe
situations.
The ground load bearing information of
the machine is shown in the table below:
Model
Tire contact
pressure (kPa)
Occupied floor
pressure (Kpa)
T65J-H
670/97.2
13.6/1.97

LGMG North America Inc. Operation and Safety Manual
10
T72J-H
652/94.6
13.9/2.02
T85J-H
898/130.2
18.5/2.68
T92J-H
902/130.8
18.9/2.74
Table 1-5 Ground load bearing information
△
! CAUTION: The ground load
bearing information given herein is for
reference only, and does not consider
the optional devices of the machine.
Before using the machine, always
verify that the ground of the working
area is safe and strong enough to
support the machine.
Tire specification:
Model
Drive wheel
load-6km/h（kg）
Maximum static
load（kg）
T65J-H
5300/11684
6800/14991
T72J-H
5300/11684
6800/14991
T85J-H
8000/17637
9000/19842
T92J-H
8000/17637
9000/19842
Table 1-6 Tire specification

LGMG North America Inc. Operation and Safety Manual
11
Chapter 2 Legend

LGMG North America Inc. Operation and Safety Manual
12

LGMG North America Inc. Operation and Safety Manual
13
Figure 2-1 Legend of the complete machine
1 Counterweight
2 Steering Wheel
3 Non-steering wheel
4 Jib
5 File box
6 Platform
7 Lifting rod
8 Lanyard fixed point
9 Upper control box
10 Boom
11 Lower control box

LGMG North America Inc. Operation and Safety Manual
14
