LGMG T65J Use and care manual

LGMG North America Inc.
Operation and Safety Manual
T65J/T85J
Mobile Elevating Work Platform
ANSI
！
WARNING
Before operation and maintenance, the
drivers and service personnel shall
always read and thoroughly understand
all information in this manual. Failure to
do so may result in, fatal accidents or
personal injury.
This manual must be kept with this
machine at all times.

This page left blank intentionally

LGMG North America Inc. Operation and Safety Manual
I
Contents
Contents.......................................................................................................I
Chapter 1 Safety.........................................................................................1
1.1 Danger.............................................................................................. 3
1.2 Before operating the machine, please ensure that:........................... 3
1.3 Classification of dangers................................................................... 3
1.4 Purpose............................................................................................ 3
1.5 Maintenance of safety signs ............................................................. 4
1.6 Danger of electric shock ................................................................... 4
1.7 Danger of tilting ................................................................................ 4
1.8 General safety.................................................................................. 6
1.9 Danger of operating the machine on slopes...................................... 6
1.10 Danger of falling.............................................................................. 6
1.11 Danger of collision .......................................................................... 7
1.12 Dangers of explosion and fire ......................................................... 7
1.13 Danger of damage to the machine.................................................. 8
1.14 Danger of body injury...................................................................... 8
1.15 Battery safety.................................................................................. 8
Chapter 2 Legend .......................................................................................9
Chapter 3 Labels.......................................................................................13
Chapter 4 Machine Specifications.............................................................21
Chapter 5 Control Box...............................................................................31
5.1 Lower control box ........................................................................... 33
5.2 Upper control box ........................................................................... 36
Chapter 6 Pre-operational Check..............................................................39

LGMG North America Inc. Operation and Safety Manual
II
6.1 Before operating the machine, please ensure that:......................... 41
6.2 Basic principles............................................................................... 41
6.3 Pre-operational check..................................................................... 41
Chapter 7 Workplace Inspection ...............................................................43
7.1 Basic principles............................................................................... 45
7.2 Workplace inspection...................................................................... 45
Chapter 8 Functional Test .........................................................................47
8.1 Basic principles............................................................................... 49
8.2 At the ground controller................................................................... 49
8.3 On the platform............................................................................... 49
Chapter 9 Operation Instructions...............................................................53
9.1 Basic principles............................................................................... 55
9.2 Starting up the engine..................................................................... 55
9.3 Emergency shutdown ..................................................................... 55
9.4 Auxiliary power ............................................................................... 55
9.5 Operating the machine on ground................................................... 56
9.6 Operating the machine on the platform........................................... 56
9.7 Platform overload............................................................................ 58
9.8 Non-level state of the machine........................................................ 58
9.9 System fault.................................................................................... 58
9.10 Upon every use............................................................................. 60
Chapter 10 Transport Description..............................................................61
10.1 Compliance and obedience .......................................................... 63
10.2 Brake release when using the capstan ......................................... 63
10.3 Ensuring transport safety.............................................................. 63

LGMG North America Inc. Operation and Safety Manual
III
10.4 Guidance on lifting the machine.................................................... 64

LGMG North America Inc. Operation and Safety Manual
IV
Foreword
Thank you for choosing to use this Mobile Elevating Work Platform from LGMG North America. This
machine is designed according to A92.20-2018.The information specified in this manual is intended for
the safe and proper operation of this machine for its’ intended purpose.
For maximum performance and utilization of this machine, thoroughly read and understand all the
information in this manual before starting, operating, or performing maintenance on this machine.
Due to continuous product improvements, LGMG NorthAmerica reserves the right to make specification
changes without any prior notifications. For any updated information, contact LGMG NorthAmerica.
Ensure all preventive maintenance to the machine is performed according to the interval specified in the
maintenance schedule.
Keep this manual with this machine for reference at all times. When the ownership of this machine is
transferred, this manual shall be transferred with this machine. This manual must be replaced
immediately if it is lost, damaged, or becomes illegible.
This manual is copyrighted material. The reproduction or copy of this manual is not allowed without the
written approval of LGMG NorthAmerica.
The information, technical specifications and drawings in this manual are the latest available when this
manual is issued. Due to continuous improvement, LGMG North America reserves the right to change
the technical specifications and machine design without notice. If any specifications and information in
the manual are not consistent with your machine, please contact the service department of LGMG North
America.
△
!WARNING
Only personnel who have been properly trained and qualified to operate or
maintain this machine can operate, repair and maintain this machine.
Improper operation, maintenance, and repair are dangerous and can cause
personal injury and death.
Before any operation or maintenance, the operator shall thoroughly read this
manual. Do not operate, perform any maintenance or make any repairs on this
machine before reading and understanding this manual.
The user shall load the platform strictly according to the load rating of the
platform. Do not overload the platform or make any modifications to the platform
without permission from LGMG North America.
The operation regulations and preventions in this manual are only applicable for
the specified use of this machine.

LGMG North America Inc. Operation and Safety Manual
V
Safety Precautions
The operator of this machine shall understand and follow the existing safety regulations of state and
local governments. If these are unavailable, the safety instructions in this manual shall be followed.
To help prevent accidents, read and understand all warnings and precautions in this manual before
operation or performing maintenance.
The safety measures are specified in Chapter 1 Safety.
It is impossible to foresee every possible hazard and the safety instructions in this manual may not cover
all safety prevention measures. Always ensure the safety of all personnel and protect the machine
against any damage. If unable to confirm the safety of some operations, contact LGMG North America.
The operation & maintenance prevention measures listed in this manual are only applicable to the
specified uses of this machine. LGMG North America assumes no responsibility if this machine is used
beyond the range of this manual. The user and the operator shall be responsible for the safety of such
operations.
Do not perform any operation forbidden in this manual in any situation.
The following signal words are applicable for identifying the level of safety information in this manual.
△
! Danger:
An imminent situation, that if not avoided, will result in severe injuries or death. This
is also applicable to situations that will cause serious machine damage, if not
avoided.
△
! Warning:
A potentially dangerous situation, that if not avoided, may result in severe injuries or
death. This is also applicable to situations that may cause serious machine damage,
if not avoided.
△
! Notice:
A situation, that if not avoided, may result in minor or intermediate injury. This is also
applicable to situations that may cause machine damage or shorten machine service
life.

LGMG North America Inc. Operation and Safety Manual
VI
This page left blank intentionally

LGMG North America Inc. Operation and Safety Manual
1
Chapter 1 Safety

LGMG North America Inc. Operation and Safety Manual
2

LGMG North America Inc. Operation and Safety Manual
3
1.1 Danger
△
! Warning: Failure to follow the
instructions and safety rules in this
manual may result in serious injury or
death. Alcoholics, drug users, and
those who take anti-reactive drugs are
strictly prohibited from approaching
and operating the machine.
1.2 Before operating the
machine, please ensure that:
1) You are equipped with full-body protective
equipment such as helmets, safety belts,
safety shoes, goggles and protective
gloves, and are in good physical condition.
2) You have understood and practiced the
safety rules for machine operation in this
operation manual.
3) You know and understand the rules for safe
operation of the machine before proceeding
to the next step.
4) You always perform pre-operational
checks.
5) You always perform pre-use functional
tests.
6) You check the workplace.
7) You use the machine for the specified
purpose only.
8) You read, understand and abide by all
applicable laws and regulations.
9) You have been trained to operate the
machine safely.
1.3 Classification of Hazards
△
!Notice
Classification of hazards
The meanings of symbols, color codes
and characters of LGMG North
America’s products are as follows:
Security warning symbol: are used for
warning of potential personal injuries.
Observe all safety instructions below
these signs, to avoid situations
causing potential personal injury and
death.
Red: Signifies dangerous situations. If
not avoided, will result in personal
death or severe injury.
Orange: Signifies dangerous
situations. If not avoided, may
result in personal death or severe
injury.
Yellow: Signifies dangerous situations.
If not avoided, may result in minor
or intermediate personal injury.
Blue: Signifies dangerous situations. If
not avoided, property loss or damage
can occur.
1.4 Intended Purpose
The purpose of this machine is limited to lifting
personnel and their tools and materials to
high-altitude workplaces, and it can be used
indoors and outdoors.

LGMG North America Inc. Operation and Safety Manual
4
△
! Caution: It is strictly forbidden to
use the machine to carry loads.
1.5 Safety Sign Maintenance
1) The operators should always keep in mind
their safety when replacing any missing or
damaged safety signs.
2) The safety decal should be cleaned with
mild soap and water.
3) Do not use solvent-based cleaners as they
may damage the material of the safety
label.
1.6 Risk of Electric Shock
△
! Warning: This machine is not
insulated and is not provided with
electrical shock protection when it
comes into contact with or near
electrical wire.
This machine should be kept an adequate
safety distance from power line and electrical
equipment according to applicable government
laws and regulations and the following table.
Voltage
Required safety
distance
0V-50 KV
3.05m/10ft
50 KV-200 KV
4.60m/15ft
200 KV-350 KV
6.10m/20ft
350 KV-500 KV
7.62m/25ft
500 KV-750 KV
10.67m/35ft
750 KV-1,000 KV
13.72m/45ft
Table 1-1 Safe distance between the equipment
and power line
△
! Caution: The effects of strong
winds or gusts on the movement of the
platform, the swinging and slackening
of the wires should be considered.
1) If the machine comes into contact with live
wires, keep away from the vehicle. No one
is allowed to touch or operate the vehicle
on the ground or platform before cutting off
the power supply.
2) Do not operate the machine when there is
lightning or storms.
3) 6) Do not use the machine as a ground
wire when welding.
1.7 Risk of Tipping
1) The personnel, equipment and materials on
the platform may not exceed the maximum
load capacity of the platform..
Rated Load
Capacity of the
Platform
250Kg/551lbs
Maximum Number
of People
2 people
Maximum
Allowable Wind
Speed
12.5m/s/28mph
Table 1-2 Maximum Load Capacity of the
Platform
2) If the platform is overloaded, the alarm will
sound and the engine will shut down.
Please reduce the platform load before

LGMG North America Inc. Operation and Safety Manual
5
continuing.
3) When the platform is lifted, drive speed
may not exceed 1.1km/h (0.68mph).
4) The tilt sensor may not be used as a level
indicator. The alarm on the turntable will
sound only when the vehicle is heavily
tilted.
5) Be very careful if the alarm sounds when
the platform is lifted. The machine's
non-level indicator will light up and the drive
function will not work in either direction.
First determine the status of the upper
boom on the slope, as shown below. Then
follow the steps below to lower the boom
before moving the machine to solid and
level ground. Do not rotate the boom when
lowering.
6) If the alarm sounds when the platform goes
up the slope
①Lower the boom
②Retract the boom
7) If the alarm sounds when the platform goes
down the slope
①Retract the boom
②Lower the boom
8) Do not lift the boom when the wind speed
may exceed 12.5 m/s/28mph. If the wind
speed exceeds 12.5 m/s/28mph after the
boom is lifted, lower the boom and do not
continue to operate the machine.
9) Do not operate the machine in strong winds
or gusts. Do not increase the surface area
of the platform or load. Increasing the area
exposed to the wind will reduce the stability
of the machine.
10) Do not use the upper control box to operate
the machine when the platform is trapped,
jammed, or other objects nearby are
blocking its normal movement. If you plan
to operate the machine with the lower
control box, all personnel must leave the
platform before you do so.
11) In the retracted state, please be very
careful and reduce the speed when the
machine is running on gravels, unstable or
smooth surfaces and near the entrance of
holes or steep slopes.
12) When the boom is lifted, the machine
cannot run on uneven terrain, unstable
surfaces, or other dangerous conditions, or
run near these areas.
13) Do not use the platform to push or pull

LGMG North America Inc. Operation and Safety Manual
6
anything outside the platform.
14) Do not use the machine as a crane.
15) Do not place, tie or hang loads on any part
of the machine.
16) Do not use the boom to push a machine or
other objects.
1.8 General safety
1) Do not operate the machine with the hood
open.
2) Do not allow the boom to approach or touch
anything.
3) Do not change or modify all sensors such
as length transducer, tilt angle sensor, the
weighing sensor and rope-breaking
detection devices.
4) Do not tie the boom or platform to adjacent
objects.
5) This machine shall not be modified without
the prior written permission of the
manufacturer. Additional devices installed
on platforms, pedals or guardrails for
placing tools or materials will increase the
weight and surface area of the platform.
6) Do not place ladders or scaffolds in the
platform or against any part of the machine.
7) Only tools and materials that are evenly
distributed and can be safely moved by
people on the platform can be transported.
8) Do not use the machine on moving surfaces
or vehicles.
9) Do not place your hands and arms near the
area where there is a risk of cutting or
crushing.
10) Do not alter or damage any parts that may
affect the safety and stability of the
machine.
11) Do not replace parts that affect machine
stability with parts of different specifications.
12) Ensure that all tires are in good condition
and the nuts are properly tightened, and do
not replace the original tires with tires of
different specifications.
13) The ambient temperature of the machine is
-20 °C ~ 40 °C.
14) Ensure this manual is kept in the manual
box in the platform.
1.9 Risk of Operating on
Slopes
Do not drive the machine on slopes exceeding
the machine's maximum uphill, downhill or side
slope ratings. The slope rating applies only to
machines that are in the retracted state.
The maximum slope rating for when the boom is
retracted is as follows
Downhill
45%（24°）
Uphill
30%（17°）
Side Slope
25%（14°）
Table 1-3 Maximum slope rating for when the
boom is retracted
△
! Caution: The slope rating is
limited by ground conditions and
traction. Please refer to driving on a
slope in the "Operation Instructions"
section of this manual.

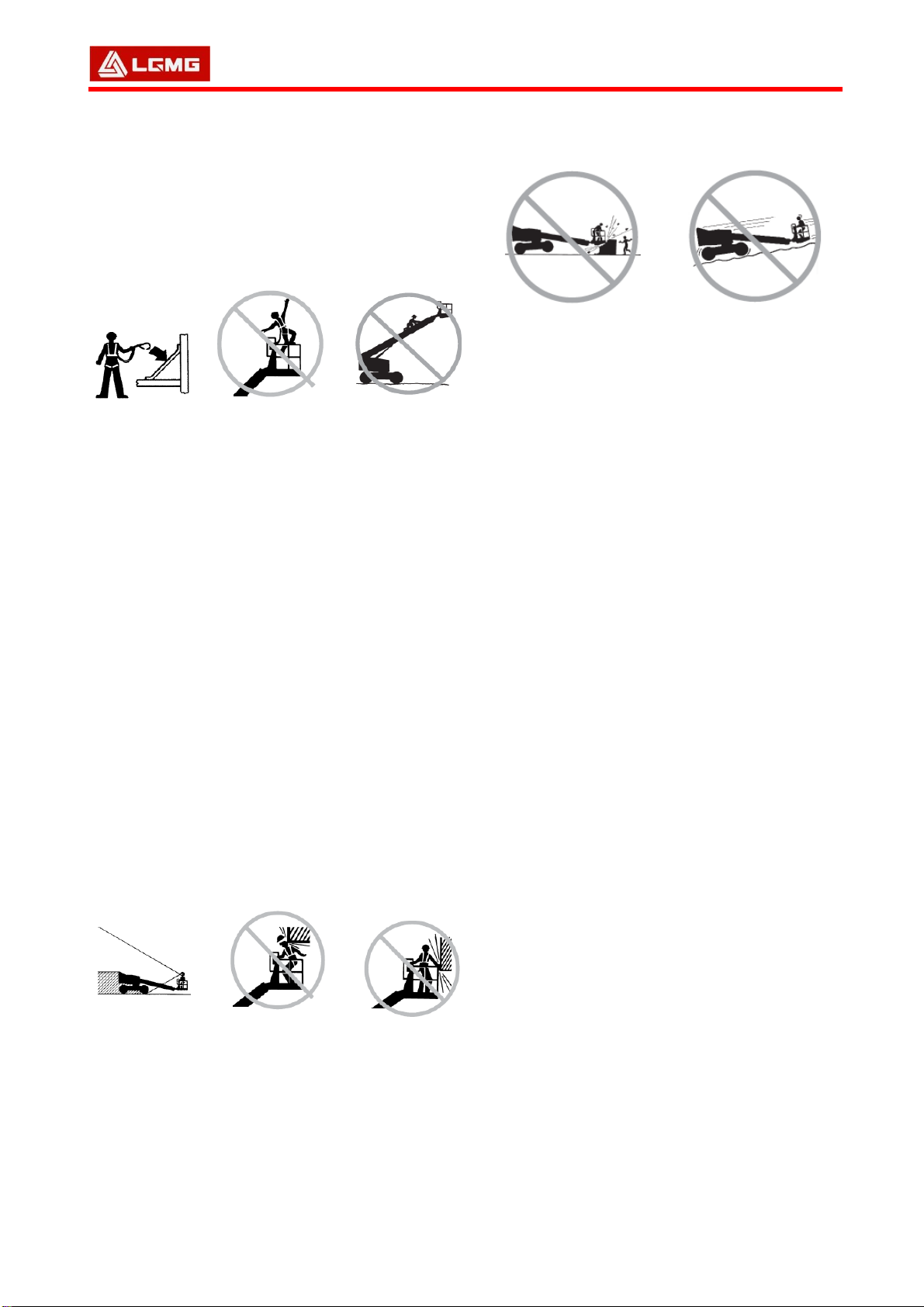

1.10 Risk of Falling
1) In the process of operation, the staff on the
platform must wear safety protection
equipment such as helmets, safety belts
and safety shoes according to the
requirements on site, and use, inspect and
periodically replace the safety equipment
according to the manufacturer's
instructions.

LGMG North America Inc. Operation and Safety Manual
7
△
! Warning: The safety harness
lanyards must be secured to the
approved attachment points, and only
one lanyard can be secured to each
attachment point.
2) Do not sit, stand or climb on the guardrail of
the platform. Stand steadily on the platform
floor at all times.
3) When the platform is lifted, do not climb
down from the boom.
4) Keep the platform floor free of debris and
trash.
5) Close the entrance door before operation.
6) Do not enter or exit the platform unless the
machine is in a retracted state.
1.11 Risk of Collision
1) When operating the machine on the ground,
please maintain normal judgment and
planning. Maintain a safe distance among
the operator, the machine and objects.
2) When starting or operating the machine,
please pay attention to the range of visibility
and blind spots.
3) When rotating the turntable, pay attention
to the position of the boom and the tail of
the turntable.
4) Check the work area to avoid overhead
obstacles or other possible hazards.
5) When holding onto the platform guardrail,
beware of the risk of crushing.
6) Lower the boom only when there are no
people or obstacles in the area underneath.
7) Limit the drive speed according to the
ground conditions, congestion levels, slope,
personnel location and any other factors
that may cause a collision.
8) It is not allowed to operate the vehicle on
any crane or moving overhead vehicle
route unless the crane control unit has
been locked and/or precautions have been
taken to prevent any potential collision.
9) Do not drive dangerously or play while
operating the machine.
10) Users must follow user rules, workplace
rules and government rules for personal
protective equipment.
11) Please observe the direction of the driving
and steering functions.
1.12 Risk of Explosion and
Fire
1) Do not operate the vehicle where it is
dangerous or where flammable or
explosive gases or particles may be
present.
2) Do not refuel the machine when the engine
is running.
3) Only refuel the machine in open and
well-ventilated places far away from sparks,
open flames, burning cigarettes, etc.
4) Do not use the machine or charge the
battery in places that are dangerous or
where flammable or explosive gases or
dust may exist.
5) Do not spray ether into an engine equipped
with a glow plug.

LGMG North America Inc. Operation and Safety Manual
8
1.13 Risk of Machine Damage
1) Do not operate a machine that is damaged
or faulty.
2) Do not use the machine as a ground wire
during welding, and the battery anode and
cathode must be disconnected during
welding.
3) Do not use the machine in places where
strong magnetic fields, strong ionization
and radioactive radiation may exist.
4) Do not use any battery or charger larger
than 12V to start the engine.
5) Before each work shift, thoroughly perform
the pre-operation inspection against the
vehicle and test all functions.A damaged or
faulty vehicle should be immediately tagged
out and stopped.
6) Make sure all maintenance operations have
been performed as specified in this manual.
7) Ensure that all decals are properly
positioned and easily identifiable.
1.14 Risk of Bodily Injury
1) Always operate the machine in a
well-ventilated area to avoid of carbon
monoxide poisoning.
2) Do not operate the vehicle with hydraulic oil
leaks, which may penetrate when under
pressure or burn your skin.
3) Incorrect contact with any component
under the cover may cause serious injury.
Only qualified authorized service personnel
can access the compartment. It is
recommended that the operator perform
the inspection only during the pre-operation
inspection. All compartments must be
closed and locked during operation.
1.15 Battery safety
1) Danger of burns
The battery is a maintenance-free lead
storage battery containing acidic
substances. It is forbidden to
disassemble the battery case.
If the acid in the battery overflows, use
soda water to neutralize.
The battery pack must be placed
vertically.
Do not expose batteries or chargers to
water or rain.
2) Danger of explosion
Sparks, flames or lit cigarettes are
prohibited from getting close to the
battery. The battery may release
explosive gases.
Do not touch the battery terminals or
cable clamps with tools that may cause
sparks.
3) Danger of electric shock
The battery charger can only be
connected to a 12V battery charger.
Check the cable and wiring for damage
daily and replace the damaged items
before operation.
Avoid electric shock caused due to
contact with battery terminals.
Remove all rings, watches and other
jewelry when checking.

LGMG North America Inc. Operation and Safety Manual
9
Chapter 2 Legend

LGMG North America Inc. Operation and Safety Manual
10

LGMG North America Inc. Operation and Safety Manual
11
Figure 2-1 Legend of the complete machine
1 Non-Steering Wheel
2 Steering Wheel
3 Ground Control Station
4 Boom
5 Platform
6 Jib
7 Lifting Rod
8 Manual Box
9 Lanyard Attach Point
10 Platform Control Station

LGMG North America Inc. Operation and Safety Manual
12
