LI-COR LI-6400 Quick start guide

6400-18
LI-6400/6400XT Portable
Photosynthesis System
LI-6400/6400XT Portable
Photosynthesis System
RGB Light Source
Installation and Operational Instructions
1. Install the 6400-17 WPA Chamber as per the instructions included with the 6400-17.
2. Remove the 4 Phillips head screws on the bottom of the RGB Light Source. Make sure
that there is a Propafilm covering over the aperture on top of the WPA top plate. With
the Propafilm facing the bottom of the RGB Light Source, attach the WPA top plate to
the bottom of the light source using the 4 Phillips head screws (Figure 1).
3. Connect one end of the gray control cable to the Control connector on the side of the
light source, and the other end to the 37-pin Auxiliary connector on the LI-6400/LI-
6400XT console (Figure 2).
The 6400-18 RGB Light Source is designed to be used with the 6400-17 Whole Plant
Arabidopsis (WPA) Chamber, or with the LI-6400XT and any clear-topped chamber. The
LED calibration is retained in the light source, making it possible to switch from instrument
to instrument without the need to enter calibration constants. The red, green and blue
LEDs can be independently adjusted to allow users to select any desired color combina-
tion. Photosynthetic response differs with illumination wavelength, and is explained in
more detail in Application Note 5.
The assembly requires a Phillips head screwdriver, and takes about 15 minutes to com-
plete.
■Follow these steps to install the 6400-18:
Figure 1. Attach the WPA Chamber top plate to the
bottom of the RGB Light Source using 4 Phillips
head screws.

4647 Superior Street • P.O. Box 4425 • Lincoln, Nebraska 68504 USA
North America: 800-447-3576 • International: 402-467-3576 • FAX: [phone] • [e-mail] • [e-mail] • www.licor.com
In Germany and Norway – LI-COR Biosciences GmbH: [phone] • [e-mail] • [e-mail]
In UK and Ireland – LI-COR Biosciences UK Ltd.: [phone] • [e-mail] • [e-mail]
®
PPS258
C o n f i g M e n u
N e w . . .
O p e n . . .
S a v e a s . . .
V i e w / e d i t . . .
/ E X I T S E L E C T
M a k e a N E W C o n f i g f o r . . .
L i g h t S o u r c e s
6 4 0 0 - 0 2 B L E D S o u r c e . . .
6 4 0 0 - 1 8 R G B S o u r c e . . .
6 4 0 0 - 4 0 F l u o r o m e t e r . . .
C l e a r 2 x 3 T o p s
L a r g e r C h a m b e r s
/ E X I T S E L E C T
C o n f i g M o d i f i c a t i o n s R e a d y . P i c k o n e :
N ) i m p l e m e n t t h e m a s a N e w c o n f i g :
n a m e d ' W h o l e P l a n t C h a m b e r E B R G B '
C ) a p p l y t h e m t o t h e C u r r e n t c o n f i g
V ) V i e w t h e m o d i f i c a t i o n s
< e s c a p e > - d i s c a r d a n d q u i t

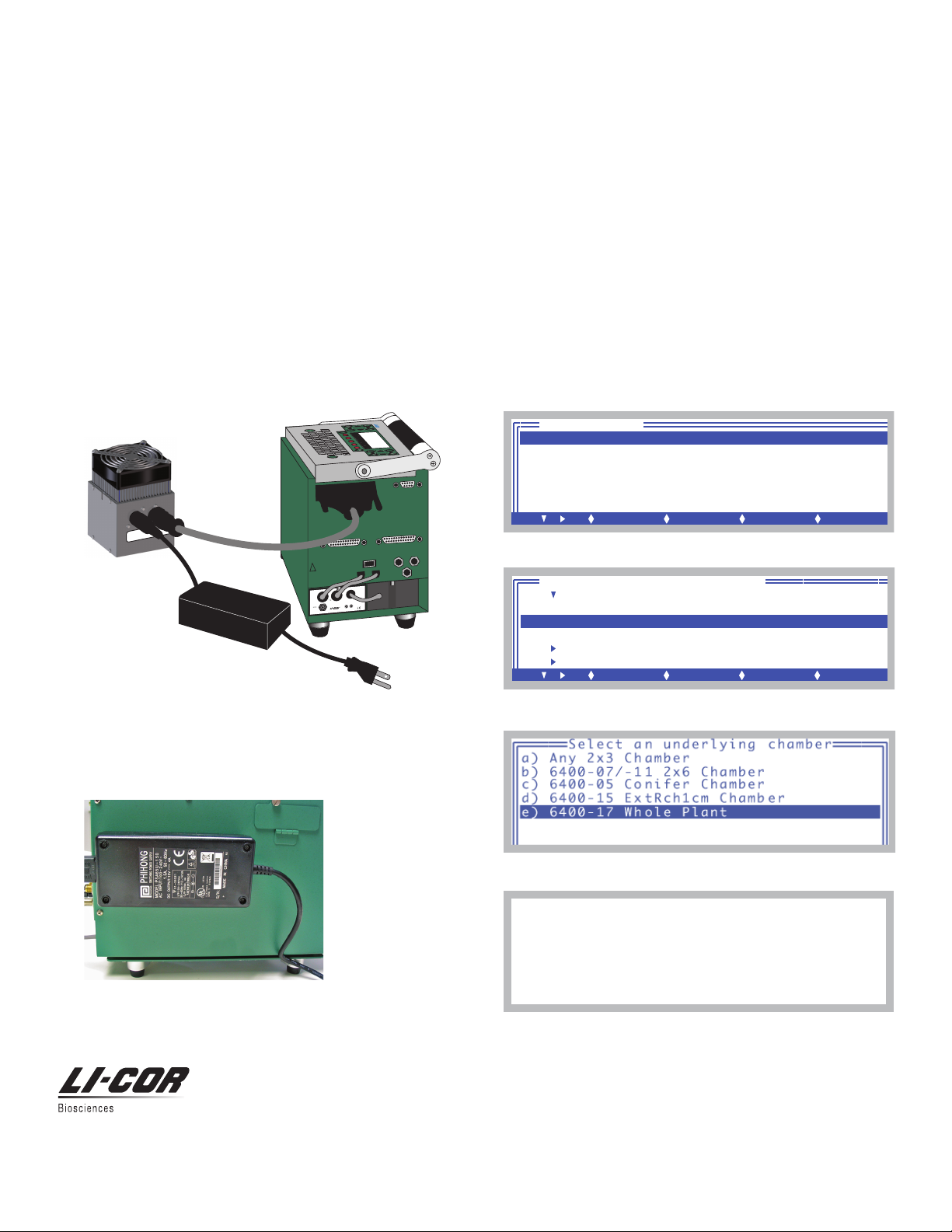

Figure 2. Connect the gray control cable to the
LI-6400/LI-6400XT console, and the power cable to
the AC power supply.
CHAMBER
SAMPLE
REF
INLET
IRGA
!
UNPLUG BATTERIES
BEFORE SERVICING.
RS-232
AUXILIARY
Ol
CHGPWR
BA
TTERY
INPUT-12VDC
CHARGE-14.8VDC0.65AMAX.
INPUT
17-24VDC
72W
OUTPUT
14.8VDC
4.0AMAX.
MODEL6400-70
escape
enter enter
Q
A
Z
1
!@
2
#
3
$
4
SDF
%
5
^
6
&
7
GHJK
*
8
(
9
)
0
_
-
+
=
L;
:"
'
\
space
ctrl
WERTYUIOP{
[
}
]
~
|
shift
XCVBNM,
<>
.
?
/
shift
LI-6400 Portable Photosynthesis System
f1f
2f3f
4f
5
labels
home
endpgdn
pguphome
endpgdn
pgup
WelcomeConfigCalib NewUtility
LI-6400PhotosynthesisSystem
/User10%full
12.00V
OPEN5.00
MenuMenu
TueJun25200213:31:56
MenuMsmntsMenu
labels
6400-18
AC Power Supply
To Mains Power
+15V4.8A
4. Connect one end of the power supply cable to the light source, and the other end to the AC power supply.
Connect the power supply to mains power (Figure 2). When first plugged in, the RGB light source cooling
fan may run momentarily; this is normal. The power supply will automatically adjust for varying voltage
inputs (100-240VAC, 1.4A max., 50-60 Hz). The power supply can be attached to the LI-6400/LI-6400XT
console using the supplied Velcro kit, if desired (Figure 3).
Configure the Software
5. The 6400-18 requires OPEN version 6.1 or above. OPEN 6.1 can be installed on 200 MHz (previous version
OPEN 5.x) or 400 MHz (previous version OPEN 6.x) digital boards. Older boards require a digital board
upgrade. Contact LI-COR for more details.
6. To complete the installation, choose the Config Menu (f2) from OPEN’s main screen. Highlight New and
press Enter. Scroll down and choose the 6400-18 RGB Source. Choose a chamber, and press N to save the
configuration under a new name. See the LI-6400/LI-6400XT Instruction Manual, Section 8, Light Sources and
Sensors, for more information.
Figure 3. Affix the power supply to the console, if
desired.
1. Choose New from the Config Menu...
2. Scroll down to 6400-18 RGB Source...
3. Choose 6400-17 Whole Plant...
4. and press Nto save as a new configuration.
