Liberty garden Navigator 714 User manual

Owner’s Manual

™

Model #714

IMPORTANT: READ THE OWNER’S MANUAL BEFORE ASSEMBLING

1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284

LIBERTY GARDEN PRODUCTS, INC.

VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM

OR CALL US TOLL FREE AT 1-866-820-5805, MONDAY - FRIDAY 9 A.M. - 5 P.M. EST

TOOLS REQUIRED:

PARTS LIST

HARDWARE INCLUDED

AA. Allen wrench (Supplied)

Adjustable

Wrench

Stud

Finder

Hammer

Drill

Electric

Drill

Phillips

screwdriver

or bit for an

electric drill

7/16 in. and

3/8 in. Socket

and Socket

wrench

BB. Allen Bolts (3)

A. Crank handle (1) B. Leader Hose (1) C. Base Shelf (1) D. Hose Reel (1) E. Basket (1)

F. Hose Coupling Adapter

DD. Allen Screws (5)

CC. Lock Nuts (3)

Note: Hardware not shown to actual size.

Estimated Assembly Time : 10 minutes (not including mounting the hose reel)

PRE-ASSEMBLY

IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED

FOR. IF ANY PART IS MISSING PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805

OR [email protected]. DO NOT CONTACT THE RETAILER.

YOU CAN ALSO VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM, FOR MORE

INSTRUCTIONS, PICTURES AND HELPFUL HINTS.

EE. Wood Screws (4)

FF. Concrete Screws (4)

GG. Washers (4)

TIP: Remember to use the correct size and quantity of hardware to properly support the

total weight of the unit. A standard 100' length of garden hose weighs approximately 15 lbs.

Filled with water, the additional weight can exceed 20 lbs. The mounting hardware must be

able to support the combined weight of the unit, garden hose, plus water.

The following hardware (not included)

is recommended for installation:

1. BRICK OR MASONRY ANCHOR SLEEVES

(4) 7 or 8 mm x 60 mm masonry wall anchors (5/16” x 2 1/2”)

(4) Anchor sleeves

(4) Washers

(4) Lock washers

(4) Nuts

The following included hardware is recommended for installation:

3. WOOD SCREWS

(4) 7 or 8 mm x 60 mm wood screws (5/16” x 2 1/2”)

(4) Washers

The following included hardware

is recommended for installation:

2. BRICK OR MASONRY SCREWS

(4) 7 or 8 mm x 60 mm masonry screws (5/16” x 2 1/2”)

(4) Washers

• Position and hold your hose reel against the brick/masonry wall

at a convenient height. Mark the position of each suspension

hole on the wall. Remove the hose reel.

• Insert the masonry wall anchors into the anchor sleeve. Next,

insert the anchor and sleeve into the drilled holes until the steel

sleeve is completely in the wall.

• Place the hose reel on the masonry wall anchors.

• Install a washer, lock washer, and nut over each

wall anchor and tighten securely.

• Using a stud finder, locate the wood studs on your wall.

• Position and hold your hose reel against the wood wall at a convenient height.

Mark the position of each suspension hole on the wall. Remove the hose reel.

•Align the hose reel suspension holes with the pilot holes.

•Attach the hose reel to the wall using the wood screws with washers and tighten securely.

To learn more, watch a video on our warranty and care section @ www.libertygardenproducts.com

NOTE: Drill hole diameters

may vary based on anchor

sleeve, concrete screw, and

wood screw manufacturer.

Check product recommendations

before drilling holes.

• Position and hold your hose reel against the brick/masonry

wall at a convenient height. Mark the position of each

suspension hole on the wall. Remove the hose reel.

•Align the hose reel suspension holes with the pilot holes.

•Attach the hose reel to the wall using the concrete screws

with washers and tighten securely.

• Using a hammer drill, drill holes 5/16” in diameter at the

marked positions on the wall.

• Using an electric drill, drill pilot holes 1/4” in diameter at the marked positions on the wall.

• Using a hammer drill, drill pilot holes 1/4” in diameter at the

marked positions on the wall.

INSTALLATION This hose reel must be mounted to a solid masonry wall or to wall studs

Mounting Hole

Size: 1/4”

Mounting Hole

Size: 1/4”

Mounting Hole

Size: 5/16”

ASSEMBLY

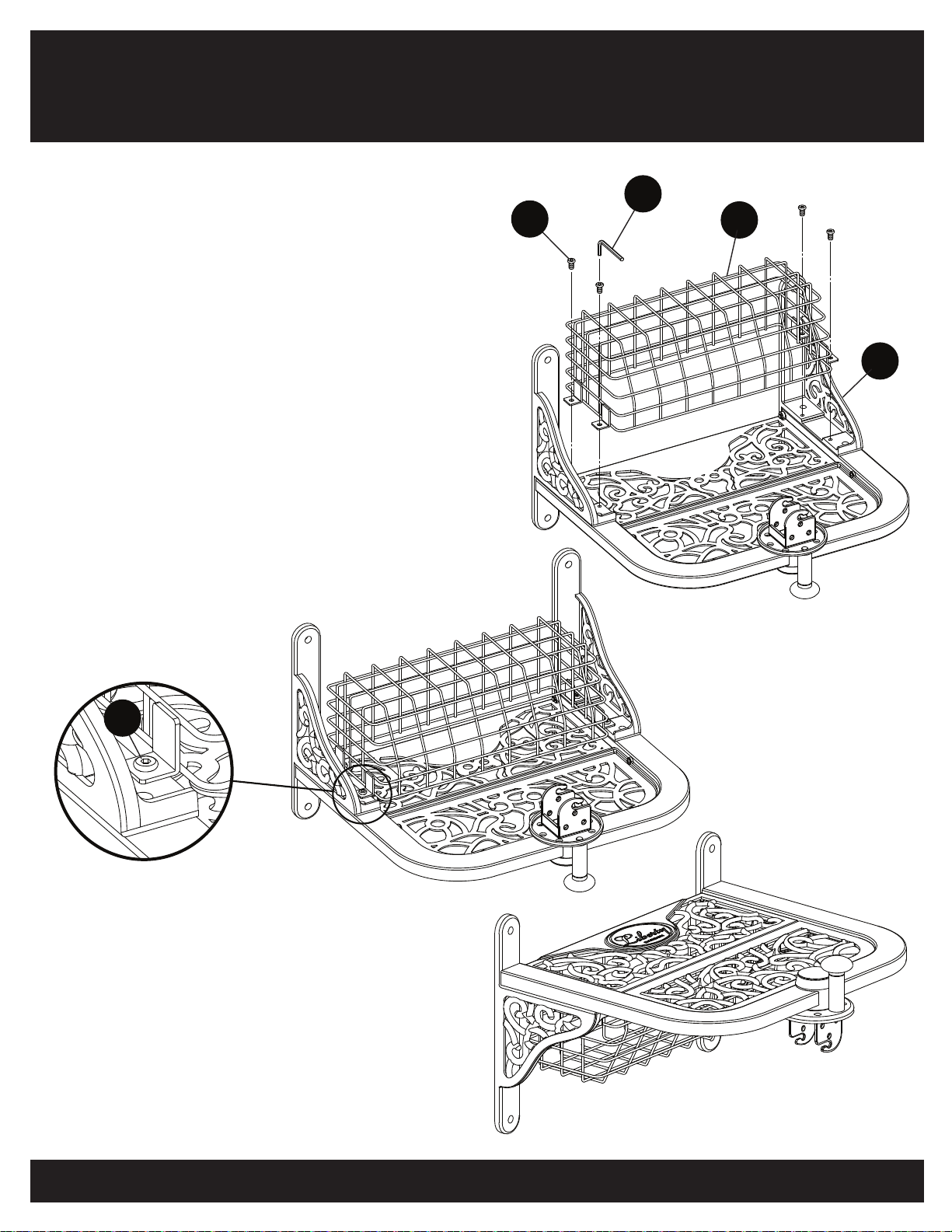

Insert four allen screws (DD) in basket

(E) and base shelf (C) as shown. Using

supplied allen wrench (AA), tighten the

allen screws.

Flip the base and basket assembly

over to ensure the basket is secure.

CAUTION: DO NOT OVER TIGHTEN

ALLEN SCREWS

FIGURE 1

FIGURE 3

FIGURE 2

Flip base shelf (C) over and align basket

(E) for assembly. DD

ASSEMBLY

Line up the holes in the hose reel (D) with

the base shelf (C) and insert long Allen

bolts (BB).

Tighten Allen bolts (BB) with the

supplied Allen wrench (AA). At the

same time using fingers, screw on

lock nuts (CC) to secure base

shelf (C) to hose reel (D).

Adjustable wrench (not included) may be

needed to hold and tighten lock nuts.

CAUTION: DO NOT OVER

TIGHTEN LOCK NUTS AND

ALLEN BOLTS.

FIGURE 4

FIGURE 6

FIGURE 5

BB CC

Attach the hose reel (D) to the base shelf

located at the front of the base.

ASSEMBLY

FIGURE 7

FIGURE 8 FIGURE 9

Align the holes in the crank handle (A) with

the crank handle shaft on the hose reel (D).

Insert the short Allen screw (DD) into the

crank handle and tighten with supplied Allen

wrench (AA).

Attach leader hose (B) to swivel connector on

the hose reel (D). Attach end of leader hose

to water source.

Attach your garden hose to the hose connector on the

hose reel (D). The hose is now ready to wind around the spool.

The model 714 holds up to 125 ft. of 5/8” standard garden hose.

Use optional hose coupling adapter (F) if an oversized garden hose fitting

is used. Connect extension (F) to the elbow connector on the hose reel.

Connect your hose to extension (F). Wind the hose around the reel.

FIGURE 10

Release the handle on the base shelf (C) and lock unit into

one of the desired positions. Your 714 rotating hose reel is

now ready for use.

Located at the bottom of the base spool (D) near the

crank handle is a pre-assembled Allen screw. Using

the supplied Allen wrench (AA) tighted or loosen

tension on the spool.

OPERATING INSTRUCTIONS

1FIGURE 1

FIGURE 2

FIGURE 3

FIGURE 4

Pull up on handle knob located on the base shelf (C)

then rotate hose reel (D) to one of the eight locking

positions.

2Pull up on the handle knob located on the base

shelf (C) and turn the locking pin to the up position.

The 714 rotating hose reel will now turn a

full 360 degrees.

TIP: Keep reel in the locked position when winding garden hose.

NOTE

It is recommended that the hose reel (D)

be taken off and stored indoors or sealed

in a plastic container for winter protection.

NOTE

Lubricate pull up pin seasonally with spray or lubricating oil.

OPERATING INSTRUCTIONS

FIGURE 5

Lift the hinged lid on the 714 cast aluminum hose reel

located on the base shelf. (C) Use the basket to store

garden tools and accessories.

Your hose reel is manufactured with the finest quality components available. All components are

manufactured to rigorous quality standards not common in other consumer grade hose reels

available today. When you install your hose reel, be sure the hose washers are in place and all

fittings are secure. If you live in more temperate climates, be sure to drain the unit of any residual

water before storing.

• DO NOT EXPOSE UNIT TO FREEZING TEMPERATURES while water remains in the plumbing system,

this can damage the swivel.

• DO NOT leave water running through the reel while not in use or unsupervised.

• DO NOT consume water from garden hose; not fit for human consumption.

WARNING! This product contains one or more chemicals known in the state of California to cause

cancer and birth defects or reproductive harm. Wash hands after handling.

Troubleshooting Guide

Problem: Swivel head is not rotating, causing the leader hose to kink up.

Solution: Remove leader hose and turn the square head of the swivel several times; apply lubricant.

Problem: Your new Liberty hose reel is leaking at the swivel.

Solution: Apply Teflon/Plumber's Tape on the threads or/and make sure fixtures are tightened. It is

normal for the swivel to leak slightly until the O-rings are wet and have seated. If the leaking continues,

try these steps: (It is not necessary to return the hose reel)

1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel.

2. Check that the hose washer is inside the nut. You may contact Liberty Garden Products for a new

hose washer or obtain one at any hardware store.

3. If your swivel is old, the O-rings may be worn, please contact us for a new set of O-rings.

4. If these steps do not solve your leaking problem, contact Liberty Garden Product’s customer service.

CALL US AT 1-866-820-5805 IF YOU HAVE ANY QUESTIONS

REGARDING TROUBLESHOOTING AND MAINTENANCE

SHAFT O-RING HOUSING O-RING

SNAP RING

WASHER

INSERT

O-RING

NUT

CARE INSTRUCTIONS

LIBERTY GARDEN PRODUCTS LIMITED WARRANTY

(Effective September 1, 2020)

This limited warranty is applicable to each original end-customer (hereinafter “Customer”) purchasing the model 714 decorative cast

aluminum NavigatorTM rotating hose reel consisting of the structural metal frame and spool (hereinafter the “Structural Frame”) and various

other non-frame components (hereinafter the “Non-Frame Parts”) sold by Liberty Garden Products, Inc. (hereinafter “Company”) for

Customer’s own use and not for resale. The Structural Frame and Non-Frame Parts are collectively referred to herein as the “Products”.

1. LIMITED WARRANTY; EXCLUSIVE REMEDIES:

1.1. LIMITED WARRANTY ON PRODUCTS: Company warrants solely to the original Customer that (a) the Structural Frame will be free

from defects in materials and workmanship under normal use for a period of three (3) YEAR(S) from the date of original retail purchase, and (b)

the Non-Frame Parts (which consist of the crank handle, swivel and water connections, leader hose), will be free from defects in materials and

workmanship under normal use for a period of ONE (1) YEARS from the date of original retail purchase. Notwithstanding the foregoing, the colors

and finishes of the Products may vary within a reasonable scope due to unavoidable color variations in different production batches, and such

variations shall not constitute a material defect. This limited warranty is limited solely to the original Customer with proof of purchase and is not

transferable.

1.2. THE WARRANTY: During a covered Product’s limited warranty period, Company will, at Company’s sole option and discretion, (1) repair

the defective component or product without charge or (2) replace the defective component or product without charge.

1.3. The foregoing limited warranty is subject to the Customer’s proper storage, transportation, handling and use of the Products as the same are

defined within Company’s then-current published guides and instructions for use and care. The limited warranty does not include defects due to

normal wear and tear, abuse or misuse, mishandling, neglect, accident, fire, lightning, sunlight or other natural hazard, delivery or transportation

damage, failure to follow applicable directions or instructions, or improper or inadequate cleaning, maintenance, care, repairs, modifications, or use

beyond a Product’s intended use. Please note that since the Structural Frame is made from steel rust may occur over time. As such, this limited

warranty does not include rust or defects due to the same.

1.4. LIMITED WARRANTY CLAIMS PROCEDURE: To obtain performance under this limited warranty, Customer shall notify Company in

writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email

(to [email protected]), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by

warranty and a copy of the dated proof of purchase of the applicable product.

• Company shall review each such claim and issue Customer a return merchandise authorization (“RMA”) in the event that the described defect or

condition merits warranty review as determined by Company. Customers who have been issued a RMA shall, at Company’s election, return the

covered item to the same physical address listed above for reporting initial claims. Company shall not accept any returned product without a RMA.

• Upon receipt, Company will evaluate the returned product(s) to determine if there is a warranty claim and, if so, how Company wishes to remedy

the same. During a covered product’s respective limited warranty period, Company will, at Company’s sole and absolute option and discretion,

(1) repair the defective component or product without charge or (2) replace the defective component or product without charge. Refunds are not

available pursuant to this limited warranty.

• Customer is solely responsible for transportation of the covered product(s) to the Company for evaluation (if applicable and requested by

Company). In the event that Company determines that a claim under this limited warranty is justified, Company shall be responsible for

transportation of the repaired, corrected, replaced or exchanged product back to Customer. Customer shall be solely responsible for the

transportation of any product back to Customer if Company determines that a claim under this warranty is not justified.

•Any repaired, corrected, replaced or exchanged Products shall be subject to the Limited Warranty set forth to the duration of the original limited

warranty period as set forth in Section 1.1. and not for any extended duration, following their repair, correction, replacement or exchange.

1.5. IF A COMPANY PRODUCT DOES NOT CONFORM TO THESE LIMITED WARRANTIES, THE PURCHASER’S SOLE AND

EXCLUSIVE REMEDY IS, AT COMPANY’S SOLE AND EXCLUSIVE OPTION, THE (1) REPAIR OF ANY DEFECTIVE PRODUCT

OR COMPONENT PART OR (2) REPLACEMENT OF ANY DEFECTIVE PRODUCT OR COMPONENT PART. THE LIMITED

WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND MADE IN LIEU OF ALL OTHER WARRANTIES,

REMEDIES, RIGHTS OR CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED, EITHER IN FACT OR BY

OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. COMPANY SPECIFICALLY DISCLAIMS, WITHOUT LIMITATION, ANY AND ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, OF ANY KIND. IF COMPANY CANNOT LAWFULLY DISCLAIM IMPLIED

WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF

THIS LIMITED WARRANTY. The Company does not assume or authorize any person to assume for them any other liability in connection with the

Products.

LIBERTY GARDEN PRODUCTS LIMITED WARRANTY CONTINUED

2. EXCLUSION AND LIMITATION OF LIABILITY:

IN NO EVENT, WHETHER BASED ON CONTRACT OR TORT OR OTHER LEGAL THEORY, SHALL COMPANY BE

LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT

NOT LIMITED TO, DAMAGES TO OTHER PROPERTY, INCONVENIENCE, DAMAGES FOR LOSS OF PROFITS,

REVENUE, GOODWILL OR USE, INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN

CONTRACT, TORT, STRICT LIABILITY, OR IMPOSED BY STATUTE, OR OTHERWISE, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages or

exclusions or limitations on the duration of implied warranties or conditions, so the above limitations or exclusions may not apply to Customer. In

jurisdictions that limit the scope of or preclude limitations or exclusion of remedies or damages, or of liability, such as liability for gross negligence

or willful misconduct or do not allow implied warranties to be excluded, the limitation or exclusion of warranties, remedies, damages or liability set

forth above are intended to apply to the maximum extent permitted by applicable law. This limited warranty gives the Customer specific legal rights,

and the Customer may also have other rights that vary by state, country or other jurisdiction.

3. SEVERABILITY:

If any provision of this limited warranty is held to be illegal, invalid or otherwise unenforceable, such provision will be enforced to the extent possible

consistent with its stated intention, or, if incapable of such enforcement, will be deemed to be severed and deleted from this limited warranty, while

the remainder of the terms of this limited warranty will continue in full force and effect.

4. DISPUTE RESOLUTION:

ThisLiberty Garden Products, Inc. Limited Warranty shall be governed by and construed in accordance with the laws of the State of North

Carolina, without regard to its principles of conflicts of law. The parties acknowledge the exclusive jurisdiction of the federal and state courts of the
