Lievers LHF Series User manual

OPERATION MANUAL
HIGH FREQUENCY POKER VIBRATOR TYPES
LHF & HS
LIEVERS HOLLAND
Groot Mijdrechtstraat 68 –3641 RW
Postbus 103 - 3640 AC
Mijdrecht (NL)
Tel.: 0031 –(0)297-231900 / Fax: 0031 –(0)297-231909
E-mail: [e-mail] / Internet: www.lieversholland.nl

2/20 Operation manual LHF / HS, revision 6: 22-12-2015
CONTENT
1. PREFACE ................................................................................................................................................................ 3
2. SAFETY................................................................................................................................................................... 4
2.1. SAFETY ASPECTS ..........................................................................................................................................................4
2.2. SAFETY PRECAUTIONS ...................................................................................................................................................4
2.3. RESTRISK....................................................................................................................................................................5
3. TECHNICAL SPECIFICATIONS .................................................................................................................................. 6
4.USE ......................................................................................................................................................................... 7
4.1. INTENDED USE ............................................................................................................................................................7
4.2. APPLICATION ..............................................................................................................................................................7
5. MAINTENANCE .................................................................................................................................................... 10
5.1. MAINTENANCE..........................................................................................................................................................10
5.2. CLEANING AND SERVICING OF THE POKER VIBRATOR..........................................................................................................10
5.3. CHANGING THE TIP OF THE POKERHEAD..........................................................................................................................10
6. TROUBLESHOOTING AND REPAIRS ...................................................................................................................... 11
7. DISMANTLING, DISPOSAL .................................................................................................................................... 12
8. PARTLISTS............................................................................................................................................................ 14
9. DECLARATION OF CONFORMITY .......................................................................................................................... 20
© Bouwmachinefabriek Lievers B.V. NL 1994.
All rights are reserved. Reprints, copies, adaptations for new editions and publications in any form or through any
media, including abstract forms are not permitted unless written permissions is first obtained from
Bouwmachinefabriek Lievers B.V.
Bouwmachinefabriek Lievers B.V. may not be held responsible for any guarantees or liabilities for the contents of this
publication and points to, in this case, all implied securities for suitability of merchantability or any other purposes.
Bouwmachinefabriek Lievers B.V. further retains the right to revise this publication and to alter the contents over
certain periods of time, without the obligation to report such alterations and changes first.

3/20 Operation manual LHF / HS, revision 6: 22-12-2015
1.Preface
This manual has been written to help you operate and maintain the high frequency poker vibrator LHF & HS
safely. This manual is intended for dealers and operators of these types of poker vibrators and contains useful
instructions for use, maintenance and repair. These instructions need to be respected and followed.
Guarantee provisions
All damage to parts of the poker vibrator, occurring within 12 months after date of purchase as a consequence of
material , production or construction defects, will be replaced by Lievers as soon as possible.
Lievers declines all responsibility for unsafe situations, accidents and damage caused by:
Ignoring safety and using instructions as described on the machine or the instruction manual.
Incompetent or incorrect maintenance (f.i. irregular cleaning of the ventilation slots and cleaning with a high
pressure cleaner or by a water jet under high pressure)
Connecting the poker vibrator to the wrong voltage.
Storing the machine in a damp place.
Assembling or dismantling of the poker vibrator by unqualified personnel (employees who are unfamiliar with the
content of this instruction manual)
Other use than the prescribed use.
Alternations of the machine carried out by other than manufacturer. This also includes assembling of non-original
parts.
Guarantee certificate
Poker vibrator type LHF - HS nr. _______________________________
Date of purchase: ___________________________________
Mr. C.M. de Wit

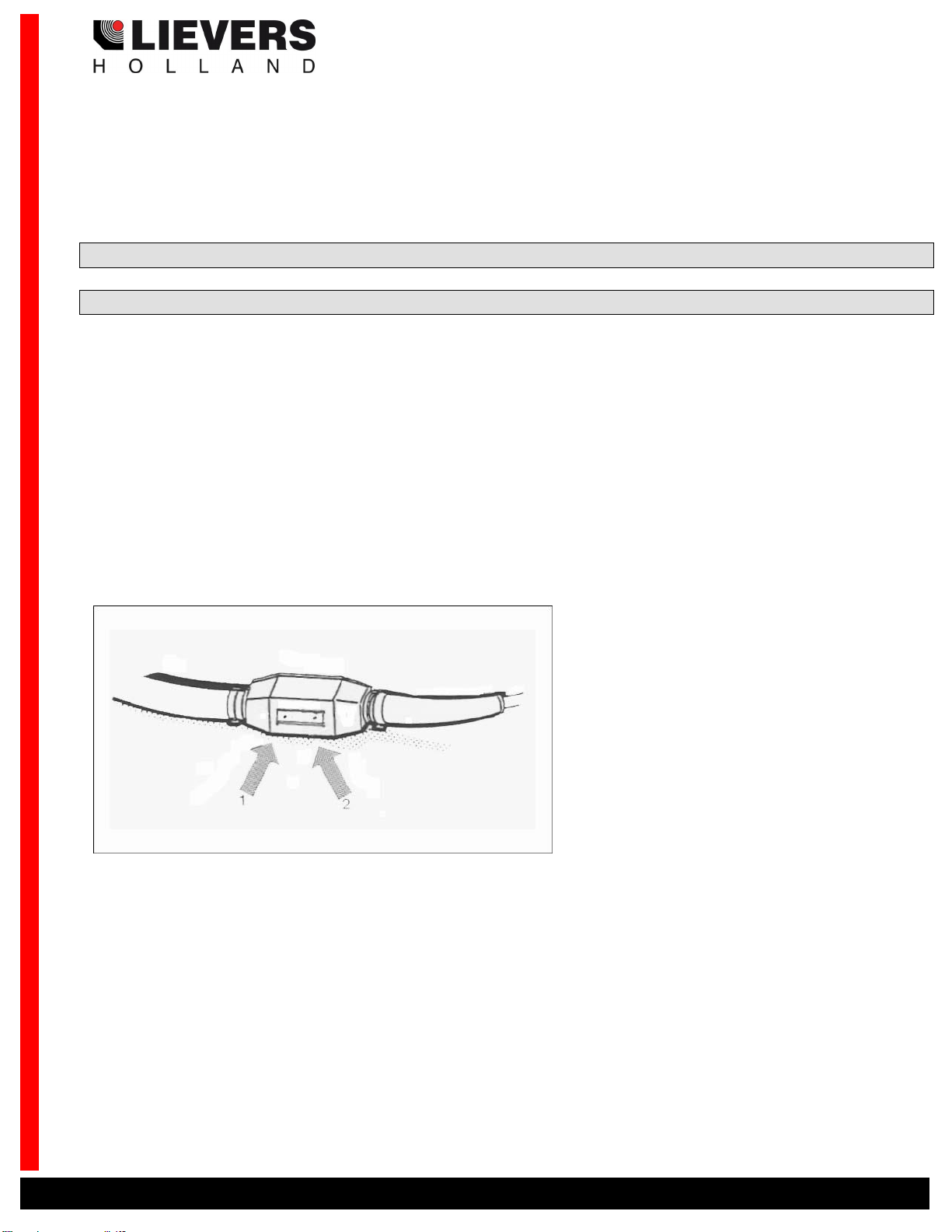

Figure 1: example rating plate LHF
LHF : the rating plate can be found on the switch cover
HS : the rating plate can be found on the handgrip

4/20 Operation manual LHF / HS, revision 6: 22-12-2015
2. Safety
Explanation of the used safety symbols

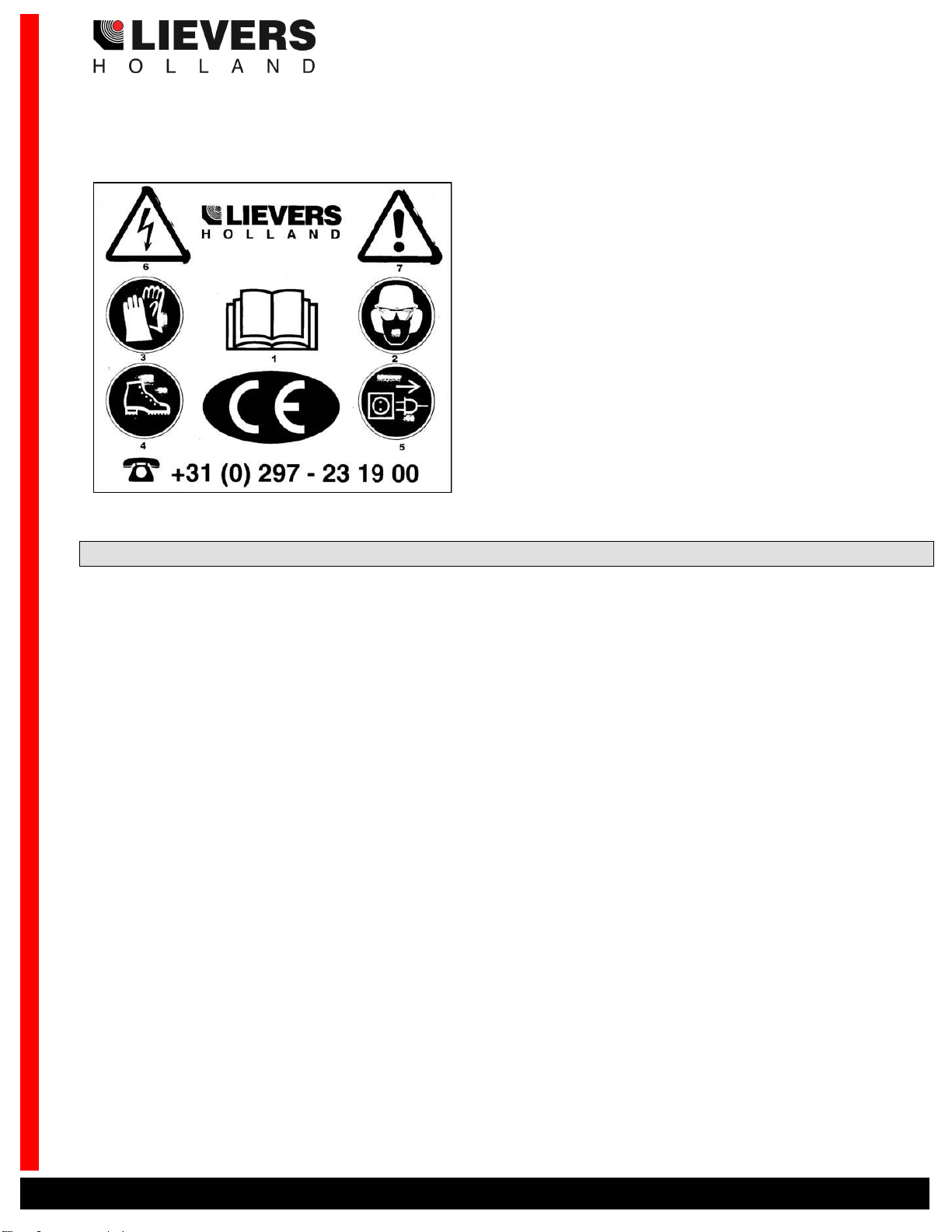

Fig. 2: safety symbols
ENSURE,THAT ALL SYMBOLS ON THE MACHINE,CAN ALWAYS BE CLEARLY READ.
2.1 Safety aspects
The following safety aspects apply to the machine:
Safety symbols are present on the poker vibrators LHF & HS
2.2 Safety precautions
Before operating these machines, make sure to have read this manual carefully. If you have any questions , do not
hesitate to contact the supplier.
Ensure that you are qualified (familiar with the contents of this manual), to operate and carry out light maintenance
work to the machine.
Regular maintenance of the machine improves safe operation.
On working areas, take notice and follow general and local safety regulations. Before starting your work, make sure
that you are informed about all safety regulations and instructions.
In case the value of acceleration > 2,5 ms2, then wearing anti vibration gloves is obligated.
When operating the poker-vibrator wear ear protection, safety glasses, a safety helmet, protective (anti-vibration)
gloves and protective clothing.
Wear safety shoes with extra protection (steel caps and anti-slip soles).
Be careful when lifting and carrying the poker vibrator. Do not bend forwards when picking up the apparatus, but
bend your knees.
Make sure that the working area is lightened well.
Do not pull the plug out of the wall socket or extension lead by its lead.
1) Read the instruction manual
2) Safety glasses, safety helmet and ear
protection compulsory.
3) Vibration reducing glove with GELFÔM
compulsory.
4) Safety shoes with extra protection
compulsory.
5) Before opening remove the plug.
6) Dangerous electric voltage
7) Be careful.

5/20 Operation manual LHF / HS, revision 6: 22-12-2015
Check the feeder cable’s outercasing and if in use extension lead’s outercasing before you connect the machine to
the electrical mains. The outercasing may not be damaged. Replace the cable if you cannot read the marks on the
outercasing anymore.
Do not use the machine in an explosion endangered area.
Check whether the voltage provided by the converter is correct.
Regularly check the connections of the supply-cable to the switch.
Ensure that the wall socket and possible connections between the extension leads are protected against dampness.
Switch off the machine, when the electrical power cuts off. This prevents the machine from starting suddenly when
the electrical power comes on again.
Check the machine’s cable-connections before you connect the machine to the electrical mains. The cables must be
properly connected.
After use, place the poker vibrator on a stable and dry surface .
When the poker vibrator is not being used for longer a period of time, then it must be stored in a dry and clean area.
When cleaning the poker vibrator, ensure that no water or cleaning detergent gets into the poker vibrator.
Disconnect the electrical supply to the poker vibrator, before you start to clean or maintain the poker vibrator .
2.3 Rest risk
The manufacturer aimed for the best balance in functionality, safety and operation possibilities of the LHF and HS.
Please take notice of the following rest: for prolonged working with LHF poker vibrators it is obligated to wear anti
vibration gloves.
Well instructed operators with a correct working attitude concerning safe operating are well capable of working safely
with both LHF and HS poker vibrators.

6/20 Operation manual LHF / HS, revision 6: 22-12-2015
3. Technical specifications
Table
1: technical specifications LHF / HS
** The weighted effective value of acceleration, determined according to ISO 5349
Use of anti-vibration gloves obligated with value > 2,5 m/s².
LHF/HS
36mm
Short
36mm
long
50mm
Short
50mm
long
57mm
Short
57mm
long
65mm
Voltage
Current consumption
Vibr/Min
Compaction diam.
Sound press
Level ISO 6081 at
operator’s place
LHF:
Value of acceleration
in m/s² *
Comfort exposure
(max.) per day
HS:
Value of acceleration
in m/s² *
42V/200Hz
4,5A
12.000
Ø35cm
70 dB(A)
2,5
8hr
32hr
< 2,5
42V/200Hz
4,5A
12.000
Ø45cm
72dB(A)
2,53
7,8hr
31,2hr
< 2,5
42V/200Hz
6,7A
12.000
Ø55cm
75dB(A)
2,60
7hr
28hr
< 2,5
42V/200Hz
9,5A
12.000
Ø65cm
77dB(A)
2,77
6,5hr
26,1hr
< 2,5
42V/200Hz
11,5A
12.000
Ø75cm
79dB(A)
5,25
2,0hr
7,0hr
< 2,5
42V/200Hz
13,5A
12.000
Ø85cm
82dB(A)
5,75
1,5hr
6,0hr
< 2,5
42V/200Hz
16A
12.000
Ø100cm
85dB(A)
4,7
2,3hr
9,1hr
< 2,5

7/20 Operation manual LHF / HS, revision 6: 22-12-2015
4. Use
4.1 Intended use
Poker-vibrators LHF and HS are machines with a vibrating, steel bottle, for compacting concrete.
4.2 Operation
CAREFUL:READ THE GENERAL-AND SPECIFIC SAFETY-INSTRUCTIONS BEFORE YOU SWITCH ON THE POKER VIBRATOR.
CAREFUL:FIRST SWITCH ON THE FREQUENCY-CONVERTER BEFORE YOU SWITCH ON THE POKER VIBRATOR.
Switching on the poker-vibrator, compacting the concrete and switching off the poker vibrator.
1) Ensure that the supplied voltage from the converter corresponds with the poker vibrator’s technical data.
2) Ensure that the poker vibrator’s diameter corresponds with the consistency of the concrete.
3) Check that the switch is in the OFF (0) position.
4) Put the plug of the supply-cable in the socket of the converter.
5) Place the poker-vibrator in the direct vicinity of where you are going to compact concrete.
6) Put the switch in the ON (I) position.
7) Stick the vibrating pokerhead into the concrete and allow the vibrator to vibrate for 2 seconds in one place in
the concrete, before moving it to the next spot. Repeat this procedure every 50 cm (depending on the
concrete’s consistency).
Fig. 3: ON/OFF position of the poker vibrator
Careful: Switch off the poker vibrator when the pokerhead is out off the concrete. The built-in electric drive unit needs
to be cooled in the concrete and if this is not done the pokerhead can be severely damaged.
Therefore: Out of the concrete, poker vibrator OUT

8/20 Operation manual LHF / HS, revision 6: 22-12-2015
Fig. 4: Operation procedure during concrete compaction
When work is done
Put the switch in the OFF position and pull the supply-cable’s plug out of the socket.
Switch off the converter and pull the plug out of the wall socket.
After use, place the converter and poker vibrator on a dry and stable surface.
Clean the poker-vibrator and converter as prescribed in chapter 5 “maintenance”.
Application examples
The distance between two vibration places and the vibration time in one place, depend on the thickness of
the concrete layer and the composition of the concrete.
The following points are for guidance.
Floors:
1) Stick the poker vibrator slowly into the concrete (vibration time approx. 3 to 4 seconds).
2) Pull the poker vibrator slowly out of the concrete and repeat procedure 1each 50cms.
Walls and columns:
3) Pour concrete to approx. 100 cm.
4) Lower the poker-vibrator into the formwork.
5) Pull the poker vibrator slowly out of the concrete and move it to the next spot.
6) Now ready for the following pour of approx. 100 cm. of concrete.

9/20 Operation manual LHF / HS, revision 6: 22-12-2015

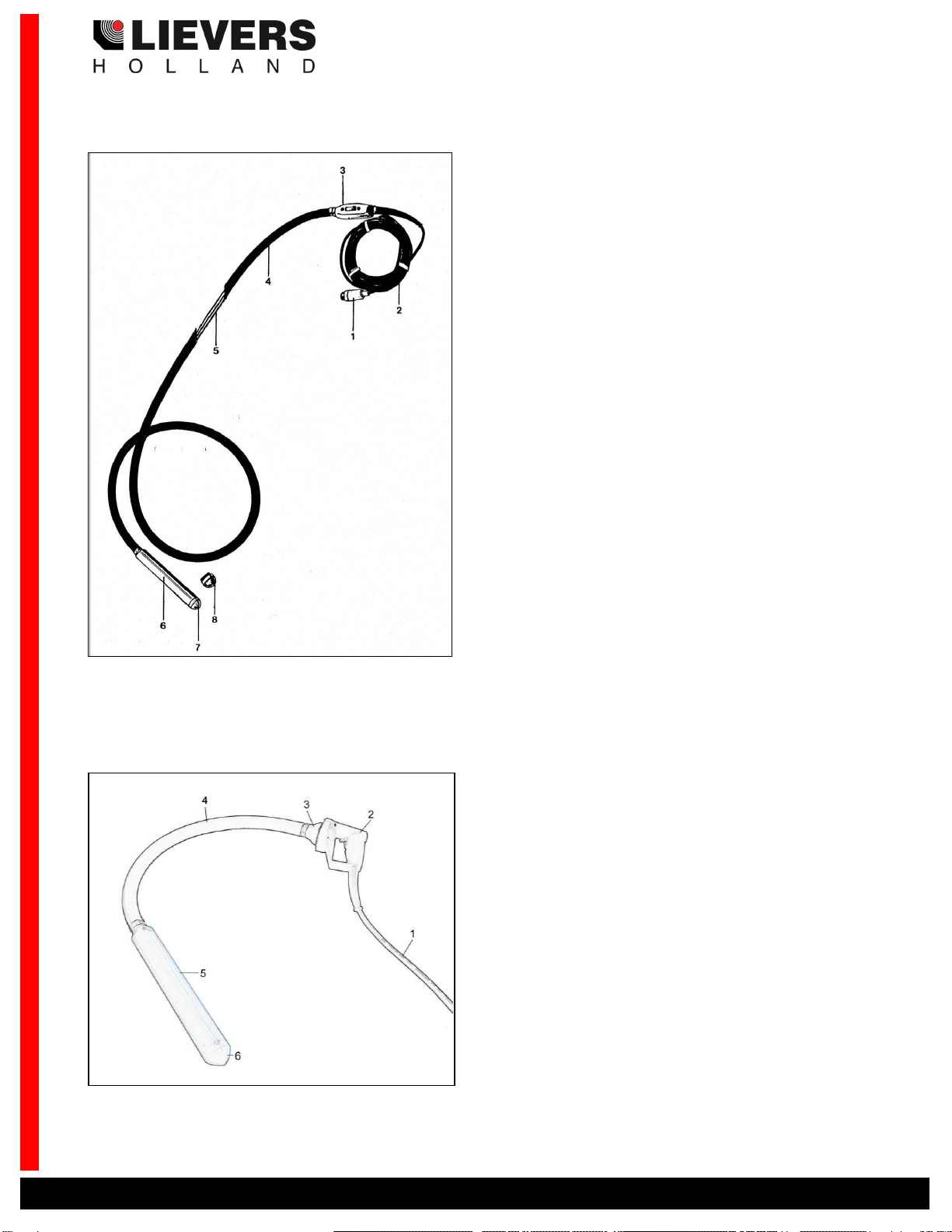

Fig.5: Overview of the most important components LHF
1. Plug CEE 42V 200 Hz
2. Supply cable 10M
3. Switch
4. Operating hose
5. Inner cable
6. Pokerhead 42V 200Hz
7. Steel tip
8. Rubber tip
Figure 6: Overview of the most important components HS
1. Supply cable 20 M
2. Pistol handgrip with switch
3. Vibration damper
4. Operating hose
5. Poker head 42V 200 Hz
6. Steel tip

10/20 Operation manual LHF / HS, revision 6: 22-12-2015
5. Maintenance
5.1. Maintenance
Although the poker vibrators type LHF & HS have a few moving parts, regular maintenance promotes a long and
trouble-free life.
WARNING :DO NOT CLEAN THE POKER VIBRATOR WITH A HIGH PRESSURE CLEANER.DISCONNECT THE ELECTRICAL
SUPPLY TO THE POKER VIBRATOR BEFORE YOU CARRY OUT ANY MAINTENANCE ACTIVITIES TO THE POKER-VIBRATOR.
5.2. Cleaning and servicing of the poker-vibrator
During concrete compaction the poker vibrator, switch and supply cable will become dirty.
Periodical maintenance is vital to the safe and efficient operation of the poker vibrator. It is therefore highly
recommended to clean the poker vibrator daily with water.
When storing the poker vibrator make sure that the operation hose has been coiled properly, thus
preventing cuts and cracks to the rubber hose.
If the poker-vibrator is to be stored for a long period of time, it should be put on an appropriate stand and left to hang.
TIP:LN CASE OF FAILURE OR BREAK DOWN OF THE POKER VIBRATOR,WE ADVISE YOU TO SEND THE MACHINE TO AN AUTHORISED SERVICE-
STATION OF LIEVERS.
WARNING:WE STRONGLY ADVISE YOU NOT TO CARRY OUT REPAIRS TO THE POKER-VIBRATOR BY YOURSELF,WITHOUT BEING INSTRUCTED
BY THE MANUFACTURER OR DEALER (READ GUARANTEE-PROVISIONS).
5.3. Changing the tip of the pokerhead
This paragraph exclusively deals with the replacement of the steel- and rubber tip of the pokerhead.
1) Lock the rear part of the pokerhead in a vice.
2) File away the welding point where the rear part joints the front part .Loosen the screw thread by tapping on
the tip of the pokerhead with a hammer.
3) Unscrew the tip by means of a hook spanner (available from the producer).
4) By locking the pokerhead in the vice vertically, you prevent the lubricating oil from running out of the
pokerhead.
5) Before the new tip is installed, the screw thread of the tip needs to be winded with at least 8 windings of
Teflon tape.
6) Now tighten the tip by means of the hook spanner and secure it by providing the tip with a welding point of
approx. 5 mm. diameter.
CAREFUL:REFILL OIL IF DURING THE ABOVE DESCRIBED PROCEDURE OIL HAS RUN OUT OF THE POKERHEAD.IF THIS SPECIAL OIL IS NOT
AVAILABLE,PLEASE CONTACT YOUR DEALER OR LIEVERS (Ø36MM-15 CC/Ø50MM-20CC/Ø57-25CC/Ø65MM-30CC).

11/20 Operation manual LHF / HS, revision 6: 22-12-2015
6. Trouble shooting, repairs
The table below shows the most occurring problems, causes and solutions:
PROBLEM
CAUSE
SOLUTION
The Connected and activated
poker vibrator does not get
into the required
number of revolutions or
does not start.
The electrical motor is
overloaded due to
insufficient current
supply.
Ensure that the supply cable is properly connected
to the required voltage and converter.
Check the plug connections for faults.
If applicable, check the length of the extension
cable.
Use an extension cable of max. 25 m. with a
cross section of 3x4mm2.
The pokerhead overheats.
Insufficient cooling of the
poker-vibrator in the
concrete, or worn out
bearings.
Ensure that the pokerhead is completely immersed
in the concrete.(for the whole length of the
pokerhead).
Take the poker-vibrator / converter for
inspection to the nearest Lievers service-
station.
The activated poker-vibrator
trips out regularly.
(Thermal relay -optional-)
Defect converter or
wrong type of converter
(voltage) or too many
pokers connected to 1
converter.
Check the voltage provided by the converter (read
the operation manual of the converter).
Table 2: most occurring problems, causes and solutions
NOTE:FAULTS THAT FREQUENTLY OCCUR ARE:BREAK IN THE SUPPLY CABLE,INCORRECT PLUG CONNECTIONS AND INSUFFICIENT
MAINTENANCE.
Repairs
TIP:WHEN ORDERING PARTS,FILL IN THE ORDER FORM ACCURATELY.LIEVERS B.V. DECLINES ALL RESPONSIBILITY FOR THE SUPPLY OF
INCORRECT SPARES DUE TO INCOMPLETE OR UNCLEAR REQUESTS.
When ordering parts please state the following information:
Type of poker-vibrator.
Year of construction.
Order number plus description of the part.
The required quantity.
The dispatch address and dispatch mode.

12/20 Operation manual LHF / HS, revision 6: 22-12-2015
Contact details Lievers Holland:
PO Box 103
3640 AC Mijdrecht
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.lieversholland.com
7.Dismantling, disposal
National and local regulations concerning dismantling and disposal of materials need to be obeyed.

13/20 Operation manual LHF / HS, revision 6: 22-12-2015

14/20 Operation manual LHF / HS, revision 6: 22-12-2015
8. Part lists

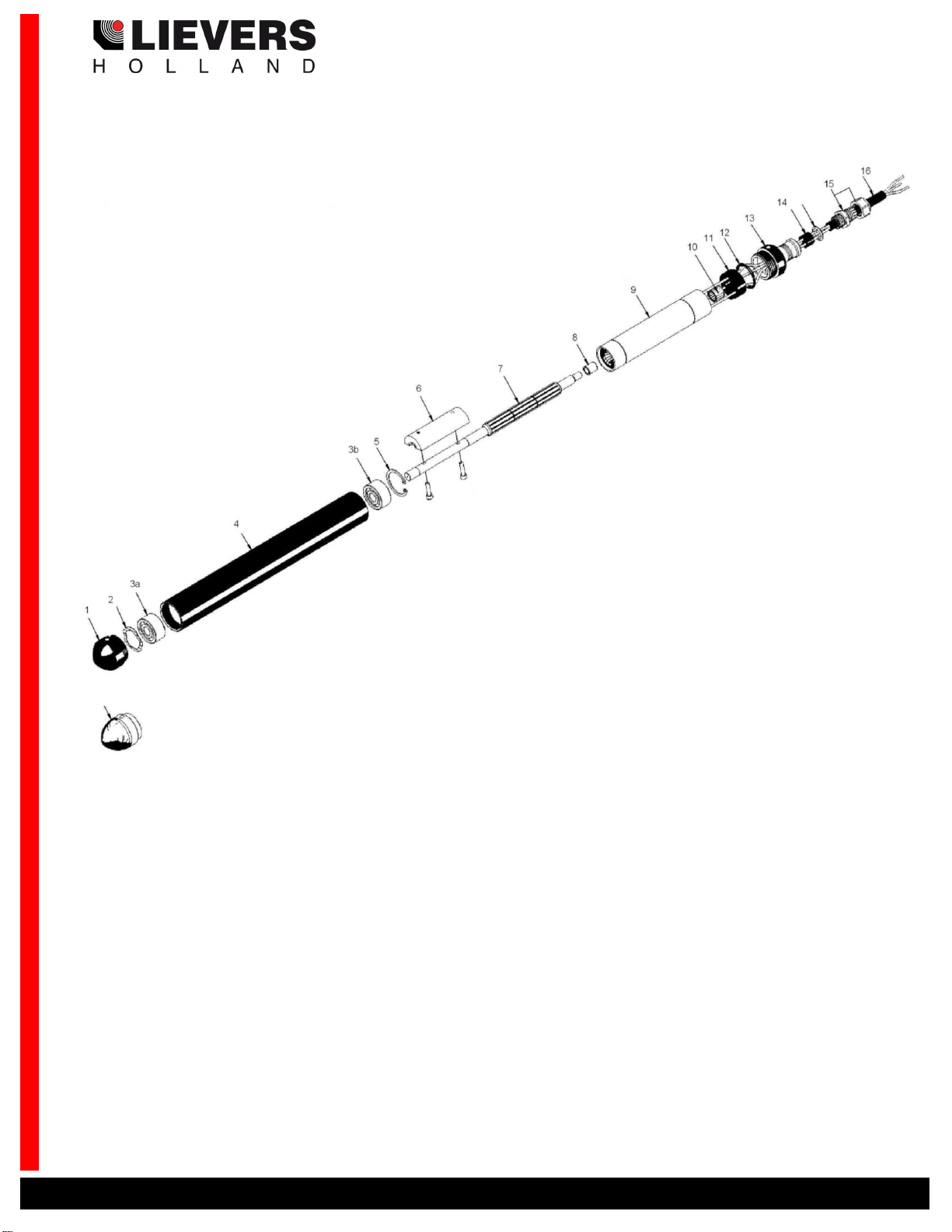

Fig. 7: Exploded view LHF

15/20 Operation manual LHF / HS, revision 6: 22-12-2015
LHF
Ø36
Ø50
Ø57
Ø65
Pos.
Number
Number
Number
Number
Quantity
Description
1
1300360011
1300500011
1300570011
1300650011
1
Steel tip
2
1300360020N
1300500020K
n.a.
n.a.
1
Spring soucer
2
n.a.
n.a.
1300570020N
1300650020N
2
Spring soucer
3a
1300360030
1300500030
1300570030
1300650030
1
Bearing
3b
1300360030
1300500030
1300570070
1300650070
1
Bearing
4
1300360040N
1300500040N
1300570040N
1300650040N
1
Motorhousing
4a
n.a.
n.a.
1300570050
1300650050
1
Spacer
5
1300360070N
1300500070N
1300570070N
1300650070N
1
Retaining ring
5a
n.a.
n.a.
1300570080
1300650080
1
Retaining ring on rotor
6
1300360060REX
1300500060REX
1300570060REX
1300650060REX
1
Eccentric
7
1300360090RE
1300500090RE
1300570090RE
1300650090RE
1
Rotor
8
1300360100
1300500100
1300570100
1300570100
1
Bearing bushing
9
1300360111N
1300500111N
1300570111N
1300650111N
1
Stator 42V
10
1300360120
1300500120
1300500120
1300570120
1
Needle bearing
11
1300360130N
1300500130N
1300570130N
1300650130N
1
Intermediate ring
12
1300360125N
1300500125N
1300570125N
1300650125N
1
O-ring
13
1300360140N
1300500140N
1300570140N
1300650140N
1
Trumpet
14
1300360150N
1300000150N
1300000150N
1300000150N
1
Rubber ring - cablebuckle
15
0435
0431
0431
0431
1
Cable buckle (steel)
16
1300360170N
13000000170N
1300000170N
1300000170N
1
Rubber protection sleeve
17
1300017
1300017
1300017
1300017
3
Cable connector
18
1300042
1300042
1300042
1300042
5 m
Spiral innercable 3 x 4 mm2
19
13000210
n.a.
n.a.
n.a.
2
Hose clamp small V202
19
n.a.
13000211
13000211
13000211
2
Hose clamp wide V206
20
1300012
1300013
1300013
1300013
5m
Rubber hose (p/mtr)
21
13000212
13000212
13000212
13000212
1
Hose clamp small V245
22
1300041
1300041
1300041
1300041
1
Cable sleeve
23
0005
0005
n.a.
n.a.
10m
Cable 3x2.5mm² (p/mtr)
23
n.a.
n.a.
0007
0007
10m
Cable 3x4mm² (p/mtr)
24
0037
0037
0037
0037
1
CEE-plug 42V/200Hz
25
1300025
1300025
1300025
1300025
1
Protection cover
26
1300026
1300026
1300026
1300026
2
Screw
27
1300027
1300027
1300027
1300027
1
Alu-support
28
1300028
1300028
1300028
1300028
4
Drive screw
29
1300029
1300029
1300029
1300029
1
Switch
30
1300032
1300032
1300032
1300032
1
Seal
32
1300030
1300030
1300030
1300030
4
Drive screw
34
1300033
1300033
1300033
1300033
1
Cable saddle clamp
35
1300360230
1300023
1300023
1300023
1
Switch + cover
36
1300034
1300034
1300034
1300034
1
Seal
37
1300035
1300035
1300035
1300035
1
Pressure ring
38
1300036
1300036
1300036
1300036
1
Pressure buckle
39
0318
0318
1300081
1300081
9
Conductor sleeve
40
1300500240
1300500240
1300500240
1300500240
1
Rating plate
41
1300360012
1300500012
1300570012
13000650012
1
Rubber tip
42
1300360155N
1300000155N
1300000155N
1300000155N
1
Steel pressure ring cable buckle
130036037GEEL
1300037GEEL
1300037GEEL
1300037GEEL
1
Switch complete
1300360500
1300500500
1300570500
1300650500
1
Oil (Ø36mm- 15cc/Ø50mm-20cc/
Ø57mm-25cc/Ø65mm-30cc)
1300019
1300019
1300019
1300019
1
Cablebuffer
Table 3: Partlist LHF

16/20 Operation manual LHF / HS, revision 6: 22-12-2015
Fig. 8: Exploded view HS
20
21
24
23
25
23
20
31
30
32
33
34
35
41
42
45
46
47
43
45
40
60
61
17
1a

17/20 Operation manual LHF / HS, revision 6: 22-12-2015
HS
Ø 36
Ø 50
Ø 57
Ø 65
Pos.
Part number
Part number
Part number
Part number
Qty.
Description
1
1300360011
1300500011
1300570011
1300650011
1
Steel tip
1a
1300360012
1300500012
1300570012
13000650012
1
Rubber tip
2
1300360020N
1300500020K
n.a.
n.a.
1
Spring soucer
2
n.a.
n.a.
1300570020N
1300650020N
2
Spring soucer
3a
1300360030
1300500030
1300570030
1300650030
1
Bearing
3b
1300360030
1300500030
1300570070
1300650070
1
Bearing
4
1300360040N
1300500040N
1300570040N
1300650040N
1
Motor housing
4a
n.a.
n.a.
1300570050
1300650050
1
Spacer
5
1300360070N
1300500070N
1300570070N
1300650070N
1
Retaining ring (centre of motor housing)
5a
n.a.
n.a.
1300570080
1300650080
1
Retaining ring on rotor
6
1300360060REX
1300500060REX
1300570060REX
1300650060REX
1
Eccentric weight
7
1300360090RE
1300500090RE
1300570090RE
1300650090RE
1
Rotor with eccentric shaft
8
1300360100
1300500100
1300500100
1300570100
1
Bearing bushing
9
1300360111N
1300500111N
1300570111N
1300650111N
1
Stator 42V
10
1300360120
1300500120
1300500120
1300570120
1
Needle bearing
11
1300360130N
1300500130N
1300570130N
1300650130N
1
Intermediate ring
12
1300360125N
1300500125N
1300570125N
1300650125N
1
O-ring
13
1300360140N
1300500140N
1300570140N
1300650140N
1
Trumpet
14
1300360150N
1300000150N
1300000150N
1300000150N
1
Rubber ring cable buckle
15
0435
0431
0431
0431
1
Cable buckle (steel)
16
1300360170N
13000000170N
1300000170N
1300000170N
1
Rubber protection sleeve
17
1300360155N
1300000155N
1300000155N
1300000155N
1
Steel pressure ring cable buckle
20
13000210
n.a.
n.a.
n.a.
2
Hose clamp V202
20
n.a.
13000211
13000211
13000211
2
Hose clamp V206
21
1300019
1300019
1300019
1300019
1
Cable buffer
23
1300017
1300017
1300017
1300017
3
Cable connector
24
0015
0015
0016
0016
3 mtr
Inner cable
25
1300012
1300013
1300013
1300013
0,85
Rubber hose
30
1300087
1300087
1300087
1300087
1
Hose connector
31
0289
0289
0289
0289
3
Bolt M5x8 mm
32
0288
0288
0288
0288
6
Bolt ST 4.8 x 9.5mm
33
1300088
1300088
1300088
1300088
1
Closing ring
34
1300086
1300086
1300086
1300086
1
Vibration absorber
35
137080002
137080002
137080002
137080002
1
Adapter ring
40
137080001
137080001
137080001
137080001
1
Handgrip complete (nr. 41 t/m 51)
41
137080010
137080010
137080010
137080010
1
Handgrip top part
42
137080011
137080011
137080011
137080011
1
Handgrip bottom part
43
137080012
137080012
137080012
137080012
1
Switch
44
137080013
137080013
137080013
137080013
4
Screw M3,5 x 6
45
0231
0231
0231
0231
4
Self tapping screw 5x25mm
46
137080014
137080014
137080014
137080014
6
Self tapping screw 3,2x25mm
47
1400017
1400017
1400017
1400017
1
Rubber tule
48
137080015
137080015
137080015
137080015
1
Cable bride
49
137080016
137080016
137080016
137080016
2
Self tapping screw 3x12mm
50
137080017
137080017
137080017
137080017
4
Cable connector
51
137080018
137080018
137080018
137080018
1
Isolation sleeve 5 cm
60
0005
0005
n.a.
n.a.
20m
Cable 3x2,5 mm²
60
n.a.
0007
0007
20m
Cable 3x4 mm²
61
0037
0037
0037
0037
1
CEE-plug 42v/200Hz
61/2
0038
0038
0038
0038
1
CEE-plug 115/250v
1300360500
1300500500
1300570500
1300650500
1
Oil (Ø36mm- 15cc/Ø50mm-20cc/
Ø57mm-25cc/Ø65mm-35cc)
Tabel 4: Parts list HS

18/20 Operation manual LHF / HS, revision 6: 22-12-2015
Fig 9: exploded view pokerhead LHF/ HS Short execution
1a
17

19/20 Operation manual LHF / HS, revision 6: 22-12-2015
Table 5: parts list pokerhead LHF/HS bottle SHORT execution
LHF /
HS
Ø 36 short
Ø 50 short
Ø 57 short
Pos.
Number
Number
Number
Quantity
Description
1
1300360011
1300500011
1300570011
1
Steel tip
1a
1300360012
1300500012
1300570012
1
Rubber tip
2
1300360020N
1300500020K
n.a.
1
Spring soucer
2
n.a.
n.a.
1300570020N
2
Spring soucer
3a
1300360030K
1300500030K
1300570070K
1
Bearing
3b
1300360030K
1300500030K
1300570070K
1
Bearing
4
1300360040K
13005000040KN
1300570040K
1
Motorhousing
5
1300360070N
1300500070N
1300570070N
1
Retaining ring
6
1300360060KREX
1300500060KREX
1300570060KREX
1
Eccentric
7
1300360090REK
1300500090REK
1300570090REK
1
Rotor
8
1300360100
1300500100
1300570100
1
Bearing bushing
9
1300360111K
1300500111KN
1300570111KN
1
Stator 42V
10
1300360120
1300500120
1300500120
1
Needle bearing
11
1300360130N
1300500130N
1300570130N
1
Intermediate ring
12
1300360125N
1300500125N
1300570125N
1
O-ring
13
1300360140N
1300500140N
1300570140N
1
Trumpet
14
1300360150N
1300000150N
1300000150N
1
Rubber ring –cable buckle
15
0435
0431
0431
1
Cable buckle (steel)
16
1300360170N
13000000170N
1300000170N
1
Rubber protection sleeve
17
1300360155N
1300000155N
1300000155N
1
Steel pressure ring cable buckle

20/20 Operation manual LHF / HS, revision 6: 22-12-2015
9. Declaration of conformity
EC-DECLARATION OF AGREEMENT FOR MACHINERY
(Directive 2006/42/EC, Annex II, under A)
Supplier: Bouwmachinefabriek Lievers B.V.
Address: Groot Mijdrechtstraat 68, 3641 RW Mijdrecht
Hereby declares that
The poker vibrators LHF en HS:
1) comply with the regulations for the Machine directive (Directive 2006/42/EC) , EMC-Directive (Directive
2004/108/EC), Directive 2002/44/EC and Directive 2002/49/EC
2) comply with the following harmonised standards: NEN-EN-60204-1 (2006), NEN-EN 12649, EN 60034-5 (2001), EN
50144-1 , EN 60034-1.
Mijdrecht, 1 June2010
Supplier: Bouwmachinefabriek Lievers B.V.
Address: Groot Mijdrechtstraat 68, 3641 RW Mijdrecht
Name: Mr. C.M. de Wit
position: Managing director
