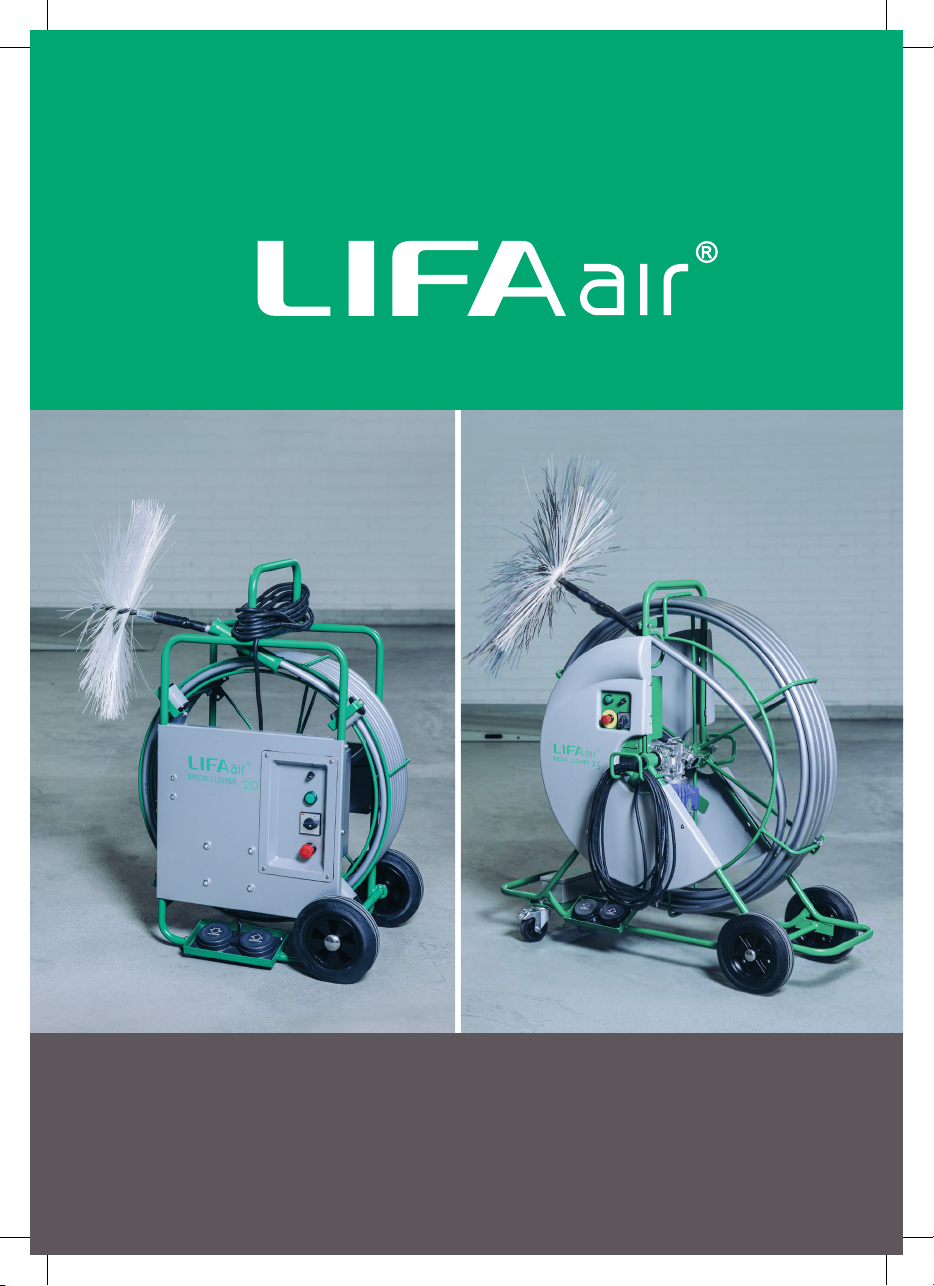

Lifa Air Special Cleaner 20 Operating instructions

OPERATING AND MAINTENANCE MANUAL
LIFA Special Cleaner 20
LIFA Special Cleaner 25 Multi

INDEx
These instructions should
always be available for the
personnel operating the
machine. Please read these
instructions carefully before
operating the machine.
Following these instructions
in detail ensures many years
of trouble-free use.
IMPORTANT! Read these
instructions carefully before
operating the machine!
LIFA Special Cleaner 20 / 25 Multi.......3
Safety Precautions ................................4
General Directions................................6
Construction and Control.....................7
Operating Principles.............................8
Service and Maintanance....................10
Technical Data.....................................12
Spare parts and accessories...............13
Warranty..............................................16
Recycling.............................................17
Declaration of Conformity..................18
LIFA Air Product Family......................19
2
LIFA Special Cleaner 20 / 25 Multi

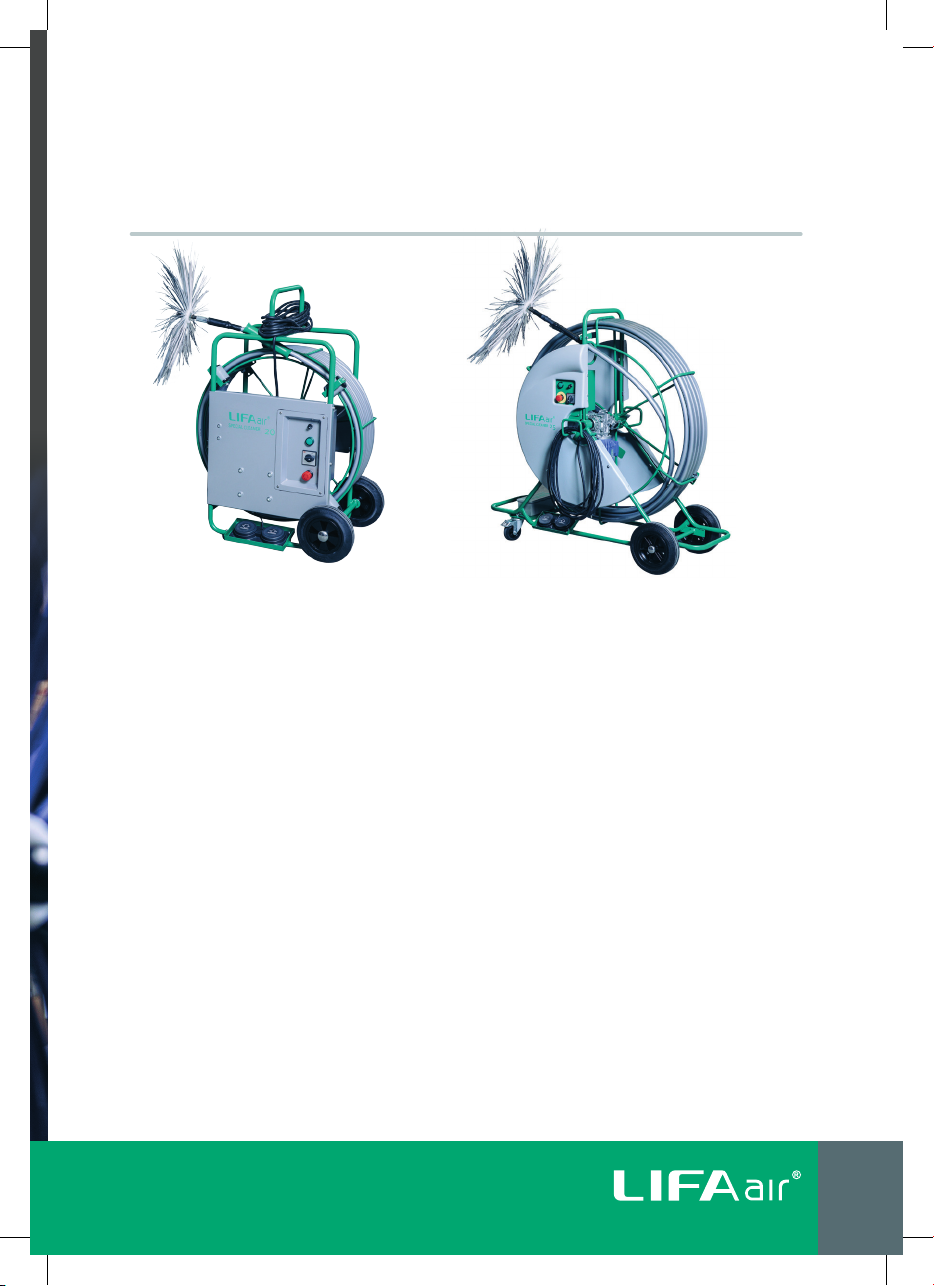

LIFA Special Cleaner 20 /
25 Multi brushing machine
Congratulations on your new LIFA Special
Cleaner 20 or 25 Multi brushing machine!
LIFA SC20 / SC25 Multi is an electrically
operated brushing machine for ventilation
ducts. These brushing machines are de-
signed for the cleaning of small and me-
dium sized, round and rectangular shaped
air ventilation ducts. The length
of the cleaning shaft is 20 meters (66 ft.,
SC20) or 25 meters (82 ft., SC25 Multi),
so it can be used in cleaning up to 35 m
(115 ft., SC20) or 46 m (151 ft., SC25 Multi)
of ventilation duct when accessed in one
duct access door to both directions.
The speciality of LIFA SC20 is its small size
and user friendliness, especially in tight and
cramped places. Due to its small size, it can
also be packed and transported very easily.
The speciality of LIFA SC25 Multi is its wide
range of different sized nozzles which can
be used to spray air, liquids and foam.
Professional’s rst choice for small (SC20:
Ø100–400 (4–16”)) and medium sized
(SC25 Multi: Ø250–800 mm (10–31,5”))
ducts. In addition, LIFA SC25 Multi can
also be used in grease duct cleaning up
to 60 cm duct diameter or duct height.
LIFA SC20 is not suitable for grease duct
cleaning.
• Operation radius 18 meters (60 ft., SC20)
or 23 meters (75 ft., SC25 Multi).
• Rotating speed can be adjusted from
225–570 rpm with a frequency converter.
• Mechanically directed rotating direction
to clockwise and counter clockwise.
• The brushed off debris is removed by
sucking it to a negative air vacuum, such
as a LIFA HepaClean 1100, 2500, 4000 or
LIFA AirClean 3500 negative air machine
unit (accessory).
The mechanical centering device for the brush is available as accessory for the LIFA Special
Cleaner brushing machine. The centering device helps to push the brush in the duct and
centers the brush in the duct so that the brush can reach all parts of the duct. The use of the
centering device is recommended especially in large and rectangular ducts.
LIFA Special
Cleaner 20
LIFA Special
Cleaner 25 Multi
3

The following safety directions must be carefully observed in order to avoid
injury to personnel or damage to the environment or to the LIFA Special Cleaner
brushing machine itself. Following these instructions will ensure the safe and
uninterrupted use of the machine.
Safety Precautions
• The equipment must not be positioned or use in places where there
is a risk of explosion or hazardous substances.
• The equipment must not get wet and it has to be protected from
moisture, vibration and wind.
• Foreign objects must not be inserted or tted into the equipment.
• The machine cannot be covered during the use.
• The user must ensure that the appliance is adjusted for the task and
that the statutory requirements are met.
1. Avoid contamination of the
environment
The machine must be kept as clean
as possible. The shaft must be
cleaned before pushing it back to
the machine. The brushes and the
shell of the cleaning shaft must be
cleaned after the work has been
completed, before transporting the
machine to another location.
2. General safety
The power must be turned off and
the power cable unplugged when
the machine is not being used. It is
forbidden to make any modications
to the brushing machine or the
accessories (for example brushes).
3. Operator safety
The person/persons performing the work must
use personal protective equipment: ltered
mouth mask, helmet, earmuffs, goggles, overall,
protection shoes and other necessary protective
equipment that the task at hand requires.
LIFA Special Cleaner brushing machines have a
strong rotating force. Clothes or hair can easily
get caught in the brush and cause damage or
accidents. The brush must always be placed
in the ventilation duct before switching on
the machine. The machine cannot be used
when the brush is outside the ventilation duct.
Because of the great rotating force, the LIFA
Special Cleaner is recommended to be used by
two persons. One person directs the shaft into
the duct while the other person feeds/draws
4
LIFA Special Cleaner 20 / 25 Multi

• LIFA Special Cleaner brushing machine
is connected to a single phase (1~)
current, 230 VAC (or 120 VAC),
50/60 Hz.
• Protective switch for motor is equipped
with a low voltage protection which
prevents the switching on if the voltage
is too low or if there is no voltage.
• Only authorised electrician may do
the repairs or installations of the
electrical components. In addition,
electrician must be authorised by the
manufacturer; otherwise the warranty
expires.
7. Noise level
The noise level of LIFA Special Cleaner is
low (70 dB) and it is not dependant of the
operating environment.
8. Transportation and operating position
During the transportation, the machine
must be tied rmly in order to prevent
any damage to the machine or people.
Before use make sure that all the compo-
nents are in place and that the machine
functions well. The machine must be
transported, used and stored in an up-
right position. The machine must be
positioned far enough from walls and
other obstacles and placed rmly and
straight. Ensure a free rotation of the
brush.
Ensure that the power supply is
reliably earthed.
Connect the device only to
grounded socket!!
the shaft and controls the rotating of the
brush.
4. Workplace conditions / overload
Make sure that the lightning, air condition-
ing, latter and trestles are sufcient. If the
brush generates static electricity or sparks
in the duct do not use these types of
brushes in the duct if there is any amma-
ble liquids, gases, dust or other sensitive
substances nearby. Use antistatic brushes
and safety ground by following the special
instructions in difcult conditions.
The permitted working temperature is
5–50 °C (41–20 °F). The gearing warms up
a bit when the machine is being used. If
the motor overheats or free rotation of the
brush has been prevented, the overheat
protection of the frequency converter
will be switched on automatically. When
the right working temperature has been
reached the motor will start working again.
The current must be switched off when it is
not being used.
5. The cleaning shaft
Check the condition of the cleaning
shaft before every use. Be careful not to
damage the shaft. If the shaft has been
damaged take immediate contact to your
local distributor. Minor scratches on the
shaft surface can be xed by coating it
again with a heat shrinkable tube. During
storage and transportation, the cleaned
shaft must always be reeled into the drum.
6. Electrical connection
• Ensure that the voltage supply and the
current responds to the information
stated in the CE-plate and the
information in the instructions.
5

General Directions
1. LIFA Special Cleaner can only be used for the purposes that it
is designed for and which are outlined in the instructions. It is
forbidden to use the equipment for any other purposes without
written permission from the manufacturer. If this equipment is used
for a purpose other than in which it is designed for, the manufacturer
does not take responsibility for any consequences.
2. Persons responsible for operating this equipment / supervising
the use of this equipment must get acquainted with the structure,
functions and the safe use of the equipment.
3. It is prohibited to remove or disable any technical protective /
safety device while using the machine.
4. If the machine has to be installed in a way that protective /
safety device is disabled or device functioning is limited, work
supervisor / person in charge must immediately be notied of this.
5. Due to the nature of HVAC cleaning (done in intervals, team
changing positions etc.), exposure to vibrations (hands only) is well
below all dened levels.
6
LIFA Special Cleaner 20 / 25 Multi

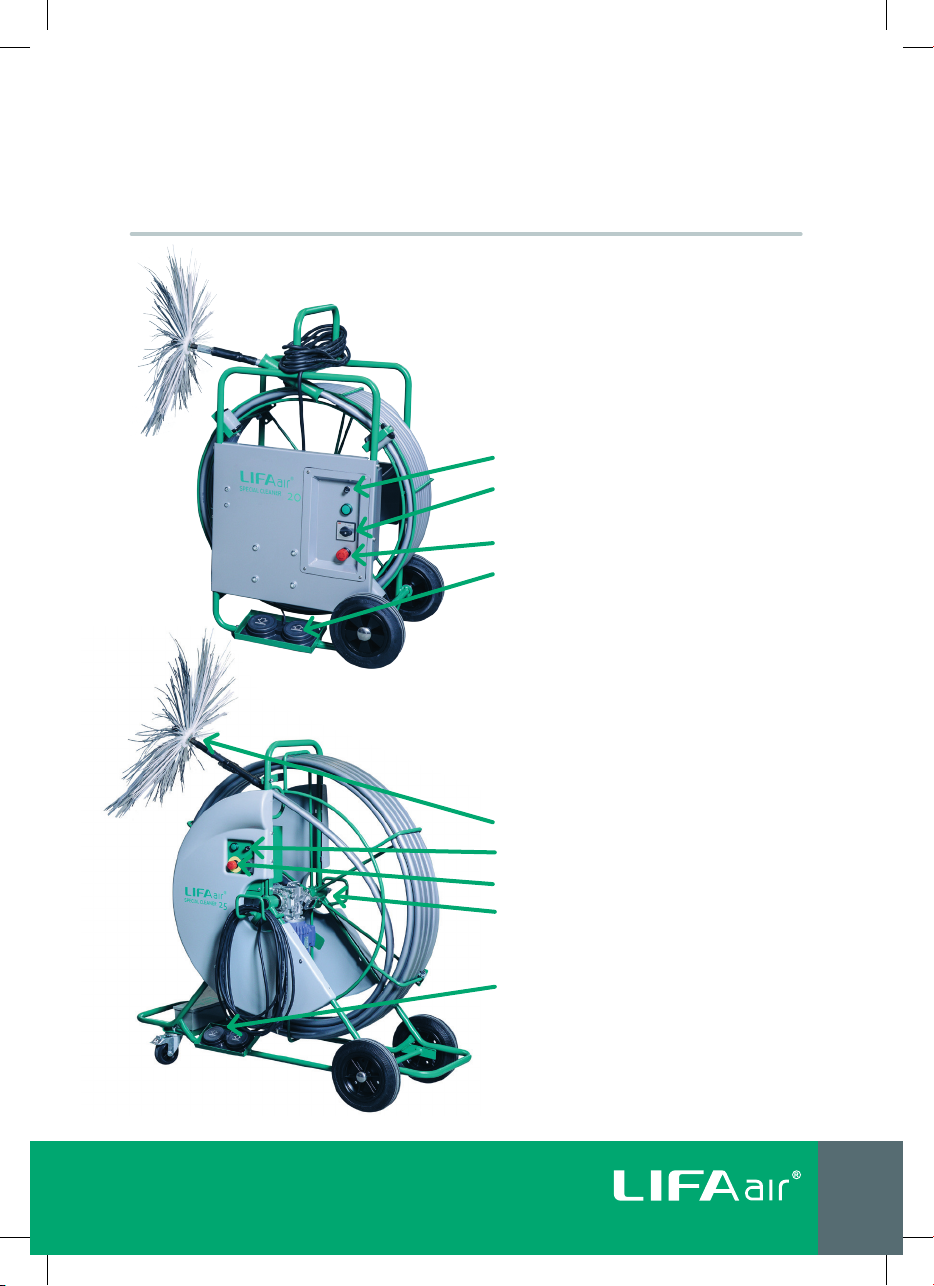

Construction and Control
1. Linear rotation speed control
2. Main switch (2 stepped, rotate until
green light switches on)
3. Emergency stop
4. Pneumatic pedal – changing of the
rotation and operation direction
LIFA Special Cleaner 20
1. Nozzle for liquids and compressed air
2. Linear rotation speed control
3. Protective switch for motor
4. The main valve for the liquid and the
compressed air connection (situated
behind in the picture)
5. Pneumatic pedal – changing of the
rotation and operation direction
LIFA Special Cleaner 25 Multi
7

Operating Principles
a)
c)
b)
d)
Before beginning the work, check the ductwork with a) LIFA Duct Control (accessory)
equipment and choose the suitable b) brushes and nozzles based on the size and
construction of the duct as well as the composition of the removable dirt.
• Before beginning the work, check
the ductwork channel network with
LIFA Duct Control (accessory) camera
inspection equipment. There may be
air volume controllers, noise silencers,
re dampers etc. that can be damaged
during the work.
• In large rectangular ducts, there might
be supporter poles inside the duct.
Use extra care, when dealing with
ducts equipped with supporters. When
cleaning large rectangular or round
ducts the use of LIFA centering device
(accessory) is highly recommended.
• Place the machine in a rm position.
• Choose a right sized brush (depending
on the size of the duct). Make sure
that the brush isn’t too small or big for
the duct that is going to be cleaned.
LIFA SC25 Multi: Nylon grease / Tynex
8
LIFA Special Cleaner 20 / 25 Multi

GREASE DUCTS: LIFA Special Cleaner 25 Multi may be used for grease duct cleanings.
Please ask us more about our grease removal concept!
brushes are meant for cleaning the
grease ducts. The combination brushes
are meant to use only in grease duct
cleaning.
• LIFA SC25 Multi: If the purpose is to
spray coating or disinfectant into the
duct at same time, place an air hose
with compressed air or low-pressure air
sprayer into the machine depending on
the purpose of use. Choose a correct
nozzle (check the accessory list).
• Make sure that the working area
is cleared and there are no extra
personnel.
• Ensure that all the employees
performing the work have adequate
protective equipment.
• Make sure that there is enough low
negative pressure in the channel
network and that LIFA HepaClean or
LIFA AirClean negative pressure unit
(NPU) is installed correctly. The brushed
off debris is removed by sucking it to
the NPU.
• Connect the machine into an electrical
network.
• It is recommended to connect an
additional grounding wire between the
brushing machine and air duct.
• Place the brush inside the ventilation
duct that is going to be cleaned.
• When the operator who is feeding the
shaft into the duct gives a permission to
start the machine, the machine can be
started.
• When the shaft is being fed to the duct
sharp angles and screws etc. that can
damage the shaft must be beware of.
• Adjust the rotating speed of the brush.
Note that when cleaning “soft” ducts
(with insulation inside) the rotating
speed should be much lower than in
normal ducts. Too high a rotation speed
may damage the ductboard surface.
• The brush must be rotated to clockwise
and counter clockwise evenly (50/50).
Use both rotating directions to achieve
the best cleaning result. In rectangular
ducts, it may be required to clean one
side rst (with rotating the brush in one
direction only) and after that another
side.
• Feed the shaft evenly into the duct
without excessive force. The use of
excessive force may harm the duct,
machine or brush and inuence on the
cleaning result. Always insert the shaft
gently and smoothly into the ductwork,
to prevent the brush from ‘jumping’ and
leaving unclean spots into the duct.
• It is also advised to use the-one-and-
only specially designed centering
device and/or shaft holder by LIFA in
big ducts and/or when full rotation
speed is being used.
9

Service and Maintanance
Before any maintenance work the machine has to be
plugged off from the mains!
The following maintenance and upkeep work must be done in regular basis
depending on the purpose of which the machine is being used. This enables
a trouble-free use.
General Cleanliness
Keep the machine as free from dirt and dust as possible. Dirt and grease
may cause a failure in the electrical equipments. The use of running water is
forbidden.
Cleaning of the frequency converter
Unplug the machine from the electrical network. The frequency converter
maintains its voltage for a long time after it has been unplugged from the
electrical network. When the voltage has permanently dropped the protective
casing can be removed safely. Blow compressed air gently into the frequency
converter between the slots that enables the accumulated dust to come
out. If there is dirt accumulated on the surface of the frequency changer it
can be wiped off with a damp cloth. When the protective casing is open it is
recommended to check the tightness of the binding screws. After that the
protective casing can be closed.
When the machine is in daily professional use it should be delivered to its
rst regular maintenance to the manufacturer or to repair shop that has been
authorized by the manufacturer after six months from the rst commissioning
date (approximately 100 hours). The warranty expires if the machine has not
been delivered to its rst maintenance on time.
10
LIFA Special Cleaner 20 / 25 Multi

Electric motor
The outside of the electric motor can be cleaned with a damp cloth. The inside of the
motor is recommended to be cleaned with compressed air. This is done by blowing
the compressed air to the air inlet of the motor.
Electrical connections
ONLY an authorized electrician can do the electrical connections and other electrical
installations. However, it is good to visually ensure that the connections are tight and
the wirings are in order.
Cleaning shaft
The cleaning shaft must be cleaned every time after use. The dirt and grease that has
collected to the plastic surface can be removed with a mild grease removal detergent
that is meant for plastic surfaces. Some lubricant (synthetic Vaseline, lubricating oil
etc.) must be put between the turnbuckle and the outer bearing in the brush adapter
regularly.
Liquid nozzles (only LIFA SC25 Multi): After use, the nozzles and the hoses should
be rinsed with water so they will not get blocked and there will be no residues of old
detergents. Corrosive detergents and solvent substances may eat into the hose.
After rinsing the hose should be run clean with compressed air.
NOTE!
Possible repairs must be carried out by the manufacturer or a servicer authorized
by Lifa Air Oy Ltd. Third party repairs will void the warranty.
11

Technical Data
LIFA Special Cleaner 20 and 25 Multi brushing machines
CE-plate is situated behind the protective switch for motor above the motor. Plugging in,
maintenance and spare part supply must be done in accordance with the information given in this plate.
LIFA Special Cleaner 20 LIFA Special Cleaner 25 Multi
Operating power: Electricity Electricity
Operating voltage: 240 VAC
(120 VAC also available), 1~
240 VAC
(120 VAC also available), 1~
Frequency: 50/60 Hz 50/60 Hz
Motor: 0,37 kW / 10 A 0,75 kW / 10 A
Electric cable: 3G1.5 mm², 7 meters 3G1.5 mm², 7 meters
Motor rotation speed N1: 2780 rpm 2780 rpm
Brush rotation speed N2: Linearly adjustable: 225–570 rpm Linearly adjustable: 225–570 rpm
Pneumatic control: Pneumatically operated
electronically direction change
switch
Pneumatically operated
electronically direction change
switch
Main switch/ direction
changing switch:
Pneumatically operating and
direction change switches
Pneumatically operating and
direction change switches
Brush connection: M12 M12
Duct size: Ø 100–315mm Ø 250–700 mm
Recommended
soft brush size:
100–400 mm 250–800 mm
Nozzle connection - Quick coupling
Dimensions:
Height:
Length
Width
970 mm (35.8”)
640 mm (25.2”)
480 mm (18.9”)
1290 mm (50.8”)
1100 mm (43.3”)
570 mm (22.4”)
Weight: 38 kg (84 lbs) 75 kg (165 lbs)
Length of the cleaning shaft: 20 m (65.6 ft.) 25 m (82 ft.)
Shaft: 10 M PEX, 10 mm exible
steel wire
10 M PEX, 11 mm glass bre
shaft, 12 mm exible steel wire
12
LIFA Special Cleaner 20 / 25 Multi

Spare parts and accessories
CE-plate is situated behind the protective switch for motor above the motor. Plugging in,
maintenance and spare part supply must be done in accordance with the information given in this plate.
BASIC BRUSHES
SC20 SC25 Multi
6420281010361 100 mm M12 x–
6420281010378 125 mm M12 x–
6420281010392 200 mm M12 x–
6420281010415 300 mm M12 x x
6420281010439 400 mm M12 x x
6420281010446 500 mm M12 x x
6420281010453 600 mm M12 – x
SOFT M12 CONNECTION ARROW POINT BRUSH
SC20 SC25 Multi
6420281012280 125 mm M12 x–
6420281012297 200 mm M12 x–
6420281012303 340 mm M12 x–
COMBINATION BRUSHES FOR RECTANGULAT DUCTS (SOFT AND HARD BRISTLE)
SC20 SC25 Multi
6420281010668 150/350 mm M12 x x
6420281010675 200/400 mm M12 x x
6420281010699 300/500 mm M12 x x
6420281010712 400/600 mm M12 x x
6420281010729 500/700 mm M12 – x
SOFT BRUSH WITH NYLON CENTER AND DISK
SC20 SC25 Multi
6420281010507 200/400 mm x x
6420281010514 300/500 mm x x
6420281012624 400/600 mm x x
6420281010736 500/700 mm – x
6420281013027 600/800 mm – x
6420281010743 700/900 mm
(28/35 inch)
x
13

OTHER ACCESSORIES
SC20 SC25 Multi
6420281010309 Brush Adapter for LIFA Brushes with
Nylon Center
x x
6420281010316 Brush Adapter Flexible
M12 Connection for small, round ducts
x x
6420281021992 2-way rotation adapter kit for lifting
shaft in vertical ducts
x x
6420281012839 Remote Hand Control,
pneumatic
x x
6420281012341 Shaft Holder a tool to prevent shaft
from scratching to access opening /
sharp edges
x x
6420281021824 Centralizer Device, mechanical (SC20) x-
6420281010095 Centralizer Device, mechanical (SC25) -x
6420281021268 Liquid Spray Kit for SC20,
incl. 5 liters PLASTIC spray bottle,
app. 10 m hose on reel, mounting
pieces to the frame + shaft
x-
7720281060038 Low Pressure Spraying Unit
(stainless steel), 5 liters vessel with
quick coupling to SC25 Multi
- x
EAN Cleaning hatches, ie. service hatches,
round and rectangular ducts.
Ask more!
x x
EAN Duct inspection cameras, for example
DuctTruck, LIFA Drop camera.
Ask more!
x x
6420281010293 Ready to install shaft for SC20, grey x-
6420281010323 Repair kit for SC20 shaft brush end x-
6420281011894 Repair kit for SC20 shaft motor end x-
6420281020704 Ready to install shaft for SC25 Multi -x
H1025 Pneumatic footcontrol x x
H1026 Pneumatically controlled contactor x x
H1077 Heat shrinkable plastic hose x x
14
LIFA Special Cleaner 20 / 25 Multi

LIFA SC25 MULTI ACCESSORIES
Nozzles
Grease duct cleaning– accessories and brushes
Grease duct cleaning: Ask more for our effective grease removal concept!
642028102006 Foam Nozzle
6420281024566 High Volume Air Jetting Nozzle
6420281020513 Basic Liquid Nozzle with Backressure Valve
28 Grease comb (W.F.T.T. gauge), for measuring the thickness of the
grease layer accuracy 25 microns
6420281020728 Telescopic rod, stiff, for moving grease or brushes, 5-part
(length min.–max 0,85–2,9 m)
6420281020551 Scrapers for rectangular ducts 5 pcs with screw fastening;
Attach the plates to 11 mm berglass ROD or single telescopic
rod with M 12 fastening
6420281022319 Scrapers for round ducts with 2 pcs screw fastening;
Attach the plates to 11 mm berglass – or single telescopic rod
with M12 fastening
6420281021091 Granule Spraying Machine for Grease Removal Concept
6420281021428 Super Oil Adsorbent Granule 20 kg sack
(ne/small granule size, 0,8–1 mm)
6420281021053 Gravitational / Cyclone Filter Unit 120 l for Grease Removal
Concept (incl. T-joint + 2 x 5 m ex ducts with 305 mm
attachments)
6420281021220 Adhesive protective tape, improves vacuum, covers grills and
ventilation shafts, width 16 cm, length 50 m
6420281020209 Grease duct chopper, small, adjustable 250–300 mm
H1122 Blades for grease chopper, small, 350 mm
6420281023439 Tynex abrasive brush 200/400 mm, nylon center
6420281021213 Tynex abrasive brush 400/600 mm, nylon center
6420281023484 Tynex-brush 600/800 mm, M12, nylon-center
64202810107- Aggressive grease brush wih nylon center; size of the brush
(EAN-code): 200 mm (6420281010750), 300 mm (6420281010767),
400 mm (6420281010774), 500 mm (6420281010781),
600 mm (6420281010798)
64202810201- Grease brush M12 with 2,5 mm bristle M12; size of the brush
(EAN-code): 350 mm (6420281020117), 450 mm (6420281020124),
550 mm (6420281020131), 700 mm (6420281020162)
15

Warranty
The warranty period is one (1) year
starting from the date of purchase and
is valid according to the regular terms of
delivery, provided that these operational
and maintenance instructions have been
carefully followed. Using anything other
than original LIFA accessories (brushes,
lters etc.) in the equipment will void
the warranty.
Repair is free of charge within the
warranty period (proof of purchase /
receipt must be presented) under the
following conditions:
• The defect is caused by defects in
materials or defective components.
• Defects caused by normal wear
and tear, misuse or insufcient
maintenance are NOT covered by
the warranty.
• The machine has been delivered to
the rst compulsory maintenance
check within 6 months and/or 100
hours of use.
• Any maintenance and repairs must be
carried out by the manufacturer or by
an authorized representative of the
manufacturer. Manufacturer does not
take responsibility for maintenance
carried out by a third party.
• A written reclamation form has to be
lled out and sent with descriptive
photos to the manufacturer.
The appliance shall be delivered
to the authorized Lifa Air Oy Ltd
representative from whom the buyer
has bought the machine from OR when
agreed mutually in writing beforehand
to the factory postage paid to:
Lifa Air Oy Ltd
Vellamonkatu 30 B
FI-00550 Helsinki
FINLAND
Tel. [phone]
Email: [e-mail]
Please note that the machine must be
cleaned of hazardous materials before
sending it to the manufacturer or a
servicer authorized by manufacturer for
maintenance. In case the machine has
not been cleaned appropriately,
Lifa Air Oy Ltd will charge the customer
for the cleaning of the machine.
Lifa Air Oy Ltd reserves the right to
introduce changes without a further
notice.
16
LIFA Special Cleaner 20 / 25 Multi

Recycling
The machine can always be returned to the LIFA Air authorized
representative from which the buyer has bought the machine from, or
to the address above postage paid in case there is no recycling facility
where the owner lives.
• Metal parts (frame, reel, motor) can be recycled as metal scrap.
• Electrical parts (frequency converter, main switch) should be returned
to an authorized recycling depot.
• Other parts can be recycled as mixed normal waste.
17

Declaration of Conformity
LIFA Air Product Family
Manufacturer’s name: Lifa Air Oy Ltd
Manufacturer’s address: Vellamonkatu 30 B,
FI-00550 Helsinki, Finland
Manufacturer’s telephone: [phone]
Manufacturer’s website: www.lifa.net, www.lifa-air.com
Model: LIFA Special Cleaner 20
LIFA Special Cleaner 25 Multi
Lifa Air Oy Ltd is ISO 9001 and ISO 14001 Certied.
Lifa Air Oy Ltd, hereby states, with sole responsibility, that the machine models
covered by this announcement comply with the requirements of the following
EC directives and standards:
• EU Low Voltage Directive LVD 2014/35/EY
• EU Electromagnetic Compatibility Directive EMC 2014/30/EY
• EU Directive of the restriction of the use of certain hazardous substances in
electrical and electronic equipment RoHS 2011/65/EC
• EN ISO 12100:2010 Safety of machinery
• EN 60204-1:2007 Safety of machinery. Electrical equipment of machines.
General Requirements.
The product fulls requirements for CE-marking.
Lifa Air Oy Ltd 10.01.2018
Johan Brandt, CEO
18
LIFA Special Cleaner 20 / 25 Multi

LIFA Air Product Family
SC 20 SC 25 Multi Hydmaster 40 CC 15 CC 40 AirJet
Combi 20
DC Robo
Operating
power
Electricity Electricity Hydraulics Compressed
Air
Compressed
Air
Compressed
Air
Compressed
air (brush)
+ electricity
(driving)
Operating
voltage
and
frequency
240 VAC (or
110-120 VAC),
1~, 50/60 Hz
240 VAC (or
110-120 VAC),
1~, 50/60 Hz
240 VAC (or
110-120 VAC),
1~, 50/60 Hz
-- -- -- 12 VDC
Motor 0,37 kW
(0.5 hp)
0,75 kW
(1.0 hp)
1,1 kW
(1.5 hp)
0,11 kW
(0.15 hp)
0,4 kW
(0.6 hp)
-- 0,11 kW
(0,15 hp)
Fuse 10 A 10 A 16 A -- -- -- 5 A
Max torque 5 Nm
(3.7 ft•lb)
5 Nm
(3.7 ft•lb)
10 Nm
(7.4 ft•lb)
3 Nm
(2.2 ft•lb)
6,5 Nm
(4.8 ft•lb)
-- 3 Nm
(2.2 ft•lb)
Brush
connection
M12 M12 M12 M12 M12 - M12
Duct size
recom-
mendation
100–400 mm
(3,9–15,7")
250–800 mm
(9,8–31,5")
400–1200 mm
(15,7–47,2")
160–600 mm
(6,3–23,6")
400–1200 mm
(15,7–47,2")
-- 200–700 mm
(7,9–23,6")
Brush
rotation
speed
Continuous
adjustment,
225–580 rpm
Continuous
adjustment,
225–580 rpm
Continuous
adjustment,
225–880 rpm
Continuous
adjustment
max. 1000 rpm
Continuous
adjustment,
max. 670 rpm
-- Continuous
adjustment,
max. 1000 rpm
Rotation
controls
Foot pedal,
remote
hand control
(accessory)
Foot pedal,
remote
hand control
(accessory)
Foot pedal,
remote
hand control
(accessory)
Manual /
Air valve
Manual /
Air valve
-- Manual /
Air valve
Nozzle
connection
- Quick
coupling
- Quick
coupling
Quick
coupling
Quick
coupling
Quick
coupling
Air volume
consump-
tion
- Nozzle type
dependant
- 340 l/min
(12 CFM),
7 bar
400 l/min
(14 CFM),
7 bar
100–600
l/min
(3.5–21
CFM ),
7 bar
340 l/min
(12 CFM),
7 bar
Measure-
ments
[mm]
H910 (35.8")
L640 (25.2”)
W480 (18.9”)
H1290 (50.8")
L1100 (43.3”)
W570 (22.4”)
H1290 (50.8")
L1100 (43.3”)
W570 (22.4”)
H910 (35.8")
L640 (25.2”)
W480 (18.9”)
H1290 (50.8")
L1100 (43.3”)
W570 (22.4”)
H910 (35.8")
L640 (25.2”)
W480 (18.9”)
H190 (7.5")
L410 (16.1”)
W280 (11”)
Weight 38 kg
(84 lbs)
71 kg
(157 lbs)
93 kg
(205 lbs)
17 kg
(37 lbs)
45 kg
(99 lbs)
15 kg
(33 lbs)
8 kg
(18 lbs)
Cleaning
shaft
20 m
(65.6 ft.)
25 m
(82 ft.)
40 m
(131 ft.)
15 m
(49.2 ft.)
40 m
(131 ft.)
20 m
(65.6 ft.)
25 m (82 ft.)
(driving cable)
Accessories Mechanical
centering
device, hand
controller
Y-gear,
mechanical
centering
device, hand
controller,
spray bottle,
nozzles
Y-gear,
3-brush-gear,
mechanical
centering
device, hand
controller
Y-gear,
3-brush-gear,
mechanical
centering
device, spray
bottle, nozzles
Y-gear,
3-brush-gear,
pneumatic
centering
device, hand
controller
Mechanical
centering
device,
spray bottle,
nozzles
Y-gear,
3-brush-gear,
spray bottle,
nozzles
19

Lifa Air Oy Ltd
Vellamonkatu 30 B, 00550 Helsinki, Finland
[phone] | [e-mail] | www.lifa.net | www.lifa-air.com
These instructions should always be available for the personnel operating the machine.
Please read these instructions carefully before operating the machine.
Following these instructions in detail ensures many years of trouble-free use.
