ASSEMBLY INSTRUCTIONS

Congratulations...
and welcome to the world of Life Fitness
and the Life Fitness 95Ci / 93C / 90C / C9i / C7i Exercise
Bikes.
The following Parts Identification Listing and the step by step assembly
procedures have been assembled to make the set-up of the Exercise Bikes as
quick and easy as possible.
Please take special note of the following important points prior to choosing a
location and beginning assembly of the Exercise Bikes.

IMPORTANT SAFETY INSTRUCTIONS!
⇒DO NOT locate the Exercise Bike outdoors, near swimming pools, or in areas of high humidity.
⇒DO NOT operate your Exercise Bike if it has been dropped, damaged, or even partially immersed
in water. Contact Life Fitness Customer Support Services at the number in the Operation Manual.
⇒DO NOT locate the Exercise Bike any closer than 30 inches ( 76 cm ) to a television set.
⇒DO NOT locate additional Exercise Bike any closer than a minimum of 42 inches (107 cm) from
center to center to avoid interference (cross talk) between Heart Rate monitors.
⇒DO keep the area around your Exercise Bike clear of any obstructions, including walls and furniture.
⇒DO verify the contents of the delivery carton against the accompanying Parts Listing prior to setting
the cartons and shipping material aside. If any parts are missing, contact Life Fitness Customer
Support Services at the number listed in the Operation Manual. Save the shipping cartons in case of
return.
⇒DO read the entire Operation Manual prior to attempting to operate this machine as this is essential
for proper use.
⇒NE PAS placer le vélo d’exercice allongé Lifecycle à l’extérieur, près d’une piscine ou dans un
endroit très humide.
⇒NE PAS faire fonctionner le vélo d’exercice allongé Lifecycle s’il est tombé, s’il a été endommagé ou
s’il a été partiellement plongé dans l’eau. Téléphoner au service après-vente de Life Fitness dont le
numéro figure sur la couverture arrière du guide d’installation.
⇒NE PAS placer le vélo d’exercice allongé Lifecycle à moins de 76 cm (30 po) d’un poste de
télévision.
⇒MAINTENIR la zone autour du vélo d’exercice allongé Lifecycle libre de toute obstruction, y compris
murs et meubles.
⇒VÉRIFIER si l’emballage contient toutes les pièces de la liste jointe avant de le mettre de côté. Si des
pièces manquent, téléphoner au service après-vente de Life Fitness dont le numéro figure sur la
couverture arrière du guide d’installation. Conserver l’emballage au cas où l’appareil devrait être
renvoyé.
⇒LIRE le manuel de l’utilisateur tout entier avant d’essayer de faire fonctionner cet appareil. Ceci est
indispensable à son utilisation correcte.

TOOLS REQUIRED FOR ASSEMBLY...Phillips screwdriver
PARTS DESCRIPTION
1 Hex Button Mounting Bolt Qty: 8
3/8-16 x 3/4”
0017-00101-1704
2 Phillips Pan Head Screw (Model 95Ci / 93C / C9i ) Qty: 12
8-18 x 5/8” (Model 90C / C7i ) Qty: 8
0017-00101-1253
3 Accessory Tray Qty: 1
0K63-01030-0000 (C9i)
0K63-01030-0001 (95Ci/93C Only)
4 Console Assembly Qty: 1
5 Top Polar Cover Qty: 1 6 Bottom Polar Cover Qty: 1
7 Left Seat Post Shroud Qty: 1 8 Right Seat Post Shroud Qty: 1
9 Left Pedal Strap Qty: 1
0K63-01238-0004 (Model 95Ci / 93C)
0K63-01237-0004 (Model 90C / C9i / C7i )
10 Right Pedal Strap Qty: 1
0K63-01238-0003 (Model 95Ci / 93C)
0K63-01237-0003 (Model 90C / C9i / C7i )
11 Handlebar Qty: 1 12 Battery Qty: 1
13 Polar Receiver Qty: 1 14 Polar Receiver Sleeve Qty: 1
15 Torx / Standard Screw Qty: 1
#8-18 x 3/4”
(Model 95Ci / 93C / 90C)
0017-00101-0991
1” 2” 3” 4” 5”
1 2
15

5
11
6
3
7
8
2
4
15
1
1
12
2
2

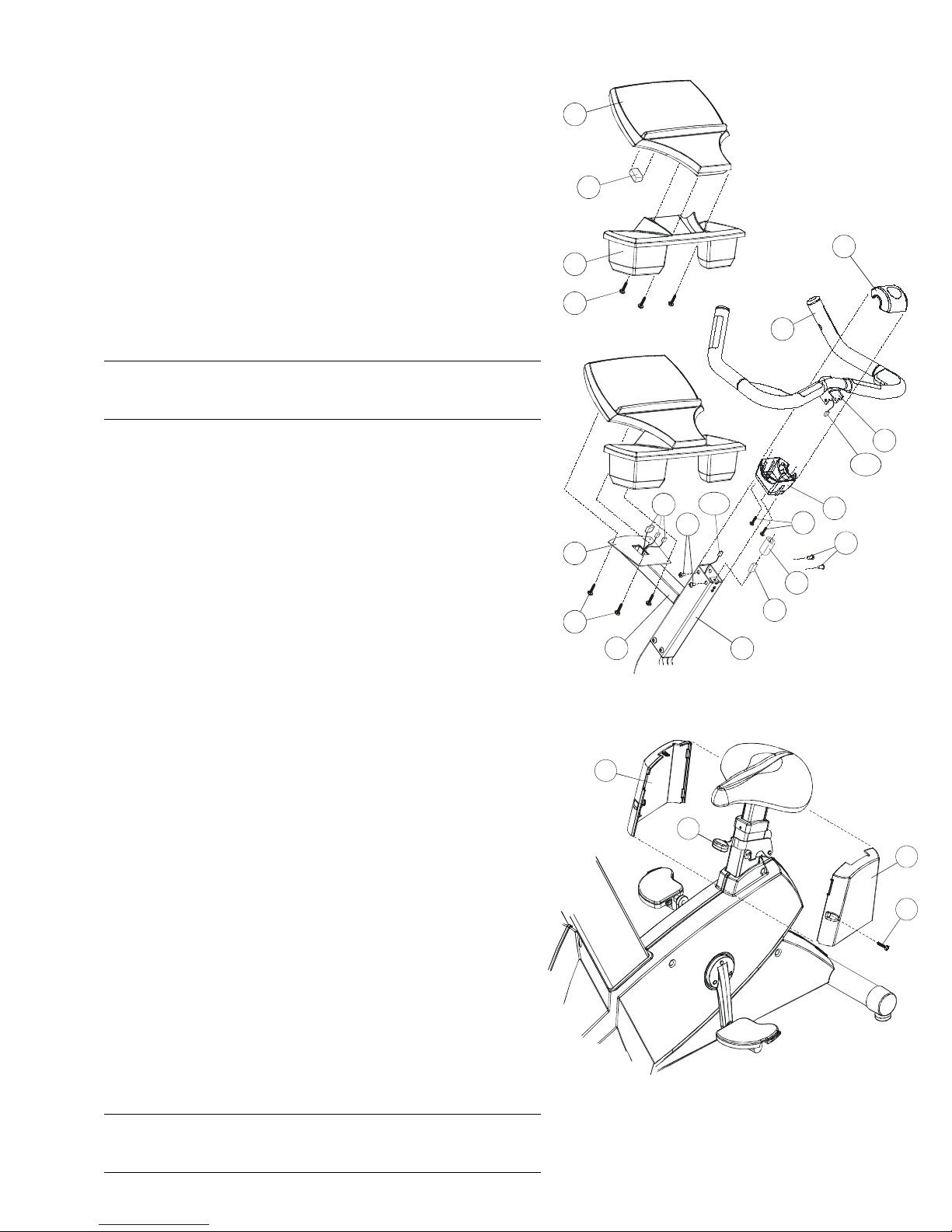

1. Locate the BOTTOM POLAR COVER (#6). Position the cover
as shown with the notch of the center hole facing downward.
Slide the BOTTOM POLAR COVER down over the UPPER
CONSOLE SUPPORT TUBE (A) until it rests against the
FRONT TUBE EXTENSION (B).
2. Position the HANDLEBAR (#11) as shown near the UPPER
CONSOLE SUPPORT TUBE (A).
3. Models C9 and 95Ci Only
Connect the 2-PIN HEART RATE CONNECTOR (2P) leading
from the HANDLEBAR (#11) center to the 2-PIN HEART
RATE CONNECTOR (2P) leading from the UPPER
CONSOLE SUPPORT TUBE (A).
4. Carefully slide the HANDLEBAR MOUNTING FLANGES (C)
into the UPPER CONSOLE SUPPORT TUBE (A).
NOTE: BE CAREFUL NOT TO PINCH THE HEART RATE
CABLE WHEN INSERTING THE HANDLEBAR FLANGES
(C) INTO THE UPPER CONSOLE SUPPORT TUBE (A).
5. Secure the HANDLEBAR (#11) to the UPPER CONSOLE
SUPPORT TUBE (A) using four MOUNTING BOLTS (#1).
Tighten the SCREWS to 28-32 ft. lbs.
6. Models C7i, C9i, 93C and 95Ci Only
Insert the POLAR RECEIVER (#13) into the polar receiver
receptacle located at the center of the UPPER CONSOLE
SUPPORT TUBE (A). Slide the POLAR RECEIVER SLEEVE
(#14) over the POLAR RECEIVER covering the entire POLAR
RECEIVER.
7. Locate the TOP POLAR COVER (#5). Slide the BOTTOM
POLAR COVER (#6) upward toward the HANDLEBAR (#11)
until it contacts the HANDLEBAR. Position the TOP POLAR
COVER over the POLAR RECEIVER (#13) and HANDLEBAR
and align it to the BOTTOM POLAR COVER. Secure the TOP
POLAR COVER to the BOTTOM POLAR COVER using four
PHILLIPS SCREWS (#2) as shown.
8. Models C9i, 93C and 95Ci Only
Align the ACCESSORY TRAY (#3) to the bottom of the
DISPLAY CONSOLE (#4) as shown. Secure the
ACCESSORY TRAY to the DISPLAY CONSOLE using four
PHILLIPS SCREWS (#2).
9. Models C7i and 90C Only
Remove the BATTERY DOOR located on the back of the
DISPLAY CONSOLE (#4). Locate the supplied 9-VOLT
BATTERY (#12) and connect it to the battery lead. Place the
BATTERY into the DISPLAY CONSOLE and replace the
BATTERY DOOR.
10. Position the DISPLAY CONSOLE (#4) above the MOUNTING
BRACKET (D) as shown. Attach all CONNECTORS (E)
leading from the DISPLAY CONSOLE MOUNTING BRACKET
to the corresponding CONNECTORS located on the back of
the DISPLAY CONSOLE.
11. Attach the DISPLAY CONSOLE (#4) to the DISPLAY
CONSOLE MOUNTING BRACKET (D) using four SCREWS
(#2).
NOTE: BE CAREFUL NOT TO PINCH ANY CABLES WHEN
SECURING THE DISPLAY CONSOLE (#4) TO THE
DISPLAY CONSOLE MOUNTING BRACKET (D).
2
3
4
2
14
6
C
5
13
A
2P
2P
D
E
11
B
1
1
12
2
7
15
8
F

Tighten the screws securely.

12. Models 90C, 93C and 95Ci Only
Locate the USER LEFT AND RIGHT SEAT POST COVERS
(#7 & #8). Position the USER LEFT SEAT POST COVER (#7)
below the seat covering the ADJUSTMENT LEVER (F) as
shown. Interlock the two tabs of the USER RIGHT SEAT
POST COVER (#8) to the corresponding slots of the USER
LEFT SEAT POST COVER and pivot it forward to meet the
USER LEFT SEAT POST COVER enclosing the SEAT
ADJUSTMENT LEVER. Secure the SEAT POST COVERS
together using one SCREW (#15).
13. Locate the RIGHT PEDAL STRAP (#10) marked with an “R”.
Attach the RIGHT PEDAL STRAP to the RIGHT PEDAL (G)
with the double slot on the inward pedal strap tab looping
upward and attaching to the outward pedal strap tab. Repeat
for the LEFT PEDAL STRAP (#9) marked with an “L”.
PRE-OPERATION CHECKLIST
!Ensure that the console support screws are tight.
!Make sure the Exercise Bike is properly leveled and stable.
!Ensure that the Leveler Jam Nuts are tight.
!Read the entire Operation Manual before using the Exercise Bike.
Before attempting to operate your Exercise Bike, it is imperative that you familiarize yourself with the
contents of the Operation Manual. If your Exercise Bike does not respond as described in the OPERATION
MANUAL, contact the nearest Life Fitness service center as listed in the Operation Manual.
