Life Fitness Lifecycle LC9500 User manual

Lifecycle

Upright Bikes
LC9500, LC9100, LC8500, C9, C7,
95Ce, 95Ci, 93Ci, and 90C
Customer Support Services
SERVICE MANUAL

i
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
GENERAL CONTENTS
INTRODUCTION ...............................................................................................................ii
SPECIAL SERVICE TOOLS .............................................................................................iii
GLOSSARY (Pending) .....................................................................................................iv
COMPONENT IDENTIFICATION......................................................................................v
SECTIONAL CONTENTS
TROUBLESHOOTING 1
DIAGNOSTICS LED 2A
DIAGNOSTICS LCD 2B
HOW TO…SERVICE 3
ELECTRONICS 4
MISCELLANEOUS 5

ii
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
INTRODUCTION
This service manual is applicable to Upright Exercise Bikes LC9500, 9100, 8500, C9, C7, 95Ci, 93Ci, 90C, and
95Ce LCD. Information represents typical configuration and may differ slightly from actual equipment. The service
manual provides recommendations for safe and efficient approaches to problem situations.
If an operating problem should arise, turn to the TROUBLESHOOTING GUIDES and attempt to isolate what is
causing the malfunction. The GUIDES are listed by symptoms and follow with suggestions as to the most probable
cause of the problem.
Once you have pinpointed the source of the problem, turn to the appropriate "How To..." section and review the
proper procedures for removing, replacing or adjusting a part. The "How To..." sections are organized by
replaceable part (or assembly) name and each page lists the “Special Tools Required“ to complete the specific
task.
Refer to COMPONENT IDENTIFICATION in the front part of this section to locate and identify in order service
repair parts for your machine.
If you do not have a part in stock, a form to order by FAX has been included in Section V for your convenience or
you can call Life Fitness Customer Support Services any Monday through Friday from 8:00 AM to 6:00 PM ( C.S.T.
). When you place a call, in order to speed our response to your particular situation, please have the following
information available for the customer service phone technician who will be prepared to assist you:
1. The Lifecycle equipment model number
2. The serial number
3. The symptom of the problem
4. The part name and number to order
When you receive your order, review the appropriate "How To..." section and follow the step by step procedures
designed to help you install the part quickly and correctly.
If you have any questions or comments please phone, mail, or fax us at:
LIFE FITNESS COMPANY - CUSTOMER SUPPORT SERVICES
10601 Belmont Avenue, Franklin Park, IL 60131; U.S.A.
Telephone: [phone], Toll Free: 800-351-3737, FAX: [phone]

iii
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
INTRODUCTION
SPECIAL SERVICE TOOL REQUIREMENTS
Unless otherwise specified, only basic hand tools are required to perform service procedures
outlined in this section. Some of these standard tools should consist of: Philips and Straight-
Blade Screw Drivers, Torx Set, Pliers, Rubber Mallet, Pry Bar, Snap Ring Pliers (internal and
external), Standard and Metric size Socket Set (3/8 or 1/2 drive), and Standard and Metric size
Combination, open-end, or Box Wrenches.
Specialized tools will be listed after the sub-heading Special Service Tools:, which appears
below the Service Procedure Heading at the top of the page. If no specialized tools are
required, then the title would read: Special Service Tools: NONE, which means that standard
hand tools should be employed to provide service to the product.
Specialized tools must be used to safely and effectively complete the service procedures.
Improvisation or attempts to use any other tool could result in unnecessary damage to the
equipment or personal injury.

iv
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
GLOSSARY
PENDING

v
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C

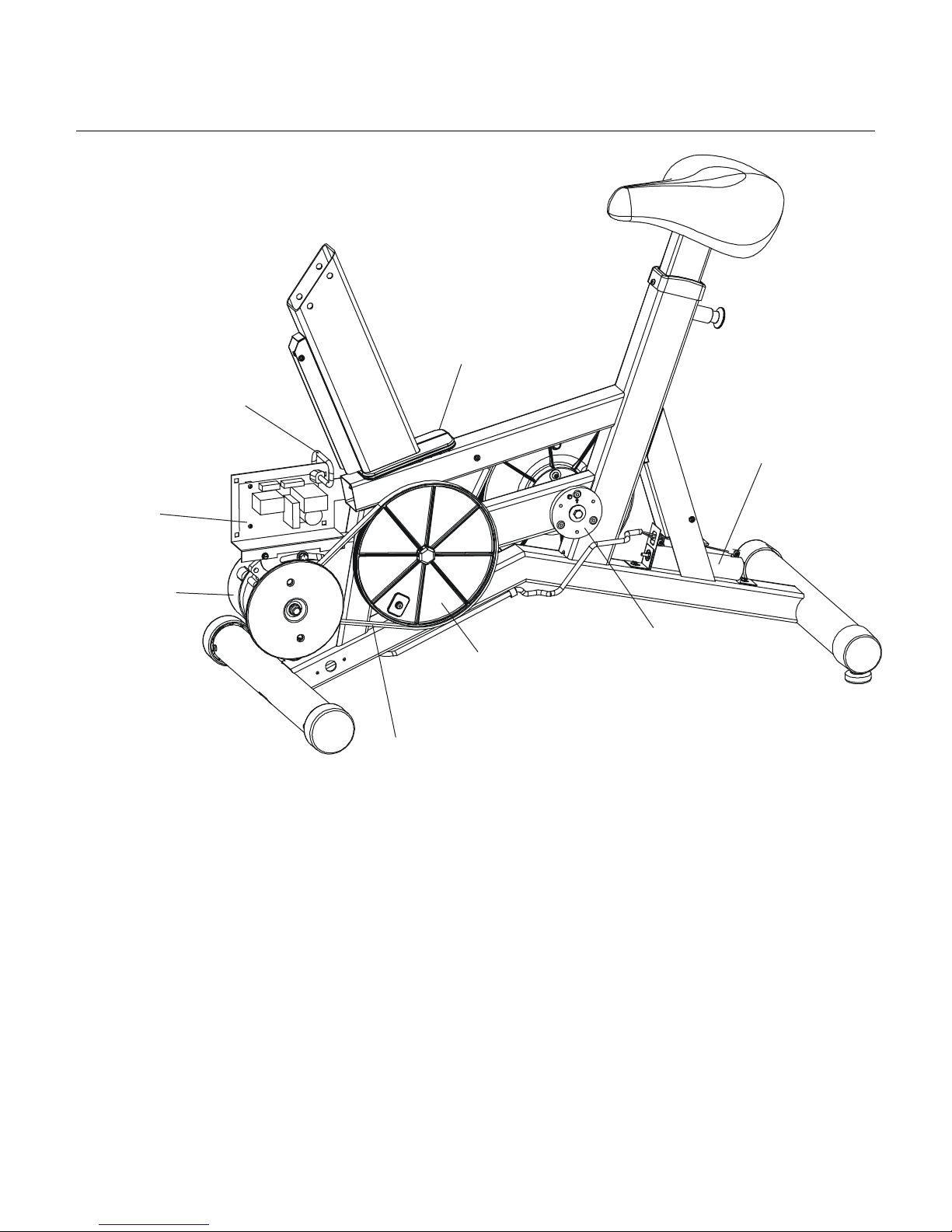

COMPONENT IDENTIFICATION – C9 and C7 Consumer Bikes
Side Shroud
Standard Seat
Seat Pull-Pin
Seat Post
Handleba
r
Accessory Tray
Console
Console Post
Front Wheels
Pedal
Crankarm
C9 Assembly Components
Note: C7 will not have accessory tray
and handlebars are without electrodes.

vi
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
COMPONENT IDENTIFICATION – C9 and C7 Consumer Bikes
PCB
Alternator
Main
Cable
Shroud
Gasket
Resistor
Assembly
Crankshaft
Hub
Alternator
Belt
Intermediate
Pulley
C7 Left Side Components
Note: C9 has a 6 volt battery
mounted on a bracket above
the PCB.

vii
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
COMPONENT IDENTIFICATION – C9 and C7 Consumer Bikes
C7 Right Side Components
Clutch
Assembly
Main Drive
Belt
Crank Shaft
Hub
Crank
Pulley
Idler
Assembly
PCB
Bracket

viii
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C

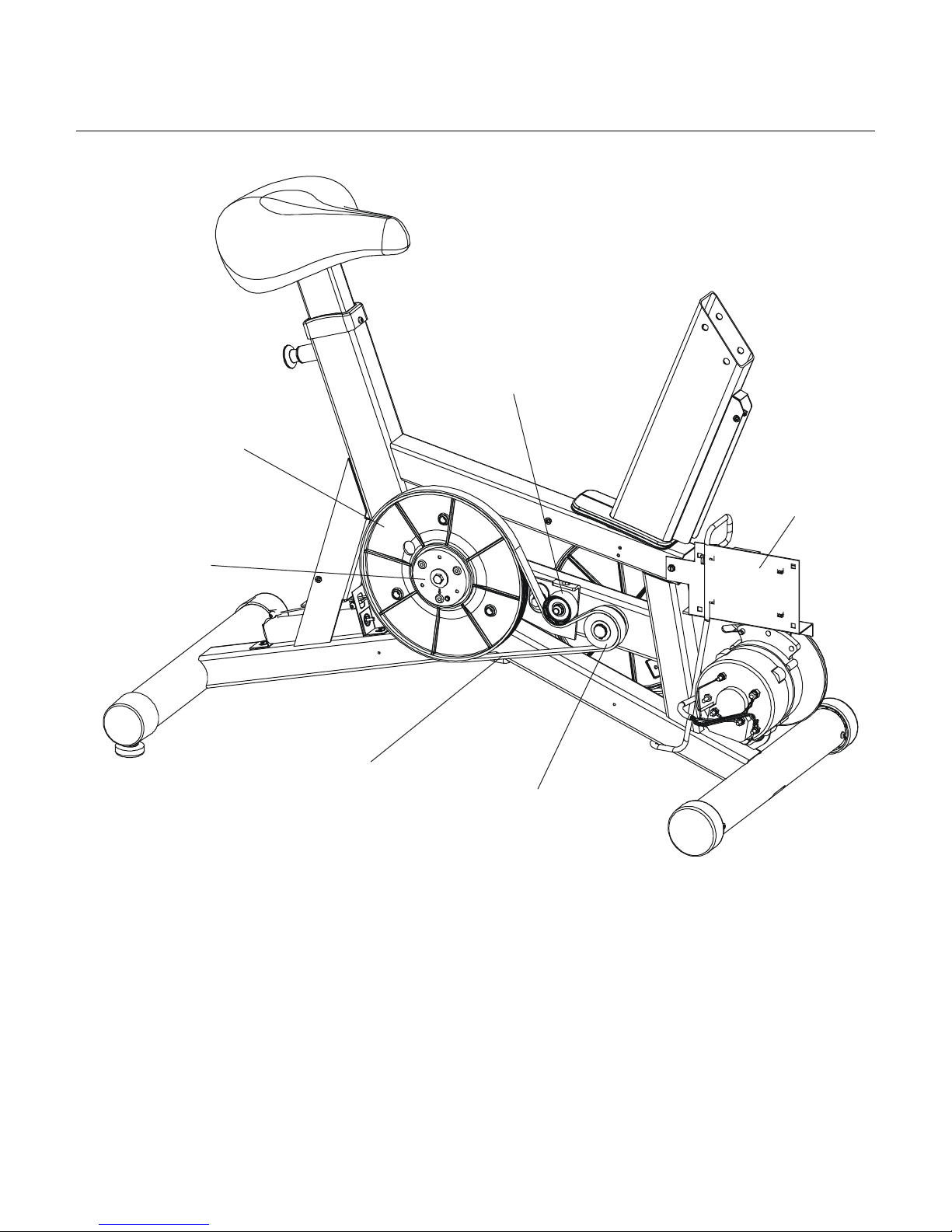

COMPONENT IDENTIFICATION - LC9500, LC9100, LC8500 Commercial Bikes
Side Shroud
Deluxe Seat
Seat Latch
Seat Post
Cover
Handlebar
Accessory Tray
Console
Console Post
Front Wheels
Pedal
Crankarm
Lc9500 Assembly Components

ix
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
COMPONENT IDENTIFICATION - LC9500, LC9100, LC8500 Commercial Bikes
Crankshaft
Hub
Resistor
Assembly
Main
Cable
Alternator
Shroud
Gasket
PCB
Alternator
Belt
Intermediate
Pulley
Lc8500 Left Side Components
Note: The Lc9500 and 9100 has a
6 volt battery mounted on a bracket
above the PCB.

x
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
COMPONENT IDENTIFICATION - LC9500, LC9100, LC8500 Commercial Bikes
Clutch
Assembly
Idler
Assembly
Crank
Pulley
Crank Shaft
Hub
Main Drive
Belt
Lc8500 Right Side Components
PCB
Bracket

1
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
SECTION I
TROUBLESHOOTING
GUIDES
Page
Display Console LEDS Not Illuminating ..............................................................................3
Display Console Initializes Then Fails................................................................................. 3
No Prompt ........................................................................................................................... 3
LEDS Not Constant.............................................................................................................4
LEDS Do Not Extinguish .....................................................................................................4
Prompt Flashes ...................................................................................................................4
Display Console Keys Does Not Function........................................................................... 4
Excessive Resistance Is Immediate.................................................................................... 5
Excessive Resistance Loading Occurs ...............................................................................5
Resistance Varies During Manual Mode.............................................................................5
Random And Hill Resistance Is Constant, No Variation...................................................... 6
Pedaling Is Difficult..............................................................................................................6
Pedaling Is To Easy ............................................................................................................6
Inadequate Resistance While Pedaling ..............................................................................7
Battery Over-Heating...........................................................................................................7
Bike Not Stable ................................................................................................................... 7
Loud Noise ..........................................................................................................................7
No Heart Rate .....................................................................................................................8
Channels Do Not Change ................................................................................................... 8
Sound Does Not Change .................................................................................................... 8
Faulty PCB .......................................................................................................................... 8
No Sound ............................................................................................................................8
Unable To Receive Channels..............................................................................................9
Snow and Noise ..................................................................................................................9
Screen Is Blank ................................................................................................................... 9
Screen Does Not Respond To Touch ................................................................................. 9
Wrong Buttons Activated when Touching Screen...............................................................9
No Buttons Activated When Touching Screen ....................................................................9
Screen Does Not Turn On And No Audio............................................................................ 9
Testing The Inverter Board..................................................................................................10
Testing The Power Supply Cable........................................................................................ 11
Notes...................................................................................................................................12

2
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
Notes

3
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Auto start not responding. Check auto start not responding.
Keypad not responding. Test keypad in diagnostics.
Insufficient battery voltage. Check battery voltage. The LC9500,
LC9100, and C9i have a 6VDC
battery (non-alkaline) which should
test at a minimum of 6.0 VDC. The
LC8500, and C7 has a 9VDC alkaline
battery and it should test at a
minimum of 9.0 VDC. Replace battery
if it fails to meet minimum
requirements.
Loose wire connections. Disconnect then reconnect
connections.
Worn or damaged wire
harnesses.
Inspect wire harnesses. Replace
worn or damaged harness.
Malfunctioning display
console.
Test with substitute display console.
Replace malfunctioning display
console.
Display Console LEDs not illuminating
Malfunctioning alternator
control board (ACB).
Test with substitute ACB. Replace
malfunctioning ACB.
Loose wire connections. Disconnect then secure connections.
No RPM. Enter Diagnostic and check for RPM.
Malfunctioning alternator. Test alternator output or test with
substitute alternator. Replace
malfunctioning alternator. Refer to
Alternator Voltage Test.
Malfunctioning alternator
control board.
Test with substitute alternator control
board. Replace malfunctioning board.
Malfunctioning display
console.
Test with substitute display console.
Replace malfunctioning display
console.
Display console initializes then fails
Worn or damaged wire
harnesses.
Inspect wire harnesses. Replace
worn or damaged harness.
Malfunctioning display
console.
Test with substitute display console.
Replace malfunctioning display
console.
No prompt upon release of START
key. Entry of additional information not
allowed.
Battery drained. Replace Battery with new one.

4
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Pedaling to slowly Pedal faster than 35 RPM.
Insufficient battery voltage Check battery voltage. The LC9500,
LC9100, and C9i have a 6VDC
battery (non-alkaline) which should
test at a minimum of 6.0 VDC. The
LC8500, and C7 has a 9VDC alkaline
battery and it should test at a
minimum of 9.0 VDC. Replace battery
if it fails to meet minimum
requirements.
Loose wire connections Disconnect then reconnect
connections.
Worn or damaged wire
harnesses
Inspect wire harnesses. Replace
worn or damaged harnesses.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Display
Console.
Malfunctioning Alternator
Control Board
Test with substitute Alternator Control
Board. Replace malfunctioning board.
Display Console LEDs are not
constant
Malfunctioning Alternator Test Alternator output or test with
substitute Alternator. Replace
malfunctioning Alternator. Refer to
Alternator Voltage Test.
Malfunctioning Alternator
Control Board
Test with substitute Alternator Control
Board. Replace defective board.
Display Console LEDs do not
extinguish in timely manner at the end
of a workout, when the CLEAR key is
pressed, or when the pedaling stops. Malfunctioning Display
Console
Inspect for damage or depression at
START key. Test with substitute
Display Console. Replace
malfunctioning Display Console.
Attempting to enter improper
duration of time
Refer to Operation Manual for time
duration requirements.
Prompt persistently flashes and entry
of additional information is not allowed.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Display
Console.
Attempting to enter program
not available.
Refer to Operation Manual for
program availability.
Malfunctioning Keypad Test Keypad in Diagnostics.
Display Console keys (except START
key) do not function and Exercise Bike
does not respond.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Display
Console.

5
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Insufficient battery voltage Check battery voltage. The LC9500,
LC9100, and C9i have a 6VDC
battery (non-alkaline) which should
test at a minimum of 6.0 VDC. The
LC8500, and C7 has a 9VDC alkaline
battery and it should test at a
minimum of 9.0 VDC. Replace battery
if it fails to meet minimum
requirements.
Loose wire connections Disconnect then, reconnect
connections.
Worn or damaged wire
harnesses
Inspect wire harnesses. Replace
worn or damaged harness.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Display
Console.
Malfunctioning Alternator
Control Board
Test with substitute Alternator Control
Board. Replace malfunctioning board.
Upon start of program, excessive
resistance load is immediate; no
normal, incremental increase from “no
load.”
Malfunctioning Alternator Test Alternator output or, test with
substitute Alternator. Replace
malfunctioning Alternator. Refer to
Alternator Voltage Test.
Loose wire connections Disconnect then, reconnect
connections.
Worn or damaged wire
harnesses
Inspect wire harnesses. Replace
worn or damaged harness.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace Display Console.
Malfunctioning Alternator
Control Board (ACB)
Test with substitute ACB. Replace
malfunctioning ACB.
During program, excessive resistance
loading occurs.
Malfunctioning Alternator Test Alternator output or, test with
substitute Alternator. Replace
malfunctioning Alternator. Refer to
Alternator Voltage Test.
Pedaling too slowly Pedal faster than 35 RPM.
Loose wire connections Disconnect then, reconnect
connections.
Worn or damaged harnesses Inspect wire harnesses. Replace
worn or damaged harness.
During MANUAL program, resistance
variation occurs.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace Display Console.

6
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Malfunctioning Alternator
Control Board
Test with substitute Alternator Control
Board. Replace defective board.
During MANUAL program, resistance
variation occurs.
Malfunctioning Alternator Test Alternator output or, test with
substitute Alternator. Replace
malfunctioning Alternator. Refer to
Alternator Voltage Test.
Loose wire connections Disconnect then, reconnect
connections.
Worn or damaged harnesses Inspect wire harnesses. Replace
worn or damaged harness.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Console.
Malfunctioning Alternator
Control Board
Test with substitute Alternator Control
Board. Replace defective board.
During RANDOM or HILL programs,
resistance is constant without variation
for interval training nor hill
incline/decline.
Malfunctioning Alternator Test Alternator output or, test with
substitute Alternator. Replace
malfunctioning Alternator. Refer to
Alternator Voltage Test.
Malfunctioning Pulley Clutch
Assembly
Inspect Clutch for free backward and
forward rotation. Replace
malfunctioning Pulley Clutch or
Freewheel.
Alternator Belt excessively
tight
Inspect belt deflection. Adjust as
necessary. Alternator Belt Deflection:
1/4 inch (6mm)
Alternator Belt Alignment OFF Realign alternator belt to far users left
groove of the alternator pulley, not in
the center.
Pedaling is difficult, feels restricted or,
is not possible when Exercise Bike has
not been started (START key not
pressed).
Crank bearings worn Replace Crank Bearings.
Pedaling too slowly Pedal faster than 30 RPM.
Program level doesn’t
challenge user ability
Select higher level.
Loose wire connections Disconnect then, reconnect
connections.
Worn or damaged harnesses Inspect wire harnesses. Replace
worn or damaged harness.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Display
Console.
During exercise program, pedaling is
insufficiently easy, not providing
adequate resistance.
Malfunctioning Alternator
Control Board
Test with substitute Alternator Control
Board. Replace defective board.

7
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Malfunctioning Alternator Test Alternator output or, test with
substitute Alternator. Replace
malfunctioning Alternator. Refer to
Alternator Voltage Test.
Alternator Belt excessively
loose
Inspect belt deflection. Adjust as
necessary. Alternator Belt Deflection:
1/4 inch (6mm)
During exercise program, pedaling is
insufficiently easy, not providing
adequate resistance.
Drive Belt excessively loose Inspect Belt. Replace Belt.
Battery Wires incorrectly
connected
Inspect connections: red wire to
positive (+) lead; black wire to
negative (-) lead.
Worn Battery Wires Inspect Wires. Replace Wires or
harness.
Battery leads grounding upon
frame
Inspect leads. Replace battery.
Battery over-heating during exercise
program.
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Console.
Stabilizer Foot Pads not
adjusted correctly
Adjust Foot Pads.
Floor surface not level Position Exercise Bike upon level
surface.
Wheel(s) damaged Replace damaged wheel(s).
Exercise Bike not stable upon floor.
Frame damaged Contact Customer Support Services.
Non-carpeted, hard surface
floor
Place Exercise Bike upon softer
surfaced floor.
Improper riding style Change style. Do not lean excessively
to either side.
Crank Bearings worn Inspect Bearings. Replace as
necessary.
Alternator Belt excessively
loose
Inspect belt deflection. Adjust as
necessary.
Alternator Belt Deflection: 1/4 inch
(6mm)
Alternator Belt worn Replace Belt.
Malfunctioning Alternator Operate Exercise Bike as in normal
use with light and heavy load levels.
Listen for excessive noise. Replace
Alternator as necessary.
Drive Belt excessively loose Inspect Belt. Replace Belt.
During exercise program, loud noise
issuing from Exercise Bike.
Free-wheel Pulley Assembly Inspect clutch for free rotation.
Replace defective Freewheel Pulley.

8
Lifecycle Upright Bikes LC95, LC91, LC85, C9, C7, 95Ce, 95Ci, 93Ci, and 90C
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
No heart rate reading Executive Diagnostic Mode to verify
performance of heart rate function.
Faulty cable connection Verify heart-rate cable is properly
connected.
Using an ohmmeter, verify continuity
at the main console cable. See wiring
diagram for pin location.
Malfunctioning
Handlebar/Lifepulse Grip
Assembly (include. Worn or
damaged heart rate lead)
Replace Handlebar/Lifepulse
Assembly.
Life Pulse handlebar Verify that the handlebar is
functioning. See diagrams.
Using an ohmmeter, verify continuity
between Lifepulse sensor and cable
connection. See wiring diagram for
pin location.
Handlebar/Lifepulse Grip
Assembly
Dry wipe sensors.
Loose or malfunctioning heart
rate lead connection at Display
Console
Secure connection. Replace
malfunctioning Handlebar/Lifepulse
Grip Assembly
Malfunctioning Display
Console
Test with substitute Display Console.
Replace malfunctioning Display
Console.
No heart rate or, display reads (No
Heart Rate).
Wear or damage to grip Replace the handlebar assembly.
Key pad malfunction. Run Key pad test in diagnostics.
Replace if defective.
Channels do not change.
Interface PC board defective. Replace Interface PC board.
Key pad malfunction. Run Key pad test in diagnostics.
Replace if defective.
Sound does not change.
Interface PC board defective. Replace Interface PC board.
Faulty PCB Only one channel programmed Follow the setup procedures in the
operator manual.
Faulty headphones. Replace headphones.
Faulty headphone jack Replace headphone jack assembly.
Faulty cable to Headphone
jack assembly
Replace Headphone jack cable.
Air/cable setting may not be
correct
Follow the set up procedures in the
operators’ manual.
No sound.
Power applied prior to video
hookup
Power down, install video, and follow
channel instruction.
